ERC3405 - Rice cooker ELECTROLUX - Free user manual and instructions

Product type	Rice cooker
Brand	Electrolux
Model	ERC3405
Capacity	1.8 L (uncooked rice)
Power	600 W
Voltage	220-240 V / 50-60 Hz
Dimensions (W x D x H)	250 x 250 x 250 mm
Weight	2.0 kg
Housing material	Plastic
Inner pot material	Non-stick coated aluminum
Lid	Detachable with condensation collector
Cooking functions	White rice, brown rice, steaming
Keep warm	Automatic, up to 12 hours
Timer	Not available
Indicator lights	Cooking and keep warm indicators
Auto shut-off	Yes, after cooking cycle
Power cord	Detachable, approx. 1 m
Cleaning	Wipe body; wash inner pot and lid with warm soapy water
Safety features	Overheat protection, automatic switch-off
Spare parts	Inner pot, lid, measuring cup, spatula
Accessories included	Measuring cup, rice spatula, steaming basket
Warranty	2 years
Servings	1 to 6 servings

Frequently Asked Questions - ERC3405 ELECTROLUX

How do I cook rice with the Electrolux ERC3405?

Add the desired amount of rice and water, select the cooking function (e.g., white rice), then press the start button. The cooker will automatically switch to keep warm when done.

Can I steam vegetables in this rice cooker?

Yes, you can use the included steaming basket. Add water to the inner pot, place vegetables in the basket, and select the steam function.

How long does it take to cook white rice?

Typically 20 to 30 minutes, depending on the rice amount and water ratio.

How do I clean the rice cooker?

Let it cool completely. Wipe the exterior with a damp cloth. Wash the inner pot, lid, and accessories with mild soap and warm water. Do not immerse the base in water.

Why does my rice burn or stick to the bottom?

This may happen if there is too little water or the inner pot is scratched. Always use the correct water ratio and avoid using metal utensils on the non-stick coating.

Can I cook grains other than rice?

Yes, you can cook quinoa, barley, or oatmeal. Adjust water amounts according to the grain type; using the white rice function is often suitable.

What is the keep warm function?

After the cooking cycle, the cooker automatically switches to keep warm, maintaining a temperature around 65°C for up to 12 hours to keep rice warm without overcooking.

How much rice can I cook at once?

The maximum capacity is 1.8 liters of uncooked rice, which yields approximately 10 cups of cooked rice (1.8 kg).”

Is the inner pot dishwasher safe?

Hand washing is recommended to preserve the non-stick coating. Dishwasher detergents may damage the surface over time.

Where can I purchase spare parts or accessories?

Contact Electrolux customer service or visit their official website to order original spare parts like the inner pot, lid, measuring cup, and steaming basket.

USER MANUAL ERC3405 ELECTROLUX

INSTRUCTION MANUAL

Graphics and drawings in this manual are solely for illustration purposes and are subject to variations from actual product.

Read all instructions carefully before using the appliance for the first time.

Keep this manual for future reference

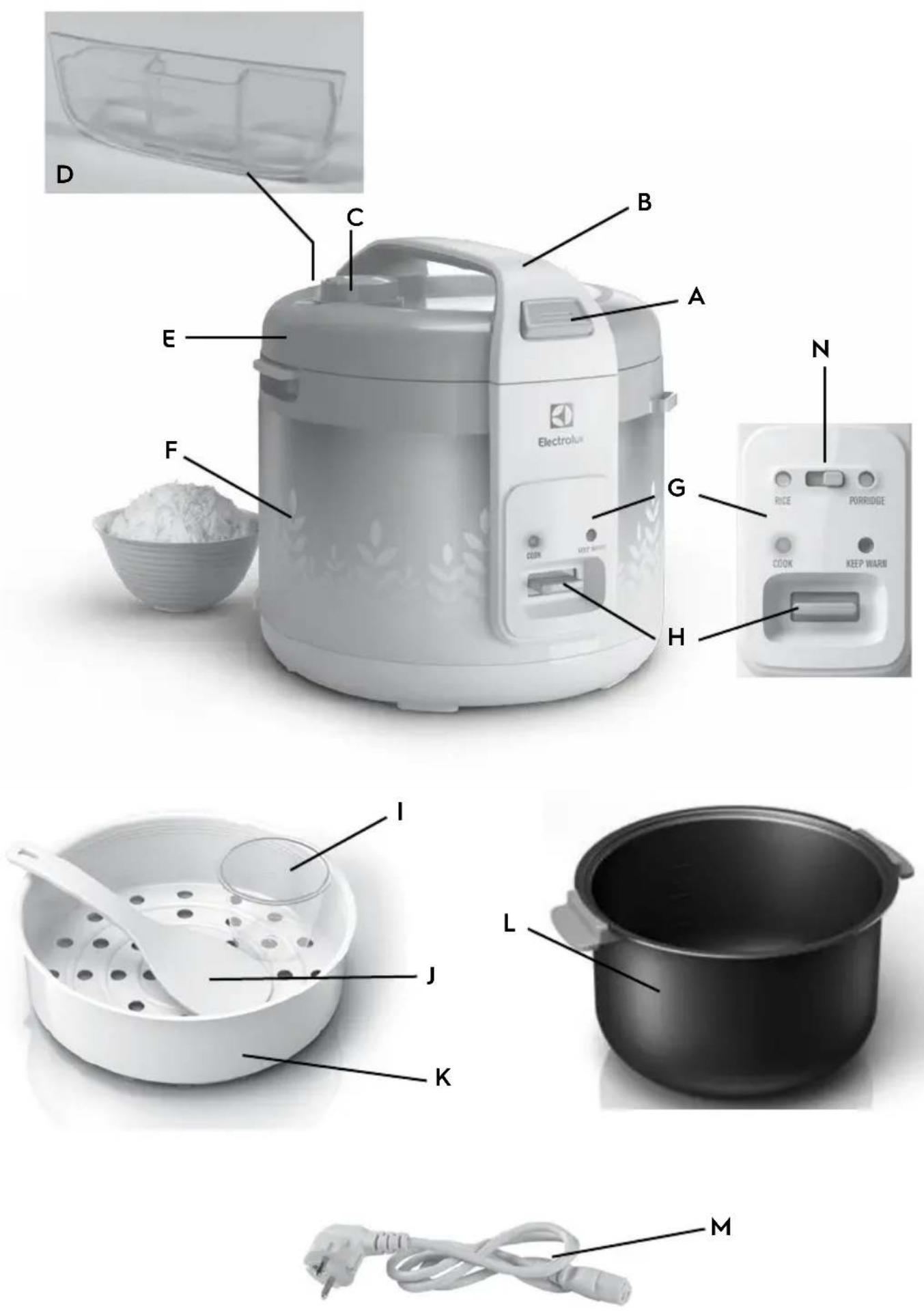

COMPONENTS

A. Lid release button

B. Handle

C. Steam valve

D. Water holder

E. Lid

F. Body

G. Control panel*

H. Control lever

I. Measuring cup

J. Rice paddle

K. Steam tray

L. Inner pot^

M. Power cord^^

N. Function selector ^^^^

* Specifications vary by model

^ ERC3305 and ERC3405 comes with pot holder

^^ ERC3405 comes with detachable power cord

^^^ ERC3405 only

SAFETY ADVICE

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Keep the appliance and its power cord out of reach of children. Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be performed by children without supervision.
• The appliance can only be connected to a power supply which voltage and frequency comply with the specifications on the rating plate.
• Do not touch hot surfaces. Use the handle.
• To protect against electrical shock, do not immerse cord, plug, or rice cooker in water or any other liquid.
• Unplug rice cooker from electrical outlet when not in use and before cleaning. Allow appliance to cool before adding or taking parts off.
• Do not operate any appliance with a damaged cord or plug it in if the appliance malfunctions, or has been damaged in any manner. Return appliance to the manufacturer or appointed service agent for examination, repair, or adjustment.
• Do not use outdoors.
• Do not let the electrical cord hang over the edge of a table or touch hot surfaces.
• Do not place on, or near, a hot gas or electrical burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• As a safety feature, this product is equipped with a grounded plug. Improper connection of the grounding conductor may result in the risk of electric shock. Consult a qualified electrician if you are in doubt as to whether the outlet is properly grounded.
• A short power supply cord is provided to reduce the risk resulting from becoming entangled in, or tripping, over a longer cord.
• If an extension cord is used, the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, and the cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.
• To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user serviceable parts inside. Repair should be done only by authorized Electrolux technicians.
• If the power supply cord is damaged, it should be replaced by a qualified technician from Electrolux.
• Warning! There may be residual heat after use on heater plate. Do not touch the heater plate immediately after use.
• Warning! Do not use the appliance other than intended use, which may cause potential injury. WARNING! DO NOT IMMERSE THE APPLIANCE AND AVOID SPILLAGE ON THE CONNECTOR.

GETTING STARTED

1. Before using the appliance for the first time, clean the parts of the rice cooker thoroughly. Make sure all the parts are completely dry before you start using the appliance.
2. To prevent the damage of the non-stick coating in the inner pot, use a separate container to wash the rice.
3. Measure the rice using the measuring cup provided. Do not exceed the quantities indicated on the inside of the inner pot.
4. Place the washed rice into the inner pot.
5. Add water to the level indicated on the scale inside the inner pot that corresponds to the number of cups of rice used.
6. Dry the out side of the inner pot.
7. Place the inner pot in the rice cooker.
8. Close the lid of the rice cooker until a 'click' sound is heard.
9. Plug in the power cord into the rice cooker and to the wall socket and switch on the mains.

RICE FUNCTION

1. Add the pre-washed rice and appropriate amount of water into the inner pot.
2. Press the control lever down to start the cooking. The light indicator will switch to "COOK".
3. The light indicator will switch to "KEEP WARM" automatically when the rice is cooked.
4. Open the lid and stir the rice to loosen it. For best results, do this just after the rice cooker has switched to keep-warm mode. Then close the lid firmly. Stirring the rice allows excess steam to escape. This will give fluffier rice.

PORRIDGE FUNCTION

This function can be found on ERC3405 only.

1. Switch the function selection to "PORRIDGE".
2. Add the pre-washed rice, ingredients and appropriate amount of water into the inner pot.
3. Press the control lever down to start the cooking. The light indicator will switch to "COOK".
4. When the porridge is ready, pull up the lever manually. The rice cooker will switch to "KEEP WARM" after 1-2 min.

NOTE: Slowly open the lid, avoid the accumulated water on the upper cover entering the pot.

STEAM FUNCTION (MANUAL CONTROL)

1. Add appropriate amount of water into the inner pot. The amount of water varies according to the quantity of food to be steamed. Ensure that the water level does not exceed the height of the steam tray. Insert the steam tray into the inner pot and place the food on the plate or on the steam tray.

2. Press the control lever down to start the cooking. The light indicator will switch to "COOK"

*For ERC3405, switch the function selection to "RICE".

NOTE: To ensure even steaming, the food should be spread out evenly and should not be piled up.

CLEANING AND CARE

1. Unplug the rice cooker before you start cleaning it. Wait until the rice cooker has cooled down sufficiently before cleaning.
2. Remove the steam tray and the inner pot from the body of the appliance.
3. Clean the inner pot, steam tray, rice paddle and steam valve with a sponge or a cloth in warm water with some washing liquid.
4. To protect the non-stick coating of the inner pot, do not use the inner pot for washing dishes or put vinegar in the pot.
   Do not use abrasive cleaning agents, scouring pad or metal utensils to clean the inner pot as these will damage the non-stick coating.
5. Cleaning the water holder: Detach the water holder from the rice cooker. After cleaning, attached the water holder back to the rice cooker.
6. Cleaning the steam valve: Detach the steam valve from the rice cooker. Twist and turn to unlock the steam valve, and pull it outwards. After cleaning, attached the steam valve back to the rice cooker.

TROUBLESHOOTING

Symptoms Possible Causes Solutions
The indicator light does not light up.	The circuit of electric rice cooker is not connected to power supply.	Check that the switch, plug and socket, fuse and leading wire of the power supply are in good condition and properly connected to the mains and if plug is inserted firmly into the wall socket.
The heater plate is not warm.	The power wiring board is damaged.	Contact authorized service center.
The KEEP WARM light does not light up when the cooking process is completed.	The circuit connection breaks down.
	The master circuit board is damaged.
	The heater plate is burnt out.
	The light is defective.
The rice is not cooked or cooking time is taking too long.	Not enough water is added.	Add water to the level indicated on the scale inside the inner pot that corresponds to the number of cups of rice used.
	Cooking time is insufficient.	Press down the control lever to start the cooking process.
	The inner pot is not properly in contact with the heater plate.	Make sure there is no foreign residue on the heater plate.
	Possible foreign matter between the inner pot and heater plate.
	The heater plate is damaged.	Contact authorized service center.
The rice is too hard or too soft.	Not enough or too much water has been added.	Add water to the level indicated on the scale inside the inner pot that corresponds to the number of cups of rice used.
The rice is scorched.	The rice has not been rinsed well.	Rinse the rice until water runs clear.
	The master temperature controller is defective.	Contact authorized service center.
The rice cooker does not automatically switch to keep warm mode.	The master temperature controller is defective.	Contact authorized service center.

DISPOSAL

Recycle the materials with the symbol ⚙. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances.

Do not dispose appliances marked with the symbol — with the household waste. Return the product to your local recycling facility or contact your municipal office.

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.

Due to the Electrolux policy of continual product development; specifications, colours, and details of our products and those mentioned in this manual are subject to change without notice.
