Product Type	Undermount Kitchen Sink
Material	Stainless Steel
Finish	Brushed Satin
Number of Bowls	Double Bowl
Overall Dimensions	33 inches x 22 inches x 10 inches
Bowl Depth	10 inches
Weight	25 lbs
Installation Type	Undermount
Noise Dampening	Sound-absorbing pads included
Drain Hole	3.5 inches standard
Primary Functions	Washing dishes, food preparation, large pot washing
Maintenance & Cleaning	Wipe with damp cloth and mild soap; avoid abrasive pads
Safety	Rounded corners for easy cleaning and injury prevention
Spare Parts & Repairability	Replacement drain assembly and clips available
Warranty	Limited Lifetime Warranty
Certifications	cUPC certified
Package Contents	Sink, mounting clips, drain assembly, cutout template

Frequently Asked Questions - Garmisch SLS-45 ZLine

What is the material of the ZLine Garmisch SLS-45 kitchen sink?

The sink is made of stainless steel with a brushed satin finish.

Is the sink undermount or top-mount?

It is designed for undermount installation.

What are the overall dimensions of the sink?

The dimensions are approximately 33 inches by 22 inches by 10 inches (length x width x depth).

Does the sink come with a drain?

Yes, a drain assembly is included with the sink.

How do I clean the sink?

Clean with a damp cloth and mild soap. Avoid abrasive cleaners or scouring pads that may scratch the surface.

What is the warranty on this sink?

ZLine offers a Limited Lifetime Warranty for the original purchaser.

Is the sink resistant to scratches and stains?

The stainless steel construction provides good resistance to scratches and stains with proper care.

Can I install the sink myself?

Yes, if you have basic plumbing skills. The package includes a cutout template and mounting clips. Professional installation is recommended.

How many bowls does the sink have?

It is a double bowl sink.

Does the sink have noise dampening features?

Yes, it includes sound-absorbing pads to reduce noise from running water and dishes.

USER MANUAL Garmisch SLS-45 ZLine

Stylized blue water droplet icon with glossy effect (no text or symbols)

FIRECLAY SINKS

Installation Guide and Users Manual

WARNING

This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov.

Even though the materials used in all ZLINE Kitchen and Bath products conform to all federal government regulations and all national product standards, California's Prop 65 requires all businesses to provide a "clear and reasonable warning" if one or more listed chemicals may be present in the product, even if that chemical is present in trace quantities

ZLINE

Each ZLINE fireclay sink is meticulously hand-crafted and Italian-made, offering a truly luxurious design and aesthetic. Constructed to be resistant to bacteria, stains, and cracks, these statement sinks are non-porous and naturally sound absorbing. Due to the way the high quality clay mixture is fired, ZLINE fireclay sinks are more durable than traditional ceramic sinks, allowing for a worry-free washing experience. Four layers of thick glaze creates the beautiful, shiny complexion seen on ZLINE fireclay sinks.

CONTENTS

• SAFETY INSTRUCTIONS 1
  ACCESSORIES

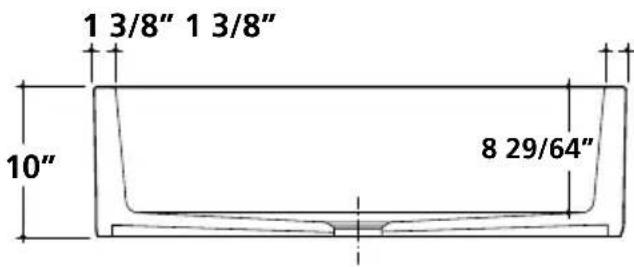

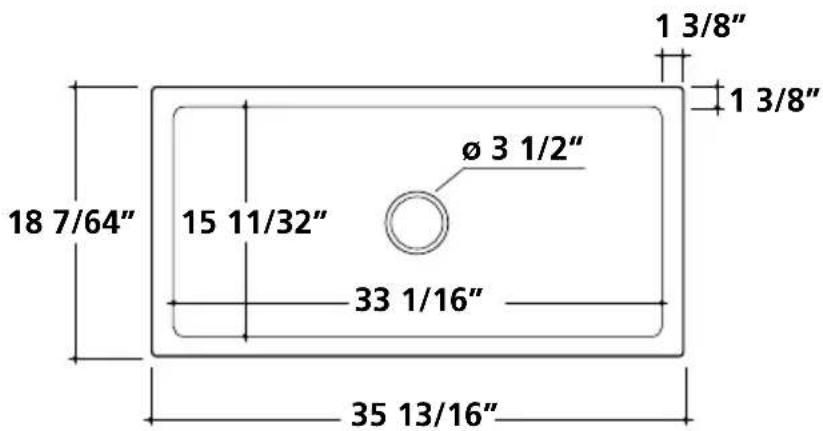

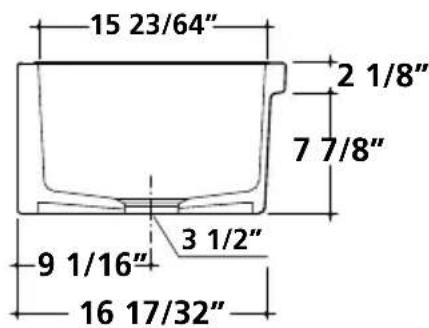

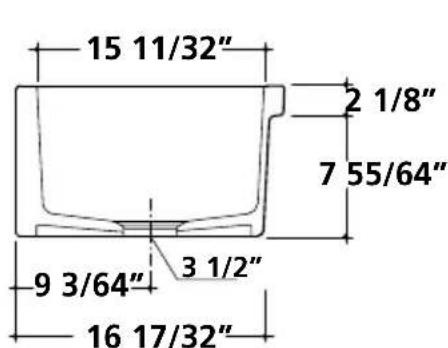

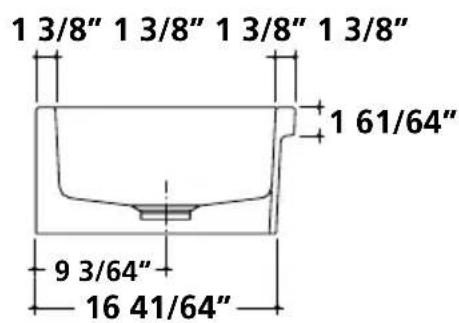

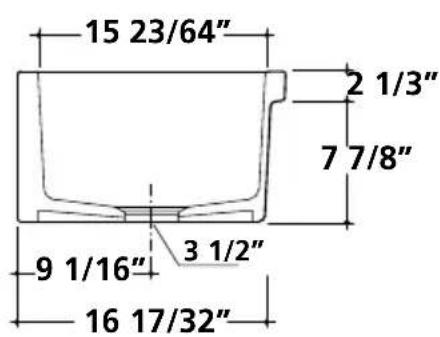

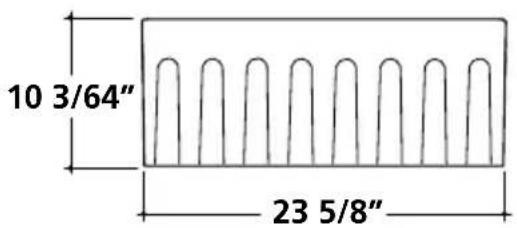

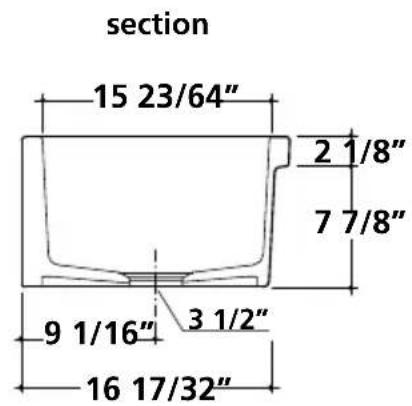

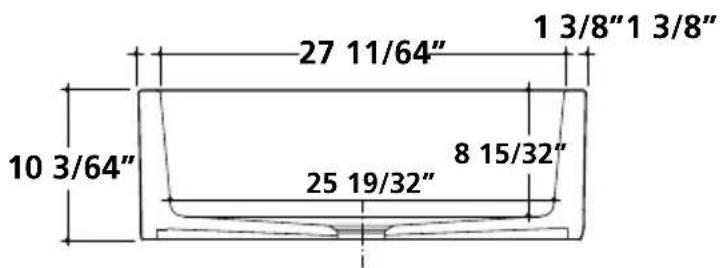

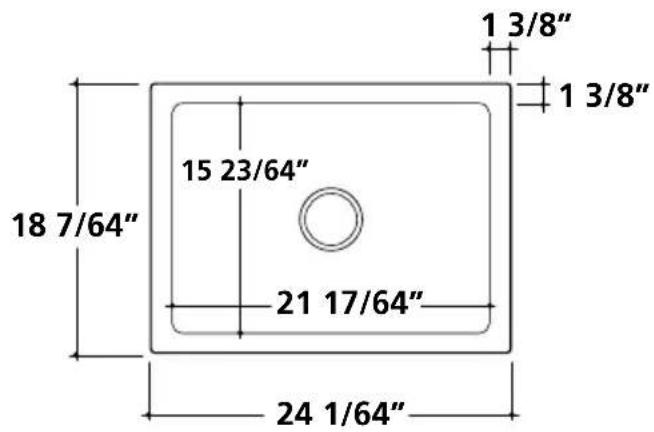

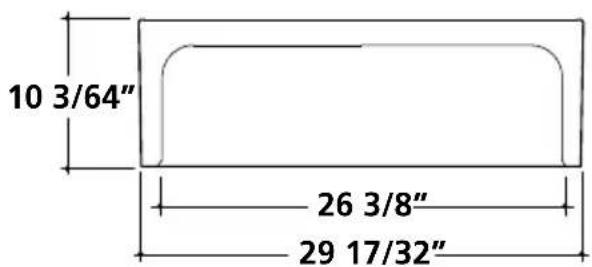

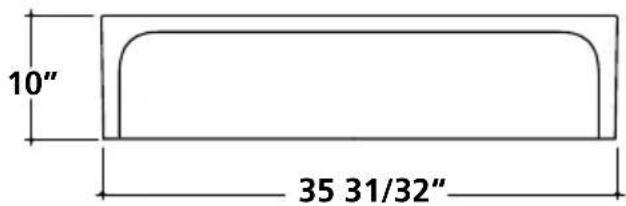

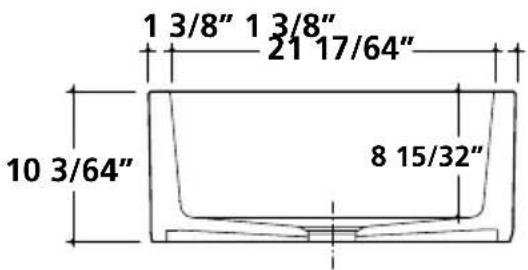

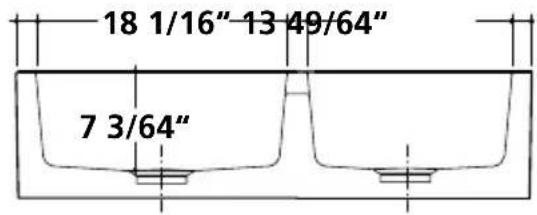

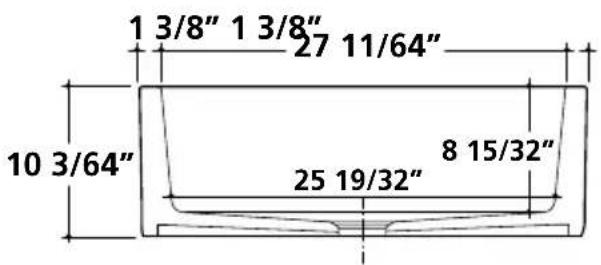

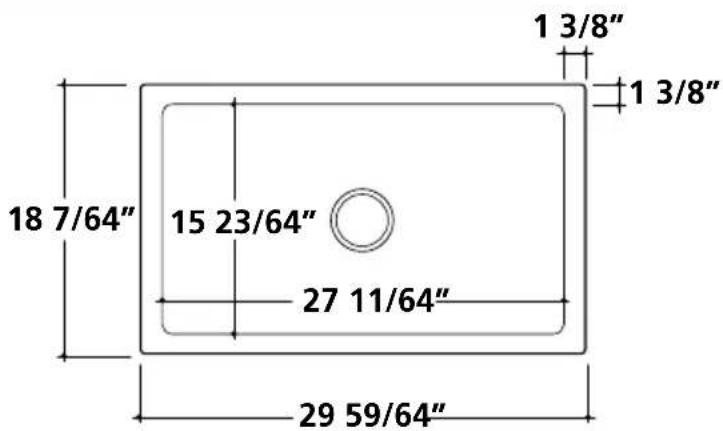

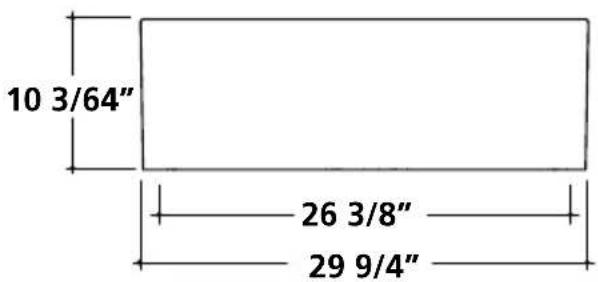

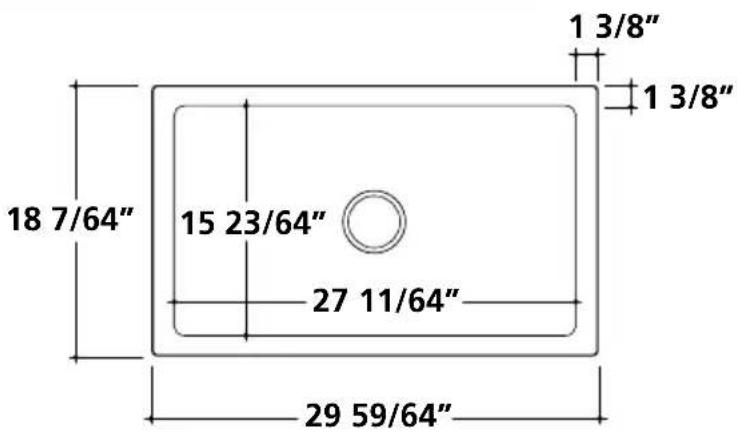

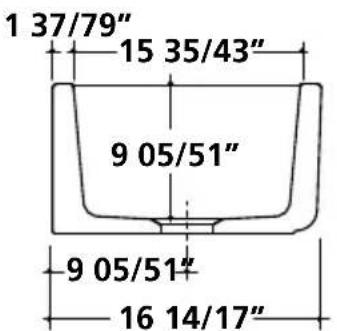

  SINK DIMENSIONS
  SINK INSTALLATION 11
  CARE AND CLEANING 12

SAFETY INSTRUCTIONS

The installer and/or user must read, understand, and follow these instructions before installing the product. This product must be properly installed before it is used. If instructions are not followed, the manufacturer will not be held responsible for any problems or product malfunction. Failure to follow installation and/or operating instructions voids the warranty.

We recommend that this product be installed by a certified plumber. In some states or provinces, it is a legal requirement for this type of product to be installed by a certified plumber, according to the plumbing and building codes effective in the region where the sink is used.

DO NOT attempt to install this sink yourself. Injury could result from installing the unit due to lack of appropriate plumbing and technical background. Due to the size and weight of this sink, a two person installation is recommended.

It is recommended that the cabinet maker waits until the sink is delivered to construct the cabinets.

Shut off the water valves before installing the sink or doing any maintenance.

- Disconnect the power to the dishwasher and garbage disposal.

Open the sink packaging and verify that the sink is in perfect condition. Put the sink back in its packaging to protect it until time of installation. Do not install the sink if defects are found. Call customer service at 1-614-777-5004 for assistance. Please keep in mind that ZLINE fireclay sinks are handcrafted and have a +/- 2% variance on the dimensions.

ACCESSORIES

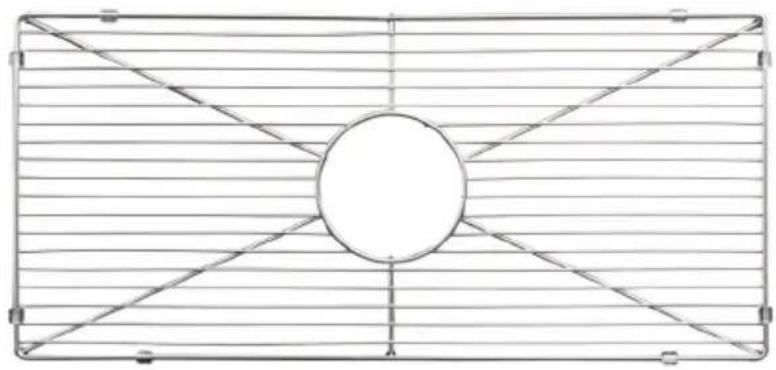

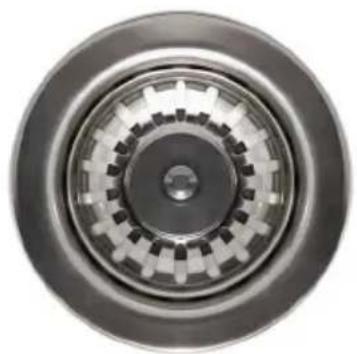

All apron mount models come with a strainer and utility rack.

Close-up of a mechanical bearing assembly showing concentric rings and central hub (no text or symbols)

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Utility RackStrainer

Fireclay Sink Single Bowl

FRC5117-30 (Apron Mount)

Fireclay Sink Single Bowl

FRC5119-30 (Apron Mount)

Fireclay Sink Single Bowl

FRC5120-24 (Apron Mount)

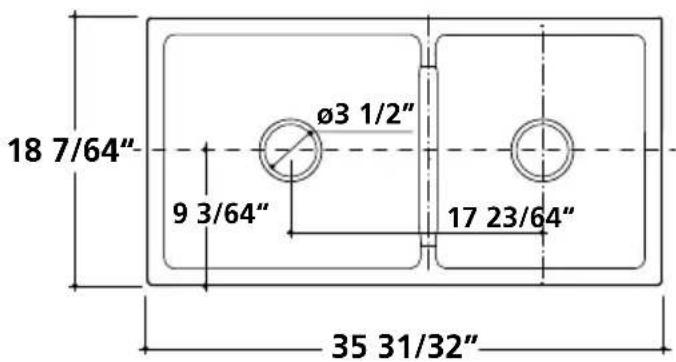

Fireclay Sink Double Bowl

FRC5121-36 (Apron Mount)

Fireclay Sink Single Bowl

FRC5122-36 (Apron Mount)

Fireclay Sink Single Bowl

FRC5123-36 (Dual Mount)

Fireclay Sink Single Bowl

FRC5124-24 (Dual Mount)

Fireclay Sink Single Bowl

FRC5131-33 (Apron Mount)

Pure diagram of eight vertical oval shapes arranged in a row (no text or symbols)

SINK INSTALLATION

Before Installation

Inspect the sink for any visible defects. Do not install the sink if defects are found. Call customer service at 1-614-777-5004 for assistance. Please keep in mind that ZLINE fireclay sinks are handcrafted and have a +/- 2% variance on the dimensions.

Installation

1. Preparing the Cabinets

Make sure that the tank will not interfere with cabinet doors or panels. Ensure that there is enough space for the water supply installation.

2. Build a Support Frame

Fireclay sinks need support due to their weight. Install 2x4s underneath the sink to reinforce it. Create both vertical and horizontal supports.

3. Insert the Sink

Insert the sink on the support frame. Apply silicone-based sealant to each corner between the frame and the sink.

Easy Cleaning Instructions

Fireclay sinks can be washed with dish soap and water. A rinse and towel drying after each use will take care of most everyday clean ups.

Scratches

Matte finishes tend to show more markings. Markings that appear to be scratches are typically residue left by metal cutlery or pots and pans. It is recommended to use a utility grid (included with apron mount models) to reduce the appearance of markings. Markings can be removed with a diamond sponge or a Scotch-Brite™ pad and baking soda.

Chips

Fireclay sinks are extremely resistant to chips, but if any small chips are found, there are repair kits available at most local hardware stores.

Food

Food can easily become stuck in the corners of the fireclay sink due to its shape. Rinse out all food particles to keep the sink clean.

Dos and Dont's

Do rinse thoroughly after each use.

Do towel dry after each use to prevent mineral deposits from building up on the surface of the sink.

Do clean the sink once a week.

Do wax the sink once a month.

Do Not allow soap or other household cleansers to dry on the surface of the sink.

Do Not use abrasive cleaners to clean your sink.
