Product Type	Fireclay Kitchen Sink
Brand	ZLine
Model	SK-QAD-MB-33
Installation Type	Apron Mount (Farmhouse)
Number of Bowls	Single Bowl
Material	Fireclay (Handcrafted, Italian-made)
Width	33 inches
Weight	Approximately 80-100 lbs (requires support)
Finish	High-gloss glazed surface
Resistance	Stain, chip, crack, and bacteria resistant
Sound Absorption	Naturally sound absorbing due to material density
Accessories Included	Strainer and Utility Rack
Cutout Required	Apron front opening; see manual for exact dimensions
Recommended Support	2x4 framing underneath (due to weight)
Care Instructions	Hand wash with mild soap; towel dry; avoid abrasive cleaners
Maintenance	Weekly cleaning; monthly waxing recommended
Safety Warning	Contains nickel; California Prop 65 compliant warning
Country of Origin	Italy
Warranty	Lifetime limited warranty against manufacturing defects (verify with manufacturer)
Customer Service	1-614-777-5004

Frequently Asked Questions - SK-QAD-MB-33 ZLine

What tools are needed for installation of the ZLine SK-QAD-MB-33 sink?

Installation typically requires a silicone-based sealant, a support frame made of 2x4 lumber, a level, and basic plumbing tools. It is recommended to have a certified plumber perform the installation due to the sink's weight and plumbing connections.

How do I clean the fireclay sink?

Clean the sink with mild dish soap and water after each use. Rinse thoroughly and towel dry to prevent mineral deposits. For stubborn marks, use a non-abrasive sponge with baking soda. Avoid abrasive cleaners that may damage the glaze.

Can I use a garbage disposal with this sink?

Yes, a garbage disposal can be installed with the sink. Ensure the disposal is properly supported and does not exceed the sink's weight capacity. Disconnect power before installation.

What is the weight of the sink and does it require special support?

The sink is heavy, typically 80-100 lbs. It requires a support frame of 2x4 lumber installed underneath the sink within the cabinet. Two people are recommended for lifting and installation.

How do I remove scratches from the fireclay surface?

Markings that appear as scratches are often metal residue from utensils. Use a diamond sponge or a Scotch-Brite pad with baking soda to gently buff them away. The utility rack included helps reduce such markings.

What is the warranty for the ZLine SK-QAD-MB-33 sink?

ZLine offers a limited lifetime warranty against manufacturing defects for fireclay sinks. For specific terms and to register your product, contact customer service at 1-614-777-5004.

Can the sink be undermounted instead of apron mount?

The SK-QAD-MB-33 is specifically designed as an apron mount (farmhouse) sink. It cannot be undermounted. Ensure your cabinet has an open front for the apron.

What is the dimension tolerance for the sink?

Since the sink is handcrafted, there is a +/- 2% variance on the listed dimensions. Measure the actual sink before building cabinets or making cutouts.

How do I repair a chip in the fireclay?

Small chips can be repaired using a fireclay repair kit available at local hardware stores. Follow the kit instructions for a seamless fix.

Is the sink resistant to staining and bacteria?

Yes, the fireclay material is non-porous and resistant to stains and bacteria. The four-layer glaze ensures a durable, easy-to-clean surface. Regular cleaning maintains its appearance.

USER MANUAL SK-QAD-MB-33 ZLine

Stylized blue water droplet icon with glossy effect (no text or symbols)

FIRECLAY SINKS

Installation Guide and Users Manual

WARNING

This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov.

Even though the materials used in all ZLINE Kitchen and Bath products conform to all federal government regulations and all national product standards, California's Prop 65 requires all businesses to provide a "clear and reasonable warning" if one or more listed chemicals may be present in the product, even if that chemical is present in trace quantities

ZLINE

Each ZLINE fireclay sink is meticulously hand-crafted and Italian-made, offering a truly luxurious design and aesthetic. Constructed to be resistant to bacteria, stains, and cracks, these statement sinks are non-porous and naturally sound absorbing. Due to the way the high quality clay mixture is fired, ZLINE fireclay sinks are more durable than traditional ceramic sinks, allowing for a worry-free washing experience. Four layers of thick glaze creates the beautiful, shiny complexion seen on ZLINE fireclay sinks.

CONTENTS

• SAFETY INSTRUCTIONS 1
  ACCESSORIES

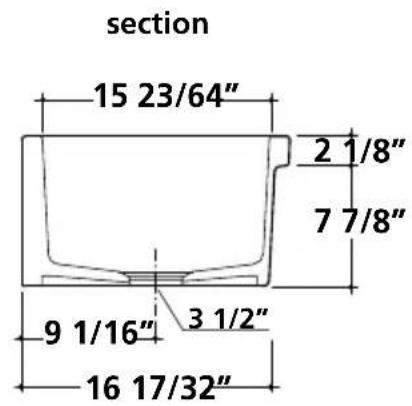

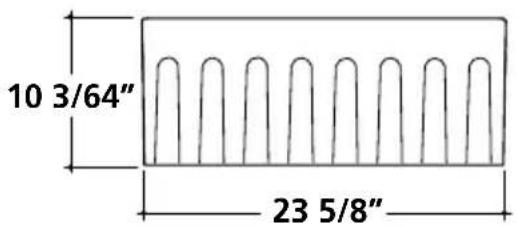

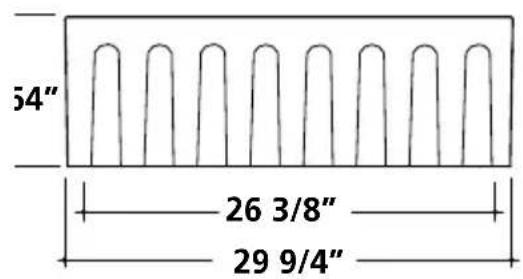

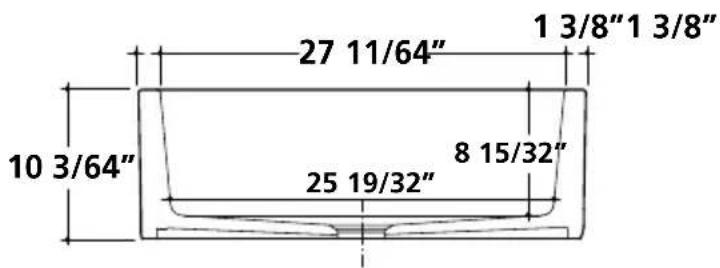

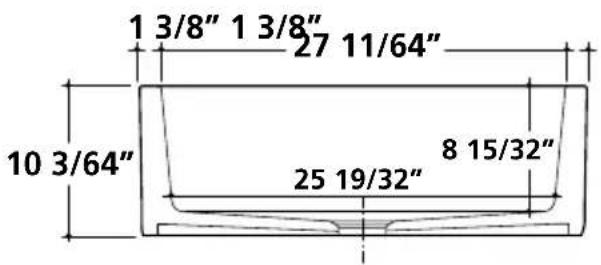

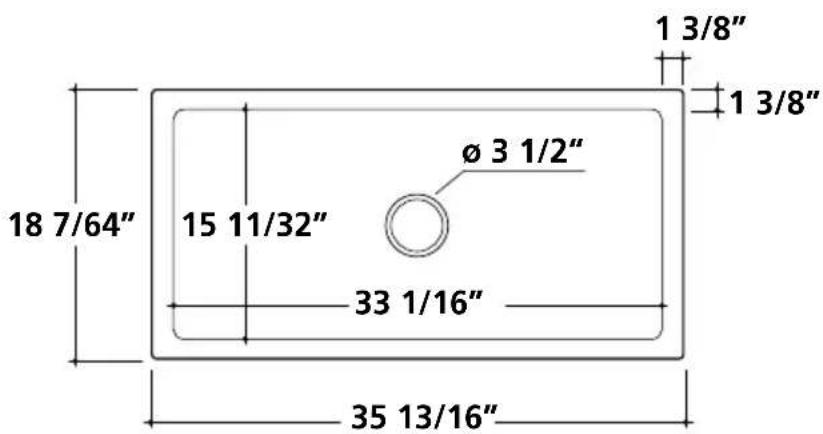

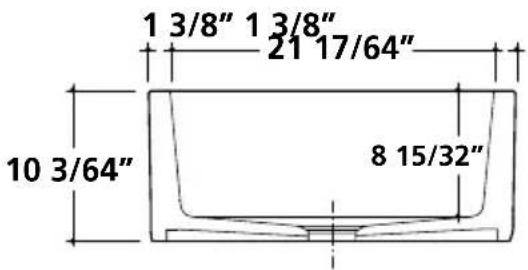

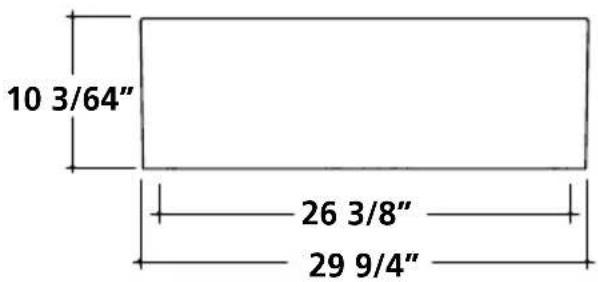

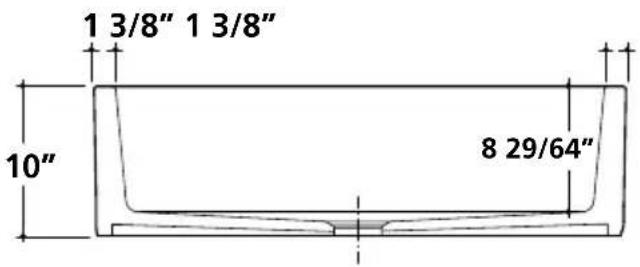

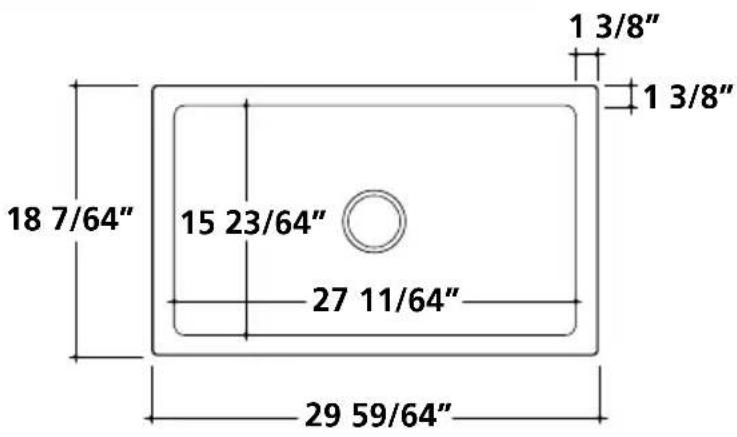

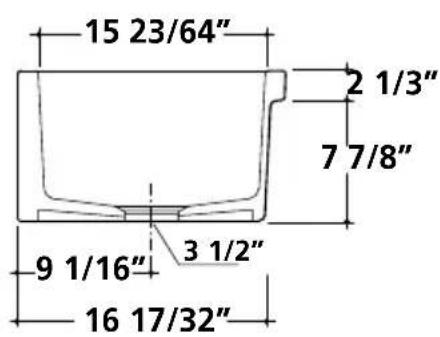

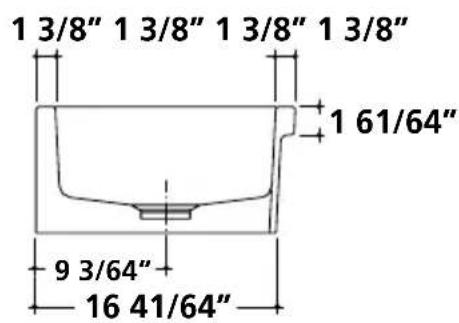

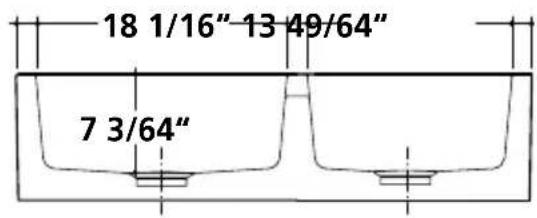

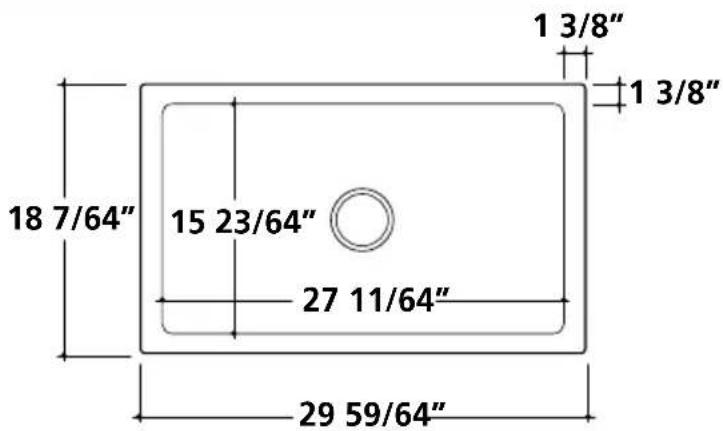

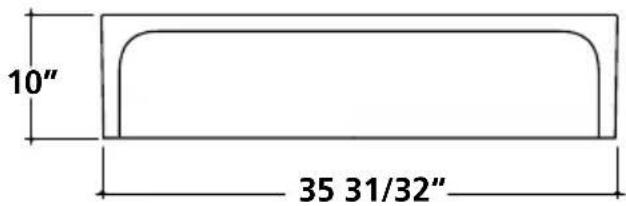

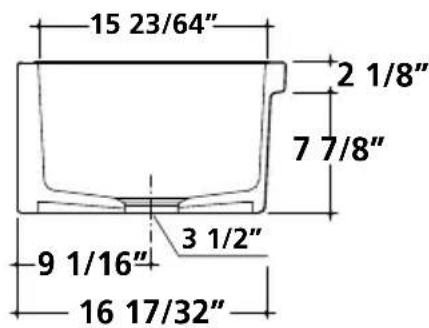

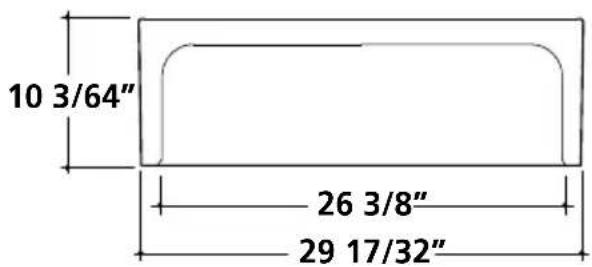

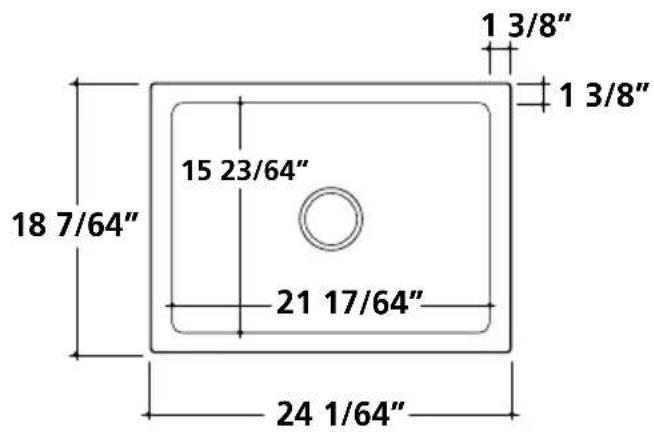

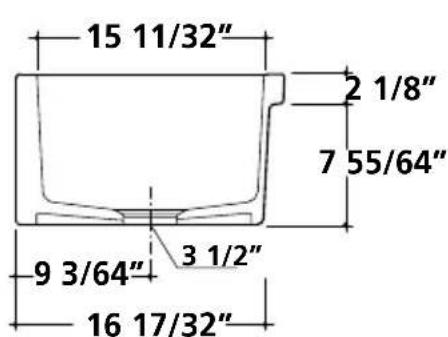

  SINK DIMENSIONS
  SINK INSTALLATION 11
  CARE AND CLEANING 12

SAFETY INSTRUCTIONS

The installer and/or user must read, understand, and follow these instructions before installing the product. This product must be properly installed before it is used. If instructions are not followed, the manufacturer will not be held responsible for any problems or product malfunction. Failure to follow installation and/or operating instructions voids the warranty.

We recommend that this product be installed by a certified plumber. In some states or provinces, it is a legal requirement for this type of product to be installed by a certified plumber, according to the plumbing and building codes effective in the region where the sink is used.

DO NOT attempt to install this sink yourself. Injury could result from installing the unit due to lack of appropriate plumbing and technical background. Due to the size and weight of this sink, a two person installation is recommended.

It is recommended that the cabinet maker waits until the sink is delivered to construct the cabinets.

Shut off the water valves before installing the sink or doing any maintenance.

- Disconnect the power to the dishwasher and garbage disposal.

Open the sink packaging and verify that the sink is in perfect condition. Put the sink back in its packaging to protect it until time of installation. Do not install the sink if defects are found. Call customer service at 1-614-777-5004 for assistance. Please keep in mind that ZLINE fireclay sinks are handcrafted and have a +/- 2% variance on the dimensions.

ACCESSORIES

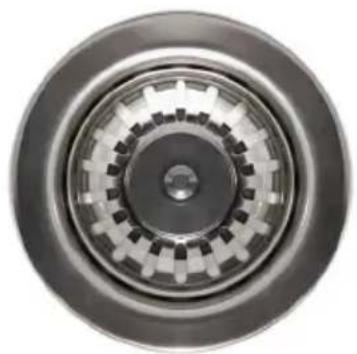

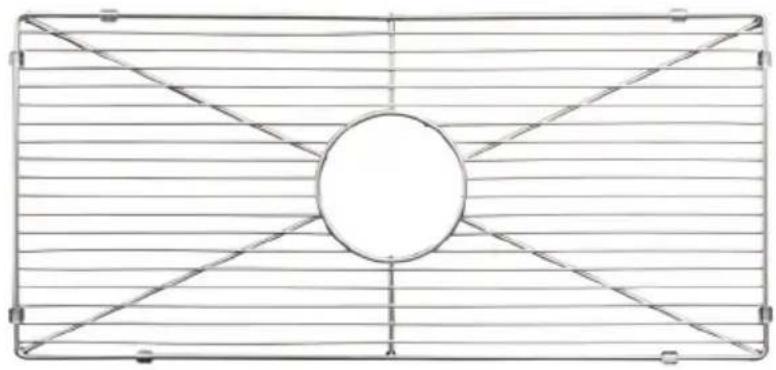

All apron mount models come with a strainer and utility rack.

Close-up of a mechanical component with concentric rings and central hub (no visible text or symbols)

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Utility RackStrainer

Fireclay Sink Single Bowl

FRC5117-30 (Apron Mount)

Fireclay Sink Single Bowl

FRC5119-30 (Apron Mount)

Fireclay Sink Single Bowl

FRC5120-24 (Apron Mount)

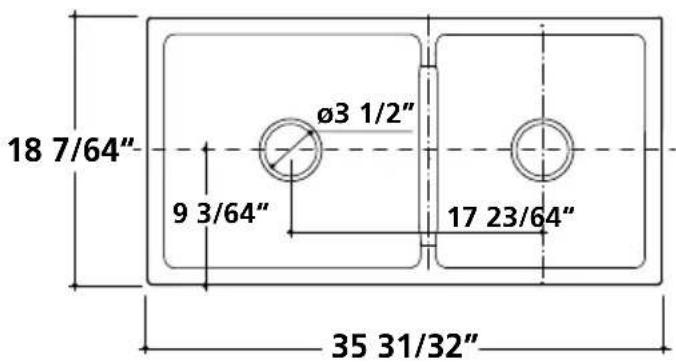

Fireclay Sink Double Bowl

FRC5121-36 (Apron Mount)

Fireclay Sink Single Bowl

FRC5122-36 (Apron Mount)

Fireclay Sink Single Bowl

FRC5123-36 (Dual Mount)

Fireclay Sink Single Bowl

FRC5124-24 (Dual Mount)

Fireclay Sink Single Bowl

FRC5131-33 (Apron Mount)

Pure diagram of eight vertical oval shapes arranged in a row (no text or symbols)

Before Installation

Inspect the sink for any visible defects. Do not install the sink if defects are found. Call customer service at 1-614-777-5004 for assistance. Please keep in mind that ZLINE fireclay sinks are handcrafted and have a +/- 2% variance on the dimensions.

Installation

1. Preparing the Cabinets

Make sure that the tank will not interfere with cabinet doors or panels. Ensure that there is enough space for the water supply installation.

2. Build a Support Frame

Fireclay sinks need support due to their weight. Install 2x4s underneath the sink to reinforce it. Create both vertical and horizontal supports.

3. Insert the Sink

Insert the sink on the support frame. Apply silicone-based sealant to each corner between the frame and the sink.

Easy Cleaning Instructions

Fireclay sinks can be washed with dish soap and water. A rinse and towel drying after each use will take care of most everyday clean ups.

Scratches

Matte finishes tend to show more markings. Markings that appear to be scratches are typically residue left by metal cutlery or pots and pans. It is recommended to use a utility grid (included with apron mount models) to reduce the appearance of markings. Markings can be removed with a diamond sponge or a Scotch-Brite™ pad and baking soda.

Chips

Fireclay sinks are extremely resistant to chips, but if any small chips are found, there are repair kits available at most local hardware stores.

Food

Food can easily become stuck in the corners of the fireclay sink due to its shape. Rinse out all food particles to keep the sink clean.

Dos and Dont's

Do rinse thoroughly after each use.

Do towel dry after each use to prevent mineral deposits from building up on the surface of the sink.

Do clean the sink once a week.

Do wax the sink once a month.

Do Not allow soap or other household cleansers to dry on the surface of the sink.

Do Not use abrasive cleaners to clean your sink.
