Product Type	Wine Cellar
Brand	Exquisit
Model	KB05-V-040EI
Capacity	40 bottles (standard 0.75L)
Dimensions (H x W x D)	850 x 595 x 600 mm
Weight	32 kg
Power Supply	220-240 V, 50 Hz
Energy Consumption	120 kWh/year
Climate Class	N (16°C to 32°C)
Noise Level	42 dB(A)
Temperature Range	5°C to 20°C
Temperature Control	Electronic, digital display
Number of Shelves	5 wooden shelves
Interior Light	LED, automatic on door open
Door Type	Stainless steel frame, double-glazed glass
Door Lock	Yes, with key
Compressor Type	Vibration-free, low noise
Safety Features	Overheating protection, child lock
Cleaning	Wipe with soft damp cloth, avoid abrasive cleaners
Spare Parts Availability	Contact Exquisit service for replacement items
Repair Information	Refer to user manual; professional service recommended

Frequently Asked Questions - KB05-V-040EI Exquisit

How do I set the temperature on the Exquisit KB05-V-040EI?

Use the control panel on the front. Press the + or - buttons to adjust the temperature between 5°C and 20°C. The display shows the set temperature.

How many bottles can the wine cellar hold?

The KB05-V-040EI can hold up to 40 standard 0.75L bottles. Actual capacity may vary depending on bottle shape and size.

What is the correct way to clean the wine cellar?

Unplug the unit first. Clean the interior and exterior with a soft damp cloth. Do not use abrasive cleaners or solvents. Clean the door seal with mild soapy water.

The wine cellar is not cooling properly. What should I check?

Ensure the temperature setting is correct. Check that the door closes tightly and the seal is clean. Verify ventilation around the unit is not blocked. Allow 24 hours after installation for stable cooling.

Can I install the wine cellar in a garage or basement?

It is suitable for rooms with ambient temperature between 16°C and 32°C (climate class N). Avoid extreme temperatures or high humidity. Ensure the area is well-ventilated.

Does the wine cellar have a lock?

Yes, the door is equipped with a lock and key. Use the supplied key to secure the door and prevent unauthorized access.

How do I change the interior light bulb?

The interior light is LED and integrated. It does not require user replacement. If the light fails, contact Exquisit customer service for assistance.

Why is the wine cellar making unusual noise?

Some noise is normal: compressor operation, refrigerant flow, or fan. If noise is excessive, check that the unit is level and not in contact with other objects. If persists, consult the manual.

What is the energy consumption of this wine cellar?

The annual energy consumption is approximately 120 kWh. Actual consumption depends on usage and ambient temperature. The unit is designed for energy efficiency.

Can I use an extension cord for power?

It is recommended to plug directly into a dedicated wall outlet. If an extension cord is necessary, use one with adequate rating (at least 10A) and avoid using multiple devices on the same cord.

USER MANUAL KB05-V-040EI Exquisit

Interior view of a modern refrigerator with open doors showing various beverages and containers (no visible text or labels)

Simple line drawing of a tool with a handle and arrow indicating direction (no text or symbols)

Mechanical diagram showing a tool interacting with a bracket, with an arrow indicating direction (no text or symbols present)

Simple line drawing of a curved dashed line over a rectangular frame with two marked points (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with two circular insets showing close-ups of components (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with two arrows indicating assembly or force direction (no text or symbols present)


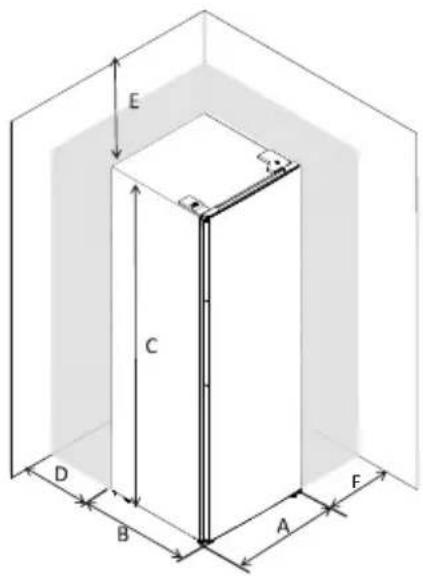

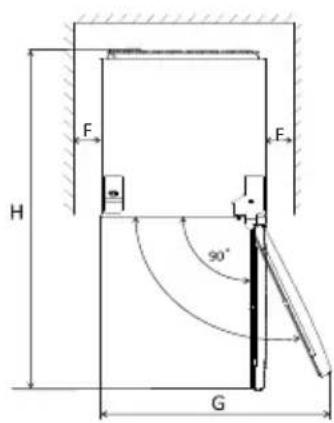

Benodigde ruimte

Warning symbol with exclamation mark inside a downward arrow (no text or numbers)

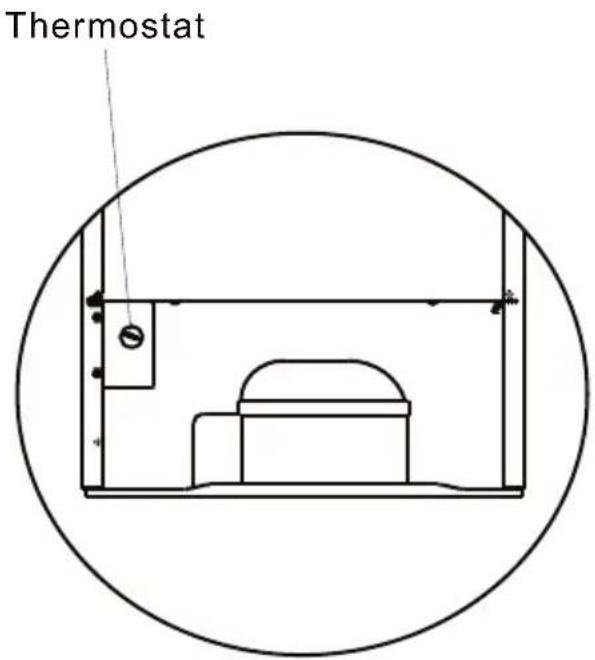

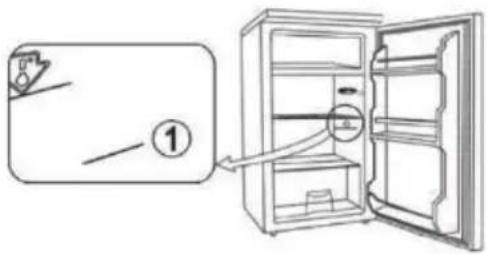

DE TEMPERATUUR IN DE KOUDSTE ZONE INREGELEN EN CONTROLEREN

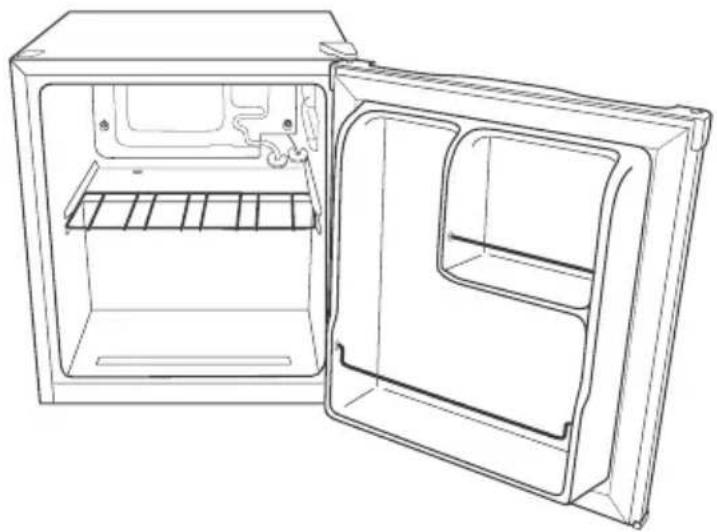

Line drawing of an open refrigerator with internal compartments and ventilation slots (no text or symbols)

Line drawing of a mechanical device with a magnified inset showing a component detail (no text or symbols)

domestic and professional appliances

Koper →

Naam

Adres

Plaats

Aankoop

Importeur →

DOMEST MULTIBRAND SALES & SERVICES B.V

J.F. Kennedylaan 101b 7001CZ Doetinchem NL

Tel. 0314 - 362244

Fax 0314 - 378232

E-mail: [e-mail]

DOMEST

MULTIBRAND SALES & SERVICES

domestic and professional appliances

User Instruction

Larder

Content
1. Safety Information	Page 1~9

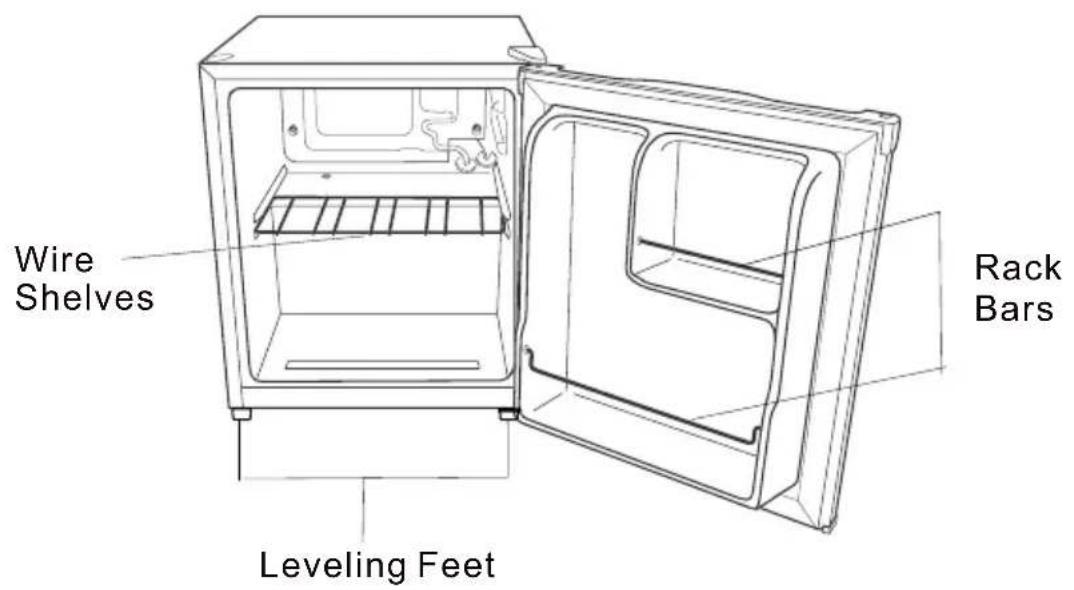

2.IOverview	Page 10
3. Reverse Door	Page 11~12
4.IInstallation	Page 13~14
5.IDailyl Use	Page 15~20
6. Warranty Terms and Conditions	Page 21

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children aged from 3 to 8 years are allowed to load and unload this appliance.

• Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- Keep all packaging well away from children. There is risk of suffocation.

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children from suffering electric shock or closing themselves in it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming dangerous for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

⚠ WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING!

Do not locate multiple portable portable power supplies at thence.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- avoid open flames and sources of ignition

- thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
  • This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

⚠ WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

• Power cord must not be lengthened.

- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.

- Make sure that mains plug of the appliance is accessible.

- Do not pull the mains cable.

- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

- You must not operate the appliance without the lamp.

- This appliance is heavy. Care should be taken when moving it.

- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

- Do not put hot objects on the plastic parts in the appliance.

- Do not place food products directly against the rear wall.

• Frozen food must not be re-frozen once it has been thawed out. ^1)
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturer's storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^1)
• Ice lollies can cause frost burns if consumed straight from the appliance. ^1)
  • To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.

• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)

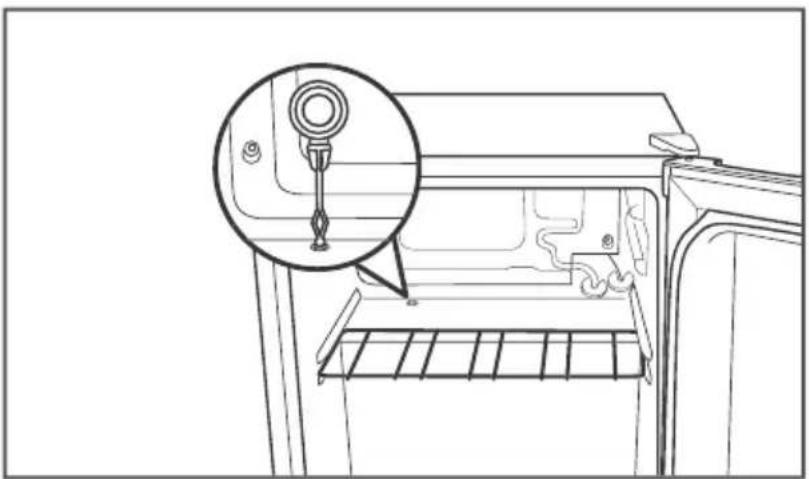

• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
  If the drain is blocked, water will be collected in the bottom of the appliance. ^2)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don’t pack food close together as this prevents air circulating;

• Make sure food don't touch the back of the compartment(s);

• If electricity goes off, don't open the door(s);

• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• It's recommended not to remove all accessories, such as drawers, shelves balconies, for lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliance marked by the symbol 🌐 are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

Rear Side
Note: Above picture is for reference only.

Reverse Door

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.

• It's better that 2 people handle the unit during assembly.

• Remove the top right hinge cover.

Simple line drawing of a tool with a handle and arrow indicating direction (no text or symbols)

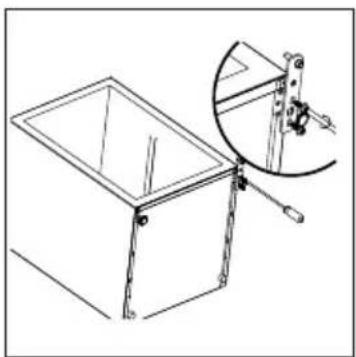

1. Undo the screws. Then remove the hinge bracket.

1. Remove the top left screw cover.

Mechanical diagram showing a tool interacting with a bracket, with an arrow indicating direction (no text or symbols present)

1. Move the core cover from left side to right side. And then lift the upper door and place it on a padded surface to prevent it from scratching.

Simple line drawing of a 3D object with dashed curved line and marked points (no text or symbols)

Reverse Door

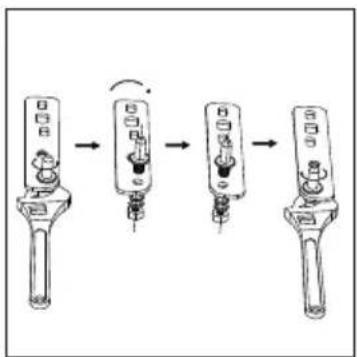

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)


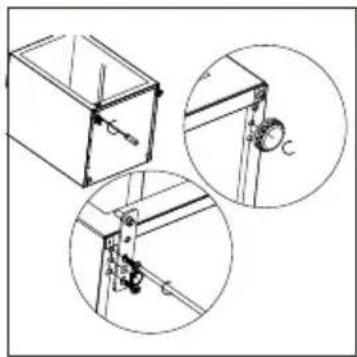

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

Technical line drawing of a mechanical assembly with two circular insets showing close-ups of components (no text or symbols)

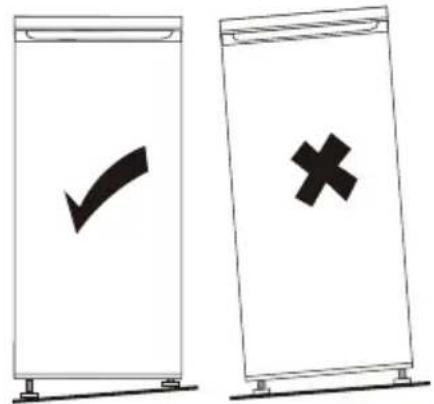

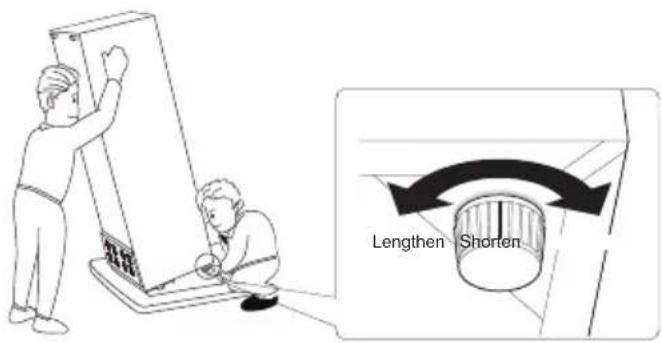

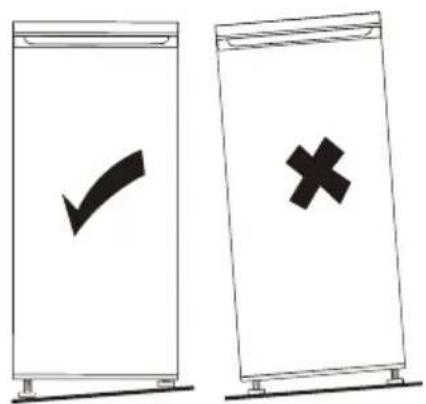

1. Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

2. Insert the hinge bracket and screw it to the top of the unit.

3. Use a spanner to tighten it if necessary.

Technical line drawing of a mechanical assembly with a tool and rotating component (no text or symbols)

1. Put the hinge cover and the screw cover back.

Technical line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

1. Finally, check if the doorseal closes properly to the housing of the apparatus. If not, pull the rubber doorseal loose, turn 180^ and press it back into place.

Installation

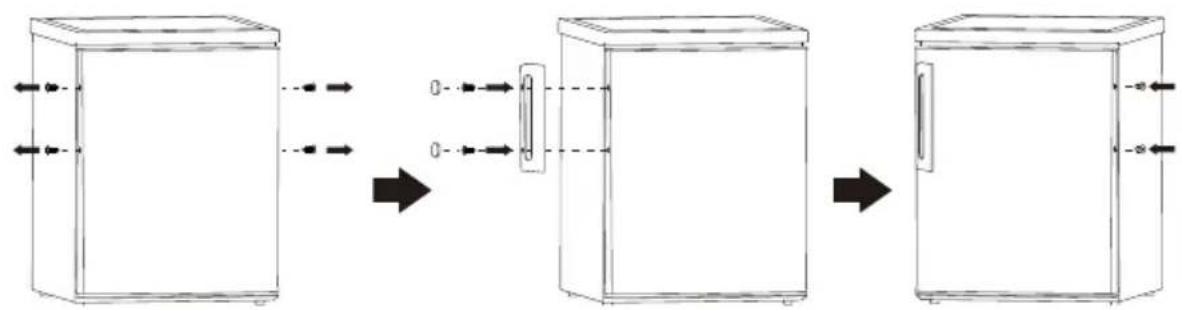

Install door handle

Space Requirement

- Keep enough space of door open.

A	440
B	470
C	510
D	mi n=50
E	min=50
F	min=50
G	880
H	910

Levelling the unit

80 do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

for refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; (SN)
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C; (N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C; (ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C; (T)

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance;

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.U. Directives.

CAUTION

The appliance may not operate properly if the ambient temperature exceeds or falls below the specified temperature range for a prolonged period. The temperature may increase in the fridge and freezer compartments which may cause the foods stored within to spoil more quickly.

Always ensure the prescribed ambient temperature is maintained. This refrigerator is designed for use at ambient temperatures of +16 °C to +38°C.

Temperature setting recommendation

Temperature Setting Recommendation
Environment Temperature	Freezer compartment	Fridge compartment
Warm28°C - 38°C	/
		Set on 2~3
Normal22°C - 28°C	/
		Set on 2~3
Cold16°C - 22°C	/
		Set on 1~2

• Information above give users recommendation of temperature setting.

,P SDFW□RQ□) RRG□6WRUDJH

• Under Recommended setting, the best storage time of fridge is no more than 3 days.
- The best storage time may reduce under other settings.

Note: You can adjust the temperature controller refer to the following "OK" sticker.

THE COLDEST PART OF THE REFRIGERATOR

Warning symbol with exclamation mark and circular dot (no text)

The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable drawer at the bottom and the symbol at the top, or the shelf at the same height. In order to maintain the temperature in this area, make sure not to change the position of this shelf.

INSTALLING THE TEMPERATURE INDICATOR

To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area.

TEMPERATURE INDICATOR: THE COLDEST PART OF YOUR REFRIGERATOR

CHECKING THE TEMPERATURE IN THE COLDEST AREA

- Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance.

Correct setting

Temperature too high – adjust the thermostat

When the indicator shows "OK", it means your thermostat is set properly and the temperature in coldest part is below +4 C.

If the indicator is white it means the temperature is high, so you should increase the thermostat and wait for 12 hours before checking the indicator again.

After loading the refrigerator or opening the door, the indicator may turn white for a few seconds.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Temperature Setting

• Plug on your appliance. The internal temperature is controlled by a thermostat. There are 6(8)settings . 1 is warmest setting and 5 is coldest setting and 0 is off.
• The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

Food Storage Advice

Line drawing of an open refrigerator with internal compartments and ventilation slots (no text or symbols)

Position different food in different compartments according to be below table

Fridge Compartment

• Place spreadable butter and cheese on the top shelves or the small door shelf. It is warmest here.
• Position bottles and drinks cartons in the bottle compartment in the door shelf. Position full containers closer to the hinge in order to reduce the strain on the door.

• Place cooked or baked goods, fresh meat, game, poultry, bacon, sausage and raw fish at the bottom of the fridge. This is where the temperature is lowest.

• To maintain the flavor and freshness of food in the fridge, only place packaged food in the fridge. Use special plastic containers for food or customary films.

• Do not place food directly against the back wall. Otherwise it may freeze onto the rear wall.

Movable shelves

All shelves are able to be moved to suitable positions.

Positioning the door shelves

In order to storage food or beverage with different size, the door shelves can be placed at different height. Follow below process to adjust the shelves.

- Step 1. pull the shelf to be free.

- Step 2. Select suitable position and press the shelf to two convex plates until it is totally blocked.

This refrigerating appliance is not suitable for freezing foodstuffs.

Helpful hints and tips

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavor
- position food so that air can circulate freely around it

Hints for refrigeration

Useful hints:

• Meat (all types): wrap in polythene bags and place on the wire shelf. For safety, store in this way only one or two days at the most.
  • Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the fridge.
• Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.
• Milk bottles: these should have a cap and should be stored in the bottle rack on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Line drawing of a mechanical device with a magnified inset showing a component detail (no text or symbols)

1. Set the temperature controller to "0".
2. Pull out the mains plug.

. Remove the chilled goods and place them in a cool room.
. Remove the wire rack and clean with tepid water with a little washing-up liquid. Dry all parts thoroughly.
. Wipe down the inside with warm water and washing-up liquid.

When wiping clean, add a few drops of vin-egar to the water to prevent mould from forming.

Wipe the interior dry and leave the door open a while to air.

. Clean the opening of the defrost water drain (6) using the cleaning rod (7).

1. Clean the door seal with clean water only. It is sensitive to oil and grease.
2. Replace the shelves and drawers, and refill with chilled goods.
3. Plug the mains plug back in and turn the temperature controller (12) to the desired setting.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
• Accumulation of dust at the condenser increases energy consumption. For this reason carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner. ^1)
  • After everything is dry place appliance back into service.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	TemCperature regulation knob is set at number “0”.	Set the knob at other number to switch on the appliance.
	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much	Temperature is set too cold.	Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

WARRANTY TERMS & CONDITIONS

1. These warranty conditions apply exclusively to the original buyer and for domestic use of the appliance in the Netherlands. If the appliance is resold from user to user, the warranty becomes null and void.
2. The warranty only applies if, in the event of a warranty claim, this warranty certificate with the original purchase invoice is shown by the original buyer.
3. No guarantee shall apply to defects caused by: damage, rough or injudicious handling, negligence on the part of the user, use of the appliance at an incorrect voltage or use for a purpose other than that for which it was supplied. Nor can the warranty be invoked when the rating plate with serial number has been changed or removed and/or when the device has been worked on by unqualified persons.
4. Not covered under the terms of this warranty: glass(ceramic), lighting, plastic/metal parts and/or accessories (i.e. filters, grills, pan supports), wire baskets and/or separation partitions, lacquer and/or enamel damage.
5. The warranty period commences on the day of purchase and covers: A two-year guarantee on the entire device and its electrical parts such as thermostat, thermal protection, relay, ventilation fan, transformer, switch, etc. with the exception of all parts mentioned under 4.
6. The warranty only covers the replacement of defective- or damaged parts in accordance with the stated responsibility in these warranty conditions.
7. Call-out charges, labour costs, transport and/or packaging costs as well as the transportation risk (for equipment that can only be repaired in our service department) are not covered by the guarantee and will be charged to the user. Please also read the 'Service Terms' below in which, among other things, calculation of call-out charges and labour costs are specified. P.S. Repair costs must be paid directly in cash. If invoicing of the mechanic's costs is required, please take into account that additional administration costs will be charged.
8. We are not responsible for any work- and/or repair costs carried out by third parties, not commissioned by by us. Nor are we, at any time, responsible for any (extra) costs and/or any consequences hereof, in any case, directly or indirectly resulting from a malfunction, defect or injudicious use of the device caused by a 3^rd party not deployed by Exquisit, its importer and/or suppliers.
9. Replacement of parts does not extend the original warranty period.

1. Do not use damaged appliances upon receipt, but report this immediately to your supplier. It is not possible to return damaged, used appliances!
2. During the first 24 months after the date of purchase on the original invoice no costs will be charged for services which are covered by these applicable warranty terms and conditions.

3. After a warranty period of two years, starting on the date of purchase on the original invoice, costs will be charged for:
   a. Call-out costs
   b. Labour costs
   c. All replaced parts

4. In case of a visit to the customer all costs and materials used, must be paid directly in cash in accordance with the stipulations stated in point 7 in the Warranty Terms & Conditions and in points 2-4 in the Service Terms Exquisit, regardless of the nature of the work.

5. Dispatch of any parts will always take place under the conditions of cash on delivery, C.O.D.

For service →

EKQUISIT www.domest.nl - see service
