| Product Type | Tumble Dryer |
| Brand | Hotpoint |
| Model | HTX24EASKWS |
| Capacity | 7.0 cu ft |
| Dimensions (W x D x H) | 27 x 30 x 36 inches (68.6 x 76.2 x 91.4 cm) |
| Weight | 120 lbs (54.4 kg) |
| Power Supply | 240 V, 30 A, 60 Hz |
| Wattage | 5400 W |
| Type | Electric, Vented |
| Drying Cycles | Cotton, Synthetics, Delicates, Timed Dry, Wrinkle Care |
| Temperature Settings | High, Medium, Low, No Heat |
| Dryness Levels | 6 (Less Dry, More Dry, Very Dry, etc.) |
| Lint Filter | Removable, washable mesh |
| Moisture Sensor | Yes, automatic drying |
| End of Cycle Signal | Audible tone |
| Interior Drum Light | Yes |
| Exhaust Duct | 4-inch (10.2 cm) diameter |
| Safety Features | Door switch, thermal fuse, overload protector |
| Replacement Parts | Belt, heating element, thermostats, rollers |
| Maintenance | Clean lint filter after each cycle, clean moisture sensor, inspect exhaust annually |
Frequently Asked Questions - HTX24EASKWS HOTPOINT
User questions about HTX24EASKWS HOTPOINT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Tumble dryer in PDF format for free! Find your manual HTX24EASKWS - HOTPOINT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HTX24EASKWS by HOTPOINT.
USER MANUAL HTX24EASKWS HOTPOINT
Safety Instructions.... 2-3
Operating Instructions ... 4-5
Control Panel 4
Dryer Features 6
Loading and Using the Dryer ..... 6
Venting the Dryer 8
Care and Cleaning ..... 7
Troubleshooting Tips .... 9 - 10
Consumer Support
Consumer Support 12
Warranty 11
Owner's Manual
Write the model and serial number here:
Model # ____
Serial # ____
You can find them on a label on the front of the dryer behind the door.
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill you or hurt you and others. All safety messages will follow the safety alert symbol and the word "DANGER", "WARNING", or "CAUTION". These words are defined as:
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, explosion, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:
- Read all instructions before using the appliance.
■ DO NOT dry articles that have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
■ DO NOT place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
■ DO NOT allow children to play on or in this appliance. Close supervision of children is necessary when this appliance is used near children. Before the appliance is removed from service or discarded, remove the door to the drying compartment.
■ DO NOT reach into the appliance if the drum is moving.
■ DO NOT install or store this appliance where it will be exposed to the weather.
■ DO NOT tamper with controls, repair or replace any part of this appliance or attempt any servicing unless specifically recommended in the user maintenance instructions or in published user repair instructions that you understand and have the skills to carry out.
■ DO NOT use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
■ DO NOT use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
■ Clean lint screen before or after each load. DO NOT operate the dryer without the lint filter in place.
■ Do not store combustible materials, gasoline or other flammable liquids near the dryer. Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt. Keep dryer area clear and free from items that would obstruct the flow of combustion and ventilation air.
■ The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel.
■ Unplug the appliance or turn off the circuit breaker before servicing. Pressing the Power or Start/Pause button DOES NOT disconnect power.
■ DO NOT operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
■ DO NOT spray any type of aerosol into, on or near dryer at any time. Do not use any type of spray cleaner when cleaning dryer interior. Hazardous fumes or electrical shock could occur.
■ See "Electrical Connection" located in the Installation Instructions for grounding instructions.
SAVE THESE INSTRUCTIONS
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent damage, personal injury, or death.
- DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• DO NOT try to light any appliance.
- DO NOT touch any electrical switch; DO NOT use any phone in your building.
- Clear the room, building, or area of any occupants.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
State of California Proposition 65 Warnings:
The California Safe Drinking Water and Toxic Enforcement Act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm and requires businesses to warn of potential exposure to such substances.
This product contains one or more chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
Gas appliances can cause low-level exposure to some of these substances, including benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels. Exposure to these substances can be minimized by properly venting the dryer to the outdoors.
SAVE THESE INSTRUCTIONS
WARNING!
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as gasoline, away from dryer.
DO NOT dry anything that has ever had anything flammable on it (even after washing).
Failure to do so can result in death, explosion, or fire.
WARNING
Fire Hazard
No washer can completely remove oil.
Do not dry anything that has ever had any type of oil on it (including cooking oils).
Items containing foam, rubber, or plastic must be dried on a clothesline or by using an air dry cycle.
Failure to follow these instructions can result in death or fire.
Throughout this manual, features and appearance may vary from your model.
IMPORTANT: Clean the lint filter each time you use the dryer.

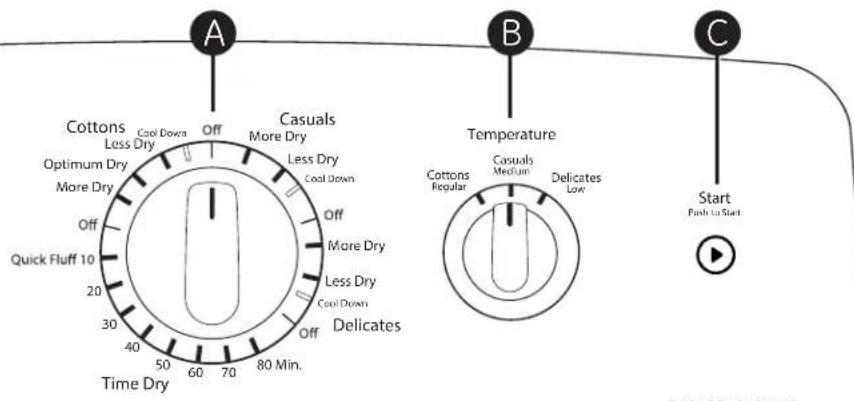

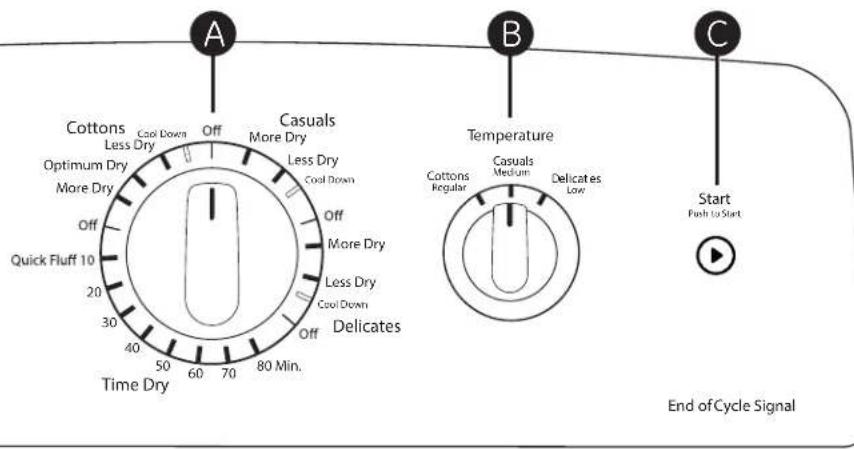

Drying Cycles (Not all features are on all models)
| Cottons | For cottons and most linens. For most loads, select Optimum Dry (on some models). |
| Casuals | For wrinkle-free, permanent press and delicate items, and knits. |
| Delicates | On some models. For delicate items, special-care fabrics and knits. |
| Time Dry | Set the Cycle Selector at the desired drying time. |
Quick Fluff For freshening or fluffing up already dry clothing, fabrics, linens and pillows. Use with Air Fluff No Heat. Provides 10 minutes of no heat tumbling.
Sensor cycles automatically determine fabric dryness. Select Less Dry if you want your clothes slightly damp at the end of the drying cycle. Select More Dry if you want them to feel drier.
Timed cycles run for a selected time.
Temperature (Not all features are on all models)
| Cottons For regular to heavy cottons. Regular | |
| Casuals For synthetics, blends, delicates and items labeled permanent press. Medium | |
| Delicates On some models. For delicates, synthetics and items labeled tumble dry low. Low |
Air Fluff On some models. For fluffing items without heat. Use the Time Dry cycle. No Heat
Start—Close the dryer door. Select Start. Opening the door during operation will stop the dryer. To restart the dryer, close the door and select Start to complete the cycle.
NOTE: Drying times will vary according to the type of heat used (Electric, Natural or LP gas), size of load, types of fabrics, wetness of clothes and condition of exhaust ducts.
About loading and using the dryer.
Always follow the fabric manufacturer's care label when laundering.
Sorting and Loading Hints
As a general rule, if clothes are sorted properly for the washer, they are sorted properly for the dryer.
Do not add fabric softener sheets once the load has become warm. They may cause fabric softener stains. Bounce® Fabric Conditioner Dryer Sheets have been approved for use in all GE Dryers when used in accordance with the manufacturer's instructions.
Do not overload. This wastes energy and causes wrinkling.
Do not dry the following items: fiberglass items, woolens, rubber-coated items, plastics, items with plastic trim and foam-filled items.
Fabric Care Labels
Below are fabric care label "symbols" that affect the clothing you will be laundering.

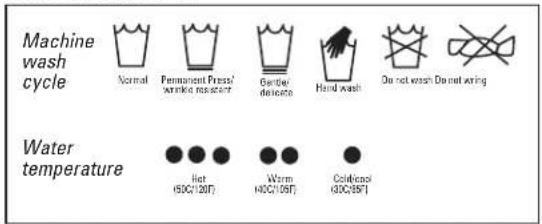

WASH LABELS
BLEACH LABELS

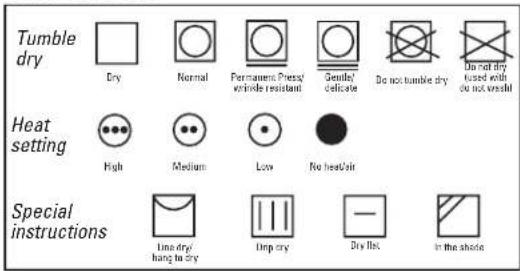

DRY LABELS
About the dryer features.
Drum Lamp (on some models)
Before replacing the light bulb, be sure to unplug the dryer power cord or disconnect the dryer at the household distribution panel by removing the fuse or switching off the circuit breaker.
Reach above dryer opening from inside the drum. Remove the bulb and replace with the same size bulb.
Drying Rack (on some models)
A handy drying rack may be used for drying delicate items such as washable sweaters.
Hook the rack over the lint filter so the rack extends into the dryer drum.
NOTE:
■ The drying rack must be used with the Time Dry cycle.
■ Do not use this drying rack when there are other clothes in the dryer.
If your model did not come with a drying rack, order one on-line at GEApplianceparts.com today, 24 hours a day or by phone at 800.626.2002 during normal business hours.
Part Number Accessory
WE01X25160 Drying Rack
Alloy Steel Drum (on some models)
The alloy steel used to make the dryer drum provides the highest reliability available in a GE dryer.
If the dryer drum should be scratched or dented during normal use, the drum will not rust or corrode. These surface blemishes will not affect the function or durability of the drum.
The Exterior: Wipe or dust any spills or washing compounds with a damp cloth. Dryer control panel and finishes may be damaged by some laundry pretreatment soil and stain remover products. Apply these products away from the dryer. The fabric may then be washed and dried normally. Damage to your dryer caused by these products is not covered by your warranty.
The Lint Filter: Clean the lint filter before each use. Remove by pulling straight up. Run your fingers across the filter. A waxy buildup may form on the lint filter from using dryer added fabric softener sheets.
To remove this buildup, wash the lint screen in warm, soapy water. Dry thoroughly and replace. Do not operate the dryer without the lint filter in place.
Vacuum the lint from the dryer lint filter area if you notice a change in dryer performance.
Dryer Interior and Duct: The interior of the appliance and exhaust duct should be cleaned once a year by qualified service personnel.
The Exhaust Duct: Inspect and clean the exhaust ducting at least once a year to prevent clogging. A partially clogged exhaust can lengthen the drying time.
Follow these steps:
1 Turn off electrical supply by disconnecting the plug from the wall socket.
2 Disconnect the duct from the dryer.
3 Vacuum the duct with the hose attachment and reconnect the duct.
The Exhaust Hood: Check from the outside that the flaps of the hood move freely when operating. Make sure that there is not wildlife (birds, insects, etc.) nesting inside the duct or hood.

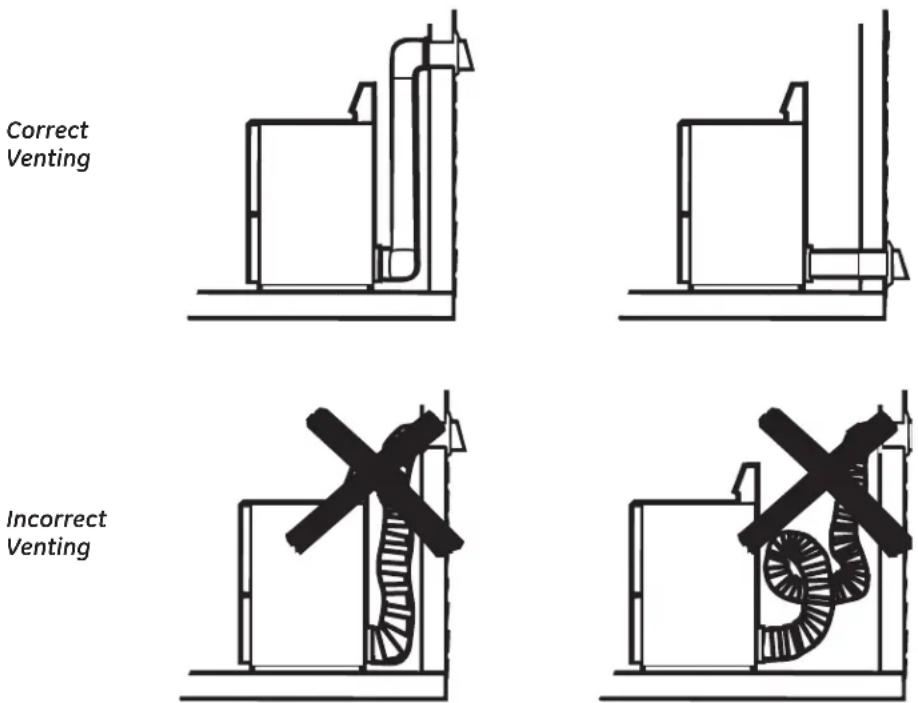

For the best drying performance, the dryer needs to be properly vented. The dryer will use more energy and run longer if it is not vented to the below specifications. Carefully follow the details on Exhausting in the Installation Instructions.
■ Use only rigid metal 4" diameter ductwork inside the dryer cabinet. Use only rigid metal or UL listed flexible metal 4" diameter ductwork for exhausting to the outside.
■ Do not use plastic or other combustible ductwork.
■ Use the shortest length possible.
■ Do not crush or collapse.
■ Avoid resting the duct on sharp objects.
■ Venting must conform to local building codes.
WARNING
- Fire Hazard
This dryer MUST be exhausted to the outdoors.
Use only 4" rigid metal ducting for the home exhaust duct.
Use only 4" rigid metal or UL-listed dryer transition duct to connect the dryer to the home exhaust.
DO NOT use a plastic vent.
DO NOT exhaust into a chimney, kitchen exhaust, gas vent, wall, ceiling, attic, crawl space, or concealed space of a building.
DO NOT install a screen in or over the exhaust duct.
DO NOT install a booster fan in the exhaust duct.
DO NOT use duct longer than specified in the exhaust length table.
Failure to follow these instructions can result in death or fire.
Troubleshooting Tips
Save time and money! Review the charts on the following pages, or visit
GEAppliances.com. You may not need to call for service.
| Problem Possible Causes What To Do | ||
| Dryer doesn't start | Dryer is unplugged | Make sure the dryer plug is pushed completely into the |
| Fuse is blown/circuit breaker is tripped | Check the house fuse/circuit breaker box and replace fuse or reset breaker. NOTE: Most electric dryers use 2 | |
| Dryer doesn't heat | Fuse is blown/circuit breaker is tripped; the dryer may tumble but not heat | Check the house fuse/circuit breaker box and replace both fuses or reset both breakers. Your dryer may tumble if only one fuse is blown or one breaker tripped. |
| Gas service is off | Make sure gas shutoff at dryer and main shutoff are fully | |
| Dryer shakes or makes noise | Some shaking/noise is normal. Dryer may be sitting unevenly | Move dryer to an even floor space, or adjust leveling legs as necessary until even. |
| Greasy spots on clothes | Improper use of fabric softener | Follow directions on fabric softener package. |
| Drying dirty items with clean ones | Use your dryer to dry only clean items. Dirty items can stain clean items and the dryer. | |
| Clothes were not completely clean procedures before drying. | Sometimes stains which cannot be seen when the clothes are wet appear after drying. Use proper washing | |
| Lint on clothes | Lint filter is full | Clean lint screen before each load. |
| Improper sorting | Sort lint producers (like chenille) from lint collectors (like | |
| Static electricity can attract lint | See suggestions in this section under Static occurs. | |
| Overloading | Separate large loads into smaller ones. | |
| Paper, tissue, etc. left in pockets | Empty all pockets before laundering clothes. | |
| Static occurs | No fabric softener was used | Try a fabric softener.® Fabric Condor Dryer Sheets have been approved for use in all GE Dryers when used in accordance with the manufacturer's instructions. |
| Overdrying | Try a fabric softener. | |
| Adjust setting to Less Dry. | ||
| Synthetics, permanent press and blends can cause static | Try a fabric softener. | |
| Inconsistent drying times | Type of heat | Automatic drying times will vary according to the type of heat used (electric, natural or LP gas), size of load, types of fabrics, wetness of clothes and condition of exhaust |
| Problem Possible Causes What To Do | ||
| Clothes take too long to dry a well-sorted washer load is a well-sorted dryer load. | Improper sorting | Separate heavy items from lightweight items (generally, |
| Large loads of heavy fabrics (like beach towels) | Large, heavy fabrics contain more moisture and take longer to dry. Separate large, heavy fabrics into smaller | |
| loads to speed drying time. | ||
| Controls improperly set | Match control settings to the load you are drying. | |
| Lint filter is full • Clean lint filter before every load. | ||
| ducting | Improper or obstructed ducting/venting. | Check installation instructions for proper unobstructed. |
| Make sure ducting is clean, free of kinks and Check to see if outside wall damper operates easily. Check the Installation Instructions to make sure the dryer venting is correct. | ||
| Blown fuses or tripped circuit breaker | Replace fuses or reset circuit breakers. Since most dryers use 2 fuses/breakers, make sure both are operating. | |
| at a time. | Overloading/combining loads | Do not put more than one washer load in the dryer |
| Underloading | If you are drying only one or two items, add a few items | |
| to ensure proper tumbling. | ||
| Clothes are wrinkled | Overdrying | Select a shorter drying time. |
| Remove items while they still hold a slight amount of moisture. Select a Less Dry setting. | ||
| Letting items sit in dryer after cycle ends | Remove items when cycle ends and fold or hang immediately. | |
| Overloading | Separate large loads into smaller ones. | |
| Clothes shrink safely washed, but will shrink in the dryer item, do not machine wash or tumble dry it. | Some fabrics will naturally shrink when washed. Others can be | To avoid shrinkage, follow garment care labels exactly. Some items may be pressed back into shape after drying. If you are concerned about shrinkage in a particular |
All warranty support provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, 24 hours a day, visit us at GEAppliances.com or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.
Staple your receipt here. Proof of the original purchase date is needed to obtain support under the warranty.
For The Period Of: GE Will Replace:
One Year
From the date of the Any part of the dryer which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will also provide, free of charge, all labor and related service costs ce the defective part.
What GE Will Not Cover:
■ Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Replacement of the light bulb.
■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.
■ Defects or damage due to operation in freezing temperatures.
■ Products which are not defective or broken, or which are working as described in the Owner's Manual.
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.
GE Appliances Website
GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line.
Schedule Service GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.
Real Life Design Studio GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).
Extended Warranties GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.
Parts and Accessories GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
Contact Us GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225
Register Your Appliance GEAppliances.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.
Secadoras
Impreso en México
Instrucciones
de seguridad 2 - 3
Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols
Simple line drawing of a staircase with a cross symbol, no text or labels present
GE Appliances, Appliance Park Louisville, KY 40225
Registre su electrodoméstico GEAppliances.com
- IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
- IMPORTANT SAFETY INSTRUCTIONS
- SAVE THESE INSTRUCTIONS
- State of California Proposition 65 Warnings:
- WARNING!
- WARNING
- Explosion Hazard
- Fire Hazard
- IMPORTANT: Clean the lint filter each time you use the dryer.
- About loading and using the dryer.
- Sorting and Loading Hints
- Fabric Care Labels
- About the dryer features.
- Drum Lamp (on some models)
- Drying Rack (on some models)
- NOTE:
- Part Number Accessory
- Alloy Steel Drum (on some models)
- Follow these steps:
- - Fire Hazard
- For The Period Of: GE Will Replace:
- One Year
- What GE Will Not Cover:
- GE Appliances Website
- GEAppliances.com
- Schedule Service GEAppliances.com
- Real Life Design Studio GEAppliances.com
- Extended Warranties GEAppliances.com
- Parts and Accessories GEAppliances.com
- Contact Us GEAppliances.com
- Register Your Appliance GEAppliances.com
- Secadoras
- Registre su electrodoméstico GEAppliances.com
Brand : HOTPOINT
Model : HTX24EASKWS
Category : Tumble dryer
