Product Type	Cordless DECT Phone
Model	S2DTAM13
Brand	Sandstrøm
Handset Dimensions	166 x 50 x 30 mm
Base Unit Dimensions	100 x 80 x 60 mm
Handset Weight	130 g
Base Unit Weight	85 g
Power Supply	Rechargeable NiMH batteries (2x AAA) and AC adapter (6V DC)
Frequency Band	1.88 GHz (DECT)
Range Indoor	Up to 50 m
Range Outdoor	Up to 300 m
Caller ID	Yes
Call Waiting	Yes
Phonebook Capacity	50 entries
Handsfree Speaker	Yes
Ringtones	10 polyphonic
Display	Backlit LCD, 1.8 inch
Additional Handsets	Up to 5 (registered to same base)
Intercom	Between handsets
Battery Life	Up to 10 hours talk time, 100 hours standby
Charging Time	Approx. 8 hours
Mounting	Desktop or wall-mountable base
Maintenance	Clean with a soft dry cloth; do not use liquids or abrasives
Safety	Use only the supplied charger and batteries to avoid fire risk
Repairability	Replaceable batteries, base unit serviceable by qualified technician

Frequently Asked Questions - S2DTAM13 Sandstrøm

How do I set the date and time on my Sandstrøm S2DTAM13?

Press the Menu button, navigate to Settings, then Date/Time. Use the keypad to enter the current date and time, then press Save.

How can I add a contact to the phonebook?

Press Phonebook, then Add New. Enter the name and number using the keypad, then press Save to store the contact.

How do I adjust the ringer volume?

When the phone is idle, press the Volume Up/Down buttons on the side of the handset to increase or decrease the ringer volume. You can also go to Menu > Settings > Audio for more options.

How do I charge the handset?

Place the handset into the charging cradle. Ensure the contacts align. The battery icon will animate while charging. A full charge takes about 8 hours.

Can I have multiple handsets with one base?

Yes, you can register up to 5 handsets to the S2DTAM13 base. To register a new handset, press Menu on the base, select Registration, then follow the handset instructions.

Why is there no dial tone?

Check the base unit is powered on and connected to the phone line. Ensure the handset is registered. If the problem persists, try resetting the base by unplugging it for 10 seconds.

How do I use call waiting?

When you hear a call waiting tone during a call, press the Flash or Call Waiting button to switch to the incoming call. Press again to return to the first call.

How do I change the display language?

Go to Menu > Settings > Language. Select your preferred language from the list. The menu will update immediately.

Can I use the speakerphone during a call?

Yes, press the Speaker button on the handset during a call to activate handsfree. The speaker icon will appear. Press again to return to the earpiece.

How do I reset the phone to factory settings?

Press Menu, then select Settings > Reset. Confirm with Yes. Note that this will erase all contacts and settings.

USER MANUAL S2DTAM13 Sandstrøm

Safety Warnings....4

Unpacking....5

Installing Your Phone ....6

Connecting the Base Station....6

Installing and Charging the Batteries....6

Getting to Know Your Phone ....8

Handset Overview....8

Base Station Overview....10

Display Icons and Symbols....11

Operations 12

Switching ON/OFF....12

To Lock/Unlock the Keypad 12

Set Time and Date 12

Change your Handset's Name....13

Change the Display Language....13

Using Your Phone....14

Pre-dialing....14

Direct Dialing 14

Call from Redial List ....14

Call from the Call Log....14

Call from the Phonebook....14

Answer and End a Call 14

Adjust the Earpiece Volume....15

Mute/Unmute Microphone ....15

Paging....15

Call Waiting 15

Using the Intercom....16

Intercom another Handset....16

Answer an External Call during Intercom....16

Transfer an External Call to another Handset....16

Establish a Three-party Conference Call....17

Answer Machine Operation ....18

Turn the Answering Machine On or Off 18

New Message....18

Adjust the Volume....18

Previous / Next Message Playback....18

Delete Message....18

Finding Your Phone....18

Phonebook....19

Enter Characters....19

Store a Contact in the Phonebook....19

Access Phonebook....20

Modify a Phonebook Entry 20

Using the Redial List....21

Caller Display (Network Dependent) 21

Using the Call Log....22

Display Setting 23

Alarm Setting....23

Audio Setting....24

Ringtone 24

Advisory Tones 24

System Setting....25

Setting Date and time 25

Setting Handset 25

Setting Base 26

Answer Machine ....28

Settings 28

Text and Digit Entry Table....30

Hints and Tips....31

ALWAYS check first that: 31

Everyday use....31

Intercom and transfer 34

Batteries 34

Specifications....35

Safety Warnings

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the telephone and keep them for future reference.
• Retain the manual. If you pass the telephone onto a third party, make sure to include this manual.
• Follow all warnings and instructions marked on the telephone.
• Do not use the product near water for example near a bathtub, kitchen sink, etc.
• Place the product securely on a stable surface. Serious damage and/or injury may result if the product falls.
• Do not cover slots and openings on the telephone. They are provided for ventilation and protection against overheating. Never place the telephone near radiators, or in place where proper ventilation is not provided.
• Do not place objects on the telephone cable. Install the phone where no one can step or trip on the telephone cable.
• To reduce the risk of injury or electric shock, do not disassemble the telephone. Incorrect reassembly can cause electric shock when the product is subsequently used.
• During thunderstorms, avoid using telephones except cordless types. There may be a remote risk of an electric shock from lightning.
• Do not use the telephone to report a gas leak, when in the vicinity of the leak.
• Young children should be supervised to ensure that they do not play with the telephone.
• The telephone is not intended for use by persons (including children) with reduced sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instructions concerning the use of the phone by a person responsible of their safety.

Battery

• To reduce the disk risk of injury to persons, read and follow these instructions.

• Use only the battery(ies) specified. Do not dispose the battery(ies) in a fire. They may explode. Check with local council office for special disposal instructions. Do not open or mutilate the battery(ies).

• Released electrolyte is corrosive and may cause burns or injury to the eyes or skin. The electrolyte may be toxic if swallowed.

• Exercise care when handling the battery(ies). Do not allow conductive materials such as rings, bracelets or keys to touch the battery(ies). Otherwise a short circuit may cause the battery(ies) and/or the conductive material to overheat and cause burns.

Environment

• Place the unit in a room where the temperature is between 0^ and 40^ . Allow 5cm clearance around the unit for proper ventilation.
• Avoid excessive smoke, dust, mechanical vibration, shock, or direct sunlight.

Cleaning

- Wipe the unit with a soft cloth. Do not use benzine, thinner, or any abrasive cleaners.

If there is no sound

- Disconnect the unit from the telephone line and connect a known working phone. If the known phone does not operate or have sound, then it could be the phone line issues. Please contact your telephone company for assistance.

Moving your phone

- Carefully pack your unit, preferably in the original packaging.

Disposal

- Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. Up to date information concerning options of disposing your old unit and packaging from the new one can be obtained from your local council office.

Thank you for purchasing your new Sandstrøm Telephone.

We recommend that you spend some time reading this instruction manual so that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

• Handset x 2
• Base Station x 1
• Charging Cradle x 1
• Mains Adapter x 2
• Telephone Line Cable x 1
• AAA Batteries x 4
• Instruction manual x 1

If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

Installing Your Phone

Connecting the Base Station

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand holding a small object, enclosed in a circle (no text or symbols)

Line drawing of a hand holding a small electrical plug, enclosed in a circular frame (no text or symbols)

1. Plug the mains adapter & telephone line cable into the base station.
2. Plug the mains adapter & telephone line cable into the wall socket.
3. Always use the cables provided in the box.

Installing and Charging the Batteries

1. Slide open the battery compartment cover.
2. Insert the 2 x AAA batteries (included) as indicated. Follow the polarity indicated on the handset.
3. Slide the battery compartment cover back on.

Diagram showing internal components of a remote control device with battery and casing, no text or symbols present

Base Station
Charging Cradle

1. Plug the base station and charging cradle into the mains power socket.

• Use only the mains adapter provided for the base station (charging cradle).

• Use only NiMH rechargeable batteries.

• Put the handset on the base station to charge. Charge the handset for 14 hours the first time you charge it. An audible tone indicates that the handset is properly placed on the base station.

• The display will show the time and the handset number, e.g. 2, to show it is registered to the base station (charging cradle).
• Your phone is now set up to make and receive calls.

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause personal injury or damage to property.
• Install the batteries correctly by following the polarity (+ and -) indications in the battery compartment.
• Use only the types of the batteries which are indicated in this manual.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of the used batteries as domestic waste. Dispose them in accordance with local regulations.
• If you are not going to use the unit for a long time, remove the batteries to avoid damage from battery leakage and corrosion.
• Due to the short battery life span of some alkaline batteries, it is recommended to use rechargeable batteries. This saves cost and is more environmental friendly.

Getting to Know Your Phone

Handset Overview

1. Earpiece

2. Display

3. Button

- Navigate to select an item on a menu.

Button

- Display redial list.

⊗|Button

- Mute/unmute the microphone during a call.

? Button

- Display call list.

1. Left — Button

- Cancel a menu entry.

- Backspace the digit(s) or character(s).

• Make an intercom call.

1. Button

• Make a call and to receive a call.

1. Right —Button

- Display the menu.

- Confirm the selection on the menu screen.

1. Button

- End call.

- Turn the handset on/off.

- Exit the menu/operation.

8. Number Keypad

9. ✕/Button

• Insert a pause.
• Turn the ringer on/off.

10. Button

- Activate the speakerphone.

11. # /o(Key Lock) Button

- Activate or deactivate the key lock.

12. R (Flash) Button

- Flash the phone line.

13. Button

- Access the phonebook.

14. Microphone

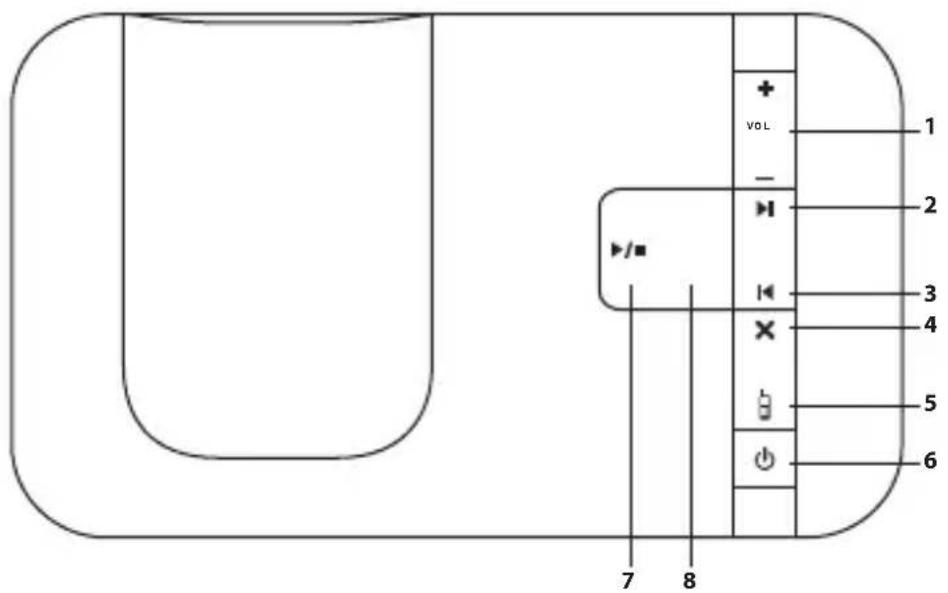

Base Station Overview

1. Vol +/- Button

- Adjust speaker volume.

1. ▶Button

- Skip to the next message.

1. Button

- Go back to the previous message or replay the current message.

1. ×Button

- Delete all old messages.

1. Button

• Page the registered handset to the base station.

1. ⏻ Button

- Switch the answering machine on/off.

1. ▶/■Button

- Play or stop message playback.

1. Display

Display Icons and Symbols

[ZYKY]	Battery Charge Level	Indicate battery is fully charged.
[S4YZ]	Battery Charge Level	Indicate battery is fully discharged.
[DZTZ]	Call	Indicate that an external call is connected or held.
[YCBX]	Alarm	Display when the alarm clock is activated.
[TAT75]	Speakerphone	Display when the speakerphone is activated.
[DRZA]	Ringer Off	Display when ringer volume is turned off.
	Message	Indicate you have a new voice mail message.
[OT4W]	Signal Level	Indicate that the handset is registered and within range of the base station.
[HBTZ]	Keylock	Display when keylock is active.

Operations

Switching ON/OFF

Press and hold for more than 2 seconds to switch on/off the handset in idle mode.

When the handset is OFF, it cannot be used for making calls including emergency calls. There will be no ringing during an incoming call. To answer a call, you will need to switch it back on. It may take some time for the handset to re-establish a radio link with the base station.

To Lock/Unlock the Keypad

Press and hold # for 2 seconds to lock/unlock the keypad in idle mode.

Incoming calls can still be answered even if the keypad is locked.

Set Time and Date

If you subscribe to the Caller Display service, the time and date will be set automatically when you receive a call, but you may still need to set the correct year.

1. Press Menu and then to select /o Setting. Press OK to confirm.

2. Press the to select Set Time/Date. The last stored date is displayed. Press number 0-9 to set the time (HH:MM).

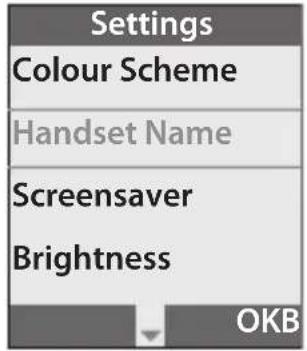

Change your Handset's Name

1. Press Menu and then to select 📄 Display. Press OK to confirm.
2. Press △▼ to select Handset Name and then press OK to select. The current handset name is displayed.
3. Press Back to delete the characters one by one. Enter the new name (maximum 10 characters) and then press OK to confirm.

Change the Display Language

1. Press Menu and then to select /o Setting. Press OK to confirm.
2. Press △▼ to select Handset and then press OK to select.
3. Press to select the Language and then press OK to select.
4. Press to select the desired Language and then press OK to confirm.

Once the display language is set, the option menus on the handset will switch to display in the selected language immediately.

Using Your Phone

Pre-dialing

Dial the number (maximum 24 digits) and then press

Direct Dialing

Press to take the line and then dial the number (maximum 24 digits).

Call from Redial List

1. Press to enter Redial List.
2. Press △V to select recent phone number, and then to dial.

Call from the Call Log

1. Press to enter Call list.
2. Press △V to select received phone number, and then to dial.

You need to subscribe to Caller Line Identifi cation service to be able to see the caller's number or name in the call log.

Call from the Phonebook

1. Press ☐ to enter ☑ Phonebook menu. Press OK to confirm.
2. Press △▼ to select saved phone number and then press to call.

Answer and End a Call

1. When the phone rings, press

1. To end a conversation, press

• When the handset rings during an incoming call, do not hold the handset too close to your ear as the volume of the ringing tone may damage your hearing.
• You can simply place the handset back on its base station or charging cradle to end a call.

Adjust the Earpiece Volume

During a call, press AV to select from VOLUME 1 to VOLUME 5.

Mute/Unmute Microphone

1. When the microphone is muted, the handset displays Call Muted, and your caller cannot hear you.
2. During a call, press Ⓧ to turn on/off the microphone.

Paging

1. The paging feature enables you to locate a missing handset if the handset is in range and contains charged batteries.
2. Press on the base station. All the registered handsets will start to ring.
3. Once retrieved, press any button on the handset or press again to end the paging.

Call Waiting

If you have subscribed to Call Waiting service, the earpiece will emit an audible tone to inform you that there is a second incoming call. The number or name of the second caller will also be displayed on your phone if you have subscribed to Caller Line Identifi cation service (CLI). Please contact your network provider for more information about this service.

Using the Intercom

Intercom, call transfer and conference are only possible with at least 2 handsets registered to the same base station. It allows you to make free internal calls, transfer external calls from one handset to another, and set up a 3-way conference with two handsets and an external call.

If you try to make a call while another handset is already on an external call, you'll hear a busy tone for a few seconds before the display returns to idle.

Intercom another Handset

1. Press Int in idle mode.
2. Intercom is established immediately if there are only 2 registered handsets.
3. If there are more than 2 registered handsets, press <> to select the desired handset, and then press OK to call.

Answer an External Call during Intercom

During intercom, a new call tone is emitted when there is an incoming external call. Press to end the intercom and then press to answer the external call.

Transfer an External Call to another Handset

1. During the call, press Int to put the external call on hold, the caller can no longer hear you.
2. Intercom is established immediately if there are only 2 registered handsets.
3. If there are more than 2 registered handsets, press Av to select the desired handset, and then press OK to transfer call.

4. Press Answ. on the called handset to answer the internal call, where both internal callers can talk. Intercom is established.

5. Press Conf on the first handset to transfer the external call to the called handset. Both internal callers can talk to the external call.

6. Press End on the first handset to end call. Called handset will not end call.

7. Press Single on the first handset to continue current call. Called handset will end call.

If there is no answer from the called handset, press Back to resume the external call.

Establish a Three-party Conference Call

1. The conference call feature allows one external call to be shared with two handsets (in intercom). The three parties can share the conversation and no additional network subscription is required.
2. During an external call, press Int to put the external call on hold (the caller can no longer hear you).
3. If there are more than 2 registered handsets, the handset numbers which are available for intercom will be displayed. Press AV to select the desired handset, and then press OK to start intercom.
4. Press Answ. on the called handset to answer the internal call, where both internal callers can talk. Intercom is established.
5. Press Conf on the first handset to transfer the external call to the called handset. Conference call is established.

Answer Machine Operation

Turn the Answering Machine On or Off

1. Turn the answering machine on or off by pressing on the base station.
2. If the answering machine is turned off, the answering machine will not answer to any incoming ringing.

You can also use the answer machine menu on the handset to access and change the settings for all the answering machine functions.

New Message

• Press to start playback message.
• Press again to stop.

Adjust the Volume

Press Vol +/- to increase/decrease the volume.

Previous / Next Message Playback

• Press to go back to the previous message or replay the current message.
• Press ▶ to skip to the next message.
• The display will show the current number of message that is playing.

Delete Message

Press ✗ to delete all old messages. New message will not be deleted.

Finding Your Phone

Press to page the registered handset to the base station.

Phonebook

Your phone can store up to 50 phonebook memories. Each phonebook entry can have a maximum of 24 digits for the phone number and 16 characters for the name.

Enter Characters

When you select a fi eld in which you can enter text, you can enter the letters that are printed on the keys by pressing the relevant key once or several times.

For example, press the "2" button once to insert the letter "A", press it twice to insert the letter "B", and so on.... Spaces and other symbols can be entered using the "1" button.

Store a Contact in the Phonebook

1. Press Menu and then to select

Phonebook. Press OK to confirm.

1. Press AV to select New Entry. Press OK to confirm.

2. Enter the name of the contact (maximum 16 characters). To edit, press Back to delete the last character entered. Press OK to confirm the name entry.

3. Enter the number of the contact (maximum 24 digits) and then press OK to confirm.

• You cannot store a new phonebook entry when the memory is full. In this case, you have to delete existing entries to make space for new entries.
• When storing the number, enter the full number including the STD (area) code if you subscribe to caller display, otherwise it will not display the name when there is an incoming call.

Access Phonebook

1. Press Menu and then to select 📋 Phonebook. Press OK to confirm.

2. The phonebook entries will be listed in alphabetical order, and you can press △▼ to scroll through the stored entries.

3. Press ∪ to view the details of the selected entry.

Instead of pressing A\$ browse the phonebook entries, you can press the numeric key corresponding to the first letter of the entry you wish to locate. For example, pressing "2" will show the entries starting with "A".

Modify a Phonebook Entry

1. Press Menu and then to select 📄 Phonebook. Press OK to confirm.
2. Press △▼ to select the desired entry and then press Options.
3. Press AV and OK to select and adjust the following options.

Call Number	Make a call from the selected entry.
Edit Entry	Edit entry name and phone number.
View Entry	View entry information.
Copy Entry	Copy current entry to another handset.
Copy All	Copy all entries from phonebook list to another handset.
Delete Entry	Delete current entry.
Delete All	Delete all entries from phonebook list.
Capacity	Check number of entry used.
Speed Dial	Set up speed dial to keypad 2-9. A long press on the keys in idle mode will automatically dial the stored phone number.

Using the Redial List

The redial list stores the last 10 numbers dialed. A maximum of 24 digits can be displayed for each entry.

1. Press ● to enter Redial List.
2. Press △▼ to select recent phone numbers, and then press Options.
3. Press AV and OK to select the following setting.

Detail	Display phone number information.
Delete Entry	Delete selected entry.
Delete All	Delete all entries from Redial List.
Call Number	Make a call from selected phone number.
Store Number	Store number to phonebook.

Caller Display (Network Dependent)

To receive Caller ID you may need to contact your telephone service provider, and they will inform you of any charges for it. Caller ID lets you see the phone numbers of your callers on the handset display, before you answer and in your Call Log afterwards. The Call Log stores the last 20 external calls, whether or not you answered the call, so you can call them back later.

Only the most recent call is saved if there are repeat calls from the same number.

When the Call Log is full, the next new call will replace the oldest entry.

If you have got a new call in the Call Log, the Caller Display icon will appear on the handset display.

If the received number is the same as the one in your phonebook, the name from the phonebook will display as well as the number.

If a call is from someone who withhold their number, the display will show WITHHOLD ID.

If the call is from someone whose number is unavailable, or if you have not subscribed to Caller ID but have set the date and time, the display will show CALLING when it is received and UNAVAILABLE in the Call Log.

Using the Call Log

Press to browse the call list. The calls are displayed in chronological order with the most recent call at the top of the list.

1. Press △▼ to select the desired phone number, and then press Option.
2. Press △ and OK to select the following setting.

Details	Display phone number information.
Delete Entry	Delete current entry.
Delete All	Delete all entries from phonebook list.
Call Number	Make a call from selected phone number.
Store Number	Store number to phonebook.

Display Setting

1. Press Menu and then to select 📁 Display. Press OK to confirm.
2. Press AV and OK to select and adjust the following options.

Colour Scheme	Select Scheme colour.
Handset Name	Edit current handset name.
Screensaver	Select screen saver display.
Brightness	Adjust brightness level.
LCD backlight	Adjust backlight level.

1. Press 📞 to exit the main menu.

Alarm Setting

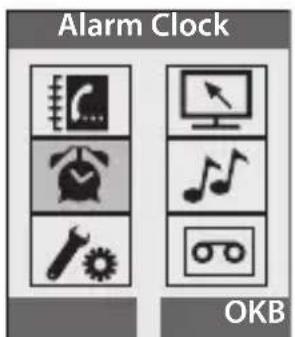

1. Press Menu and then to select Alarm Clock. Press OK to confirm.
2. Press AV and OK to select and adjust the following options.

Activation	Select current alarm on/off.
Time	Enter time for current alarm.
Melody	Select current alarm melody.

1. Press 🔒 to exit the main menu.

Audio Setting

Ringtone

1. Press Menu and then to select Audio. Press OK to confirm.
2. Press AV and OK to select Ringer Settings. Press OK to confirm.
3. Press AV and OK to select and adjust the following options.

External Calls	Select ringer for external calls.
Internal Calls	Select ringer for internal calls.
Volume	Adjust the volume.

1. Press 🔒 to exit the main menu.

Advisory Tones

1. Press Menu and then to select Audio: Press OK to confirm.
2. Press Av and OK to select Advisory Tones Setting. Press OK to confirm.
3. Press AV and OK to select and adjust the following options.

Key tone	Turn key tone on/off.
Confirm Tone	Turn confirm tone on/off.
Low Battery	Turn low battery alert sound on/off.
No coverage	Turn no signal alert sound on/off.

1. Press 🔒 to exit the main menu.

System Setting

Setting Date and Time

1. Press Menu and then to select /o Setting. Press OK to confirm.
2. Press △V and OK to select Date & Time. Press OK to confirm.
3. Press AV and OK to select and adjust the following options.

Time Format	Select time format.
Date Format	Select date format.
Set Time/Date	Set time and date.

1. Press 🔒 to exit the main menu.

Setting Handset

1. Press Menu and then to select /o Setting. Press OK to confirm.
2. Press AV and OK to select Handset. Press OK to confirm.

1. Press AND OK to select and adjust the following options.

Select Base	Select the desired base for current phone.
Language	Select system display language.
Auto Answer	Turn auto answer call on/off.
Register Handset	Additional handsets must be registered to the base station before you can use them.Up to 4 handsets can be registered to one base station.The System PIN should be requested before you can register handsets. By default, the System PIN is 0000.On the base station, press and hold for approximately 5 seconds.
De-Register	De-register other handsets from the base station.The System PIN should be requested before you can de-register handsets. By default, the System PIN is 0000.You cannot de-register the handset that you are currently using.
Reset Handset	Reset current handset to default.

1. Press 📞 to exit the main menu.

Setting Base

1. Press Menu and then to select _0 Setting. Press OK to confirm.
2. Press Menu and then Av to select Base. Press OK to confirm.

1. Press AND OK to select and adjust the following options.

Ringer	Select ringer and volume for base station.
Flash Time	You may need R (Flash) to send a Recall signal (also called Timed Break Recall) if you are connected to a PBX. You should normally leave the Recall Time at its default setting of Short (100ms), as this is the standard recall required in the telephone network, but it can be changed to Long (600ms) if your telephone is connected to a PBX that requires a different recall time.
Change Sys.PIN	The System PIN is used for registration/de-registration of handsets and for accessing the answering machine remotely. The default System PIN number is 0000. The maximum length of the System PIN is 8 digits.
Reset Base	Reset base setting to default.

1. Press 🔒 to exit the main menu.

Answer Machine

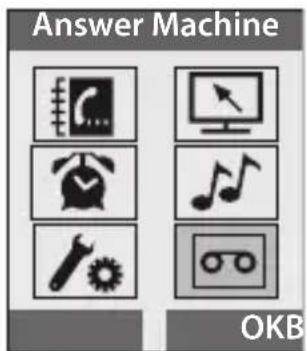

1. Press Menu and then to select Answer Machine. Press OK to confirm.
2. Press AV and OK to select and adjust the following options.

Play Message	Play all messages.
Delete Old Msgs	Delete all old messages.
Answer On/Off	Turn answer machine on/off.
Outgoing Mess..	List preset outgoing message.
Record Memo	Record outgoing message with your voice.
Setting	Advanced setting for answer machine.

Answer Machine

Play Message

Delete Old Msgs

Answer On/Off

Outgoing Mess..

1. Press 🔒 to exit the main menu.

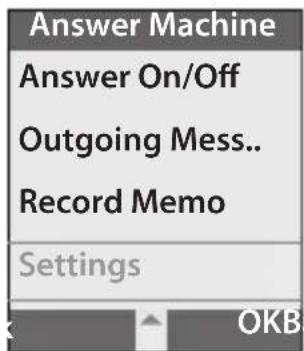

Settings

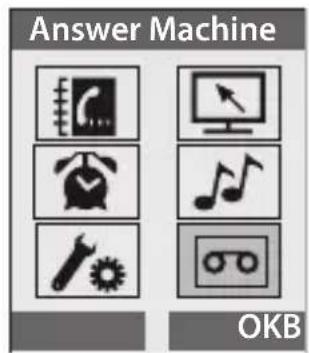

1. Press Menu and then Av to select Answer Machine. Press OK to confirm.
2. Press △ and OK to select Settings. Press OK to confirm.

1. Press AND OK to select and adjust the following options.

Answer Mode	Select answering mode.
TAMLanguage	Select TAM language.
Answer Delay	Adjust ring time to start answer machine.
Recording Time	Start recording message after desired number of rings.
Call Screening	Allow to hear the caller while he is leaving a message. You can then decide if you want to talk to the caller directly.
Remote Access	Once the remote access is active, you can check messages of your answering machine when you are away from home, by calling from another phone.

1. Press 🔒 to exit the main menu.

Text and Digit Entry Table

The following tables show you where each letter and punctuation character can be found. Respective character table will be used when the corresponding menu language is selected. This will be helpful when storing a name in the contacts and renaming your handset.

In editing mode, a cursor is displayed to indicate the current text entry position. It is positioned at the right of the last character entered.

Writing Tips:

1. Once a character is selected, the cursor will move to the next position after a short pause.
2. Press Clear to delete the last character. Or press and hold Clear to delete all characters.

English Character Set

Upper Case
1	space 1 @ _ # = < > () & £ $ ¥ € [ ] {} ☉ §
2	A B C 2 Ä Ä Á Á Ä Ä Å Æ Ç
3	D E F 3 È É Ê Ê Δ Φ
4	G H I 4 Ġì lí î î í Γ
5	J K L 5 ∧
6	M N O 6 Ö Ö Ó Ô Ö ∅ Ñ
7	P Q R S 7 β § Π Θ Σ
8	T U V 8 Ü ù Ú Û
9	W X Y Z 9 Ý Ù Ω ≡ Ψ
0	. 0 ,/ : ; “ ’! i ? ¿ * + - % \ ^ ~ |
#	#

Lower Case
1	space 1 @ _ # = < > () & £ $ ¥ € [ ] {} ¢ ¢
2	a b c 2 ä à á á ã ä æ ¢
3	d e f 3 è é ë ê Δ Φ
4	g h i 4 ğ i í í í í Γ
5	j k l 5 ∧
6	m n o 6 ö ò ó ô õ ø ñ
7	p q r s 7 β ¢ Π Θ Σ
8	t u v 8 ü ù ú û
9	w x y z 9 ý ÿ Ω ≡ Ψ
0	. 0 , / : ; “ ’! i ? ¿ * + - % \ ^ ~ |
#	#

Press to switch between upper case and lower case character.

Hints and Tips

ALWAYS check first that:

• You have followed all the steps listed in the user manual to install and set up your telephone.
• All connectors are firmly inserted in their sockets.
• Mains power to the base station and charging cradle are switched on at the mains socket.
• The handset's batteries are correctly and securely installed and are not run down.

Everyday use

I cannot make or answer calls

• If the handset's display is blank, it may have been switched off. Put the handset back on the base station or charging cradle to turn it back on.
• Check that the base station's mains power adapter is plugged in and the power is switched on.
• The base station needs mains power for normal operation of the phone, not just for charging the batteries.
• Make sure you are using the telephone line cable supplied with your phone. Other telephone line cables might not work. Move the handset closer to the base station.
• Check the battery level symbol on the display. If it is low, replace the handset on the base station or charging cradle to recharge the batteries.
• Switch off the power at the mains socket, wait for a short time and then switch back on. This may solve the problem.

I cannot make a call

• If the handset display shows, press and hold / to unlock it before you make a call.
• Only one handset (or the base station) can be connected to the outside line at a time. If another handset is already using the line, you need to wait until it has finished its call.

When I press on the keys, nothing happens

Make sure the batteries are fitted in your handset. If the Battery Level symbol on the display shows 'low', put your handset back on the base station or charging cradle to charge.

When I key in a number, it appears on the display, but I cannot make an outside call

Try a different position for the base station – somewhere higher if possible, or further from other electrical equipment.

The phone does not ring

• Check that the base station's mains power adapter is plugged in and the power is switched on.
• The base station needs mains power for normal operation of the phone, not just for charging the batteries.
• Make sure you are using the telephone line cable that was supplied with your telephone.

My call was cut off when I went out of range. Now I cannot use my handset

Move the handset closer to the base station before you try again to make a call.

There is interference and noise on the line

• Move the handset closer to the base station, or to a different position.
• Try moving the base station so that it is not near other electrical equipment, such as a television or a computer.
• You will get the best sound if you place the base station as high as possible. For example, in a two-floor building, the first-floor landing is an ideal place.

I hear audible tones from my handset while I am on a call

• You may be going out of range of the base station. Move closer or your call may be cut off.
• Check the Battery Level symbol on the display. If it is low, recharge the batteries.

The Caller Display feature is not working

• You need to subscribe to the Caller Display feature from your network service provider. You should find contact details on your phone bill.
• The caller may have withhold their number by dialing 141. Or they may be calling from a network that does not transmit the caller's number (e.g. if they are making international calls.)

When I try to make a call, I hear a busy tone

If you are using a multi-handset system, check whether another handset is already on a call.

The volume in the earpiece is low when I am on a call

• Make sure you are holding the earpiece correctly over your ear.
• Adjust the volume by pressing

Intercom and transfer

I cannot transfer a call

• Make sure the other handset is in range of the base station.
• Make sure you are dialing the correct number for the other handset.

Batteries

The handset's battery cells are running low within an hour or two

• Before you first use the handset, you should have left it on the base station or charging cradle for 14 hours to charge the batteries.
• You may need to replace the batteries.
• Check the connection between the base station and the mains power socket.
• "I try to recharge the batteries but I still get a warning that they are low" You need to replace the batteries.
• Do not use non-rechargeable batteries in your handset – they may explode, causing damage.

If the fault persists...

• Disconnect the base station from the telephone line and plug a different phone into the master telephone socket. Try making a call. If this works, the line is OK.
• If the call does not work, and you are using a two-way socket adapter, remove it and plug a telephone directly into the socket. If the call now works, the adapter may be faulty.
• If you cannot make a call, the fault may be on the exchange line. Contact the service provider.

Specifications

Frequency range	.88 to 1.9 GHz (bandwidth = 20 MHz)
Channel bandwidth	1.728 MHz
Operating range	Up to 300m outdoors; up to 50m indoors (Open area)
Operating time	Standby: 100 hoursTalking: 10 hoursBattery charge time: 15 hours
Temperature range	Operation 0 °C to 40 °CStorage -20 °C to 60 °C
Electrical Rating	Handset2 x AAA-size 600mAh NiMH 1.2V rechargeable batteriesBase StationAdapter Input: 100-240V~ 50/60Hz 150mAAdapter Output: 6V ---450mABase station input: 6V =450mACharging Cradle (with non detachable adapter)Adapter Input: 100-240V~ 50/60Hz 150mAAdapter Output: 6V =450mACcharging Cradle input: 6V =450mA

Features and specifications are subject to change without prior notice.

PBX compatibility:

Timed break recall (flash): adjustable to 100ms – 600ms

Pause length: 3 seconds

Dialling type Tone (DTMF, dual tone multi-frequency)

Network connection: This equipment is intended to be used in the UK only.

Operation on other countries' PSTN termination points cannot be guaranteed.

For general information about this appliance

and handy hints and tips, please visit

www.knowhow.com/knowledgebank or call 0344 5611234.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can

deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

All trademarks are the property of their respective owners and all rights are acknowledged.

DSG Retail Ltd. (co. no. 504877)

Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK

IB-S2DTAM13-140625V2
