WT19M-FI - Touchscreen AOPEN - Free user manual and instructions

Product Type	All-in-One Touch Panel PC
Brand	AOpen
Model	WT19M-FI
Display Size	18.5 inches (ELED backlight)
Display Resolution	1366 x 768 pixels
Brightness	250 cd/m²
Touch Technology	Projected Capacitive (PCT) Multi-Touch, 10 fingers
CPU	Intel B980 or above (Socket 988, supports Ivy Bridge)
Chipset	Intel QM77
Memory	SO-DIMM DDR3 x2, max 8GB (default 4GB)
Storage	Default 320GB 2.5" SATA HDD; optional 2.5" SATA SSD
Graphics	Integrated Intel HD Graphics
LAN	Intel W82579LM Gigabit Ethernet (RJ-45)
Audio	Realtek ALC886, built-in 2W stereo speakers and microphone
Front I/O	Hidden keypad (power, brightness up/down), 1.3MP webcam
Side I/O (with cover)	RS232 x2, USB 2.0 x2 (5V/2A each), USB 3.0 x2 (5V/2A each), GbE LAN RJ45, Line out, Mic in, DC 19.5V, HDMI out
Expansion Slots	Mini-Card x2 (Wi-Fi, Digital TV Tuner optional)
VESA Mount	100x100mm (screw length 3mm)
Power Supply	External AC adapter 120W, DC 19.5V
Dimensions (WxHxD)	454 x 290 x 30 mm
Weight	4.7 kg
Operating Temperature	Less than 40°C
Certifications	FCC Class B, ICES-003, UL (wall mount holder)

Frequently Asked Questions - WT19M-FI AOPEN

What type of CPU does the WT19M-FI support?

The WT19M-FI supports Intel B980 or above processors with Socket 988, including Ivy Bridge CPUs.

How do I clean the touch screen?

Disconnect the power before cleaning. Use a soft, moist cloth. Do not use liquid or aerosol cleaners.

Can I upgrade the RAM?

Yes, the system has two SO-DIMM DDR3 slots supporting up to 8GB total. Remove the rear cover and gently press the ejector clips to replace modules.

What is the touch sensitivity?

The PCT touch supports 10-finger multi-touch with surface pencil hardness ≥7H and can withstand over 20 million pen hits (180g load).

How do I dispose of this device properly?

Do not dispose in municipal trash. Recycle according to local regulations. Visit www.aopen.com under 'Green Products' for WEEE recycling information.

Does the device have a built-in webcam?

Yes, a 1.3MP webcam is integrated on the front bezel.

What operating systems support multi-touch?

Windows 7 Premium and above support 10-finger multi-touch. Drivers are also available for Linux, Android, and Mac.

Can I mount the unit on a wall?

Yes, the device has standard VESA 100x100mm mounting holes. Use the provided M4 screws (length 5mm) to attach the wall mount bracket.

How do I access the hidden keypad on the side?

The keypad is located on the left side and can be operated using a paper clip or sharp object to press power, brightness up, or brightness down.

Where can I find the drivers for the touch screen?

Drivers are on the included CD. For touch calibration issues, download the utility from global.aopen.com selecting product 'Warm Touch' and model 'WT19M-FI' under 'Utility'.

USER MANUAL WT19M-FI AOPEN

Blue icon showing a hand cursor clicking a circular button on a computer screen, with a partial letter 'M' in the corner (no text or symbols on the diagram itself)

E-TILE

WT19M-FI

Technology Manual

Symbol of a trash bin crossed with no visible text or labels

Disposal Instruction (US)

For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under "Green Products"

廃棄上の指示

Instruction de Disposition (French)

Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.

Disclaimer

AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically disclaims any warranties, merchantability of fitness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen Inc. All other brand names and trademarks are owned by their respective owners.

Copyright © 2011 by AOpen Inc.

All rights reserved.

AOpen Inc.

http://xc.aopen.com.tw

Safety Instructions

1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from connector before cleaning. Don't use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning.
4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening; this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by a service personnel :

a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you can not get it work according to user's manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.

1. Ambient operation temperature: less than 40 degrees C.

2. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according to the manufacturer's instruction or your local authority.

3. Wall Mounting Holder need to use UL 1678 approved product.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the device and receiver.

Connect the device into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003

Table of Contents

1. Packing List 10
   1-1. Standard Accessories ....
   1-2. Optional Accessories ....

2. System View ...... 12
   2-1. Front View ....
   2-2. Rear View ....
   2-3. I/O Ports View ....
   2-4. Dimensions ....

3. System Assembly ...... 14

3-1. HDD Replacement ....
3-2. RAM Replacement ....
3-3. CPU Replacement ....

1. Peripheral Installation ..... 17

4-1. Wall Mount Kit Assembly ....
4-2. Wireless LAN Installation ....

1. Specification 20

2. Jumper Setting ...... 23

6-1. For Motherboard ....

Appendix A: Drivers Installation . 25

9The logos of Adobe and Acrobat are the registered trademarks of Adobe Systems Incorporated.

The logos of AMD, Athlon, and Duron are the registered trademarks of Advanced Micro Devices, Inc.

The logos of Intel, Intel Celeron and Pentium II&III are the registered trademarks of Intel Corporation.

The logos of nVidia are the registered trademarks of nVidia Corporation.

The logos of Microsoft, Windows are the registered trademarks of Microsoft Corporation in America and other countries.

All the titles of the products and the trademarks mentioned in this manual are for the purpose of illustrative conveniences and are possessed by their respective firms.

We regret not informing about any changes in usage standards and other related information. AOpen

Company reserves the right of altering or modifying the content of this manual. In case of any mistakes or incorrect descriptions, which include those on the products, AOpen makes no guarantee or commitments.

This document is based on the copyright laws in order to protect our company and reserve all rights.

Under no circumstances are any types of duplicating and loading this brochure in any databases and media permitted except the permission signed on formal document by AOpen Company.

1996-2008 Copyrights, AOpen Ltd. All rights reserved.

http://www.aopen.com

1. Packing List

1-1. Standard Accessories

a.

Blank tablet device with no visible text, labels, or symbols on the screen

d.

b.

C.

e. Ultra Slim Wall Mount

a. System
b. Utility and Driver bank
c. Power adapter (120W)
d. Power cord
e. Ultra Slim Wall Mount (Option)

Note:

The pictures may look slightly different from the product you purchased, due to our constant product improvement effort.

1-2. Optional Accessories

Desktop Stand

P/N:90.WT134.0010

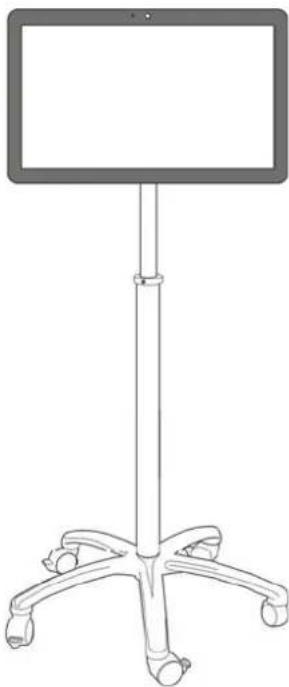

Floor Stand

P/N:90.WT134.0010

Black handheld device with a curved cable and mounting base (no visible text or symbols)

Line drawing of a standard office chair with five legs and a blank front panel (no text or symbols)

Note:

Please set up monitor as landscape, for safety reason no allow turn it to portrait.

2. System View

2-1. Front View

Black rectangular tablet with a dark screen and faint background blur (no text or symbols visible)

2-2. Rear View

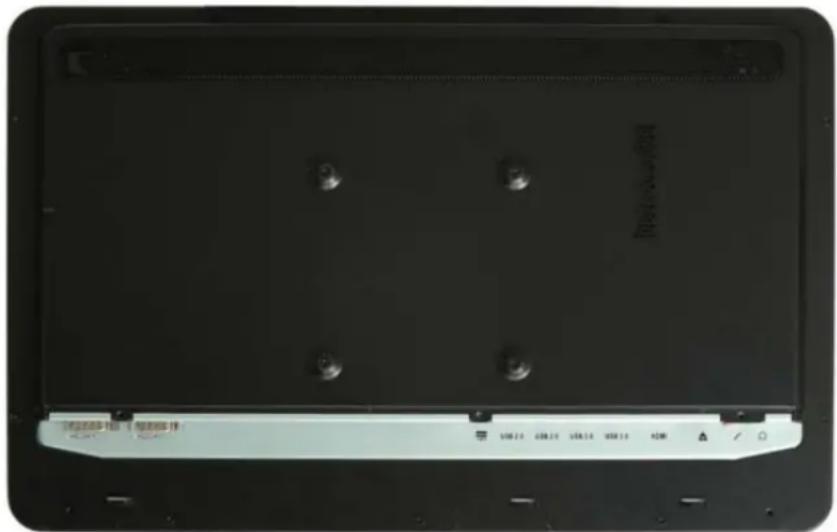

2-3. I/O Ports View

Caution: When you install devices or cables, please removed DC jack first. Prevent mistake in power on.

Back view of a black electronic device with ports and connectors (no visible text or symbols)

3. System Assembly

Remove back cover screws.

3D model of a tablet device with highlighted circular features (no text or symbols)

3-1. HDD Replacement

1. Unscrew the screw, and disconnect the SATA connector when swap HDD.

Close-up of a white electronic device with a perforated vent and red circular annotations (no readable text or symbols)

1. Install HDD or SSD.

Close-up of a white electronic device with a grid of small circular components and blue arrows pointing to a black clip (no visible text or symbols)

3-2. RAM Replacement

Opening the Rear Cover

Please open the rear cover first then remove and replace the RAM module.

You can refer to the motherboard layout to find the memory compartment.

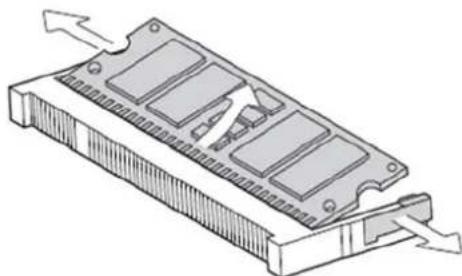

Removing a RAM Module

1. Use both fingers to pull the ejector clips out of the sides of the module.
2. Slide the memory module out of the memory slot.

Technical illustration of a mechanical component with internal channels and directional arrows (no text or symbols)

Installing a RAM Module

1. Slide the memory module into the memory slot and press down until the ejector clips click in place.

Diagram of a battery pack with internal compartments and mounting points (no text or symbols)

3-3. CPU Replacement

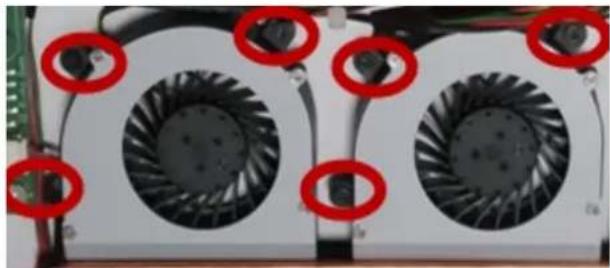

Step1: Unscerw fan Module screw as photo. Follow Number 4→3→2→1 remover Cooler.

Close-up of a computer motherboard showing two fans with red circular annotations highlighting specific components (no text or symbols present)

Close-up of a computer motherboard with copper cooling pipes and circuitry (no visible text or symbols)

Step3:Unscrew the CPU socket

Step4: Put the CPU into the socket, and check the direction.

Step5: Screw the CPU socket. Follow Number 1→2→3→4

Close-up of a computer motherboard with copper heat sinks and circuit boards (no visible text or symbols)

Close-up of a green printed circuit board with visible components and traces (no readable text or symbols)

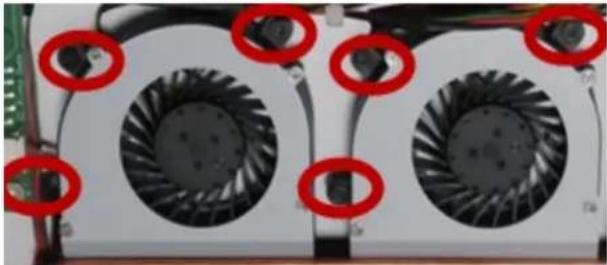

Step7: Scerw fan Module screw as below photo

Close-up of a computer fan with visible blades and red circular annotations (no text or symbols)

3-4. Power Adapter Replacement

1. Disconnect the power cable from the I/O panel.

4. Peripheral Installation

4-1. Wall Mount Kit Assembly

1. Fix the wall-mount bracket onto the wall.

2. Place the VESA bracket onto the VESA mounting holes on the system and fasten the screws (x4).

3. Align the VESA bracket with the system into the wall-mount brakcet and make sure they are well

A: install in Wall
B: install to Wall side
C: Screw in A
D Screw in System
E: install to System side

4-2. VESA Assembly

Please use WT19M-FI enclosed VESA screw. M4 length 5mm, otherwise will be broken system's VESA screw hole.

4-3. Wireless LAN Installation

To external antenna

Diagram of a mechanical component with arrows indicating motion or force direction, no text or symbols present

5. Specification

CPU

Intel B980 or Above (Support Ivy Bridge CPU) socket 988

CHIPSET

Intel QM77

MEMORY

Support : SO-DIMM DDR3 x 2 (MAX 8G) Default 4Gx1

GRAPHICS

Integrated Intel® CPU (GMA HD Graphics series)

LAN

Intel Lan W82579LM

Audio

Realtek ALC886

Mini-Card slot (Option)

x2 (Wi-Fi, Digital TV Tuner card for optional)

Storage

Default 320G 2.5" SATA HDD

Optional 2.5" SATA SSD

SYSTEM BIOS

AMI 16MB (128Mb) SPI Flash ROM BIOS

Touch Panel

Win 7 Premium above support 10 Fingers (PCT Multi Touch)

Surface Pencil Hardness >=7H per ASTM D 3363.

Durability Characteristics

Pen Hitting: more than 20,000,000 times.(Loading 180g)

Another SPEC

Standard VESA Screw Hole (100x100mm), Screw L=3mm

Build-in 2W Stereo Speaker

Build-in internal Mono MIC

Build-in 1.3M Camera

Watchdog Timer: (1sec \~255sec)

Panel 18.5"(1366x768 250cd/m²) ELED Back Light

System Build-in Embedded Antenna

No support Monitor OSD function

Optional Wireless KIT

Side I/O – with cover

RS232 Port x2 (Option Power 12V/5V/1A, Default Disable)

USB 2.0 x2 (private support 5V/2A/Port)

USB 3.0 x2 (private support 5V/2A/Port)

GbE LAN RJ45 *1

Line out x1

MIC in x1

DC 19.5V (AC Adaptor 120W)

HDMI output connector x1 (for Dual Display)

On Board Pin Head / Connector on board

Fan power x 1

USB 4Pin x 1

Dimension / Weight

454x290x30mm (WxHxD) 4.7Kg

1. Facing 1.3M Webcam

2. 18.5" LED panel

• Res. 1366x768
• 250nits
• Frameless and ultra slim design
• Front Panel IP65 design

3. PCT touch

• Rcs. 2048x2048
• 10 points touch
• Windows 7/Linux/Android/Mac driver support

4. Hidden key pad left hand side

power knob
- Brightness up
• Brightness down

Please use paper clip or sharp item.

5. lim ITX QM77 MB

• Support Ivy Bridge CPU
• 2.5" HDD Bag x 1
• SO-DIMM DDR3 x 2 (MAX 8G)

6. Integrated Speaker and Microphone

7. Standard VESA

• 100x100 Stand options
• Wall Mount brackets

8. Rear I/O support

• 19V DC-IN
• USB2.0×2
• USB3.0x2
• HDMI OUT x 1
• 10/100/1000 M LAN (RJ-45) x 1
- Microphone IN x 1
- Speaker OUT x 1
RS232×2

6. Jumper Setting

6-1. For Motherboard

6-1-1.Motherboard Placement

Pin Definition

Pin

Signal

Pin

Signal

1 Data Carrier Detect 6 Data Set Ready

2 Received Data 7 Request to Send

3 Transmitted Data 8 Clear to Send

4

Data

Terminal

Ready

9

Disable/5V/12V form BIOS setting

5

Signal

Ground

Appendix A: Drivers Installation

The shipping package includes a Driver CD in which you can find every individual driver and utility that enables you to install the drivers on the system.

Please insert the Driver CD into the drive and double click on the "index.htm" to select the models. You can refer to the drivers installation guide for each driver in the "Driver/Manual List".

Notice:

Please link below touch utility when you have touch accuracy issue. Don't use Windows build-in tablet PC utility to calibration.

http://global.aopen.com/download.aspx

Select Product : Warm Touch Select Model : WT22M-RH Select Categories : Utility

Select Product : Warm Touch Select Model : WT19M-RH Select Categories : Utility

Select Product : Warm Touch Select Model : WT19M-RHI Select Categories : Utility

Select Product : Warm Touch Select Model : WT19M-RC Select Categories : Utility

Select Product : Warm Touch Select Model : WT19M-FI Select Categories : Utility

Part No.: 49.00000.0000 Doc. No.: WT19M-FI-OL-1108Ak
