Mountain Mirror - Bike accessory Blackburn - Free user manual and instructions

Product Type	Rearview Mirror for Mountain Bike
Dimensions	2.5 x 3.5 x 2.2 inches (mirror head)
Weight	1.2 oz (35 g)
Material	ABS plastic housing, glass mirror
Mounting Type	Handlebar clamp (fits 22.2-31.8 mm bars)
Adjustability	360° rotation, tiltable head
Lens Type	Convex mirror for wide field of view
Weather Resistance	Water and dust resistant (IP54)
Compatibility	Mountain and hybrid bikes
Installation	Tool-free clamp, no drilling required
Maintenance	Wipe with soft cloth; avoid solvents
Safety	Breakaway design to reduce injury on impact
Warranty	2-year limited warranty
Brand	Blackburn

Frequently Asked Questions - Mountain Mirror Blackburn

How do I install the Mountain Mirror on my handlebar?

Loosen the clamp screw, slide the mount onto the handlebar, position the mirror, then tighten the screw securely. The clamp fits most handlebar diameters from 22.2 to 31.8 mm.

Can I use this mirror on the left or right side?

Yes, the mirror can be mounted on either side by rotating the clamp and arm 180°. Adjust the head angle for optimal rear view.

Is the mirror shatterproof?

The mirror uses a glass lens, which can break under extreme impact. However, the housing is designed to break away upon heavy impact to reduce injury risk.

How do I clean the mirror?

Use a soft, damp microfiber cloth to wipe the mirror surface. Avoid abrasive cleaners or solvents that may damage the coating.

Does the mirror vibrate at high speeds?

The clamp and arm are designed to minimize vibration. Tightening the clamp properly helps maintain a steady view even on rough terrain.

Can I replace the mirror head if it gets damaged?

Yes, replacement mirror heads are available separately from Blackburn. Check the product page or contact support for part numbers.

Is the mirror adjustable for different rider heights?

The mirror head offers 360° rotation and tilt adjustment, allowing you to position it for your specific seating position and height.

Will the mirror fit on aero or carbon handlebars?

The clamp is compatible with standard round handlebars. For aero or carbon bars, ensure the clamp diameter matches and avoid over-tightening.

How durable is the mirror in wet conditions?

The mirror is water and dust resistant (IP54), making it suitable for rain and mud. However, prolonged submersion should be avoided.

What is the warranty on the Mountain Mirror?

Blackburn offers a 2-year limited warranty against defects in materials and workmanship. Keep your receipt for warranty claims.

USER MANUAL Mountain Mirror Blackburn

Fits Over Mountain Bike Grips

Part# 2041498

STEP ONE: Loosen strap and place curved end of mount on underside of grip.

STEP TWO: Tightly wrap strap around grip and then back over itself.

STEP THREE: Adjust mirror viewing angle while seated on bike.

STEP FOUR: To adjust, loosen mirror tension by holding mirror in one hand while rotating lock ring clockwise with the other hand. Hold mirror in place while retightening lock ring.

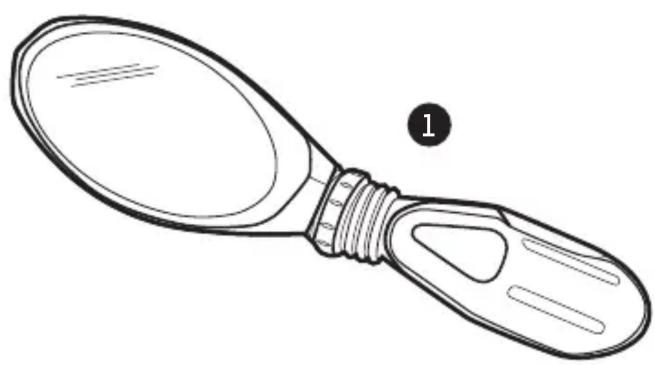

Line drawing of a pair of eyeglasses with a handle and bulb (no text or symbols)

Three line drawings of a mechanical component with no visible text or symbols

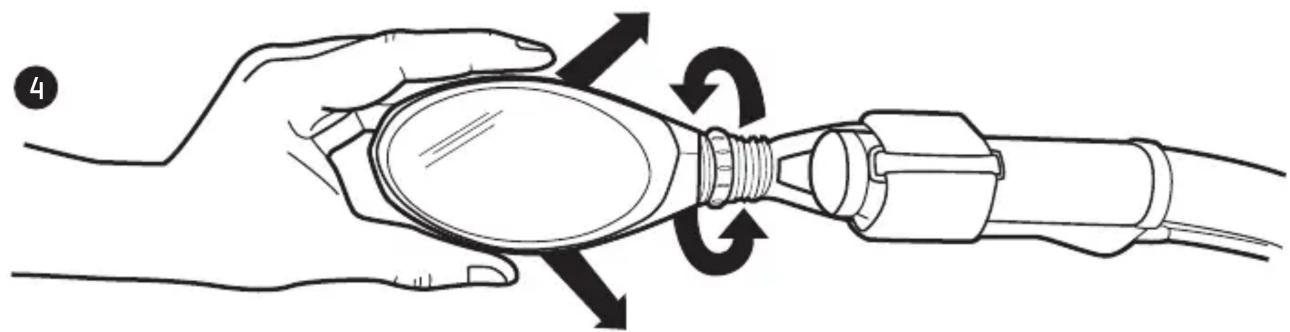

Illustration of a hand holding a bulb with a connector, showing rotational motion arrows (no text or symbols)

WARNING: Objects in the mirror are closer than they appear. Road vibrations or rough terrain may loosen ball joint or strap. Check tension frequently.

Visit us at blackburndesign.com for product updates.

Blackburn.

5550 Scotts Valley Drive, Scotts Valley, Ca 95066

Customer Service: 1-800-456-2355

Blackburndesign.com

Printed in China

LIFETIME

WARRANTY
