HNT63322XH - Cooker BEKO - Free user manual and instructions

Product Type	Cooker Hood
Brand	Beko
Model	HNT63322XH
Supply Voltage	220-240 V ~ 50/60 Hz
Motor Power	65 W
Lamp Power	1 x 2 W
Maximum Airflow (3rd speed)	344 m³/h
Number of Speeds	3
Insulation Class	Class I
Grease Filter	Aluminum, washable (monthly)
Carbon Filter	Optional, replace every 3 months
Chimney Connection Diameter	120 mm / 150 mm
Lamp Energy Efficiency Class	A
Color Options	Inox, Black, White
Minimum Distance from Hob	65 cm
Controls	Slider switches for lamp and 3 speeds
Light Source	LED, 2 W, 4050 K, 81 lm
Installation Type	Wall-mounted or under cabinet
Included Accessories	User manual, screws, plastic dowels
Waste Disposal	Complies with WEEE Directive (2012/19/EU)

Frequently Asked Questions - HNT63322XH BEKO

How often should I clean the grease filter?

Under normal usage, clean the aluminum grease filter once a month. Use liquid detergent and rinse with water. You can also wash it in a dishwasher.

How do I replace the carbon filter?

Remove the grease filter first. Rotate the carbon filter counter-clockwise to release it from its housing. Install a new carbon filter by clicking it into place and then replace the grease filter. Replace carbon filters every 3 months.

What type of lamp does the hood use?

The hood uses an LED lamp with power 2 W, voltage 110-240 V, holder L14, color temperature 4050 K, and luminous flux 81 lm. Energy efficiency class A.

How do I change the lamp?

Disconnect the power supply before replacing. Ensure the lamp is cool. You can obtain a replacement lamp from Authorized Service Agents. Handle the lamp without touching it directly.

What is the minimum distance between the hob and the hood?

The minimum distance must be 65 cm from the supporting surface of the cooking vessels to the lowest part of the hood. For gas cookers, measure from the grate surface; for electric, from the glass surface.

The hood does not work. What should I check?

First, check your fuse and ensure it is not tripped. Then verify the electrical connection: mains voltage should be 220-240 V. Also check if other kitchen appliances work.

The air intake is poor. What could be wrong?

Check the aluminum grease filter: clean it if dirty (monthly). Ensure the air vent flue is open. If you have a carbon filter, replace it if it has been used for more than 3 months.

Can I install the hood without a chimney?

Yes, the hood can operate in recirculation mode using a carbon filter. In this mode, remove the flaps inside the flue adapter and install the carbon filter as described in the manual.

What is the recommended speed setting for energy efficiency?

Use low speeds (1-2) for normal conditions and high speed (3) only when smells and vapors are intense. Running at lower speeds reduces energy consumption.

How do I clean the exterior of the hood?

Use a cloth dampened with a neutral liquid detergent. Do not use abrasive products or alcohol. Unplug the hood before cleaning.

USER MANUAL HNT63322XH BEKO

HNT 63322 WH

HNT 63322 BH

HNT 63322 XH

EN - RO - PL

CONTENTS

ENGLISH		3-15
ROMÂNĂ	16-32
POLSKI		33-47

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

WARNING: Warning for danger of fire.

WARNING: Warning for electric shock.

1 Important safety and environmental instructions

1.1 General Safety

Important Safety Instructions. Read Carefully and Keep for Future Reference. This section contains safety instructions that will help protect you from risk of fire, electric shock, exposure to leak microwave energy, personal injury, or property damage. Failure to follow these instructions shall void any warranty.

Beko products comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center, or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

This appliance is intended to be used in household

and similar applications such as:

- Staff kitchen areas in shops, offices, and other working environments; - Farm houses; - By clients in hotels, and other residential type environments; - Bed and Breakfast type environments.

- Operate the appliance for its intended purpose only as described in this manual.

The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been

1 Important safety and environmental instructions

given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not be allowed to play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of your product must be at least 65 cm.

- If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.

- Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.

- Never use the appliance if

the power cable or the appliance itself is damaged.

- Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.

- Use the appliance with a grounded outlet only.

WARNING: Do not connect the appliance to the mains until the installation is fully complete.

- Place the appliance in a way so that the plug is always accessible.

- Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot.

- Follow the regulations set out by competent authorities on discharge of the exhaust air (this warning is not applicable for use without flue).

1 Important safety and environmental instructions

- Operate your appliance after putting a pot, pan etc. on the hob. Otherwise, high heat may cause deformation in some parts of your product.

- Turn off the hob before taking the pot, pan etc. from it.

- Do not leave hot pans on the hob. Pans with hot oil may cause self-combustion.

- Pay attention to your curtains and covers since they may catch fire while cooking food such as fries.

- Grease filter must be cleaned at least monthly. Carbon filter must be replaced at least every 3 months.

- Product shall be cleaned in accordance with the user manual. If cleaning was not carried out in accordance with the user manual, there may be a fire risk.

- Do not use non-fire-resistant filtering materials

instead of the current filter.

- Only use original parts or parts recommended by the manufacturer.

- Do not operate the product without the filter and do not remove the filters while the product is running.

- In the event of any flame being started, de-energize your product and cooking appliances.

- In the event of any flame being started, cover the flame and never use water to extinguish.

- Unplug the appliance before each cleaning and when the appliance is not in use.

- The negative pressure in the environment should not exceed 4 Pa (4x10 bar) while the hood for electric hob and appliances running on another type of energy but electricity operate simultaneously.

1 Important safety and environmental instructions

- In the environment where the appliance is being used, the exhaust of devices running on fuel or gas, such as room heaters, must be absolutely isolated or the device must be hermetically sealed.

- When connecting the flue, use pipes with a diameter of 120 or 150 mm. Pipe connection must be as short as possible and have as few elbows as possible.

Danger of choking! Keep all packaging materials away from children.

CAUTION: Accessible parts may become hot when used with cooking appliances.

- The product outlet must not be connected to air channels that include other smoke.

The ventilation in the room may be insufficient when the hood for electric hob is used simultaneously with the devices operating

on gas or other fuels (this may not apply to appliances that only discharge the air back into the room).

- Objects placed on the product may fall. Do not place any objects on the product.

- Do not flambe under the product.

WARNING: Before installing the Hood, remove the protective films.

- Never leave high naked flames under the hood when it is in operation.

- Deep fat fryers must be continuously monitored during use: overheated can burst into flames.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To

find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs impor-

1 Important safety and environmental instructions

tant role in recovering and recycling of old appliances. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 General appearance

2.1 Overview

1. Front panel
2. Control panel
3. Grease filter
4. Lighting

2.2 Technical data

Model	HNT 63322 XH	HNT 63322 BH	HNT 63322 WH
Supply voltage and frequency	220-240V~50/60Hz
Lamp power	1×2 W
Motor power	65 W
Air flow – 3. Level	344 m3/h
Insulation class	CLASS I
Colour	Inox	Black	White

3 Using the appliance

3.1 Controlling the appliance

Lamp button To turn on the product lamp put the switch in lamp position. The slider set should be in pulled position in orderto turn on the lamp.
1st and 2nd speed switch.		Put the switch in down position to operate the product in the 1st speed and in up position to operate in the 2nd speed. To turn it off, set it to "0" position.
3. Speed switch		Put the switch in down position to operate the product in the 3rd speed. To turn it off, set it to "0" position.

3.2 Energy efficient usage

- When operating the hood, adjust the speed level according to the odour and vapour intensity in order to prevent unnecessary power consumption.

- Use low speeds in normal conditions (1–2), and high speed (3) when smell and vapours are intensified.

- Lamps on the hood are intended for illuminating the cooking zone.

- Using them to illuminate the ambient/kitchen will result in unnecessary power consumption and inadequate illumination.

- For your device to consume less energy, run it at a low speed level.

- Your device will reduce energy consumption as it will run more efficiently when you provide sufficient air intake to it.

- Set your device to the intense suction power level before the formation of steam, in cases where you know that the dense steam will occur. So, you reduce energy consumption by using your device for a shorter time as it will have a sufficient air intake.

- Keep the lids of the cookware closed to reduce the steam evolving.

3.3 Operating the hood

- Your appliance contains a motor that has various speeds.

- For better performance, we recommend using low speeds under normal conditions and high speeds in cases of strong odours and intense vapour.

- You can start your appliance by pressing on the desired speed setting button. (1, 2, 3)

- You may illuminate the cooking area by pressing the lamp.

3.4 Replacement of Lamp

- Before replacing the light bulbs, disconnect the power supply of the hood.

- Do not touch the light bulbs when they are hot.

- Be careful not to touch the replaced light bulb directly with hands.

You may procure lamps from Authorised Service Agents.

Bulb
Bulb Power 2 W
Holder / Socket L14
Bulb Voltage 110 - 240 V

3 Using the appliance

Size 34.5*120 mm
Luminous flux 81 lm
Correlated colour temperature	4050 K

This product contains a light source of energy efficiency class "A".

3.5 Operation with chimney connection

connected through the

flue duct, which is fastened to the connection head on the hood.

The diameter of the flue duct

must be the same as the connection ring. In horizontal settings, the pipe has to have a slight upward slope (around 10°) so that the air can exit the room easily.

3.6 Operation without chimney connection

through the carbon

filter and recirculated in the room. Carbon filter is used when it is impossible to use a flue in the house.

In flue less use, remove the

flaps inside the flue adapter.

Remove the aluminium grease filter. To install the carbon filter, fit the filter to the tabs by centering it on the plastic piece on both sides of the fan body. Tighten it by turning right or left.

Replace aluminium grease filter.

4 Cleaning and maintenance

The device should be cleaned and maintained regularly. Failure to keep the device clean will adversely affect the service life of the device. For cleaning and maintenance, follow the instructions stated in the manual.

Before cleaning and maintenance, unplug the product or turn off the switch.

Non-compliance with the provisions associated with the cleaning of the device and replacement of the filters may result in a risk of fire. Therefore, it is recommended to follow the guidelines stated here. The manufacturer is not responsible for the engine damages or fires originating from the improper use.

Clean using only a cloth dampened with a neutral liquid detergent. Do not use abrasive products or alcohol.

4.1 Cleaning of grease filter

This filter captures particles in the air. You are recommended to clean your filter every month under normal usage conditions. First remove the grease filters for this process. Wash the filters with liquid detergent and rinse them with water and install them back after they get dry. Grease filters may get discolored as they are washed; this is normal and you don't need to change your filter.

- Push the grease filter lock forward.

- Then pull it slightly down and pull it out. Otherwise, you may bend the filter. Wash and rinse grease filter with liquid detergent and replace grease filter to their seats by carrying out the steps specified above in reverse order. These grease filter are used to retain the oil particles in the air.

You may also wash the grease filter in the dishwasher.

CAUTION: In case of normal use, clean your grease filter once in a month.

4.2 Replacement of Carbon Filters

Odour removing filters contain charcoal (Active carbon). Grease filter must be installed in the product, regardless of whether or not carbon filters are used.

• Remove the grease filter.
• To remove the carbon filter, remove the carbon filter from its housing by rotating it counter-clockwise from the tab. • Install the new carbon filter. • Install the grease filter.

CAUTION:

•Carbon filter shall never be washed. - Replace carbon filters once every 3 months. - You can obtain the carbon filter from the authorized services.

5 Installation of appliance

WARNING: Before starting the installation, read the safety information on User Manual.

WARNING: Failure to install with screws and stabilizers in accordance with these instructions may result in electric shock.

For the installation of the hood, please contact the nearest Authorized Service.

It is the customer's responsibility to prepare the location and electrical installation of the hood.

5.1 Position of the appliance

- Distance between the cooker and the cooker hood must be considered prior to assembly. This distance should be 65 cm.

- Distance must be measured from the surface of grate for gas cookers, from surface of glass for electric cookers.

5.2 Installation accessories

1. Hood
2. User manual
3. Screws x6
4. Plastic dowel x6

5.3 Installation

Two methods for installation

Method A:

To install onto the wall, drill 2 holes of ∅8mm on a suitable place according to the centre distance of the hole in the back of the cooker hood.

Insert the nut into the holes.

Insert the screws into the nuts and tighten.

Put the cooker hood onto the tightened screws.

Fix the cooker hood with safety screw.

The two safety vents are positioned on the back casing, with diameter of 6mm.

Put the one way valve onto the cooker hood.

5 Installation of appliance

Method B:

Drill 4 holes of 6mm diameter at the bottom of the hanging cupboard. Put the one way valve on the cooker hood, then install the cooker hood on the bottom of the hanging cupboard, tighten the hood with the enclosed 4 screws.

- The extensible pipe is an optional accessory, not supplied.

• Take off protection film before installation.

5.4 Air outlet installation method

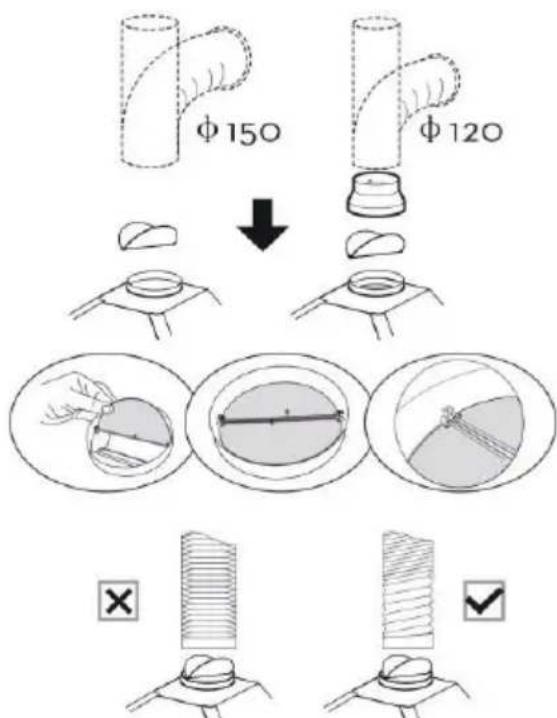

Installation method for 150mm diameter pipe: Insert the one-way valve as shown in the picture and fix the pipe.

ATTENTION: The bump of the one-way valve must be upward.

Installation method for 120mm diameter pipe: Inse

the damper as shown in the picture and fix the converter before placing the duct.

The pipe near the air outlet needs to be fully extended.

5.5 Storage

• If you do not intend to use the appliance for a long time, please store it carefully.
• Please make sure that the appliance is unplugged, cooled down, and totally dry.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children.

5.6 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

6

Troubleshooting

Troubleshooting Reason Help
The product does not work.	Check your fuse. Your fuse might be closed, make it work.
The product does not work.	Check the electrical connection.	The mains voltage should be between 220-240 V.
The product does not work.	Check the electrical connection.	Check if the other products in your kitchen are working or not.
The lighting lamp does not work.	Check the electrical connection.	The mains voltage should be between 220-240 V.
The lighting lamp does not work.	Check the lamp switch. The	lamp switch should be in the “on” position.
The lighting lamp does not work.	Check the lamps. The lamps of the product should not be faulty.
The air intake of the product is poor.	Check the aluminum filter. The aluminum oil filter should be cleaned at least once a month under normal conditions.
The air intake of the product is poor.	Check the air vent flue. The air vent flue should be in the “on” position.
The air intake of the product is poor.	Check the carbon filter. For products with carbon filters, the filter should normally be changed every 3 months.

Control and parts

1. Front panel
2. Control panel
3. Grease filter
4. Lighting

2.2 Technical data

•The carbon filter is never washed. - Replace carbon filters once every 3 months. •Carbon filter is available from Authorized Services.

5 Installing the hood

5 Installing the hood

Method B:

5.2 Installation accessories

Method B:
