Product Type	Subwoofer
Brand	Soundstream
Model	Picasso Shallow PSW.104
Speaker Size	10 inches
Impedance	4 ohms
RMS Power	300 watts
Peak Power	600 watts
Frequency Response	30 Hz - 500 Hz
Sensitivity	86 dB
Mounting Depth	3.5 inches
Cutout Diameter	9.25 inches
Weight	10.5 lbs
Power Supply	12V DC
Functions	Low-level input, high-level input, phase switch, variable gain
Maintenance	Wipe with dry cloth, avoid moisture
Safety	Ensure proper ventilation, do not exceed rated power
Spare Parts	Contact Soundstream customer service
General Info	Designed for shallow enclosures, compatible with most car audio systems

Frequently Asked Questions - Picasso Shallow PSW.104 Soundstream

What is the recommended enclosure volume for the PSW.104?

For a sealed enclosure, 0.35-0.5 cubic feet is recommended. For a ported enclosure, 0.5-0.7 cubic feet with a tuning frequency around 35 Hz.

Can I use this subwoofer in a free-air setup?

No, this subwoofer is designed for use in a sealed or ported enclosure. Free-air operation is not recommended.

What is the difference between RMS and peak power?

RMS power is the continuous power handling, while peak is the maximum short-term power. The subwoofer should be driven with an amplifier that matches the RMS rating.

What is the mounting depth of this subwoofer?

The mounting depth is 3.5 inches, making it suitable for shallow enclosures.

Does the subwoofer come with a grille?

No, the subwoofer does not include a grille. A separate grille can be purchased if needed.

What is the sensitivity rating?

The sensitivity is 86 dB, which indicates moderate efficiency. A powerful amplifier is recommended for best performance.

Can I bridge multiple PSW.104 subwoofers?

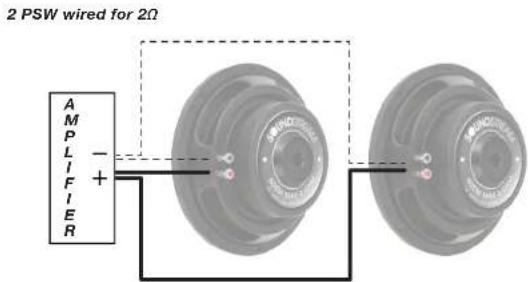

Yes, you can bridge two 4-ohm subwoofers to a 2-ohm load, but ensure your amplifier is stable at that impedance.

How do I connect the subwoofer to my car audio system?

Use either the low-level (RCA) or high-level (speaker wire) inputs. Connect the positive and negative terminals accordingly.

What is the warranty period for this subwoofer?

Soundstream typically offers a 1-year warranty. Check with your retailer for details.

Can I install this subwoofer upside down?

Yes, you can install the subwoofer upside down if the enclosure design allows, provided it does not obstruct the cone movement.

USER MANUAL Picasso Shallow PSW.104 Soundstream

A new addition for 2017, Picasso shallow subwoofers combine performance and value. These shallow subwoofers perform best in small sealed enclosures, with minimal power requirements, thanks to efficiencies in cone and suspension design.

FEATURES, PARAMETERS, & SPECIFICATIONS

Pressed Spruce Pulp Cone w/ Polypropylene Coating Protection

High Density Polyether Foam Surround w/ UV & Chemical Protection

2.00" 4-Layer 4-ohm Voice Coil w/ Large Gauge Wire Increases Power Handling

Nickel Plated 8ga Spring-Loaded Compression Wire Terminals

Poly-Cotton Composite Suspension Dampen Violent Accelerations

Formed Steel Subwoofer Frame with Black Powder Coat Finish

1-pc Gasket Trim Ring w/ Concealed Mounting Holes Included

Stitched Voice Coil Leads Prevent Potential Damage

High-Temperature Tolerance Adhesives Resist Thermal Failure

6mm T-Yoke & Top Plate Improve Low Frequency Dynamics

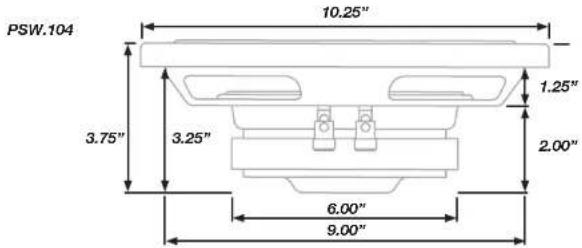

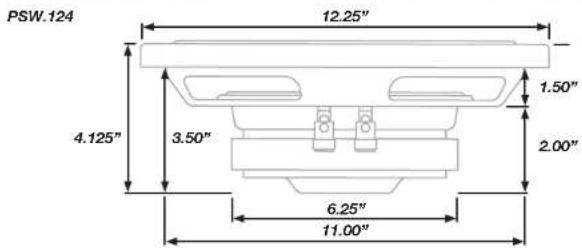

Specification PSW.104 PSW.124
Fs (Hz) 49.54 32.60
Qms 8.312 6.728
Vas ( ft^2 ) 0.59 1.58
Cms (mm/N) .104 .19
Mms (g) 99.09 200.67
Xmax (mm) 10
Xmech (mm) 15
Qes 1.201 .954
Re (Ω)	3.20 3.20
Z (Ω)	4	4
BL (Tm)	9.07 11.74
MAX Power	500w 600w
RMS Power	250w 300w
Qts	1.049 .836
Efficiency (1w/1m)	84.2dB	84.0
Impedance	4Ω	4Ω

ENCLOSURE DESIGN & WOOFER INSTALLATION

Vehicle conditions, amplifier, music preferences, & other variables make it difficult to give you exact dimensions for an enclosure design. For enclosure designs tailored to your specific needs, please contact us at [e-mail], or 1-800-724-1377.

All enclosures should be made of .75" (3/4") material only. When possible, make the baffle 1.5" (1 ½) thick and add .75" (3/4") to the depth of the enclosure to compensate. All volumes INCLUDE vent/port and subwoofer displacements. DO NOT change the volume unless you plan on adding a substantial amount of bracing. For added performance, applying a coat of fiberglass resin to the interior walls will greatly improve sealing the enclosure. Adding a thin layer of poly-fill will improve response by smoothing out reflections within the enclosure.

Below are recommended enclosure designs and their expected performance:

	Recommended Sealed EnclosuresPSW-104			Recommended Sealed EnclosuresPSW.124
	Airspace	QTC	Tuning	Airspace	QTC	Tuning
Min.	0.50 ft^3	1.55 50	9Hz 0.75 ft	^3	1.47	40.2Hz
Opt.	0.75 ft^3	1.40 46	9Hz 1.00 ft	^3	1.34	37.4Hz
Max.	1.00 ft^3	1.31 44	5Hz 1.25 ft	^3	1.26	35.7Hz

LIMITED 90-DAY CONSUMER WARRANTY

LIMITED TWO-YEAR CONSUMER WARRANTY WITH PURCHASE AND INSTALLATION BY A SOUNDSTREAM AUTHORIZED RETAILER

Soundstream promises to the original purchaser, to repair or replace this product with a new or refurbished unit (at Soundstream's sole and absolute discretion) should it prove to be defective in workmanship or material under normal use, for a period of two-years from the date of purchase from the Soundstream authorized retailer, PROVIDED the product was purchased and installed by a Soundstream authorized retailer. During this two-year period, there will be no charge for product repair or replacement, PROVIDED the unit is returned to Soundstream, return shipping pre-paid, along with the required proof of installation, the bill of sale or other dated proof of purchase, and the consumer's contact information.

If the unit is installed by anyone other than a Soundstream authorized retailer, the warranty period will be 90-days from the date of purchase. This warranty is nontransferable and does not apply to any unit that has been modified or used in a manner contrary to its intended purpose, and does not cover damage to the unit caused by installation or removal of the unit. During this 90-day period, there will be no charge for the repair or replacement PROVIDED the unit is returned to Soundstream, return shipping prepaid, along with the bill of sale or other dated proof of purchase and the consumer's contact information.

This warranty is void if the product has been damaged by accident or unreasonable use, neglect, improper service or other causes not arising out of defects in materials or construction. This warranty does not cover the elimination of externally generated static or noise, or the correction of antenna problems or weak reception, damage to speakers, accessories, electrical systems, cosmetic damage or damage due to negligence, misuse, failure to follow operating instructions, accidental spills or customer applied cleaners, damage due to environmental causes such as floods, airborne fallout, chemicals, salt, hail, lightning or extreme temperatures, damage due to accidents, road hazards, fire, theft, loss or vandalism, damage due to improper connection to equipment of another manufacturer, modification of existing equipment, or Product which has been opened or tampered for any reason. Units which are found to be damaged by abuse resulting in thermally damaged voice coils are not covered by this warranty but may be replaced at the absolute and sole discretion of Soundstream. Unit must be returned to Soundstream, postage pre-paid, with bill of sale or other dated proof of purchase bearing the following information: consumer's name, telephone number, and address, authorized retailer's name and address, and product description. Please contact Soundstream warranty office at 800-724-1377, email to [e-mail], or visit Soundstream.com/warranty to obtain a Return Authorization Number prior to shipping the product.

Note: This warranty does not cover labor costs for the removal and reinstallation of the unit. IN ORDER FOR THE TWO-YEAR WARRANTY TO BE VALID, YOUR UNIT MUST BE SHIPPED WITH PROOF OF PURCHASE & INSTALLATION BY A SOUNDSTREAM AUTHORIZED RETAILER. ALL UNITS RECEIVED BY SOUNDSTREAM FOR WARRANTY REPAIR WITHOUT PROOF OF SOUNDSTREAM AUTHORIZED DEALER INSTALLATION AND PURCHASE WILL BE COVERED BY THE LIMITED 90-DAY WARRANTY.

BY PURCHASING THIS PRODUCT, ALL WARRANTIES INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY ARE EXPRESSLY EXCLUDED TO THE MAXIMUM EXTENT ALLOWED BY LAW, AND SOUNDSTREAM NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO ASSUME FOR IT ANY LIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT. SOUNDSTREAM HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEALERS OR INSTALLERS. BY PURCHASING THIS PRODUCT, THE CONSUMER AGREES AND CONSENTS THAT ALL DISPUTES BETWEEN THE CONSUMER AND SOUNDSTREAM SHALL BE RESOLVED IN ACCORDANCE WITH CALIFORNIA LAWS IN LOS ANGELES COUNTY, CALIFORNIA. Some states do not allow limitation on how long an implied warranty lasts. In such states, the limitation or exclusions of this Limited Warranty may not apply. Some states do not allow the exclusion or limitation of incidental or consequential damages. In such states, the exclusion or limitation of this Limited Warranty may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights which vary from state to state.

REGISTER YOUR WARRANTY FOR THIS SOUNDSTREAM PRODUCT ONLINE AND RECEIVE SPECIAL OFFERS & NEW PRODUCT UPDATES!!! soundstream.com/product
