Product Type	Subwoofer
Brand	Soundstream
Model	Picasso Shallow PSW.124
Category	Car Audio Subwoofer
Cone Material	Pressed Spruce Pulp with Polypropylene Coating
Surround Material	High Density Polyether Foam with UV & Chemical Protection
Voice Coil	2.00" 4-Layer 4-ohm, Large Gauge Wire
Terminal Type	Nickel Plated 8ga Spring-Loaded Compression
RMS Power Handling	300 Watts
Max Power Handling	600 Watts
Impedance	4 Ohms
Sensitivity (1W/1m)	84.0 dB
Frequency Response (Fs)	32.60 Hz
Xmax (Linear Excursion)	10 mm
Qts (Total Q Factor)	0.836
Recommended Sealed Enclosure Volume (Optimal)	1.00 ft³
Mounting Depth	Approx. 4.5 inches
Overall Diameter	Approx. 12.5 inches
Weight	Approx. 12 lbs (5.4 kg)
Frame Material	Formed Steel with Black Powder Coat Finish
Included Accessories	1-pc Gasket Trim Ring with Concealed Mounting Holes
Warranty	2 Years (with authorized dealer installation) / 90 Days (otherwise)

Frequently Asked Questions - Picasso Shallow PSW.124 Soundstream

What is the recommended enclosure type for the Picasso Shallow PSW.124?

The Picasso Shallow PSW.124 performs best in small sealed enclosures. The optimal sealed volume is 1.00 ft³ for a Qtc of 1.34, tuning to 37.4 Hz.

What is the power handling of this subwoofer?

The RMS power handling is 300 Watts and the maximum power handling is 600 Watts.

What is the impedance of the Picasso Shallow PSW.124?

The subwoofer has a 4-ohm impedance, with a voice coil DC resistance (Re) of 3.20 ohms.

How do I wire this subwoofer to my amplifier?

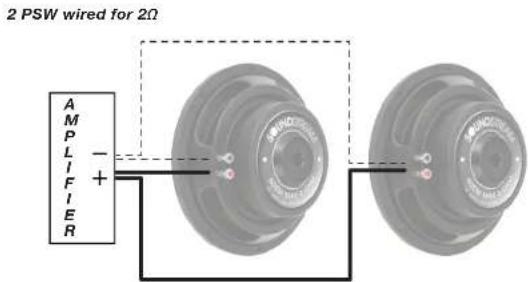

Since it is a single 4-ohm voice coil subwoofer, you can wire it directly to a mono amplifier that is stable at 4 ohms. For multiple subwoofers, consult a wiring diagram for series or parallel connections.

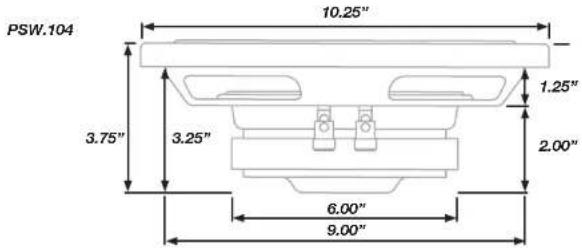

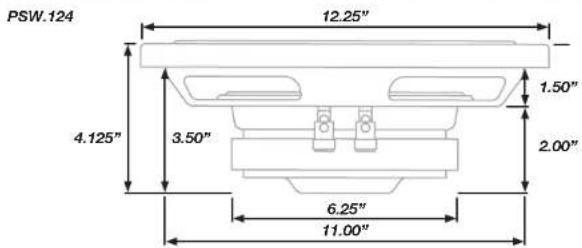

What are the physical dimensions of the PSW.124?

The overall diameter is approximately 12.5 inches and the mounting depth is approximately 4.5 inches. Always verify with a template before building an enclosure.

What type of cone material is used?

The cone is made of Pressed Spruce Pulp with a Polypropylene Coating for protection and durability.

What warranty is offered?

Soundstream offers a 2-year warranty if purchased and installed by an authorized retailer, otherwise a 90-day warranty applies. Proof of purchase and installation may be required.

What is the maximum linear excursion (Xmax)?

The Xmax is 10 mm, allowing for considerable cone movement and low-frequency output.

Can this subwoofer be used in a ported enclosure?

While recommended for sealed enclosures, it can be used in ported enclosures. However, the manual provides only sealed enclosure recommendations. For ported designs, contact Soundstream tech support.

What is the sensitivity of the Picasso Shallow PSW.124?

The sensitivity is 84.0 dB at 1 watt/1 meter, which is typical for a shallow subwoofer.

USER MANUAL Picasso Shallow PSW.124 Soundstream

A new addition for 2017, Picasso shallow subwoofers combine performance and value. These shallow subwoofers perform best in small sealed enclosures, with minimal power requirements, thanks to efficiencies in cone and suspension design.

FEATURES, PARAMETERS, & SPECIFICATIONS

Pressed Spruce Pulp Cone w/ Polypropylene Coating Protection

High Density Polyether Foam Surround w/ UV & Chemical Protection

2.00" 4-Layer 4-ohm Voice Coil w/ Large Gauge Wire Increases Power Handling

Nickel Plated 8ga Spring-Loaded Compression Wire Terminals

Poly-Cotton Composite Suspension Dampen Violent Accelerations

Formed Steel Subwoofer Frame with Black Powder Coat Finish

1-pc Gasket Trim Ring w/ Concealed Mounting Holes Included

Stitched Voice Coil Leads Prevent Potential Damage

High-Temperature Tolerance Adhesives Resist Thermal Failure

6mm T-Yoke & Top Plate Improve Low Frequency Dynamics

Specification PSW.104 PSW.124
Fs (Hz) 49.54 32.60
Qms 8.312 6.728
Vas ( ft^2 ) 0.59 1.58
Cms (mm/N) .104 .19
Mms (g) 99.09 200.67
Xmax (mm) 10
Xmech (mm) 15
Qes 1.201 .954
Re (Ω)	3.20 3.20
Z (Ω)	4	4
BL (Tm)	9.07 11.74
MAX Power	500w 600w
RMS Power	250w 300w
Qts	1.049 .836
Efficiency (1w/1m)	84.2dB	84.0
Impedance	4Ω	4Ω

ENCLOSURE DESIGN & WOOFER INSTALLATION

Vehicle conditions, amplifier, music preferences, & other variables make it difficult to give you exact dimensions for an enclosure design. For enclosure designs tailored to your specific needs, please contact us at [e-mail], or 1-800-724-1377.

All enclosures should be made of .75" (3/4") material only. When possible, make the baffle 1.5" (1 ½) thick and add .75" (3/4") to the depth of the enclosure to compensate. All volumes INCLUDE vent/port and subwoofer displacements. DO NOT change the volume unless you plan on adding a substantial amount of bracing. For added performance, applying a coat of fiberglass resin to the interior walls will greatly improve sealing the enclosure. Adding a thin layer of poly-fill will improve response by smoothing out reflections within the enclosure.

Below are recommended enclosure designs and their expected performance:

	Recommended Sealed EnclosuresPSW-104			Recommended Sealed EnclosuresPSW.124
	Airspace	QTC	Tuning	Airspace	QTC	Tuning
Min.	0.50 ft^3	1.55 50	9Hz 0.75 ft	^3	1.47	40.2Hz
Opt.	0.75 ft^3	1.40 46	9Hz 1.00 ft	^3	1.34	37.4Hz
Max.	1.00 ft^3	1.31 44	5Hz 1.25 ft	^3	1.26	35.7Hz

LIMITED 90-DAY CONSUMER WARRANTY

LIMITED TWO-YEAR CONSUMER WARRANTY WITH PURCHASE AND INSTALLATION BY A SOUNDSTREAM AUTHORIZED RETAILER

Soundstream promises to the original purchaser, to repair or replace this product with a new or refurbished unit (at Soundstream's sole and absolute discretion) should it prove to be defective in workmanship or material under normal use, for a period of two-years from the date of purchase from the Soundstream authorized retailer, PROVIDED the product was purchased and installed by a Soundstream authorized retailer. During this two-year period, there will be no charge for product repair or replacement, PROVIDED the unit is returned to Soundstream, return shipping pre-paid, along with the required proof of installation, the bill of sale or other dated proof of purchase, and the consumer's contact information.

If the unit is installed by anyone other than a Soundstream authorized retailer, the warranty period will be 90-days from the date of purchase. This warranty is nontransferable and does not apply to any unit that has been modified or used in a manner contrary to its intended purpose, and does not cover damage to the unit caused by installation or removal of the unit. During this 90-day period, there will be no charge for the repair or replacement PROVIDED the unit is returned to Soundstream, return shipping prepaid, along with the bill of sale or other dated proof of purchase and the consumer's contact information.

This warranty is void if the product has been damaged by accident or unreasonable use, neglect, improper service or other causes not arising out of defects in materials or construction. This warranty does not cover the elimination of externally generated static or noise, or the correction of antenna problems or weak reception, damage to speakers, accessories, electrical systems, cosmetic damage or damage due to negligence, misuse, failure to follow operating instructions, accidental spills or customer applied cleaners, damage due to environmental causes such as floods, airborne fallout, chemicals, salt, hail, lightning or extreme temperatures, damage due to accidents, road hazards, fire, theft, loss or vandalism, damage due to improper connection to equipment of another manufacturer, modification of existing equipment, or Product which has been opened or tampered for any reason. Units which are found to be damaged by abuse resulting in thermally damaged voice coils are not covered by this warranty but may be replaced at the absolute and sole discretion of Soundstream. Unit must be returned to Soundstream, postage pre-paid, with bill of sale or other dated proof of purchase bearing the following information: consumer's name, telephone number, and address, authorized retailer's name and address, and product description. Please contact Soundstream warranty office at 800-724-1377, email to [e-mail], or visit Soundstream.com/warranty to obtain a Return Authorization Number prior to shipping the product.

Note: This warranty does not cover labor costs for the removal and reinstallation of the unit. IN ORDER FOR THE TWO-YEAR WARRANTY TO BE VALID, YOUR UNIT MUST BE SHIPPED WITH PROOF OF PURCHASE & INSTALLATION BY A SOUNDSTREAM AUTHORIZED RETAILER. ALL UNITS RECEIVED BY SOUNDSTREAM FOR WARRANTY REPAIR WITHOUT PROOF OF SOUNDSTREAM AUTHORIZED DEALER INSTALLATION AND PURCHASE WILL BE COVERED BY THE LIMITED 90-DAY WARRANTY.

BY PURCHASING THIS PRODUCT, ALL WARRANTIES INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY ARE EXPRESSLY EXCLUDED TO THE MAXIMUM EXTENT ALLOWED BY LAW, AND SOUNDSTREAM NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO ASSUME FOR IT ANY LIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT. SOUNDSTREAM HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEALERS OR INSTALLERS. BY PURCHASING THIS PRODUCT, THE CONSUMER AGREES AND CONSENTS THAT ALL DISPUTES BETWEEN THE CONSUMER AND SOUNDSTREAM SHALL BE RESOLVED IN ACCORDANCE WITH CALIFORNIA LAWS IN LOS ANGELES COUNTY, CALIFORNIA. Some states do not allow limitation on how long an implied warranty lasts. In such states, the limitation or exclusions of this Limited Warranty may not apply. Some states do not allow the exclusion or limitation of incidental or consequential damages. In such states, the exclusion or limitation of this Limited Warranty may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights which vary from state to state.

REGISTER YOUR WARRANTY FOR THIS SOUNDSTREAM PRODUCT ONLINE AND RECEIVE SPECIAL OFFERS & NEW PRODUCT UPDATES!!! soundstream.com/product
