Product Type	PA System Amplifier / Receiver
Brand	Glemm
Model	PAA 130
Max Power	130W
RMS Power	60W
Power Supply	AC 110-220V (50/60Hz) or DC 24V
Frequency Response	80 Hz - 18 kHz (+3 dB)
Tone Control	Bass and Treble
Output Signals	4-16 Ohm / 100V line
Line Input	RCA
Microphone Input	6.3mm Jack
Line Output	RCA
Built-in Functions	Bluetooth, FM Radio, MP3 Player
Dimensions (W x H x D)	280 x 65 x 180 mm
Weight	1.8 kg
Speaker Impedance	4-16 Ohm (low impedance) or 100V line
Cooling	Ventilated chassis, do not block vents
Protection Features	Fuse, short-circuit protection
Cleaning	Dry or slightly damp cloth; no solvents
Environmental Rating	Indoor use only; temperature <40°C, no rain/humidity
Warranty & Support	Refer to Karma Italiana Srl (manufacturer)

Frequently Asked Questions - PAA 130 Glemm

What is the maximum power output of the Glemm PAA 130?

The maximum power is 130W, with an RMS power of 60W.

What power supply options are available?

It operates on AC 110-220V (50/60Hz) or DC 24V. Always check the voltage selector or label before connecting.

Can I connect both low-impedance speakers and 100V line speakers?

Yes, the amplifier supports both 4-16 Ohm speakers and 100V line systems. Use the appropriate output terminals.

How do I connect Bluetooth?

Turn on the amplifier and enable Bluetooth on your device. Select 'PAA 130' from the list. No password is required.

What is the frequency response?

The frequency response is 80 Hz to 18 kHz with a tolerance of ±3 dB.

Does the amplifier have a built-in MP3 player?

Yes, it includes an MP3 player (likely via USB/SD card, though not explicitly stated). Refer to the manual for media sources.

How do I clean the amplifier?

Unplug the unit and use a dry or slightly damp cloth. Avoid solvents or abrasive cleaners. Do not let water enter the device.

What should I do if the amplifier doesn't turn on?

Check the fuse and power cord. Replace the fuse with one of the same type and rating. If the issue persists, contact technical support.

Can I use this amplifier outdoors?

No, it is designed for indoor use only. Avoid exposure to rain, humidity, or temperatures above 40°C.

What is the warranty information?

The amplifier is manufactured by Karma Italiana Srl. For warranty claims, contact the seller or the manufacturer directly.

USER MANUAL PAA 130 Glemm

Amplificatore P.A. system P.A. system amplifier

• OTROS IDOMAS •
• OUTRAS LINGUAS •

AMPLIFICATORE Amplifier

CAVO ALIMENT. Power cable

MANUALE Manual

When you open the package check that product is in good condition and that all the parts are present. Immediately notify the seller if any part is damaged or missing.

CARATTERISTICHE TECNICHE TECHNICAL SPECIFICATIONS

	PAA 80	PAA 130
Potenza maxMax Power	80W	130W
Potenza RMSRMS Power	35W	60W
AlimentazionePower Supply	AC220V/50Hz - AC110V/60Hz - DC24V
Risposta in freq.Frequency response	80Hz - 18 Khz (+3dB)
Controllo toniTones Control	Alti-BassiBass and treble
Segnali in uscitaOutput signals	4 - 16 Ohm / 100V
Ingresso LineaLine Input	RCA
Ingresso MicrofonoMicrophone Input	Jack 6,3mm
Uscita LineLine Output	RCA
FunzioniFunctions	Bluetooth, FM radio
Lettore Mp3Mp3 Player	Si / Yes
DimensioniDimensions	280 x 65 x 180 mm
PesoWeight	1,6 Kg	1,8 kg

IT

EN

The manufacturer, in order to improve its products, reserves the right to modify their characteristics whether technical or aesthetic, at any time and without notice.

GRAZIE PER IL VOSTRO ACQUISTO

The product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time.

The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety.

Please read this manual carefully before starting using the device in order to take advantage of its full potential.

Hoping that you will be satisfied of your purchase, we thank you again for your trust in our brand and we invite you to visit our website www.glemm.eu where you will find the whole range of our products, along with useful information and updates.

CAUTIONS AND WARNINGS

• Read and follow strictly the instructions contained in this manual.
• Keep this manual for future reference and include it if you give the product to another user.
• When you open the package check that product is intact and that all the accessories are included.
• This device works with dangerous 110V - 230V mains power. Do not open, do not disassemble and don't try to operate inside it. In case of wrong use an electric shock may occur.
• The product is conceived for professional use. Its installation must be carried out exclusively by specialized technicians, skilled in electric and audio systems. In case of wrong installation or connections, the manufacturer doesn't take any responsibility for damages to people or objects.
  • Make sure that your power outlet voltage matches with the voltage indicated on the product.

A wrong voltage would seriously damage the fixture.

• Before making any connection with other devices, check that all the fixtures are disconnected from the power source and that all the volumes are set on minimum.
- The product is not suitable for outdoor use. To avoid the risk of shortcircuits don't expose it to high temperatures (above 40°), rain or humidity.
• Do not allow flammable liquid, water or metal objects to enter the product.
• Don't touch the product with wet hands.
- Do not place any recipients filled with liquids, such as vases, on top of or directly next to the appliance.
• Install the product in a stable and ventilated position, far from heat sources and don't obstruct the air vents.
• Use the fixture and its controls with due accuracy, avoiding falls, vibrations or impacts.
- If the product doesn't turn on, check the fuse and if necessary replace it with one of the same type and rating, after disconnecting the fixture from power.
- In the event of a serious operating problem, stop using the product immediately. Never try to repair it by yourself, but contact the authorized technical service center. Repairs carried out by unskilled persons could lead to serious damages both to the fixture and to people.
• Do not turn the product on and off at short intervals, it may reduce the life of the device.
- Disconnect the unit from power when it is not used.
- Never disconnect the product from the power source by pulling on the cord. Do not cut, kink, otherwise damage nor modify the power supply cord and periodically check that it is in good condition.
• Wait for the product to cool before cleaning or maintenance.
• To clean the product, use only a dry or slightly damp cloth, avoiding solvents or detergents of any kind.
- Keep away from children's reach

This type of connection does not allow to limit individually the power of each single speaker, but it gives the possibility to obtain higher performances. The main rule to be respected is that the total impedance of the speakers must be compatible with the impedances managed from the amplifier to which the speakers will be connected (generally 4, 8, 16Ω). If you use more than one speaker, the value of impedance will be added up or divided depending on the type of connection (in series or in parallel). If you connect only one speaker you have to consider the impedance of the speaker itself.

Here are two examples of connection:

The impedances add up. In this example the 4 x 4Ω speakers can be connected to one amplifier suitable for 16Ω connections.

The impedances are divided. In this example the 4 x 16Ω speakers can be connected to one amplifier suitable for 4Ω connections.

It is the type of monophonic system realized in shops, conference rooms, churches and in any environment where a uniform sound diffusion in necessary, with maximum ease of installation and use. Only 2 wires are used, starting from the amplifier and getting up to the last speaker. On the amplifier you have to connect a wire to the "com"(common) terminal and the other wire to the terminal indicating 100V.

The two wires will go all around the installation, and they will be connected to the speakers or rather the transformers included in the speakers.

The speakers of this type, have generally a selector to set the emission power, from the minimum to the maximum value supported by the transformer.

As a matter of fact, it is possible to connect to the same 2 main wires, a number of speakers, even different from each other or with different power. The amplifier signal will reach the transformer present in each speaker and the transformer will provide the desired power.

When you operate on the amplifier volume, you will increase or lower the volume of all speakers in proportion. Important: the sum of the maximum power of the speakers must be equal to or less than the amplifier's maximum power.

ESEMPIO:

You connect to the system 5 speakers for a total of 90W. The amplifier handles up to 110W: so in the future you will be able to connect other speakers, up to reach the amplifier's maximum power.

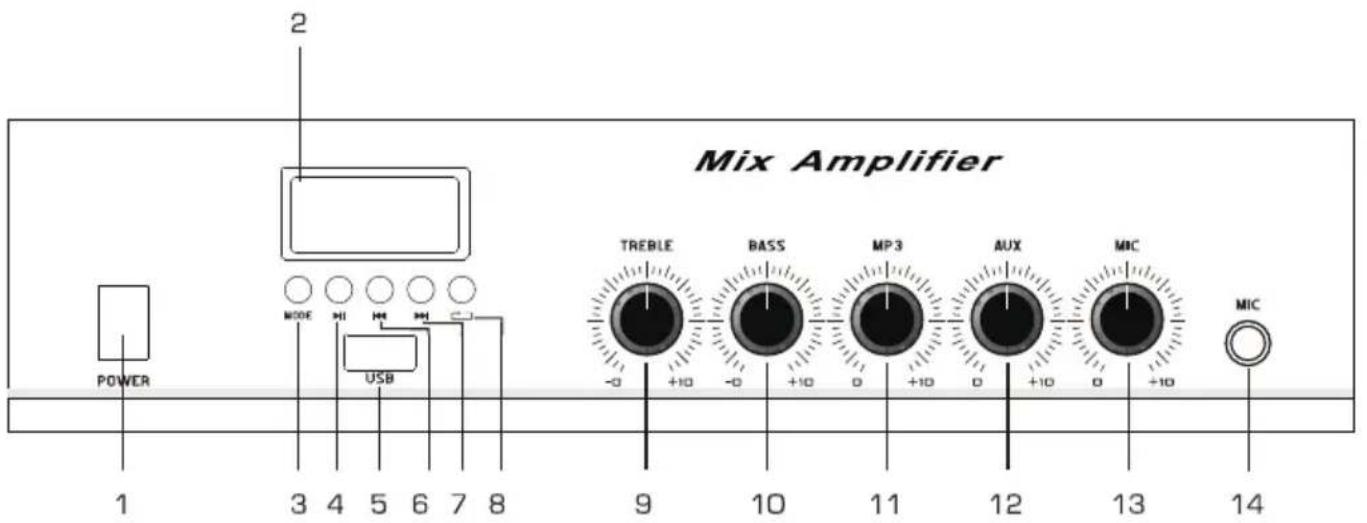

Fronte | Front Side

Retro | Rear Side

Funzioni

Hereby, KARMA ITALIANA SRL declares that the radio equipment type amplifier with bluetooth PAA 80 and PAA 130 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at internet address: www.karmaitaliana.it

Karma Italiana Srl

ATTENZIONE

RISCHIO DI SCOSSA ELETTRICA, NON APRIRE

AVVERTENZA: PER RIDURRE IL RISCHIO DI SCOSSA ELETTRICA, NON TOGLIETE IL COPERCHIO, NON CONTIENE PARTI UTILI PER L'UTENTE. PER L'ASSISTENZA FATE RIFERIMENTO A PERSONALE QUALIFICATO

This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product.

This symbol alerts you to the presence of uninsulated dangerous voltage within the product's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product's case.

The CE mark indicates that this product complies with the essential applicable European directives and their related standards. Compliance documentation in complete form can be asked to the company Karma Italiana Srl.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste, or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).
