EI405 - Iron Khind - Free user manual and instructions

Product Type	Steam/Dry Iron
Brand	Khind
Model	EI405
Power Consumption	1200 W
Voltage / Frequency	220-240 V ~ 50 Hz
Water Tank Capacity	300 ml
Soleplate Material	Non-Stick Coated
Spray Function	Yes
Steam Boost	Yes, up to 30 g/min
Self-Clean Function	Yes
Anti-Drip System	Yes
Auto Shut-Off	Yes, after 8 minutes of inactivity
Heat-Resistant Cord	Yes, 1.8 m
Dimensions (L x W x H)	250 mm x 120 mm x 150 mm
Weight	1.0 kg
Cord Type	Swivel cord for easy movement
Water Level Indicator	Yes
Cleaning and Maintenance	Descale regularly with a mixture of water and vinegar
Safety Features	Auto shut-off, heat-resistant handle
Spare Parts / Repairability	Replacement soleplate and water tank available

Frequently Asked Questions - EI405 Khind

How do I fill the water tank on the Khind EI405 iron?

Turn off and unplug the iron. Open the water tank cover, fill with clean tap water up to the MAX level, and close the cover securely. Do not overfill.

What does the steam boost function do?

The steam boost delivers an extra burst of steam to remove stubborn wrinkles. Press the steam boost button while ironing for a powerful shot of steam.

How do I use the spray function?

The spray function moistens fabrics before ironing. Press the spray button located on the handle to mist water directly onto the garment.

Why does my iron leak water?

Water leakage can occur if the anti-drip valve is blocked or if the temperature is too low. Ensure the iron is at the correct temperature for steam. If the problem persists, descale the iron.

How do I clean the soleplate?

Unplug and let the iron cool. Wipe the soleplate with a damp cloth. For stubborn residue, use a paste of baking soda and water, then rinse. Do not use abrasive cleaners.

What is the self-clean function?

Fill the tank to MAX, set the iron to max temperature, and press the self-clean button. The iron will flush out mineral deposits through the soleplate. Perform this monthly.

How does auto shut-off work?

The iron turns off automatically if left unattended on its base (8 minutes) or if tipped over (30 seconds). A blinking light indicates auto shut-off is active.

Can I use the iron with distilled water?

Yes, distilled or demineralized water is recommended to reduce scale buildup. Do not use chemically softened or scented water.

What is the warranty period for the Khind EI405?

The Khind EI405 typically comes with a 1-year manufacturer warranty. Contact Khind customer service for details.

How do I store the iron after use?

After use, empty the water tank, let the iron cool completely, wind the cord loosely, and store upright on its heel rest. Keep in a dry place.

USER MANUAL EI405 Khind

USER MANUAL

KHIND®

Experience More

ELECTRIC DRY IRON

El405

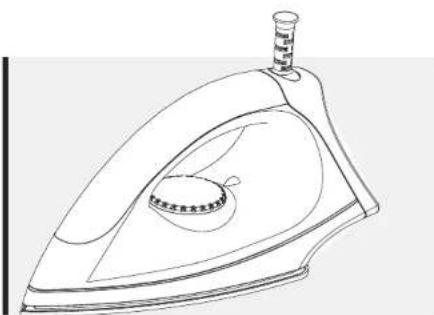

Line drawing of a steam iron with a bulb and spout (no text or symbols)

KHIND CARE Mobile App

Mobile App

Download to register for E-Warranty & enjoy hassle-free after-sales services.

1-800-88-0032

khind.com.my

IMPORTANT

Please read this manual carefully before operating this product. Keep this manual handy for further reference.

P/N: 40-51648-00

Safety Precaution Information

Safety & Warning Information

1. Read the instruction manual carefully and follow the instruction closely.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
   Children should be supervised to ensure that they do not play with the appliance.
3. Use this appliance with specified voltage as stated on the rating label. Before connecting the appliance to AC mains, made sure the voltage specified corresponds to the AC supply to your house.
4. This appliance is intended for household use only; commercial use will void warranty.
5. Do not handle the plug and the appliance with wet hands.
6. Do not pull, lift, or carry the appliance by its power cord. Do not excessively bend, stretch, twist, haul and tramp the power cord or place heavy objects on it.
7. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
8. With any indication of damage or malfunction, please stop using the appliance immediately to avoid hazards. Take it to the authorized service centre for repair. Do not attempt to repair or change any parts by yourself.

9. Always take the appliance by its handle and warn against possible hazards. Eg: scalding or burns

10. The power cord should not touch the soleplate when it is hot.

11. Do not touch the soleplate when the iron is operating or after operation
12. Never immerse the appliance in water to protect against electrical shock hazard.
13. Keep the soleplate smooth; avoid contact with hard objects.
14. Do not leave the appliance unattended while it is connected to the main power outlet.
15. Do not iron over zippers, buttons or any form of metal ornaments found on clothes as they may scratch the soleplate.

16. Do not bend the power cord or wind it round the appliance.

17. Never drop the appliance. If the appliance was dropped, do not use the appliance; If there are visible signs of damages or if it is leaking, please deliver to service centre for servicing.

18. Always disconnect the appliance from electrical outlet when not in use or before cleaning

19. The appliance must be used and rested on a flat stable surface.

20. Never put the appliance down on its soleplate during use. When placing the appliance on its stand, ensure that the surface on which the stand is placed is stable.

Cleaning & Maintenance

1. Make sure the appliance has cooled down and unplugged from power supply before cleaning.
2. Starch and other residue may be easily removed from the soleplate with damp cloth.
3. Do not use abrasive, steel wool or metal implements to clean the soleplate.

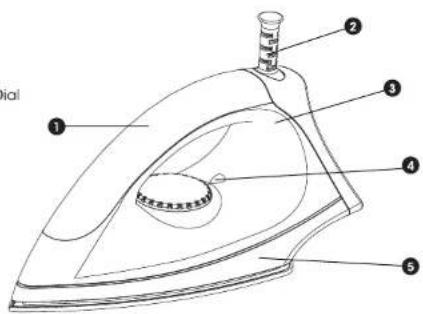

Parts Identification

1. Handle
2. Cord Protector
3. Led Indicator
4. Temperature Control Dial
5. Soleplate

*Pictures are for illustration purposes only.

Specifications

Model	EI405
Voltage	220-240V ~ 50/60Hz
Power	1100-1300W
Power Cord Length	1.8m
Net Weight	0.5kg
Product Dimension (LxWxH)	248 x 105 x 111mm

*Specifications are subject to change without prior notice.

3 How to Use

Operation

Adjust the Temperature Control Dial to the preferred position according to fabric type

A. Setting the Temperature

Set the Temperature Control according to the international textile protection symbols (located on the Temperature control and washing label of the garment)

Rayon, Acrylic - Low Temperature

Silk, Wool - Medium Temperature

Cotton, Linen - High Temperature

B. Storage

1. Unplug the appliance and let it cool down.
2. Set the Temperature Control Dial to the lowest level.
3. If necessary, wipe the appliance with a damp cloth.
4. Store the appliance out of the reach of children and in a clean and dry place
