MX-BB2500 - Hand blender Mx Onda - Free user manual and instructions

Product Type	Hand Blender
Brand	Mx Onda
Model	MX-BB2500
Dimensions	55 x 62 x 417 mm
Weight	950 g
Power Supply	220-240 V ~ 50/60 Hz, 1200 W
Speed Control	Electronic variable speed (13000-15000 rpm ±15%)
Noise Level	80 dBA
Main Functions	Mixing, blending, pureeing, whisking, making mayonnaise and smoothies
Construction	Stainless steel detachable foot, plastic motor body
Detachable Foot	Yes, with eject buttons on motor unit
Cable Length	130 cm
Safety Features	Automatic shut-off not specified; requires supervision for children under 8
Dishwasher Safe Parts	Detachable foot not dishwasher safe
Cleaning Instructions	Wipe motor body with damp cloth; clean foot by blending soapy water
Maximum Continuous Operation	1 minute (soft food), 15 seconds (hard food)
Certifications	CE, RoHS (2011/65/UE), EMC (2014/30/EU), LVD (2014/35/EU)
Intended Use	Household indoor use only
Waste Disposal	Recycle at local centre; do not dispose with household waste

Frequently Asked Questions - MX-BB2500 Mx Onda

What is the maximum power of the MX-BB2500 hand blender?

The maximum power is 1200 W.

Can I use the hand blender for more than one minute continuously?

No, for soft food the recommended maximum continuous operation is 1 minute, and for hard food only 15 seconds. It should be used in intervals to avoid overheating.

How do I clean the detachable foot?

Clean the foot by pouring soapy water into a container and running the blender as if in use. Rinse thoroughly. Do not put the foot in the dishwasher.

Can I immerse the motor assembly in water?

No, never immerse the motor assembly, cord, or plug in water or any liquid. Clean only with a damp cloth.

How do I attach or detach the blender foot?

To detach, press both eject buttons on the sides of the motor unit and pull the foot away. To attach, align the central shaft and push until it clicks.

What voltage does the blender require?

It operates at 220-240 V ~ 50/60 Hz. Do not use an extension cord unless it is in good condition and suitable for the power.

Can children use this hand blender?

Children under 8 years must not use it. Older children can only use it under adult supervision. Cleaning should not be done by children unless they are over 8 and supervised.

What is the speed range?

The electronic speed control allows variable speed from 13000 rpm (minimum) to 15000 rpm (maximum) depending on pressure on the button.

What should I do if the blender malfunctions?

Do not attempt to repair it yourself. Contact the MX ONDA Official Technical Service by phone at [phone] or email [e-mail].

Is the detachable foot dishwasher safe?

No, the detachable foot is not dishwasher safe. Wash it by hand with soapy water as described in the manual.

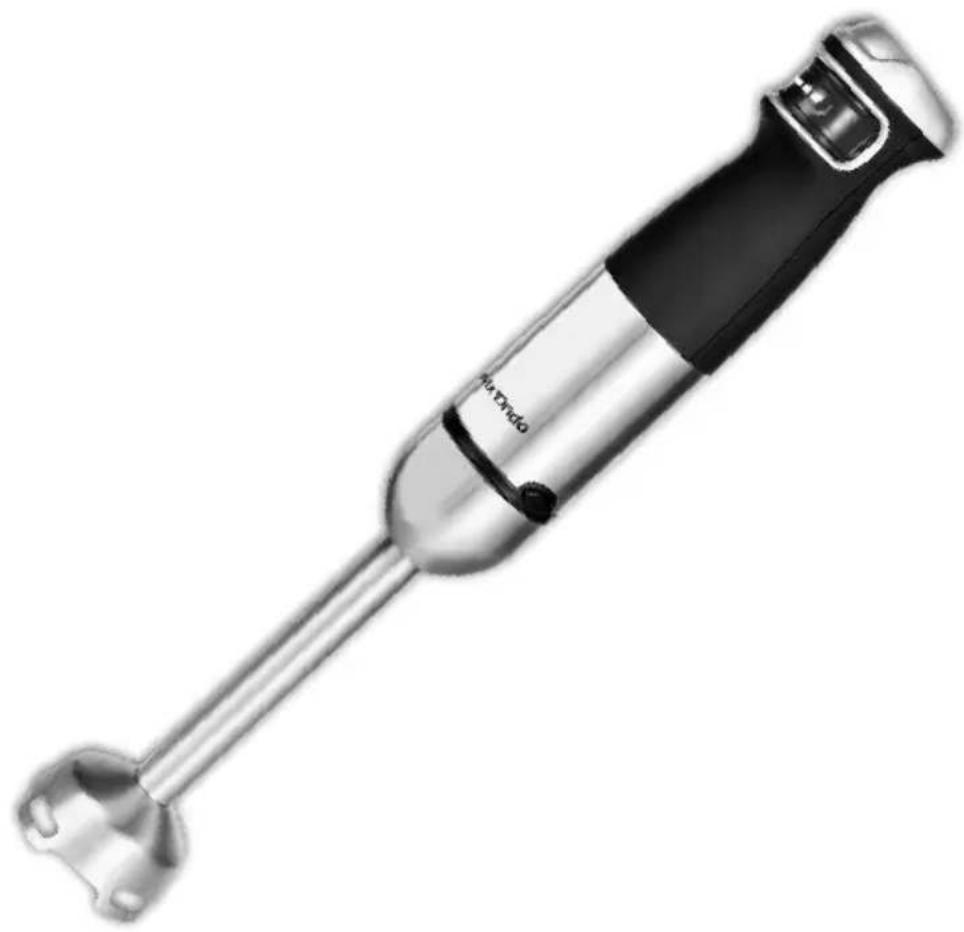

USER MANUAL MX-BB2500 Mx Onda

Close-up of a stainless steel robotic brush with black handle and metal body (no visible text or symbols)

CE

ANTES DE SU USO LEA ATENTAMENTE ESTE MANUAL

ATENCIÓN

Diagram of a device with bidirectional arrow indicating left and right motion (no text or symbols)

Batidora de mano

MANUAL DE INSTRUÇÕES

Mx Onda

MISTURADOR DA MÃO

MODELO: MX-BB2500

Close-up of a stainless steel robotic brush with black handle and metal body (no visible text or symbols)

CE

ANTES DO USO LEIA ATENTAMENTE AS INSTRUÇÕES

ATENÇÃO

Diagram of a handheld device with bidirectional arrow indicating left and right motion (no text or symbols)

Batedeira elétrica

Close-up of a stainless steel robotic brush with black handle and metal body (no visible text or symbols)

CE

BEFORE USE PLEASE READ THIS MANUAL CAREFULLY

WARNING

This unit operates with a voltage of 230 V, to avoid a possible electrical shock not try to open it. This equipment does not have part some that could be repaired by your, in the event of a wrong operation not manipulate it, and attend to an Official Technical Service MX ONDA.

Waste electrical products must not be disposed of with household waste.

This equipment should be taken to your local recycling centre for safe treatment.

This product complies with European Directives RoHS (2011/65/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances.

INTRODUCTION

The MX ONDA hand blender model MX-BB2500 is equipped with a powerful motor which will allow you to beat and mix with great ease. It also includes an electronic speed control that will make it easier for you to adapt it to each type of food to be prepared (mayonnaise, smoothies, etc.).

BEFORE CONNECTING THE HAND BLENDER

• Read these instructions carefully and save them for later use.
• Check that the voltage of your outlet is 220-240 V \~ 50/60 Hz.
• Do not use an extension cord. If you decide to do so under your responsibility, only use an extension cord that is in good condition and suitable for the power of the appliance.
• The extension cord should be positioned in such a way that it does not hang over the counter or table so that children can pull it or trip over it.
• When not using the mixer, do not let the power cord hang over the edge of the surface where it is located, or come into contact with hot surfaces.
• Do not place the mixer on or near gas burners or hot electric plates.

• After removing the packaging, check that the appliance is not damaged. If in doubt, do not use the appliance and contact the technical assistance staff.

• Before use, clean the motor assembly as well as the accessories.

• To protect against the risk of electric shock and personal injury, do not immerse the cord, plug, or motor assembly in water or any other liquid, and DO NOT open the motor assembly.
• The packaging materials (plastic bags, styrofoam, etc.) must not be left within the reach of children, as they are a potential source of danger.
• The manufacturer declines any responsibility for damages resulting from improper, incorrect or reckless use of the appliance.

SECURITY MEASURES

When using electrical appliances, basic safety measures should always be observed to reduce the risk of electric shock and / or personal injury. These measures include the following:

• Children must not play with this appliance.
- Cleaning and maintenance to be carried out by the user cannot be carried out by children, unless they are over 8 years old and are supervised.
- This appliance may not be used by children (under the age of 8 years) or persons with reduced physical, sensory or mental abilities or without experience and knowledge, unless they have received appropriate instructions on the use of the appliance and are supervised by a responsible adult.
- Failure to follow these safety warnings and instructions could result in serious injury.
- This appliance has been designed for indoor use, do not expose this appliance to rain or moisture and do not use it with wet hands.
- This appliance is designed for household, non-professional use only. MX ONDA will not accept any responsibility and the guarantee will not be valid in case of improper use or non-compliance with the instructions.

• During handling, place the containers on a dry, stable and level surface.
• Do not touch the moving parts of the appliance when it is connected to the mains.
• While the mixer is connected or in operation, do not neglect your vigilance and keep it out of the reach of children.
• To disconnect the mixer from the mains, gently pull the plug from the socket. Never do it by pulling on the cable.
• The use of accessories not recommended by the manufacturer of the appliance may cause fire, electric shock or personal injury.

The mixer has very sharp moving parts, therefore, when handling or cleaning, take maximum precautions to avoid personal injury.

- Unplug the mixer, provided that:

• You are not using it.
• Put food or ingredients in the containers.
• There is a power outage, or a fuse or circuit breaker "blows".
• Change accessory.
• Before proceeding with your own maintenance cleaning.

- Never use the mixer in continuous operation for more than one minute and with hard food for more than 15 seconds.

- In case of breakdown, anomalies, if the mixer has been dropped, the plug or other parts show deterioration, or the cable is damaged, do not use the appliance and do not try to repair it yourself. Contact the closest MX ONDA Official Technical Service.

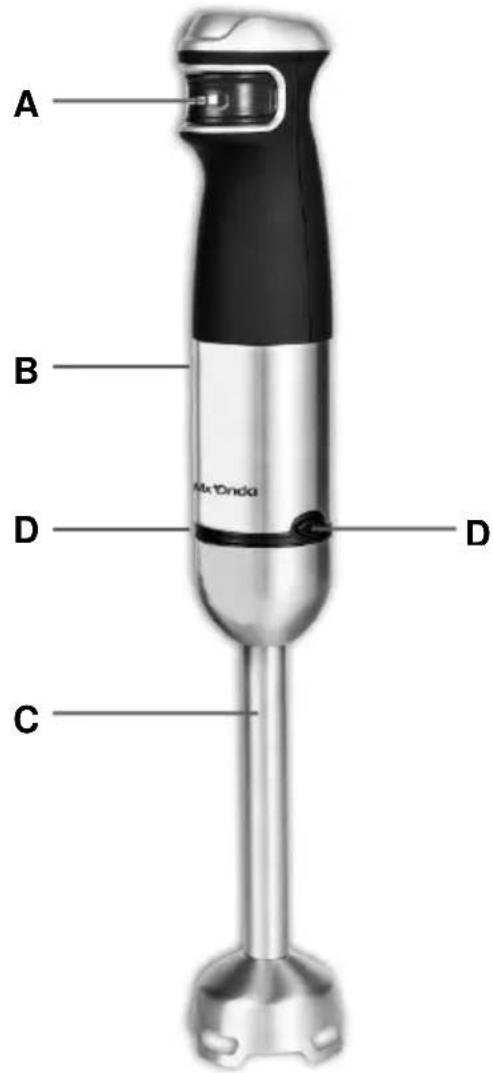

CONTROLS AND ELEMENTS

A. Speed control
B. Engine assembly
C. Detachable foot
D. Foot eject button

USE OF THE BLENDER

With this mixer you can mix or beat thick foods such as baby food, purees, etc., mix or stir dry foods and make mayonnaise, smoothies, etc.

Previous preparation

Before using the blender for the first time, it must be cleaned. See the Cleaning and Maintenance section of this manual.

Removable foot assembly and disassembly

1. Removing the detachable foot; On the sides of the motor assembly B there are the removable foot ejection buttons D, to remove the removable foot press both buttons D and separate the removable foot from the motor assembly B.

2. To insert the removable foot, make the central axis of the same coincide in the hole of the motor assembly, then insert it until you hear a "click", an indication that it is correctly retained.

Note:

During insertion or removal of the detachable foot, the mixer must remain unplugged. Make sure that the removable foot is perfectly attached to the motor assembly.

Mixer operation

The mixer incorporates an electronic speed control device in order to adapt the speed to each type of food.

The speed varies depending on the pressure of the speed control button A. Gently press this button until the mixer starts to run at minimum speed, choose the minimum speed for mixing or stirring dry food and select a higher speed for mixing, shake or whisk thick foods.

If you want to increase the speed, continue pressing the speed control button A until reaching the maximum (button pressed until the end of its travel), this speed is suitable for making mayonnaise, whipping egg whites, porridges, purees, sauces, etc.

Diagram of a device with bidirectional arrow indicating left and right motion (no text or symbols)

Hand blender

The hand mixer is ideal for preparing sauces, creams, soups, mayonnaise, purees, porridges, smoothies or for mixing foods.

Once the removable foot is attached to the motor assembly as described in the Removable foot assembly and disassembly section, follow these steps:

1. Pour the ingredients into a suitable container.
2. Put the hand mixer into the bowl.
3. Plug the appliance into a mains socket and press button A to start the motor. Depending on the pressure exerted on this button, you can select the desired speed. It is recommended to use the appliance discontinuously, that is, at intervals. With this you will obtain a better quality in the preparation of food and a lower effort of the engine.
4. To avoid splashing during the process, the mixer must remain upright.
5. Do not leave the mixer immobile, make circular movements and gently.
6. Before removing the mixer from the container, stop the motor and unplug it from the mains socket.

CLEANING AND MAINTENANCE

• To avoid the danger of electrocution, before cleaning the appliance, disconnect it from the mains.
• The blades of the mixer foot should be cleaned by pouring soapy water into a suitable container and making them work as if they were normal use. Then clarify all the elements.
• Do not put the detachable foot in the dishwasher.
• Do not immerse the motor set in water or any other liquid, clean it only with a damp cloth and do not use abrasive products.

TECHNICAL CHARACTERISTICS

Supply voltage 220 - 240 V \~ 50/60 Hz

Maximum power 1200 W

Minimum speed 13000 rpm ± 15%

Maximum speed 15000 rpm ± 15%

Noise level 80 dBA

Cable length 130 cm.

Dimensions 55 x 62 x 417 mm. (l, a, high)

Weight 950 gr.

Technical specifications attached to change without notice.

This product complies with the European Directives 2014/30 / EU (EMC) on Electromagnetic Compatibility and 2014/35 / EU (LVD) on low voltage safety.

"MX, MX ONDA" and their logos are registered trademarks of MX ONDA, S.A.

MX ONDA, S. A.

C / Matabueyes, 7 nave 1A

19171 - Cabanillas del Campo

(Guadalajara - Spain)

Information and Technical Service telephone number: [phone]

Icon of a person reading a book inside a circle (no text or symbols)

E-MAIL: [e-mail]

http://www.mxonda.es
