Product Type	Bidet Toilet Seat
Brand	Kogan
Model	KAWNDBIDETA
Dimensions (L x W x H)	Approx. 50 x 38 x 16 cm
Weight	Approx. 5.5 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	Approx. 1200W (heating)
Water Pressure	0.07 - 0.75 MPa (adjustable)
Water Temperature Control	Adjustable (warm water)
Seat Heating	Adjustable temperature
Functions	Front/rear wash, oscillating wash, warm air dryer, deodorizer, night light, auto flush
Materials	PP plastic seat, ceramic bowl
Color	White
Installation Type	Wall-mounted or floor-standing
Safety Features	Overheat protection, anti-scald, leakage protection
Cleaning	Self-cleaning nozzles, removable seat cover
Water Inlet	Cold water line, 3/8" connection
Control Panel	Side panel with buttons or remote control
Warranty	2 years
Included Accessories	T-connector, water supply hose, mounting screws

Frequently Asked Questions - KAWNDBIDETA Kogan

How do I install the Kogan KAWNDBIDETA toilet seat?

Installation involves removing the existing seat, attaching the mounting plate, connecting the water supply using the included T-connector and hose, and then snapping the seat onto the plate. Ensure the power cord is plugged into a grounded outlet.

What types of toilet bowls is this bidet seat compatible with?

It fits most standard round and elongated toilets. Measure the distance between mounting holes (typically around 14-16 cm) and check bowl shape before purchase.

How do I clean the bidet nozzles?

The nozzles self-clean before and after each use. For deeper cleaning, retract the nozzles and wipe them with a soft cloth and mild soap. Do not use abrasive cleaners.

The water temperature is not warm enough. What should I check?

Ensure the unit is plugged in and the water heating function is enabled in the settings. The temperature can be adjusted via the control panel. If still cold, check the power supply and contact support.

Can I use the bidet without electricity?

No, the unit requires electricity for water heating, air drying, and other electronic features. Without power, only manual flushing (if applicable) is available.

What does the error code E1 mean?

Error E1 indicates a water supply issue. Check that the water inlet valve is open and the hose is not kinked. If the problem persists, the filter may be clogged.

How do I adjust the water pressure?

Use the control panel buttons. Typically, press the 'Pressure' or 'Wash' button to cycle through low, medium, and high settings. Refer to the user manual for exact instructions.

Is the seat heating adjustable?

Yes, the seat heating has multiple temperature levels. Turn on the seat heating function and use the temperature adjustment buttons to set your preferred warmth.

The bidet is not flushing properly. What can I do?

Check that the auto-flush sensor is clean and not obstructed. Ensure the unit is properly seated. For manual flush models, press the flush button. If issues continue, inspect the water supply.

Where can I purchase replacement parts or accessories?

Replacement parts such as nozzles, remote control, and filters can be purchased from Kogan's official website or authorized retailers. Use the model number KAWNDBIDETA for compatibility.

USER MANUAL KAWNDBIDETA Kogan

Modern white toilet with open lid and control panel (no text or symbols visible)

Table of Contents

Safety & Warnings 2

In the Box 3

Product Overview 4

Installation 5

Operation 9

Cleaning and Maintenance 12

Specifications 15

Safety & Warnings

• Do not disassemble, repair or modify the product.
• Do not immerse the product in water.
• Avoid installing the product in a high humidity location.
• Do not touch any of the power electronics with wet hands.
• Ensure the product is plugged into a power outlet that uses a grounding wire.
  • Only connect to a 240V power outlet.
• Do not use the product if the power cable has been damaged in any way.
• Do not stand on the toilet seat cover, seat or any of the accessories.
• Do not open or close the toilet lid roughly.
• Do not drag or bend the water pipe.
• Avoid installing the product in an area where it may experience freezing temperatures. Freezing water can expand and damage the internal plumbing of the product.
• Do not leave the seat warmer function on for long periods of time.
• This product is not intend for the use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the product by a person responsible for their safety.
  • Children should be supervised to ensure they do not play with the product.

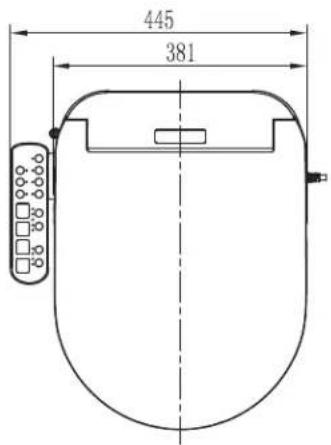

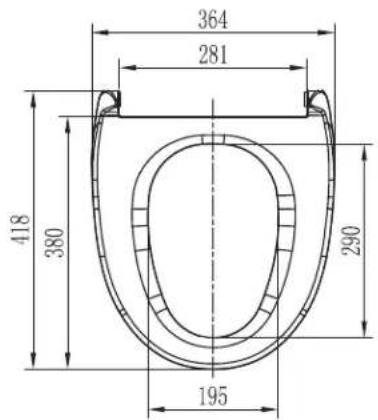

Dimension

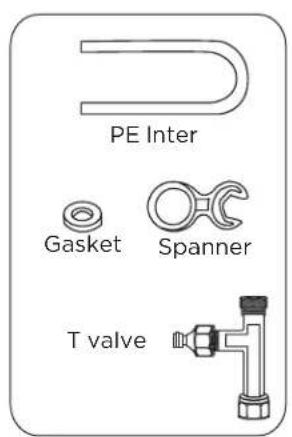

In the Box

• Smart Wash & Dry Electric Toilet Seat
- Manual Spanner
- Filter
- Rubber gasket
- Spare front wash nozzle
- Spare rear wash nozzle
- PE inter
- Fix bracket
- Two metal brackets
- Two mounting bolts
- Two rubber sleeves
- T valve

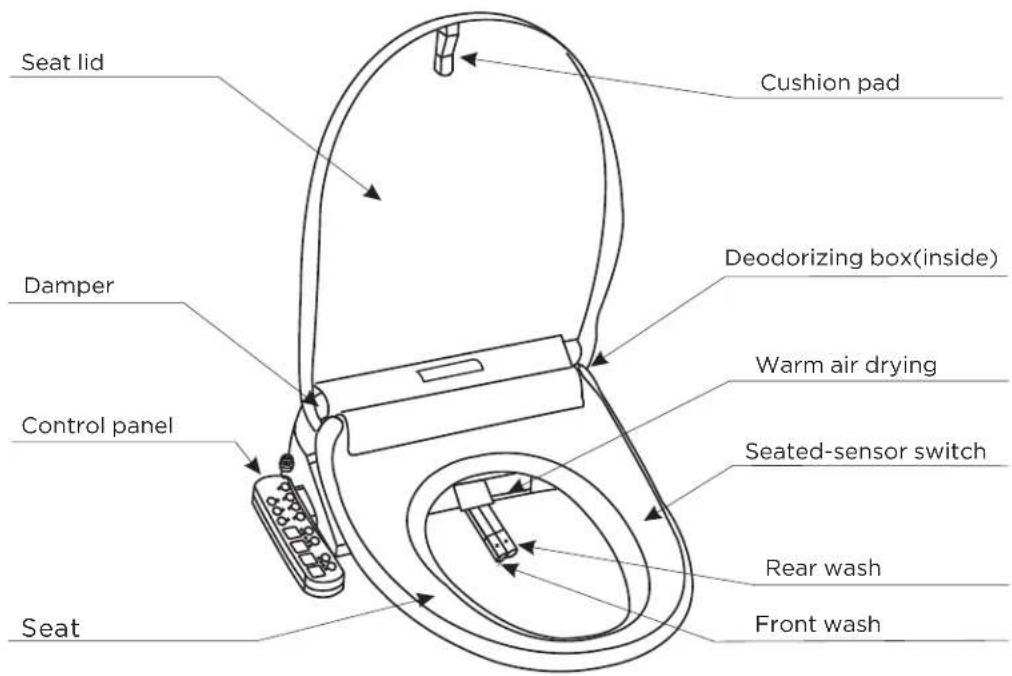

Product Overview

Fix machine partsWater pipeline connecting access

Attention:

The specification, design and color of the instruction may differ from the end-product you bought. In the case, you'd better refer to the end-product about the assemblies.

Installation

Before installation make sure there is a clean water outlet and 240V power socket near the toilet for the product to be connected to. Please connect water first, then connect electric power.

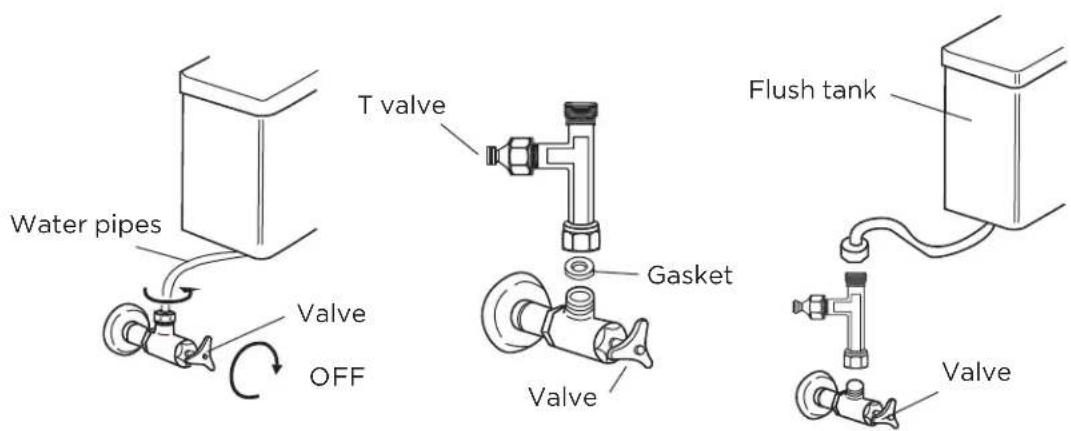

Install T valve

1. Shut off the water to the toilets flush tank and unscrew the inlet pipe. (Picture 1)
2. Connect the T valve with the gasket to the water pipe. (Picture 2)

Reconnect the toilet flush tank inlet pipe to the top of the T valve. (Picture 3). Do not turn the water back on yet.

Picture 1 Picture 2 Picture 3

ories

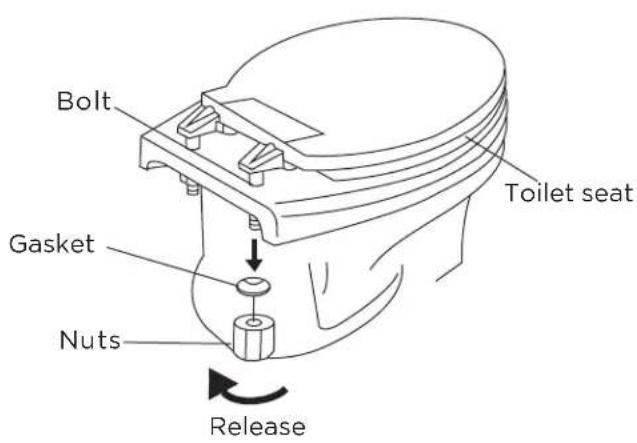

Remove the Original Seat

Remove the original toilet seat. Loosen the nut and remove the seat.

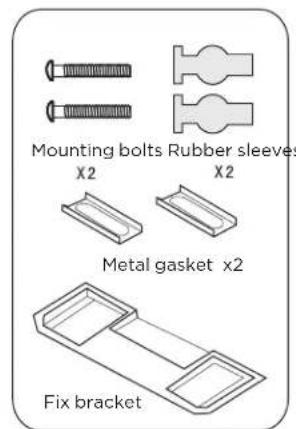

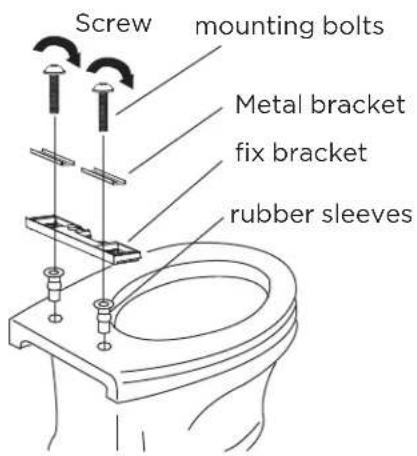

Install the Fix Bracket

1. Place the rubber sleeves into the seat installation holes of the toilet base.
2. Place the fix bracket in place and install it with the metal brackets and mounting bolts

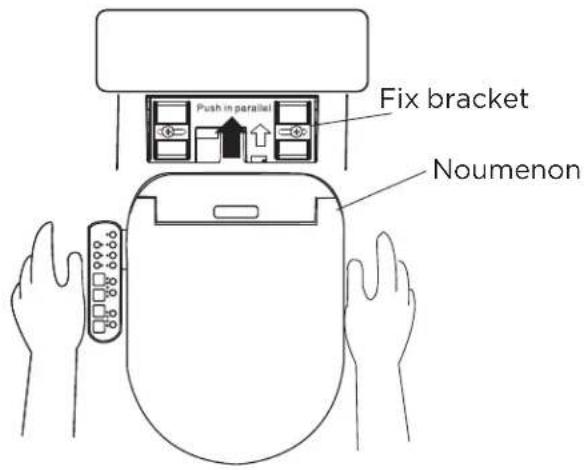

Install the Bidet

1. Push the bidet toilet seat into the fix bracket.

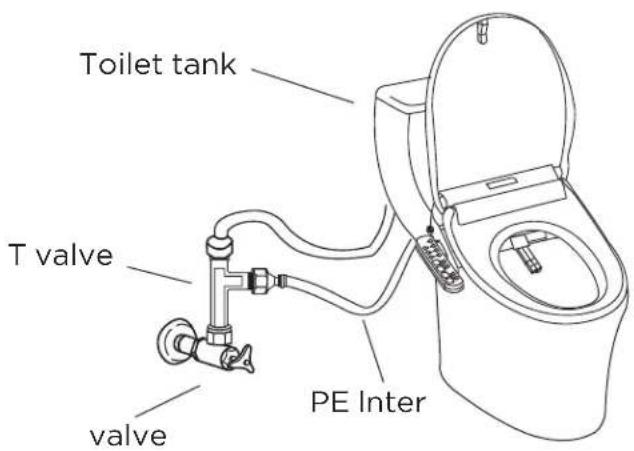

Connect Water Inlet Pipe

1. Push the PE inter into the T valve connector.
2. Push the PE inter into the bidet connector.

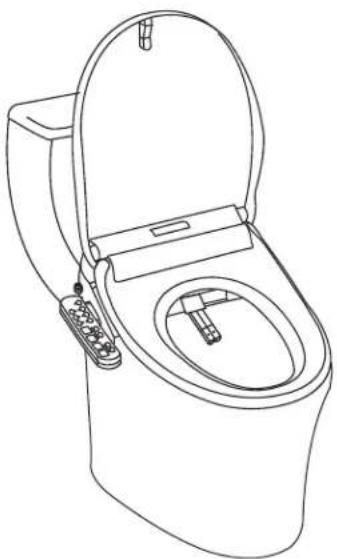

Prep and Test

1. Plug the bidet into a power socket

2. Turn the water back on by opening the valve.

3. All indicator lights should turn on and water will start flowing into the inner water tank of the bidet. This process should take about 11 seconds. Indicators lights will turn off when done.

4. Press the power button on the bidet controls. The power indicator light should turn on, indicating the bidet is ready for operation.

5. Adjust the water and seat temperature as desired.

6. Following operating instructions and test every function.

Line drawing of a standard open toilet with an integrated device and control panel (no text or symbols)

Operation

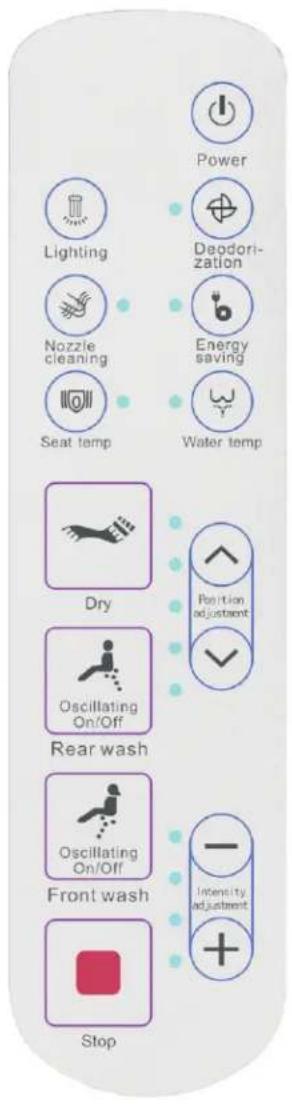

Button Functions

Rear Wash - Rear cleansing

Front Wash - Front feminine Cleansing

Intensity Adjustment - Adjust the pressure of the water through 4 different levels indicated by the LEDs next to the button.

Stop - Manually stop the rear wash, front wash or dryer function. (Automatically turns off after 2 minutes)

Position Adjustment - Adjust the position of the water jet of the front and rear washers whilst in use. Steps through 5 positions indicated by the LEDs next to the button.

Dry - Activate the drier function. Dryer level can be adjusted with the intensity buttons during use.

Nozzle Cleaning - Activate self-cleaning nozzle function. Only available when no one is sitting on the toilet. Nozzle also automatically self-cleanse before front and rear wash functions.

Deodorization - Turn on deodorization. Automatically activates when someone sits on the seat.

Water Temp. - Press the button and adjust the water temperature using the intensity buttons.

Seat Temp. - Press the button and adjust the seat temperature using the intensity buttons.

Lighting - Active the toilet light.

Energy Saving - Active power saving mode. Bidet enters power saving mode 1.5 minutes after the button is pressed.

Buzzer Indicators

Buzzes Once: Receives instruction from controller.

Buzzes Twice: Auto operation when user stands up.

Buzzes Three or More Times: Indication of malfunction.

Light Indicators

Power Indicator: Active when the bidet is powered on. Flashing during a malfunction.

Seat Temperature Indicator: Active when the seat is heating. Flashing if the seat is over heated.

Water Temperature Indicator: Active when the water is heating. Flashing if the water is over heated.

Seat Indicator: Active when a user is seated. Flashing when water level is low.

Energy Saver Indicator: Active when the bidet enters energy saving mode.

Cleaning and Maintenance

• Do not use corrosive solvents to clean the outside of the toilet seat.
• Do not use water to rinse any of the electrical equipment.
  • Pull out the plug before cleaning as a precaution.
  • Clean the toilet seat with a damp cloth.

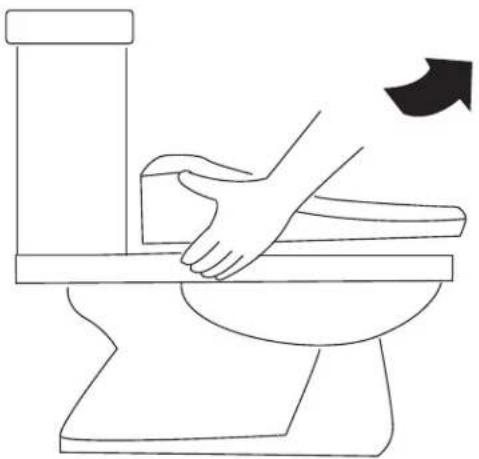

Daily Clean

• Unplug the bidet from the power socket
• Turn off the water inlet valve.
- Grip the bidet and pull away from the fixing bracket to remove from the toilet.
- Cleaner the surface of the bidet and the toilet.
• Reinstall the bidet ensuring it fits the bracket correctly.
• Plug the bidet back into power and turn on the water again.

Line drawing of a hand pressing down on a toilet (no text or symbols)

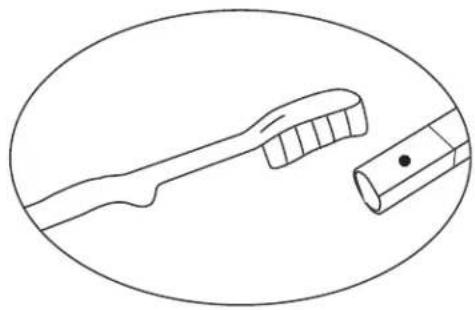

Cleaning the Nozzles

Press the nozzle cleaning button so water sprays out. Press it again to extend the rear cleaning nozzle, press it once more to extend the front cleaning nozzle as well. Clean the nozzles with a brush.

Line drawing of a toothbrush and toothpaste tube inside an oval frame (no text or symbols)

Replacing the Nozzles

Hold the front end of the nozzle tip and turn it counter clockwise so that it extends and pulls off. Replace it with a new nozzle and turn the nozzle tip clockwise.

Diagram showing two mechanical components with arrows indicating rotation and assembly (no text or symbols)

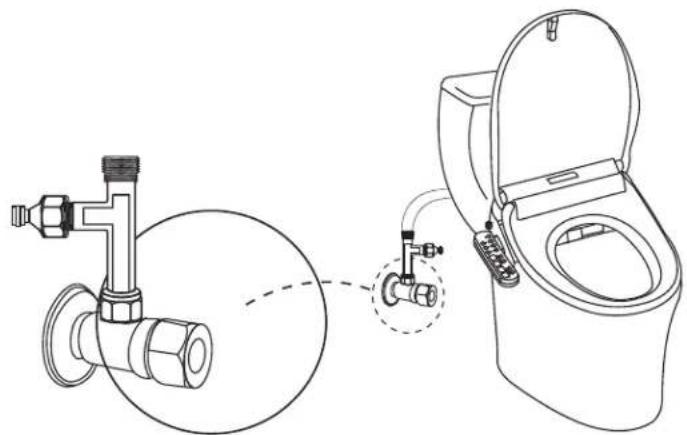

Cleaning the Filter

The filter can be cleaned when the water pressure is too low or insufficient. Close the shutoff valve of the water supply.

Line drawing of a toilet with a pipe fitting and attached sink, showing mechanical components and wiring (no text or symbols)

Disassemble the T valve and remove the filter

1

2

Technical diagram of a valve assembly with a magnified inset showing internal components (no text or labels)

Clean the filter with water and a brush. Do not use detergent to clean the filter.

Reinstall the filter and plumbing. Check all connections are secure and turn the water back on.

Specifications

Rated voltage	AC 220-240V, 50Hz
Power consumption	1520W (When inlet water temp is 15 degrees and the outlet temp and pressure is set to maximum.)
Power cord length	1.5m
Safety devices	Over-heating protection, water and electrical isolation, Temp reset switch, over-dried protection.
Water pressure range	0.06MPa (dynamic)-0.75MPa (Static)
Water pressure adjustment	Adjustable in 4 levels
Cleansing outlet flow rates	0.5-0.9L per minute
Seat heater power	40W
Seat surface temp	4 levels (33, 36, 39, Room Temp.)°C °C °C
Air dryer power	200W
Air temp.	4 paragraph adjustable:35°C, 42 48 54°C, °C, °C
Deodorizer method	Chemical absorption by deodorizer cartridge
Product size	508x444x159mm
