| Product Type | Window Air Conditioner |
| Cooling Capacity | 12,000 BTU |
| Energy Efficiency Ratio (EER) | 11.0 |
| Power Supply | 115 V / 60 Hz |
| Amperage | 10 A |
| Dimensions (W x H x D) | 18.5 x 15.5 x 23.0 inches |
| Weight | 65 lbs |
| Refrigerant Type | R410A |
| Air Flow (CFM) | 350 CFM |
| Noise Level (Indoor/Outdoor) | 52 dB / 58 dB |
| Control Type | Remote Control and Manual Buttons |
| Modes | Cool, Fan, Dry |
| Fan Speeds | 3 (Low, Medium, High) |
| Thermostat Range | 60°F - 86°F (16°C - 30°C) |
| Timer | 24-Hour On/Off Timer |
| Filter Type | Washable Mesh Filter |
| Filter Cleaning | Every 2 weeks during heavy use |
| Installation Type | Window Mount (Double/Single Hung) |
| Window Min/Max Width | 23 / 36 inches |
| Energy Star Rated | Yes |
| Safety Features | Auto Restart, Child Lock, Overheat Protection |
| Spare Parts Availability | Remote, Filter, Fan Motor (contact support) |
| Warranty | 1 Year Limited |
Frequently Asked Questions - KSTAW12BE Keystone
User questions about KSTAW12BE Keystone
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air conditioner in PDF format for free! Find your manual KSTAW12BE - Keystone and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KSTAW12BE by Keystone.
USER MANUAL KSTAW12BE Keystone
Read these instructions completely and carefully.
IMPORTANT- Save these instructions for local inspector s use.
IMPORTANT- Observe all governing codes and ordianaces.
Note to Installer- Be sure to leave instructions with the Consumer.
Note to Consumer- Keep these instructions for futrue reference.
Skill level- Installatio of this appliance requires basic mechanical skills.
Completion time- Approximately 1 hour
We recommend that two people install this product.
Proper installation is the responsibility of the installer.
Product failure due to improper installation is not covered under the Warranty.
You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this conditioner.

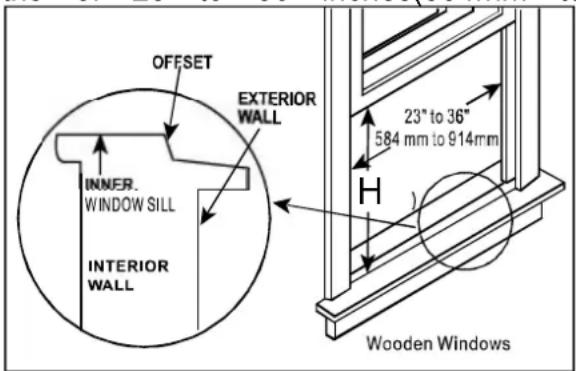

WINDOW REQUIREMENTS
Your air conditioner is designed to install in standard double hung windows with opening widths of 23 to 36 inches(584mm to 914mm)

| Model H | 6000~8000Btu/h | 10000~12000Btu/h |
| 14"(356mm) | 15-1/2"(394mm) |
Table 1

CAUTION
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
Do not change the plug on the power co of the air conditioner.
Aluminum house wiring may present special problems-consult a qualified electrician. these
When handling unit, be careful to avoid cuts sharp metal edges and aluminum fins on front rear coils.

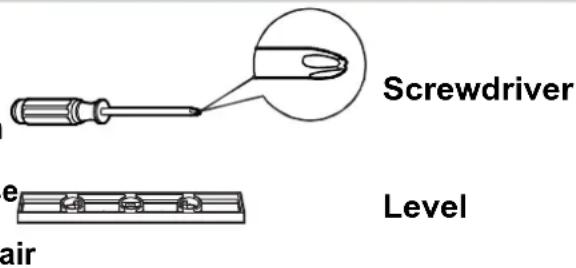

TOOLS YOU WILL NEED

TOOLS YOU MAY USE

Screwdriver
Pencil



Ruler or tape measure
Scissors or knife

NOTE:
Save Carton and these Installation Instruction for future reference. The carton is the best to store unit during winter, or when not in
1 PREPARE THE WINDOW
Lower sash must open sufficiently to allow a clear vertical opening (H) of following size (see Table 1). Side louvers and the rear of the AC must have clear air space to allow enough airflow through the condenser, for heat removal. The rear of the unit must be outdoors, not inside a building or garage.

2 PREPARE AIR CONDITIONER
A: Remove the air conditioner from the carton and place on a flat surface.

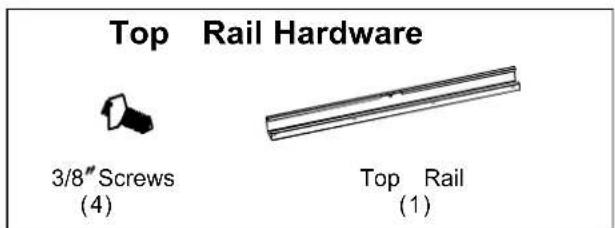

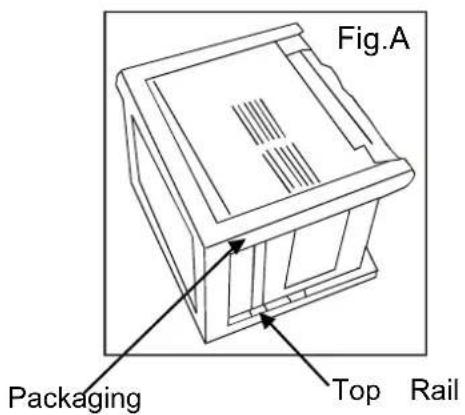

B: Remove top rail from the packaging material as shown in Fig. A.

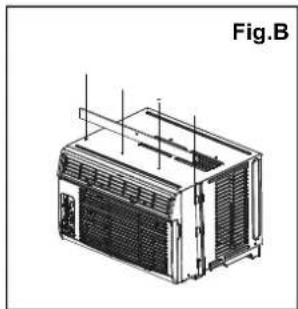

C: Align the hole in the top rail with those in the of the unit as shown in Fig.B


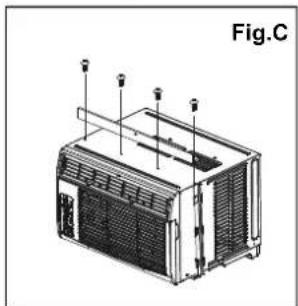

Technical line drawing of a mechanical device labeled Fig.B, showing internal components and mounting brackets (no text or symbols on the diagram itself)D: Secure the top rail to the unit with the 3/8 Sc as shown in Fig.C.
NOTE: The top rail hardware and the Fig.A, Fig.B and Fig.C are not applicable to the units more than 10000Btu/h. Before installing unit, the top rail must be assembled on the unit (Fc <10000Btu/h models only).

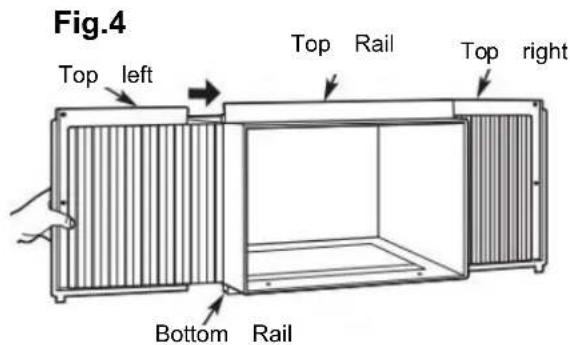

3 INSTALL THE ACCORDION PANELS
NOTE: Top rail and Sliding Panels at each side are offset to provide the proper pitch to the rear of (5) This is necessary for proper condensed water utilization and drainage. If you are not using the Si Panels for any reason, this pitch to the rear must maintained.
Fig.1

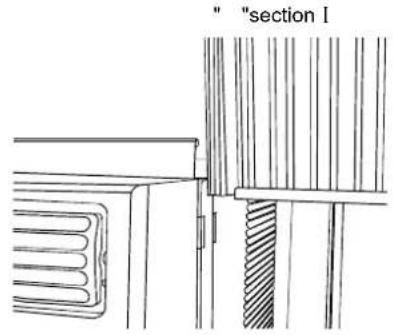

B. Slide the free ehd " " section of the panel into the cabinet as shown in Fig. 2. Slide the down. Be sure to leave enough space to slip top and bottom of the frame into the rails on cabinet.

Fig.2

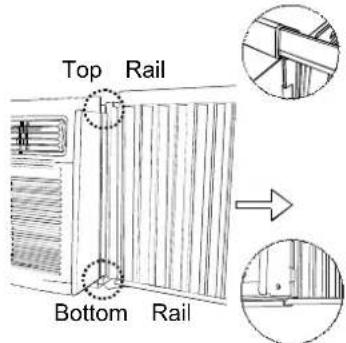

C. Once the panel has been installed on the cabinet, make sure it sits securely inside frame channel by making slight adjustments. Slide the top and bottom ends of the frame top and bottom rails of the cabinet. Fig.3.

Fig.3
D. Slide the panel all the way in and repeat other side.

NOTE: If storm window blocks AC, see Fig. 11.

SECURE THE ACCORDION PANE LS

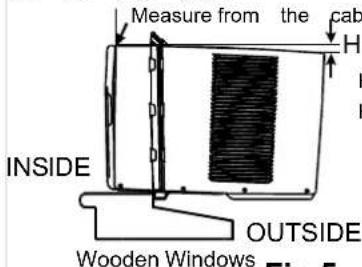

The Keep a firm grip on the air conditioner, carefully place the unit into the window opening so the bottle of the air conditioner frame is against the window sill (Fig.5). Carefully close the window behind the to rail of the unit.

H: About 3/4" to 1" (for 5 to 8K); H: About 1" to 1³/l₈" (for 10 to 12K);
Fig.5
NOTE: Check that air conditioner is tilted back above H (Fig.5)(tilted about ^ 3 to 4 downward to the outside proper installation, condensate should not drain from the overflow drain hole during normal use, correct the slope otherwise.

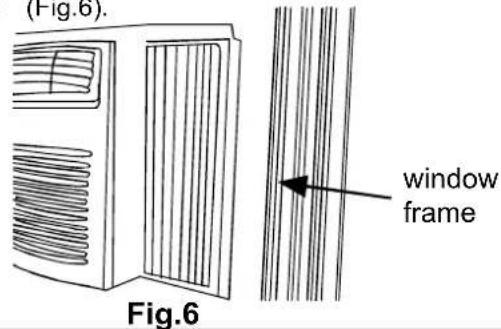

B. Extend the side panels out against the window frame (Fig.6).


INSTALL SUPPORT BRACKET

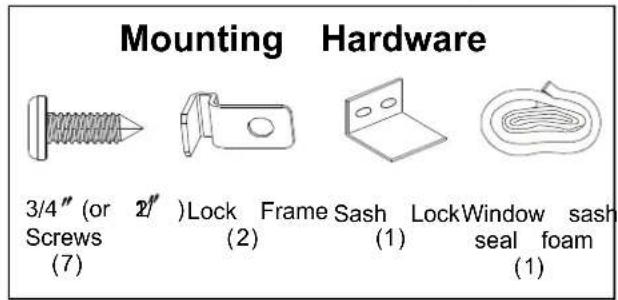

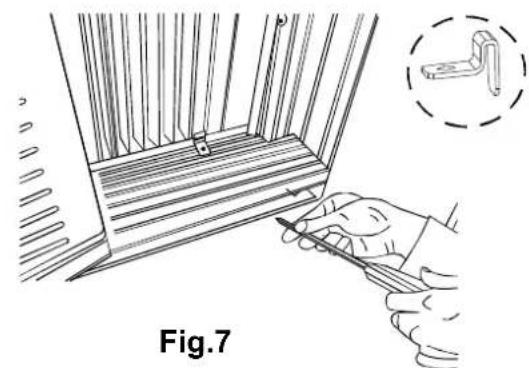

on At-Place the frame lock between the frame extensions and the window sill as shown(Fig.7). Drive 3 /" 4 (19mm) of 2"(12.7mm) locking screws through the frame lock and into the sill .
NOTE: To prevent window sill from splitting, drill 1 / 8" (3mm) pilot holes before driving screws.
screws through frame holes into window sash


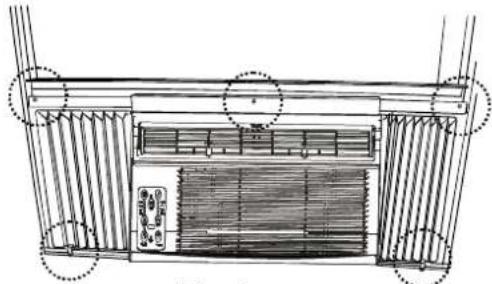

Technical line drawing of a cabinet or enclosure with ventilation grilles and internal components (no text or symbols)Fig.8

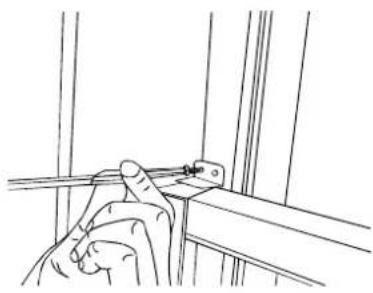

C. To secure lower sash in place, attach right sash lock with 3/4" (19mm) /2t (12.30new) as shown(Fig.9).


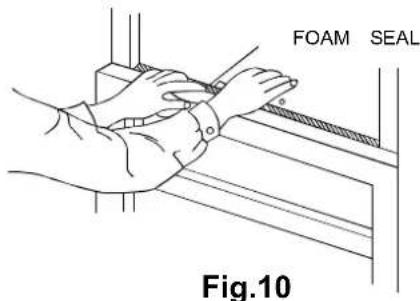

D.Cut Windlovinsealshit sial theam
space between the upper and lower sashes (Fig.10).

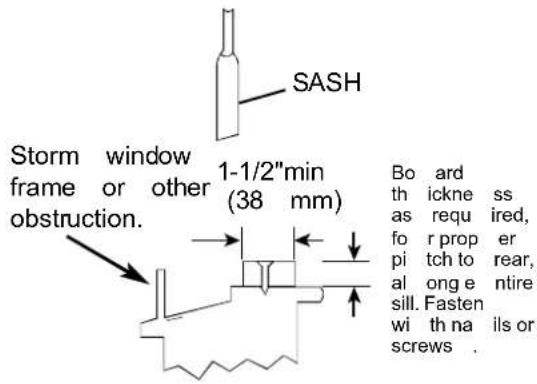

If AC is Blocked by Storm Window
Add wood as shown in Fig.11, or remove storm window before air conditioner is installed.
If Storm Window Frame must remain, be sure the drain holes or slots are not caulked or painted sh Accumulated Rain Water or Condensation must be allowed to drain out.
Removing AC From Window
◆Turn AC off, and disconnect power cord.
◆ Remove sash seal from between windows, and unscrew safety sash lock.
◆ Remove screws installed through frame and frame-lock.
◆ Close (slide) side panels into frame.
- Keeping a firm grip on air conditioner, raise sash and carefully remove.
◆ Be carefully not to spill any remaining water while lifting unit from window. Store parts WITH air conditioner.

Fig.11
