| Product Type | Built-in Dishwasher |
| Brand | Samsung |
| Model | DW60BB8925AP |
| Width (mm) | 598 |
| Height (mm) | 815 - 865 (adjustable) |
| Depth (mm) | 550 |
| Net Weight (kg) | 45 |
| Energy Efficiency Class | A++ |
| Annual Energy Consumption (kWh) | 262 |
| Water Consumption per Cycle (L) | 9.5 |
| Number of Place Settings | 14 |
| Noise Level (dB) | 44 |
| Programs | Auto, Eco, Intensive, Daily, Glass, Quick 30 |
| Drying System | Condensation drying with heat exchanger |
| Water Connection | Cold water |
| Power Supply (V/Hz) | 220-240 / 50 |
| Rated Current (A) | 10 |
| Features | Digital Inverter motor, Delay start, Half load, Water leak protection |
| Control Panel | Digital display with push buttons |
| Installation Type | Fully integrated |
| Repairability Index | 8.5/10 |
Frequently Asked Questions - DW60BB8925AP SAMSUNG
User questions about DW60BB8925AP SAMSUNG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Dishwasher in PDF format for free! Find your manual DW60BB8925AP - SAMSUNG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DW60BB8925AP by SAMSUNG.
USER MANUAL DW60BB8925AP SAMSUNG
DW60**8**** / DW60**7**** Series
SAMSUNG
Preparation
Connecting SmartThings (Wi-Fi model only)
- Launch a QR code reader app and scan the QR code image on the product.
- Try connecting the SmartThings app to the product.
Registering the product / Reading the manual / Connecting to Services
- Launch a QR code reader app and scan the QR code image on the product.
- Choose the desired menu from the Product Registration, Manual, Customer Support. If you choose 'Manual' you can read the manual of the product you purchased.
NOTE
- We provide online manuals that can be accessed through your phone or our website to contribute in reducing the usage of manuals in paper format, as part of efforts to save the Earth.
English2
Contents
Safety information 5
What you need to know about safety instructions 5
Important safety symbols 5
Important safety precautions 6
Instructions when using your dishwasher 8
Instructions for protecting your children 9
Instructions for installing your dishwasher 9
Installation 12
Installation requirements 12
Built-in installation under the sink (For Free Standing model) 14
Step-by-step installation 15
Info Light (Applicable models only) 23
SmartThings (Applicable models only) 24
Open Source Announcement 27
Before you start 28
Dishwasher at a glance 28
Unsuitable items for the dishwasher 29
Basic use of racks 30
Detergent compartment 34
Rinse aid reservoir 36

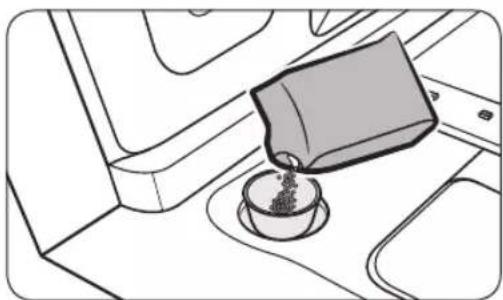

Salt storage 37
Settings 38
Settings (Except DW60BB89* models) 41
Operations 44
Control panel (For DW60BB89* models) 44
Control panel (Except DW60BB89* models) 45
Cycle overview 46
Simple steps to start 48
Delay Start 48

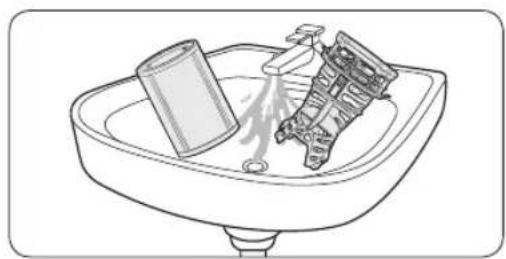

Maintenance 49
Cleaning 49

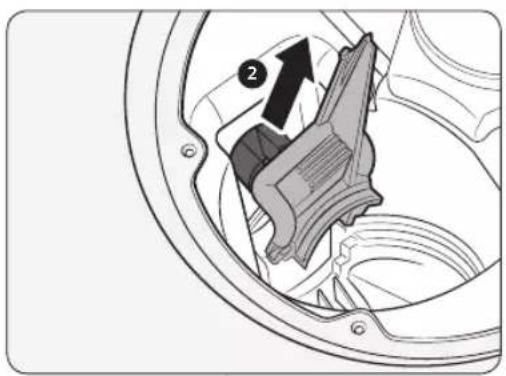

Cleaning the drain pump 53
Long-term care 53
English 3
Contents
Troubleshooting 54
Checkpoints 54
Information codes 57
Cycle chart 58
Appendix 62
Transportation/relocation 62
Protection against frost 62
Disposing the dishwasher and helping the environment 62
Energy, water saving tip 63
Specifications 64
English4
Safety information
Congratulations on your new Samsung dishwasher. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your dishwasher's many benefits and features.
What you need to know about safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efficiently operate the extensive features and functions of your new appliance and retain it at a safe place near the appliance for your future reference. Use this appliance only for its intended purpose as described in this user manual.
Warning and important safety instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your dishwasher.
Because the following operating instructions cover various models, the characteristics of your dishwasher may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or find help and information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death or property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
These warning symbols are here to prevent injury to you and others. Please follow them explicitly.
Keep these instructions in a safe place and ensure that new users are familiar with the content. Pass them on to any future owner.
Safety information
Important safety precautions
To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:
- This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- The new hose-sets supplied with the appliance are to be used on installation and old hose-sets should not be reused.
English6
- For appliances with ventilation openings in the base, a carpet must not obstruct the openings.
- Children of less than 3 years should be kept away from appliance unless continuously supervised.
- CAUTION: In order to avoid a hazard caused by inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
- WARNING: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
This appliance is solely intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
- Clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments.
Safety information
Instructions when using your dishwasher
This dishwasher is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments such as:
- Shops
• Offices and showrooms
and by residents in establishments such as:
• Hostels and guest houses.
It must only be used as an appliance as specified in this user manual, for cleaning domestic crockery and cutlery. Any other usage is not supported by the manufacturer and could be dangerous.
The manufacturer cannot be held liable for damage resulting from incorrect or improper use or operation.
Do not use solvents in the dishwasher. Danger of explosion.
Do not inhale or ingest dishwasher detergent. Dishwasher detergents contain irritant or corrosive ingredients which can cause burning in the nose, mouth and throat if swallowed, or inhibit breathing. Consult a doctor immediately if detergent has been swallowed or inhaled.
Avoid leaving the door open unnecessarily, as you could trip over it.
Do not sit or lean on the opened door. This could cause the dishwasher to tip and get damaged, and you could get injured.
Only use detergent and rinse aid formulated for domestic dishwashers. Do not use washing-up liquid.
Do not use any strong acid cleaning agent.
Do not fill the rinse aid reservoir with powder or liquid detergent. This will cause serious damage to the reservoir.
Inadvertently filling the salt reservoir with powder or liquid dishwasher detergent will damage the water softener. Make sure to use the correct packet of dishwasher salt when filling the salt reservoir.
Please only use special coarse grained dishwasher salt for reactivation, as other salts may contain insoluble additives which can impair the functioning of the softener.
In an appliance with a cutlery basket (depending on model), cutlery is cleaned and dried better if placed efficiently the basket with the handles downwards. However, to avoid the risk of injury, place knives and forks etc. with the handles upwards.
Plastic items which cannot withstand being washed in hot water, such as disposable plastic containers, or plastic cutlery and crockery should not be cleaned in the dishwasher. The high temperatures in the dishwasher may cause them to melt or lose shape.
On models with Delay Start function, make sure that the dispenser is dry before adding detergent. Wipe dry if necessary. Detergent will clog if poured into a damp dispenser and may not be thoroughly dispersed.
English8
Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
Instructions for protecting your children
This appliance is not a toy! To avoid the risk of injury, keep children well away and do not allow them to play in or around the dishwasher or to use the controls. They will not understand the potential dangers posed by it. They should be supervised whenever you are working in the kitchen. There is also a danger that children playing might shut themselves in the dishwasher.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Older children may only use the dishwasher when its operation has been clearly explained to them and they are able to use it safely, recognising the dangers of misuse.
KEEP CHILDREN AWAY FROM DETERGENTS!
Dishwasher detergents contain irritant and corrosive ingredients which can cause burning in the mouth, nose and throat if swallowed, or inhibit breathing.
Keep children away from the dishwasher when the door is open. There could still be detergent residues in the cabinet.
Consult a doctor immediately if your child has swallowed or inhaled detergent.
Instructions for installing your dishwasher
Before setting up the appliance, check it for any externally visible damage. Under no circumstances should you use a damaged appliance. A damaged appliance could be dangerous.
The dishwasher must only be plugged into the electricity supply through a suitable switched socket. The electrical socket must be easily accessible after the dishwasher is installed so that it can be disconnected from the electricity supply at any time. (Refer to the “Dishwasher at a glance” section on page 28.)
There must be no electrical sockets behind the dishwasher. Danger of overheating and fire risk if the dishwasher were to be pushed up against a plug.
The dishwasher must not be installed under a hob. The high radiant temperatures which are sometimes generated by a hob could damage the dishwasher. For the same reason it should not be installed next to open fires or other appliances which give off heat, such as heaters etc.
Do not connect the dishwasher to the mains supply until it has been fully installed and any adjustment has been made to the door springs.
Safety information
Before connecting the appliance, check that the connection data on the data plate (voltage and connected load) match the mains electricity supply. If in any doubt, consult a qualified electrician.
The electrical safety of this appliance can only be guaranteed when continuity is complete between it and an effective grounding system. It is most important that this basic safety requirement is present and regularly tested and where there is any doubt the electrical system in the house should be checked by a qualified electrician.
The manufacturer cannot be held liable for the consequences of an inadequate grounding system (for example electric shock).
Do not connect the appliance to the mains electricity supply by a multi-socket unit or an extension lead. These do not guarantee the required safety of the appliance (for example danger of overheating).
This appliance may only be installed in mobile installations such as ships if a risk assessment of the installation has been carried out by a suitably qualified engineer.
The plastic housing of the water connection contains an electrical component. The housing must not be submerged in water.
There are electrical wires in the hose of Aqua-Stop. Never cut the water inlet hose, even if it is too long.
Installation, maintenance and repairs may only be carried out by a suitably qualified and competent person in strict accordance with current national and local safety regulations. Repairs and other work by unqualified persons can be dangerous. The manufacturer cannot be held liable for unauthorised work.
The integrated waterproof system offers protection from water damage, provided the following conditions are met:
- The dishwasher is correctly installed and plumbed in.
- The dishwasher is properly maintained and parts are replaced where it can be seen that this is necessary.
- The stopcock / supply valve has been turned off when the appliance is not used for a longer period of time (for example during holidays).
- The waterproof system will work even if the appliance is switched off. However, the appliance must remain connected to the electricity supply.
A damaged appliance can be dangerous. If the dishwasher gets damaged, switch it off at the mains and call your dealer or the service department.
Unauthorised repairs could result in unforeseen dangers for the user, for which the manufacturer cannot accept liability. Repairs should only be undertaken by an approved service technician.
Faulty components must only be replaced by original spare parts. Only when these parts are fitted can the safety of the appliance can be guaranteed.
Always disconnect the dishwasher from the electrical supply for maintenance work (switch off at the wall socket and remove the plug).
English10
If the connection cable is damaged it must be replaced with a special cable, available from the manufacturer. For safety reasons, this must only be fitted by the service department or an authorised service technician.
In countries where there are areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the guarantee.
In the event of a fault or for cleaning purposes, the appliance is only completely isolated from the electricity supply when:
- it is switched off at the wall socket and the plug is withdrawn, or
- it is switched off at the mains, or
• the mains fuse is disconnected, or - the screw-out fuse is removed (in countries where this is applicable).
Do not make any alterations to the appliance, unless authorised to do so by the manufacturer.
Never open the casing/housing of the appliance. Tempering with electrical connections or components and mechanical parts is highly dangerous and can cause operational faults or electric shock.
While the appliance is under guarantee, repairs should only be undertaken by a service technician authorised by the manufacturer. Otherwise the guarantee will be invalidated.
When installing the product, make sure there is space at the top, left, right and back of the product to ensure proper ventilation. If there is insufficient space between the product and the sink, it may damage the sink or allow mold to grow.
Make sure that your dishwasher's hardness level setting is correct as your area. (Refer to the "Salt storage" section on page 37.)
Please consult www.samsung.com/support for more information about materials and repair.

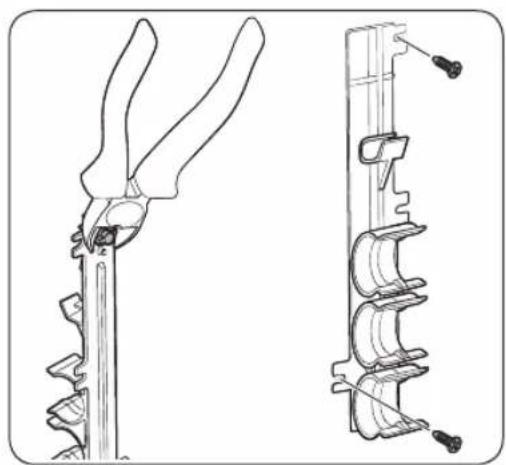

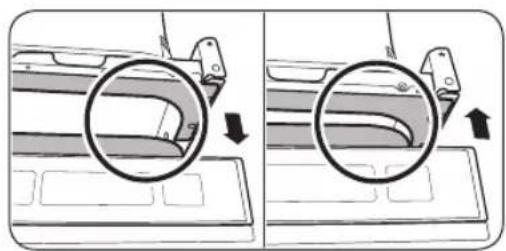

Installation
Installation requirements
To prevent a risk of fire, electric shock, or personal injury, all wiring and grounding must be done by a qualified technician.
Power supply
- An individual 220-240 V \~, 50 Hz branch circuit that is dedicated to the dishwasher.
- Power outlet with a maximum allowable current of 16 A (maximum 11 A for the dishwasher)
WARNING
- Do not use an extension cord.
- Use only the power plug that comes with the dishwasher.
• After installation is complete, make sure the power plug is not bent or damaged.
Grounding
For permanent grounding, the dishwasher must be properly grounded to a grounded metal or permanent wiring system. The grounding conductor must be run with the circuit conductors and then connected to the grounding terminal or lead on the dishwasher.
WARNING
- Do not connect the ground wire to plastic plumbing, gas lines, or hot water pipes. Improperly connected grounding conductors may cause electric shock.
- Do not modify the power plug of the dishwasher. If the power plug does not fit the outlet, have a proper outlet installed by a qualified electrician.
Water supply
- The water supply line must support water pressures between 0.05 and 0.8 MPa.
• Water temperatures must be lower than 60^ C. - The stopcock / supply valve with a 3/4" male thread must be installed for the water supply connection.
To reduce a risk of leaks:
- Make sure water taps are easily accessible.
- Turn the water supply valve off when the dishwasher is not in use.
- Check for any leaks at the water hose fittings on a regular basis.
- To stop any leak, seal the water line connections and joints using Teflon tape or sealing compound.
Aqua Stop
The Aqua Stop is an electrical component that is designed to prevent water leaks. The Aqua Stop is attached to the water hose and automatically cuts off the water flow in the event of damage to the hose.
CAUTION
- Handle the Aqua Stop with care.
- Do not kink or twist the water hose connected to the Aqua Stop. If the Aqua Stop is damaged, shut off the water taps and unplug the power plug immediately. Then, contact a local Samsung customer centre or a qualified technician.
Drain
If you are using a drain system dedicated to the dishwasher, connect the drain hose to a drain system that is between 30 cm and 70 cm off the ground. Connecting the drain hose to a drain system more than 80 cm off the ground can cause the drained water to flow backward.
Flooring
For safety, the dishwasher must be installed on a solidly constructed floor. Wooden floors may need to be reinforced to minimise vibrations. Avoid installing on carpet or soft tile. Carpeting and soft tile may cause vibrations and may cause your dishwasher to move slightly while operating.
English12
WARNING
Do not install the dishwasher on a poorly supported structure.

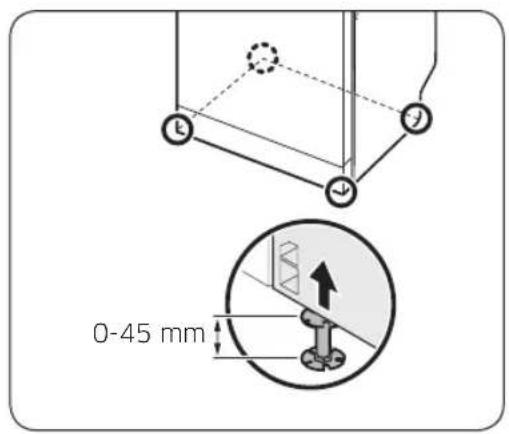

- Make sure the dishwasher is level using the height adjustable feet.
- When leveling is complete, check if the door opens and closes properly.
Ambient temperature
Do not install the dishwasher in an area exposed to freezing temperatures. The dishwasher always retains some water in the water valve, pump, and hose. If the water freezes in the dishwasher or hoses, it may damage the dishwasher and its components.
Test run
After installing the dishwasher, run the Express cycle to make sure the dishwasher is installed correctly.
Final check
- Remove all foam, paper packaging, and unnecessary parts from inside the dishwasher.
- Turn the power circuit breaker on.
- Open the water supply valve to supply water to the dishwasher.
- Plug in and turn the dishwasher on. Then, select and run the Express cycle.
- Check if the dishwasher turns on normally and if there are any water leaks while the dishwasher is operating. Make sure to check for water leaks on both ends of the water line and the drain hose connector.
Installation
Built-in installation under the sink (For Free Standing model)
You can install the dishwasher under the sink. To do this, follow the instructions below.
WARNING
Samsung Electronics is not responsible for any product failure or damage that may arise from your installation of the free-standing model under the sink.
Preparation
- Refer to the next section and install the dishwasher under the sink.
English14
Step-by-step installation
The installation procedure may differ depending on the model.
STEP 1 Select a location
- The location must have a solid floor that can support the weight of the dishwasher.
- The location must be near a sink with easy access to the water supply, drain system, and electrical outlet.
- The location must let you load dishes into the dishwasher easily.
- The location must have sufficient space for the dishwasher door to open easily and provide enough space between the dishwasher and the cabinet sides.
- The rear wall must be free of obstructions.
Installation in a new location
If you install the dishwasher in a new location, follow these instructions before installing the dishwasher.
- Using a hole saw, cut a hole into the side of the cabinet that holds the sink (A).
- If the base inside the sink cabinet is raised above the kitchen floor and is higher than the connections on the dishwasher, make a hole in the base inside the cabinet and in the cabinet side (B).
NOTE
- If you are replacing an old dishwasher, check the existing connections for compatibility with the new dishwasher and replace the connections as needed.
- You may need to cut a hole in the opposite side of the cabinet according to the location of the electrical outlet.
Installation
Cut-out dimension (For Built-In models)
There may be a difference depending on the model.
* 552 for Fully Built In model
** 895 for Sliding Door model
*** 900 for Sliding Door model
STEP 2 Check the water line
• The water line pressure must be between 0.05 and 0.8 MPa.
- Make sure that the water temperature does not exceed 60 °C. Hot water over 60 °C may cause the dishwasher to malfunction.
- Make sure that the water supply valve is turned off before connecting the water supply line to the dishwasher.
STEP 3 Arrange the hoses
Pull the power plug, the water hose, and the drain hose through the sink hole.
CAUTION
- Use caution not to kink or step on the power plug or the hoses.
- Do not remove the brown paper on the back of the dishwasher. The paper is used to keep the rear side clean against the wall.
English16
STEP 4 Level the dishwasher
For Free Standing models
You can adjust the height of the dishwasher up to 45 mm using the levelling legs.
- While slightly lifting the front or rear (or both in turns) of the dishwasher, turn the levelling legs to adjust the height.
- When complete, use the leveler to make sure the dishwasher is level.
- Insert the dishwasher under the sink and make sure to secure at least 4 mm space between the top of the dishwasher and the bottom of the sink plate.
CAUTION
Do not arrange the power cord of the dishwasher using a metallic cable tie.
For Built-In models
You can adjust the height of the dishwasher to level it. Note that in these steps, the dishwasher is currently inserted halfway.
- Use the level to check if the dishwasher is level.
-
To adjust the front height, use a 22 mm wrench.
-
To lower the height, turn the foot counter clockwise.
• To raise the height, turn the foot clockwise. - To adjust the rear height, insert the Torx T20 screwdriver in the bottom center of the dishwasher.
- To lower the height, turn the screwdriver clockwise.
- To raise the height, turn the screwdriver counter clockwise.
Installation
STEP 5 Connect the drain hose
-
Fix the holder to a wall by tightening the 2 screws ( 4 × 12 ).
-
Insert the drain hose into the holder so that the drain hose is positioned 30 cm to 80 cm from the bottom.
English18
STEP 6 Attach the trim
- Connect the drain hose to the drain outlet.
CAUTION
• Install the drain system properly so that the drain hose does not come out of the drain outlet in the draining process.
- Make sure that the drain hose, supply hose, and power cord is not kinked or folded.


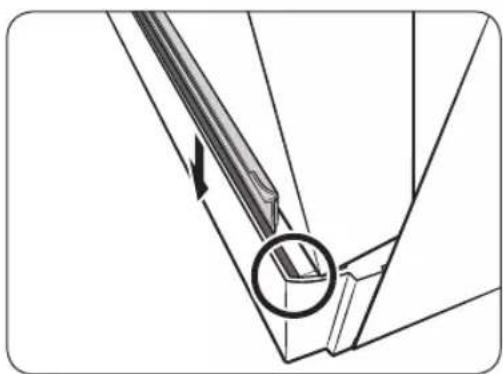

- Remove the adhesive rear tape of the trim. Then, insert the trim in the lower groove of the dishwasher.
- Remove the adhesive rear tape of the trim. Then, insert the trim in the lower groove of the dishwasher.
Installation
STEP 7 Install the custom panel
Free Standing (Bespoke, DW60BB8***** ) models


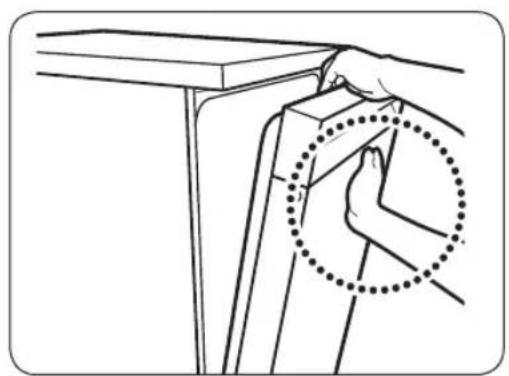

While holding the door and the custom panel with both hands, press the panel evenly from bottom to top to lock into the dishwasher.
-
When both sides of the panel lock into place, press the top center of the custom panel to secure it to the top of the door.
NOTE
- Make sure that the custom panel fits in the dishwasher properly.
-
If the gap between the dishwasher and the custom panel is below 2 mm, proper installation is done. For 2 mm or more, remove the custom panel and try again.
-
Unpack the caps and screws (two for each) included in the product package.
-
Tighten the screws on either side of the dishwasher.
NOTE
When tightening the screw on either side, make sure to check the gap between either side as the custom door may lean in either side.
Installation
installation
-

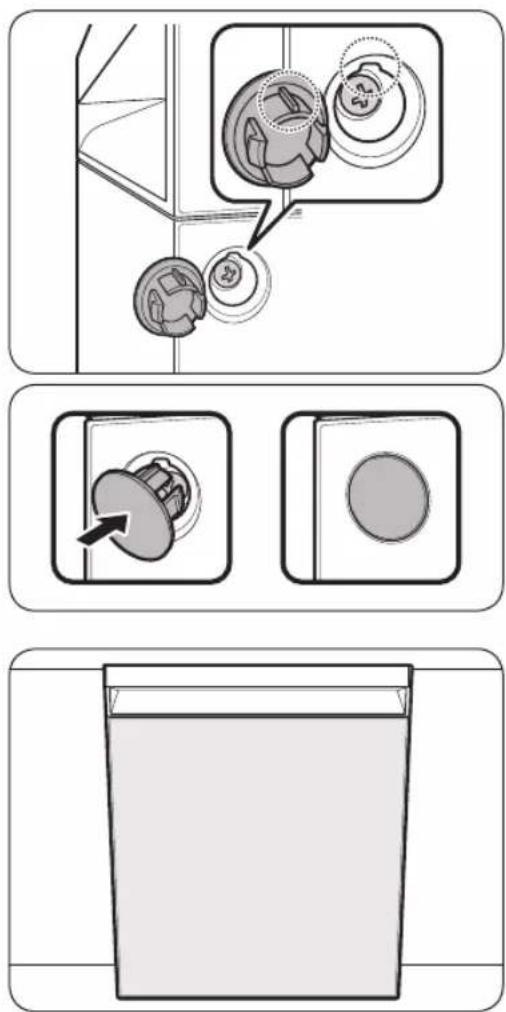

Insert the caps on either side. Make sure the rib of the cap fits in the hole of the dishwasher in the right direction.
-
This is the completion of mounting the custom panel.
English22
Info Light (Applicable models only)
You can see the dishwasher's operating status by checking the info light.
Info Light
Check whether the info light is covered by the rubber skirt.
- The info light must be between the rubber skirt and outer door.
- If the rubber skirt is covering the info light, the info light will not be visible.
SmartThings (Applicable models only)
Wi-Fi connection
On your phone, go to Settings and connect to your home Wi-Fi network.
Download
On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), find the SmartThings app with a search term of "SmartThings". Download and install the app on your device.
NOTE
- The SmartThings app is designed for Android 8.0 or later, IOS 13.0 or later.
- For improved performance, the SmartThings app is subject to change without notice, or discontinued support according to the manufacturer's policy.
Log in
You must first log into SmartThings with your Samsung account. To create a new Samsung account, follow the instructions on the app. You don't need a separate app to create your account.
NOTE
If you have a Samsung account, use the account to log in. A registered Samsung phone user automatically logs in.
To register your device to SmartThings
- Make sure your phone is connected to a wireless network.
- Run SmartThings on your phone. iPhone users are required to provide the login information each time they access the app.
- When a message of "A new device is found.", select Add.
- If no message appears, select + and select your dishwasher in a list of devices available. If your dishwasher is not listed, select Device Type > Specific Device Model, and then add your dishwasher manually.
- Follow the on screen instructions to complete the connection process for your dishwasher. Press and hold Smart Control for more than 5 seconds until the "AP" message appears on the display. Your dishwasher will be registered with the app.
- When the process is complete, your dishwasher will appear in the list of devices on your SmartThings App.
- Tap the dishwasher icon to open the dishwasher page.
- When a network connection is established, the Wi-Fi icon lights up on your dishwasher.
English24
Dishwasher app
Integrated control: You can monitor and control your dishwasher both at home and on the go.
- Select the dishwasher icon on SmartThings. The dishwasher page appears.
- Check the operation status or notifications related to your dishwasher, and change options or settings if necessary.
NOTE
- This device is designed for household use only (Class B), and can be used in all residential areas.
- This device may cause wireless interference, and neither the manufacturer or the installer of this device can provide a safety measure of any kind.
- Recommended encryption methods are WPA/TKIP and WPA2/AES. Newly developed Wi-Fi protocols or unapproved Wi-Fi protocols are not supported.
- The reception sensitivity of a wireless network may be affected by surrounding wireless environments.
- If your Internet provider has registered the MAC address of your PC or the modem module for permanent use, your Samsung dishwasher fails to connect to the Internet. If this is the case, contact your Internet provider.
- The Internet firewall may interrupt your Internet connection. If this happens, contact your Internet provider.
- If Internet failure continues after following the measurement of your Internet provider, contact a local Samsung retailer or service centre.
- For installing wired and wireless routers, refer to the user manual of the router you use.
- Samsung dishwasher supports the Wi-Fi 2.4 GHz protocols.
- Samsung dishwasher supports the IEEE802.11 b/g/n (2.4 GHz), Soft-AP protocols. (IEEE802.11n is recommended)
- An unapproved wired/wireless router may fail to connect to Samsung dishwasher.
- The SmartThings app is available on Android devices with OS 8.0 or higher and iOS devices with iOS 13 or higher. The app is optimised for Samsung phones (Galaxy S and Note series).
- Some functions of the app may operate differently on third-party devices.
- The app is subject to change without notice for improved performance.
- In addition, further updates on the app or the function in the app may stop caused by usability and security reasons, even if updates are currently supported on your OS.
- Your device uses non-harmonised frequency and is intended for use in all European countries. The WLAN can be operated in the EU without restriction indoors, but cannot be operated outdoors in France.
- You can easily install the SmartThings app or use the product with your phone by scanning the QR code on the attached label.
- Hereby, Samsung Electronics, declares that the radio equipment type appliance is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: The official Declaration of conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.
Installation
- The overall standby power consumption is 2.0 W in which all network ports stay in "on" condition.
- Data determined according to standard EN 50564 and Regulation (EC) No 1275/2008
| Wi-Fi | |
| Frequency range Transmitter | power (Max) |
| 2412 MHz - 2472 MHz 20 dBm | |
SmartThings
| Category Checkpoint Description | ||
| Monitoring | Washing status | You can check the current cycle and its options, and the remaining cycle time. |
| Smart Control | The Smart Control status is shown for the dishwasher. | |
| Energy monitoring | Use this to monitor the energy consumption status. | |
| Control | Start/Pause/Cancel | Select a cycle and necessary options, and then select Start/Pause/Cancel to start an operation, to stop temporarily, or to cancel the current operation. |
| My Favorite | Add frequently used cycles and options to My Favorite for later use. | |
| Delay Start | Set Delay Start to start the cycle at a scheduled time (up to 24 hours). | |
| Notification | Cycle completed | Notifies you the current cycle is complete. |
| Detergent | Notifies you if the dishwasher is out of salt or rinse aid. | |
English26
Open Source Announcement
The software included in this product contains open source software.
The following URL http://opensource.samsung.com/opensource/SMART_TP1_0/seq/0 leads to open source license information as related to this product.
Before you start
Follow these instructions carefully to ensure proper installation of the dishwasher and to prevent accidents when washing dishes.
Dishwasher at a glance
01 Top nozzle
02 Salt storage
03 Lower nozzle
04 Dispenser
05 Control panel
06 Door
Cutlery basket (Applicable models only)
NOTE
Depending on the models, actual parts may look differ from the figures.
English28-
CAUTION
- Do not wash items that are covered with ash, sand, wax, lubricating grease, or paint. These materials will damage the dishwasher. Ash does not dissolve and will spread inside the dishwasher.
- Remove food remains such as bones, fruit seeds, etc. and waste such as toothpicks, paper napkins, etc. from your dishes. Food remains and waste can make noise, cause the dishwasher to malfunction, and damage your dishes and dishwasher.
Unsuitable items for the dishwasher
WARNING
Wash only items such as glass, porcelain, and cutlery which the manufacturer declares as dishwasher safe. Do not wash aluminium (for example grease filters). The dishwasher may damage aluminium, or in extreme cases, cause a severe chemical reaction.
Do not wash the following items in the dishwasher.
• Copper, brass, tin, ivory, and aluminium items or items with adhesive
• Non-heat resistant plastics
- Craft items, antiques, valuable vases, and decorative glassware
• Pottery or glazed-ceramic items
- Wooden cutlery and crockery or items with wooden parts
- Delicate glassware or glassware containing lead crystal. Clouding may occur on the glassware after frequent washing.
NOTE
Silverware that has contacted foods containing sulphur may become discoloured. Food with sulphuric content include egg yolks, onions, mayonnaise, mustard, fish, fish brine, and marinades.
Before you start
Basic use of racks
Height adjustment
You can adjust the height of the upper rack so that the lower rack can accommodate larger sized dishes. Depending on the height of the upper rack, the lower rack can accommodate plates up to 30 cm in diameter, and the upper rack can accommodate plates up to 18 cm (with Cutlery rack) or 25 cm (without Cutlery rack) in diameter.
CAUTION
- Adjust the height of the upper rack before loading dishes into the rack. Adjusting the rack after loading the dishes may damage the dishes.
- Make sure to hold both handles when adjusting, or the dishwasher door may not close properly.
- To lower the upper rack, hold both the adjustable handles located at the left and right sides of the upper rack, and then evenly press down.
Upper rack removal
CAUTION
- Do not operate the dishwasher without the upper rack. Otherwise, noises occur and the dishwasher does not operate properly.
- Because the upper rack is removable, insert the upper rack properly to ensure the dishwasher operates normally.
Pull the upper rack to the front until it is fully extended, and then lift it slightly to remove. See the following figures.
Loading dishes

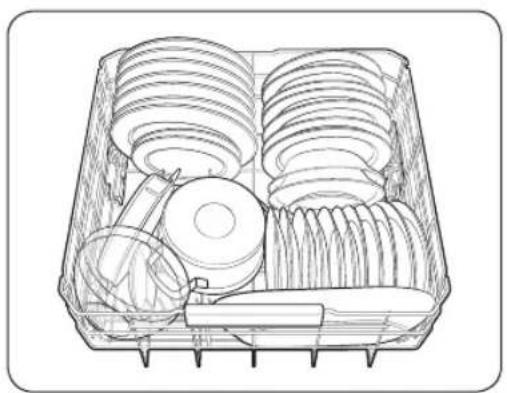

Lower rack
Recommended that you place large items, that are difficult to clean (such as pots, pans, lids, serving dishes and bowls), in to the lower rack.
It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the upper nozzle. Pots, serving bowls, etc. must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The lower rack features folding tines to easily load larger pots and pans.
NOTE
Long items, serving cutlery, salad servers and big knives should be placed on the shelf so that they do not obstruct the rotation of the nozzles.
Using the folding tines
For better stacking of pots and pans, the tines can be folded down as show in the figure.
Before you start
Upper rack
The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water. Always place glasses, cups & bowls upside down.
Guide Tines
You can load dishes into the central rack in various ways by changing the guide tines. If the guide button is moved to the right, you can load standard wine glasses. If the guide button is in the middle, you can load shorter wine or brandy glasses. If the guide button is on the left, you can load bowls and plates.
Cutlery rack (DW60B*8**** / DW60B*75**** models)
NOTE
The cutlery rack can be removed if you need more space on the upper rack to clean larger items.
Cutlery Rack Tray (Only for DW60B*89**** / DW60B*85****)
You can easily move cutlery tray in the cutlery rack. The trays can move up and down.
Using the glass support
The glass support is especially suited for wine glasses. Hang wine glasses onto the pegs of the glass support. Fold the glass support back when it is not being used.
Before you start
Detergent compartment
All dishwasher cycles require detergent in the detergent compartment. Apply detergent as recommended for the selected cycle to ensure best performance.
WARNING
- Do not place dishwasher detergent in your mouth. Avoid breathing in detergent fumes. Dishwasher detergent contains irritants and caustic chemicals that can induce respiratory conditions. If you have consumed dishwasher detergent or inhaled detergent fumes, seek medical attention immediately.
- Keep dishwasher detergent out of children's reach.
CAUTION
Use dishwasher detergent only. Other types of detergent produce excessive foam, which may decrease the dishwasher's performance or cause it to malfunction.

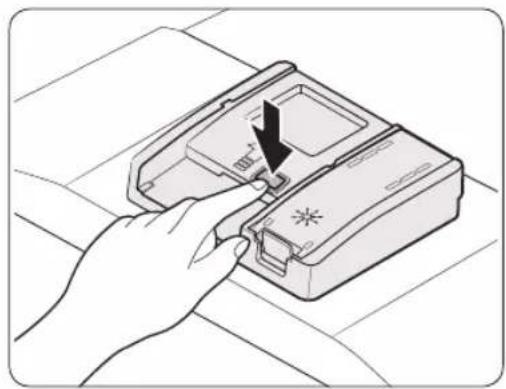

Filling the detergent
NOTE
The cap remains open at the end of a cycle.
NOTE
There is no separate button that is specific to using tablet detergents.
English34
NOTE
The additional detergent will activate during the pre-wash process.
The cover opens automatically to dispense the detergent during the wash.
Before you start
Rinse aid reservoir
Rinse aid improves the drying performance of the dishwasher. When the Rinse Refill indicator lights up on the control panel, refill with rinse aid. Only use liquid rinse aid. Powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction.
CAUTION
- Do not apply any type of detergent to the rinse aid reservoir.
- Do not excessively fill the reservoir. Excessive rinse aid may overflow during a cycle.
Filling the rinse aid
CAUTION
Do not fill the reservoir above the full level indicator. Excess rinse aid can overflow during the wash cycle.
English36-
Salt storage
CAUTION
- Use dishwasher-specific salt only. Do not use any other type of salt or solvent. This may damage the salt storage and the water softening system.
- To prevent corrosion caused by an excessive amount of salt or salty water, always fill the salt storage before a washing cycle gets started.

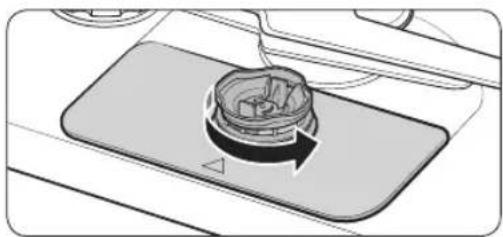

Filling the salt storage
- Turn the cap counterclockwise to open.
NOTE
When you open the softener lid, clean water stored for about one minute may run out. Add salt to stop the water from leaking out.
- Apply dishwasher salt.
CAUTION
- The maximum capacity is about 1 kg. Do not exceed the capacity.
-
Exceeding the capacity may affect the dishwasher performance.
-
Turn the cap clockwise to close.
NOTE
- To clean excess salt or salt water from dishwasher, run the Express cycle.
- Depending on the size of the salt grains, it may take a while for the salt to dissolve and the indicator (→to turn off.
The indicator (Turns on if there is not enough salt for the next several cycles.
Before you start
Settings
You can change your settings to your preference. To change the settings, press the Option button. Then you can navigate through sub menus on displayed by Left/Right buttons.
Delay Start
- Find the Delay Start option with the Left/Right buttons and select it by using Start button.
- Press Left/Right buttons to change the time in 1-hour.
- Press Start, and then close the door.
Dose per Rinse
• Find the Dose per Rinse option.
- Select a Dose per Rinse from Off to Extra High (default: Medium)
AI Pattern
Conveniently use the cycles that you use frequently. You can set your dishwasher to remember the frequently used cycles and settings and display them in frequently used order.
- In the Settings mode, press the Left/Right buttons to select the AI Pattern option.
-
Select On or Off, and then press the Start button to finish the setting.
-
The default setting is On.
- Set this function to Off if you do not want to use this function.
- When you turn off the function, all the saved data resets.
English38
Water Hardness
• Find the Water Hardness option.
- Select a water hardness level from Level 0 to Level 5 (default: Level 4)
NOTE
If the water hardness level in your area is 0, you do not need to use dishwasher-specific salt. However, you must set the water hardness setting for the dishwasher to 0.
Water hardness level
| Level | Water hardness | Regeneration softening/washing cycle (ECO program) | Salt injection | |||
| °dH °TH mmol/L Range | ||||||
| 0 <6 | <10 <1.0 No recycle | No No | ||||
| 1 6-14 | 10-25 1-2.5 1/8 Yes | Yes | ||||
| 2 | 14-23 | 25-40 | 2.5-4.0 | 1/5 | Yes | Yes |
| 3 | 23-31 | 40-55 | 4.0-5.5 | 1/3 | Yes | Yes |
| 4 | 31-40 | 55-70 | 5.5-7.0 | 1/2 | Yes | Yes |
| 5 | >40 | >70 | >7.0 | 1/1 | Yes | Yes |
Recommended using soft water for better results. Hard water contains impurities that can reduce the washing performance. You will need to soften the water if the supplied water is harder than 1.0 mmol/L (6 °d - German scale).
- To soften the water, you need dishwasher-specific salt and configuration of the water hardness level according to your area. For more information about the water hardness level in your area, contact your local water department.
- If the hardness level of the supplied water supply is unsteady, set the dishwasher to the highest measurement. For example, if the water hardness reading ranges from 6.7 mmol/L to 9.0 mmol/L, set the dishwasher to 9.0 mmol/L.
- The dishwasher's default water hardness level is 4 (5.5-7.0 mmol/L). If this setting matches the water hardness level in your area, you do not need to change it.
- Regeneration will be operated in dry phase with an additional 2.3-2.7 L of water being used and 22-27 minutes taken for the cycle. The energy used may be increase however this should be by an insignificant amount.
Before you start
Auto Release Dry
Find Auto Release Dry option. Then you can select On or Off the Auto Release Dry function.
NOTE
- Once the door opens in Auto Release Dry mode, the door cannot be closed manually for the next 2 minutes.
- Disabling Auto Release Dry mode can affect the drying results. Enable Auto Release Dry for better results.
Child Lock
To prevent children from playing with the dishwasher, Child Lock locks all button controls except for Power
• Find Child Lock function.
• You can select On of Off the Child Lock function.
- Child Lock remains active after the dishwasher restart. To cancel Child Lock, you must off it first.
Sound
Find Sound function. Then you can On or Off the Sound function.
Wi-Fi
Find Wi-Fi function. Then you can On or Off the Wi-Fi function.
Factory Reset
All the changed options can be initialized by using Factory Reset option.
• Find Factory Reset function. Then you can choose whether to reset all options.
English40
Settings (Except DW60BB89\* models)
You can change the Sound, Brightness, Dose per Rinse, Water softener and Auto Door to your preference. To change the settings, press the Hygiene Plus and Delay Start buttons simultaneously for 3 seconds.
Press Hygiene Plus to navigate through sub menus, and press Delay Start to confirm your changes.
Sound
U1/U0
Brightness*
b0-b5
Dose per Rinse
F0-F6
Water softener
L0-L5
Auto Release Dry
A1/A0
* applicable models only
After setting is finished, press Power button or Hygiene Plus and Delay Start button.
Sound
Press Hygiene Plus until 'U1' or 'U0' is displayed. To mute the dishwasher, select 'U0', and then press Delay Start. To unmute, select 'U1', and then press Delay Start.
Brightness (Applicable models only)
Press Hygiene Plus until 'b0 - b5' is displayed. The higher the number, the brighter the display. Select a number, and then press Delay Start.
Dose per Rinse
Press Hygiene Plus until 'F0 - F6' is displayed. Select a rinse aid level from Level 0 to Level 6 (default: F4), and then press Delay Start.
Before you start
Water softener (Applicable models only)
Press Hygiene Plus until 'L0 - L5' is displayed. Select a water hardness level from Level 0 to Level 5 (default: L4), and then press Delay Start.
NOTE
If the water hardness level in your area is 0, you do not need to use dishwasher-specific salt. However, you must set the water hardness setting for the dishwasher to 0.
Water hardness level
| Level | Water hardness | Regeneration softening/washing cycle (ECO program) | Salt injection | |||
| °dH °TH mmol/L Range | ||||||
| 0 <6 | <10 <1.0 No recycle | No No | ||||
| 1 6-14 | 10-25 1-2.5 1/8 Yes | Yes | ||||
| 2 | 14-23 | 25-40 | 2.5-4.0 | 1/5 | Yes | Yes |
| 3 | 23-31 | 40-55 | 4.0-5.5 | 1/3 | Yes | Yes |
| 4 | 31-40 | 55-70 | 5.5-7.0 | 1/2 | Yes | Yes |
| 5 | >40 | >70 | >7.0 | 1/1 | Yes | Yes |
Recommended using soft water for better results. Hard water contains impurities that can reduce the washing performance. You will need to soften the water if the supplied water is harder than 1.0 mmol/L (6 °d - German scale).
- To soften the water, you need dishwasher-specific salt and configuration of the water hardness level according to your area. For more information about the water hardness level in your area, contact your local water department.
- If the hardness level of the supplied water supply is unsteady, set the dishwasher to the highest measurement. For example, if the water hardness reading ranges from 6.7 mmol/L to 9.0 mmol/L, set the dishwasher to 9.0 mmol/L.
- The dishwasher's default water hardness level is 4 (5.5-7.0 mmol/L). If this setting matches the water hardness level in your area, you do not need to change it.
- Regeneration will be operated in dry phase with an additional 2.3-2.7 L of water being used and 22-27 minutes taken for the cycle. The energy used my be increase however this should be by an insignificant amount.
English42
Auto Release Dry
Press Hygiene Plus until 'A1' or 'A0' is displayed to enter Auto Release Dry mode. Then, press Delay Start to enable (A1) or disable (A0) the Auto Release Dry function.
NOTE
- Once the door opens in Auto Release Dry mode, the door cannot be closed manually for the next 2 minutes.
- Disabling Auto Release Dry mode can affect the drying results. Enable Auto Release Dry for better results.
To cancel your changes
To cancel any of the settings during the process, press Power to turn the dishwasher off. Then, try again.
Operations
Control panel (For DW60BB89\* models)
| 01 Power Press to turn | the dishwasher on or off. |
| 02 Left/Right | You can search program or options by using this button. |
| 03 Display | You can check information.• Course and option• Remained time, Delay Start, Check message |
| 04 Start | Press Start to start operation. Make sure the door is closed.Cancel & Drain: To cancel the current cycle and drain the dishwasher, press and hold Start for 3 seconds. |
| 05 Half Load | Press to wash items using only the lower rack.This is not available with Machine Care, Baby Care and Pre wash cycles. |
| 06 Speed Booster | Select this option to reduce the cycle time. This is available only with the Auto, ECO, Intensive, Extra silence, Pots and pans and Delicate cycles. |
| 07 Hygiene Plus | Press to increase the water temperature up to 75 °C in the final rinse process for high temperature sanitization. This option is not available with Delicate, Express, Machine Care, Plastic, Baby Care and Pre wash. |
| 08 Option | You can set options by using this button.• Delay Start, Dose per Rinse, Water Hardness, My Cycles, Auto Release Dry, Child Lock, AI Pattern, Sound, Language, Wi-Fi and Factory Reset. |
| 09 SmartControl | You can check product operation remotely by using SmartControl. |
English44
Control panel (Except DW60BB89* models)
| 01 Power Press to turn | the dishwasher on or off. |
| 02 Cycle | Press to select a desired wash cycle. For more information, see the “Cycle overview” section on page 46. |
| 03 Half Load | Press to wash items using only the lower rack.This is not available with Machine Care, Baby Care and Pre wash cycles. |
| 04 Speed Booster | Select this option to reduce the cycle time. This is available only with the AUTO, ECO, Intensive, Extra Silence, Pots and Pans and Delicate cycles. |
| 05 Hygiene Plus | Press to increase the water temperature up to 75 °C in the final rinse process for high temperature sanitization.This option is not available with Delicate, Express, Machine Care, Plastic, Baby Care and Pre wash. |
| 06 Smart Control | You can check product operation remotely by using Smart Control. |
| 07 Delay Start | You can delay the cycle starting time up to 24 hours. For more information, see the “Delay Start” section on page 48. |
| 08 START(Cancel & Drain) | Press START to start operation. Make sure the door is closed.Cancel & Drain: To cancel the current cycle and drain the dishwasher, press and hold START for 3 seconds. |
Operations
Indicators
| Rinse Refill indicator Lights up when the dishwasher runs out of rinse aid. | ||
| Salt refill indicator Lights up if Salt refill is activated. | ||
| AI Energy mode indicator | • AI Energy mode becomes active when the SmartThings app allows it to be enabled.• With the AI Energy mode enabled, the indicator turns on if an AI Energy mode compatible cycle is selected.• Not all cycles are available with this mode. The indicator turns off if an AI Energy mode incompatible cycle is selected.• AI Energy mode helps reduce power consumption. However, it takes a longer cycle time.* AI Energy mode will be supported on different schedule for each country from Jan 2023. | |
| Wi-Fi indicator | Lights up if Wi-Fi is activated. | |
Cycle overview
| AUTO55°-62° | ECO49° | 65° | 50° | 63° | 60° | 0809 | |||
| 01020304050607 | |||||||||
* The temperature under the buttons indicates the highest water temperature during the cycle. The highest water temperature during the cycle may differ depending on the model.
| 01 AUTO | This cycle detects the level of soil and automatically initiates the optimal cycle, which is appropriate for all levels of soiled items. |
| 02 ECO* | This cycle reduces power and water consumption, which is appropriate for normally soiled items. |
| 03 Intensive Select this cycle for heavily soiled items. | |
| 04 Delicate | Select this cycle for lightly soiled, fragile items such as glasses. Hygiene Plus option is not available in this cycle. |
English46
| 05 Express | Normally soiled daily using items, with short cycle time. |
| 06 Pre Wash | Cold water rinse for removing dirt before running another program. |
| 07 Extra Silence | Select this cycle for more smooth and quiet washing. This cycle washes a little bit slower, but creates 2 decibels less noise than the ECO program. |
| 08 Machine Care | Select this cycle to clean the inside of the dishwasher. Make sure the dishwasher is empty. |
| 09 Download Course (Applicable models only) | Based on the Plastic course, you can download the following additional courses:• Plastic, Baby Care, and Pots and Pans courses |
* The values for the ECO program have been obtained following the test standard EN 60436:2020. The values given for the other programs are indicative only.
Download Course (Applicable models only)
You can download and use courses other than those provided by default through your phone. Some models have already courses built in by default. No additional download is necessary.
- Press the Power button.
- Select Download Course.
- Select the downloadable course you want to use in your phone app.
Pots and Pans, Plastic, and Baby Care courses are available.
- When you download using the phone app, you can keep using your saved courses.
- Press the START button and close the dishwasher door.
| Pots and Pans | Choose to wash pots and pans. This course uses hotter water and higher pressure than a standard course for focused cleaning of pot and pans. |
| Plastic | This course is used when washing plastic dishes. It washes plastic at a safer temperature (60 °C) and dries them better. |
| Baby Care | Suitable for rinsing/drying dishes at a high temperature of 75 °C. This cycle is not designed for detergent or rinse. Do not use any of them. |
Operations
Simple steps to start
- Open the door, and then load the dishwasher. Make sure to remove food remains and waste on the dishes.
- Apply detergent to the detergent dispenser. For better results, add rinse aids.
- Press Power, and then select a cycle with necessary options (Half Load, Speed Booster, Hygiene Plus, and Delay Start). Some options may not be available depends on the cycle.
- Press START, and then close the door. The dishwasher starts the cycle after draining for a few seconds.
NOTE
- To change the cycle after it has started, press and hold START for 3 seconds to cancel the cycle. Then, select a new cycle.
- The default cycle is ECO.
- To resume after you have opened the door to stop the dishwasher while operating, simply close the door.
Delay Start
You can delay the cycle starting time up to 24 hours in 1-hour increments. To increase the delay time, press Delay Start. The hour displayed indicates the time at which the cycle will start.
- Open the door, and then load the dishwasher.
- Press Delay Start to change the time in 1-hour increments.
- If you press and hold the button, the time will increase until you release the button.
- Press START, and then close the door.
NOTE
To change the delay time once the dishwasher has started, press Power and restart the dishwasher.
English48
Maintenance
Cleaning
Keep the dishwasher clean to improve performance, reduce unnecessary repairs, and lengthen the lifecycle.
Exterior
Clean spills on the surface of the dishwasher immediately. Use a soft, damp cloth on the control panel to gently wipe away spills and dust.
CAUTION
- Do not use benzene, wax, thinner, chlorine bleach, alcohol, or other chemical substances. These materials may discolour the surface of the dishwasher and cause stains.
- The dishwasher has electric parts inside. Do not spray water directly onto the dishwasher. Protect electrical components from water.
- For a stainless-steel door panel, use a stainless steel cleaner for home appliances and a clean, soft cloth.
Interior
Clean the interior of the dishwasher on a regular basis to remove any dirt or food particles. Wipe inside the dishwasher and inside the door with a wet dishcloth.
CAUTION
- Do not remove the front seal (the long rubber seal enclosing the opening of the dishwasher). The seal keeps the inner side of the dishwasher sealed.
- Use a damp cloth to remove lime scale or grease deposits inside the dishwasher. Alternatively, apply some detergent, and then run an empty cycle using the highest rinse temperature.
Nozzles
To prevent the nozzles from being clogged or if the nozzles are clogged, remove and clean each nozzle. Use caution when removing the nozzles as they may break.
Top nozzle
- Turn counter clockwise and remove the nozzle cap, and then remove the nozzle.
- Unclog and clean the nozzle.
- Reinsert the nozzle, and then tighten the cap clockwise.
- Rotate the nozzle by hand to make sure the nozzle is engaged correctly.
Maintenance
Upper nozzle
- Loosen and remove the nut, and then remove the nozzle.
- Unclog and clean the nozzle.
- Reinsert the nozzle, and then tighten the nut by hand.
-
Rotate the nozzle by hand to make sure the nozzle is engaged correctly.
-
Open the door, and then pull out the lower rack. The lower nozzle is visible on the bottom.
- Unclog and clean the nozzle.
- Reinsert the nozzle.
- Rotate the nozzle by hand to make sure the nozzle is engaged correctly.
Internal Cleaning
Recommended internal cleaning every month. You can use the Machine Care cycle or the Intensive cycle without putting in dishes.
If your tap water is hard, you can prevent limescale inside the dishwasher by adding citric acid to the detergent when operating the dishwasher.
English50-
Filter
Recommended cleaning the filter every month.
-
Turn the filter handle counterclockwise to unlock the Coarse filter.
-
Remove the Coarse filter, and then the cylindrical micro filter underneath.
Maintenance
-
Rinse both filters with running water, and then dry well.
-
Reinsert the filter, and then the Coarse filter.
- Turn the filter handle clockwise to lock.
CAUTION
Make sure the Coarse filter is closed properly. A loose cover can reduce the filtering performance.
When removing the filter, the hand can caught between the rotor and filter.
English52-
Cleaning the drain pump
If the dishwasher fails to drain (5C is displayed) because the drain pump is clogged with a foreign matter or there is an abnormal noise coming from the drain pump, you must unclog and clean the drain pump as instructed below.
- See the "Filter" section to remove the cylindrical micro filter.
- Remove any moisture from the filter using a sponge.
- Remove the drain-pump cover by pushing its handle in the direction of the arrow (1), and then pulling up (2).
- Check the impeller to see if it's in good condition. Then, remove any foreign matter from the pump.
- Reinsert the drain-pump cover and then press down until you hear a click.
Long-term care
If you will not use the dishwasher for an extended period of time, first drain the unit completely, and then disconnect the water hose. Shut off the water supply valve and the circuit breaker. Water remaining in the hoses or the internal components can damage the dishwasher.
Troubleshooting
Checkpoints
If you encounter an issue with the dishwasher, first check the table below and try the suggestions.
Following the repair by a non-authorized service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.
| Symptom Possible cause Action | ||
| The dishwasher does not start. | The door is not completely closed. | Make sure the door is latched and completely closed.Make sure the upper rack is properly joined with the nozzle.Make sure the upper rack is properly assembled. |
| The power cord is not connected. | Connect the power cord. | |
| Water is not being supplied. | Make sure the water supply valve is open. | |
| The control panel is locked. • Deactivate the Child Lock. | ||
| The dishwasher has bad odours. | Water remains from the previous cycle. | With the dishwasher empty, add detergent, and then run the Express cycle. This is available only on applicable models. |
| Water remains in the dishwasher after a cycle has finished. | The drain hose is folded or clogged. | Straighten and unclog the hose. |
English54
| Symptom Possible cause Action | ||
| Food remains on dishes. | An incorrect cycle was selected. | ·Select a cycle according to the soil level of the dishes as instructed in this manual. |
| The filters are clogged or not correctly fastened. | ·Clean the filters. ·Make sure the filters are correctly fastened. | |
| An insufficient amount of detergent was used. | ·Use the correct amount of detergent for each load. | |
| The water pressure is low. | ·Make sure the pressure is between 0.05-0.8 Mpa. | |
| The nozzles are clogged. | ·Clean and unclog the nozzles. | |
| Dishes improperly loaded or overloaded. | ·Arrange the dishes so they do not interfere with the nozzles or the detergent dispenser. | |
| The water is too hard. | ·Check the salt refill indicator, and refill with dishwasher salt. | |
| Dishes are not dried well. | There is no rinse aid in the dispenser, or not enough rinse aid was used. | ·Add rinse aid. ·Check the rinse aid settings. |
| Too many dishes are loaded. | ·Overloading may reduce the drying performance. Load your dishes as recommended. | |
| Glasses and cups spilled water onto other dishes while being unloaded. | ·Empty the lower rack first, and then the upper rack. This will avoid water dripping from the upper rack onto the dishes in the lower rack. | |
| Multiple detergent tablets were used without selecting the Hygiene Plus option. | ·Select the Hygiene Plus option or use rinse aid. | |
Troubleshooting
| Symptom Possible cause Action | ||
| The dishwasher is too noisy. | The dishwasher makes a sound when the dispenser cover is open and the drain pump is operating. | This is normal. |
| The dishwasher is not level. | Make sure the dishwasher is level. | |
| The nozzle bumps against the dishes, creating a chopping sound. | Rearrange the dishes. | |
| Yellow or brown film remains on dishes. | Coffee and tea soils. | Use a cycle with a higher temperature. |
| Indicators do not light up. | The power cord is not connected. | Check power supply is present. |
| The nozzles do not rotate smoothly. | The nozzles are clogged with food particles. | Clean the nozzles. |
| A white coating remains on dishes. | The water is too hard. | Make sure the salt fill indicator and softener settings are correct according to the water hardness of your area.Make sure the salt storage cap is correctly fastened. |
| Air bubbles and scratch marks are on the control panel. | Air gets into the protective film, causing EPS marks to remain. | Remove the protective film from the control panel. |
| The dishwasher bubbles up and the foam remains too much on the front. | This may occur:If using generic kitchen detergent.If loading a dish that generic kitchen detergent has been applied to.If inputting more than required water. | Turn the dishwasher off and remove the bubbles.If the dishwasher bubbles up severely, wait until the foam subsides. Then, run the Cancel & Drain cycle followed by the Pre Wash process 2-3 times. |
English56
Information codes
If the dishwasher fails to operate, you may see an information code on the display. Check the table below and try the suggestions.
| Code Action | |
| LC | Leakage checkClose the water supply valve. Go to your home's circuit breaker panel, and set the dishwasher's circuit breaker switch to off. Contact the installer to repair. If the issue continues, contact a local Samsung service center. |
| 4C | Water supply checkCheck if the water supply valve is closed, if the water supply is suspended, or if the water inlet valve or line is frozen or clogged by foreign particles. If the issue continues, contact a local Samsung service center. |
| AC | PCB communication checkAbnormal communication between the main PCB and the sub PCB.If the problem continues, contact an authorised Samsung service center. |
| HC | High temperature heating checkFunctional check. With the dishwasher empty, add detergent, and then run a cycle. If the issue continues, go to your home's circuit breaker panel, and set the dishwasher's circuit breaker switch to off. Contact a Samsung service center. |
| 3C | Washing pump checkAbnormal working with washing pump. If the issue continues, contact a local Samsung service center. |
| 1C | Low-water level checkCheck if the filter is clogged.Make sure to use dishwasher detergent.Make sure that the dishes are loaded evenly.Turn the dishwasher off and turn it on again. Then, try again.If the problem continues, contact a local Samsung service center. |
| 5C | Drain pump checkCheck drain pump and drain pipe. If it is jammed, clean it. If the issue continues, contact a local Samsung service center. |
Cycle chart
DW60B*8***** model
| Cycle AUTO | AUTO (DW60*G850U**) | ECO | |
| Cycle sequence | Pre wash (45 °C) ► Main wash (55-60 °C) ► Rinse ► Hot Rinse (53-58 °C) ► Dry ► End | Pre wash ► Main wash (50-62 °C) ► Rinse ► Hot Rinse (58-61 °C) ► Dry ► End | Main wash (49 °C) ► Rinse ► Hot Rinse (43 °C) ► Dry ► End |
| Water consumption (L) | 10.9-13.6 8.2-9.9 8 | ||
| Energy consumption (kWh) | 0.85-1.25 0.80-1.15 0.644 | ||
| Cycle time (min.) 10 | 8-155 84-150 235 | ||
| Cycle Intensive Delicate Express | |||
| Cycle sequence | Pre wash (45 °C) ►Main wash (65 °C)► Rinse ►Hot Rinse (63 °C)► Dry ► End | Pre wash (40 °C) ►Main wash (50 °C)► Rinse ►Hot Rinse (50 °C)► Dry ► End | Main wash (63 °C)► Rinse ►Hot Rinse (57 °C)► Dry ► End |
| Water consumption (L) | 14.15 10.35 9.8 | ||
| Energy consumption (kWh) | 1.45 0.8 1.05 | ||
| Cycle time (min.) 180 | 117 | 78 | |
| Cycle | Pre Wash | Machine Care | Extra Silence |
| Cycle sequence | Pre wash ▶ End | Pre wash ▶Main wash (70 °C) ▶ Rinse ▶Hot Rinse (70 °C) ▶ Dry ▶ End | Pre wash ▶Main wash (60 °C) ▶ Rinse ▶Hot Rinse (55 °C) ▶ Dry ▶ End |
| Water consumption (L) | 4 | 12.9 | 12 |
| Energy consumption (kWh) | 0.05 1.4 | 1.1 | |
| Cycle time (min.) | 24 | 136 | 263 |
English58-
DW60B*7***** model
| Cycle AUTO | AUTO (DW60*G750S**) (DW60*G750U**) | ECO | |
| Cycle sequence | Pre wash (45 °C) ► Main wash (55-60 °C) ► Rinse ► Hot Rinse (53-58 °C) ► Dry ► End | Pre wash ► Main wash (50-62 °C) ► Rinse ► Hot Rinse (58-61 °C) ► Dry ► End | Main wash (49 °C) ► Rinse ► Hot Rinse (47 °C) ► Dry ► End |
| Water consumption (L) | 12.5-15.2 9.8-11 | 1.5 9.2 | |
| Energy consumption (kWh) | 0.88-1.28 0.83-1 | 1.18 | 0.746 (14 place setting) 0.735 (13 place setting) |
| Cycle time (min.) 10 | 4-151 77-143 255 |
| Cycle Intensive Delicate Express | |||
| Cycle sequence | Pre wash (45 °C) ▶Main wash (65 °C) ▶ Rinse ▶Hot Rinse (63 °C) ▶ Dry ▶ End | Pre wash (40 °C) ▶Main wash (50 °C) ▶ Rinse ▶Hot Rinse (50 °C) ▶ Dry ▶ End | Main wash (63 °C) ▶ Rinse ▶Hot Rinse (57 °C) ▶ Dry ▶ End |
| Water consumption (L) | 15.75 11.95 9.8 | ||
| Energy consumption (kWh) | 1.48 0.83 1.05 | ||
| Cycle time (min.) 17 | 6 113 78 | ||
Cycle chart
| Cycle Pre Wash Machine Care Extra Silence | |||
| Cycle sequence | Pre wash ▶ End | Pre wash ▶Main wash (70 °C)▶ Rinse ▶Hot Rinse (70 °C)▶ Dry ▶ End | Pre wash ▶Main wash (60 °C)▶ Rinse ▶Hot Rinse (55 °C)▶ Dry ▶ End |
| Water consumption (L) | 4 12.9 13.6 | ||
| Energy consumption (kWh) | 0.05 1.4 1.13 | ||
| Cycle time (min.) 24 | 136 259 | ||
DW60B*8***** model
| Cycle | Download Cycle | ||
| Plastic Baby Care Pots and Pans | |||
| Cycle sequence | Main wash (60 °C)► Rinse ►Hot Rinse (60 °C)► Dry ► End | Hot Rinse (75 °C)► Dry ► End | Pre wash ►Main wash (68 °C)► Rinse ►Hot Rinse (68 °C)► Dry ► End |
| Water consumption (L) | 11.3 4.5 13.9 | ||
| Energy consumption (kWh) | 1.1 1 1.5 | ||
| Cycle time (min.) 97 | 68 151 | ||
English60-
DW60B*7***** model
| Cycle | Download Cycle | ||
| Plastic Baby Care Pots and Pans | |||
| Cycle sequence | Main wash (60 °C)► Rinse ►Hot Rinse (60 °C)► Dry ► End | Hot Rinse (75 °C)► Dry ► End | Pre wash ►Main wash (68 °C)► Rinse ►Hot Rinse (68 °C)► Dry ► End |
| Water consumption (L) | 12.9 4.5 15.5 | ||
| Energy consumption (kWh) | 1.13 1 1.53 | ||
| Cycle time (min.) 93 | 68 147 | ||
* Pre Wash: This cycle does not activate the Auto Release Dry function nor the drying process. Continuous use of the Pre Wash cycle for an extended time is not recommended. This may reduce the performance of the water softener.
NOTE
- The cycle time depends on the options you have added, and the pressure and temperature of the supplied water.
- The dishwasher drains the remaining water inside automatically if it has not been used for the last 5 days.
- The power consumption depends on the water temperature or load.
• Energy values for courses were calculated under standardized testing conditions.
Appendix
Transportation/relocation
Make sure the dishwasher is empty with no loose parts. First, drain the dishwasher as follows.
- Open the door, and then turn the dishwasher on.
- Select and run the ECO cycle.
- Press START, and then close the door.
- When the cycle is finished, open the door after 5 seconds.
- Press and hold START for 3 seconds to drain water.
- Close the door.
- When the draining process is complete, open the door.
- Turn the dishwasher off, and then shut the water valve off.
- Disconnect the both the water hose and the drain hose.
CAUTION
Do not shake or sway the dishwasher while moving it. Residual water may drip from the dishwasher.
Protection against frost
If you leave the dishwasher in a place with a risk of frost for an extended time, make sure to empty the dishwasher. For details, see the “Transportation/relocation” section.
Disposing the dishwasher and helping the environment
Your dishwasher is manufactured from recyclable materials. If you decide to dispose of it, please observe your local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source.
Remove the door so that animals and children cannot get trapped inside the appliance.
English62
Energy, water saving tip
- ECO programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation (COMMISSION REGULATION (EU) 2019/2022).
- Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.
Use a knife, etc. to remove only large bits of food before loading. - Water supplied can be up to 60 °C, and less power is consumed when hot water is connected.
- It's better to fill the basket if possible but without overloading.
- Load the tableware to the baskets properly to prevent damages and poor performance.
- Overloading and overlapping tableware may reduce the cleaning and drying performance.
Load your tableware as recommended. - Load the tableware with concave bottom at an angle so that water can run off.
- Arrange the tableware so they do not interfere with the nozzles and the detergent dispenser.
It can make the cleaning and drying performance better, and prevent the noise of nozzle bumping the tableware. - To prevent injury from the knives and other utensils with sharp points, it must be loaded in the basket with their points down or placed in a horizontal position.
- To save water and energy, use the ECO cycle. ECO is the most efficient program when washing normally soiled items.
- Use an appropriate amount of detergent and rinse according to the manufacturer's guidelines.
- Dishwasher use saves water compared to ordinary washing by hand.
- Ecodesign information can be found by going to www.samsung.com/support.
Appendix
Specifications
| MODEL DW60B*89**AP DW60B*85**BI DW60B*75**BI | DW60B*75**SL DW60B*73**SL | ||||
| Type | Free Standing (Bespoke) | Fully Built-In (Sliding) | Fully Built-In Free Standing | ||
| Power 220-240 V~, 50 Hz | |||||
| Water pressure 0.05-0.8 MPa | |||||
| Wash capacity | DW60B*89**** 14 Place settings | ||||
| DW60B*85**** 14 Place settings | |||||
| DW60B*75**** 14 Place settings | |||||
| DW60B*73**** 13 Place settings | |||||
| Rated power 2000-2300 W | |||||
| Dimension (Width x Depth x Height) | 598 x 600 x 845 mm | 595 x 552 x 815 mm | 595 x 552 x 815 mm | 598 x 600 x 845 mm | |
| Weight (Unpacked) 56.0 kg | 44.0 kg 40.5 kg 54.5 kg | ||||
| Weight (Packed) 60.0 kg | 47.5 kg 44.0 kg 58.5 kg | ||||
| MODEL DW60*G850U | ** DW60*G750S** DW60*G750U** | ||
| Type | Built Under | Semi Built-in | Built under |
| Power 220-240 V~, 50 Hz | |||
| Water pressure 0.05-0.8 MPa | |||
| Wash capacity | 14 Place settings | ||
| Rated power 2000-2300 W | |||
| Dimension (Width x Depth x Height) | 595 x 572 x 815 mm | ||
| Weight (Unpacked) | 42.5 kg | 40.5 kg | 41.0 kg |
| Weight (Packed) | 46.0 kg | 44.0 kg | 44.5 kg |
English64
Memo
Memo
Memo
SAMSUNG
QUESTIONS OR COMMENTS?
| COUNTRY CALL | OR VISIT US ONLINE AT | |
| EGYPT | 08000-726786416580WhatsApp 010 000 16580 | www.samsung.com/eg/support |
| IRAN 021-8255 [CE] www.samsung.com/iran/support | ||
| Israel *5000000 www.samsung.com/il/support/ | ||
| Palestine 1800-792447 www.samsung.com/ps/support/ | ||
| SAUDI ARABIA | 8002474357 (800 (08:00 ~ 20:00 HELP)From Inside Saudi Arabia+966112614718 From outside Saudi Arabia(Call charges may be applied )Digital services (24/7 HELP) | www.samsung.com/sa_en/support (English)www.samsung.com/sa/support (Arabic) |
| PAKISTAN 0800-Samsung (7267864) www.samsung.com/pk/support | ||
| U.A.E 800-SAMSUNG (800 - 726 7864) | www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic) | |
| OMAN 800-SAM CS (800-72627) | ||
| KUWAIT 183-CALL (183-2255) | ||
| BAHRAIN 8000-GSAM (8000-4726) | ||
| QATAR | 800-CALL (800-2255) | |
| Türkiye | 444 77 11 | www.samsung.com/tr/support |
| JORDAN | 0800-2227306-577-7444WhatsApp +962-79-777-7421 | www.samsung.com/levant/support |
| Lebanon | 1598WhatsApp +962-79-777-7421 | |
| Iraq | 80010080WhatsApp +962-79-777-7421 | |
| ALGERIA | 3004 | www.samsung.com/n_africa/support |
| TUNISIA | 80 100 012 | |
| MOROCCO | 080 100 22 55 | |
| SOUTH AFRICA | 0860 SAMSUNG (726 7864) | www.samsung.com/za/support |
| NAMIBIA | 08 197 267 864 | www.samsung.com/africa_en/support |
| MAURITIUS | 800 5050 | www.samsung.com/africa_en/support |
| REUNION | 0262 50 88 80 | www.samsung.com/africa_fr/support |
| MOZAMBIQUE | 84 726 7864 | www.samsung.com/africa_pt/support |
| NIGERIA | 0800 726 7864 | www.samsung.com/africa_en/support |
| Ghana | 0800 100 077 | www.samsung.com/africa_en/support |
| Cote D'Ivoire | 8000 0077 | www.samsung.com/africa_fr/support |
| SENEGAL | 800 00 0077 | www.samsung.com/africa_fr/support |
| CAMEROON | 67095 0077 | www.samsung.com/africa_fr/support |
| KENYA | 0800 545 545 | www.samsung.com/africa_en/support |
| UGANDA 0800 300 300 www.samsung.com/africa_en/support | ||
| TANZANIA | 0800 780 089 | www.samsung.com/africa_en/support |
| SUDAN | 1969 | www.samsung.com/eg/support |
DD68-00250N-00
תָרִי
•
תְרָהִיַעֹם
5 מַרְשָׁת בְּרִי
16
תְרָה בְּרָה בְּרָה
בִרָאֵל הַעְה
תְּרָה
(Bespoke, DW60BB8***** )
.תְרָה בַעֹרִי
Two icons showing a circular component and a mechanical component with an arrow, both without any text or symbols.7 ..ה'א'
m = 311
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
3:5
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
-
m = 311
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
3:5
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
תָהַעָה
SmartThings
הַרְבָרִי 27
Technical line drawing of a mechanical assembly with internal components (no text or symbols)
Three-step diagram showing mechanical assembly with arrows indicating process (no text or symbols)בַרְשָׁה
הכלה
הכלה
הַרְבָרִי 31
בַרְשָׁה
d'itin jil'
(DW60B*8**** / DW60B*75**** 12") "DO"
"ב"
אַלְרָה אַרְשׁו
תְרָה בְּרָה אַע
Line drawing of a device with an open lid and internal components, no text or symbols present•.ה'ר'
ΥΙΝΟ ΜΟΥ
3
2.
תְרָה
תְרָה
•
.בְרַעֹרָה בְרַעֹרָה
•
תְבָרִי בְּשַׁה
תָרִי
תָרִי
תְבָרִי – בְּרִי
תְבָרִי הַעֹה
•
•
תְרָה בַרִי
הַרְבָרִי 51
4
5.
7
Mechanical component diagram showing a bracket with an arrow indicating direction (no text or symbols present)תָרִי אַרְשׁוֹת
Diagram of a printer with a lid and paper feeding into a base, showing arrows indicating process (no text or symbols)natural_image
Line drawing of a kitchen sink with a circular dial indicator and labeled point A (no text or symbols beyond labels)
Diagram of a mechanical cart with two wheels and a handle, showing alignment circles (no text or symbols)Установка
Technical line drawing of two mechanical components: a pair of pliers and a multi-cranked gear assembly (no text or symbols)natural_image
Pure technical diagram showing a mechanical component with an arrow indicating direction (no text or symbols)
Pure technical line drawing of a V-shaped mechanical component without any text, numbers, or symbolsnatural_image
Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols)natural_image
Technical illustration of a mechanical assembly with two views of a vertical component, showing internal structure and alignment (no text or symbols)Русский20
Diagram showing two circular components with internal features and a speech bubble containing three circular elements (no text or symbols present)
Diagram of a device rear panel with a magnified inset showing a device inside (no text or symbols)natural_image
Diagram showing a magnifying glass over a surface with an arrow pointing to a small circular object (no text or symbols present)ПРИМЕЧАНИЕ
Подготовка к работе
Technical line drawing of a 3D mechanical assembly with grid lines and structural components (no text or symbols)
Diagram of a refrigerator interior showing internal components and a magnified view of the device (no text or symbols)natural_image
Three-step diagram showing progressive assembly of a mechanical component, from wire mesh to final assembly (no text or symbols)Русский30-
Загрузка посуды
Нижняя полка
ПРИМЕЧАНИЕ
Подготовка к работе
Верхняя полка
Three-step architectural or structural diagram showing a building interior with grid patterns and directional arrows (no text or symbols)Подготовка к работе
Line drawing of a device with an open lid and internal components, no text or symbols presentnatural_image
Diagram of a device with an arrow indicating direction, no text or symbols presentnatural_image
Illustration of a mechanical device with a container and a tool, no text or symbols presentnatural_image
Diagram of a device casing with internal components and directional arrows indicating movement (no text or symbols)natural_image
Illustration of a hand pouring liquid into a plastic container (no text or symbols)natural_image
Isometric diagram of a device casing with an arrow pointing to a component, no text or symbols presentnatural_image
Diagram showing a gear mechanism interacting with a device panel (no text or symbols)
Technical line drawing of a mechanical component with two circular annotations highlighting features (no text or symbols present)natural_image
Technical line drawing of a mechanical component with two circular annotations highlighting features (no text or symbols present)natural_image
Diagram showing a car interior with an arrow indicating motion, alongside a technical illustration of the exterior wall (no text or symbols present)natural_image
Technical diagram of a mechanical assembly with an inset showing a circular component being rotated (no text or symbols present)natural_image
Diagram of a kitchen sink with a metal lever and upward arrow indicating motion (no text or symbols)natural_image
Diagram of a mechanical component with a rotating knob and directional arrow (no text or symbols)natural_image
Diagram of a mechanical device with a gear and component, showing an arrow indicating rotation or movement (no text or symbols present)
Line drawing of a sink with a cylindrical object and a mechanical device inside (no text or symbols)natural_image
Line drawing of a sink with a drain and a bucket, showing liquid flow (no text or symbols)
Illustration of a hand using a tool to press or install a small object on a workbench, with no visible text or symbols.⚠️ ОСТОРОЖНО!
- Connecting SmartThings (Wi-Fi model only)
- Registering the product / Reading the manual / Connecting to Services
- NOTE
- Contents
- Safety information 5
- Installation 12
- Before you start 28
- Operations 44
- Maintenance 49
- Troubleshooting 54
- Cycle chart 58
- Appendix 62
- Safety information
- What you need to know about safety instructions
- Important safety symbols
- WARNING
- CAUTION
- Important safety precautions
- Instructions when using your dishwasher
- Instructions for protecting your children
- Instructions for installing your dishwasher
- Installation
- Installation requirements
- Power supply
- Grounding
- Water supply
- To reduce a risk of leaks:
- Aqua Stop
- Drain
- Flooring
- Ambient temperature
- Test run
- Final check
- Built-in installation under the sink (For Free Standing model)
- Step-by-step installation
- STEP 1 Select a location
- Installation in a new location
- Cut-out dimension (For Built-In models)
- STEP 2 Check the water line
- STEP 3 Arrange the hoses
- STEP 4 Level the dishwasher
- For Free Standing models
- For Built-In models
- STEP 7 Install the custom panel
- Info Light (Applicable models only)
- Info Light
- SmartThings (Applicable models only)
- Wi-Fi connection
- Download
- Log in
- To register your device to SmartThings
- Dishwasher app
- Open Source Announcement
- Before you start
- Unsuitable items for the dishwasher
- Basic use of racks
- Height adjustment
- Upper rack removal
- Loading dishes
- Lower rack
- Using the folding tines
- Upper rack
- Guide Tines
- Using the glass support
- Detergent compartment
- Filling the detergent
- Rinse aid reservoir
- Filling the rinse aid
- Salt storage
- Filling the salt storage
- Salt indicator
- Settings
- Delay Start
- Dose per Rinse
- AI Pattern
- Water Hardness
- Auto Release Dry
- Child Lock
- Sound
- Wi-Fi
- Factory Reset
- Settings (Except DW60BB89\* models)
- Brightness (Applicable models only)
- Water softener (Applicable models only)
- To cancel your changes
- Operations
- Control panel (For DW60BB89\* models)
- Download Course (Applicable models only)
- Simple steps to start
- Maintenance
- Cleaning
- Exterior
- Interior
- Nozzles
- Top nozzle
- Upper nozzle
- Lower nozzle
- Internal Cleaning
- Filter
- English52-
- Cleaning the drain pump
- Long-term care
- Troubleshooting
- Checkpoints
- Information codes
- Cycle chart
- Appendix
- Transportation/relocation
- Protection against frost
- Disposing the dishwasher and helping the environment
- Energy, water saving tip
- Memo
- SAMSUNG
- תְרָהִיַעֹם
- מַרְשָׁת בְּרִי
- תְרָה בְּרָה בְּרָה
- תָהַעָה
- תְרָה בְּרָה אַע
- תְבָרִי בְּשָׁ
- תְבָרִי בְּשַׁה
- תָרִי אַרְשׁוֹת
- Установка
- ПРИМЕЧАНИЕ
- Подготовка к работе
- Загрузка посуды
- Нижняя полка
- Верхняя полка
- ⚠️ ОСТОРОЖНО!
Brand : SAMSUNG
Model : DW60BB8925AP
Category : Dishwasher
