MVG 4952 N - Cooker Meireles - Free user manual and instructions
Find the device manual for free MVG 4952 N Meireles in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Free-standing gas cooker |
| Brand | Meireles |
| Model | MVG 4952 N |
| Dimensions (H x W x D) | 85 cm x 50 cm x 60 cm |
| Weight | 45 kg |
| Power Supply | Gas (natural gas or LPG) and 230V AC for ignition/oven light |
| Number of Gas Burners | 4 |
| Oven Type | Gas oven with conventional heating |
| Oven Capacity | 58 L |
| Ignition | Automatic ignition via spark plugs |
| Safety Features | Flame failure safety device for all burners |
| Energy Class | Class A |
| Adjustable Feet | Yes, to level the cooker |
| Cleaning | Removable oven door and burners for easy cleaning |
| Spare Parts Availability | Authorized service centers provide genuine parts |
| Documentation | User manual in multiple languages available for download |
Frequently Asked Questions - MVG 4952 N Meireles

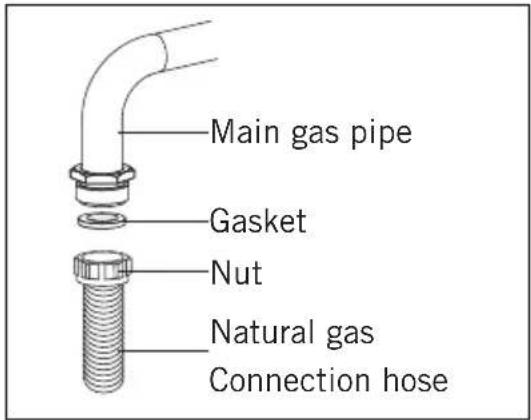

How do I connect the gas supply to the MVG 4952 N?
The gas connection must be performed by a qualified professional according to local regulations. The cooker is supplied with a flexible hose and the appropriate fittings for natural gas or LPG. Refer to the installation instructions in the manual.
Can I convert the cooker from natural gas to LPG?

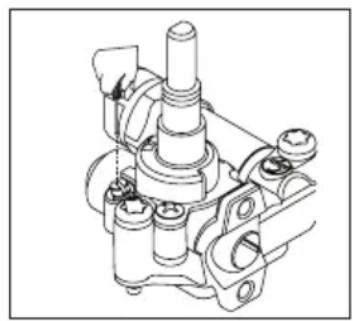

Yes, the MVG 4952 N can be converted. You will need a conversion kit (usually supplied with the cooker) or available from the manufacturer. The injectors must be changed. Contact an authorized technician.
How does the flame failure safety device work?
Each burner is equipped with a thermocouple that detects the flame. If the flame goes out, the gas supply is automatically shut off to prevent leaks.
What should I do if the oven does not ignite?
Check that the gas supply is open, the ignition spark works (listen for clicking), and the oven door is slightly open during ignition. If it still fails, the thermocouple or spark plug may need cleaning or replacement.
How do I clean the oven interior?
Remove the oven racks and any burners. Wipe interior with a damp cloth and mild detergent. For stubborn stains, use a non-abrasive oven cleaner. Do not use steam cleaners.
What type of gas does the cooker use?
It is designed for natural gas (G20/G25) but can be converted for LPG (G30/G31) as mentioned. Check the rating plate on the cooker for specifics.
Are the burner caps dishwasher safe?
No, burner caps should be hand washed with warm soapy water and dried thoroughly before replacing. Dishwasher use may damage their finish.
How do I adjust the oven temperature?
Turn the oven thermostat knob to the desired temperature. The oven will maintain the set temperature via the gas thermostat. A pilot light may indicate operation.
What are the dimensions of the MVG 4952 N?
The approximate dimensions are 85 cm high, 50 cm wide, and 60 cm deep. Ensure adequate clearance for operation and ventilation.
Where can I find the user manual?
The user manual is available for free download on notice-facile.com in PDF format. You can select your language and request a translated version via email.
