HRS10321B - Safe Avanti - Free user manual and instructions

Product Type	Electronic Safe
Brand	Avanti
Model	HRS10321B
Dimensions (Exterior)	Approx. 12.6 x 8.3 x 8.3 in (32 x 21 x 21 cm)
Weight	Approx. 6.6 lbs (3 kg)
Power Source	4 x AA batteries (for electronic keypad)
Lock Type	Electronic keypad with backup key lock
Number of Keys	2 emergency keys included
Opening Method	Keypad code or emergency key
Capacity	Interior space approx. 0.5 cubic ft
Construction Material	Solid steel body
Color	Black
Locking Bolts	2 live locking bolts
Mounting	Pre-drilled holes for floor or wall mounting (hardware included)
Maintenance	Wipe clean with dry cloth; replace batteries if low; keep emergency keys in secure place.
Security Features	Pry-resistant concealed hinges, anti-drill plate on lock area
General Information	For home or office use; stores valuables, documents, cash, etc.

Frequently Asked Questions - HRS10321B Avanti

How do I set the electronic code on my Avanti HRS10321B safe?

Refer to the manual. Typically, with the door open, press the reset button inside, enter a new 3-8 digit code, then press the '#' or lock button to confirm.

What happens if I forget the code or the batteries die?

Use the emergency override key (provided with the safe) to open the safe. Replace the batteries immediately after.

Can I mount the safe to the floor or wall?

Yes. The safe has pre-drilled holes; use the included expansion bolts for concrete or wood screws for wooden surfaces.

What type of batteries does the keypad use?

It uses 4 AA batteries (not included). Replace them when the low battery warning appears.

How do I open the safe if the electronic lock malfunctions?

Insert the emergency key into the keyhole (usually hidden under a cover) and turn to unlock. Always keep the keys in a separate secure location.

Is this safe fireproof or waterproof?

No. The Avanti HRS10321B is designed for theft deterrence, not fire or water resistance. It is not rated for fire or waterproof protection.

How many locking bolts does the safe have?

It has 2 live locking bolts for basic security.

What is the weight capacity of the safe?

The safe itself weighs about 6.6 lbs. It can hold a few small valuables, documents, or cash. There is no specific weight limit, but avoid overloading the interior.

Are the hinges pry-resistant?

Yes. The hinges are concealed to prevent prying or removal.

Where is the model number located?

The model number is printed on the back or bottom of the safe, and also on the packaging.

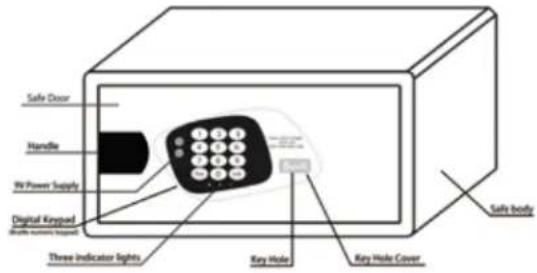

USER MANUAL HRS10321B Avanti

Your Avanti Room Security Safe is supplied with the following:

1 – Security Safe Unit2 – Emergency Access Keys1 – Installation / Usage Guide

1 – Felt LinerInstallation Screw Kit

4 – Rubber Feet

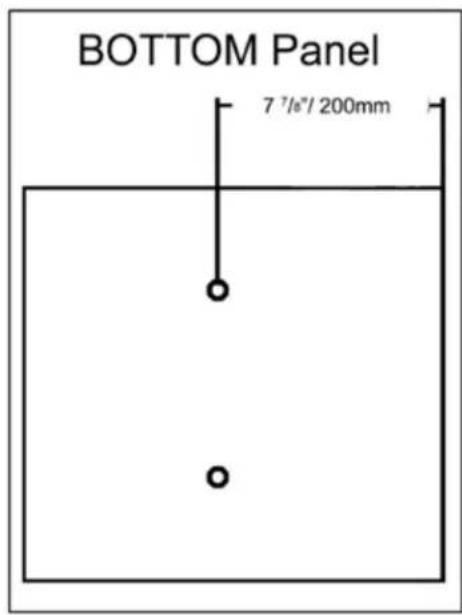

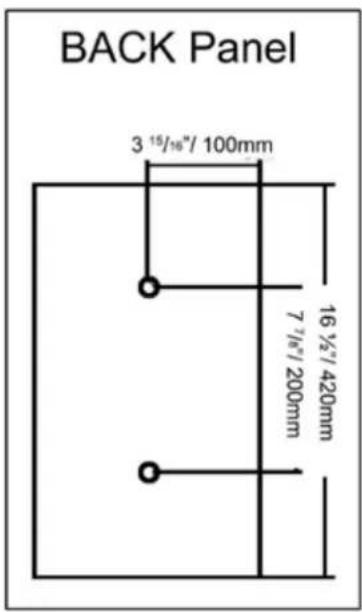

INSTALLING YOUR SECURITY SAFE

When installing your safe, be sure the location is sturdy enough to support the unit and is both secure and easy to access.

Safe can be installed onto either a concrete or wooden surface.

When installing use a 25/64" (10mm) drill bit and screws.

To prevent removal of your security safe, it is recommended to use Allen type screws (not included) to affix the unit to the installation location.

INITIAL SETUP AND CONFIGURATION.

After you have installed the unit in its final location, proceed to set up digital access controls.

1) Using the emergency Access Key, open the safe.
2) Open the battery compartment cover.
3) Following the image shown in the battery compartment install 4 AA sized batteries.
4) Close the battery compartment cover.
5) Using the keypad, enter the initial setup password "1234" or the administrator password "888888".

NOTE:

Battery Life / Level: Always replace all of the batteries at the same time. If at any time the battery level is too low to operate the security safe, use the emergency access key.

Safety / Security Feature: If the passcode is entered incorrectly more than 3 times the keypad will go into lock mode. After approximately (15) fifteen minutes the keypad will return to normal working function.

Interior Light: When the safe is unlocked using the keypad, the interior light will turn on and will turn off automatically after approximately 30 seconds.

Automatic Door Opening: When the safe is unlocked using the keypad the door will automatically open slightly outward to allow easy / quick access to contents stored in the safe.

GUEST / USER CODE SETUP

To reset the access code read and follow the steps below.

1) With the door CLOSED, enter a new 3-6 digit code and press the "LOCK" key to confirm the new pass code.
2) You will hear and see the security lock engage.
3) Enter the new pass code to open the security safe.
4) Close the door and enter the new code set up in step # 1 and press the "LOCK" key.
5) If the Guest / User enters the wrong pass code three (3) times in a row the keypad will go into security-lock mode and will remain locked for approximately (15) fifteen minutes. After the (15) fifteen minutes has elapsed the keypad will return to normal operation.

RESETTING THE ADMINISTRATOR PASSWORD

To reset the access code read and follow the steps below.

1) With the door open, press the "Clear" key twice, the Yellow Light flashes, enter old master code (default "8-8-8-8-8-8-8")
2) one acoustic signals (“beep”) will come (It’s mean old master code is right, if old master code is wrong, three acoustic signals (“beep” “beep” “beep”) will come), enter a new master code of 6 digits, one acoustic signals (“beep”) will come.
3) Re-inter the new master code, the Green Light flashes and one long acoustic signals ("beep\~"), indicates new master code changed successfully.

Avanti Products

Miami, FL 33172

In the event of service issues, please call the

Customer Hotline at 1-800 - 220 - 5570

Additional Instructions:

Manual Operation (Open using the key).

• User will need to remove the key hole cover by peeling away the key hole cover label.
• Insert the emergency access key into the lock and turn clockwise to open the safe.
• While the door is open, change the batteries on the control panel

Battery Override (9 Volt Square battery required)

In the even the batteries are low or need to be changed, you can open the unit either manually by using the access key or via external battery supply.

Using a 9 Volt square battery, touch the batter terminals to the two round metal pads on the front of the control to give temporary power to the controls.

While the battery is in place, enter the preset passcode and the door will open giving you access to the safe and the battery compartment.

Avanti Products

Miami, FL 33172

In the event of service issues, please call the

Customer Hotline at 1-800 - 220 - 5570

YOUR AVANTI PRODUCTSWARRANTY	Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.
WHAT IS COVERED - LIMITED ONE-YEAR WARRANTYAvanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti Products of 4.4 cubic feet capacity or less must be brought / sent to an authorized appliance service center for repair.
THIS WARRANTY DOES NOT APPLY OUTSIDE THE CONTINENTAL UNITED STATES OF AMERICA.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED:The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following:·A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.Damage, deterioration or malfunction resulting from:1) Accident, negligence, misuse, abuse, improper installation, failure to perform normal maintenance or operation to follow instructions labeled on or provided in the safe.2) Any unit which has been altered or on which the serial number has been defaced, modified or removed.3) Normal wear, battery replacement, any periodic maintenance or where combination lock has been changed without factory authorization.
·Installation or removal charges.Shipping and handling costs associated with the replacement of the unit.State sales tax does not apply to warranty service work and will not be honored.Repairs performed by unauthorized servicers.Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or any other acts of God.	·Failure of the product if it is used for other than it intended purpose.Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas.Damages based on inconvenience, loss of use, damage or loss of contents, or any other damages whether incidental, consequential or otherwise.
In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.
OUT OF WARRANTY PRODUCTAvanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired.
HOW TO OBTAIN WARRANTY SERVICE1) If your Avanti product requires service, contact our Service department 1-800-220-5570 or contact your local authorized Avanti service center.Upon contact with the Service department or an authorized service center you will be advised on the necessary procedure to follow.All warranty service MUST have prior authorization, accompanied by proof of purchase as evidence of warranty coverage. A warranty authorization MUST be obtained from Avanti Products before any service is performed.Only authorized service representatives may perform warranty service. Any service performed prior to issuance of a warranty authorization number will be subject to denial.WARRANTY - Room Safes
HRS10321B 07022019		PRINTED IN CHINA
