Product Type	Hand Mixer
Model	HM0293
Rated Voltage	220-240V~
Rated Frequency	50-60Hz
Rated Power	400W
Speed Settings	6 speeds (including Turbo)
Accessories Included	Beater, Unit Hook
Safety Features	Motor thermal protector, auto shut-off
Cleaning Instructions	Do not immerse mixer, cord, or plug; wipe with damp cloth
Material	Plastic housing, metal beaters
Intended Use	Household only
Environmental Disposal	Recycle at designated collection point

Frequently Asked Questions - HM0293 MIDEA

How do I attach the beaters?

Make sure the mixer is unplugged and turned to OFF. Insert the desired attachment into the proper opening on the bottom of the mixer until it clicks into place.

What speeds should I use for different tasks?

Speed 1 is for folding or mixing dry ingredients. Speed 2 for creaming butter and sugar. Speed 3 for cake mixes. Speed 4 for frosting and mashed potatoes. Speed 5 for beating egg whites. Turbo is for heavy loads.

Can I use the mixer for heavy dough?

For heavy dough like bread, use Turbo speed but do not exceed 4 minutes of continuous operation to avoid overheating.

How do I clean the hand mixer?

Unplug the mixer before cleaning. Wipe the mixer body with a damp cloth. Do not immerse the mixer, cord, or plug in water. Attachments can be washed in warm soapy water.

What should I do if the mixer stops working?

First, check if the power cord is properly connected and the switch is ON. If it still doesn't work, unplug and let it cool down for 15 minutes. If the problem persists, contact an authorized service center.

Is the mixer dishwasher safe?

No, the mixer body, cord, and plug should never be immersed in water. Attachments are not dishwasher safe; wash them by hand.

Can children use this appliance?

This appliance shall not be used by children. Keep it and its cord out of reach of children. Children should not play with the appliance.

What does the Turbo function do?

The Turbo function provides maximum speed for heavy loads, such as thick dough. Press and hold the Turbo button while mixing.

How long can I continuously operate the mixer?

For standard recipes, operation time should not exceed 15 minutes. For heavy dough, limit to 4 minutes to prevent motor overheating.

How do I store the hand mixer?

Ensure the mixer is clean and dry. Store it in a dry place with the attachments securely attached or stored separately. Keep the cord loosely wrapped.

USER MANUAL HM0293 MIDEA

Line drawing of a hand mixer with whisk (no text or symbols)

Line drawing of a car interior showing electrical connections and a device with a plug (no text or symbols)

Line drawing of a mechanical device with a coiled spring and handle (no text or symbols)

Line drawing of a plug inserted into an electrical outlet with three outlets (no text or symbols)

Illustration of a mixing bowl with a hand mixer, no text or symbols present

Line drawing of a car interior with a door, seat, and directional arrow (no text or symbols)

Line drawing of a door handle with adjustment knob and directional arrow (no text or symbols)

Line drawing of a kitchen sink with faucet and hanging weights, no text or symbols present

Line drawing of a hand holding a device with a circular button, no text or symbols present

Attenzione:

Line drawing of a hand mixer with handle and whisk (no text or symbols)

USER MANUAL

HM0293

IMPORTANT NOTE: Please read the manual carefully before operating your product. Retain it for future reference.

CONTENT

IMPORTANT SAFETY INSTRUCTIONS.... 1

PART NAME 3

TECHNICAL DATA OF THE PRODUCT 3

INSTRUCTIONS FOR USE 4

RECIPIES 5

ABNORMALITY ANALYSIS AND HANDLING 5

CLEANING AND MAINTENANCE 6

CIRCUIT PRINCIPLE DIAGRAM.... 6

To avoid the risk of serious injury when using your hand mixer, basic safety precautions should be followed, including the following.

READ ALL INSTRUCTIONS, SAFEGUARDS, AND WARNINGS BEFORE OPERATING HAND MIXER

1. There is a potential injury from misuse. Please handle it with care.
2. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
3. This appliance shall not be used by children. Keep the appliance and its cord out of children reach.
4. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
5. Children shall not play with the appliance.
6. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
7. This appliance is intended to be used in household and similar applications such as:

– Staff kitchen areas in shops, offices and other working environments;
– Farm houses;
– By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTION.

THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY.

Caution:

Ensure that the hand mixer is switched off before removing

Caution:

The failure to follow any of the important safeguards and the important instructions for safe use is a misuse of your hand mixer that can void your warranty and create the risk of serious injury.

Safety system

This appliance is equipped with motor themal protector. If the appliance overheats, it switches off automatically. Unplug the appliance and let it cool down until room temperature then put the mains plug back into the power outlet and switch on the appliance again. Please contact your dealer or an authorized service center if it is activated too often.

Model series

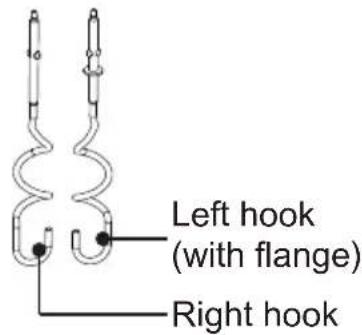

Part name	Unit Hook	Beater
PIC
HM0293	√	√

PART NAME

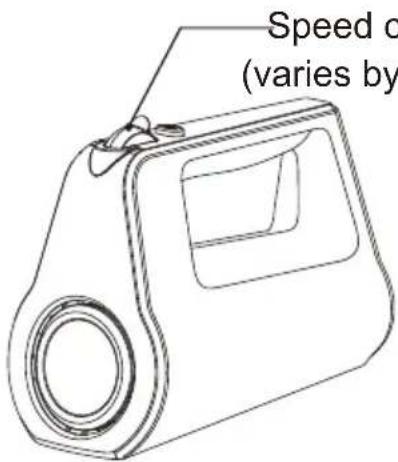

—Speed control (varies by model)

Optional

General mixing guide

The following mixing guide is a suggestion for selecting mixing speeds for 6-speed mixers. Begin on speed 1 and increase to desired speed depending on the recipe consistency

Speed Function
O	OFF and / or Eject
1	LOW speed for folding or mixing in dry ingredients, muffins, or quick breads
2	To cream butter and sugar; most cookie dough
3	MEDIUM speed for most packaged cake mixes
4	Frosting and mashed potatoes
5	Beating egg whites
Turbo	Max speed for heavy loading

TECHNICAL DATA OF THE PRODUCT

Product name Model No. Rated voltage Rated frequency Rated power
HAND MIXER	HM0293 220-240V~ 50-60Hz 400W

INSTRUCTIONS FOR USE

Hand mixer

Line drawing of a car interior with a gas outlet, hose, and dashboard (no text or symbols)

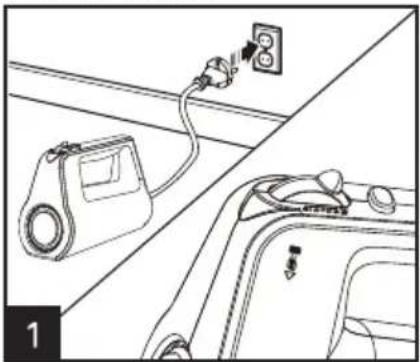

Make sure mixer is unplugged and turned to O (OFF).

Line drawing of a mechanical device with a coiled spring and handle (no text or symbols)

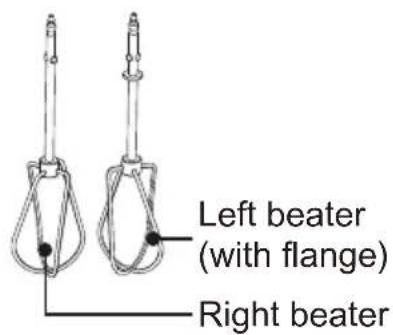

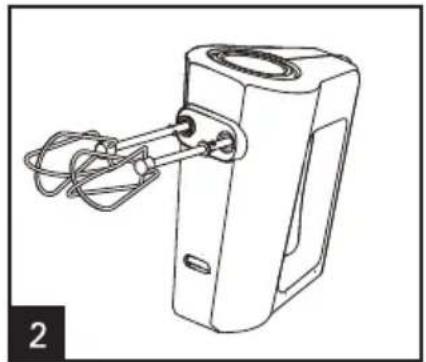

Following diagrams on bottom of mixer, insert desired attachment(s) into proper openings on bottom of mixer. . Push and click into place.

Line drawing of a plug inserted into an electrical outlet with three outlets (no text or symbols)

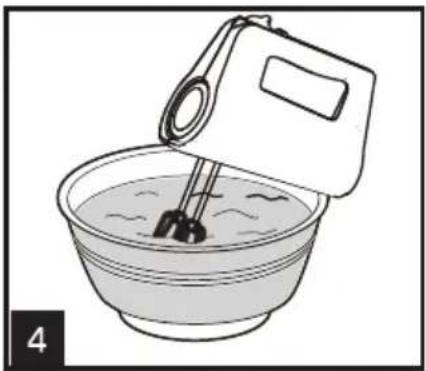

Illustration of a mixing bowl with a hand mixer, no text or symbols present

Line drawing of a car interior with a handbag and directional arrow (no text or symbols)

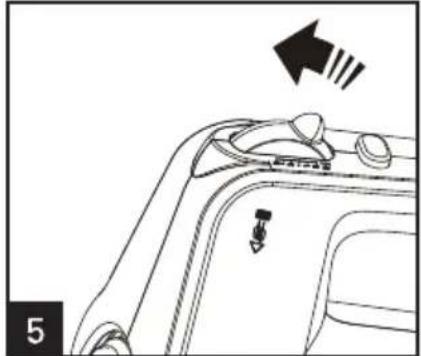

Move speed control to desired speed. Start at 1 and increase speed as needed.

Line drawing of a car door handle with adjustment knob and directional arrow (no text or symbols)

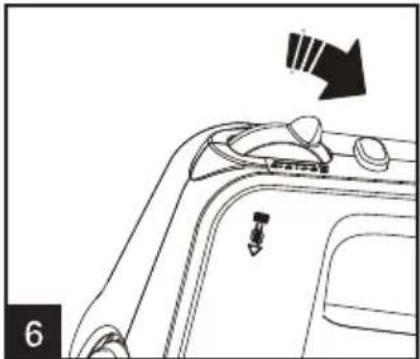

When finished, turn speed control to O (OFF) and unplug mixer

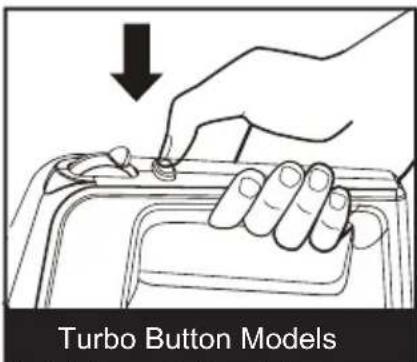

Push turbo control to achieve max speed.

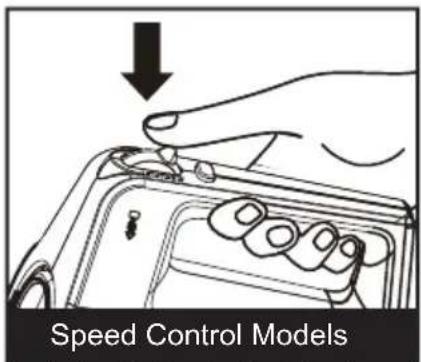

Push eject button to eject attachments.

Note

- Do not use quick burst for more than standard time or motor may overheat.

RECIPES

• Use a large mixing bowl so that the ingredients spread out for easier mixing.
• Butter and margarine should be at room temperature.
• Add 200g flour +200sugar+200butter+4pcs egg at a time and at max speed setting, mixing thoroughly after each addition.(operation time: Max 15mins).
• Add 980g flour+705.6g water at a time and at max speed setting. (operation time: Max 4mins).
• Chips and nuts should be stirred by hand.

ABNORMALITY ANALYSIS AND HANDLING

Abnormality Handling

1. In case of abnormalities such as abnormal noises, smell, smoke, etc., you should immediately cut off power and stop use.
2. If the product cannot work, please check if the power supply is connected, if the switch is put to the ON position and if fittings are installed in place.
3. If the product still cannot work after checks mentioned above, please consult the designated repair centre for maintenance.

Fault Analysis and Elimination

Symptom	Analysis of Possible Causes	Countermeasure
Product does not work	Did not press the inching switch	Keep the point switch in the pressed state
The ingredients stick on the inner wall of the bowl	Excessive amount of food processing or formula incorrect	Spin the bowl by hand until the mixing effect you want
The abnormal odor products, hot, the phenomenon such as smoking	Excessive amount of food processing	Reduce the quantity of ingredients
	Product continuous working time is too long	Shorten the product continuous working time

CLEANING AND MAINTENANCE

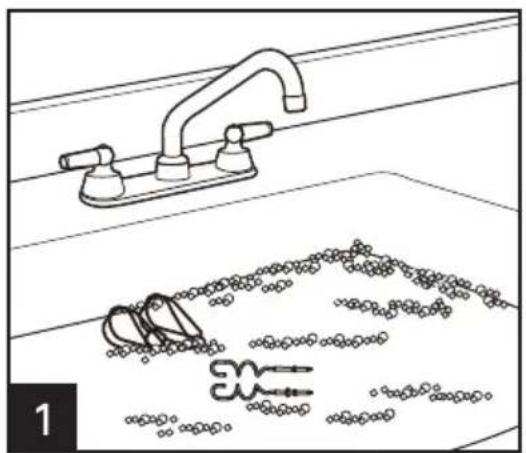

Line drawing of a kitchen sink with faucet and hanging objects, no text or symbols present

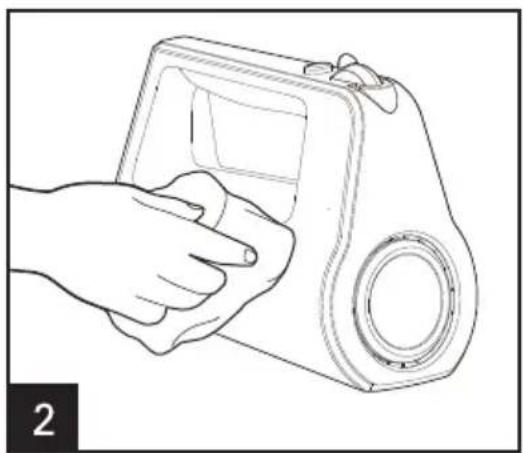

Line drawing of a hand holding a device with a circular button, no text or symbols present

Warning:

Disconnect power before cleaning. Do not immerse mixer, cord, or plug in any liquid.

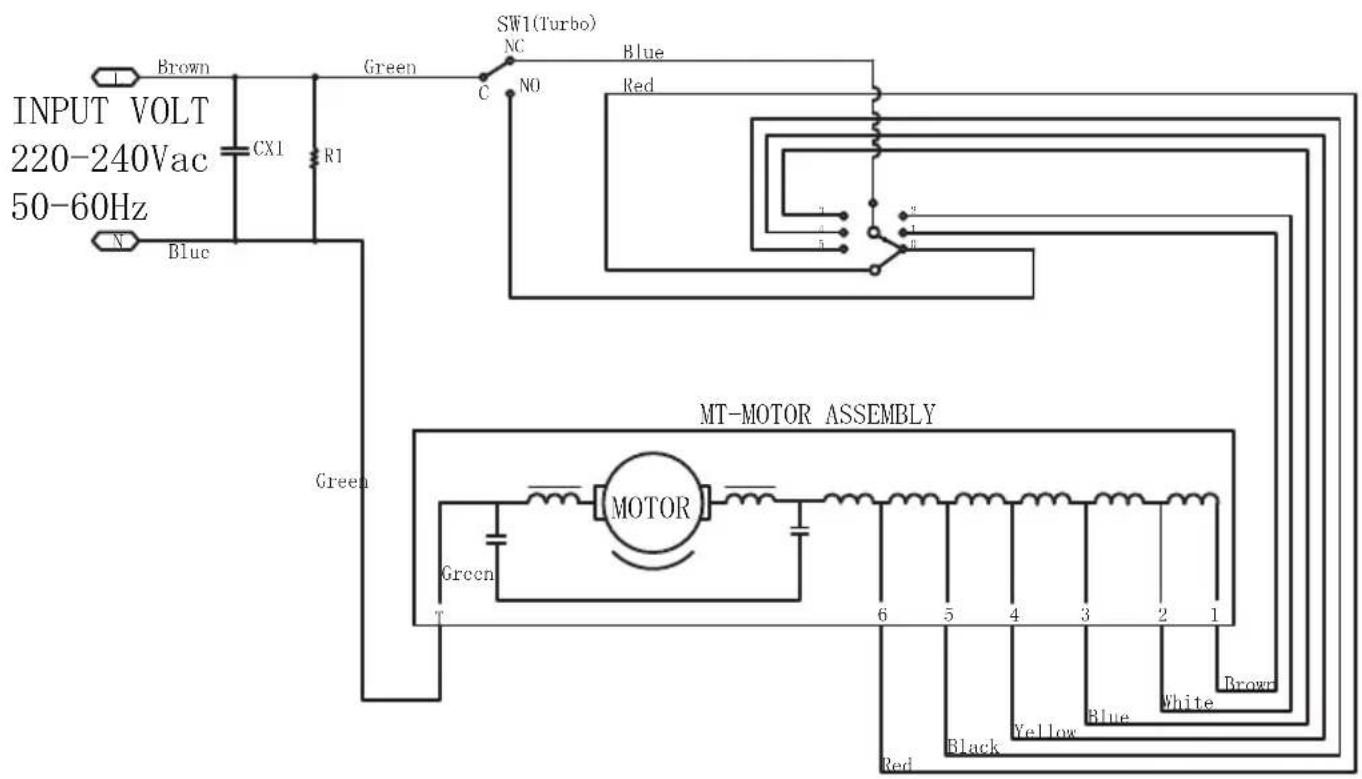

CIRCUIT PRINCIPLE DIAGRAM

Environmental protection

The appliance must not be disposed of with regular household waste. At the end of its service life, the appliance must be properly delivered to a collection point for the recycling of electrical and electronic equipment. By Collection and recycling of old appliances, you are making an important contribution to the conservation of our natural resources and provide for environmentally sound and healthy disposal.
