TDM-805TQ - Tumble drier VOX - Free user manual and instructions
Find the device manual for free TDM-805TQ VOX in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Tumble dryer |
| Brand | VOX |
| Model | TDM-805TQ |
| Drying capacity | 8 kg |
| Energy efficiency class | B |
| Dimensions (H x W x D) | 85 x 60 x 60 cm |
| Net weight | 40 kg |
| Power supply | 230 V ~ 50 Hz |
| Power consumption (annual) | 504 kWh |
| Drum volume | 118 L |

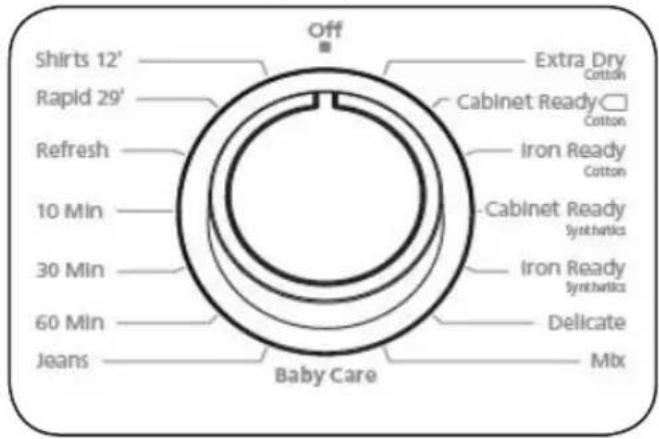

| Drying programs | Cotton, Synthetics, Delicates, Wool, Mix, Rapid, Timed, Anti-crease |
| Reverse action | Yes |
| Anti-crease function | Yes |
| Child lock | Yes |
| Lint filter indicator | Yes |
| Water tank full indicator | Yes |
| Condenser cleaning indicator | Yes |
| Noise level | 65 dB(A) |
| Installation type | Freestanding |
| Door opening | Reversible |

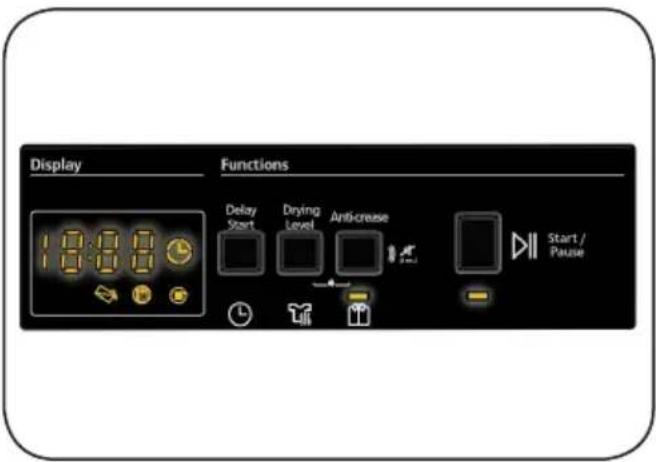

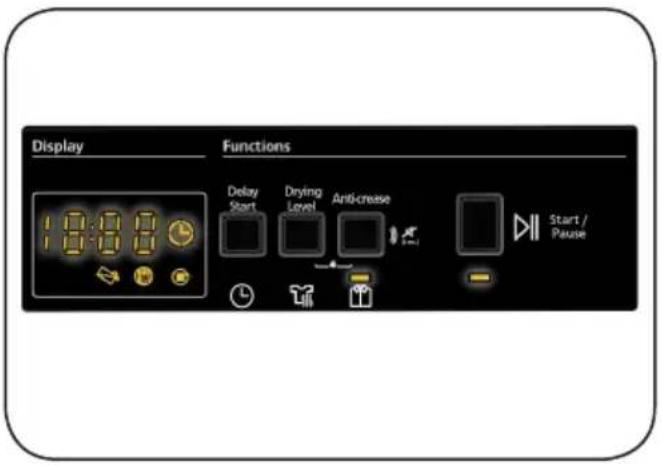

| Control type | Electronic dial + push buttons |
| Display | LED segment |
| Spare parts availability | 7 years |
Frequently Asked Questions - TDM-805TQ VOX

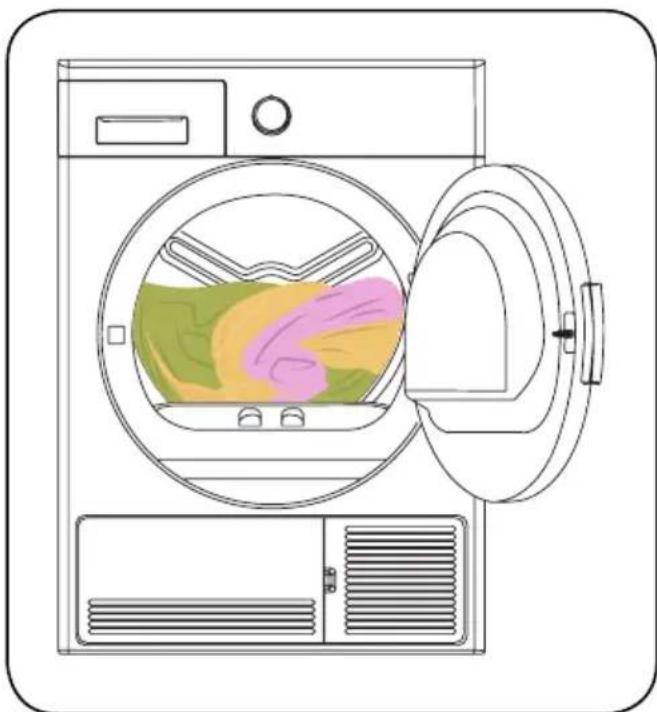

What is the maximum drying capacity of the VOX TDM-805TQ?
The maximum drying capacity is 8 kg for cotton programs. For synthetics, it's reduced to 4 kg.

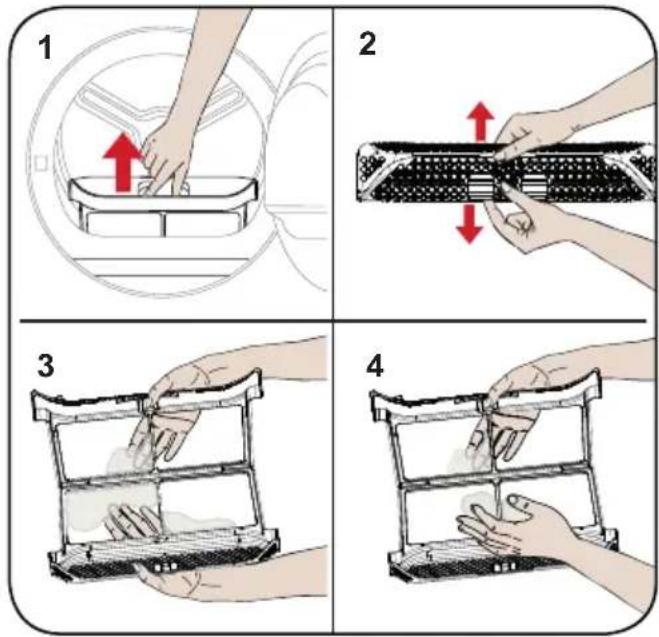

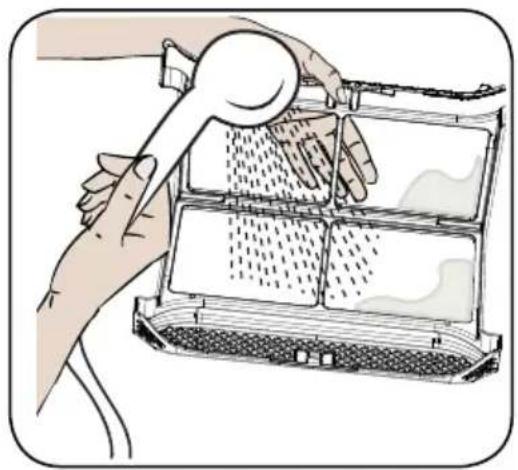

How do I clean the lint filter?
Open the door, pull out the lint filter located in the door opening. Remove lint by hand or with a soft brush. Rinse under running water if necessary. Dry thoroughly before reinserting.
What should I do if the dryer does not start?
Check if the door is fully closed, the power cord is plugged in, and the program is set. Also ensure the child lock is not activated. If it still doesn't start, contact service.

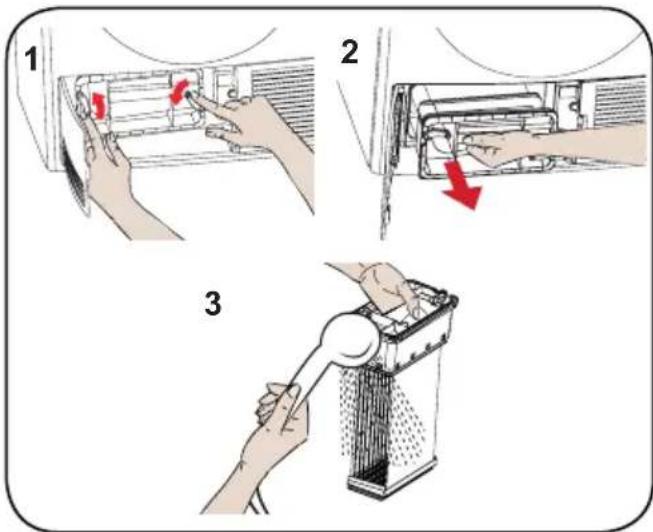

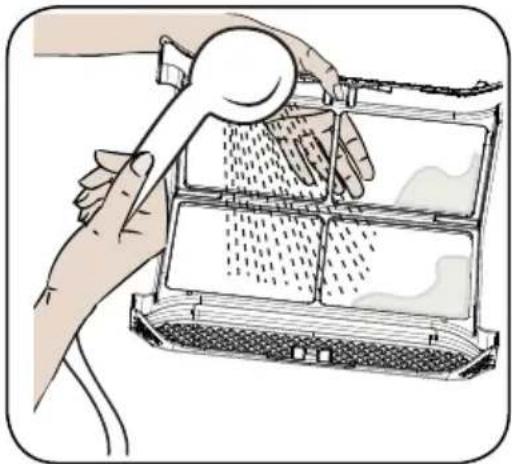

How often should I clean the condenser?
Clean the condenser after every 50 drying cycles or when the indicator light turns on. Remove the cover, take out the condenser, rinse with water, and dry before replacing.
Can I install the dryer on top of a washing machine?
Yes, the VOX TDM-805TQ can be stacked on a compatible washing machine using a stacking kit. Ensure the washing machine is stable and has a solid top.
What does the 'Anti-crease' function do?
The anti-crease function periodically rotates the drum without heat after the drying cycle ends, preventing wrinkles from setting in. It lasts up to 120 minutes.
How do I reset the dryer?
Turn the program dial to the 'Off' position. Wait 10 seconds, then select a new program and press the Start button.
Why is the drying time longer than expected?
Possible reasons: overloaded drum, wet clothes not spun sufficiently, lint filter or condenser clogged, room temperature too low. Check these factors.

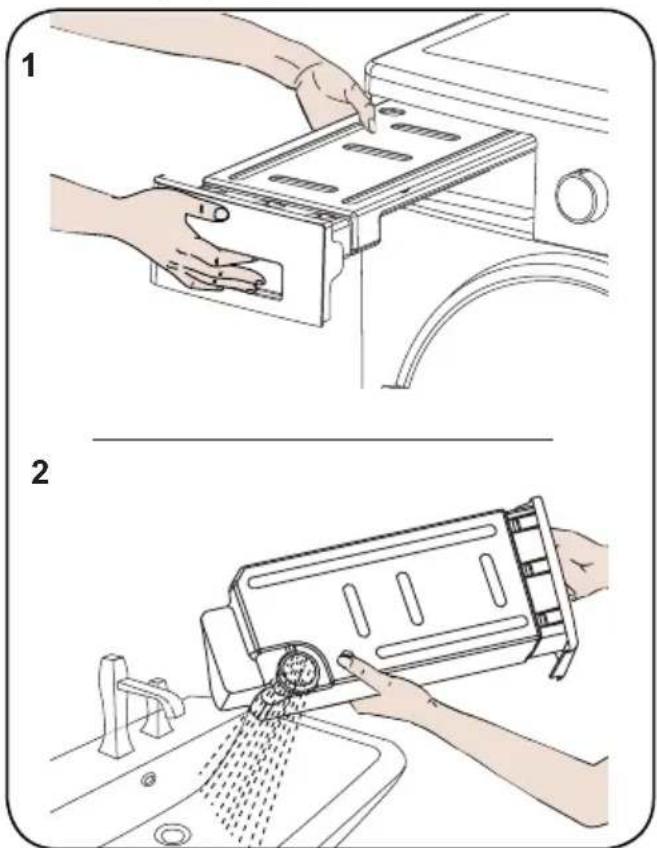

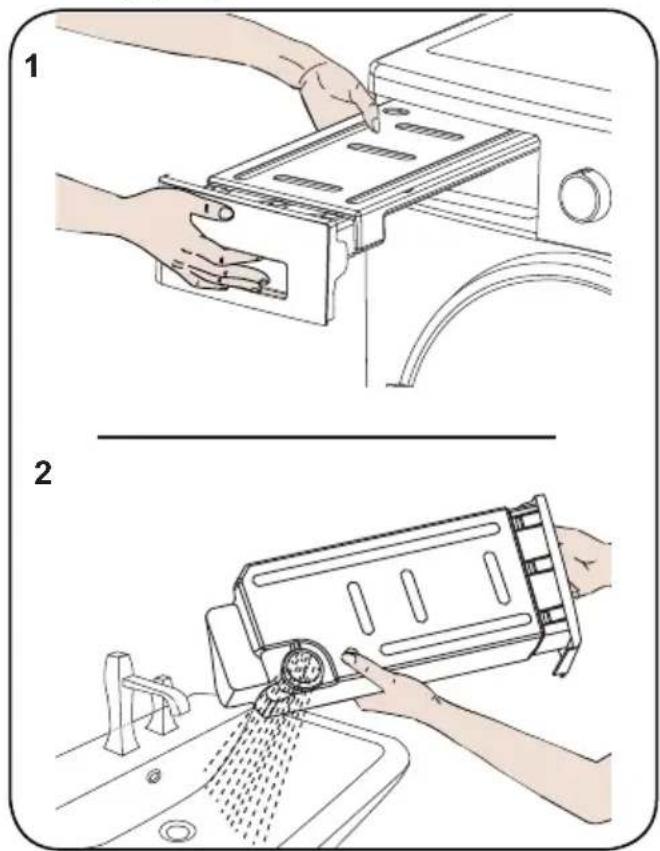

What is the meaning of the 'Water tank full' indicator?
It indicates that the water tank needs to be emptied. Pull out the tank, pour the water away, and reinsert it. If you have a drain hose, you can connect it directly to a drain.
Is the dryer vented or condenser?
The VOX TDM-805TQ is a condenser dryer. It collects moisture in a water tank, no external venting required.
