Type	Fridge-Freezer Combination
Brand	Siemens
Model	KD86NAI30M
Climate Class	SN (10°C–32°C), N (16°C–32°C), ST (16°C–38°C), T (16°C–43°C)
Refrigerant	R600a (flammable, environmentally friendly)
NoFrost System	Yes (automatic defrost, no manual defrost needed)
Super Freezing	Yes (activates 4–6 hours before freezing; max capacity requires 24h pre-cooling)
Super Cooling	Yes (cools fridge compartment to coldest for 6 hours)
Eco Mode	Yes (switches to energy-saving: fridge +8°C, freezer -16°C)
Holiday Mode	Yes (fridge set to +14°C, freezer unchanged)
Fresh Mode	Yes (fridge set to +2°C for longer food preservation)
Door Alarm	Yes (continuous sound if door left open too long)
Temperature Alarm	Yes (intermittent sound if interior too warm)
Lighting	LED (maintenance-free, not user-replaceable)
Interior Fittings	Adjustable glass shelves, vegetable container with humidity control, butter/cheese compartment, bottle shelf, vario shelf, ice maker (some models)
Control Panel	Electronic with button lock function
Electrical Connection	220–240 V, 50 Hz, 10–16 A fuse, protective earthing
Self-Test Program	Yes (diagnoses faults via button sequence)

Frequently Asked Questions - KD86NAI30M SIEMENS

How do I set the temperature in the freezer compartment?

Select the freezer compartment using the °C button (Fig. 4/14). Then use the +/- buttons to adjust the temperature between -16°C and -24°C. The recommended default is -18°C.

What does the temperature alarm mean and how do I turn it off?

The temperature alarm sounds if the freezer gets too warm, risking food thawing. Press the °C button to silence the alarm. Check if the door was left open, large amounts of fresh food were added, or there is a power outage. Do not refreeze thawed food.

How does the NoFrost system work?

The NoFrost system automatically prevents ice buildup in the freezer compartment by periodically defrosting and evaporating condensation. No manual defrosting is needed.

How do I activate Super Freezing?

Select the freezer compartment with the °C button, then press the Super button. The Superfreeze indicator lights up. For max freezing capacity, activate 24 hours before adding fresh food. For smaller loads, 4–6 hours is sufficient.

Why is there condensation on the shelves and how can I reduce it?

Condensation is normal in warm, humid conditions. Wipe with a dry cloth. Minimize door openings, ensure the door is properly closed, and avoid storing warm food directly inside. Adjust humidity controller in the vegetable container if needed.

Can I replace the LED light myself?

No, the LED light is maintenance-free and not user-replaceable. If it fails, contact Customer Service or an authorized technician for repair.

What should I do if the appliance is not cooling but the displays are lit?

The appliance may be in Showroom mode. Press and hold the °C button for 15 seconds until '77' appears briefly. Then check if cooling resumes. If not, run the Self-Test program (unplug for 5 min, then hold °C button for 3 seconds after powering on).

How do I clean the appliance?

Unplug the appliance. Remove food and store in a cool place. Clean with a soft cloth, lukewarm water, and mild pH-neutral detergent. Do not use abrasive cleaners, steam cleaners, or dishwasher for shelves. Wipe door seal with clean water and dry thoroughly. Reconnect after cleaning.

How do I switch off the appliance for a long absence?

Press and hold the + button for 10 seconds to shut off the refrigeration unit. Then unplug or switch off the fuse. Empty and clean the appliance, and leave doors slightly open to prevent odors and damage.

What is the recommended storage temperature for the refrigerator compartment?

Perishable food should be stored at or below +4°C. To check, use the 'OK' sticker inside; if it doesn't show 'OK', reduce the temperature using the +/- buttons after selecting the refrigerator section.

USER MANUAL KD86NAI30M SIEMENS

Instruction manual

Register your product on My Siemens and discover exclusive services and offers.

siemens-home.bsh-group.com/welcome

The future moving in.

Table of Contents

Safety and warning information ...... 3

Information concerning disposal ...... 6

Scope of delivery 7

Installation location 7

Observe ambient temperature and ventilation 7

Connecting the appliance 8

Getting to know your appliance ..... 9

Switching on the appliance 10

Setting the temperature 10

Special functions ...... 11

Alarm function 12

Usable capacity 12

Refrigerator compartment 13

Super cooling 14

Freezer compartment 15

Freezing capacity 15

Freezing and storing food 15

Freezing fresh food 15

Super freezing 16

Thawing frozen food 17

Interior fittings 17

Sticker "OK" 18

Switching off and disconnecting the appliance 18

Cleaning the appliance 18

Light (LED) 19

Tips for saving energy 20

Operating noises 20

Eliminating minor faults yourself ..... 21

Appliance self-test 23

Customer service 23

tr Contents

Safety and warning information

Before you switch ON the appliance

Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance. The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.

Technical safety

Fire hazard

The tubes of the

refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.

If damage has occurred

• Keep naked flames and/or ignition sources away from the appliance, thoroughly ventilate the room for several minutes, switch off the appliance and pull out the mains plug, inform customer service.

The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1 m³ per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

When installing the appliance, ensure that the mains cable is not trapped or damaged.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, Customer Service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.

Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.

Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.

Do not use multiple sockets, extension leads or adapters.

Fire hazard

Portable multiple outlets or power supplies may overheat, causing a fire.

Never leave portable multiple outlets or portable power supplies behind the appliance.

Important information when using the appliance

■ Never use electrical appliances inside the appliance (e.g. heaters, electric ice makers, etc.). Risk of explosion! ■ Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!

■ Do not use additional means to accelerate the defrosting process other than those recommended by the manufacturer. Risk of explosion! - Do not use pointed or sharp-edged implements to remove frost or layers of ice. You might damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite. ■ Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the appliance. Risk of explosion! ■ Do not stand on or lean heavily against the base of the appliance, drawers, doors, etc. ■ For defrosting and cleaning, pull out the mains plug or switch off the fuse. Do not pull out the mains plug by tugging on the power cord. ■ Store high-percentage alcohol tightly sealed and in an upright position. - Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous.

■ Never cover or block the ventilation openings of the appliance. ■ Avoiding placing children and vulnerable people at risk:

At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.

Check that children and vulnerable people have understood the hazards.

A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance.

Only children aged 8 years and above may use the appliance.

Supervise children while the appliance is being cleaned or maintained.

Never allow children to play with the appliance.

■ Do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst! ■ Never put frozen food straight from the freezer compartment in your mouth. Risk of low-temperature burns! - Avoid prolonged touching of frozen food, ice or the evaporator pipes, etc. Risk of low-temperature burns!

Children in the household

• Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film! ■ Do not allow children to play with the appliance! ■ If the appliance features a lock: keep the key out of the reach of children!

General regulations

The appliance is suitable

■ for refrigerating and freezing food, ■ for making ice.

This appliance is intended for use in the home and the home environment.

The refrigeration circuit has been checked for leaks.

This appliance complies with the relevant safety regulations for electrical appliances and is fitted with noise suppression.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

Information concerning disposal

Disposal of packaging

The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

Disposal of your old appliance

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Warning

Redundant appliances

1. Pull out the mains plug.
2. Cut off the power cord and discard with the mains plug.
3. Do not take out the trays and receptacles: children are therefore prevented from climbing in!
4. Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation!

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Scope of delivery

After unpacking all parts, check for any damage in transit.

If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.

The delivery consists of the following parts:

■ Free-standing appliance ■ Interior fittings (depending on model) ■ Bag containing installation materials - Operating instructions ■ Installation manual ■ Customer service booklet ■ Warranty enclosure ■ Information on the energy consumption and noises

Installation location

A dry, well ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:

■ 3 cm to electric or gas cookers. ■ 30 cm to an oil or coal-fired cooker.

The floor of the installation location must not give way; if required, reinforce floor. If the floor is uneven, compensate with supports.

Distance from wall

When installing the appliance, ensure that the door can be opened by 90°.

Observe ambient temperature and ventilation

Ambient temperature

The appliance is designed for a specific climate class. Depending on the climate class, the appliance can be operated at the following temperatures.

The climate class can be found on the rating plate. Fig. 14

Climate class Permitted ambient temperature

SN +10 °C to 32 °C

N +16 °C to 32 °C

ST +16 °C to 38 °C

T +16 °C to 43 °C

Note

The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5 °C.

Ventilation

The air on the rear panel and on the side panels of the appliance heats up. Conduction of the heated air must not be obstructed. Otherwise, the refrigerating unit must work harder. This increases power consumption. Therefore: Never cover or block the ventilation openings!

Connecting the appliance

After installing the appliance, wait at least 1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system.

Before switching on the appliance for the first time, clean the interior of the appliance (see chapter “Cleaning the appliance”).

Electrical connection

The socket must be near the appliance and also freely accessible following installation of the appliance.

Warning

Risk of electric shock!

If the length of the mains cable is inadequate, never use multiple sockets or extension leads. Instead, please contact Customer Service for alternatives.

The appliance complies with protection class I. Connect the appliance to 220–240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be protected by a 10 A to 16 A fuse.

For appliances operated in non-European countries, check whether the indicated voltage and current type match the values of your electricity supply. This information can be found on the rating plate, Fig. 14.

Warning

Never connect the appliance to electronic energy saver plugs.

Our appliances can be used with mains and sine-controlled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.

Getting to know your appliance

Please fold out the illustrated last page. These operating instructions refer to several models.

The features of the models may vary. The diagrams may differ.

Fig. 1

* Not all models.

A Freezer compartment

B Refrigerator compartment

1–15 Controls

16* Butter and cheese compartment

17 Shelf for large bottles

18* Ice maker

19 Light (LED)

20* Breakfast set

21* Bottle shelf

22* Vario shelf

23 Cold storage compartment

24 Vegetable container with humidity control

Controls

Fig. 4

1 Display superfreeze

This lights up if super freezing is in operation.

2 Temperature display freezer compartment

The numbers correspond to the set freezer compartment temperatures in °C.

3 Display supercool

This lights up if super cooling is in operation.

4 Temperature display refrigerator compartment

The numbers correspond to the set refrigerator compartment temperatures in °C.

5 Display vacation

This lights up when the vacation mode is switched on.

6 Display fresh

This lights up when the freshness mode is switched on.

7 Eco mode indicator

This lights up when the eco mode is switched on.

8 Button lock function display

Indicates whether the button lock is switched on or off.

The control panel is locked.

The control panel is unlocked.

9 9 button

Switches the button lock function on. If this function is switched on, no settings are possible via the controls.

10 Button mode

Selecting the special functions.

11 Setting buttons +/-

The buttons are used to set the temperatures of the refrigerator and freezer compartment.

en

12 Status indicator

Lights up when the appliance is switched on.

13 Super button

Used to switch on the functions supercool (fridge compartment) and superfreeze (freezer compartment).

14 °C button to select a section

Used to select a section. This is necessary to change its temperature or to switch on certain special functions.

15 Display - ALARM -

This lights up if an alarm is active. This happens if the appliance gets too hot inside.

Switching on the appliance

1. First insert the plug into the connection on the back of the appliance. Check that the plug has been inserted all the way.
2. Then insert the other end of the cable into the socket.

The appliance is now switched on and a warning signal sounds.

Press the °C button to switch off the audible warning signal.

The - ALARM - display goes out when the appliance has reached the set temperature.

The preset temperatures are reached after several hours. Do not put any food in the appliance beforehand.

The factory has recommended the following temperatures:

■ Freezer compartment: -18 °C ■ Refrigerator compartment: +4 °C

Operating tips

■ After the appliance has been switched on, it may take several hours until the set temperatures have been reached. ■ The fully automatic NoFrost system ensures that the freezer section remains free of ice. Defrosting is no longer required. If the door cannot be immediately re-opened after it has been closed, wait until the resulting low pressure has equalised. ■ The front and side panels of the housing are partly heated slightly. This prevents condensation from forming.

Setting the temperature

Fig. 4

Refrigerator section

The temperature can be set from +2°C to +8°C.

1. Select the refrigerator section using the °C button.
2. Keep pressing the +/- buttons until the required temperature is indicated.

Perishable food should not be stored above +4 °C.

Freezer compartment

The temperature can be set from -16°C to -24°C.

1. Select the freezer compartment using the °C button.
2. Keep pressing the +/- buttons until the required temperature is indicated.

Special functions

Fig. 4

Fresh mode

Fresh mode gives food an even longer shelf life.

Switching on:

Press mode button repeatedly until the fresh display is underlined.

The appliance sets the following temperatures automatically:

■ Refrigerator section: +2 °C ■ Freezer section: remains unchanged

Switching off:

Press mode button repeatedly until no mode is underlined.

Eco mode

Eco mode switches the appliance to energy-saving operation.

Switching on:

Press mode button repeatedly until the 7 display is underlined.

The appliance sets the following temperatures automatically:

■ Refrigerator section: +8 °C ■ Freezer section: -16 °C

Switching off:

Press mode button repeatedly until no mode is underlined.

Holiday mode

If leaving the appliance for a long period of time, you can switch the appliance over to the energy-saving holiday mode.

The temperature of the refrigerator compartment is automatically switched to +14 °C.

Do not store any food in the refrigerator compartment during this time.

Switching on:

Press mode button repeatedly until the vacation display is underlined.

The appliance sets the following temperatures automatically:

■ Refrigerator section: +14 °C ■ Freezer section: remains unchanged

Switching off:

Press mode button repeatedly until no mode is underlined.

Button lock function

To switch the button lock on, press 9 button for 3 seconds.

When the function is switched on, the 🔒 display lights up.

The control panel is now locked and so protected against unintentional operation.

To switch the button lock off, press the 9 button for 3 seconds.

The ☑ display lights up when the function is switched off.

The control panel is now unlocked.

Alarm function

In the following cases an alarm may be actuated.

Door opening alarm

The door alarm (continuous sound) switches on and the Alarm 4/15 display is lit if the appliance is left open for too long. Close the appliance to switch off the door alarm.

Temperature alarm

The temperature alarm switches on if the appliance gets too hot inside and the food is at risk of thawing. An interval tone sounds and – ALARM – appears on the temperature display of the freezer compartment 2.

A temperature alarm may occur in these situations:

■ Starting up the appliance for the first time

Do not store any food until the appliance has reached the set temperature.

■ Storing large quantities of fresh food in the appliance

Switch on super freezing before storing large quantities of fresh food. Avoid contact between fresh food and food that is already frozen.

■ Appliance door is open for a very long time

Check whether food has defrosted at all. Do not refreeze food after it has defrosted, even if just partially.

■ the appliance is being heated by a second refrigerator (side-by-side installation) or another heat source Call customer service and ask them about ways of insulating your appliance.

Note

Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen.

No longer store the frozen produce for the max. storage period.

The temperature display shows the warmest temperature reached in the freezer section. As soon as you switch the alarm off, the set temperature is displayed again.

Switching off the alarm

Press the °C button to switch off the audible warning signal.

Usable capacity

Information on the usable capacity can be found inside your appliance on the rating plate. Fig. 14

Refrigerator compartment

The refrigerator compartment is the ideal storage location for meat, sausage, fish, dairy products, eggs, ready meals and pastries.

Storing food

Store fresh, undamaged food. The quality and freshness will then be retained for longer. In the case of ready-made products and bottled goods, observe the best-before date or use-by date specified by the manufacturer. To retain aroma, colour and freshness, pack or cover food well before placing in the appliance. This will prevent the transfer of flavours and the discolouration of plastic parts in the refrigerator compartment. Allow warm food and drinks to cool down before placing in the appliance.

Note

Do not block air outlet openings with food, otherwise the air circulation will be impaired. Food which is stored directly in front of the air outlet openings may be frozen by the cold air flowing out.

Note the chill zones in the refrigerator compartment

The air circulation in the refrigerator compartment creates different chill zones:

The coldest zones are in front of the air outlet openings and in the chill compartment, Fig. 1/23. Store perishable food (e.g. fish, sausage, meat) in the coldest zones. Warmest zone is at the very top of the door.

Note

Note

Store e.g. hard cheese and butter in the warmest zone. The aroma of hard cheese can then continue to develop and butter remains spreadable.

Vegetable container with humidity control

Fig. 10

To create the optimum storage climate for fruit and vegetables, you can set the humidity level in the vegetable container:

• Mainly vegetables as well as for a mixed or small load – high air humidity
• Mainly fruit as well as for a large load – low air humidity

Notes

• Fruit sensitive to cold (e.g., pineapple, banana, papaya, and citrus fruit) and vegetables sensitive to cold (e.g., aubergines, cucumbers, zucchini, peppers, tomatoes, and potatoes) should be stored outside the refrigerator at temperatures of approximately +8 °C to +12 °C for optimum preservation of quality and flavor.
• Condensation may form in the vegetable container depending on the type and quantity of products stored. Remove condensation with a dry cloth and adjust air humidity in the vegetable container with the humidity controller.

Cold storage compartment

Fig. 8

The cold storage compartment has lower temperatures than the refrigerator compartment. Even temperatures below 0 °C may occur.

Ideal for storing fish, meat, and sausage. Not suitable for lettuce, vegetables, and produce sensitive to cold.

The temperature of the chill compartments can be varied using the ventilation opening. Push the temperature controller upwards to reduce the temperature. Push the temperature controller downwards to increase the temperature.

Fig. 9

Super cooling

Super cooling sets the refrigerator temperature to the coldest temperature setting for approximately 6 hours. Then the appliance automatically switches to the temperature set prior to super cooling mode.

Switch on super cooling mode, e.g.

■ before placing large quantities of food in the refrigerator compartment. ■ for the fast cooling of drinks.

Switching on and off

Fig. 4

1. Select the refrigerator section using the °C button.
2. Press the super button.

The supercool indicator lights up.

You do not need to switch off super cooling. After 6 hours the previously set temperature will be automatically restored.

Note

When super cooling is switched on, increased operating noises may occur.

Freezer compartment

Use the freezer compartment

■ To store deep-frozen food. ■ To make ice cubes. ■ To freeze food.

Note

Ensure that the freezer compartment door has been closed properly. If the door is open, the frozen food will thaw. The freezer compartment will become covered in thick ice. Also: waste of energy due to high power consumption!

Freezing capacity

Information on the freezing capacity can be found on the rating plate. Fig. 14

Freezing and storing food

Purchasing frozen food

■ Packaging must not be damaged. ■ Use by the "use by" date. ■ Temperature in the supermarket freezer must be -18 °C or lower. If possible, transport deep-frozen food in a cool bag and place quickly in the freezer compartment.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.

Literature on freezing and blanching can be found in bookshops.

Note

Keep food which is to be frozen away from food which is already frozen.

■ The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts. ■ The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, crème fraîche and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place in airtight containers.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and date of freezing.

Suitable packaging:

Cling wrap, tubular film made of polyethylene, aluminium foil, freezer containers.

These products are available from specialist outlets.

Unsuitable packaging:

Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags.

Items suitable for sealing packaged food:

Rubber bands, plastic clips, string, cold-resistant adhesive tape, etc.

Bags and tubular film made of polyethylene (PE) can be sealed with a film heat sealer.

Shelf life of frozen food

Storage duration depends on the type of food.

At a temperature of -18 °C:

■ Fish, sausage, ready meals and cakes and pastries: up to 6 months

■ Cheese, poultry and meat: up to 8 months

■ Vegetables and fruit: up to 12 months

Super freezing

Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour.

Several hours before placing fresh food in the freezer compartment, switch on super freezing to prevent an unwanted temperature rise.

As a rule, 4–6 hours is adequate.

This appliance runs constantly and the freezer compartment drops to a very low temperature.

If the max. freezing capacity is to be used, super freezing must be switched on for 24 hours before the fresh produce is placed in the freezer compartment.

Smaller quantities of food (up to 2 kg) can be frozen without “super freezing”.

Note

When super freezing is switched on, increased operating noises may occur.

Switching on and off

Fig. 4

1. Select the freezer section using the °C button.
2. Press super button.

The superfreeze indicator lights up.

You do not need to switch off super freezing. After approx. 2 1/2 days the previously set temperature will be automatically restored.

Thawing frozen food

Depending on the type and application, select one of the following options:

■ at room temperature ■ in the refrigerator ■ in an electric oven, with/without fan assisted hot-air in the microwave

Caution

Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen.

No longer store the frozen produce for the max. storage period.

Interior fittings

Shelves and containers

You can reposition the inner shelves and the containers in the door as required: pull shelf forwards, lower and swivel out to the side. Lift the container and remove.

Special features

(not all models)

Butter and cheese compartment

To open the butter compartment, gently press in the middle of the butter compartment flap.

To clean the compartment, lift it at the bottom and take out.

Breakfast set

Fig. 6

The containers for the breakfast set can be taken out and filled individually.

You can take out the breakfast set for loading and unloading. To do this, lift the breakfast set and pull out. The container holder can be moved.

Bottle shelf

Fig. 5

Bottles can be stored securely on the bottle shelf.

Variable shelf

Fig. 7

Use the variable shelf to store tall items like tins or bottles on the shelf below. You can pull the right-hand section of the variable shelf forwards, lower and push it underneath the left-hand section of the shelf.

Ice cube tray

Fill the ice cube tray 3/4 full of drinking water and place in the freezer compartment.

If the ice tray is stuck to the freezer compartment, loosen with a blunt implement only (spoon-handle).

To loosen the ice cubes, twist the ice tray slightly or hold briefly under flowing water.

Ice maker

Fig. 11

1. Take out the ice cube tray.
2. Fill the ice cube tray 3/4 full with drinking water.
3. Re-insert the ice cube tray.
4. When the ice cubes are frozen, rotate the knob on the ice cube tray several times to the right and release. The ice cubes loosen and fall into the storage container.
5. Remove the ice cubes from the storage container.

Sticker "OK"

(not all models)

The sticker “OK” lets you check whether the refrigerator compartment achieves the safe temperature ranges of +4 °C or colder recommended for food. If the sticker does not indicate “OK”, gradually reduce the temperature.

Note

When the appliance is switched on, it may take up to 12 hours until the set temperature is reached.

Correct setting

Switching off and disconnecting the appliance

Switching off the appliance

Press "+" button for 10 seconds.

The refrigeration unit switches off.

Press "+" button for 10 seconds to switch on the refrigeration unit again.

Disconnecting the appliance

If you do not use the appliance for a prolonged period:

1. Pull out the mains plug or switch off the fuse.
2. Clean the appliance.
3. Leave appliance doors open.

Note

To avoid damage to the appliance, appliance doors must be opened far enough that they remain in that position on their own. Do not jam any objects into the door to prop it open.

Cleaning the appliance

Caution

• Do not use abrasive, chloride or acidic cleaning agents or solvents.
• Do not use scouring or abrasive sponges. The metallic surfaces could corrode. Never clean shelves and containers in the dishwasher. The parts may become deformed!

The cleaning water must not get into the following areas:

Controls, illumination, ventilation openings, openings in the separating plate.

Proceed as follows:

1. Pull out the mains plug or switch off the fuse.
2. Take out the frozen food and store in a cool location. Place ice pack (if available) on the food.
3. The rinsing water must not drip into the controls, lighting, ventilation openings or the openings in the partition! Clean the appliance with a soft cloth, lukewarm water and a little pH-neutral washing-up liquid.
4. Wipe the door seal with clear water only and then wipe dry thoroughly.
5. After cleaning, reconnect the appliance.
6. Put the frozen food back into the appliance.

Interior fittings

All variable parts of the appliance can be taken out for cleaning.

Take out shelves in the door

Fig. 3

Lift shelves upwards and take out.

Take out glass shelves

Pull the glass shelves forwards and take out.

Removing the container

Fig. 8

Pull out the container all the way, lift at the front and remove.

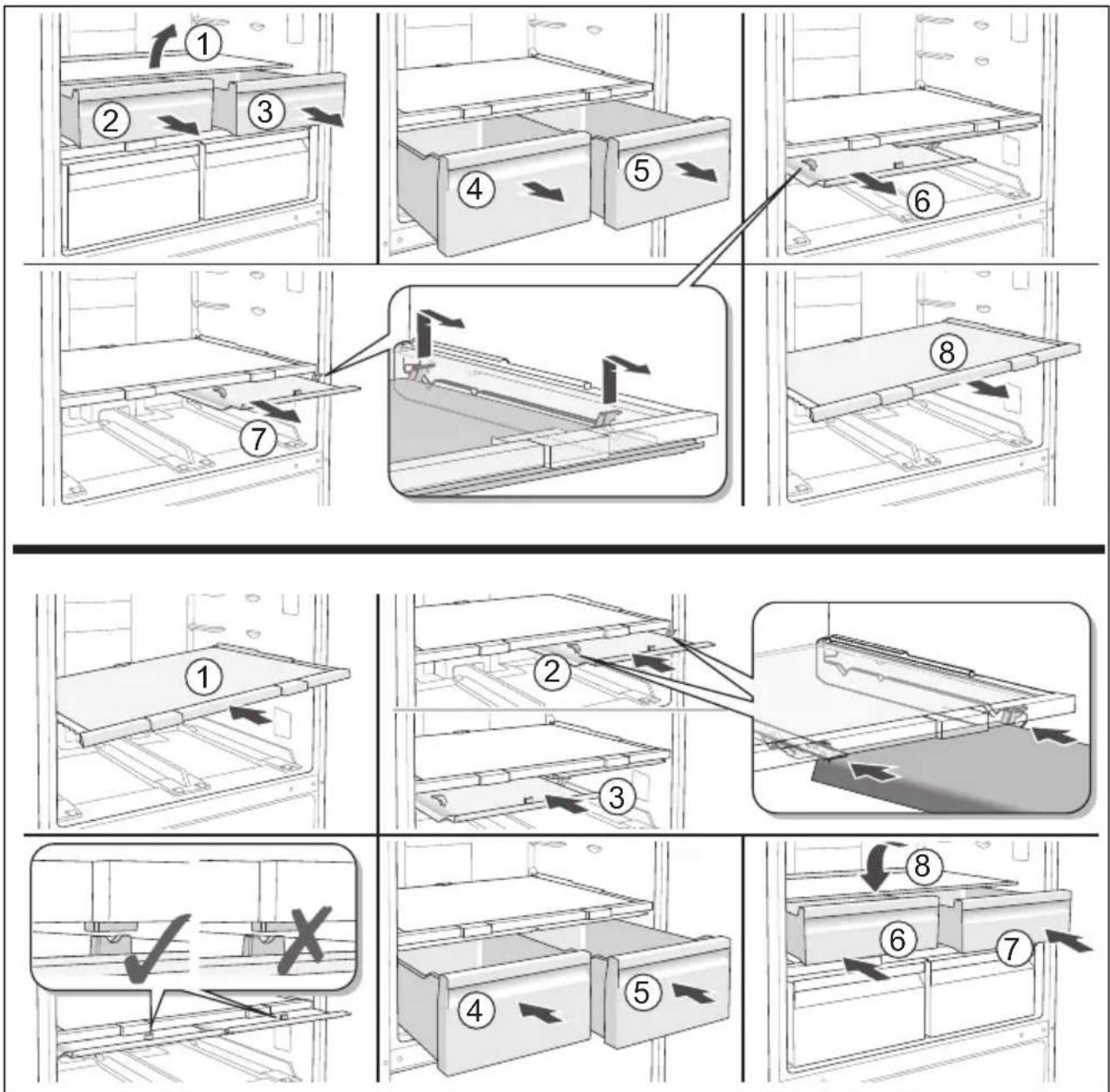

Taking out glass shelf above vegetable container

Fig. 13

The glass shelf can be taken out and disassembled for cleaning.

Note

Before taking out the glass shelf, pull out the vegetable container.

Cleaning the ice maker

Clean the ice maker regularly. This will prevent ice cubes, which were made quite a long time ago, from shrinking, having a stale taste, or sticking together.

Fig. 12

1. Remove and empty the ice cube tray and storage container.
2. Press the push-button to release the ice maker from the holder.
3. Remove the ice maker.
4. Lift the rear end of the holder and lower it behind the glass plate.
5. Remove the holder towards the front.
6. Clean all parts of the ice maker with warm water.
7. Allow all parts to dry completely.
8. Assemble the ice maker in reverse order and insert.

Light (LED)

Your appliance features a maintenance-free LED light.

These lights may be repaired by customer service or authorised technicians only.

Tips for saving energy

- Install the appliance in a dry, well ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker). If required, use an insulating plate.

• Allow warm food and drinks to cool down before placing in the appliance. ■ Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food.
• Open the appliance as briefly as possible. ■ To achieve the lowest energy consumption, leave a small wall gap at the side.
• Do not block the ventilation openings in the appliance.
• Do not remove or relocate the upper glass shelf.

Operating noises

Quite normal noises

Note

When super freezing is switched on, increased operating noises may occur.

Droning

Motors are running (e.g. refrigerating units, fan).

Bubbling, humming or gurgling noises

Refrigerant is flowing through the tubing.

Clicking

Motor, switches or solenoid valves are switching on/off.

Cracking

Automatic defrosting is running.

Sizzling

The NoFrost system defrosts, water droplets evaporate.

Preventing noises

The appliance is not level

Please align the appliance with a spirit level. Use the height-adjustable feet or place packing underneath them.

The appliance is not free-standing

Please move the appliance away from adjacent units or appliances.

Containers or storage areas wobble or stick

Please check the removable parts and re-insert them correctly if required.

Bottles or receptacles are touching each other

Move the bottles or receptacles slightly away from each other.

Eliminating minor faults yourself

Before you call customer service:

Please check whether you can eliminate the fault yourself based on the following information.

Customer service will charge you for advice – even if the appliance is still under guarantee!

Fault Possible cause Remedial action
Temperature differs greatly from the set value.		In some cases it is adequate to switch off the appliance for 5 minutes.If the temperature is too high wait a few hours and check whether the temperature has approached the set value.If the temperature is too low check the temperature again the next day.
It is too cold in the refrigerator section or in the chill compartment.		Increase the temperature in the refrigerator section.
		Push temperature controller for the chill compartment downwards. Fig. 9
The temperature in the freezer section is too warm.	Appliance opened frequently.	Do not open the appliance unnecessarily.
	The ventilation openings have been covered.	Remove obstructions.
	Large quantities of fresh food are being frozen.	Do not exceed the freezing capacity.
Appliance is not cooling, temperature display and light are lit up.	Showroom mode is switched on.	Press and hold °C button for 15 seconds."77" appears briefly on the control panel.After a short time check whether your appliance is cooling.
The side panels of the appliance are warm.	Pipes run into the side panels which heat during the cooling process.	That is normal behaviour for the appliance and not a fault.Furniture touching the appliance will not be damaged by the heat.
The appliance displays a temperature alarm for no apparent reason.	A heat source is located too close to the appliance.A second refrigerator is located right next to the appliance (side-by-side installation).	Call customer service.
The light does not function. The LED light is defective. See chapter “Light (LED)” section.
	Appliance was open too long.Light is switched off after approx. 10 min.	When the appliance is closed and opened, the light is on again.
Displays do not illuminate. Power failure; the fuse has been switched off; the mains plug has not been inserted properly.		Connect mains plug. Check whether the power is on, check the fuses.
Freezer compartment door was open for a long time; temperature is no longer reached.	The evaporator (refrigeration generator) in the NoFrost system is covered in thick ice and can no longer be defrosted fully automatically.	To defrost the evaporator, remove the frozen food with the compartments, insulate well and store in a cool location.Switch off the appliance and move it away from the wall. Leave the appliance door open.After approx. 20 min. the condensation begins to run into the evaporation pan, at the rear of the appliance.To prevent the evaporation pan from overflowing in this case,mop up the condensation with a sponge.The evaporator is defrosted when the water stops running into the evaporation pan. Clean the interior. Switch the appliance back on again.
Condensation accumulates on the surface of the appliance and on the shelves inside.	The effect is reinforced if ambient temperatures are warm and humid.	Wipe away the water with a soft, dry cloth.■ Open the appliance as briefly as possible■ Make sure that the appliance is always closed properly.

Appliance self-test

Your appliance features an automatic self-test program which shows you sources of faults which may be repaired by customer service only.

Starting the appliance self-test

1. Pull out the appliance plug or switch off the fuse and wait 5 minutes.
2. Plug the appliance back in or switch on the fuse and within the first 2 minutes press and hold °C button for 3 seconds until an audible signal sounds.

The self-test programme will start.

If the self-test ends and an audible signal sounds twice, your appliance is in working order.

If 5 audible signals sound, there is an error. Notify customer service.

Ending the appliance self-test

When the programme has ended, the appliance switches over to normal operation.

Customer service

Your local customer service can be found in the telephone directory or in the customer service index. Please give customer service the product number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) of the appliance.

This information can be found on the rating plate. Image 14

This way you will help to prevent unnecessary callouts and save the associated additional costs.

Repair order and advice on faults

Contact information for all countries can be found on the enclosed customer service list.

GB 0344 892 8999 Calls charged at local or mobile rate.

IE 01450 2655 0.03 € per minute at peak. Off peak 0.0088 € per minute.

US 866 447 4363 toll-free

1

2

3

4

5

6

7

8

9

10

11

12

13

14

BSH Hausgeräte GmbH

Carl-Wery-Str. 34

81739 München

GERMANY

Manufactured by BSH Hausgeräte GmbH under Trademark License of Siemens AG

siemens-home.bsh-group.com

8001183747 (0008) en, tr
