FAP42T-UL2043 - Loudspeaker Atlas Sound - Free user manual and instructions

Product Type	Ceiling Speaker
Brand	Atlas Sound
Model	FAP42T-UL2043
Frequency Response	70 Hz - 20 kHz
Sensitivity	88 dB (1 W/1 M)
Speaker Cutout Diameter	9 inches
Impedance	8 Ω (selectable) or 70.7V/100V taps
Power Handling (8 Ω)	16 W RMS
Mounting Types	Drop ceiling, drywall, new construction
Installation Hardware Included	Tile bridge rails, C-ring assembly, dog legs, Phoenix connector, painting shield
Ceiling Material Thickness	Up to 2 inches (with flipped dog legs)
Grille Type	Press-fit, paintable
Connector	Phoenix-style (included)
Seismic Suspension Ring	Integrated for safety wire attachment
Compliance	UL2043 (plenum rated)
Accessories	FAP42-TR new construction bracket (optional)
Recommended Use	Indoor commercial installations
Maintenance	Clean with dry cloth; paintable grille
Safety Note	Do not overtighten dog legs; use conduit clamp for conduit connections

Frequently Asked Questions - FAP42T-UL2043 Atlas Sound

How do I install the FAP42T-UL2043 in a drop ceiling?

What wattage tap settings are available?

Can I use the 8 Ω setting with 70.7V/100V systems?

What is the maximum ceiling thickness this speaker can accommodate?

How do I paint the grille?

How do I attach a safety support wire?

What tools are needed for installation?

How do I install the speaker in a new construction drywall ceiling?

What is the polarity of the Phoenix connector?

How do I clean the speaker?

USER MANUAL FAP42T-UL2043 Atlas Sound

The Atlas Sound Strategy Series® II assembly mounts easily into existing construction drop ceiling or drywall materials

FAP42T-UL2043

Installation Instructions ATS003117 RevA 5/08

Mounting Template 9" Diameter

Drop Tile Ceiling Installation

1. Remove 2' x 2' or 2' x 4' tile.

2. Align adjustable dual rail & C-ring assembly on rear of tile in desired position.

3. Using template provided mark cutout circle with marker and cut hole. (9" FAP42T-UL2043)

4. Affix C-ring assembly to rails using screws provided and position assembly on rear of ceiling tile. Replace tile into grid making sure that formed ends of tile bridge rails engage T-bar tile support rails

5. Bring service loop from rear of tile, through tile bridge C-ring to access panel located on side of

enclosure. Terminate the service loop to Phoenix style connector provided (please note polarity). Combination knockouts are provided to facilitate conduit.

1. Insert enclosure through front of tile. Using standard #2 Phillips screwdriver or screw-gun, tighten four dogleg assemblies until they engage C-ring assembly. DO NOT OVER-TIGHTEN DOG LEG SCREWS!

2. Adjust front mounted switch to desired wattage tap setting or 8 Ω* (See important note regarding 8 Ω operation)

3. Install press-flt grille into front bezel ring. Push baffle upwards until baffle is flush with bezel ring.

4. For safety and seismic considerations a suspension ring is integrated into input panel section of unit. Atlas Sound strongly suggests that a support wire be installed from this support point to a suitable anchor point above ceiling grid. In drop tile applications, this wire can usually be installed from an adjacent tile access near speaker location.

Dry Wall ("Hard Deck") Installation

1. Using template provided, mark cutout circle in desired mounting location and cut hole. (9* FAP42T-UL2043)

2. Place tile bridge rails and C-ring through hole. Use V-shaped edge of C-ring to align tile bridge assembly above ceiling (alignment screws provided are not required for this type of installation)

3. Bring service loop from through the tile bridge / C-ring to access panel located on side of the enclosure. Terminate service loop to Phoenix style connector provided (please note polarity). Combination knockouts are provided to facilitate conduit.

4. Insert enclosure into hole. Using standard #2 Phillips screwdriver or screw-gun, tighten four dogleg assemblies until they engage the C-ring assembly.

DO NOT OVER-TIGHTEN DOG LEG SCREWS!

1. Adjust front mounted switch to desired wattage tap setting or 8 Ω* (See Important note regarding 8Ω operation)

2. Install press-fit grille into front bezel ring. Push baffle upwards until baffle is flush with bezel ring.

New Construction (Darywall Ceilings)

Use of optional FAP42-TR ^1 (for use with FAP42T-UL2043) new construction bracket essentially reserves speaker mounting location prior to drywall installation in new construction. Bracket mounts between 16" or 24" OC studs and includes a 3/8" downward lip to provide a template for drywall installers to cut around. For final installation, please follow instructions below.

Note: tile bridge components are not used in new construction applications where new construction bracket is utilized.

1. Bring service loop through hole in ceiling provided by pre construction bracket to access panel located on side of Enclosure.

Terminate service loop to Phoenix style connector provided (please note polarity). Combination knockouts are provided to facilitate conduit.

1. Insert speaker assembly into hole. Using standard #2 Phillips screwdriver or screw-gun, tighten four dog leg assemblies until they engage ring provided on new construction bracket. DO NOT OVER-TIGHTEN DOG LEG SCREWS!

2. Adjust front mounted switch to desired wattage tap setting or 8 Ω* (See important note regarding 8 Ω operation)

3. Install press-fit grille into front bezel ring. Push baffle upwards until baffle is flush with bezel ring.

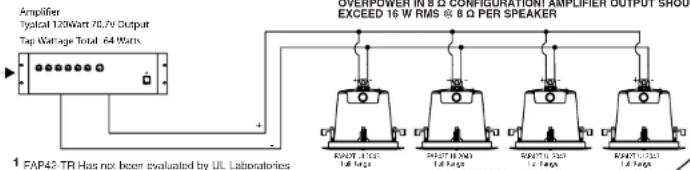

Typical Parallel Hookup of Full Range 70.7/100V Speakers

NOTE: *DO NOT USE 8 Ω SETTING WITH 70.7V/100V SYSTEMS! *DO NOT OVERPOWER IN 8 Ω CONFIGURATION! AMPLIFIER OUTPUT SHOULD NOT EXCEED 16 W RMS @ 8 Ω PER SPEAKER

NOTE: Dog legs will accommodate ceiling material thickness up to 1/4" as shipped from factory. For thicker ceiling materials (up to 2") simply unscrew and flip dog legs as shown. DO NOT OVER-TIGHTEN DOG LEGS IN EITHER CONFIGURATION!

NOTE: UL recognized conduit clamp must be used for conduit connections. Cable connection cavity is not intended to be used as a junction box.

FREQUENCY RESPONSE: 70 Hz - 20 kHz

SENSITIVITY: 88 dB (1 W/1 M)

Painting Shield 8½" Diameter
