USER MANUAL FAP62T Atlas Sound

Strategy Series® II In-Ceiling 6" Coaxial Speaker System

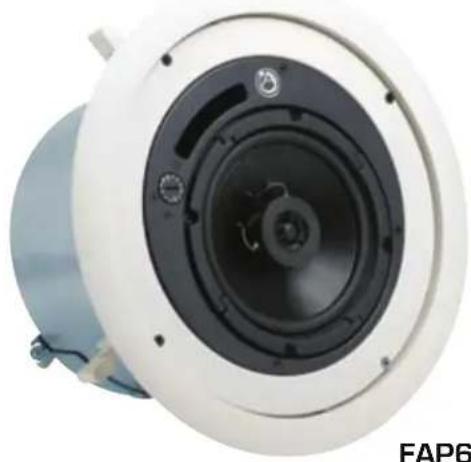

Close-up of a white circular speaker or camera module with black lens and control knobs (no visible text or symbols)

Specifications

Power Rating 50 Watts

Transformer Taps 2, 4, 8, 16, & 32 Watts & 8Ω Bypass

Frequency Response 63Hz - 20kHz (±7dB)

Sensitivity (1W / 1M) 88dB

Woofer 6" Poly Cone Butyl Rubber Surround

Woofer Magnet Weight 14 oz (398g)

HF Driver 19mm Coaxially Mounted PEI Dome Tweeter

Diameter 12½" (318mm)

Overall Height 8.48" (215mm)

Enclosure Volume 475 in 3

Cut-out Dimensions 11" (279mm)

Features

• Extended Low Frequency Response from the 475 in³ Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
• Easy Installation in Drop Tile or Sheetrock Ceilings Via C-Ring/V-Rail Tile Bridge and "Dog Leg" Mounting System (Included)
• Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Include Transformer Bypass Setting for 8Ω Direct Coupled Operation
• Unique "Trap Door" Input Section Allows for Through Conduit Runs with Rigid or Flex Conduit
• 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and Is Convenient for Daisy Chaining Additional Strategy Series Full Range Speakers or Subwoofers
• "Press Fit" Grilles Blend Better into Contemporary Architecture
• Enhanced Quality 70.7V / 100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing Increased Output for Higher SPL Applications
• UL Listed 1480

Applications

Atlas Sound's FAP62T combines superior coaxial loudspeaker performance with even dispersion and easy installation. A low profile enclosure and wide coverage make the FAP62T a perfect choice for low ceilings. The FAP62T will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP62T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

General Description

The FAP62T's 110° dispersion angle can reduce the number of loudspeakers necessary to achieve coverage in distributed systems with low ceilings.

The loudspeaker component matches the performance of the legen dary Atlas Sound FA136 driver. High quality construction 6" coaxial cone type driver includes a 1" voice coil and polypropylene cone with a butyl rubber surround. The 19mm coaxially mounted tweeter is constructed of PEI. A high sensitivity of 88dB average (92dB peak) means less power may be required to achieve the desired SPL. This loudspeaker is factory assembled in an optimally tuned and ported deep drawn enclosure and includes a specially designed 32 watt low saturation 70.7V / 100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This switch also includes a transformer bypass setting for 8Ω direct coupled operation.

Mounting Accessories

Mounting is simplified with Strategy Series® style "Dog Leg" tabs that allow easy installation into drop tile or drywall ceilings with provided tile bridge assembly. The tile bridge consists of two "V" shaped formed mounting rails and a C-Ring assembly. The C-Ring can be attached to the rails with the screws provided to extend support to the T-bar grid in suspended ceiling applications. Multiple hole locations are provided to allow the C-Ring to be positioned to the outer edge of the tile if necessary.

For existing dry-wall applications the tile bridge C-Ring and support rails can be inserted into the hole cut for the FAP62T. For easy positioning the "V" shaped support rails match the shape of the C-Ring tabs for easy maneuvering and location when working "blindly" above the deck. A uniquely designed "easy access" input panel on the side of the enclosure allows for "thru" conduit runs using flexible or rigid conduit. Below this cover resides a detachable Phoenix / Euro style locking four-pole connector, which provides for easy daisy chain wiring to other full range 70.7V loudspeakers or Atlas Sound FAPSUB subwoofers. The package includes an attractive press-fit grille, which nicely matches contemporary architecture.

For new construction drywall ceiling applications, the optional FAP62-TR trim ring is available. This unit provides a marked location for drywall installers to cut around essentially reserving the desired location in the ceiling until final installation of FAP62T. Mounting holes are provided to accommodate 16° or 24° OC stud / joist mounting.

A support ring is also provided on the top of the FAP62T enclosure to facilitate an auxiliary support cable.

NOTE: IT IS MANDATORY THAT THIS SECONDARY SUPPORT BE UTILIZED IN DROP CEILINGS FOR SAFETY AND SEISMIC CONSIDERATIONS.

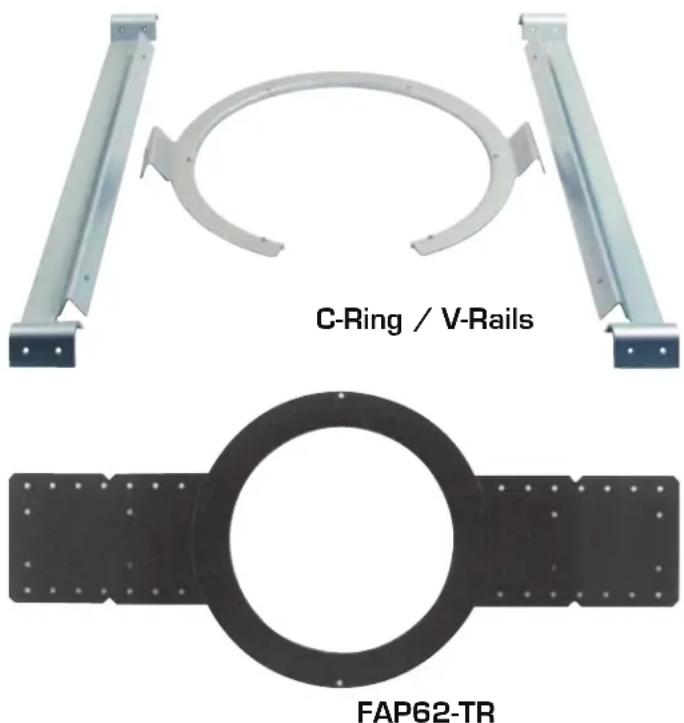

Two mechanical components: a metallic frame with circular end and a black circular ring, labeled 'C-Ring / V-Rails' and 'FAP62-TR' respectively (no additional text or symbols)

Architect & Engineer Specifications

The loudspeaker system shall be Atlas Sound FAP62T. System shall include a high performance 6" coaxial loudspeaker, ported bass reflex enclosure and press-fit grille for conventional ceiling installation.

Frequency response for the system shall be 63Hz – 20kHz ( ± 7dB). Sensitivity shall be 88dB average.

Loudspeaker shall be comprised of a 6" coaxial cone type driver. Cone shall be constructed of polypropylene with a butyl rubber surround. The 19 mm tweeter shall be constructed of PEI. Magnet shall be a minimum of 10 oz (264 g) and the voice coil diameter shall be 1" (25 mm).

Transformer shall be a 70.7V / 100V type with 2, 4, 8, 16, and 32 watt primary taps (@70.7V) with a front mounted tap selector switch to include transformer bypass setting for 8Ω direct coupled operation.

Enclosure shall be a deep drawn steel enclosure design. Internal volume shall be 475 in ^3 . To facilitate connection in conduit systems, enclosure shall be equipped with an access panel covering a recessed terminal cup. This cover shall provide a combination 34 (19mm inside diameter) / 1" (25mm inside diameter) knock-out on the side access and a top access compression fitting / strain relief to facilitate flexible conduit up to 22mm outside diameter or 1" (25mm inside diameter) conduit when the compression fitting is removed.

External wiring shall be accomplished via a removable lockable wiring connector with screw-down terminals to provide both secure wire termination and pre-wiring capability before loudspeaker installation. The 4 pole locking connector shall facilitate in/out connections and shall be located in the recessed area behind the conduit access panel.

Seismic support eye shall be provided on top of enclosure for additional suspension point when used in drop tile ceilings. Construction of enclosure shall be a minimum of 18-gauge deep drawn galvanized metal.

The system shall include a support backing plate to reinforce the ceiling material and tile support rails for use on either 2' × 4' (609mm x 1219mm) or 2' × 2' (609mm x 609mm) suspended ceiling tiles. This assembly can all be installed from beneath the ceiling tile.

Overall front face diameter shall not exceed 12½" (318mm); overall depth from the bottom of the ceiling shall not exceed 8.48" (215mm).

Grilles shall be press-fit, manufactured from 24-gauge perforated steel mesh and finished in white epoxy. Round grill shall be 10.48" (266mm) diameter.

The loudspeaker shall be the Atlas Sound FAP62T.

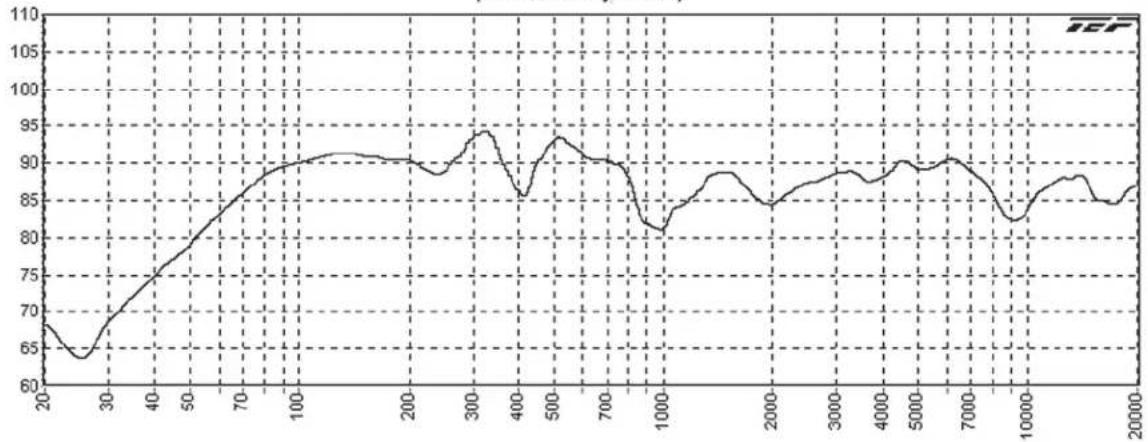

FAP62T Frequency Response
(Transformer By Passed)

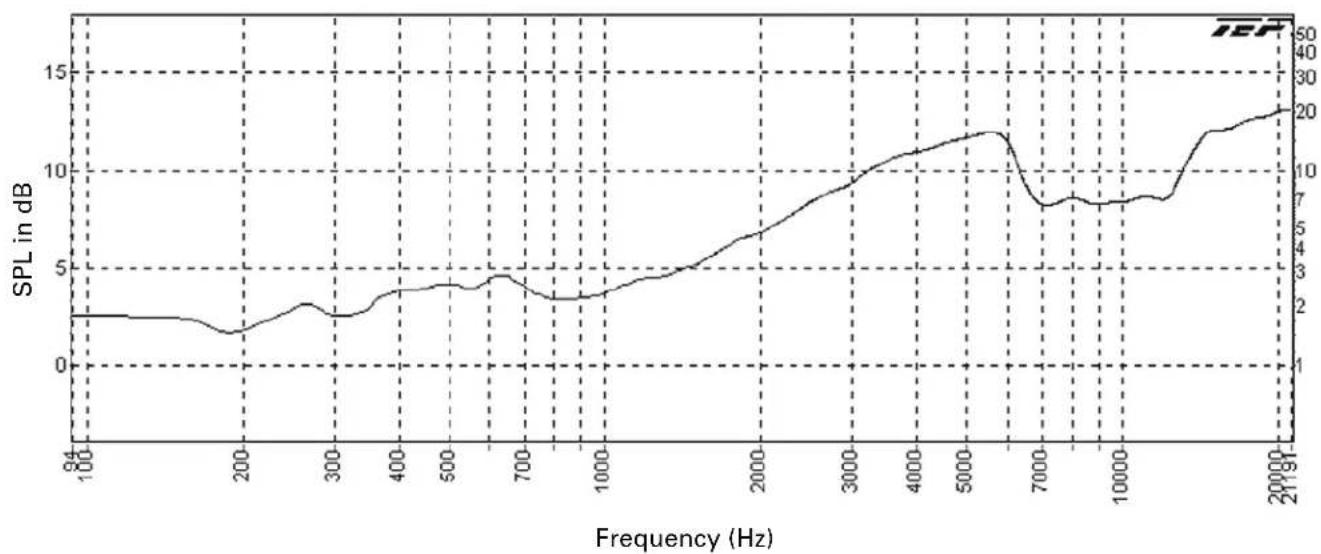

FAP62T Directivity vs Frequency

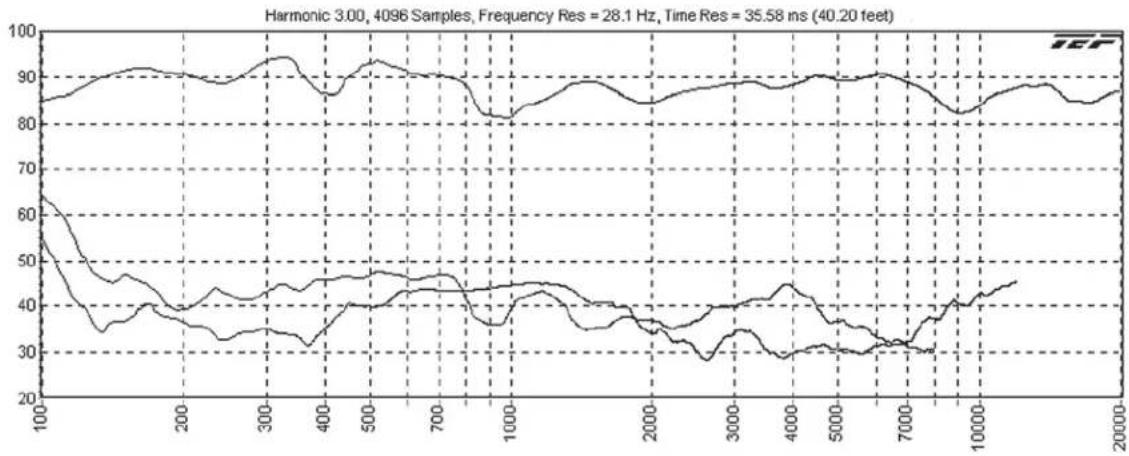

FAP62T Harmonic Distortion

Atlas Sound

The Atlas Sound Strategy Series ^® II assembly mounts easily into existing construction drop ceiling or drywall materials.

FAP62T

Installation Instructions

ATS001131 RevD 5/08

Mounting Template 11" Diameter

Drop Tile Ceiling

Installation

1. Remove 2' x 2' or 2' x 4' tile.

2. Align adjustable dual rail & C-ring assembly on rear of tile in desired position.

3. Using the template provided, mark cut out circle with marker and cut hole.

(11° FAP62T)

1. Affix C-ring assembly to rails using screws provided and position assembly on rear of ceiling tile.

Replace tile into grid. Be sure formed ends of tile bridge rails engage T-bar tile support rails.

1. Bring service loop from rear of tile, through the tile bridge/C-ring to the access panel located on side of enclosure.

Terminate the service loop to Phoenix style connector provided (please note polarity).

Combination knockouts are provided to facilitate conduit.

1. Insert enclosure through front of tile. Using standard #2 Phillips screwdriver or screw-gun, tighten four dogleg assemblies

until they engage the C-ring assembly. DO NOT OVER-TIGHTEN DOGLEG SCREWS!

1. Adjust front mounted switch to desired wattage tap setting or 8Ω* (See important note regarding 8Ω operation)

2. Install press-fit grille into front bezel ring. Push baffle upwards until it is flush with the bezel ring.

3. For safety and seismic considerations a suspension ring is integrated into the input panel section of unit.

Atlas Sound strongly suggests that a support wire be installed from this support point to a suitable anchor point above ceiling grid.

In drop tile applications, this wire can usually be installed from an adjacent tile access near speaker location.

Dry Wall ("Hard Deck") Installation

1. Using the template provided, mark cut out circle in desired mounting location and cut hole. (11" FAP62T)

2. Place tile bridge rails and C-ring through hole. Use V-shaped edge of C-ring to align tile bridge assembly above ceiling

(alignment screws provided are not required for this type of installation)

1. Bring service loop from rear of tile, through the tile bridge / C-ring to access panel located on the side of the enclosure. Terminate service loop to Phoenix style connector provided (please note polarity). Combination knockouts are provided to facilitate conduit.

2. Insert enclosure into hole. Using standard #2 Phillips screwdriver or screw-gun, tighten four dogleg assemblies until they engage the C-ring assembly.

DO NOT OVER-TIGHTEN DOGLEG SCREWS!

1. Adjust front mounted switch to desired wallage tap setting or 8Ω* (See important note regarding 8Ω operation)

2. Install press-fit grille into front bezel ring. Push baffle upwards until it is flush with the bezel ring.

New Construction (Drywall Ceilings)

Use of optional FAP62-TR (for use with FAP62T) new construction bracket essentially reserves a speaker mounting location prior to drywall installation.

in new construction. Bracket mounts between 16" or 24" OC studs and includes a % downward lip to provide a template for drywall installers to cut

around. For final installation, please follow these instructions:

Note: Tile bridge components are not used in new construction applications where new construction bracket is utilized.

1. Bring service loop through hole in ceiling provided by pre-construction bracket to access panel located on side of the enclosure. Terminate service

loop to Phoenix style connector provided (please note polarity). Combination knockouts are provided to facilitate conduit.

1. Insert speaker assembly into hole. Using standard #2 Phillips screwdriver or screw-gun, tighten four dogleg assemblies until they engage the ring provided

on the new construction bracket. DO NOT OVER-TIGHTEN DOGLEG SCREWS!

1. Adjust front mounted switch to desired wattage tap setting or 8Ω* (See important note regarding 8Ω operation)

2. Install press-fit grille into front bezel ring. Push baffle upwards until it is flush with the bezel ring.

FAP62-TR has not been evaluated by UL Laboratories

NOTE: Doglegs will accommodate ceiling material thickness up to 1½" as shipped from factory. For thicker ceiling materials (up to 2") simply unscrew and flip doglegs

as shown. DO NOT OVER-TIGHTEN DOGLEGS IN EITHER CONFIGURATION!

NOTE: UL recognized conduit clamp must be used for conduit connections. Cable connection cavity is not intended to be used as a junction box.

NOTE: *DO NOT USE 8Ω SETTING WITH 70.7V / 100V SYSTEMS! *DO NOT OVERPOWER IN 8Ω CONFIGURATION!

AMPLIFIER OUTPUT SHOULD NOT EXCEED 32 W RMS @ 8Ω PER SPEAKER

FREQUENCY RESPONSE: 90Hz - 20kHz SENSITIVITY: 88dB (1W / 1M)

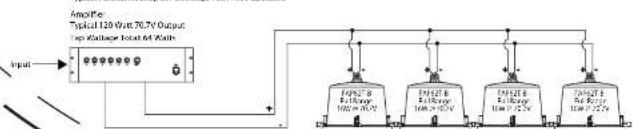

Typical Parallel Hookup of Full Range: 70.7/100/Speakers
