Product Type	Over The Range Convection Microwave Oven
Brand	Dacor
Model	PCOR30S
Outside Dimensions (WxHxD)	29 15/16" x 16 11/32" x 15 9/32"
Cavity Dimensions (WxHxD)	17 1/8" x 8 1/16" x 13 13/16"
Oven Capacity	1.1 Cu. Ft.
Weight (Approx.)	71 lb
Power Supply	120 V, 60 Hz, AC only, 15 A
Microwave Output Power	850 W (IEC)
Convection Heater Power	1400 W
Frequency	2450 MHz
Number of Power Levels	11 (0% to 100%)
Turntable	Removable ceramic, with On/Off option
Cooking Modes	Microwave, Convection, High Mix/Roast, Low Mix/Bake, Broil, Slow Cook, Keep Warm
Sensor Cooking	Yes (Sensor Reheat, Popcorn, Sensor Cook with presets)
Auto Defrost	Yes (ground meat, steaks, chicken pieces)
Auto Roast	Yes (chicken, turkey, turkey breast, pork)
Auto Bake	Yes (cakes, brownies, muffins, French fries)
Auto Broil	Yes (hamburgers, chicken, steaks, fish steaks)
Convection Temperature Range	100°F to 450°F (10 presets)
Mix Cooking	High Mix/Roast and Low Mix/Bake with preheat option
Hood Fan Speeds	High/Low/Off
Hood Light	On/Off
Child Lock	Yes (deactivates control panel)
Clock	12-hour with auto recall after power loss
Kitchen Timer	Yes (up to 99 min 99 sec)
Easy Minute	Yes (1 min at 100% power, extendable)
Instant On	Yes (up to 3 minutes at 100% power)
Multiple Sequence Cooking	Up to 4 sequences (microwave) or 3 (convection)
Demonstration Mode	Yes (for display without power)
Language Selection	English, Spanish, French
Weight/Temp Selection	Pounds/Fahrenheit or Kilograms/Celsius
Grease Filters	Removable, clean monthly

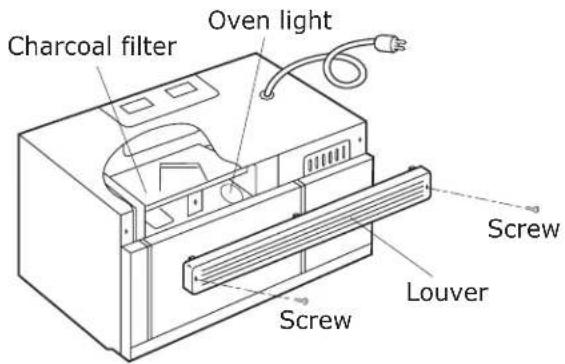

Charcoal Filter	Optional for recirculation, replace every 6-12 months
Stirrer Cover	Fixed mica cover, wipe clean
Interior Material	Stainless steel
Exterior Material	Precoated metal and plastic
Door	See-through window with safety latches
Oven Light	Replaceable 20W bulb (max 30W)
Accessories	Low rack (broiling), high rack (two-level baking), turntable support
Warranty	2 years full (parts and labor)

Frequently Asked Questions - PCOR30S Dacor

How do I set the clock on the Dacor PCOR30S?

Touch the CLOCK pad, then enter the correct time of day using the number pads (e.g., 1230 for 12:30). Touch CLOCK again to confirm. The clock is 12-hour format. If you enter an incorrect time, ERROR will appear; touch STOP/CLEAR and re-enter.

How do I use the Sensor Reheat feature?

Place food in the oven and close the door. Touch the SENSOR REHEAT pad. The oven automatically detects vapor and sets the cooking time. Do not open the door during the initial sensing phase. After cooking, LET STAND COVER will appear. For turntable-off operation, first touch TURNTABLE ON/OFF then SENSOR REHEAT.

What should I do if "ERROR" appears on the display?

ERROR can appear for various reasons: invalid clock time, sensor cooking interruption, weight outside allowed range, or incorrect input. Touch STOP/CLEAR to clear the error. Then reprogram correctly. If the error persists, check if the oven door is closed properly and that there is no moisture on the sensor. Refer to the manual for specific error messages.

How do I clean the microwave interior after cooking?

For microwave-only cooking, wipe the stainless steel interior with a soft cloth and warm water. For convection, mix, or broil cooking, clean immediately with hot, soapy water to prevent stubborn spatters. Do not use abrasive cleaners or scouring pads. For odors, boil a cup of water with lemon peel and cloves inside the oven.

How do I use the convection cooking mode?

Touch the CONVECTION pad, select a temperature (e.g., pad 6 for 350°F), then enter cooking time and touch START/INSTANT ON. To preheat, touch PREHEAT, select a temperature, then follow with CONVECTION and time. The oven will preheat and hold the temperature for 30 minutes before you can add food.

How do I defrost food manually?

For foods not listed in Auto Defrost, use manual defrost at 30% power (power level 3). Enter cooking time (approx. 5 minutes per pound), touch POWER LEVEL, then 3, and START/INSTANT ON. Check periodically and separate defrosted portions. Add time in 1-minute increments if needed.

Can I change the language from English to French or Spanish?

Yes. Touch HELP GUIDE, then 4 repeatedly to cycle through languages: once for English, twice for Spanish, three times for French. When your desired language appears, touch START/INSTANT ON to save.

How do I enable the Child Lock?

Touch HELP GUIDE, then 1, then START/INSTANT ON. The control panel is locked; if any pad is touched, LOCK appears. To disable, touch HELP GUIDE, 1, then STOP/CLEAR. Note: The hood fan and light still work when locked.

How do I replace the oven light bulb?

Disconnect power to the oven. Remove the screw on the light cover. Replace with a 20 watt bulb (max 30 watts) available from a Dacor authorized servicer or hardware store. Do not touch the glass when the light is on. Reattach the cover and screw. For the oven cavity light, you may need to remove the louver and charcoal filter first.

What is covered under the warranty for the Dacor PCOR30S?

The warranty covers defects in materials or workmanship for two years from the original purchase date (full warranty for parts and labor). Cosmetic defects are covered for 60 days. It applies to residential use only. Exclusions include improper installation, accident, misuse, and shipping damage. Contact Dacor Customer Service at 1-833-353-5483 (USA) or 1-844-509-4659 (Canada) for service.

USER MANUAL PCOR30S Dacor

Over The Range Convection Microwave Oven

PCOR30S

Part No. 107003 Rev D

Table of Contents

Important Safety Instructions 1-2

Information You Need to Know 3-7

Part Names ....8

Control Panel 9

Before Operating 10

To Set The Clock 10

Stop/Clear 10

Manual Microwave Operation 10-11

Turntable On/Off 10

Time Cooking-Microwave.... 11

Keep Warm 11

Hood Light/Hood Fan 11

To Set Power Level 11

Microwave Features 12-18

Auto Defrost 12

Manual Defrost 13

Sensor Cooking 13

Instant Sensors: Sensor Reheat & Popcorn ..... 14

Sensor Cook 15-18

Manual Convection/Automatic Mix Operation .... 18-19

Convection Cooking 18-19

Automatc Mix Cooking 19

Convection Automatic Mix Features 20-22

Auto Broil 20

Auto Roast 21

Auto Bake 22

Other Features 23-24

Multiple Sequence Cooking 23

Easy Minute 23

More or Less Time Adjustment 23

Kitchen Timer 23

Demonstration Mode 23

Help 23

Help Guide 24

Instant On 24

Cleaning and Care 25-27

Service Call Check 27

Specifications 28

Auto-Touch Guide 29

Product Warranty 30

TINSEB317MRR2

Important Safety Instructions

Installer: Leave these instructions with the appliance.

Customer: Please read and keep this use and care manual for future reference. This guide provides proper use and maintenance information. Keep this guide and the sales receipt and/or cancelled check in a safe place for future reference. Proof of original purchase date is needed for warranty service.

Have complete model and serial number identification of your appliance ready.

The rating label, including model and serial number, is located on the unit.

Record these numbers below for easy access.

Model Number

Serial Number

Date of Purchase

For service and warranty information, see page 30.

At Dacor, we continuously improve the quality and performance of all our products. We may need to make changes to this appliance without updating these instructions.

IMPORTANT INFORMATION ABOUT SAFETY INSTRUCTIONS

The Important Safety Instructions and warnings in this manual are not meant to cover all possible conditions and situations that can occur. Use common sense and caution when installing, maintaining or operating this or any other appliance.

Always contact the Dacor Customer Service Team about problems or situations that you do not understand.

SAFETY SYMBOLS AND LABELS

DANGER

Immediate hazards that WILL result in severe personal injury or death.

WARNING

Hazards or unsafe practices that COULD result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that COULD result in minor personal injury or property damage.

WARNING

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

When using the appliance, basic safety precautions should be followed, including the following:

A WARNING To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page 1.
3. This appliance must be properly grounded. See page 3 and the separate installation instructions for grounding instructions.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products such as whole eggs and sealed containers—for example, closed glass jars—are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used by children.
8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.
9. This appliance should be serviced only by qualified service personnel. Contact nearest Dacor Authorized Servicer for examination, repair or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store or use this appliance outdoors. Do not use this product near water—for example, near a kitchen sink, in a wet basement or near a swimming pool, or similar locations.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or counter.
15. See door surface cleaning instructions on page 25.
16. To reduce the risk of fire in the oven cavity:

a. Do not overcook food. Carefully attend to appliance when paper, plastic or other combustible materials are placed inside the oven to facilitate cooking.

b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c. If materials inside the oven ignite, keep oven door closed, turn oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

1. Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons:

a. Do not overheat the liquid.
b. Stir the liquid both before and halfway through heating it.
c. Do not use straight-sided containers with narrow necks. Use a wide-mouthed container.
d. After heating, allow the container to stand in the microwave oven at least for 20 seconds before removing the container.
e. Use extreme care when inserting a spoon or other utensil into the container.

1. Clean ventilation openings and grease filters frequently—grease should not be allowed to accumulate on ventilation openings, hood (louver) or grease filters.

2. Use care when cleaning the louver and the grease filters. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the louver and the grease filters.

3. When flaming food under the hood, turn the fan on.

4. This appliance is suitable for use above both gas and electric cooking equipment 36" wide or less.

READ AND SAVE THESE INSTRUCTIONS

About Unpacking And Examining Your Microwave oven

Carefully remove oven from carton. SAVE THE CARTON AS IT MAY MAKE INSTALLATION EASIER.

1. Remove all packing materials from inside the oven cavity; however, DO NOT REMOVE THE STIRRER COVER, which is located on the ceiling in the oven cavity. Make sure that the Installation Instructions, Wall Template and Top Template are included. Read enclosures and SAVE the Use & Care Manual.

1. Remove the feature sticker from the outside of the door, if there is one. Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surfaces, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact your dealer or DACOR AUTHORIZED SERVICER.

See Installation Instructions for more details.

GROUNDING INSTRUCTIONS

WARNING

Improper use of the grounding plug can result in a risk of electric shock.

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current.

ELECTRICAL REQUIREMENTS

Check Installation Instructions for proper location for the power supply.

The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more protected electrical supply. It is recommended that a separate circuit serving only the oven be provided.

The oven is equipped with a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE GROUNDING PIN FROM THE PLUG.

NOTES:

• If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
• Neither Dacor nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedures.

RADIO OR TV INTERFERENCE

Should there be any interference caused by the microwave oven to your radio or TV, check that the microwave oven is on a different electrical circuit, relocate the radio or TV as far away from the oven as feasible or check position and signal of receiving antenna.

Information You Need To Know

About Your Microwave Oven

This Use and Care Manual is valuable: read it carefully and always save it for reference.

A good microwave cookbook is a valuable asset. Check it for microwave cooking principles, techniques, hints and recipes.

NEVER use the oven without the turntable and support nor turn the turntable over so that a large dish could be placed in the oven. The turntable will turn both clockwise and counterclockwise. See page 10 for complete instructions.

ALWAYS have food in the oven when it is on to absorb the microwave energy.

When using the oven at power levels below 100%, you may hear the magnetron cycling on and off.

The fan will automatically start when heat rises from range surface units or burners and when convection, high mix, low mix or the broil settings are used.

Condensation is a normal part of microwave cooking. Room humidity and the moisture in food will influence the amount of moisture that condenses in the oven. Generally, covered foods will not cause as much condensation as uncovered ones. Ventilation openings must not be blocked.

The oven is for food preparation only. It should not be used to dry clothes or newspapers.

Your oven is rated 850 watts by using the IEC Test Procedure. In using recipes or package directions, check food a minute or two before the minimum time and add time accordingly.

About Children And The Microwave

Children below the age of 7 should use the microwave oven with a supervising person very near to them. Between the ages of 7 and 12, the supervising person should be in the same room. The child must be able to reach the oven comfortably.

At no time should anyone be allowed to lean or sit on the microwave oven.

Children should be taught all safety precautions: how to use potholders, remove coverings carefully and pay special attention to packages that crisp food because they may be extra hot.

Do not assume because a child has mastered one cooking skill that he/she can cook everything.

Children need to learn that the microwave oven is not a toy. See page 24 for Child Lock feature.

About Microwave Cooking

• Arrange food carefully. Place thickest areas towards outside of dish.
• Watch the cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
• Cover foods while cooking. Check a recipe or cookbook for suggestions like: paper towels, wax paper, microwave plastic wrap or a lid. Covers prevent spattering and help foods to cook evenly.
• Shield with small flat pieces of aluminum foil any thin areas of meat or poultry to prevent overcooking before dense, thick areas are cooked thoroughly.
• Stir foods from outside to center of dish once or twice during cooking, if possible.
• Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
• Rearrange foods such as meatballs halfway through cooking both from top to bottom and from right to left.
• Add standing time. Remove food from oven and stir, if possible. Cover during standing time, allowing the food to finish cooking without overcooking.
• Check for doneness. Look for signs indicating that cooking temperatures have been reached.

Signs of doneness include:

• Food steams throughout, not just at edge.
• Poultry thigh joints move easily.
• Meat and poultry show no pinkness.
• Fish is opaque and flakes easily with a fork.

About Safety

Check foods to see that they are cooked to the United States Department of Agriculture's recommended temperatures.

160°F - For fresh pork, ground meat, boneless white poultry, fish, seafood, egg dishes and frozen prepared food.

165°F - For leftovers, ready-to-reheat refrigerated; deli and carry-out "fresh" food.

170^ - White meat of poultry.

180^ F - Dark meat of poultry.

To test for doneness, insert a meat thermometer in a thick or dense area away from fat or bone. NEVER leave the thermometer in the food during cooking, unless it is approved for microwave use.

- ALWAYS use potholders to prevent burns when handling utensils that are in contact with hot food. Enough heat from the food can transfer through utensils to cause skin burns.

- Avoid steam burns by directing steam away from the face and hands. Slowly lift the farthest edge of a dish's covering and carefully open popcorn and oven cooking bags away from the face.

- Stay near the microwave oven while it's in use and check cooking progress frequently so that there is no chance of overcooking food.

• NEVER use the Microwave oven for storing cookbooks or other items.
• Select, store and handle food carefully to preserve its high quality and minimize the spread of foodborne bacteria.
• Keep stirrer cover clean. Food residue can cause arcing and/or fires.
• Use care when removing items from the oven so that the utensil, your clothes or accessories do not touch the safety door latches.

About Foods

FOOD DO DON'T
Eggs, sausages, fruits & vegetables	· Puncture egg yolks before cooking to prevent “explosion”. · Pierce skins of potatoes, apples, squash, hot dogs and sausages so that steam escapes.	· Cook eggs in shells. · Reheat whole eggs. · Dry nuts or seeds in shells.
Popcorn · Use specially bagged popcorn for the microwave. · Listen while popping corn for the popping to slow to 1 or 2 seconds or use the special POPCORN pad.		· Pop popcorn in regular brown bags or glass bowls. · Exceed maximum time on popcorn package.
Baby food · Transfer baby food to small dish and heat carefully, stirring often. Check temperature before serving. · Put nipples on bottles after heating and shake thoroughly. “Wrist” test before feeding.		· Heat disposable bottles. · Heat bottles with nipples on. · Heat baby food in original jars.
General ·	Cut baked goods with filling after heating to release steam and avoid burns. · Stir liquids briskly before and after heating to avoid “eruption”. · Use deep bowl, when cooking liquids or cereals, to prevent boilovers.	· Heat or cook in closed glass jars or airtight containers. · Heat cans in the microwave as harmful bacteria may not be destroyed. · Deep fat fry. · Dry wood, gourds, herbs or wet papers.

About Utensils and Coverings

It is not necessary to buy all new cookware. Many pieces already in your kitchen can be used successfully in your Convection Microwave Oven. The chart below will help you decide what utensils and coverings should be used in each mode.

UTENSILS AND COVERINGS	MICROWAVE ONLY	CONVECTION, BROIL, SLOW COOK	HIGH MIX/ROAST LOW MIX/BAKE
Aluminum foil YES -	Small flat pieces of aluminum foil placed smoothly on food can be used to shield areas from cooking or defrosting too quickly. Keep foil at least 1 inch from walls of oven.	YES - For shielding YES -	For shielding
Aluminum containers	YES - Can be used if 3/4 filled with food. Keep 1 inch away from walls and do not cover with lid.	YES - Broil. No cover. YES	- Can be used if 3/4 filled with food. Keep 1 inch away from walls and do not cover with foil.
Browning dish YES -	Do not exceed recommended preheating time. Follow manufacturer's directions.	NO NO
Glass ceramic (Pyroceram®)	YES - Excellent	YES - Excellent	YES - Excellent
Glass, heat-resistant	YES - Excellent.	YES - Excellent	YES - Excellent
Glass, non-heat-resistant	NO NO NO
Lids, glass YES	YES - Broil. No cover. YES
Lids, metal	NO YES - Broil. No cover. NO
Metal cookware	NO	YES	YES - Do not use metal covering.
Metal, misc.: dishes with metal-lic trim, screws, bands, handles. Metal twist ties	NO NO NO
Oven cooking bags	YES - Good for large meats or foods that need tenderizing. DO NOT use metal twist ties.	YES - Slow Cook NO - Convection, Broil	YES - Do not use metal twist ties.
Paper plates	YES - For reheating	NO	NO
Paper towels	YES - To cover for reheating and cooking. Do not use recycled paper towels which may contain metal fillings.	NO NO
Paper, ovenable	YES	YES - For temperatures up to 400°F. Do not use for broiling.	YES - For temperatures up to 400°F.
Microwave-safe plastic containers	YES - Use for reheating and defrosting. Some microwave-safe plastics are not suitable for cooking foods with high fat and sugar content. Follow manufacturer's directions.	NO NO

Information You Need To Know

UTENSILS AND COVERINGS	MICROWAVE ONLY	CONVECTION, BROIL, SLOW COOK	HIGH MIX/ROAST LOW MIX/BAKE
Plastic, Thermoset®	YES YES - Are heat resistant	up to 425°F. Do not use for broiling.	YES
Plastic wrap YES - Use brands specially marked for microwave use. DO NOT allow plastic wrap to touch food. Vent so steam can escape.		NO NO
Pottery, porcelain stoneware	YES - Check manufacturer's recommendation for being microwave safe.	YES YES - Must be	microwave safe AND ovenable.
Styrofoam YES - For reheating NO NO
Wax paper YES - Good covering for cooking and reheating.		NO NO
Wicker, wood, straw	YES - May be used for short periods of time. Do not use with high fat or high sugar content foods. Could char.	NO NO

DISH CHECK If you wish to check if a dish is safe for microwaving, place the empty dish in the oven and microwave on HIGH for 30 seconds. If the dish becomes very hot, DO NOT use it for microwaving.

ACCESSORIES There are many microwave accessories available for purchase. Evaluate carefully before you purchase so that they meet your needs. A microwave-safe thermometer will assist you in determining correct doneness and assure you that foods have been cooked to safe temperatures when using microwave-only cooking. Dacor is not responsible for any damage to the oven when accessories are used.

Part Names

FRONT VIEW

BOTTOM VIEW

1. Oven door with see-through window.
2. Door hinges.
3. Stirrer cover DO NOT REMOVE.
4. Turntable motor shaft.
5. Oven light. It will light when oven is operating or door is open.
6. Safety door latches. The oven will not operate unless the door is securely closed.
7. One touch DOOR OPEN button. Push to open door.
8. FAN HI/LO button. Push for high/low/off.

9. LIGHT button. Push for on/off.

10. Auto-Touch control panel.

11. Time display: Digital display, 99 minutes 99 seconds.
12. Ventilation openings.
13. Light cover.
14. Grease filters.
15. Removable ceramic turntable. The turntable will rotate clockwise or counterclockwise. Only remove for cleaning.
16. Removable turntable support. Place the turntable support on the floor of the oven cavity and the turntable on the turntable support.
17. Removable low rack for broiling and meat and poultry roasting.
18. Removable high rack for two level baking.

Control Panel

INTERACTIVE DISPLAY

Words will light in the display to indicate features and cooking instructions.

Numbers next to the control panel illustration indicate page numbers where feature descriptions and usage information is located.

Before Operating

Before operating your new microwave oven make sure you read and understand this manual completely.

• Before the oven can be used, follow these procedures:

• Plug in the microwave oven. Close the door. The oven display will show WELCOME PRESS CLEAR AND PRESS CLOCK.

• Touch the STOP/CLEAR pad. : will appear.

• Touch CLOCK and follow directions to set.

To Set The Clock

1. Touch CLOCK pad.
2. Enter the correct time of day by touching the numbers in sequence.
3. Touch CLOCK pad.

This is a 12 hour clock. If you attempt to enter an incorrect clock time, ERROR will appear in the display. Touch the STOP/CLEAR pad and re-enter the time.

- If the electrical power supply to your microwave oven should be interrupted, the display will intermittently

show WELCOME after the power is restored. If power is interrupted during cooking, the program will be erased. The time of day will also be erased. Simply touch the STOP/CLEAR pad and reset the clock for the correct time of day.

NOTE:

- The microwave oven can be programmed with the oven open except for the START/INSTANT ON, EASY MINUTE, SENSOR REHEAT and POPCORN.

Stop/Clear

Touch the STOP/CLEAR pad to:

1. Clear a mistake made during programming.
2. Cancel the timer.
3. Stop the Microwave oven temporarily during cooking.
4. Return the time of day to the display.
5. Cancel a program during cooking, touch twice.

Manual Microwave Operation

Turntable On/Off

For most cooking, the turntable should be on; however the turntable can be turned off so that it does not rotate when extra large dishes, such as a 13"x9"x2" glass utility casserole, are used. The casserole should be placed on the turntable so that it is level.

• For example: Cook lasagna in a 13"x9"x2" casserole for 45 minutes on 40% power.
• Touch TURNTABLE ON/OFF pad and note TURNTABLE OFF in the display.
• Enter cooking time .4 5 0 0
• Enter power level 4.
• Touch START/INSTANT ON pad.

NOTE:

The door can be opened for checking food and the turntable will stay in the off position. After checking, close door and touch START/INSTANT ON.

The turntable will stay off for one minute after door is opened when time-of-day appears in the display. It is possible to reprogram the oven during that minute without touching the TURNTABLE ON/OFF pad. The display always indicates whether the turntable is off or on.

THE TURNTABLE SHOULD ALWAYS BE ON WHEN USING THE SPECIAL FEATURES. On/Off function can be used with manual cooking modes and Sensor Reheat. Turntable off condition will automatically change to on condition when you select auto cooking except Sensor Reheat and Auto Bake.

When cooking large quantities of food which cannot be stirred, it is best to use a lower power level such as 40 or 50%. You may speed cooking of large amounts by programming 5 to 10 minutes on 100% power (HIGH) followed by the desired time on lower power. See page 23 for how to program multiple sequences. You may wish to reverse a large casserole once during cooking; simply open door, reposition casserole, close door and touch START/INSTANT ON.

Manual Microwave Operation

Time Cooking - Microwave

Your Microwave oven can be programmed for 99 minutes 99 seconds (99.99). Always enter the seconds after the minutes, even if they are both zeros.

- For example: Cook for 5 minutes at 100% .

1. Enter cooking time 500.

2. Touch START/INSTANT ON pad.

Keep Warm

KEEP WARM can only be programmed with manual cooking or as a separate program.

• For example: Cook a baked potato for 4 minutes at 100% power and you want to keep it warm after cooking for 30 minutes.
• Touch the desired cook time for 1 baked potato. Ex: 40 minutes.
• Touch KEEP WARM pad.
• Touch START/INSTANT ON pad.

At the end of cook time, KEEP WARM is displayed warming food until end of 30 minutes.

To use Keep Warm as a separate program, touch KEEP WARM pad within 1 minute after cooking, closing the door or touching the STOP/CLEAR pad.

Hood Light/ Hood Fan

Your oven is equipped with a hood light and a hood fan which can be used whether the door is open or closed.

To turn the hood light on, touch the LIGHT pad once. To turn the hood light off, touch the LIGHT pad again.

To turn the hood fan on, touch the FAN HI/LO pad once for high speed. To turn the hood fan to low speed, touch pad twice and touch the pad three times to turn the fan off. When fan is manually turned on, "H" will be shown on the display. When the fan is turned off, "H" will disappear from display.

To Set Power Level

There are eleven preset power levels.

Using lower power levels increases the cooking time which is recommended for foods such as cheese, milk and long slow cooking of meats. Consult cookbook or recipes for specific recommendations.

- For example: Defrost for 5 minutes at 30% with the turntable on.

1. Enter defrost time 5 0 0 .
2. Touch POWER LEVEL pad and number 3 to enter power level 30%.
3. Touch START/INSTANT ON pad.

TOUCH POWER LEVEL PAD ONCE THEN TOUCH	APPROXIMATE PERCENTAGE OF POWER	COMMON WORDS FOR POWER LEVELS
POWER LEVEL 100% High
9 90%
8 80%
7 70% Medium High
6 60%
5 50%	Medium
4 40%
3 30%	Med Low/Defrost
2 20%
1 10%	Low
0	0%

Microwave Features

Auto Defrost

Auto Defrost automatically defrosts ground meat, steaks, chicken pieces.

• For example: Defrost a 2.0 pound steak.
• Touch AUTO DEFROST pad once. Then touch the AUTO DEFROST pad two more times to select steak.
  STEAK ENTER WEIGHT
• Enter weight by touching the number pads 20
• Touch START/INSTANT ON pad.
• The oven will stop and directions will be displayed. Follow the indicated message.

• After the first stage, open the door. Turn steak over and shield any warm portions. Close the oven. Touch START/INSTANT ON pad.

• After the second stage, open the door. Shield any warm portions. Close the door. Touch START/INSTANT ON pad.

• After defrost cycle ends, cover and let stand as indicated in the chart below.

NOTE:

• The weight can be entered in increments of 0.1 lb. If you attempt to enter more or less than the allowed amount ERROR WEIGHT TOO SMALL or TOO LARGE will appear in the display.
• Auto Defrost can be programmed with More or Less Time Adjustment. See page 23.
• To defrost other foods or foods above or below the weights allowed on Auto Defrost Chart, use time and 30% power. See Manual Defrost on page 13.

AUTO DEFROST CHART

TOUCH AUTO DEFROST PAD*	FOOD AMOUNT PROCEDURE
Once Ground Meat 0.5 - 3.0 lb Remove any thawed pieces after each audible signal. Let stand covered for 5 to 10 minutes.
Twice Steaks (chops)	0.5 - 4.0 lb After each audible signal, rearrange and if there are warm or thawed portions, shield with small flat pieces of aluminum foil. Remove any meat that is nearly defrosted. Let stand covered for 10 to 20 minutes.
3 times Chicken Pieces	0.5 - 3.0 lb	After each audible signal, if there are warm or thawed portions, rearrange or remove. Let stand covered for 10 to 20 minutes.
* Number of touches AFTER initial touch to access AUTO DEFROST.

NOTE:

Check foods when oven signals. After final stage, small sections may still be icy. Let stand to continue thawing. Do not defrost until all ice crystals are thawed.

Shielding prevents cooking from occurring before the center of the food is defrosted. Use small smooth strips of aluminum foil to cover edges and thinner sections of the food.

Microwave Features

Manual Defrost

If the food that you wish to defrost is not listed on the Auto Defrost Chart or is above or below the limits in the "Amount" column on the chart, you need to defrost manually.

You can defrost any frozen food, either raw or previously cooked, by using power level 3. Follow the exact 3-step procedure found under To Set Power Level on page 11. Estimate defrosting time and press 3 for 30% when you select the power level.

For either raw or previously cooked frozen food, the rule of thumb is approximately 5 minutes per pound. For example, defrost 5 minutes for 2-3 cups of casserole or 1 pound of frozen spaghetti sauce.

Always stop the oven periodically to remove or separate the portions that are defrosted. If food is not defrosted at the end of the estimated defrosting time, program the oven in 1 minute increments on power level 3 until totally defrosted.

When using plastic containers from the freezer, defrost only long enough to remove from the plastic in order to place food in a microwave-safe dish.

Sensor Cooking

Dacor's Sensor is a semi-conductor device that detects the vapor (moisture and humidity) emitted from the food as it heats. The Sensor adjusts the cooking times and power level for various foods and quantities. It takes the guesswork out of microwave cooking.

USING SENSOR SETTINGS:

• Room temperature should not exceed 95^ F.
- Be sure the exterior of the cooking container and the interior of the oven are dry. Wipe off any moisture with a dry cloth or paper towel.
- Sensor cooking can only be entered within 1 minute after cooking, opening and closing the door or touching the STOP/CLEAR pad.

- During the first part of sensor cooking, SENSOR REHEAT, POP CORN, REGULAR, SENSOR, BAKED, POTATO, FROZEN, VEG, SOFT, FRESH, VEG, HARD, FRESH, VEG, FROZEN, ENTREE, HOT, DOGS, BACON or FISH will appear on display. Do not open oven door or touch STOP/CLEAR during this part of the cooking cycle. The measurement of vapor will be interrupted. If this occurs, ERROR will appear and sensor cooking will

be interrupted. To continue cooking, touch the STOP/CLEAR pad and select cooking time and power. When sensor detects the vapor emitted from the food, remainder of cooking time will appear. Door may be opened when remaining cooking time appears on display. At this time, you may stir or season food, as desired.

• Check food for doneness after cooking with sensor settings. If additional time is needed, continue to cook with variable power and time.
• If the sensor does not detect vapor, ERROR will appear and the oven will shut off.
• At the end of any cycle, open oven door or touch STOP/CLEAR pad. The time of day will reappear on the display.
• Any sensor setting can be programmed with More or Less Time Adjustment. See page 23.

SELECTING FOODS:

• The sensor works with foods at normal storage temperature. For example, foods for reheating would be at refrigerator temperature and potatoes for baking would be room temperature.
• More or less food than the quantity listed in the charts should be cooked by time and variable power.

COVERING FOODS:

Some foods work best when covered. Use the cover recommended in the Sensor Cook Chart for these foods.

• Casserole lid.
• Plastic wrap: Use plastic wrap recommended for microwave cooking. Cover dish loosely; allow approximately 1/2 inch to remain uncovered to allow steam to escape. Plastic wrap should not touch food.
• Paper towel: Use paper towels to absorb excess fat and moisture when cooking bacon and potatoes. Line the turntable when baking potatoes.
• Wax paper: Cover dish completely; fold excess wrap under dish to secure. If dish is wider than paper, overlap two pieces at least one inch to cover.

Microwave Features

Instant Sensors

Your oven has Instant Sensor Popcorn and Instant Sensor Reheat. To use any of the Instant Sensors, simply touch the chosen pad. The oven will start automatically. Any sensor setting can be programmed with More or Less Time Adjustment. See page 23.

INSTANT SENSOR REHEAT

Turntable on:

You can reheat many foods by touching just one pad. You don't need to calculate reheating time or power level. To reheat food with turntable on, simply touch the SENSOR REHEAT pad.

1. Touch SENSOR REHEAT pad.

(Note : Sensor Reheat can be programmed with turntable on or off).

SENSOR REHEAT will be displayed repeatedly. When sensor detects the vapor emitted from the food, remainder of cooking time will appear.

1. After cooking LET STAND COVER will be displayed.

Turntable off:

You may reheat using a 11"x8"x2" or 13"x9"x2" casserole with the turntable off. First touch TURNTABLE ON/OFF and note indicator. Then touch SENSOR REHEAT. The display will indicate turntable off and oven will start automatically. After cooking, LET STAND COVER will be displayed.

INSTANT SENSOR POPCORN

- For example: Pop a 3.5 oz bag of popcorn.

1. Touch POPCORN pad once for regular size bag.

SENSOR POPCORN REGULAR will be displayed repeatedly.

1. After cooking END will be displayed.

This sensor setting works well with most brands of microwave popcorn. You may wish to try several and choose your favorite. Pop only one bag at a time. Unfold the bag and place in oven according to directions.

POPCORN CHART

TOUCH POPCORN PAD	FOR AMOUNT
Once	3.0 and 3.5 oz bag (Regular size)
Twice	1.5 and 1.75 oz bag (Snack size)

INSTANT SENSOR CHART

FOOD AMOUNT PROCEDURE
Leftovers such as rice, potatoes, vegetables casserole	4 - 32 oz Place in dish or casserole slightly larger than amount to be reheated. Flatten, if possible. Cover with lid, plastic wrap or wax paper. Use covers such as plastic wrap or lids with larger quantities of more dense foods such as stews.
Soup 1 - 4 cups After reheating, stir well, if possible. Foods should be very hot. If not, continue to heat with variable power and time. After stirring, recover and allow to stand 2 to 3 minutes.
Canned entrees and vegetables	4 - 16 oz Use less Time Adjustment by touching POWER LEVEL pad twice for small quantities of canned vegetables.
Dinner Plate 1 plate	3 - 6 oz of meat plus vegetables and/or potato/rice	Use this pad to reheat precooked foods from the refrigerator. Place meaty portions and bulky vegetables to outside of plate. Cut large items like baked potatoes in smaller pieces. Flatten foods such as mashed potatoes and other dense foods. Cover with wax paper or plastic wrap. ONE PLATE ONLY. After cooking, check that food is very hot throughout and that the bottom center of the plate is very hot. If not, continue heating using time and power level. Allow to stand, covered, 2 to 3 minutes.
Popcorn Only 1	package at a time	Use only popcorn packaged for microwave oven use. Try several brands to decide which you like best. Do not try to pop unpoped kernels. More/Less Time Adjustment can be used to provide adjustment needed for older popcorn or individual tastes.

Microwave Features

Sensor Cook

- For example: To cook a baked potato.

1. Touch SENSOR COOK pad. SELECT FOOD NUMBER

2. Select desired sensor setting. Touch 1 to cook baked potatoes.

3. Touch START/INSTANT ON pad. When sensor detects the vapor emitted from the food, the remainder of cooking time will appear.

4. Open oven door or touch STOP/CLEAR pad. The time of day will appear in the display.

SENSOR COOK CHART

FOOD AMOUNT PROCEDURE
1. Baked Potatoes 1 - 6 med. Pierce. Place on paper-towel-lined drawer. After cooking, remove from microwave, wrap in aluminum foil and let stand 5 to 10 minutes.
2. Frozen Vegetables 1 - 6 cups Cover with lid or plastic wrap. After cooking, stir and let stand 3 min-utes, covered.
3. Fresh Vegetables: Soft Broccoli Brussel sprouts Cabbage Cauliflower (flowerets) Cauliflower (whole) Spinach Zucchini Baked apples	0.25 - 2.0 lb. 0.25 - 2.0 lb. 0.25 - 2.0 lb. 0.25 - 2.0 lb. 1 med. 0.25 - 1.0 lb. 0.25 - 2.0 lb. 2 - 4 med.	Wash and place in casserole. Do not add water if vegetables have just been washed. Cover with lid for tender vegetables. Use plastic wrap for tender-crisp vegetables. After cooking, stir, if possible. Let stand covered for 2 to 5 minutes.
4. Fresh Vegetables: Hard Carrots, sliced Corn on the cob Green beans Winter squash: diced halves	0.25 - 1.5 lb. 2 - 4 pcs 0.25 - 1.5 lb. 0.25 - 1.5 lb. 1 - 2	Place in casserole. Add 1 - 4 tablespoons water. Cover with lid for tender vegetables. Use plastic wrap cover for tender-crisp vegetables. After cooking, stir, if possible. Let stand covered for 2 to 5 minutes.
5. Frozen Entrees	6 - 17 oz.	Use this for frozen convenience foods. It will give satisfactory results for most brands. You may wish to try several and choose your favorite. Remove package from outer wrapping and follow package directions for covering. After cooking, let stand covered for 1-3 minutes.
6. Hot Dogs	1 - 4 servings	Place hot dog in bun and wrap in paper towel or paper napkin.
7. Bacon	2 - 6 slices	Place bacon on paper plate, lined with paper towel. Bacon should not extend over the rim of plate. Cover with paper towel.
8. Fish/seafood	0.25 - 2.0 lb.	Arrange in ring around shallow glass dish (roll fillet with edges underneath). Cover with vented plastic wrap. After cooking, let stand covered for 3 minutes.

Microwave Features

SENSOR COOK RECIPES

CRANBERRY FLUFF

Makes 6 to 8 servings

2 cups fresh cranberries 1

carton (3 ounces) orange flavored gelatin

1 cup water 1/2 pint whipping cream, whipped or

3/4 cup sugar 1 carton (8 ounces) non-dairy whipped topping

1. Combine cranberries, water and sugar in a 2-quart casserole. Cover with wax paper. Microwave using SENSOR COOK for Fresh Vegetables-soft. Drain cranberries and save liquid.

2. Add enough hot water to save liquid to make 2 cups. Stir the gelatin into hot liquid until it dissolves. Cover with wax paper. Microwave using SENSOR REHEAT.

3. Add berries and cool. Refrigerate until thickened. Fold whipped cream into cooled cranberry mixture. Spoon into serving dishes and garnish with extra whipped cream. Refrigerate until ready to serve.

CURRY VEGETABLE CHOWDER

Makes 4 servings

6 slices bacon 3/4 teaspoon salt

1 can (10 3/4 ounces) chicken broth 1/2 teaspoon curry powder

3 medium potatoes, finely diced (about 2 cup) 1/8 teaspoon pepper

2 carrots, shredded (about 1 cup) 1 can (12 ounces) evaporated milk

1 small onion, chopped (about 1/2 cup) 2 tablespoons chopped fresh parsley

1. Layer 2 paper towels on a microwave-safe plate. Arrange bacon on the towels. Cover with another paper towel. Microwave using SENSOR COOK for Bacon. Crumble and save bacon.

2. Combine chicken broth, vegetables and seasonings in 4-quart casserole. Cover with vented plastic wrap. Microwave using SENSOR COOK for Baked potatoes. Vegetables should be tender.

3. Stir in evaporated milk. Re-cover with vented plastic wrap. Microwave using SENSOR REHEAT Less. Stir in parsley. Let stand, covered, 5 minutes.

4. Top each serving with crumbled bacon.

GLAZED APPLE SLICES

Makes 6 to 8 servings

1/4 cup brown sugar 3/4 cup orange juice

3 tablespoons margarine or butter 1 tablespoon cornstarch

2 tablespoons apricot preserves

1/2 teaspoon ground nutmeg

1/4 teaspoon salt

1/2 cup sugar

4 baking apples (about 1 1/2 pounds), peeled and sliced into 8 pieces each

3 tablespoons chopped green pistachios

1. Combine brown sugar, margarine and apricot preserves in a small bowl. Microwave at HIGH (100%) until margarine melts and preserves soften, 45 seconds to 1 minute. Stir in nutmeg, salt, sugar, orange juice and cornstarch. Microwave at HIGH (100%) until thickened, 4 to 6 minutes, stirring several times.

2. Arrange apple slices in a large microwave serving dish. Spread hot sauce over apples. Cover well with vented plastic wrap. Microwave using SENSOR COOK for Fresh vegetables-soft. Allow to cool 5 minutes before serving.

3. Sprinkle with pistachios. Serve alone or over vanilla ice cream or sponge cake.

Microwave Features

SENSOR COOK RECIPES (CONT.)

MEXICAN SEASONED POTATOES

Makes 6 to 8 servings

4 medium baking potatoes (8 ounces each) 1/2 teaspoon oregano leaves
1/4 cup olive oil 1/4 teaspoon ground cumin
1 tablespoon instant minced onion 1/2 teaspoon salt
1/2 teaspoon chili powder

1. Cut each potato lengthwise into 4 equal wedges. Place potato wedges into 10-inch square casserole. Toss potatoes with oil to coat well.
2. In small bowl, combine remaining ingredients. Sprinkle over potatoes.
3. Cover potatoes with wax paper. Microwave using SENSOR COOK for Baked potatoes setting. Rearrange potatoes when time appears on display. Let stand, covered, 5 minutes.

SPICED CARROTS

Makes 6 to 8 servings

3 cups sliced carrots, 1/4 inch thick 2 teaspoons vinegar
1/2 cup chopped green pepper, 1-inch cubes 1 teaspoon soy sauce
1/4 cup linely chopped onion 1/2 teaspoon salt
3 tablespoons water 1/2 teaspoon prepared mustard
1 can (7 3/4 ounces) semi-condensed tomato soup
1/8 teaspoon pepper
1/2 cup sugar

1. In a 1 1/2-quart casserole, combine carrots, green pepper, onion and water. Cover with lid. Microwave using SENSOR COOK for Fresh vegetables-hard. Carrots should be tender-crisp. Drain.

2. Stir in remaining ingredients. Cover and microwave using SENSOR REHEAT.

SAVORY FLOUNDER FILLETS

Makes 4 servings

3/4 cup of corn flake crumbs

3 tablespoons chopped parsley 1

2 teaspoons grated lemon peel

1/2 teaspoon paprika

pound flounder fillets

1 egg, slightly beaten

1. On waxed paper, combine corn flake crumbs, parsley, lemon peel and paprika. Dip fillets in beaten egg, then coat with crumb mixture.
2. Place fish in a covered, microwave-safe, baking dish. Microwave using SENSOR COOK for Fish, seafood.
3. Serve with tartar or cocktail sauce or melted cheese.

Microwave Features

SENSOR COOK RECIPES (CONT.)

CREOLE CORN

Makes 6 servings

2 teaspoons oil 1 teaspoon brown sugar

1/2 cup chopped celery 1/2 teaspoon onion powder

1/2 cup chopped green pepper 1/4 teaspoon garlic powder

16 ounce can tomatoes salt and pepper to taste

4 ounce can mushroom stem and pieces, drained 1 package (16 ounces) frozen corn

1. In 2-quart casserole, combine oil, celery, green pepper, tomatoes, mushrooms, sugar, onion powder, garlic powder, salt and pepper.
2. Microwave using SENSOR REHEAT. Set aside.
3. In covered, 1-quart casserole, microwave corn using SENSOR COOK for Frozen vegetables. Drain.
4. Combine corn and vegetable-seasoning mixture. Stir and serve immediately.

Manual Convection /Automatic Mix Operation

This section of the Operation Manual gives you specific cooking instructions and procedures. Please consult your Dacor Convection Microwave Cookbook for helpful hints for convection and combination cooking.

The oven should not be used without the turntable in place, and it should never be restricted so that it cannot rotate. You may remove the turntable when preheating the oven and when preparing food to be cooked directly on the turntable.

Convection Cooking

During convection heating, hot air is circulated throughout the oven cavity to brown and crisp foods quickly and evenly. This oven can be programmed for ten different convection cooking temperatures for up to 99 minutes, 99 seconds.

TO COOK WITH CONVECTION

• For example: Cook at 350^ F for 20 minutes.

1. Touch CONVECTION pad. SELECT TEMP
2. Touch number pad for desired temperature. Ex: Pad 6 for 350^ .
3. Enter cooking time. Ex: 2000 min.
4. Touch START/INSTANT ON pad.

TO PREHEAT AND COOK WITH CONVECTION

Your oven can be programmed to combine preheating and convection cooking operations. You can preheat at the same temperature as the convection temperature or change it to a higher or lower temperature.

- For example: Preheat until 350^ F and then cook 25 minutes at 375^ F convection.

1. Touch PREHEAT pad. SELECT PREHEAT TEMP
2. Touch number pad for desired temperature. Ex: 6 for 350^ F.
3. Touch CONVECTION then touch number pad for temp. Ex: 7 for 375^
4. Enter cooking time. Ex: 2500 min.
5. Touch START/INSTANT ON pad.

When the oven reaches the programmed temperature, it will automatically hold at the preheat temperature for 30 minutes and then the display will change to time of day. Whenever STOP/CLEAR pad is touched during this 30 minute period, PRESS CONVEC or PRESS MIX will be displayed and cooking mode and time can be entered.

NOTE:

To preheat and cook with the same temperature, enter same temperature in steps 2 and 3.

Manual Convection /Automatic Mix Operation

TO BROIL

In the BROIL setting, preheating is automatic. Just enter the actual broiling time and wait for preheat to be over before adding food. (Preset 450°F). Oven temperature cannot be changed.

- For example: Broil a ham steak for 15 minutes.

1. Touch BROIL pad. 450F ENTER COOKING TIME

2. Enter cooking time. Ex: 1500 min.

3. Touch START/INSTANT ON pad.

TO SLOW COOK

Slow Cook is a preset at 300^ F. Slow Cook is programmed for 4 hours. Oven temperature can be changed to temperature below 300^ F. Simply touch the SLOW COOK pad and touch the desired numbered pad with temperature below 300^ F.

1. Touch SLOW COOK pad. 300F 4 HOURS PRESS START

2. Touch START/INSTANT ON pad. The oven begins counting and continues to 4 hours.

Automatic Mix Cooking

This oven has two pre-programmed settings that make it easy to cook with both convection heat and microwave automatically.

With the exception of those foods that cook best by convection heating alone, most foods are well suited to mix cooking using either LOW MIX/BAKE or HIGH MIX/ROAST.

The marriage of these two cooking methods produces juicy meats, moist and tender cakes and fine textured breads, all with just the right amount of browning and crispness.

The temperature can be changed; however, the microwave power cannot.

The oven temperature can be changed from 100°F to 450°F. To change the temperature, first touch HIGH MIX or LOW MIX, then touch the same pad again. When the display says SELECT TEMP, touch desired temperature pad. Ex: HIGH MIX, HIGH MIX, pad 7 and START/INSTANT ON. The mix temperature will change automatically.

TO COOK WITH AUTOMATIC MIX

- For example: Bake a cake at low mix for 20 minutes.

1. Touch LOW MIX/BAKE pad. 325F ENTER COOKING TIME

2. Enter cooking time. Ex: 2000 min.

3. Touch START/INSTANT ON pad.

At the end of the baking time, 1 long tone will sound and END will be displayed.

TO PREHEAT AND COOK WITH AUTOMATIC MIX

Your oven can be programmed to combine pre-heating and Automatic Mix cooking operations. You can preheat at the same temperature as the preset combination temperature or change it to a different temperature.

- For example: Preheat until 350°F and then cook 25 minutes on 325°F Low Mix/Bake.

1. Touch PREHEAT pad. SELECT PREHEAT TEMP

2. Touch number pad for desired temperature. Ex: 6 for 350^ F.

3. Touch LOW MIX/BAKE pad.

4. Enter cooking time. Ex: 2500 min.

5. Touch START/INSTANT ON pad.

At the end of the baking time, 1 long tone will sound and END will be displayed.

Convection Automatic Mix Features

This section of the Use & Care Manual offers instructions for preparing 12 popular foods using Auto Broil, Auto Roast and Auto Bake.

After selecting the desired feature, follow the directions indicated in the display.

For helpful hints, simply touch HELP GUIDE anytime HELP is lighted in the display.

Auto Broil

Auto Broil automatically broils hamburgers, chicken pieces, steaks and fish steaks.

- For example: Broil 2 hamburgers.

1. Touch AUTO BROIL pad. SELECT FOOD NUMBER
2. Touch number pad. Ex: for hamburgers, touch 1.
3. Touch number pad to enter quantity. Ex: 2. Follow information in display for cooking information.

For well done or rare burgers, touch POWER LEVEL pad to select More for well done or Less for rare. See More or Less Time Adjustment on page 23.

1. Touch START/INSTANT ON pad.

After Auto Broil preheat cycle ends, 4 long tones will sound. PREHEAT OVER PLACE FOOD IN OVEN will be displayed repeatedly. Open the door and place hamburgers into oven. Close the door.

1. Touch START/INSTANT ON pad.

After Auto Broil cycle ends, 1 long tone will sound and END will be displayed.

NOTE:

• Auto Broil can be programmed with More or Less Time Adjustment. See page 23.
• If you attempt to enter more or less than the allowed weight ERROR WEIGHT TOO LARGE PRESS CLEAR or ERROR WEIGHT TOO SMALL PRESS CLEAR will appear in the display. If you enter more or less than the allowed number ERROR 0 QTY PRESS CLEAR or ERROR TOO MANY PRESS CLEAR will appear in the display.
• To broil other foods or foods above or below the weight or number allowed on the chart below, follow instructions in the Dacor Convection Microwave Cookbook. See Broiling Chart.

AUTO BROIL CHART

SETTING/FOOD	AMOUNT PROCEDURE
1. HAMBURGERS 1 - 8 pieces Use this setting to broil hamburger patties. Place on low rack.1/4 lb each
2. CHICKEN 0.5 - 3.0 lb Arrange pieces on low rack. After cooking, let stand, 3-5 minutes. Dark meat should be 180^ , and white meat should be 170^ .
3. STEAKS 0.5 - 2.0 lb Use this setting to broil steaks from 3/4" to 1" thick. Individual boneless steaks broil evenly. Place steak on low rack. For well done, touch POWER LEVEL once; for rare, touch POWER LEVEL twice.
4. FISH STEAKS 0.5 - 2.0 lb Use this setting to broil fish steak which is 3/4" to 1" thick. Place on low rack.

Convection Automatic Mix Features

Auto Roast

Auto Roast automatically roasts chicken, turkey, turkey breast or pork.

- For example: Roast a 2.5 pound chicken.

1. Touch AUTO ROAST pad. SELECT FOOD NUMBER
2. Touch number pad. Ex: for chicken, touch 1.
3. Touch number pad to enter weight. Ex: 25
4. Touch START/INSTANT ON pad.

After Auto Roast cycle end, a long tone will sound.

LET STAND COVERED FOR 5-10 MIN will be displayed.

NOTE:

• Auto Roast can be programmed with More or Less Time Adjustment. See page 23.
• If you attempt to enter more or less than the allowed weight ERROR WEIGHT TOO LARGE PRESS CLEAR or ERROR WEIGHT TOO SMALL PRESS CLEAR will appear in the display.
• To roast other food or foods above or below the weights allowed on the chart below, check the Dacor Convection Microwave Cookbook's Combination Roasting Chart.

AUTO ROAST CHART

SETTING/FOOD	AMOUNT	RACK	PROCEDURE
1. CHICKEN 2.5 - 7.0 lb Low After the cycle ends, cover with foil and let stand for 5-10 minutes. Internal temperature of white meat should be 170^ and of dark meat, 180^ .
2. TURKEY (UNSTUFFED)	6.5 - 9.0 lb Low Season, as desired. Place on low rack. After the cycle ends, cover with foil and let stand 10 minutes. Internal temperature of white meat should be 170^ and of dark meat, 180^ .
3. TURKEY BREAST	3.0 - 6.0 lb Low Season, as desired. Place on low rack. After the cycle ends, cover foil and let stand 10 minutes. Internal temperature of white meat should be 170^ .
4. PORK 2.0 - 3.5 lb Low Boneless pork loin is recommended because it cooks evenly. Place on low rack. After cooking, remove from oven, cover with foil and allow to stand 5-10 minutes. Internal temperature should be 160^ .

Convection Automatic N

Auto Bake

Auto Bake automatically bakes cakes, brownies, muffins and French fries.

- For example: Bake a 13"x9"x2" cake.

1. Touch AUTO BAKE pad. SELECT FOOD NUMBER Note: Turntable function is automatically turned OFF.
2. Touch number pad. Ex: for cake, touch 1.
3. Touch START/INSTANT ON pad.

After Auto Bake preheat cycle ends, 4 long tones will sound. PREHEAT OVER PLACE FOOD IN OVEN will be displayed repeatedly. Open the door and place cake pan inside. Close the door.

1. Touch START/INSTANT ON pad.

After Auto Bake cycle ends, 1 long tone will sound and END will be displayed.

NOTE:

• Auto Bake can be programmed with More or Less Time Adjustment. See page 23.
• To bake other food, see the Dacor Convection Microwave Cookbook's Baking Section.

AUTO BAKE CHART

SETTING/FOOD	AMOUNT	RACK	PROCEDURE
1. CAKE 13"x9"x2" Low Ideal for packaged cake mix or your own recipe for 13"x9"x2" pan. Prepare according to package or recipe directions and place in a greased and floured 13"x9"x2" baking pan. After the preheat is over, place pan in oven centered on low rack. Cool before frosting and serving.
2. BROWNIES 13"x9"x2" Low Ideal for packaged brownie mix or your own recipe for 13"x9"x2" pan. Prepare according to package or recipe directions and place in a greased and floured 13"x9"x2" baking pan. After the preheat is over, place pan in oven centered on low rack. Cool before cutting into serving pieces.
3. MUFFINS 12 cup muffin pan	Low	Ideal for packaged muffin mix or your own recipe for 12 medium size muffins. Prepare according to package or recipe directions and place in one 12-cup muffin pan. After the preheat is over, place pan in oven centered on low rack.
4. FRENCH FRIES	3 to 24 oz cookie sheet to hold	Low Use frozen prepared French fries.No preheat is required for the French fries baking procedure. Place French fries on cookie sheet on low rack.For shoestring potatoes, touch POWER LEVEL pad twice to enter less time before touching START/INSTANT ON pad.

Other Features

Multiple Sequence Cooking

The oven can be programmed for up to 4 automatic cooking sequences for the microwave mode and 3 automatic cooking sequences for convection mode, switching from one setting to another automatically.

Sometimes cooking directions tell you to start on one power level and then change to a different power level. Your oven can do this automatically.

- For example: Cook roast beef for 5 minutes at 90% and then continue to cook for 30 minutes at 50%.

1. Touch POWER LEVEL pad once.
2. Touch POWER LEVEL number. Ex: 9 for 90%.
3. Enter cooking time. Ex: 500 for 5 minutes.
4. Touch POWER LEVEL pad again.
5. Touch the number for power level. Ex: 5 for 50%.
6. Enter cooking time. Ex: 3000 for 30 minutes.
7. Touch START/INSTANT ON pad.

NOTE:

• If the POWER LEVEL pad is touched once, HIGH will be displayed.
• If 100% is selected as the final sequence, it is not necessary to touch the POWER LEVEL pad.
• If you wish to know the power level during cooking, simply touch the POWER LEVEL pad. As long as your finger is touching the POWER LEVEL pad, the power level will be displayed.

Easy Minute

Easy Minute allows you to cook for a minute at 100% by simply touching the EASY MINUTE pad. You can also extend cooking time in multiples of 1 minute by repeatedly touching the EASY MINUTE pad during manual cooking using microwave, convection, mix or broil.

• For example: Heat a cup of soup for one minute.

Touch EASY MINUTE pad.

NOTE:

• Touch EASY MINUTE pad within 1 minute after cooking, closing the door, touching the STOP/CLEAR pad or during cooking. Easy Minute cannot be used to start the oven if any program is on display.
• Easy Minute cannot be used with Special Features.

More Or Less Time Adjustment

MORE : Should you discover that you like any of the AUTO DEFROST, AUTO ROAST, AUTO BAKE, AUTO BROIL, SENSOR COOK or INSTANT SENSOR settings slightly more done, touch the POWER LEVEL pad once after touching your choice of pads.

LESS : Should you discover that you like any of the AUTO DEFROST, AUTO ROAST, AUTO BAKE, AUTO BROIL, SENSOR COOK or INSTANT SENSOR settings slightly less done, touch the POWER LEVEL pad twice after touching your choice of pads.

Kitchen Timer

• For example: Time a 3 minute long distance phone call.
1. Touch the KITCHEN TIMER pad.
2. Enter time 300 .
3. Touch the START/INSTANT ON pad.

Demonstration Mode

To demonstrate, touch CLOCK, 0 and START/INSTANT ON and hold for three seconds. DEMO ON DURING DEMO NO OVEN POWER and DEMO will appear in the display. Cooking operations and special features can now be demonstrated with no power in the oven. For example, touch EASY MINUTE, and the display will show 1.00 and count down quickly to 0 and the END.

To cancel, touch CLOCK, the number 0 and STOP/CLEAR.

Help

Each setting of Auto Defrost, Auto Broil, Auto Roast, Auto Bake and Sensor Cook has a cooking hint. If you wish to view, touch HELP GUIDE whenever HELP is lit in the interactive display.

Other Features

Help Guide

Help Guide provides 5 features which make using your oven easy because specific instructions are provided in the interactive display.

1. CHILD LOCK

The Child Lock prevents unwanted oven operation such as by small children. Note: Child Lock is not applicable to Hood Fan and Hood Light buttons.

The oven can be set so that the control panel is de-activated or locked. To set, touch HELP GUIDE, the number 1 and START/INSTANT ON pad. Should a pad be touched, LOCK will appear in the display.

To cancel, touch HELP GUIDE, the number 1 and STOP/CLEAR.

2. AUDIBLE SIGNAL ELIMINATION

If you wish to have the oven operate with no audible signal, touch HELP GUIDE, the number 2 and STOP/CLEAR.

To cancel and restore the audible signal, touch HELP GUIDE, the number 2 and START/INSTANT ON.

3. AUTO START

If you wish to program the Microwave oven to begin cooking automatically at a designated time of day, follow this procedure.

- For example: Start cooking a stew for 20 minutes on 50% at 4:30. Before setting, check to make sure the clock is set correctly.

1. Touch SETUP/HELP pad.
2. Touch number 3.
3. Enter start time. 430
4. Touch CLOCK pad.
5. Enter cooking time. 2000
6. Touch POWER LEVEL pad and number 5 to enter power level 50%.
7. Touch START/INSTANT ON pad.

NOTE:

• Auto Start can be used for manual cooking, Auto Broil/Roast/Bake, if clock is set.
• If the oven door is opened after programming Auto Start, it is necessary to touch the START/INSTANT ON pad for the time of day to appear in the readout so that the oven will automatically begin programmed cooking at the chosen Auto Start time.
• Be sure to choose foods that can be left in the oven safely until the Auto Start time. Baked potatoes are often a good choice.

4. LANGUAGE SELECTION

The oven comes set for English language. To change, touch HELP GUIDE and the number 4. Continue to touch the number 4 until your choice is selected from the table below. Then touch START/INSTANT ON pad.

NUMBER 4 LANGUAGE DISPLAY
Once English	ENGLISH
Twice Spanish	ESPAÑOL
3 times French	FR

5. WEIGHT/TEMP SELECTION

The oven comes set for U.S. Customary Unit-pounds. To change, touch HELP GUIDE and the number 5 . Continue to touch the number 5 until your choice is selected from the table below. Then, touch STARTINSTANT ON pad.

NUMBER 5	STANDARD OF WEIGHT AND TEMPERATURE	DISPLAY
Once Pound/Fahrenheit		LB F
Twice Kilogram/Celsius		KG C

Instant On

Instant On allows you to cook at 100% power by touching the START/INSTANT ON continuously. nstant On is ideal for melting cheese, bringing milk to just below boiling etc. The maximum cooking time is 3 minutes.

- For example: Melt cheese on a piece of toast.

1. Continuously touch START/INSTANT ON pad. The cooking time will begin counting up.

2. When the cheese is melted to desired degree, remove finger from START/INSTANT ON pad. Oven stops immediately.

NOTE:

• Note time it takes for frequently used foods and program that time in the future.
• Touch START/INSTANT ON pad within 1 minute after cooking, opening and closing the door or touching the STOP/CLEAR pad.
• Instant On can only be used 3 times in a row. If more times are needed, open and close door or touch STOP/CLEAR.

Cleaning and Care

Exterior

The outside surface is precoated metal and plastic. Clean the outside with mild soap and water; rinse and dry with a soft cloth. Do not use any type of household or abrasive cleaner.

Door

Wipe the window on both sides with a damp cloth to remove any spills or spatters. Metal parts will be easier to maintain if wiped frequently with a damp cloth. Avoid the use of harsh abrasives.

Touch Control Panel

Care should be taken in cleaning the touch control panel. If the control panel becomes soiled, open the oven door to inactivate the control panel before cleaning. Wipe the panel with a cloth dampened slightly with water only. Dry with a soft cloth. Do not scrub or use any sort of chemical cleaners. Avoid the use of excess water. Close door and touch STOP/CLEAR.

Interior

The oven walls, ceiling and floor are stainless steel. Cleaning after microwave cooking is easy because no heat is generated to the interior surfaces; therefore, there is no baking and setting of spills or spattering. To clean the interior surfaces, wipe with a soft cloth and warm water. DO NOT USE ABRASIVE OR HARSH CLEANERS OR SCOURING PADS. For heavier soil, use mild soap; rinse thoroughly with hot water.

AFTER CONVECTION, MIX OR BROIL COOKING

Spatters may occur because of moisture and grease. Wash immediately after use with hot, soapy water. Rinse and polish dry. Harder to remove spatters may occur if oven is not thoroughly cleaned or if there is long time/high temperature cooking. If so, you may wish to purchase an oven cleaner pad with liquid cleaner within it-not a soap filled steel pad-for use on stainless or porcelain surfaces. Follow manufacturer's directions carefully and be especially cautious not to get any of the liquid cleaner in the perforations on the wall or ceiling or any door surfaces. Rinse thoroughly and polish dry.

Stirrer Cover

ATTENTION The stirrer cover is located on the ceiling in the oven cavity. It is made from mica so requires special care. Keep the stirrer cover clean to assure good oven performance. Carefully wipe with a damp cloth any food spatters from the surface of the cover immediately after they occur. Built-up splashes may overheat and cause smoke or possibly catch fire. DO NOT REMOVE THE STIRRER COVER.

Odor Removal

Occasionally, cooking odors may remain in the oven. To remove odors, combine 1 cup water, grated peel and juice of one lemon and several whole cloves in a 2-cup glass measuring cup. Boil for several minutes using 100% power. Allow to set in the oven until cool. Wipe interior with a soft cloth.

Turntable/Turntable Support

The ceramic turntable and turntable support can be removed for easy cleaning. Wash them in mild, sudsy water; for stubborn stains use a mild cleanser and scouring sponge as described above. They are also dishwasher-safe using top rack.

Two simple line drawings: a circular plate with internal lines and a three-pronged mechanical component (no text or symbols)

Oven Racks

The high and low baking racks can be removed for easy cleaning and stored away from the microwave oven when racks are not needed. After each use, wash them in mild, sudsy water. For any stubborn stains, use a mild kitchen cleanser and scouring sponge as described above. They are dishwasher-proof.

Two identical oval-shaped furniture or tableware items with vertical slats and three legs (no text or symbols)

Cleaning and Care

Grease Filters

Filters should be cleaned at least once a month. Never operate the fan or oven without the filters in place.

1. Pull the tab toward the front of the oven, down slightly and remove the filter. Repeat for the other filter.
2. Soak the filters in a sink or dish pan filled with hot water and detergent. DO NOT use ammonia or other alkali; they will react with the filter material and darken it.
3. Agitate and scrub with a brush to remove embedded dirt.
4. Rinse thoroughly and shake dry.
5. Replace by fitting the filter back into the opening.

Fan

The fan will automatically start when heat rises from range surface units or burners and when convection, high mix, low mix or the broil settings are used. This protects the microwave oven from excessive temperature rise. The fan will stay on until the temperature decreases. It cannot be turned off manually during this time.

For other uses, select either high or low speed.

PRECAUTIONS FOR PROPER USE:

1. DO NOT leave range unattended while using high temperatures. Automatic fan may start and provide excessive air to the surface units. This may cause spattering or boilover.
2. Avoid burning food.
3. Keep grease filters clean.

Light

1. To replace light bulbs, first disconnect power to the oven at the circuit breaker panel or by unplugging.
2. To release cover remove the screw on the light cover. (See illustration.)
3. Replace bulbs only with 20 watt bulbs available from a Dacor Authorized Servicer or parts distributor. Bulbs are also available at most hardware stores or lighting centers. DO NOT USE A BULB LARGER THAN 30 WATTS.
4. Close light cover and secure with screw removed in step 2.

CAUTION: Light cover may become very hot. Do not touch glass when light is on. Do not use light for long time use such as a night light.

Charcoal Filter

Charcoal Filter is used for non-vented, recirculated installation. The filter should be changed every 6 to 12 months depending on use.

To purchase a new filter, contact a local service agent.

1. Disconnect power to the oven at the circuit breaker panel or by unplugging.
2. Remove 2 screws that secure louver.
3. Pull the louver away from the oven.
4. Slide charcoal filter into position on support tabs.
5. Push louver back into place and gently snap tabs into place by hand and replace the 2 screws to secure louver.

Cleaning and Care

Oven Light

Remove the louver per instructions 1-3 above and charcoal filter, if used.

1. Slide the light cover forward and lift up.

2. Remove old light bulb and replace only with 20 watt bulb available from a Dacor Authorized Servicer or parts distributor. Bulbs are also available at most hardware stores or lighting centers. DO NOT USE A BULB LARGER THAN 30 WATTS.

3. Replace the oven light cover and charcoal filter, if used; push louver back in place and replace the louver mounting screws.

Service Call Check

Please check the following before calling for service:

1. Place one cup of water in a glass measuring cup in the oven and close the door securely. Operate the oven for one minute at HIGH 100%.

A Does the oven light come on? YES ____ NO ____
B Does the cooling fan work? (Put your hand over the rear ventilating openings.) YES	____ NO ____
C Does the turntable rotate? (It is normal for the turntable to turn in either direction.)	YES ____	NO ____
D Is the water in the oven warm? YES ____ NO ____
E Does "H" appear on the display when fan is manually turned on?	YES ____	NO ____

1. Remove water from the oven and operate the oven for 5 minutes at CONVECTION 450°F.

A Do CONV and COOK indicators light? YES ____ NO ____
B After the oven shuts off, is inside of the microwave oven hot? YES ____ NO ____

If "NO" is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit breaker. If they are functioning properly, CONTACT YOUR NEAREST DACOR AUTHORIZED SERVICER.

A microwave oven should never be serviced by a "do-it-yourself" repair person.

NOTE:

If the time appearing on the display is counting down very rapidly, check Demonstration Mode on page 23 and cancel.

Specifications

AC Line Voltage: UL Rating - Single phase 120V, 60Hz, AC onlyCSA Rating - Single phase 116V, 60Hz, AC only
AC Power Required: UL Rating - 1600 W 13.2 amps.CSA Rating - 1500 W 13.0 amps.
Output Power Microwave:* 850 W (IEC Test Procedure)
Convection Heater: 1400 W
Frequency: 2450 MHz
Outside Dimensions: 29	^15/_16" (W) x 16^11/_32" (H) x 15^9/_32" (D)
Cavity Dimensions: 17	^1/_8" (W) x 8^1/_16" (H) x 13^13/_16" (D)
Oven Capacity:** 1.1 Cu. Ft.
Cooking Uniformity: Turntable & Stirrer Fan
Weight:	Approx. 71 lb

* The International Electrotechnical Commission's standardized method for measuring output wattage. This test method is widely recognized.

** Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less.

In compliance with standards set by:

FCC - Federal Communications Commission authorized.

DHHS – Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I, Subchapter J.

- This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc. for use in USA or Canada.

Auto-Touch Guide

For more complete information and safety precautions, refer to the inside instructions.

SET CLOCK

If WELCOME PRESS CLEAR AND PRESS CLOCK is in the display, first touch STOP/CLEAR.

1. Touch CLOCK pad.

2. Enter correct time of day by touching numbers in sequence. Ex: 1230

3. Touch CLOCK pad again.

POPCORN

Touch POPCORN pad. Touch once for regular size and twice for snack size.

SENSOR REHEAT

Touch SENSOR REHEAT once. The oven will start automatically. SENSOR REHEAT can be programmed with turntable on or off. See Instant Sensor Chart on page 14.

SENSOR COOK

1. Touch SENSOR COOK pad.

2. Select desired SENSOR COOK setting. Ex: 1

3. Touch START/INSTANT ON pad.

See Sensor Cook Chart, page 15.

TO PREHEAT AND COOK WITH CONVECTION

1. Touch PREHEAT pad.
2. Touch number pad for desired temperature. Ex: touch pad 6 for 350^ F.
3. Touch CONVECTION pad.
4. Touch number pad for desired temperature. Ex: touch pad 5 for 325°F.
5. Enter cooking time by touching number pads. Ex: 2000
6. Touch START/INSTANT ON pad.

When the oven reaches the programmed temp., it will automatically hold at the preheat temperature for 30 minutes and then the display will change to the time of day. Whenever STOP/CLEAR is touched during this 30 minute period, PRESS CONVEC or PRESS MIX will be displayed and cooking mode and time can be entered.

For more information on convection cooking, see pages 18-19.

EASY MINUTE

Touch EASY MINUTE for one minute at 100% power or to add additional minutes.

MANUAL OPERATION

High Power Cooking

1. Enter cooking time by touching numbers pads. Ex: 130
2. Touch START/INSTANT ON pad.

Variable Power Cooking

1. After Step 1 above, touch POWER LEVEL pad.
2. Select power level. Ex: 5 for 50% and touch START/INSTANT ON pad.

INSTANT ON

Continuously touch START/INSTANT ON for 100% power cooking. Remove finger and oven will stop instantly.

AUTO DEFROST

1. Touch AUTO DEFROST pad. Ex: three times for a steak.
2. Enter weight by touching number pad. Ex: 20
3. Touch START/INSTANT ON pad.

During defrosting, oven will stop. Check food. See Auto Defrost Chart on page 12.

AUTO ROAST/AUTO BAKE/AUTO BROIL

1. Touch desired AUTO pad.
2. Select desired Auto setting.
3. Touch number pad for weight or quantity.
4. Touch START/INSTANT ON pad.

See Auto Roast, Auto Bake and Auto Broil Charts on pages 20, 21 and 22.

TO COOK WITH AUTOMATIC MIX

1. Touch LOW MIX/BAKE pad.
2. Enter desired cooking time.
3. Touch START/INSTANT ON pad. Follow information on the display.

Your oven can be programmed to combine preheating and automatic mix cooking operations. See pages 18-19 for information.

Warranty

Customer Service

Customer Service

Before you request help or schedule service:

1. Try the Solutions offered in the Problem—Solution table in the "Troubleshooting" section.
2. Become familiar with the warranty terms and conditions of your product.
3. If none of these tips or suggestions resolves your problem, visit dacor.com or call our Customer Service center at:

[phone] (United States)

[phone] (Canada)

United States - Warranty

CERTIFICATE OF WARRANTY ON DACOR

MICROWAVE OVEN - UNITED STATES:

FULL TWO-YEARS WARRANTY

This warranty covers any defects in materials or workmanship in the Dacor-branded new appliance purchased from a Dacor Authorized Dealer or other seller authorized by Dacor.

This full warranty runs for two years starting from the date of original retail purchase receipt or closing date for new construction, whichever period is longer. Dacor will repair or replace your product.

LIMITED WARRANTY

After the Full Warranty period has ended, this product is warranted against defects in materials or workmanship reported to us during the applicable warranty periods as follows:

Cosmetic Defects. In addition, for 60 days from the date of purchase, your product is warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish). Color variations are excluded, and display, floor-model, "as-is" or refurbished products are specifically excluded.

COVERAGE LIMITATIONS

Service will be provided by a Dacor designated service company during regular business hours. Please note service providers are independent entities and are not agents of Dacor.

The owner must provide proof-of-purchase or a closing statement for new construction upon request. All Dacor products must be accessible for service.

Warranty will be null and void on product that has altered, defaced, or missing serial numbers and tags.

Warranty is null and void if non-CSA approved product is transported from the U.S.A.

WHAT IS NOT COVERED

Due to differences in painted parts, kitchen lighting, product placement, and other factors; this warranty does not apply to color variation.	Service calls to educate the customer on proper use and care of the product.
Service fees for travel to islands and remote areas, which include but are not limited to, ferries, toll roads, or other travel expenses.	Consequential or incidental damage, including but not limited to: food or medicine loss, time away from work, or restaurant meals.
Commercial, business, or rental use, or any application other than residential consumer use.	Failure of the product caused by improper product installation.
Replacement of house fuses, fuse boxes, or resetting of circuit breakers.	Damage caused by accident, fire, flood, power, interruption power surges, or acts of God.
Liability or responsibility for damage to surrounding property including cabinetry, floors, ceilings and other structures or objects.	Breakage, discoloration or damage to glass, metal surfaces, plastic components, trim, paint, or other cosmetic finish caused by improper usage, care, abuse, or neglect.
Except as noted above, consumable parts such as filters and light bulbs are not covered and are the responsibility of the purchaser.

THE REMEDIES PROVIDED IN THE ABOVE EXPRESS WARRANTIES ARE THE SOLE AND EXCLUSIVE REMEDIES. THEREFORE, NO OTHER EXPRESS WARRANTIES ARE MADE, AND OUTSIDE THE FIFTY STATES OF THE UNITED STATES AND CANADA, ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. IN NO EVENT SHALL DACOR BE LIABLE FOR INCIDENTAL EXPENSE OR CONSEQUENTIAL DAMAGES. IN THE EVENT DACOR PREVAILS IN ANY LAWSUIT, DACOR SHALL BE ENTITLED TO REIMBURSEMENT OF ALL COSTS AND EXPENSES, INCLUDING ATTORNEY'S FEES, FROM THE DACOR CUSTOMER. NO WARRANTIES, EXPRESS OR IMPLIED, ARE MADE TO ANY BUYER FOR RESALE.

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation of inconsequential damages, therefore the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state.

Warrantor: Samsung Electronics America, Ridgefield Park, NJ, 07660

Warranty

Canada - Warranty

CERTIFICATE OF WARRANTY ON DACOR MICROWAVE OVEN - CANADA:

This Limited Warranty covers only those Products supplied and distributed in Canada by us and delivered new, in the original carton or packaging, to the original consumer purchaser that are purchased from an authorized reseller or distributor, except as otherwise stated herein. Except where prohibited by applicable provincial law, only the original consumer purchaser of the Product has any rights under this Limited Warranty and this Limited Warranty may not be transferred or assigned. Any additional statements such as dealer advertising or presentation, whether oral or written, that make additional warranties or modifications to this Limited Warranty do not constitute warranties by us and should not be relied upon.

1. WHAT IS COVERED AND FOR HOW LONG

We warrant to the original purchaser ("Purchaser") that your Dacor Microwave Oven purchased from an authorized reseller or distributor in Canada (the "Products") is free from defects in material and workmanship encountered in normal use for the warranty period identified below, effective as of the date of purchase or closing date for new construction, whichever period is longer.

Dacor Product or Part	Warranty Period and Warranty Coverage
Microwave Oven	Two (2) Years: Parts and Labour

Cosmetic Defects. For sixty (60) days from the date of purchase, the Product is warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish). Color variations are excluded, and display, floor-model, "as-is" or refurbished products are specifically excluded.

2. COVERAGE LIMITATIONS

If the Product fails to operate according to the Product's specifications during the applicable warranty period and the failure is due to improper workmanship or defective material, we will repair or replace, at our sole option, and without charge to the Purchaser, the Product or any defective component part of the Product. We may, at our sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product. If the same model Product or part is not available for replacement, we may, at our sole option, replace the Product or part with any rebuilt, refurbished, reconditioned or new Product or part of similar utility and value to the Product or part being replaced.

We expressly reserve the exclusive right, at our sole option, and in lieu of any service, repair or replacement of a Product under this Limited Warranty, to offer the purchaser a partial refund of the original purchase price paid by the Purchaser for that Product (a "Partial Refund"). The amount of any Partial Refund to be offered shall be determined in our discretion based on the fair market value of the Product given its age and condition. If Purchaser accepts that offer of a Partial Refund, the Purchaser shall be deemed to have released us from any claim or liability whatsoever under this Limited Warranty or under any other applicable express or implied warranty or condition in respect of that Product.

All repaired parts or replaced Products will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product or for 90 days, whichever is longer.

3. WHAT IS NOT COVERED

The remedies provided for in this Limited Warranty are available only within Canada.

This Limited Warranty does not cover any defect, malfunction, failure or damage caused by or resulting from any of the following:

(a) removal, installation, re-installation, maintenance, or service of the Product that was not authorized by us; (b) accident, fire, flood, power interruption, power surges, incorrect line voltage or supply or electrical current, fuses, house wiring, circuit breakers, connectors not supplied by us, unusual electrical or electromechanical stress, acts of God, or acts of nature; (c) misuse, abuse, neglect, mishandling, misapplication, alteration or modification of the Product or any part of the Product; (d) use of the Product in conjunction with products, equipment, utilities, services, parts, supplies, accessories, applications, external wiring, connectors, or ancillary or peripheral equipment not supplied or authorized by us; (e) uses for which the Product was not intended.

Further, this Limited Warranty does not cover: (i) any Product or part from which the serial number has been removed or on which the serial number has been made illegible. Removing the serial number on any Product or rendering it illegible on any Product will immediately void the Limited Warranty for that Product; (ii) any damage whatsoever that occurs during shipment of the Product once the Product has been accepted by the Purchaser; (iii) any damage whatsoever resulting from any failure to follow operating, maintenance or environmental instructions contained in any instruction booklet or owner's manual available in connection with the Product; (iv) service fees for travel to islands and remote areas, which include but are not limited to, ferries, toll roads, or other travel expenses; (v) replacement of house fuses, fuse boxes, or resetting of circuit breakers; (vi) liability or responsibility for damage to surrounding property including cabinetry, floors, ceilings and other structures or objects; (vii) the cost of service calls for instructions, for the correction of installation errors, for customer adjust

Warranty

ments that are explained in the Product owner's manual, or where the Product operates according to the Product's specifications. There may be a service charge for service calls made for issues not covered under this Limited Warranty; (viii) breakage, discoloration or damage to glass, metal surfaces, plastic components, trim, paint, or other cosmetic finish caused by improper usage, care, abuse, or neglect; (ix) except as noted above, consumable parts such as filters and light bulbs are not covered and are the responsibility of the Purchaser; (x) commercial, business, or rental use, or any application other than residential consumer use; (xi) colour variation due to differences in painted parts, kitchen lighting, product placement, and other factors;

We do not warrant or guarantee uninterrupted or error-free operation of the Product.

4. WHAT ARE THE LIMITATIONS ON IN-HOME WARRANTY SERVICE?

In-home service is subject to availability, and it is not available in all areas of Canada. In-home service will only be provided if the Product is unobstructed and easily accessible from floor level to service personnel. If repair cannot be completed during in-home service or if in-home service is not available in your area, you may be directed to deliver the Product to a Dacor Authorized Service Center for warranty service. The cost of transportation of the Product to and from a Dacor Authorized Service Centre shall be paid by the Purchaser unless we elect to provide that transportation at our discretion.

To receive in-home service, the Purchaser must first contact Dacor Customer Care for problem determination and service procedures. All in-home warranty repairs must be performed by a Dacor Authorized Service Center. Valid proof of purchase must be presented to us at the time that service is requested and before warranty services are rendered.

When in-home service is not available, the Purchaser must return the Product to a Dacor Authorized Service Center for analysis. Assistance on where to deliver the Product can be obtained by contacting our Customer Service center. The cost of transporting the Product to or from the Authorized Service Center must be paid by the Purchaser.

5. WHAT ARE THE LIMITS OF OUR LIABILITY?

EXCEPT AS EXPRESSLY SET FORTH IN THIS LIMITED WARRANTY, OUR LIABILITY IS SUBJECT TO THE FOLLOWING LIMITATIONS:

(A) THE PURCHASER TAKES THE PRODUCT "AS IS" AND WE MAKE NO WARRANTY OR REPRESENTATION OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT.

(B) THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, WITH RESPECT TO THE PRODUCT.

(C) IN PARTICULAR, AND WITHOUT LIMITING THE GENERALITY OF THE FOREGOING PARAGRAPHS (A) AND (B), WE MAKE NO WARRANTY, CONDITION OR REPRESENTATION AS TO ANY OF THE FOLLOWING: (i) THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; (ii) TITLE OR NON-INFRINGEMENT; (iii) DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF THE PRODUCT; (iv) THE WORK-MANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; (v) COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING TO THE PRODUCT.

(D) NOTHING CONTAINED IN ANY INSTRUCTION MANUAL OR OWNER'S MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT.

THE PROVISIONS FOUND IN PARAGRAPHS (E) AND (F) BELOW DO NOT APPLY IN CIRCUMSTANCES WHERE THIS LIMITED WARRANTY IS GOVERNED BY THE LAWS OF THE PROVINCE OF QUEBEC.

(E) ALL IMPLIED WARRANTIES AND CONDITIONS THAT MAY ARISE BY OPERATION OF LAW, INCLUDING ANY APPLICABLE IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY LIMITED TO THE SAME DURATION OF TIME AS THIS LIMITED WARRANTY. SOME PROVINCES PROHIBIT LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, AND THE LIMITATION ON THE DURATION OF THE IMPLIED WARRANTY WILL NOT APPLY TO THE EXTENT THAT THE LIMITATION IS PROHIBITED BY APPLICABLE PROVINCIAL LAW.

(F) WE SHALL NOT BE LIABLE FOR DAMAGES OF ANY KIND (INCLUDING, WITHOUT LIMITATION, ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR SIMILAR DAMAGES) THAT RESULT OR ARISE DIRECTLY OR INDIRECTLY FROM ANY OF THE FOLLOWING: (i) THE PURCHASE, USE, OR MISUSE OF THE PRODUCT; (ii) ANY LOSS OF USE OF THE PRODUCT OR INABILITY TO USE THE PRODUCT; (iii) ANY BREACH OF THE EXPRESS WARRANTY; (iv) ANY LOSS OF ANTICIPATED PROFITS OR BENEFITS; (v) ANY LOSS OF FOOD OR CONSUMABLES; (vi) ANY TORT (INCLUDING NEGLIGENCE OR GROSS NEGLIGENCE) OR FAULT COMMITTED BY US, ITS AGENTS OR EMPLOYEES; (vii) ANY BREACH OF CONTRACT; (viii) ANY CLAIM BROUGHT AGAINST THE PURCHASER BY ANY OTHER PARTY. SOME PROVINCES PROHIBIT THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND THE ABOVE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES WILL NOT APPLY TO THE EXTENT THAT THE

Warranty

EXCLUSION IS PROHIBITED BY APPLICABLE PROVINCIAL LAW.

(G) THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM PROVINCE TO PROVINCE. THIS LIMITED WARRANTY STATES THE PURCHASER'S EXCLUSIVE REMEDY. EXCEPT WHERE PROHIBITED BY APPLICABLE PROVINCIAL LAW, THIS LIMITED WARRANTY IS NOT TRANSFERABLE WITHOUT OUR EXPRESS CONSENT.
(H) IF ANY PORTION OF THIS LIMITED WARRANTY IS HELD ILLEGAL OR UNENFORCEABLE BY REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY OR UNENFORCEABILITY SHALL NOT AFFECT THE ENFORCEABILITY FOR THE REMAINDER OF THIS LIMITED WARRANTY.

If the Product is purchased from a non-authorized reseller or distributor or purchased outside of Canada, this Limited Warranty does not apply except that the above limitations specified in Sections 5(A) through 5(I) shall apply.

Warrantor in Canada: Samsung Electronics Canada Inc., Mississauga, ON, L5N 0B9 Canada

OUTSIDE THE UNITED STATES AND CANADA:

LIMITED FIRST YEAR WARRANTY

If your Dacor product fails to function within one year of the original date of purchase due to a defect in material or workmanship, Dacor will furnish a new part, F.O.B. factory to replace the defective part.

All delivery, installation, labor costs, and other service fees are the responsibility of the purchaser.

Notes

Contact Dacor

If you have any questions or comments relating to Dacor appliances, please contact the Dacor Customer Service Center.

Country	Contact Center	Web Site
U.S.A	1-833-353-5483	www.dacor.com
CANADA	1-844-509-4659	www.dacor.com
