Brand	Logik
Model	L23GS10
Type	Combination Microwave (Microwave + Grill)
Dimensions (W x D x H)	485 mm x 395 mm x 287 mm
Microwave Output Power	800 Watts
Microwave Input Power	1250 Watts
Grill Input Power	1000 Watts
Power Supply	230 V ~ 50 Hz
Microwave Frequency	2450 MHz
Cooking Modes	Microwave, Grill, Combination (two modes), Auto Cooking (8 menus), Defrost by Weight/Time, Quick Start, Multi-stage, Delay Start
Control Panel	Digital display with numeric keypad, buttons for Clock, Defrost, Micro/Grill/Combi, Auto Menus, Start/Express, Stop/Clear, Child Lock
Accessories Included	Glass turntable, turntable ring, grill rack, instruction manual
Spare Parts Available	Glass turntable (252100500498), turntable ring (252200200008), grill rack (256511700002), instruction manual (261800303529)
Cleaning Instructions	Unplug and cool before cleaning; wipe interior with mild detergent and damp cloth; keep wave guide cover clean; do not use abrasive pads; wash racks in warm water
Safety Features	Child lock, door safety interlock, auto shut-off on door open, earthing required
Compliance	EEC directives 89/336/EEC and 92/31/EEC

Frequently Asked Questions - L23GS10 Logik

Why doesn't the food seem to cook?

Check that the cooking time has been set, the door is closed, and the mains socket is not overloaded causing the fuse to blow.

Why does the food seem undercooked or overcooked?

Ensure the correct cooking time and power setting have been selected. Adjust based on food type and quantity.

How can I stop eggs from popping in the microwave?

Pierce the yolk with a toothpick before cooking. Never cook eggs in their shells.

Why is standing time important after microwave cooking?

Standing time allows the centre of the food to continue cooking from residual heat, ensuring even doneness without overcooking the outside.

Why does my microwave sometimes take longer to cook than the recipe suggests?

Differences in food weight, size, shape, and starting temperature affect cooking time. Use your judgement along with the recipe to check doneness.

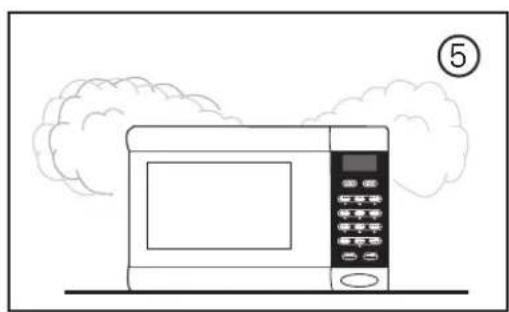

Why is there condensation inside the microwave door?

Condensation is normal, especially when cooking high-moisture foods like potatoes. It forms as steam cools and can be wiped dry after use.

Does microwave energy escape through the door window?

No. The window has a metal screen with small holes that allows you to see inside but prevents microwave energy from escaping.

Can microwave energy escape through the steam vents?

No. The vents are designed to let steam out while keeping microwave energy in; the gaps are too small for microwaves to escape.

What happens if I operate the microwave empty?

Operating the microwave empty can damage the magnetron. Always keep a cup of water inside to prevent accidental empty operation.

Why are there sparks inside the microwave during use?

Sparks indicate metal utensils or containers with metal trim. Remove any metal objects (except approved aluminium foil) to prevent damage.

USER MANUAL L23GS10 Logik

Front view of a silver microwave oven with control panel and display screen (no visible text or symbols)

DSG Retail Limited is responsible for after sales service.

If you have a query about the product please contact our product support line

0844 561 6263 (Currys) and 08700 118 117 (Pixmania).

GB-2

Table of Contents

Your new Logik Microwave 4

Safety Information 4 - 8

Using Aluminium Foil in your Microwave 9

Unpacking and Getting Ready 10

Introducing Microwave Cooking 11 - 15

• Cooking with a Microwave 11
• Microwave Heating Categories 12
- Steam 13
- Condensation 13

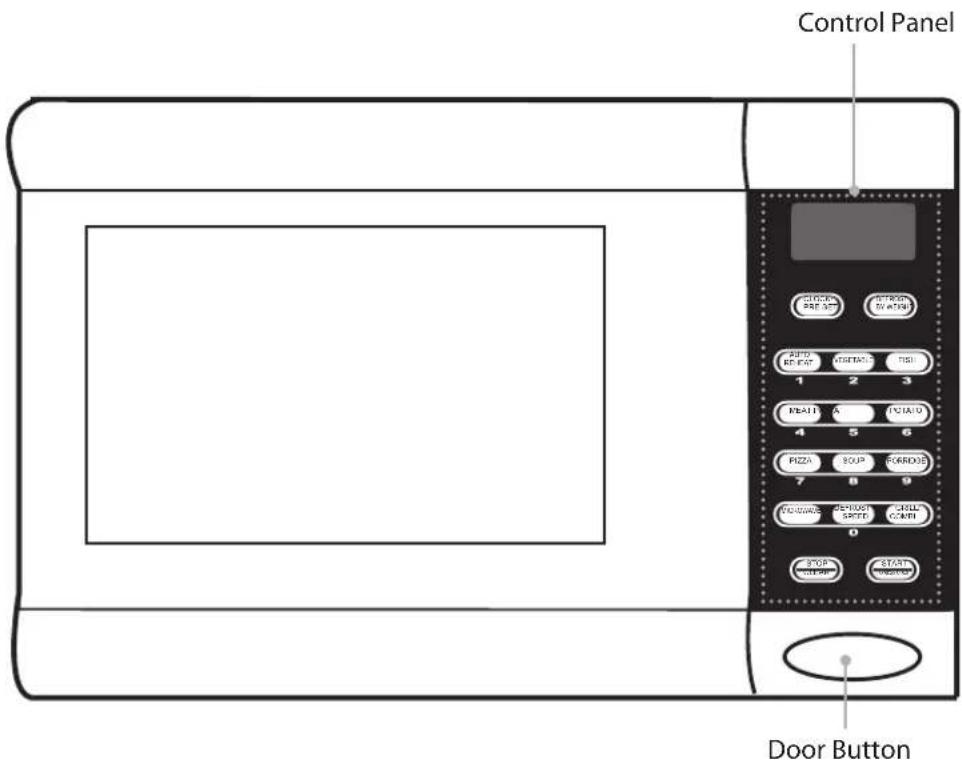

• Product Overview 13 - 14

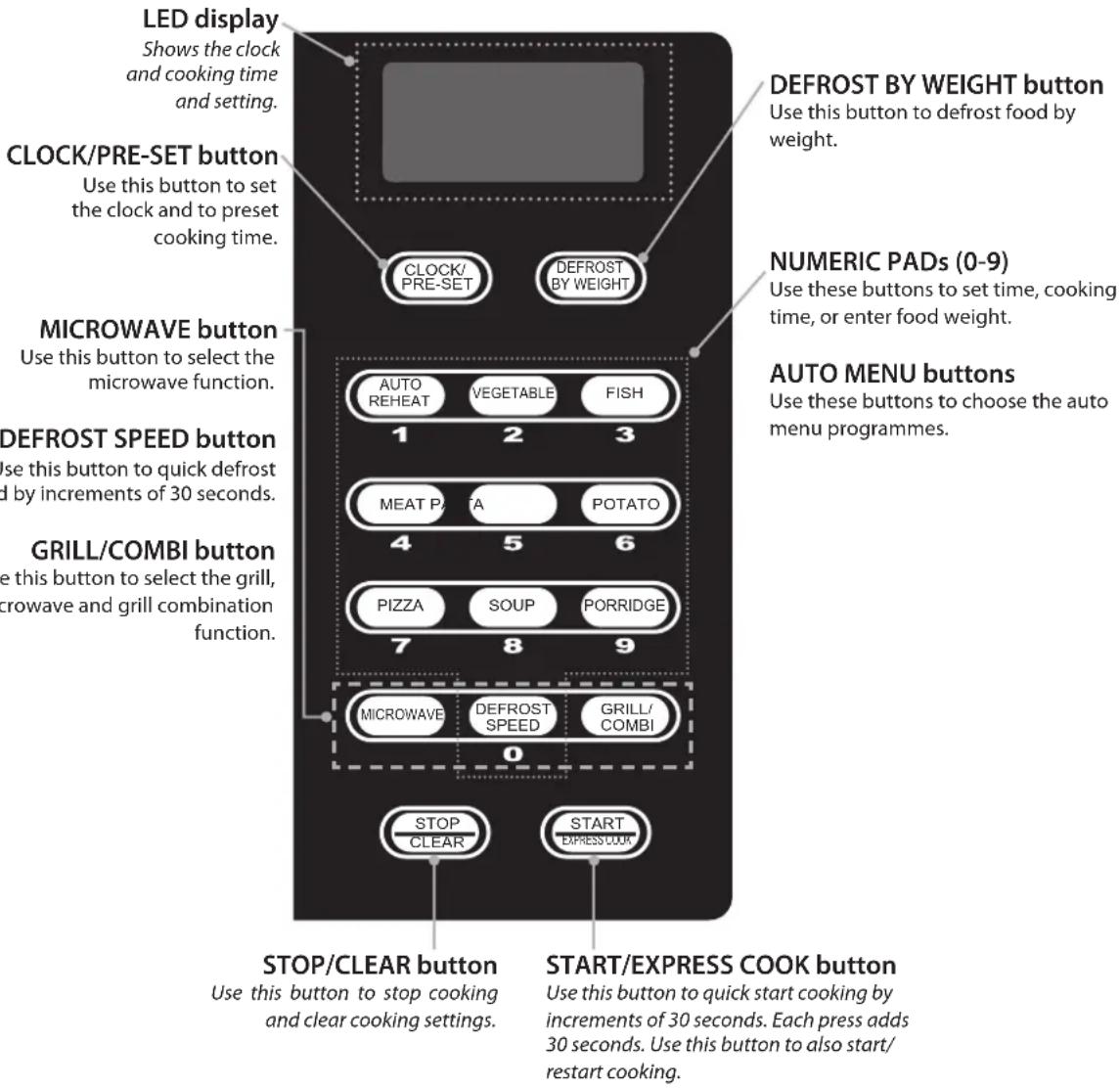

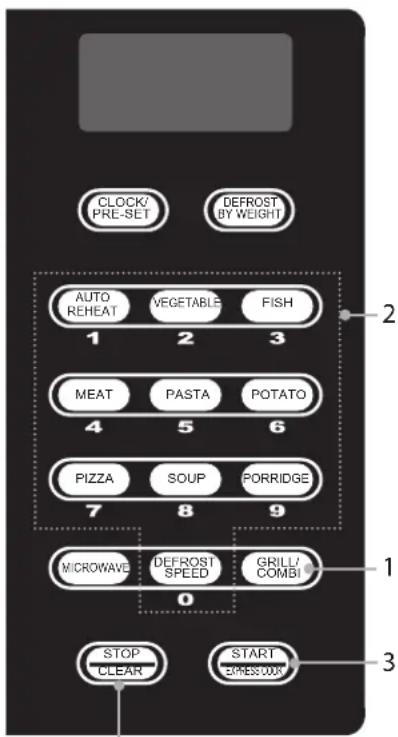

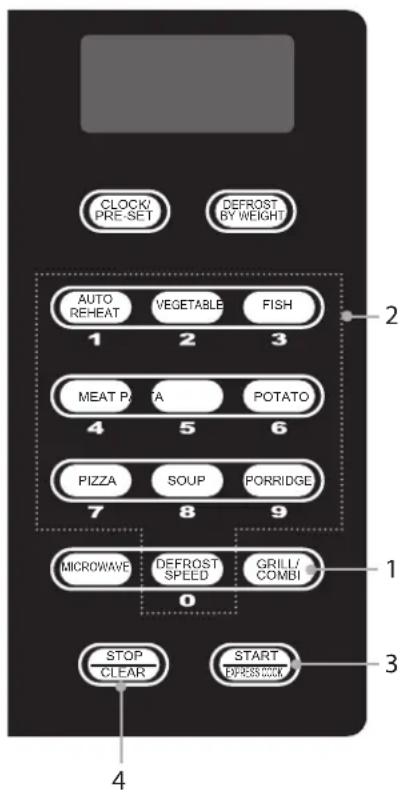

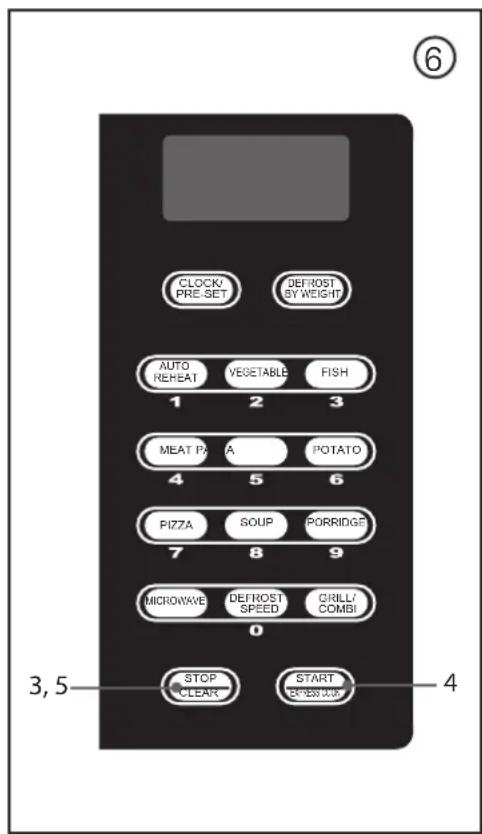

– Control Panel Overview 14
- Accessories 14
- Checking your Microwave 15

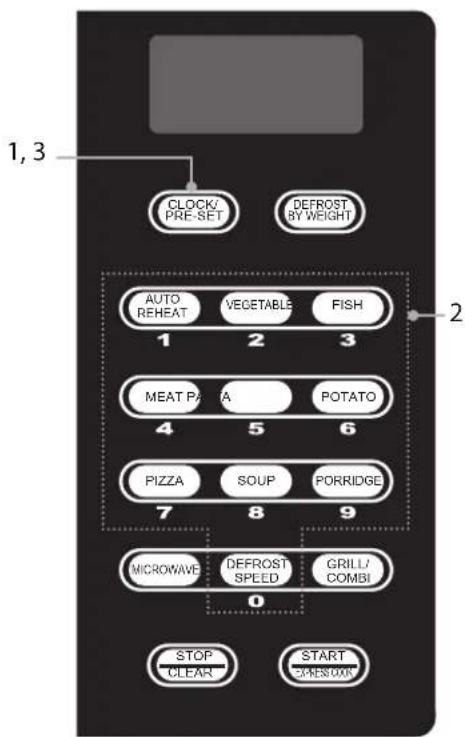

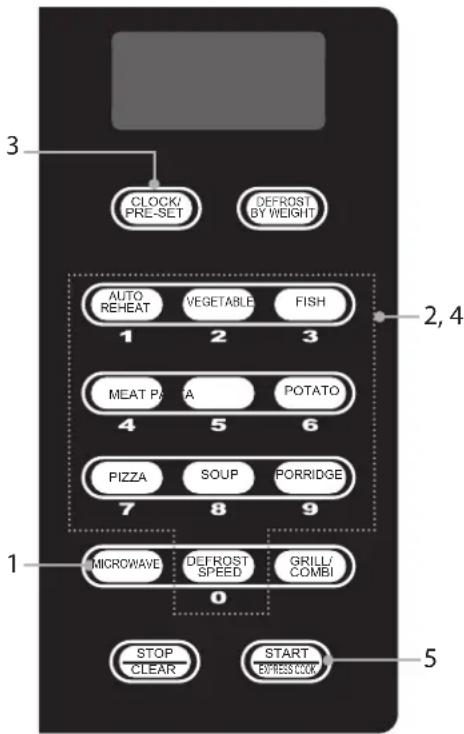

Clock Setting 16

Setting the Child Lock 17

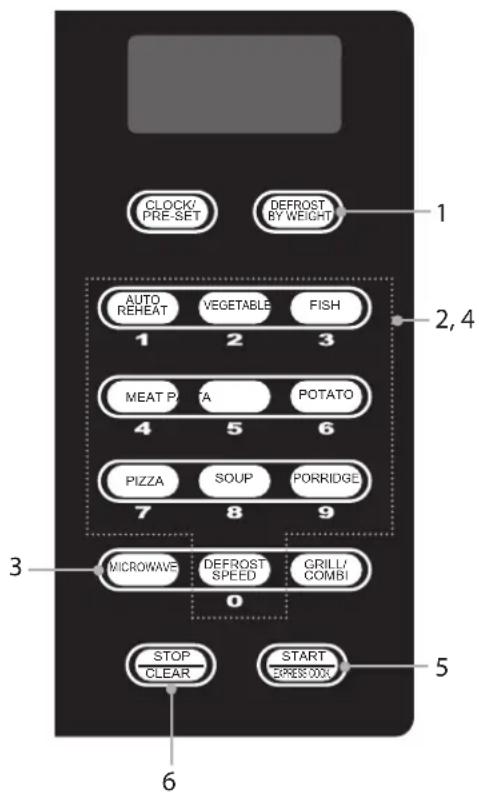

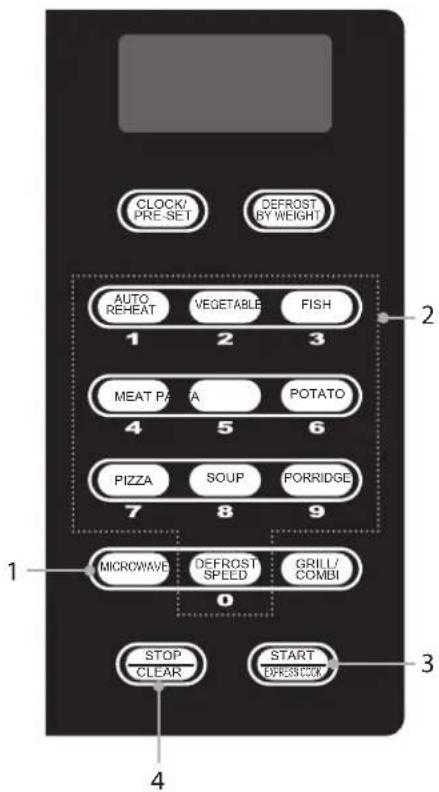

Microwave Cooking 18

• Quick Start Cooking 18

Grill or Combination Cooking 19 - 20

- Grill Cooking 19

• Combination Cooking 20

Multi-Stage Cooking 21

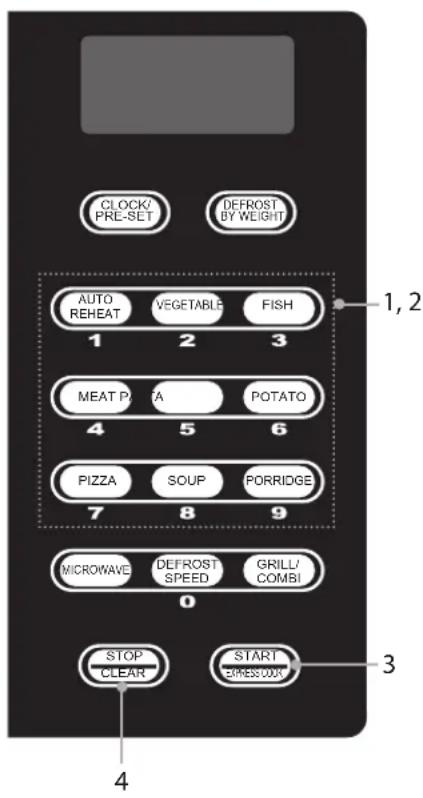

Auto Cooking 22 - 23

• Auto Menu table 23

Defrosting 24

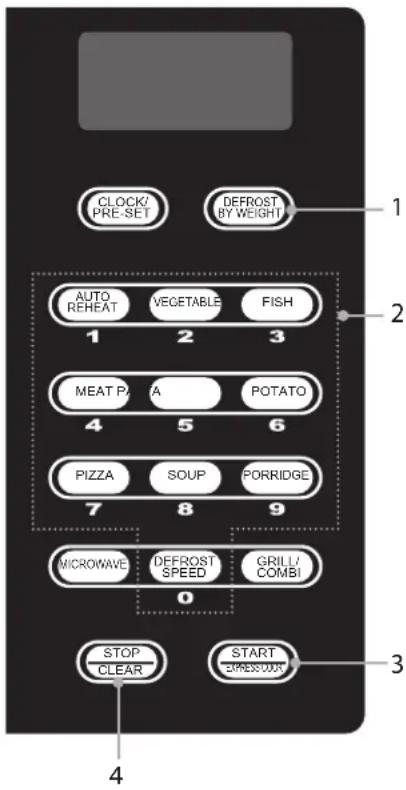

• Defrost by Weight 24

• Defrost by Time 24

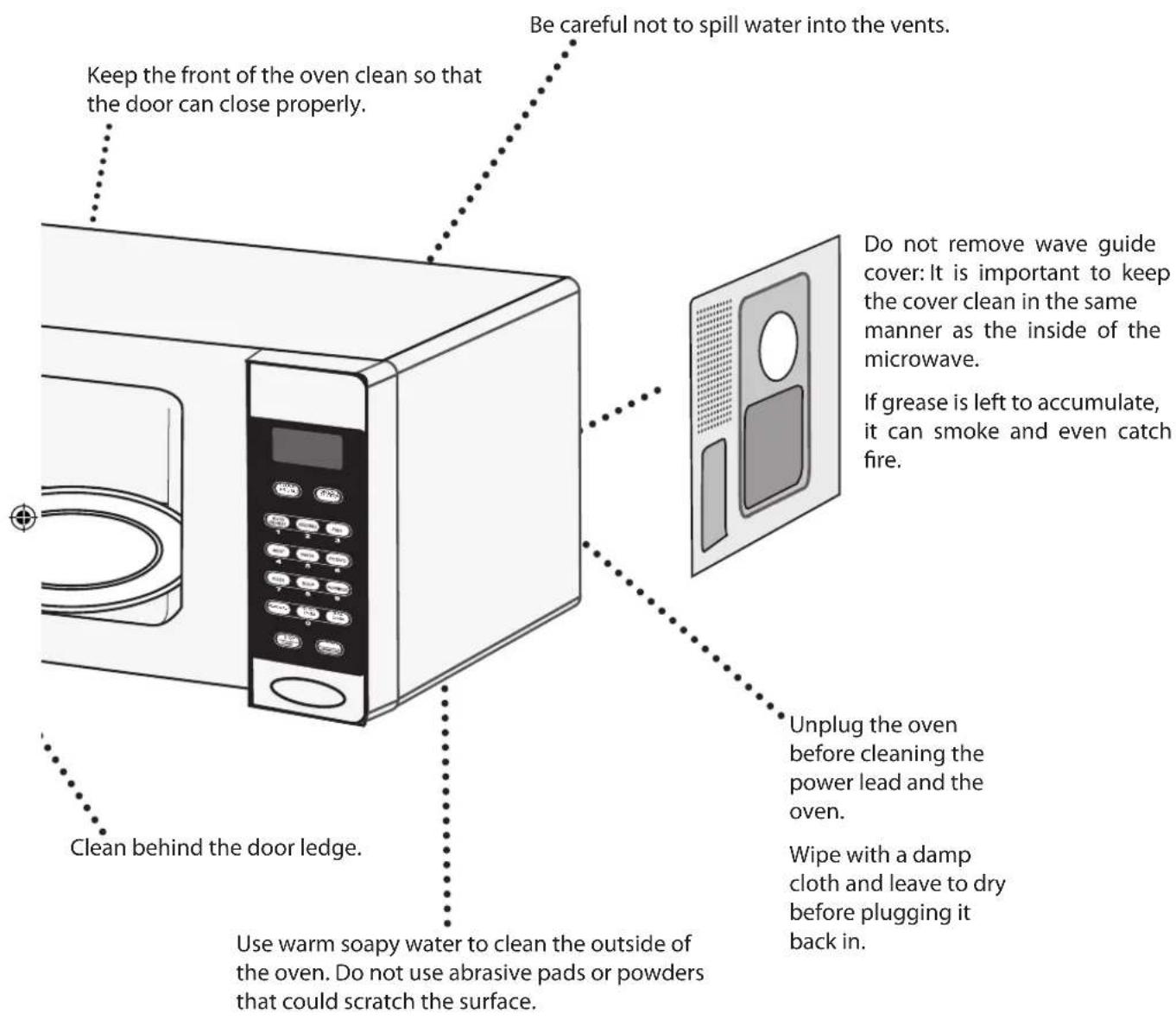

Cleaning your Microwave 25 - 26

Frequently Asked Questions 27 - 28

• Questions and Answers 27 - 28

Specification 29

GB-3

Your new Logik Microwave

Congratulations on the purchase of your new Logik Microwave.

These operating instructions will help you use it properly and safely.

Before using your Logik Microwave

- Read these instructions carefully and retain for future reference.

- Remove all packaging labels. Please dispose of them properly.

Before calling for service

- Review the section on Troubleshooting. This will help you to solve some general problems by yourself and reduce the need to ask for the help of professional technicians.

Safety Information

General Safety

• Switch off and unplug before fitting or removing tools/attachments, after use and before cleaning.
• Keep your fingers away from moving parts and fitted attachments.
  • Never use a damaged machine.
  • Never operate the machine when it is empty.
• Keep mains cable out of reach from children.
• Keep power unit, mains cable or plug away from water.
  • Never exceed the maximum capacities.
• When using an attachment, read the accompanying safety instructions.
  • Take care when lifting this appliance as it is heavy.
• You should always have your microwave checked by a qualified technician if it has been dropped or damaged to ensure it is safe to use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Only use the appliance for its intended domestic use.

Safety Information

Maintenance of your microwave

It is hazardous for anyone other than a qualified technician to carry out any service or repair operation which involves the removal of a cover that gives protection against exposure to microwave energy.

• If the door or door seals are damaged, the microwave must not be operated until it has been repaired by a qualified technician.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to contain any flames.
• If the mains cable is damaged, it must be replaced by a service agent or a qualified technician.
  • If you have a pacemaker, please contact your doctor before using a microwave.

Microwave use

• This microwave is not intended for commercial use.
• It should never be used for drying clothes or for other non-food purposes.
• The microwave should not be left unattended when in use.
• The temperature of accessible surfaces may be high when the appliance is operating.
- To prevent high moisture content gathering inside the microwave cavity, open the door immediately after the cooking function has stopped to allow steam to escape.
• Only use utensils that are suitable for microwave use.
- Care should be taken when using paper, plastic, wooden or other combustible materials in the microwave as they can catch fire.
- Oil & fat for deep frying should not be heated in the microwave.
- Only use cling film designed for microwave use and take extra care when removing the film to avoid steam burns.
- Only heat popcorn that has been designed for microwave use.

Safety Information

Cooking Use

As the power of different microwave ovens can vary considerably, care must be taken when first using this appliance as it may cook faster than expected.

• Do not leave the appliance unattended during use.
  • Take care when cooking food with a high sugar or fat content, such as Christmas pudding or fruitcake. The sugar or fat can overheat and in some cases catch fire.

Fire!

In the event of fire:

• Keep the microwave door closed.
• Turn off the power.
  • Unplug the appliance from the mains power.

First Aid

Treat scalding by:

• Quickly placing the scald under cold running water for at least 10 minutes.
  • Cover with a clean dry dressing. Do not use creams, oils or lotions.

Cleaning your Microwave

The microwave should be cleaned regularly and food deposits removed. Failure to maintain the microwave in a clean condition can affect the life of the appliance and possibly result in a hazardous situation. (See cleaning your microwave)

Safety Information

Do not use these in your Microwave

• Metal objects are not to be used in the microwave. These include:

• Metal cooking utensils.
• Metal plates or trays
• Wine twist ties
  – Crockery with metal trims

• Meat thermometer

• Never use equipment made of metal, except foil in your microwave. The microwave energy cannot pass through the metal so it bounces off and sparks against the inside of the microwave.

• Stop the microwave straight away if any equipment is causing sparks.
• Remember that some crockery has a metal trim around the edge. Even this trim can cause sparks.

Checking your Cooking Utensils

Most heat-resistant, non-metallic cooking utensils are safe to use in your microwave. If you are not sure if you can use a utensil in your microwave, follow this simple test:

1. Put the utensil into the microwave next to a cup of water – use a cup that you know is microwave safe. Close the door.
2. Turn the microwave on for 30 seconds only.
3. After 30 seconds, carefully check to see if the water has warmed up.
4. If the water has not warmed up but the utensil has, the utensil is not microwave safe and should not be used in the microwave.
5. Do not use your hands to touch the utensils as it may already be hot.

NOTE: Your microwave comes with a microwave safe grill rack. If you want to use another grill rack, please carry out this test to ensure that it is microwave safe.

Containers

- Pressure will build up in sealed containers and can cause them to explode. Therefore, do not use the following in your microwave:

• Sealed containers
• Capped bottles
  – Vacuum containers
• Sealed jars
  – Hard-boiled eggs
  – Eggs in their shells
• Nuts

• Always pierce the skin of fruit and vegetables, such as potatoes.
- Never use scratched, cracked or damaged glass in a microwave. Damaged glass can explode.

Safety Information

Delayed Boiling

Liquids heated in a microwave can boil up when removing them from the microwave.

Take the following precautions :

• Always stir liquids, before and after cooking.
- Allow them to stand.
• Use containers that are wider at the top than at the bottom.

Preparing food for Babies

Extra care must be taken when preparing food or drink for babies and small children.

• Always test the food or liquid temperature before feeding it to the baby.
- When using a baby bottle, ensure the teat is removed before heating.
- When warming milk, ensure the bottle is shaken.

Caution!

During cooking the outer surface will become hot. Do not touch the outer casing of the microwave. Care should be taken not to store any items on top of your microwave.

Earthing Instructions WARNING: THIS APPLIANCE MUST BE EARTHED.

• This appliance is equipped with a mains cable having an earthed plug.
- The plug must be plugged into an appropriate mains socket that is installed and earthed in accordance with all local standards and requirements.

Warning!

• Improper connection of the appliance-earthing conductor can result in a risk of an electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed.
  • Never modify the plug provided with the appliance.
• If the plug does not fit properly in the mains socket, have a qualified electrician install a proper mains socket.

Using Aluminium Foil in your Microwave

It is safe to use aluminium foil in your microwave as long as you follow these safety guidelines.

As with all metal, microwave energy cannot pass through foil, but provided that you keep the foil away from the side of the microwave it will not cause sparks and there will not be any damage to your microwave.

Using foil is a good way of shielding parts of food that you do not want to cook as quickly as others – perhaps where the food is narrower and would otherwise overcook.

Place the foil over the area you want to shield, taking care that the foil will not touch the sides of the microwave when the turntable rotates. Only use one piece of foil at a time so that you do not get sparks between the separate pieces.

Follow these guidelines when using foil in your microwave:

• Remove foil lids from containers before using in the microwave. Some lids are made of card with a foil covering – these should be removed too. Use a microwave safe transparent lid if possible.
  • Stir food during cooking if the container has a lid or film cover.
  • Always use the glass turntable.
• Use shallow containers with a large surface area. Do not use containers that are more than 1.25in (3.5cm) deep.
  • Use oven gloves when handling hot foil containers.
• Do not completely cover food with foil. The microwave energy cannot pass through the foil so the food will not cook.
• Do not let aluminium foil touch the inside of the microwave.
• Do not use more than one piece of foil in the microwave at the same time.

Unpacking and Getting Ready

This microwave is designed for home use. It should not be used for commercial catering.

1. After unpacking your microwave, check that it has not been damaged whilst in the box. Make sure there are no dents, and the door closes properly. A damaged microwave could allow microwave energy to escape. Make sure that you have taken out all of the packaging from the inside of the microwave. Please dispose of the plastic wrappings/ bags safely and keep out of the reach of babies and young children.

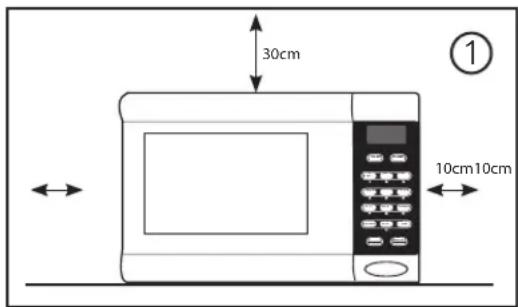

2. Choose a flat work surface for your microwave away from heat sources such as radiators or fires and away from cold areas. You should allow a 10cm space all around the microwave and 30cm above so that warm air can escape from the vents during cooking – This microwave is not designed to be built in. (See Fig. 1)
3. Plug your microwave into a standard household electrical socket (230 volt, 13 amp rated). Avoid using a socket that also has an adaptor and other equipment plugged in. Do not use a multi adaptor.

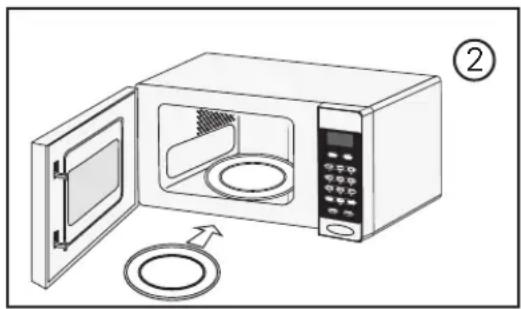

4. Put the turntable ring inside the microwave and place the glass turntable on top of the ring. (See Fig. 2) The turntable is shaped to sit securely on the spindle. You must always use the turntable and ring whenever you use the microwave.

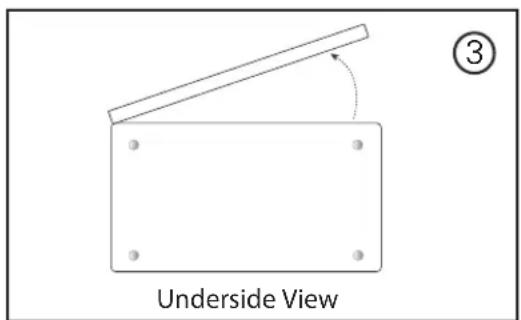

5. To protect your work surface, we recommend that you fix some non-slip cushion pads (not included) to the underside of the microwave. (See Fig. 3)

Illustration of a microwave oven with open door and circular base, showing internal components (no text or symbols)

Introducing Microwave Cooking

Always remember the basic safeguards you should follow when using any cooking equipment or handling hot food.

See below for basic guidelines in microwave cooking.

If you are unfamiliar with using a microwave, refer to the back of this instruction booklet for more information.

Cooking with a Microwave

• Cooking with a microwave is much faster than conventional cooking and, whilst you should make sure that food is fully cooked, you should be careful not to overcook it.
• Microwave energy can heat unevenly so stirring to distribute heat is very important. Always stir from the outside, inwards.
• If you are cooking a number of individual foods at the same time, such as baked potatoes or small cakes, arrange them evenly on the turntable so that they cook evenly. Never stack food in your microwave.
• Turn larger foods such as meat roasts and poultry during cooking so that the top and bottom cook evenly. It is also recommended to turn pieces of meat or poultry, especially if they have not been deboned.
• Meat and poultry which is cooked for 15 minutes or more will brown lightly in it's own fat. Anything cooked for a shorter time can be brushed with a browning sauce to give an appetising colour.
• Strips of aluminium foil can be used to cover the thinner pieces of food to stop them overcooking before the thicker parts of the food have had a chance to cook. Use the foil sparingly and wrap around the food or container carefully to stop it touching the inside of the microwave which could cause sparks.

- Microwave ovens cook food using microwave energy that is similar to naturally occurring radio waves. Normally, these "waves" would fade as they disperse into the atmosphere but in a microwave they are concentrated onto the food causing it to heat up.

- Microwave energy cannot pass through metal – so it cannot escape from inside your microwave – but it can pass through materials like glass, porcelain, plastic and paper. These materials are used in the manufacture of microwave safe cooking equipment.

- Microwave safe cooking equipment will still get hot as the food it contains heats up.

The microwave energy focuses on the moisture in the food causing lots of tiny vibrations. The vibrations get so great that the moisture – and the food – heat up. (See Fig. 4)

Simple line drawing of a bowl with steam rising from it, no text or symbols present

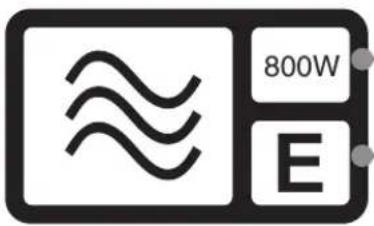

Microwave Heating Categories

Your microwave oven has been tested and labelled to meet the government's voluntary agreement on the reheating of pre-cooked food.

The heating characteristics and output power levels of microwave ovens are usually calculated using a relatively large portion of food (a 1000 gram load, IEC 705) but many packs of pre-cooked food are sold in smaller packs, often about 350 grams.

The government, in partnership with food companies and microwave manufacturers, have set up a system of heating categories to help you choose the reheating time for pre-cooked food.

800W is the output power of the microwave.

E is the heating category for your microwave. Check the cooking times for category E on the food's packaging to see how long it should be cooked for. Please see below example for reference.

To Microwave:

Remove outer packaging.

Pierce film lid SEVERAL TIMES.

Place on a microwaveable plate.

Heat on full power.

Turn halfway through heating.

To Microwave from frozen:

Remove outer packaging.

Pierce film lid SEVERAL TIMES.

Place on a microwaveable plate.

Heat on full power.

Turn halfway through heating.

	Heating Category		Wattage (IEC 705)
	B D 6	50W 750W
Full power (in minutes)	2 2 2	2
Turn Turn Turn
Full power (in minutes)	2 1.5	2 1.5
Standing time (in minutes)	1 1 1	1

	Heating Category		Wattage (IEC 705)
	B D 6	50W 750W
Full power (in minutes)	3 2.5	3 2.5
Turn Turn Turn
Full power (in minutes)	4 3.5	4 3.5
Standing time (in minute)	1 1 1	1

Steam

When you microwave food, steam is created as water in the food heats up and evaporates.

The steam formed during microwave cooking is entirely safe. It has to escape from the microwave to prevent pressure from building up inside the oven. It does this through the vents at the back of the microwave and from around the door.

Condensation

As the steam cools, you may find that condensation gathers in small pools inside your microwave and on the work surface beneath the door and vents. Always dry the microwave after cooking foods with a high moisture content.

Your microwave is designed to let steam escape from the vents and around the door without microwave energy escaping. (See Fig. 5) There is no danger of microwave energy escaping with the steam.

Line drawing of a microwave oven with smoke clouds around it (no text or symbols)

Product Overview

GB-13

Control Panel Overview

Accessories
Part Number - 252100500498 and 252200200008 Part Number - Glass Turntable x 1 Turntable Ring x 1		Part Number - 261800303529
		256511700002 Grill Rack x 1	Instruction Manual x 1

GB-14

Checking your Microwave

Check your microwave after unpacking.

NOTE: For your safety, the microwave stops if the door is opened during cooking. Close the door and press the START/EXPRESS COOK to continue the cooking cycle.

1. Press the door button open the door. Place a cup of water on the glass turntable. Make sure the cup is microwave safe (it should not have any decorative metal trim).
2. Close the door.
3. Press the STOP/CLEAR button to clear any settings that have already been made. (See Fig. 6)
4. Press the START/EXPRESS COOK once to start a simple 30-second microwave cooking cycle and this allows you to check the operation of the microwave.
5. When the cooking cycle has finished, the water should be hot (be careful when you take the cup out of the microwave). Press the STOP/CLEAR button to clear any settings.

Clock Setting

When the microwave is connected to the mains power, the LED display will show 0:00 and it will sound once. Please ensure you have set the clock prior to use.

Please follow the steps below to set the clock.

1. Press the CLOCK/PRE-SET button and the hour figures will flash. The LED display will also show indicate it is in clock setting mode.
2. Press the NUMERIC PADs to enter the time. The input time has to be between 00:00 and 23:59. For example, press the NUMERIC PADs (1-3-3-0) to present 13:30.
3. Press the CLOCK/PRE-SET button again to complete the clock setting. The will disappear from the LED display and the ":" will start flashing to confirm that the clock setting is complete.

Setting the Child Lock

This feature prevents the electronic operation of the microwave by locking the operation of the control panel until you have cancelled it.

Please follow the steps below to set the child lock.

1. Press the STOP/CLEAR button for 3 seconds and a long tone will sound. The LED display will also show

to indicate that the microwave has set the lock.

1. To release the child lock, press the STOP/CLEAR button again for 3 seconds and a long tone will sound to indicate that the microwave has released the child lock.

1,2

Microwave Cooking

For simple Microwave Cooking, follow the steps below.

(For instance, if you want to use 80% microwave power to cook for 20 minutes.)

1. Press the MICROWAVE button once and the LED display will show P100. Press the same button again to change the microwave power level to P80. At the same time, both and will illuminate.
2. Press the NUMERIC PADs (2-0-0-0) to enter the cooking time. The LED display will show 20:00.

NOTE: If you want to stop the cooking or cancel the setting half way, simply press STOP/CLEAR button.

The maximum cooking time is 99 minutes and 99 seconds.

1. Press the START/EXPRESS COOK button to confirm and start cooking. The cooking time will start to count down while ":", and are flashing.
2. Press the STOP/CLEAR button once to stop the cooking and twice to cancel the setting.
3. The microwave will sound when the cooking is completed.

Microwave Control
Order LED Display Microwave Power
1 P100	100%
2 P80	30%
3 P50	50%
4 P30	30%
5 P10	10%

NOTE: When removing food from the microwave, please ensure that the power is switched off. Operating the microwave without food in it can result in overheating and damage the magnetron.

Grill or Combination Cooking

For Grilling, follow the steps below.

1. Press the GRILL/COMBI button once and the LED display will show G-1, and Will illuminate.

2. Press the NUMERIC PADs to enter the cooking time.

NOTE: If you want to stop the cooking or cancel the setting half way, simply press STOP/CLEAR button.

The maximum cooking time is 99 minutes and 99 seconds.

1. Press the START/EXPRESS COOK button to confirm and start cooking. The cooking time will start to count down while ":" and are flashing.

2. Press the STOP/CLEAR button once to stop the cooking and twice to cancel the setting.

For Combination Cooking, follow the steps below.

1. Press the GRILL/COMBI button till the LED display shows C-1 or C-2. Both and will also illuminate.

2. Press the NUMERIC PADs to enter the cooking time.

NOTE: If you want to stop the cooking or cancel the setting half way, simply press STOP/CLEAR button.

The maximum cooking time is 99 minutes and 99 seconds.

1. Press the START/EXPRESS COOK button to confirm and start cooking. The cooking time will start to count down while ":" and are flashing.

2. Press the STOP/CLEAR button once to stop the cooking and twice to cancel the setting.

GRILL/COMBI. Button Control
Order LED Display Microw		Power	Grill Power
1 G-1	0% 100%
2 C-1	55% 45%
3 C-2	36% 64%

Please note there are only 2 modes of combination cooking and their microwave and grill powers are shown on the table above.

For instance: If you want to do 55% microwave power and 45% grill power cooking (C-1) for 10 minutes, please follow the steps below.

1. Press the GRILL/COMBI button till the LED display shows C-1. Both and will also illuminate.
2. Press the NUMERIC PADs (1-0-0-0) to enter the cooking time.

NOTE: If you want to stop the cooking or cancel the setting half way, simply press STOP/CLEAR button.

1. Press the START/EXPRESS COOK button to confirm and start cooking. The cooking time will start to count down while ":" and are flashing.
2. Press the STOP/CLEAR button once to stop the cooking and twice to cancel the setting.

NOTE: The microwave will sound twice to indicate it has reached the half way stage of the cooking cycle. This is normal. In order to obtain better grilling performance for your food, please turn your food over periodically.

Press the STOP/CLEAR button once to stop cooking and open the door. Then, turn your food over and close the door.

Press the START/EXPRESS COOK button to continue cooking.

4

GB-20

Two-Stage Cooking

For Two-Stage Cooking, please follow the steps below.

For instance: If you want to defrost your food (500g) and then cook it with 80% microwave power for 7 minutes.

NOTE: You can only set 2 stages for Two-Stage Cooking. If defrosting is one of the stages, then it will set as the first stage.

1. Press the DEFROST BY WEIGHT button to initiate the two stage cooking with defrost as the first stage. The LED display will show dEF1.
2. Press the NUMERIC PADs (5-0-0) to set the defrost weight 500g.
3. Press MICROWAVE button once and the LED display will show P100. Press the button again to change the microwave power level to P80.
4. Press the NUMERIC PADs (7-0-0) to set the cooking time. The LED display will show 7:00.
5. Press the START/ EXPRESS COOK button to confirm and start cooking. The microwave will sound once to indicate it has started the defrosting count down. The microwave will sound again as it starts the microwave cooking (the second stage). Once completed, the microwave will sound five times to indicate the completion.
6. Press the STOP/CLEAR button once to stop the cooking and again to cancel the setting.

Delay Start Cooking (Program Set in Advance)

For Delay Start Cooking, follow the steps below.

For instance: The current time is 12 o'clock (noon) and you want to cook with 80% microwave power for 5 minutes in 1 hour and 30 minutes time.

NOTE: You can only set 2 stages for Delay Start Cooking. Defrost cannot be set as one of those stages. Ensure the oven door is closed prior to setting the program.

1. Press the MICROWAVE button once and the LED display will show P100. Press the same button again to change the microwave power level to P80.
2. Press the NUMERIC PADs (5-0-0) to enter the cooking time 5 minutes. The LED display will show 5:00.
   ATTENTION: Do not press START/ EXPRESS COOK button at this point.
3. Press the CLOCK/PRE-SET button to display the current time 12:00. The hour figure will flash first.
4. Press the NUMERIC PADs (1-3-3-0) to enter the starting time for cooking. The LED display will show 13:30.
5. Press START/ EXPRESS COOK button to complete the setting. The microwave will sound when the count down reaches the starting time and cooking will start.

GB-22

Auto Cooking

This feature allows you to cook most of your food based on the food category and the weight. Select the category and choose the default weight of the food. For quick reference of the cooking time and the default weight, please refer to the Auto Menu table.

Auto Menu

1. Press one of the AUTO MENU buttons (e.g. AUTO REHEAT, VEGETABLE, FISH etc.) to select Auto Menu cooking function. The LED display will show A-1, A-2, A-3 etc.
2. Press the same AUTO MENU button again to select the default weight for your chosen programme. Please refer to the Auto Menu table for information.
3. Press the START/EXPRESS COOK button to confirm and start cooking. While and are flashing on the LED display, it will also shows the countdown time.
4. Press the STOP/CLEAR button once to stop the cooking and again to cancel the setting.

For example if you want to cook 350g of fish using Auto Menu programme. Please follow the steps below.

• Press the FISH button to select Auto Menu programme for fish. The LED display will show A-3.
• Press the FISH button another three times to choose the default weight until the LED display shows 350.
• Press the START/EXPRESS COOK button to confirm and start cooking. While and are flashing on the LED display, it will also shows the countdown time.
• Press the STOP/CLEAR button once to stop the cooking and again to cancel the setting.

NOTE: The density and thickness of food can affect its cooking time. Ensure all food is piping hot and cooked thoroughly before serving. It is essential that food is checked during and after the recommended cooking time, even if Auto Menu was used.

Auto Menu table

Menu Weight Display Cooking			Time	Comments
A-1 Auto Reheat	150g 150 1'30"			Make sure food is cooked thoroughly before consuming.Additional cooking time may be required for thicker pieces.
	250g 250 2'00"
	350g 350 2'30"
	400g 400 3'00"
A-2 Vegetable	150g 150 2'40"			Only use suitable microwavable containers and cling film in the microwave oven.Ensure to check the cooking regularly to make sure the water does not boil over.
	350g 350 4'20"
	500g 500 6'00"
A-3 Fish	150g 150 2'30"			Make sure food is cooked thoroughly before consuming.Additional cooking time may be required for thicker pieces of fish.
	250g 250 3'40"
	350g 350 4'40"
	400g 400 5'20"
	450g 450 6'20"
A-4 Meat	150g 150 3'00"			Make sure food is cooked thoroughly before consuming.Additional cooking time may be required for thicker pieces of meat.
	300g 300 4'30"
	450g 450 6'20"
	600g 600 7'40"
A-5 Pasta	50g 50 17'00" 50g of Pasta + 450ml of Water				Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking.Check cooking regularly to make sure the water does not boil over.
	100g 100 20'00" 100g of Pasta + 800ml of Water
	150g 150 22'00" 150g of Pasta + 1200ml of Water
A-6 Potato	1(about 200g) 1 4'40"			For best results, pierce the potatoes' skin before cooking. Once the potatoes are cooked, wrap them in aluminium foil for at least 5 minutes to ensure they are cooked thoroughly.
	2(about 400g) 2 7'20"
	3(about 600g) 3 9'00"
A-7 Pizza	1(about 80g) 1 1'00"			This setting is designed for re-heating cooked pizza slices (not frozen pizza).
	2(about 160g) 2 2'00"
	3(about 250g) 3 2'50"
A-8 Soup	500g 500 22'00"			Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking.Check cooking regularly to make sure the water does not boil over.
	750g 750 24'00"
	1000g 1000 27'00"
A-9 Porridge	550g 550 8'00"			Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking.Check cooking regularly to make sure the water does not boil over.
	1100g 1100 12'00"

GB-24

Defrosting

You may wish to place the frozen food on a microwave safe plate or dish before placing it on the defrost rack (not supplied in this microwave package). This is to ensure that any liquids released during defrosting will not spill and dirty the interior of the oven.

Defrost by weight

1. Press the DEFROST BY WEIGHT button to defrost food by weight. The LED display will show dEF1, and

2. Press the NURMERIC PADS to set the defrosting weight. The default range is 100g to 2000g.

TIPS: Large items may be icy in the centre. Therefore, to ensure even thawing, turn them over from time to time and break them into smaller pieces during defrosting.

You will need to press the STOP/CLEAR button once to stop and hold the defrosting programme. Then open the door and rotate the food. Close the oven door to restart defrosting.

Place roasts fat-side down or whole poultry breast side down.

Drain liquids during defrosting as the juices from food can get hot and cook the food.

1. Press the START/EXPRESS COOK button to confirm and start defrosting. ":", and will be flashing on the LED display.

2. Press the STOP/CLEAR button once to stop and hold the cooking and twice to cancel the setting.

3. The microwave oven will sound when the defrosting is complete.

Speed Defrost

1. Press the DEFROST SPEED button to quick defrost food. The LED display will show dEF2, and.

2. Press the NURMERIC PADS to set the defrosting weight. The default range is 100g to 1200g.

3. Press the START/EXPRESS COOK button to confirm and start defrosting. ":", and will be flashing on the LED display.

4. Press the STOP/CLEAR button once to stop and hold the cooking and twice to cancel the setting.

5. The microwave oven will sound when the defrosting is complete.

NOTE: DEFROST SPEED requires less time than DEFROST BY WEIGHT to defrost the food with same weight.

GB-25

Cleaning Your Microwave

Cleaning your microwave after each time you use it will help to prevent a build up of stubborn marks that can be difficult to clean.

Unplug your microwave from the mains and wait for the microwave to cool down completely before cleaning.

On the right hand side wall of the cavity is the wave guide cover, microwaves are passed though this to enable your food to cook. It is important that this wave guide cover is kept clean at all times. Wipe it with mild detergent and water and leave to dry.

Make sure you keep the outlet grids clean.

The oven walls have a special enamel coating which makes cleaning very easy. Use a soft damp cloth to wipe off any splashes or a paper towel to mop up any spills. Wipe off grease with a damp cloth and a little detergent. Dry thoroughly. As with any oven, if grease is left to accumulate, it can smoke and even catch fire.

Simple line drawing of a round outdoor table with four legs and a horizontal slatted top (no text or symbols)

Wash racks in warm water.

Do not use very hot water on the racks which could make them warp.

Simple line drawing of a circular object with two ends, no text or symbols present

Treat the glass turntable as you would any glass plate.

After you have used it for more than 15 minutes, allow it to cool down before you use it again.

Do not wash the glass turntable in very hot water, doing so could crack it. Make sure the glass turntable and turntable ring are dry before you put them back in the oven.

Diagram of a microwave oven with internal components and mounting points, showing no text or symbols

Keep the inside of the oven door clean with a damp cloth. Use warm soapy water for stubborn marks and dry thoroughly.

The inside of the door has a special coating and must not be cleaned with abrasive pads or cleaning powders.

GB-26

NOTE: Do not remove any fixed parts from the inside of your microwave during cleaning or at any other time.

Troubleshooting

Care, Maintenance and

GB-27

Frequently Asked Questions

If a problem does occur, it may often be due to something very minor. The following Q & A may be able to resolve the problem.

Questions Answers
Why doesn't the food seem to cook? Check that:	·the cooking time has been set·the door is closed·the mains socket is not overloaded causing the fuse to blow.
Why does the food seem undercooked or overcooked?	Check that:·the correct cooking time has been set·the correct power setting has been used.
How can I stop eggs from popping? When you	bake or poach eggs in the microwave, the yolk can sometimes pop as steam builds up inside it. You can stop the egg from popping by piercing the yolk with a toothpick before cooking.Never cook eggs that are still in their shells.
Why is it so important that I allow standing time after cooking?	With microwave cooking, many foods build up enough heat inside them to continue cooking even after they've been taken out of the oven. Because microwave cooking works from the outside of food inwards, standing time lets you cook the centre of the food without the outside being overcooked.
Why does my microwave sometimes take longer to cook than it says in the recipe?	First check that the microwave was set just as the recipe said.Cooking times and heat settings are suggestions to help prevent overcooking but differences in the weight, size, shape and starting temperature of food will all affect how long it takes to cook – just as it does with a conventional oven. Use your judgement along with the recipe to check whether food has been cooked properly.
Why do I get condensation on the inside of the door?	Condensation is perfectly normal, especially when you are cooking food with a high moisture content such as potatoes.
Does the microwave energy get through the window on the door?	No. The door has a special metal screen with holes in that lets you see inside but stops microwave energy from getting out.
Steam comes out of the side of the door and vents. Can microwave energy get out too?	No. The door and vents are carefully designed to let steam out during cooking but keep microwave energy in. The gaps are not big enough for microwave energy to escape.

GB-28

Questions Answers

What happens if the microwave is switched on while the microwave is empty?	The microwave will be damaged. Do not switch the microwave on when there's nothing inside the oven. It is a good idea to keep a cup of water in the oven just in case someone accidentally starts the microwave.
Why doesn't the microwave's light illuminate?	Open the door. If the light does not illuminate, the bulb has probably blown. Call a qualified technician – do not try to change the bulb yourself.
There are sparks inside the microwave when I use the microwave. Will this cause any damage?	Yes. Make sure that you are not using any metal utensils and that your containers don't have a metal trim. You must not use metal in your microwave when you cook (except aluminium foil).
Light is showing through the vents and door. Does this mean the microwave energy can escape?	No. It is normal for the light to be visible and is nothing to be concerned about.
Why do I get interference on my TV and radio when I use the microwave?	Microwave ovens use radio waves similar to those received by TVs and radios. You can lessen the interference by moving your microwave further away from the TV or radio.

Troubleshooting

Care, Maintenance and

GB-29

Specification

Input 230V ~50Hz
Microwave Output 800 Watts
Microwave Frequency 2450MHz
Outside Dimensions 485mm x 395mm x 287mm(width x deep x height)
Power consumption
Microwave Input 1250 Watts
Grill Input 1000 Watts

Complies with EEC directives 89/336/EEC and 92/31/EEC.

Because we continually strive to improve our products, we may change specifications without prior notice.

This symbol on the product or in the instructions means that your electrical equipment should be disposed at the end of life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

Partmaster co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.

With over 1 million spares and accessories available we can deliver direct to your door the very next day.

Visit www.partmaster.co.uk

or call

0870 6001 338

(UK customers only)

Calls charged at National Rate.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Glass Turntable 252100500498
Turntable Ring 252200200008
Grill Rack 256511700002
Instruction Manual 261800303529

DSG Retail Limited is responsible for after sales service. If you have a query about the product please contact our product support line 0844 561 6263 (Currys) and 08700 118 117 (Pixmania).
