ZK507-W - Projector OPTOMA - Free user manual and instructions

Product type	DLP 4K UHD Laser Projector
Display technology	Texas Instruments DLP
Native resolution	2716 x 1528
Maximum resolution	4K UHD (3840 x 2160)
Light source	Laser Class 1 (IEC 60825-1:2014, RG2 IEC 62471-5:2015)
Lens	Manual zoom, manual focus, vertical lens shift
Image size (diagonal)	26.45" to 302.2"
Projection distance	1.3 m to 9.3 m
Keystone correction	Yes (via remote control)
Video inputs	2x HDMI (1.4b and 2.0 with HDCP2.2/MHL), 1x VGA (YPbPr)
Audio/video outputs	1x 3.5 mm audio output, 1x SPDIF, 1x 12V trigger
Other connections	RS232, RJ-45, USB type A (service), USB type A (power 5V/1.5A)
Built-in speaker	2 x 5 W stereo
3D features	Yes, DLP-Link, 120 Hz, SBS, top and bottom, over/under, frame sequential formats
HDR	HDR10, HLG, HDR Simulation
Image modes	Presentation, Bright, Cinema, Game, sRGB, DICOM SIM., HDR, 3D
PureEngine	PureContrast, PureColor (5 levels), PureMotion (3 levels)
Power supply	100-240 V AC, 50/60 Hz, 4.4 A
Dimensions (W x D x H)	498.1 x 331.1 x 154 mm (without feet)
Weight	Less than 10 kg
Installation orientation	Table (front/rear), Ceiling (front/rear)
Dust filter	Yes, replaceable (cleaning recommended every 3 months)
OSD menu languages	10 languages including French, English, German, etc.
Security	Password, security clock, key lock

Frequently Asked Questions - ZK507-W OPTOMA

How to turn on the Optoma ZK507-W projector?

Connect the power cord and source cable. The power indicator turns red. Press the Power button (⏻) on the keypad or remote control. A startup screen appears for about 10 seconds. The first time, you will need to select the language and orientation.

How to adjust image sharpness?

Use the focus ring located around the lens. Turn it clockwise or counterclockwise until the image is sharp. You can also adjust sharpness in the OSD menu (Display > Image Settings > Sharpness), from 1 to 15.

How to use the 3D function on this projector?

Make sure you are wearing DLP-Link 3D glasses. The projector must receive a 120 Hz signal. In the OSD menu (Display > 3D > 3D Mode), select On then choose the appropriate 3D format (SBS, Top and Bottom, etc.). 4K resolution is not supported in 3D mode.

How to connect an HDMI source?

Connect an HDMI cable to one of the two ports: HDMI 1 (v1.4) or HDMI 2 (v2.0 with MHL). The projector automatically detects the source. You can also press Source then select HDMI1 or HDMI2.

How to clean the dust filter?

Turn off the projector and unplug the power cord. Pull the dust filter compartment downward, then gently remove the filter. Clean or replace it. Put the compartment back in place. It is recommended to clean the filter every 3 months.

What to do if the image is inverted?

Access the OSD menu (Settings > Projection) and select the correct orientation from Front, Rear, Ceiling-top or Rear-top.

How to adjust image height?

Use the adjustable tilt feet under the projector. Turn the adjustable foot clockwise to lower the projector or counterclockwise to raise it. You can also use the lens shift by turning the corresponding knob under the top cover.

How to use the remote control?

Insert two AAA batteries into the rear compartment. Point the remote at the front or back IR sensor of the projector (maximum distance 7 m, angle ±30°). Some keys (e.g., HDMI1, HDMI2) allow direct source selection. If it malfunctions, check the batteries or obstacles.

How to activate HDR mode?

The projector automatically detects HDR content if Dynamic Range is set to Auto in the menu Display > Image Settings > Dynamic Range. You can also select HDR or HDR SIM. in Display Mode to simulate HDR on non-HDR content.

What to do if the projector overheats?

The Temp indicator lights up red. The projector turns off automatically. Check that the ventilation openings are not blocked and that the ambient temperature is below 40 °C. Let it cool for 10 minutes before turning it back on. If the problem persists, contact customer service.

USER MANUAL ZK507-W OPTOMA

Line drawing of a projector with visible lens and ventilation grilles (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ .... 4

IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021 CLASS 1 CONSUMER LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed.1.0. For more information see Laser Notice No. 57, dated May 8, 2019.

IEC 60825-1:2014 等級1雷射產品RG2危險等級

IEC 60825-1:2014 1类激光产品RG2危险等级

"WARNING: MOUNT ABOVE THE HEADS OF CHILDREN"

Additional warning against eye exposure for close exposures less than 1m

•

IEC 60825-1 : 2014 Classe 1 RG2 IEC 62471-5:2015 RG2

This Class B digital apparatus complies with Canadian ICES-003.

Diagram of a cable VGA connector with two connectors and wiring (no text or symbols on the diagram itself)

Remarque :

Line drawing of a person sitting in a chair watching a projector on a table (no text or symbols)

Line drawing of a person sitting in a chair facing a projector mounted on a wall, with no text or symbols present.

Line drawing of a person sitting in a chair watching a projector on a wall, with no text or symbols present.

Line drawing of a person sitting in a chair watching a projector mounted on a wall, no text or symbols present

UTILISER LE PROJECTEUR

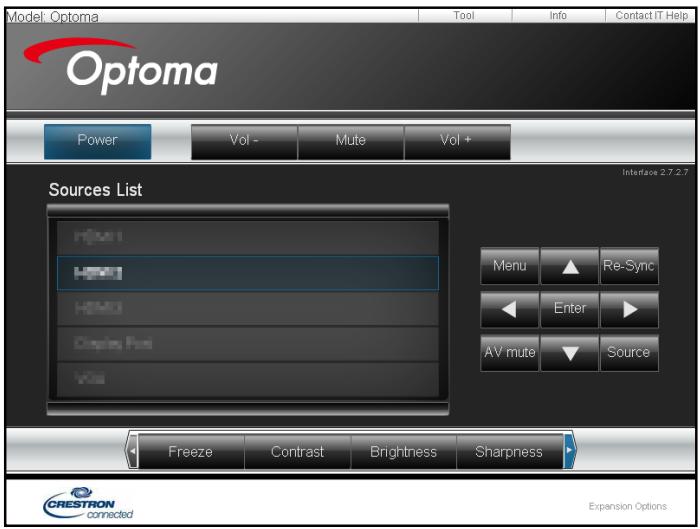

Page principale

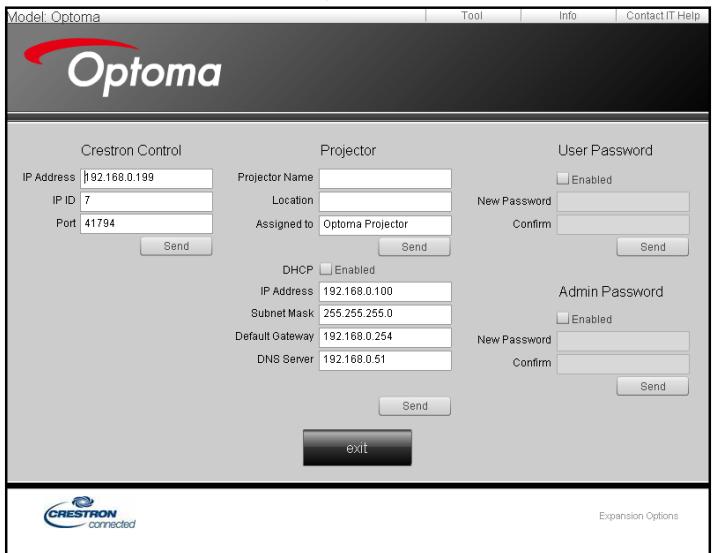

Page Outils

UTILISER LE PROJECTEUR

Illustration of a projector with a slide and panel array, showing airflow direction (no text or symbols)

INFORMATIONS SUPPLÉMENTAIRES
