Brand	3M
Model	471
Product Type	Masking Tape
Color	Blue
Material	Crepe paper with rubber adhesive
Width	1.41 in (36 mm)
Length	60 yd (55 m)
Thickness	5.2 mils (0.13 mm)
Adhesion to Steel	25 oz/in width (27 N/100 mm)
Elongation at Break	10%
Tensile Strength	30 lb/in width (525 N/100 mm)
Temperature Resistance	Up to 200°F (93°C) for 1 hour
UV Resistance	Yes
Clean Removal	Up to 14 days
Usage	Indoor and outdoor painting, masking
Application Surface	Clean, dry, smooth surfaces
Storage	Cool, dry place (40-80°F / 4-27°C)
Shelf Life	1 year from manufacture date
Weight (approx)	0.5 lb (0.23 kg) per roll
Reparability	Not repairable; disposable
Safety	Non-toxic; avoid eye contact

Frequently Asked Questions - 471 3M

How do I apply 3M 471 tape?

Ensure the surface is clean, dry, and smooth. Unroll the tape and press firmly along the edge, avoiding stretching. For best results, use a smooth edge or putty knife to burnish the tape.

Can 3M 471 be used outdoors?

Yes, it is designed for both indoor and outdoor use. It withstands light weather exposure but should not be left for extended periods in direct rain or extreme conditions.

How long can the tape remain on surfaces?

For clean removal, remove within 14 days. Leaving it longer may cause adhesive transfer or difficulty in removal.

Does 3M 471 leave residue?

When removed within the recommended time frame, it leaves no residue. If left longer, some adhesive may remain; use a mild solvent like rubbing alcohol to clean.

Can I paint over the tape?

Yes, the tape is paintable. Apply paint over the edge carefully and remove the tape while the paint is still tacky for crisp lines.

Is it safe for freshly painted surfaces?

It is safe for fully cured paint (at least 24 hours). Avoid applying to fresh paint to prevent lifting.

What temperature range can it withstand?

The tape performs well in temperatures from 40°F to 200°F. For high heat applications, check the specific product data.

How do I remove the tape?

Peel back slowly at a 180-degree angle to minimize adhesive transfer. For stubborn sections, use a hairdryer to warm the adhesive.

How should I store the tape?

Store in a cool, dry place away from sunlight. Ideal temperature is 40-80°F (4-27°C). Keep in original packaging to prevent dust.

Is it safe for delicate surfaces like wallpaper?

Test on an inconspicuous area first. It is generally safe for delicate surfaces if removed within 14 days, but low adhesion may not work well on textured or porous surfaces.

USER MANUAL 471 3M

Bringing better ideas to the surface.

Bringing Better Ideas

to the Surface

through

Science & Innovation

In the 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.

Whether you're looking to protect, mask, enhance or otherwise modify surfaces to improve the appearance, function or productivity of your products or processes, this guide will show you what you need to get the job done right.

Solutions through Service

3M sales representatives are located across the globe. For technical service, a highly trained team can help you evaluate tapes for specific applications. In addition, our national authorized distributor network provides sales assistance and local product availability. Authorized converters can also help you adapt 3M tapes to meet your special requirements.

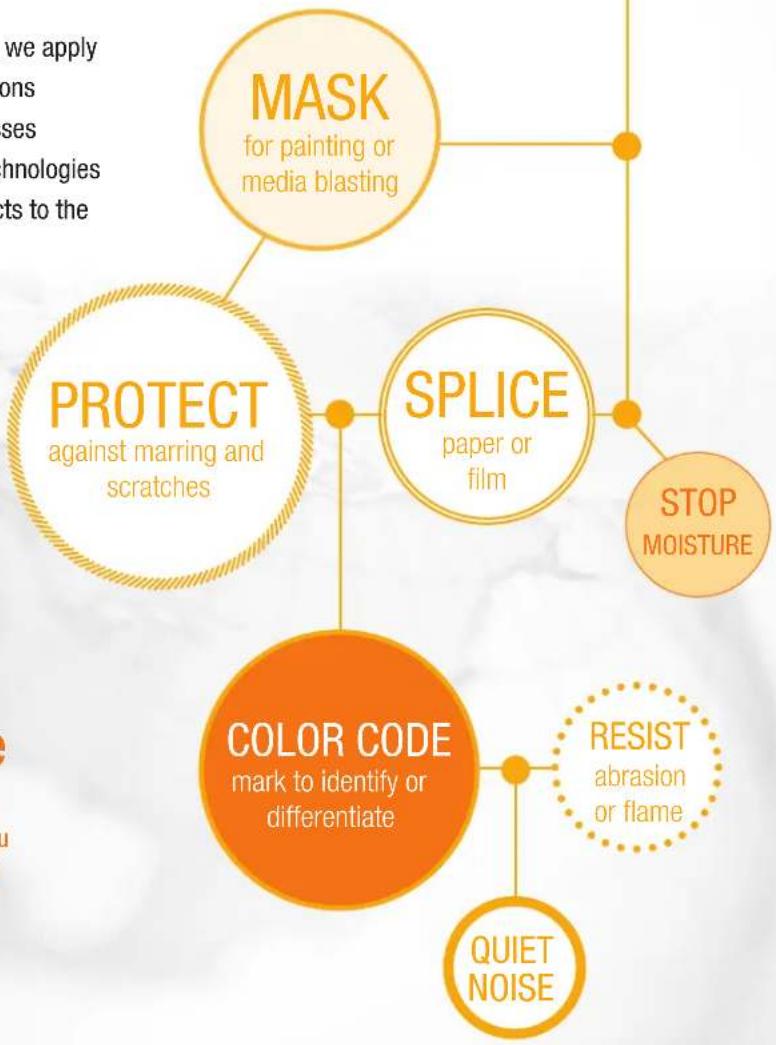


3M Masking and Specialty Products

Table of Contents

Person in full protective suit working inside a cleanroom facility with equipment and cardboard boxes (no visible text or symbols)

Selecting the Right Product for the Job....2-3

3M™ Specialty Tapes Backing and Adhesive Selection Guide 4

Masking, Duct and Flatback Tapes

3M ^™ Industrial Masking Tapes 6

Scotch® Fine Line Masking Tapes 7

3M™ Masking Tapes — Crepe Paper 8-9

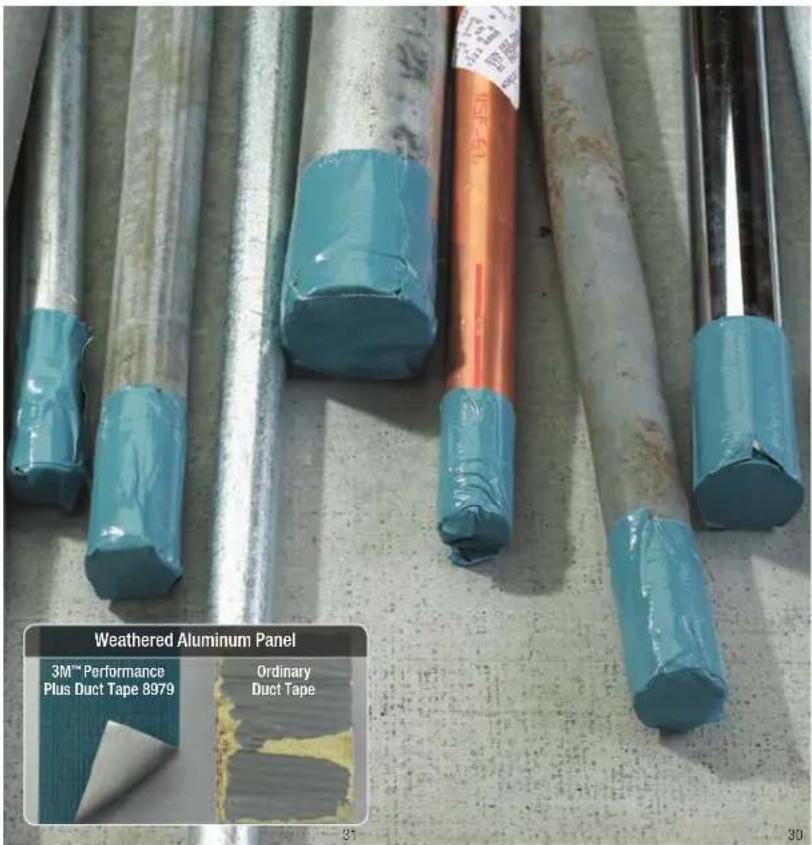

3M™ Duct Tapes and Cloth Tapes.... 10-11

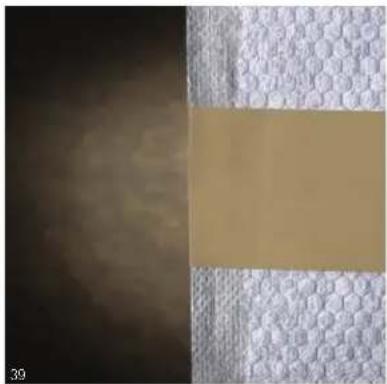

Scotch® Flatback Tapes....12

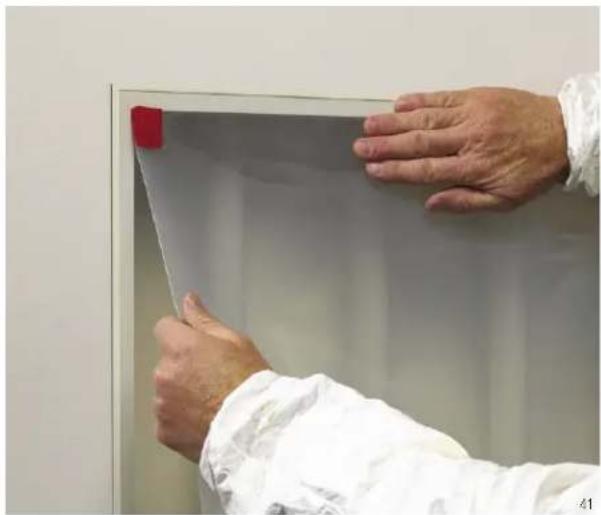

3M™ Masking Films 12

Surface Protection

3M™ Clean-View Pads 14

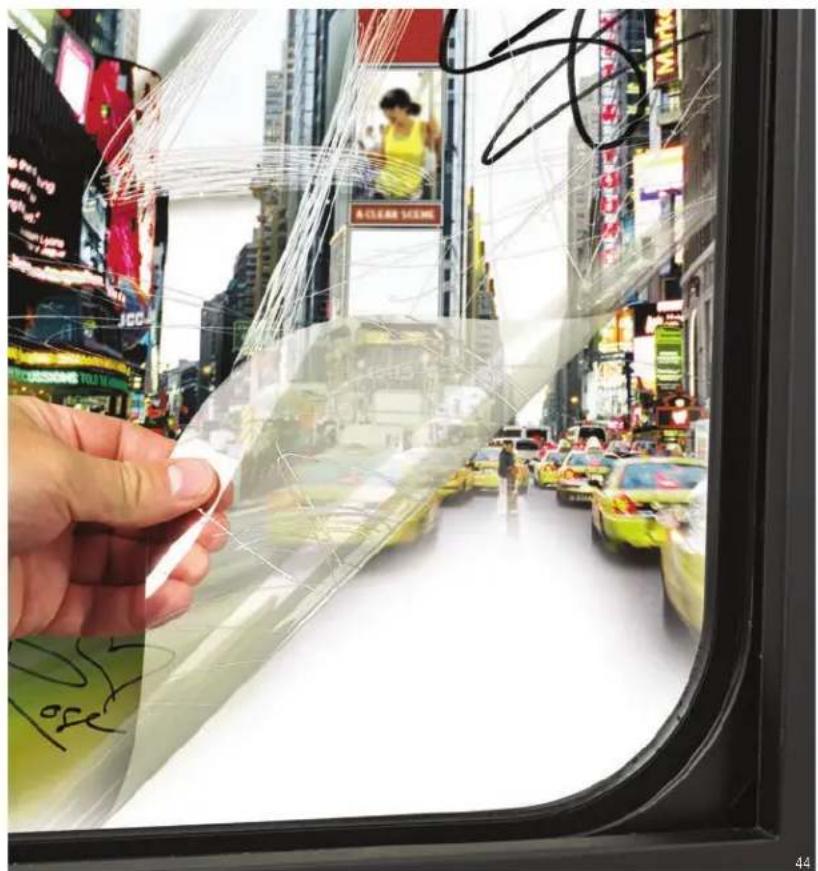

3M™ Scotchgard™ Multi-Layer Protective Film 15

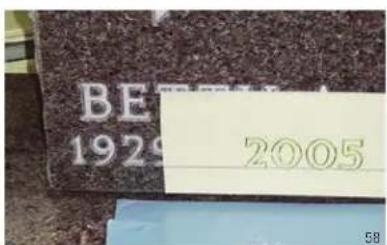

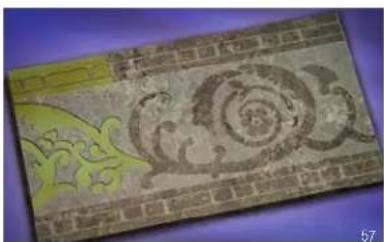

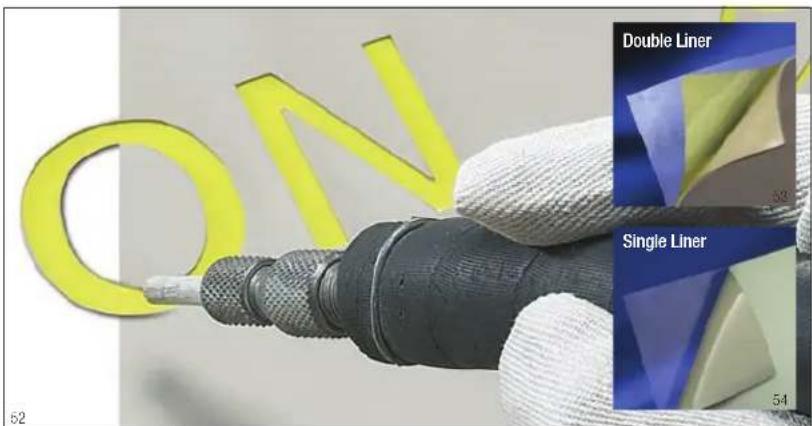

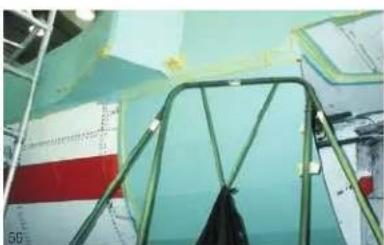

3M™ Sandblast Stencil Products and Impact Stripping Tapes 16–17

High Strength

Scotch® and Tartan™ High Strength Tapes 19

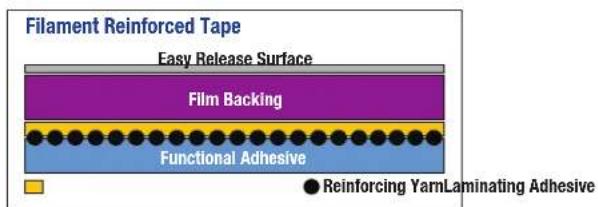

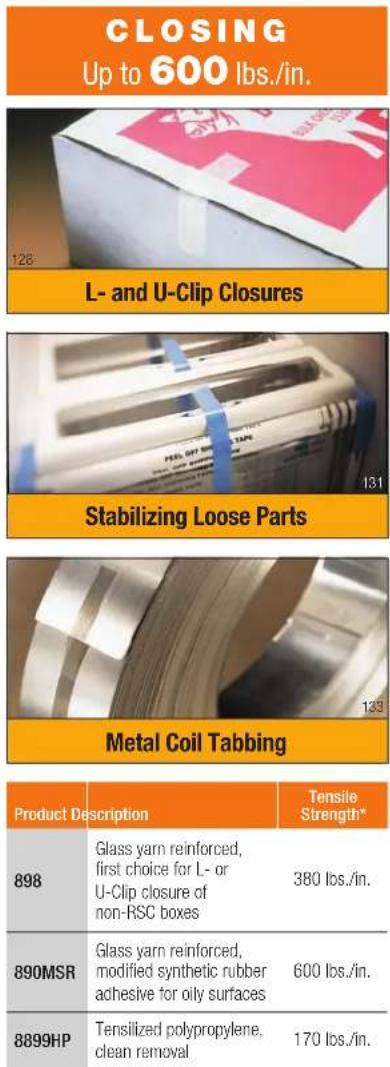

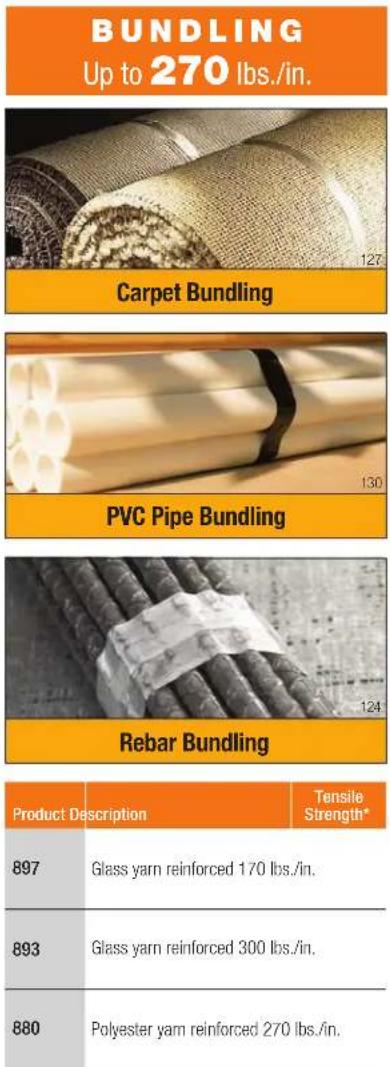

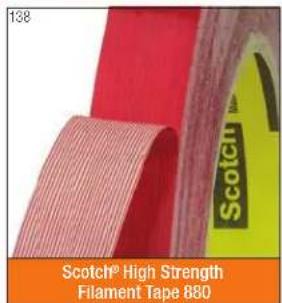

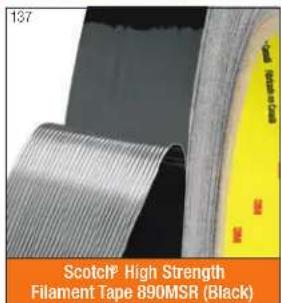

Scotch® and Tartan™ High Strength Filament Tapes....20–21

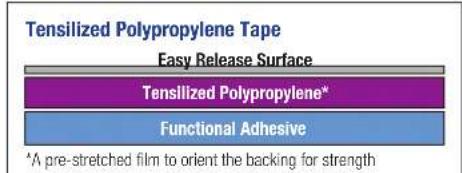

Scotch® and Tartan™ Tensilized Polypropylene Tapes 22

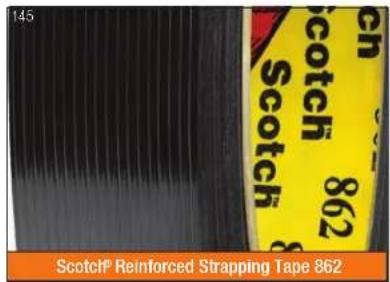

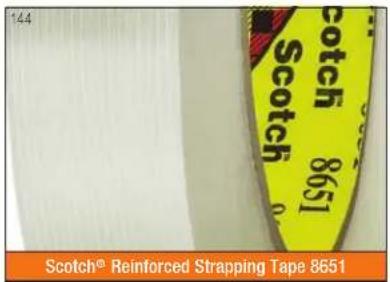

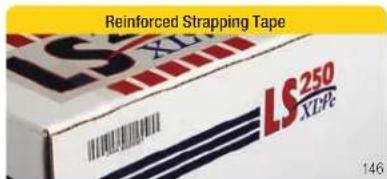

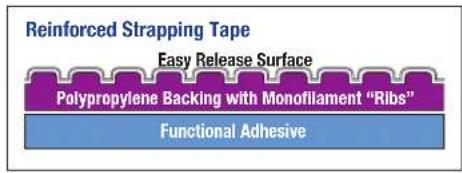

Scotch® Reinforced Strapping Tapes 23

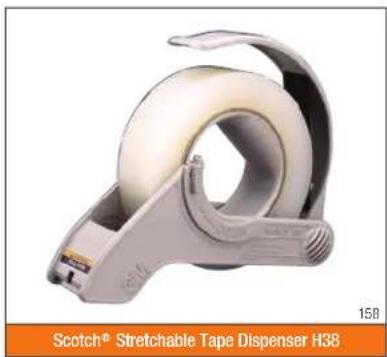

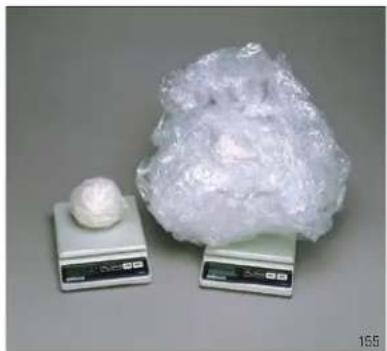

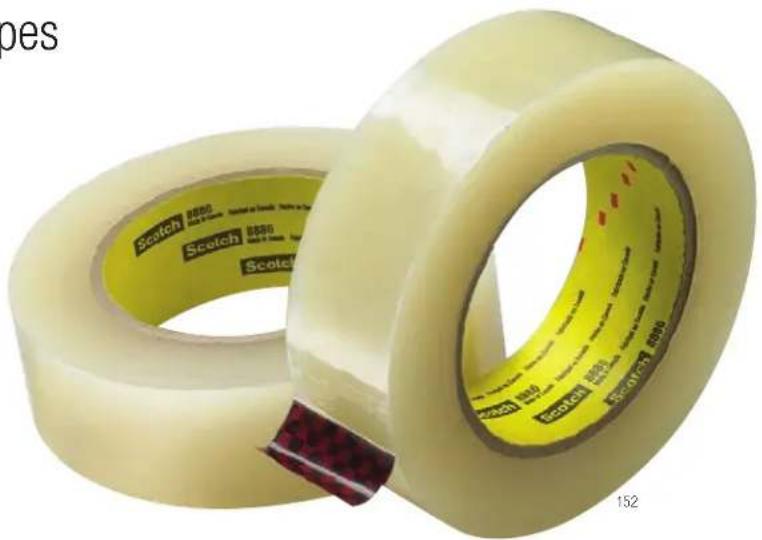

Scotch® Stretchable Tapes 24

Scotch® Tear Strip Tapes 25

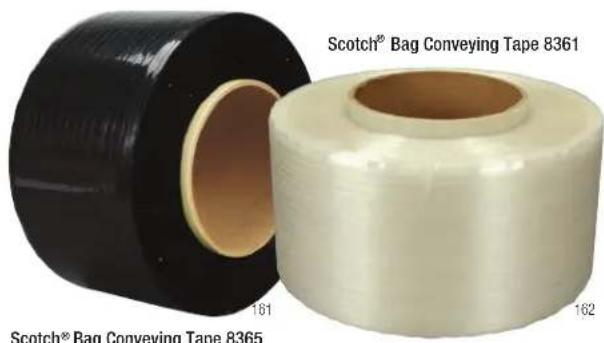

Scotch® Bag Conveying Tapes 25

Specialty Tapes

3M ^™ Specialty Tapes....27

3M™ Application Specific Tapes 28–29

3M ^™ Glass Cloth Tapes 30

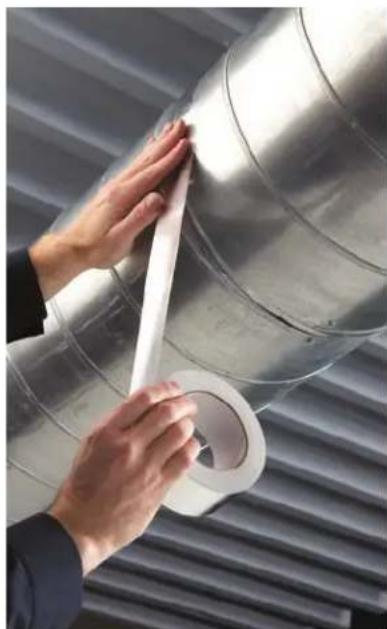

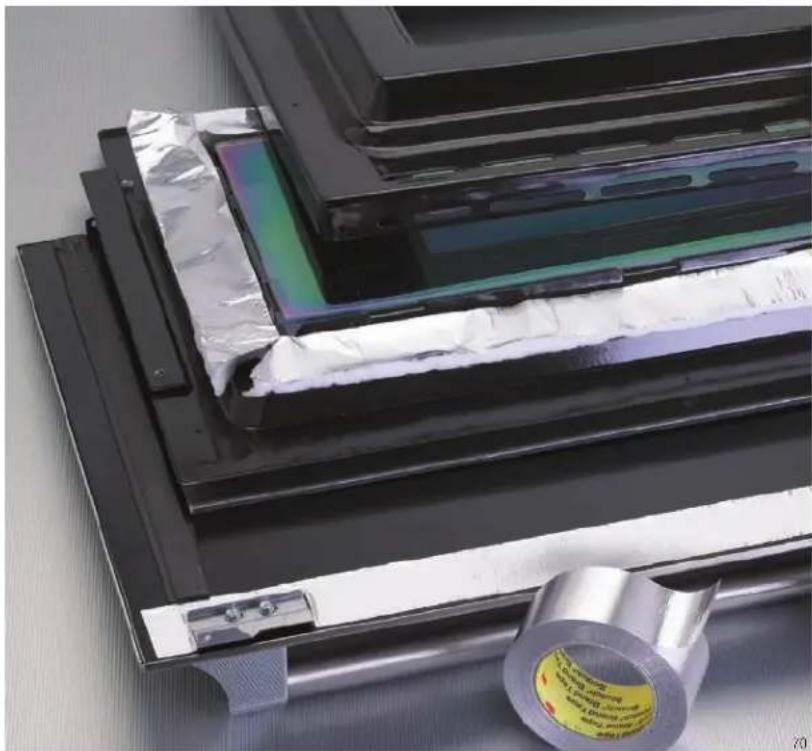

3M™ Metal Foil Tapes....31-34

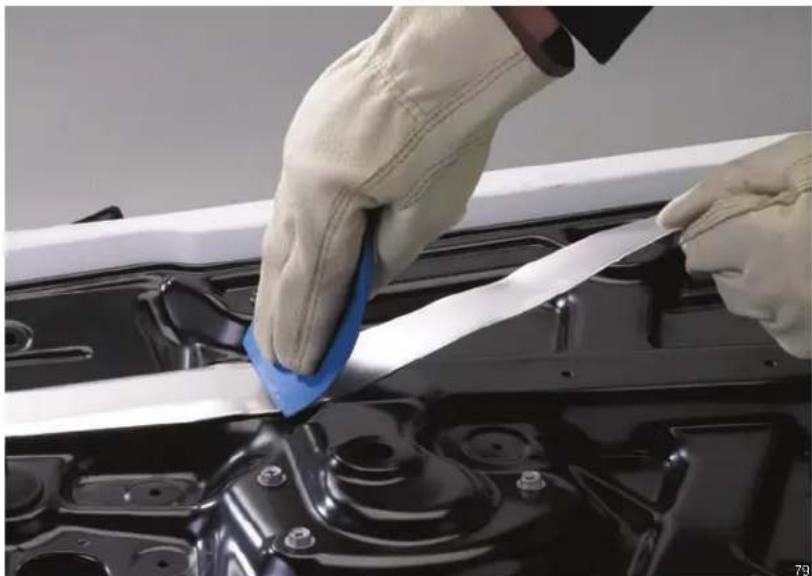

3M ^™ Sound Damping Foils 35

3M™ Polyester Tapes 36-37

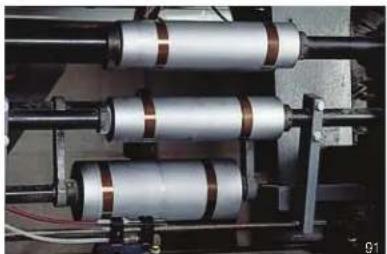

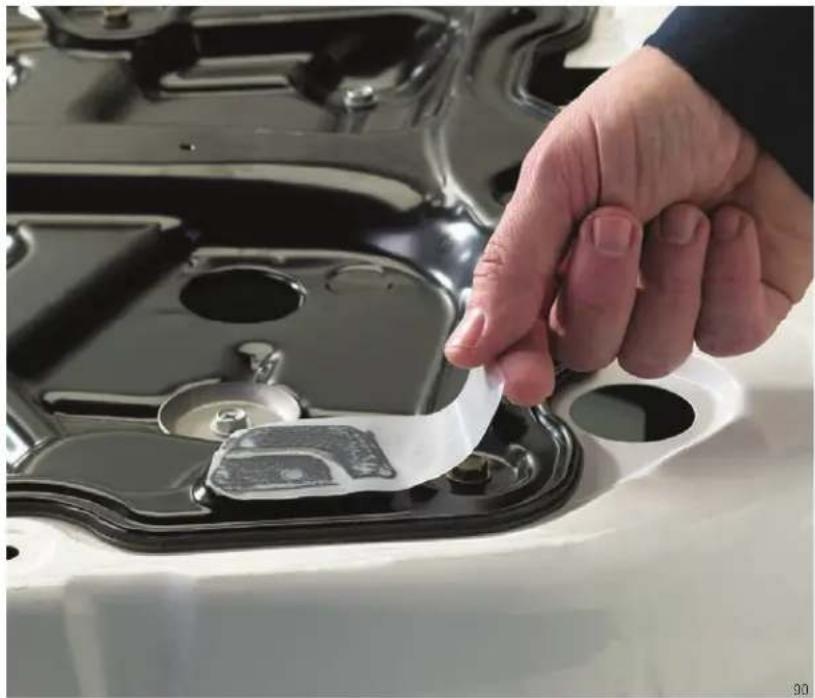

3M™ PTFE and UHMW-PE Tapes 38–39

3M ^™ Vinyl and Polyethylene Tapes 40–41

3M™ Preservation Tapes....41

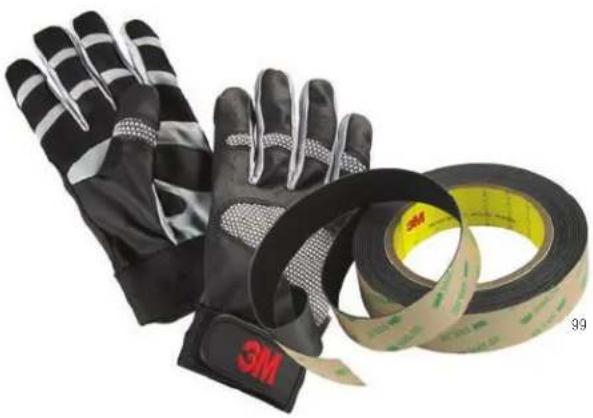

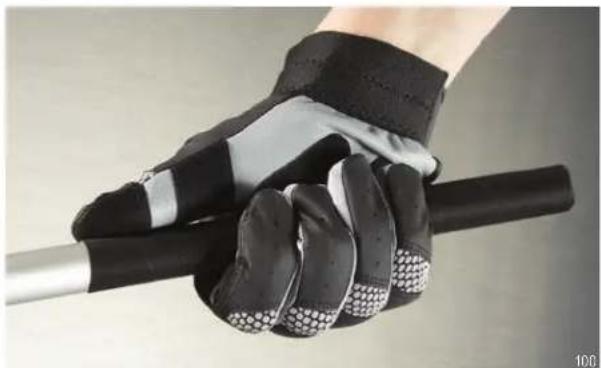

3M™ Gripping Materials 42

Splicing and Repulpable Tapes

3M™ Splicing and Repulpable Tapes Overview 44

3M ^™ Repulpable Splicing Tapes 44–45

3M ^™ Splicing Tapes 46

3M™ Non-Repulpable Splicing Tapes....46

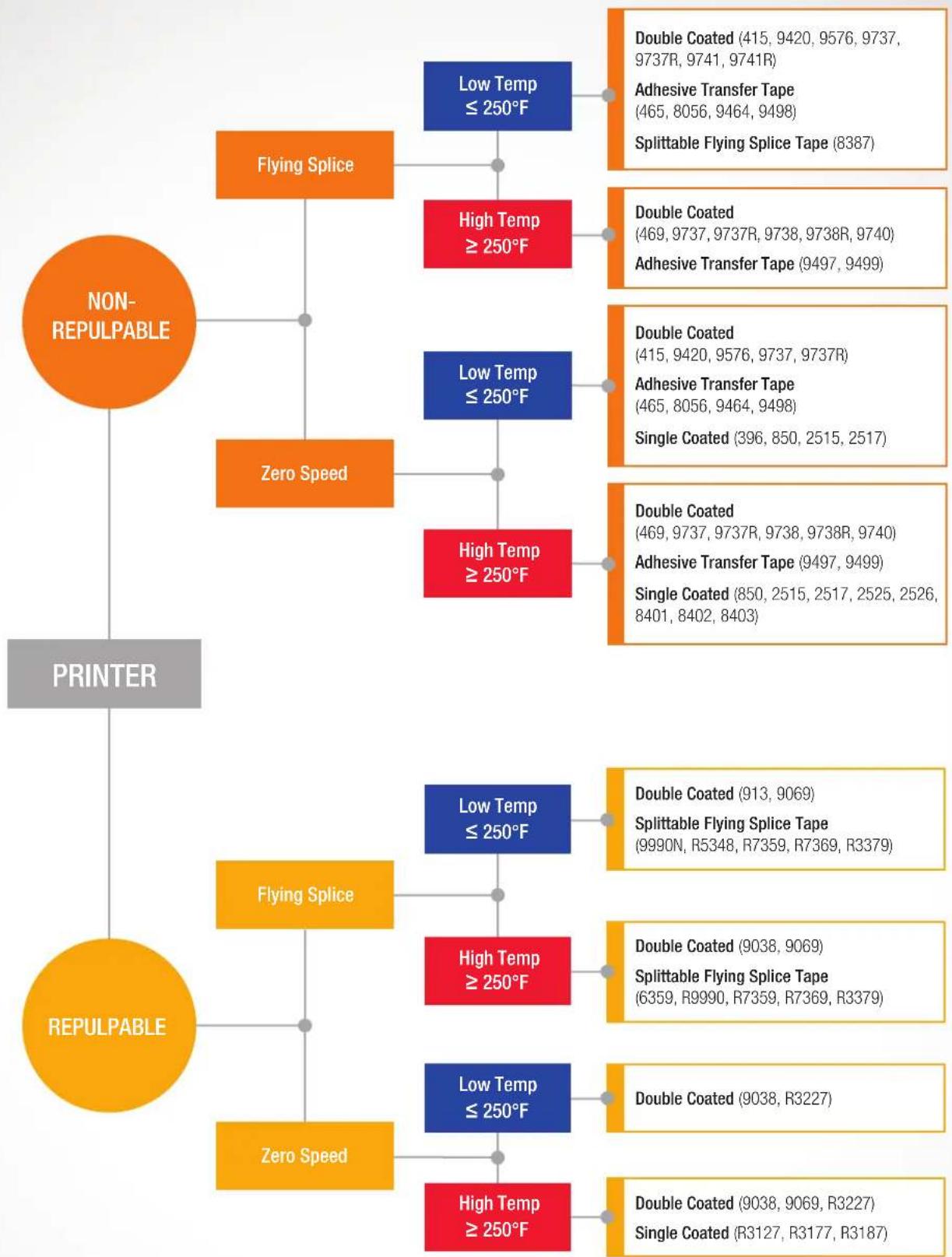

3M™ Splicing Tapes Selection Guide 47

Equipment

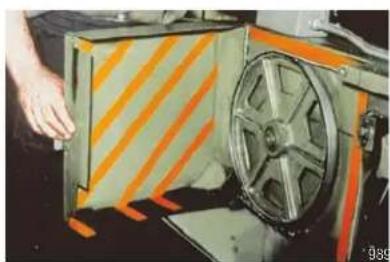

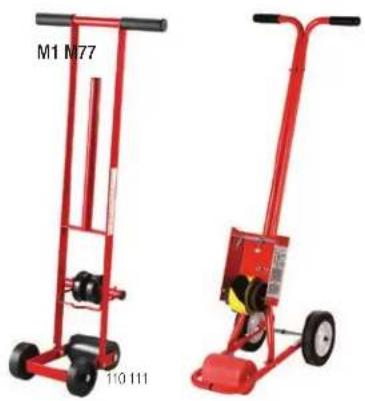

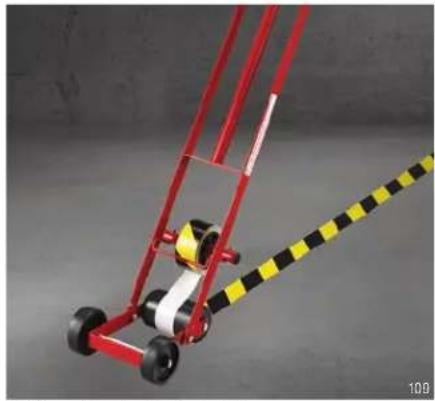

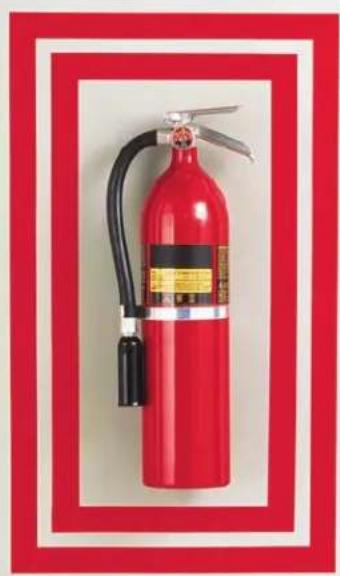

3M™ Lane Marking Applicators 49

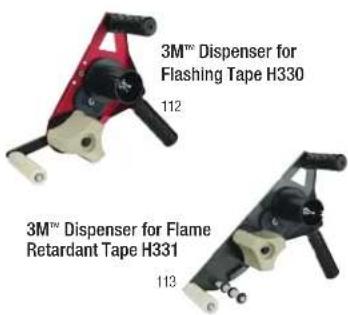

3M™ Tape Dispensers 49

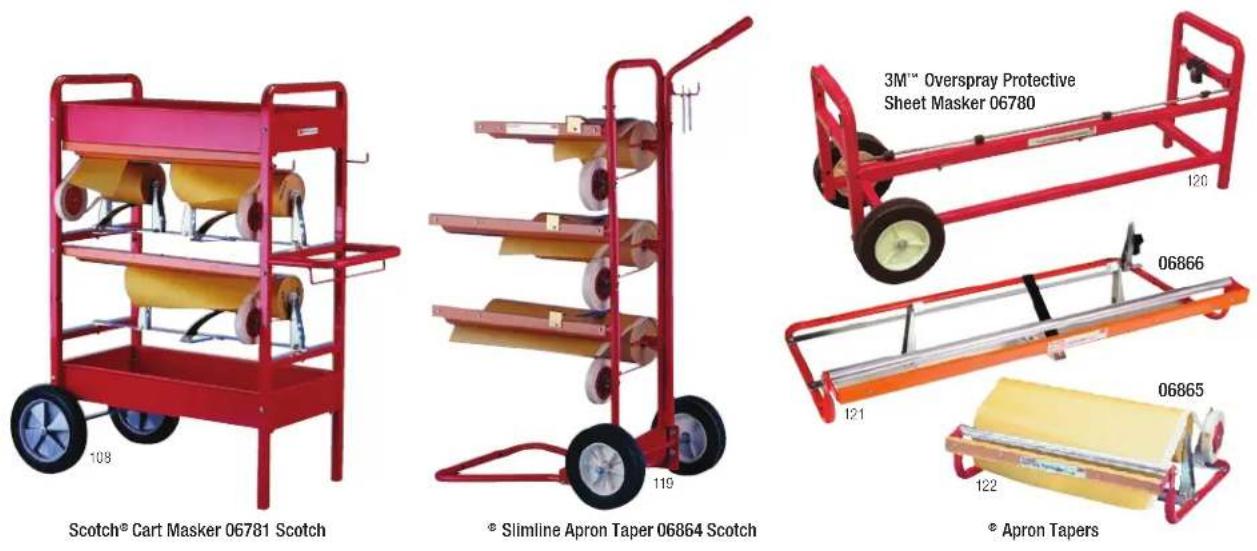

3M™ Dispensers for Large Area Masking....50

Glossary....51-56

Numerical Index 57–58

Product Name Index 59-60

Selecting the Right Product for the Job

To help you make sure you find the optimum 3M tape or other adhesive-backed product for your particular application, you'll want to consider several factors:

• Backing material
• Adhesive type
• Application time and temperature
• Surface characteristics (e.g., roughness, surface energy, contours, etc.)
• End use conditions (e.g., temperature, UV exposure, abrasion, etc.)

The following selection guides integrate those factors to help you narrow your selection to fewer products for a more in-depth evaluation.

3M Backing Materials

In many applications, 3M backings add a second surface that affects how the underlying surface relates to the environment. To optimize that relationship, 3M backings offer a wide choice of performance and handling characteristics.

PAPER BACKING	Crepe	Conformable, easy tear
	Flatback	Strong, smooth, good for straight line masking
	Kraft	Strong, some versions are repulpable
	Tissue	Thin, porous to allow adhesive penetration of sheet
PLASTIC BACKING	Polyester	Strong even when thin, chemical resistant, high temperature resistance
	Polypropylene	Resistant to most solvents, conformable, tear resistant
	Polyethylene	Conformable, easy to stretch, chemical/acid/moisture resistant, economical
	Polyethylene/Polypropylene Co-polymer	Conformable, chemical/acid/moisture resistant
	UHMW-PE	High abrasion resistance, low coefficient of friction, anti-stick surface easy to clean
	Polyvinyl Chloride (Vinyl)	Conformable, abrasion resistant, resistant to most chemicals
	Polyimide	High temperature resistance, excellent dimensional stability, good chemical resistance
	Polyamide (Nylon)	High temperature resistance, high strength and toughness, good chemical resistance but can absorb moisture
	Polytetrafluoroethylene (PTFE)	Low coefficient of friction, excellent high temperature and chemical resistance, anti-stick/release properties
	Polyvinyl Alcohol (PVA)	Water-soluble, organic solvent resistant, high temperature resistance
	Polyurethane	Abrasion/scratch resistant, impact/puncture resistant, UV and corrosion resistant
	Polyvinyl Fluoride	Excellent weather resistance, excellent long-term UV resistance, thin yet stiff feel
CLOTH BACKING	Cotton	Strong, easy tear by hand, soft and drapable
	Glass Cloth	Strong, high temperature resistance, flame-resistant
	Vinyl Coated	Strong yet hand tearable, abrasion resistant, water-resistant, conformable
NON-WOVEN BACKING	Fiber	Air permeable, strong enough to hold expanding foams
METAL BACKING	Aluminum	Heat and light reflective, moisture and chemical resistant, flame-resistant, outdoor weather resistant, conformable
	Copper	EMI/RFI shielding
	Lead	Electrically conductive, acid resistant, high conformability, x-ray opacity
	Stainless Steel	Corrosion resistant
RUBBER BACKING	Neoprene	Abrasion resistant, die-cuttable
COMBINATION (LAMINATES) BACKING	Paper/Polyethylene	Weather and chemical resistant, hand tearable, stretch resistant
	Metalized/Polyester	Reflective, decorative
	Glass Cloth/PTFE	High temperature resistance, high strength
	Glass Cloth/Aluminum	Very high temperature resistance, high strength
	Non-Woven/Aluminum	High heat and cold resistance
	Polyethylene Over Cloth	Strong yet hand tearable, abrasion resistant, water resistant and conformable.

3M Pressure Sensitive Adhesives

Most of the products in this guide feature a 3M pressure sensitive adhesive that bonds the backing to another surface on contact. Each adhesive has different characteristics that affect production and end use performance.

RUBBER ADHESIVE	STANDARD ACRYLIC ADHESIVE	MODIFIED ACRYLIC ADHESIVE	SILICONE ADHESIVE
High initial bond Moderate initial bond		Bonds to wider variety than standard acrylic	Fair initial bond
Softer Firmer Softer Very firm
Widest variety of surfaces including low surface energy materials*	High surface energy* Many surfaces Fewer surfaces
Up to 350°F (177°C) Up to 450°F (232°C) Up to 300°F (149°C)			Up to 600°F (316°C), excellent low temperature performance
Fair chemical resistance Excellent chemical resistance Good chemical resistance Excellent chemical resistance
Fair UV resistance Excellent UV resistance Moderate UV resistance Excellent UV resistance
Poor aging Excellent aging Durable Excellent aging
Removable	Permanent	Various	Removable
Good solvent resistance	Excellent solvent resistance	Good solvent resistance	Excellent solvent resistance

*Surface energy ranges from high to low. To illustrate the concept of surface energy, think of water on the unwaxed hood of a car. The unwaxed hood has high surface energy and water on the hood flows into puddles. In comparison, a waxed hood has low surface energy and the water beads up rather than flows out. Similar to water, adhesive on a high surface energy surface flows and "wets out" the surface. "Wetting out" is required to form a strong bond.
As a rule of thumb, the higher the surface energy, the greater the strength of adhesion. Specially formulated adhesives are available for low surface energy surfaces. Regardless of surface energy, the substrate must be unified, dry, and clean to maximize adhesive contact.
The following illustrations and surface rankings give you an idea of relative surface energy.

Metal Surfaces (High Surface Energy)

High Surface Energy Plastics (HSE)

Low Surface Energy Plastics (LSE)

mJ/m2	Surfaces
1103	Copper
840	Aluminum
753	Zinc
526	Tin
458	Lead
700-1100	Stainless Steel
250-500	Glass

mJ/m2	Surfaces	mJ/m2	Surfaces
50	Polyimide Industrial Film	43	Polyurethane Paint
		42	ABS
47	Phenolic	42	Polycarbonate
46	Nylon	39	PVC Rigid
45	Alkyd Enamel	38	Modified PPE Resin
43	Polyester	38	Acrylic
43	Epoxy Paint

mJ/m2	Surfaces
37	PVA
36	Polystyrene
36	Acetal
33	EVA
31	Polyethylene
29	Polypropylene
28	Polyvinyl Fluoride Film
18	PTFE Fluoropolymer

Note: These values are provided as a guide. Formulation modifications can substantially alter surface energies.

Adhesive Surface Contact

Applying firm pressure to the bond increases adhesive flow and contact for more secure bonding. Time and temperature will typically further increase contact and adhesion values.

Initial Contact (Minimal Contact)

13

After Rubdown (More Contact)

14

After Dwell Time (Excellent Contact)

15

3M™ Specialty Tapes Backing and Adhesive Selection Guide

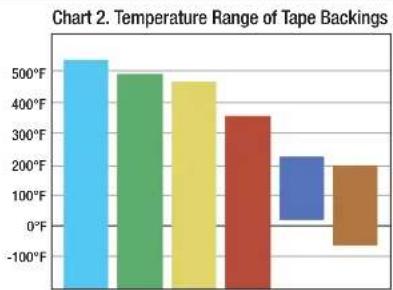

To help select the TAPE BACKING for your application, consult the following charts. Each backing is rated in eight critical categories.

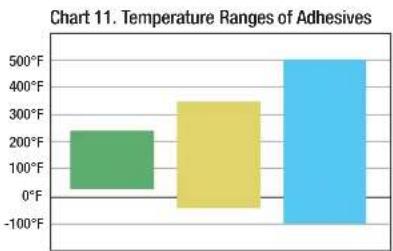

To help select the ADHESIVE for your application, consult the charts below. Each adhesive is rated in five critical categories.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

Masking, Duct and Flatback Tapes

Practical tape solutions.

Tapes that hold firm, yet remove easily.

To get the job done right the first time, you need to use the right tools. That's why we offer a full lineup of industrial tapes with unmatched dependability. From tapes that withstand extreme temperatures to tapes that remove cleanly in UV conditions, you can trust 3M to help you get the job done right.

3M ^TM Industrial Masking Tapes

Now It's Easy to Choose the Best Tape to Get the Job Done Right

To win in today's highly competitive marketplace, you need the right tools. And that includes your masking tapes. So 3M has created a simple, 5-tape system to help you choose the right tape for your job.

Five tapes, built on increasing levels of performance and a common goal of helping you finish jobs worth finishing.

It's industrial masking made simple.

Four colored plastic tape covers (yellow, purple, green, beige) with printed labels, arranged on a white background (no readable text beyond branding)

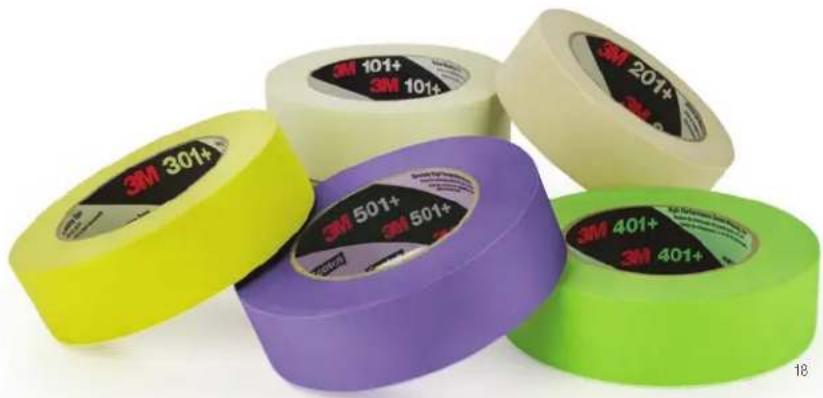

3M™ Masking Tapes 101+, 201+, 301+, 401+ and 501+.

Five colored tape roll samples arranged in a row, showing different material colors (beige, yellow, green, purple) with no visible text or symbols.

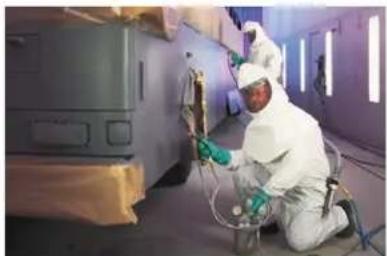

Worker painting a vehicle door panel in a factory setting (no visible text or symbols)

Consider 301+ for general purpose, low to medium temperature applications up to 225°F (107°C).

Close-up of a hand holding a green leaf against a car window (no visible text or symbols)

Consider 401+ for critical masking applications with temperatures up to 250°F (121°C).

Person in full protective suit and white hood working near industrial equipment inside a vehicle (no visible text or symbols)

Consider 501+ for bake temperatures up to 300°F (149°C) or for multiple bake cycles.

Product Number Color		Adhesive Type	Backing Material	Total Thickness mils (mm)	Adhesion to Steel oz/in (N/100 mm)	Tensile Strength lb/in (N/100 mm)	Elongation at Break %	Maximum Operating Temperature °F (°C)	Time at Maximum Temperature (mins.)	Can be Certified to Specification Comments
Based on ASTM Test Method: D-3652 D-3330 D-3759 D-3759
101+	Tan Rubber Crepe Paper			5.1(0.13)	34(37)	22(385)	9	150(66)	30 — Indoor use. Light-duty applications.
201+	Tan	Solvent-Free Rubber	Crepe Paper	4.4(0.11)	25(27)	19(333)	8	200(93)	30	—	General indoor use. Light-to-medium duty. Clean removal.
301+	Yellow	Solvent-Free Rubber	Crepe Paper	6.3(0.16)	30(33)	22(385)	12	225(107)	30	—	Good conformability to irregular surfaces. Good paint lines.
401+	Green	Solvent-Free Rubber	Crepe Paper	6.7(0.17)	36(39)	25(438)	10	250(121)	30	—	Highly conformable to many surfaces. Superior adhesion to metal, rubber, glass and plastic. Great paint lines.
501+	Tan	High Temperature Rubber	Crepe Paper Treated with a Heat Resistant Saturant	7.3(0.19)	36(39)	26(455)	10	300(149)	30 ASTM D 6123		Exceptionally conformable to irregular surfaces. Superior adhesion to metal, rubber, glass and plastic. Removes cleanly in one piece with no residue. Great paint lines.
501+	Purple	High Temperature Rubber	Crepe Paper Treated with a Heat Resistant Saturant	7.3(0.19)	37(40)	31(543)	11	300(149)	30	—	Exceptionally conformable to irregular surfaces. Superior adhesion to metal, rubber, glass and plastic. Removes cleanly in one piece with no residue. Great paint lines.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

Scotch® Fine Line Masking Tapes

Line Sharpness and Removal the Way You Want

With a core capability of coating technology, 3M combines paper or film backings with different adhesives for demanding applications.

• Sharpest possible paint lines
• Conformability to stretch and adhere around sharp curves
  • Film or vinyl backings flex easily for creating curved paint edges
• Resist edge lifting

Hand drawing a curved line on paper with a pencil, no text or symbols present

With blue vinyl backing and rubber adhesive, Scotch® Fine Line Masking Tape 4737T offers best-in-class conformability and line sharpness for curves in high value processes.

Close-up of hands handling a white object on a red and green wooden tray (no text or symbols visible)

A combination of Scotch® Fine Line Masking Tape and 3M™ Crepe Masking Tape helps to create sharp, high-impact paint lines on an in-mold application in the marine industry.

Abstract 3D block structure with green and red blocks, no text or symbols visible

Also consider Scotch® Fine Line Tape 265 for difficult to stick to surfaces, such as semi-perm mold release surfaces.

Product Number	Color	Adhesive Type	Backing Material	Total Thickness mils (mm)	Adhesion to Steel oz/in (N/100 mm)	Tensile Strength lb/in (N/100 mm)	Elongation at Break %	Maximum Operating Temperature °F (°C)	Time at Maximum Temperature (minutes)	Comments
Based on ASTM Test Method: D-3652 D-3330 D-3759 D-3759
215	Blue Rubber		Polyethylene/ Polypropylene Co-polymer	4.8 (0.12)	43 (47) 15 (263)	1150 250 (121) 30				Medium temperature. Excellent conformability.
218	Green	Rubber	Polypropylene	5.0 (0.13)	37 (40)	13 (228)	720	250 (121)	30	Good for long, straight lines.
265	Green	Rubber/ Silicone	Polypropylene	5.1 (0.13)	21 (23) 21 (368)	881	200 (93)	30		In-mold composite masking where sharp, clean, gel-coal color separation lines are desired.
2460	Gold	Acrylic	Flatback Paper	3.3 (0.08)	8 (8.7)	17 (297)	5	300 (149)	30	For paint bake operations at temperatures up to 300°F (149°C). 21 days outdoor.
4735	Orange	Rubber	Vinyl	5.4 (0.14)	9.5 (10.4)	14 (245)	130	300 (149)	30	Highly conformable, high temperature vinyl fine line tape for fascia panels, two-tone and other multiple color applications where critical paint break lines are required.
4737T	Translucent Blue	Rubber	Vinyl	5.4 (0.14)	10.5 (11.5)	16 (280)	115	300 (149)	30	Conformable, high temperature vinyl fine line tape for fascia panels, two-tone and other multiple color applications where critical paint break lines are required.
4737S	Solid Blue	Rubber	Vinyl	5.4 (0.14)	10.5 (11.5)	16 (280)	115	300 (149)	30	Highly visible backing version of 4737T.
4737TL	Blue	Rubber	Vinyl	5.4 (0.14)	10.5 (11.5)	16 (280)	115	325 (163)	30	Linered version of 4737T.

3M™ Masking Tapes — Crepe Paper

Holding Power and Removal the Way You Want

In this simplified line, you will find a range of such characteristics as adhesive holding power, line sharpness, and clean removal to meet different application requirements for virtually every industrial and consumer application. 3M products also feature:

• Instant adhesion at a touch
• Easy tear without stretching or pulling
• Controlled unwind...not too easy or too hard
• Conformability to stretch and adhere around curves

Five colorful plastic tape rollers arranged in a row (no text or symbols visible)

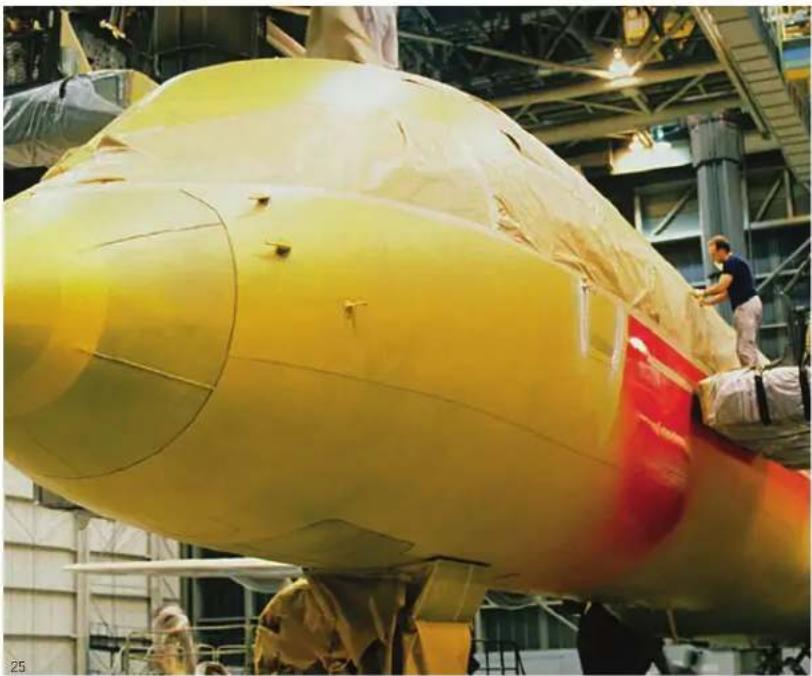

Exterior view of a large yellow aircraft fuselage inside a hangar, with maintenance personnel visible on the side (no signage or text)

With the wide variety of 3M™ Masking Tapes, you can select from a variety of backings, adhesion strengths, clean removal properties, and temperature range performance.

Use 3M ^™ Value Masking Tape 101+ for light-duty attaching.

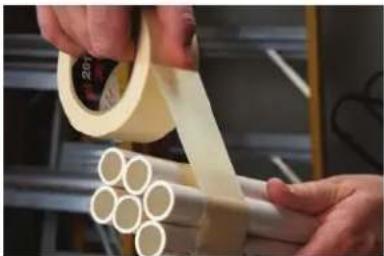

Close-up of hands handling a yellow tape and rolled transparent tubes, no visible text or symbols

Use 3M ^™ General Masking Tape 201+ to quickly bundle parts.

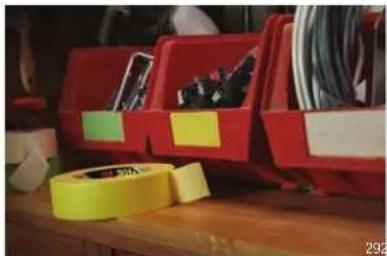

Red and yellow plastic test box with tape and accessories on a wooden surface (no visible text or symbols)

3M™ Performance Yellow Masking Tape 301+ is ideal for labeling and identifying applications.

Learn more about Sustainable Solutions from 3M online at

3M.com/sustainability

3M™ Masking Tapes — Crepe Paper

Product Number Color Adhesive Type	Backing Material	Total Thickness mils (mm)	Adhesion to Steel oz/in (N/100 mm)	Tensile Strength lb/in (N/100 mm)	Elongation at Break %	Maximum Operating Temperature °F (°C)	Time at Maximum Temperature (mins.)	Can be Certified to Specification	Cross Reference Comments
ASTM Test Method: D-3652 D-3330 D-3759 D-3759

Industrial Masking Tapes

101+	Tan Rubber Crepe Paper			5.1(0.13)	34(37)	22(385)	9	150(66)	30 — —	Indoor use. Light-duty applications.
201+	Tan	Solvent-FreeRubber	Crepe Paper	4.4(0.11)	25(27)	19(333)	8	200(93)	30 — —	General indoor use. Light-to-medium duty. Clean removal.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

3M™ Masking Tapes — Crepe Paper

Product Number Color		Adhesive Type	Backing Material	Total Thickness mils (mm)	Adhesion to Steel oz/in (N/100 mm)	Tensile Strength lb/in (N/100 mm)	Elongation at Break %	Maximum Operating Temperature °F (°C)	Time at Maximum Temperature (mins.)	Can be Certified to Specification	Cross Reference	Comments
ASTM Test Method: D-3652 D-3330 D-3759 D-3759
Industrial Masking Tapes
301+	Yellow	Solvent-Free Rubber	Crepe Paper	6.3(0.16)	30(33)	22(385)	12	225(107)	30 — —			Good conformability to irregular surfaces. Good paint lines.
401+	Green	Solvent-Free Rubber	Crepe Paper	6.7(0.17)	36(39)	25(438)	10	250(121)	30 — —			Highly conformable to many surfaces. Superior adhesion to metal, rubber, glass and plastic. Great paint lines.
501+	Tan	High Temperature Rubber	Crepe Paper Treated with a Heat Resistant Saturant	7.3(0.19)	36(39)	26(455)	10	300(149)	30 ASTM D 6123 —			Exceptionally conformable to irregular surfaces. Superior adhesion to metal, rubber, glass and plastic. Removes cleanly in one piece with no residue. Great paint lines.
501+	Purple	High Temperature Rubber	Crepe Paper Treated with a Heat Resistant Saturant	7.3(0.19)	37(40)	31(543)	11	300(149)	30 — —			Exceptionally conformable to irregular surfaces. Superior adhesion to metal, rubber, glass and plastic. Removes cleanly in one piece with no residue. Great paint lines.
General Purpose Masking Tapes
200	Tan Rubber Crepe Paper			4.4(0.11)	25(27)	19(333)	8	200(93)	30 — 201+ Good instant adhesion.
202	Tan Rubber Crepe Paper			6.3(0.16)	37(41)	27(472)	8	250(121)	30 ASTM D 6123; D 6123M-97	401+ Good holding power.
203	Beige	Rubber Crepe Paper		4.7(0.12)	28(31)	22(385)	8	200(93)	30 — 201+			General purpose masking tape for holding, bundling, sealing and more.
213	Tan Rubber Crepe Paper			6.0(0.15)	34(37)	27(480)	10	350(177)	30 ASTM D 6123; D 6123M-97	—	Good on anodized aluminum.
214	Tan Rubber Crepe Paper			5.8(0.15)	29(32)	27(480)	10	350(177)	60 ASTM D 6123; D 6123M-97	—	Stain resistant.
225	Silver	Rubber Crepe Paper		5.8(0.15)	33(36)	21(368)	9	200(93)	30 — — Outdoor use.
226	Black	Rubber	Polyethylene/ Crepe Paper	10.6(0.27)	38(42)	34(595)	11	225(107)	30 — — Outdoor use.
231/231A	Tan Rubber Crepe Paper			7.6(0.19)	38(41)	28(490)	10	300(149)	30 ASTM D 6123; D 6123M-97	501+	Best all-purpose paint masking tape.
232	Tan Rubber Crepe Paper			6.3(0.16)	37(41)	27(472)	8	250(121)	30 — 401+ Good paint lines.
234	Tan Rubber Crepe Paper			5.9(0.15)	34(37)	27(472)	8	250(121)	30 ASTM D 6123; D 6123M-97	401+ Excellent controlled unwind.
2214	Tan Rubber Crepe Paper			5.4(0.14)	22(24)	23(403)	10	200(93)	30 — 101+ Good for holding and bundling.
2307	Tan Rubber Crepe Paper			5.2(0.13)	28(31)	23(403)	8	200(93)	30 — 301+			Solvent-free construction, non-critical paint masking.
2308	Tan Rubber Crepe Paper			5.3(0.13)	35(38)	22(385)	10	250(121)	30 — 301+ Good transfer resistance.
2364	Tan Rubber Crepe Paper			6.5(0.17)	31(34)	24(427)	10	300(149)	30 ASTM D 6123; D 6123M-97	501+	High temperature, crepe paper masking tape for general masking application. Good holding power.
2380	Tan Rubber Crepe Paper			7.2(0.18)	39(43)	28(498)	10	325(163)	30 ASTM D 6123; D 6123M-97	501+	High temperature. Best holding to widest variety of surfaces.
2393	Tan Rubber Crepe Paper			7.6(0.19)	32(36)	28(490)	11	325(163)	30 ASTM D 6123; D 6123M-97	—	Smooth, heavy duty, high temperature masking tape.
2510	Black	Rubber Crepe Paper		5.6(0.14)	35(37)	20(350)	9	200(93)	60 ASTM D 6123; D 6123M-97	—	General purpose masking tape for holding, bundling, sealing and general paint masking where a dark colored tape is required.
2693	Tan	Synthetic Rubber	Crepe Paper	7.9(0.20)	40(44)	29(515)	10	325(163)	30 ASTM D 6123; D 6123M-97	501+	Very aggressive holding; excellent for multi-bake paint cycles.
5501A	Tan	High Temperature Rubber	Crepe Paper Treated with a Heat Resistant Saturant	7.3(0.19)	36(39)	26(455)	10	300(149)	30 ASTM D 6123 501+			Exceptionally conformable to irregular surfaces. Superior adhesion to metal, rubber, glass and plastic. Removes cleanly in one piece with no residue. Great paint lines.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

3M ^™ Duct Tapes and Cloth Tapes

Dependability and Versatility for Bundling, Sealing, Reinforcing and More

This family of rugged cloth and duct tapes adheres to most surfaces for applications ranging from bundling to moisture proofing, sealing to splicing, reinforcing to hanging poly drapes. Features include:

• Hand tearable
  • High tensile strength
• Conformability

Latest innovation in the line — clean removal plus long life indoors and out

The line includes 3M ^™ Performance Plus Duct Tape 8979 and nuclear grade 8979N. The best performing 3M ^™ Duct Tapes under the sun:

• Remove cleanly for up to six months from most opaque surfaces even after exposure to sun and outdoor weathering
• Stay on for up to one year without deterioration
• Save time and hassle of removing sticky or dried-on residue
  • Strong waterproof backing resists wear, abrasion, moisture, and weathering

Four metallic adhesive tape rolls, one blue and one gray, with no visible text or markings.

3M™ Duct Tapes are available in a variety of colors for color coding. A range of widths provides choices in coverage from 24mm to 22 inches.

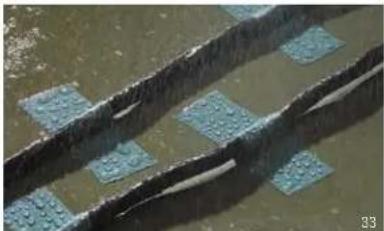

Aerial view of two concrete channels with embedded blue structural elements, no visible text or symbols.

Waterproof backing of 3M™ Performance Plus Duct Tape 8979 resists moisture and rain for up to a year.

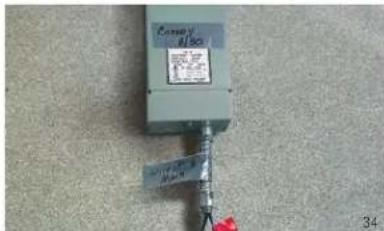

Write on the surfaces of many 3M ^™ Duct Tapes with pen or marker to leave a reminder or mark and identify works-in-progress, components, items bundled and more.

Person in red gloves handling a white tape on a dark surface, no visible text or symbols

For a tight seal in many containment situations, 3M ^™ Performance Plus Duct Tape 8979 attaches heavy poly draping, closes cuffs, and then removes cleanly when the job is finished.

Close-up of a hand holding a red tool over a plastic bag, next to a wall with greenery (no visible text or symbols)

Strong backing of 3M™ Outdoor Masking and Stucco Tape 5959 pulls through stucco, EIFS and other heavy coatings in one piece.

Close-up of white cylindrical cables with green tape, placed on a wooden surface (no visible text or symbols)

For bundling a wide variety of items, 3M™ Duct Tapes with natural rubber adhesive and high tensile strength backings adhere on contact and hold securely.

3M™ Duct Tapes and Cloth Tapes

Product Number Color		Adhesive Type	Backing Material	Thickness mils (mm)	Adhesion to Steel oz/in (N/100 mm)	Tensile Strength lb/in (N/100 mm)	Elongation at Break %	Maximum Operating Temperature °F (°C)	Meets Specifications Comments
Based on ASTM Test Method: D-3652 D-3330 D-3759 D-3759
Clean Removal Duct Tapes
8979	Blue, Black, Olive Rubber		Polyethylene Over Cloth Scrim	12.1(0.31)	48(53)	36(630)	19	200(93)	UL 723/ASTM E84	Up to six months clean removal from most opaque surfaces indoors and outdoors.
8979N	Red, Blue Rubber		Polyethylene Over Cloth Scrim	12.1(0.31)	48(53)	36(630)	19	200(93)	UL 723/ASTM E84/MIL-STD-2041D	Same features as 8979, plus low halogen and sulfur.
5959	Red Rubber		Polyethylene Over Cloth Scrim	12.0(0.30)	53(58)	35(613)	21	200(93)	UL 723/ASTM E84	High tensile strength backing protects against stucco, EIFS and other heavy coatings. 3 months outdoors.
5903	Red	Synthetic Rubber	Polyethylene	7.5(0.19)	79(87)	21(368)	72	173(78)	—	UV and weather resistant for outdoor masking, holding, patching, bundling, marking and more. 30 day removal.
Professional Grade Duct Tapes
DT11	Silver, Black	Natural Rubber	Polyethylene Film Over Cloth Scrim	11.0(0.27)	58(63.4)	35(613)	12	200(93)	—	Provides easy tear and good conformability. Great for holding, sealing and packaging.
2979	Silver	Synthetic Rubber	Polyethylene Over Cloth Scrim	7.4(0.29)	79(86)	24(430)	21	200(93)	— Use for a variety of duct tape applications.
3900	Black, Blue, Olive, Red, Silver, White, Yellow	Rubber	Polyethylene Over Cloth Scrim	7.6(0.19)	53(58)	28(490)	19	200(93)	—	General purpose duct tape, temporary repairs, color-coding.
3939	Silver Rubber		Polyethylene Over Cloth Scrim	8.6(0.22)	55(60)	25(438)	17	200(93)	UL 723/ASTM E84	Use for demanding duct tape applications.
3979	Silver	Synthetic Rubber	Polyethylene Over Cloth Scrim	7.9(0.31)	68(74)	32(560)	26	200(93)	— Use for a variety of duct tape applications.
6969	Olive, Silver, Black Rubber		Polyethylene Over Cloth Scrim	10.0(0.25)	51(56)	34(595)	16	200(93)	UL 723/ASTM E84	Industrial grade duct tape, thick adhesive layer sticks to rough surfaces.
Utility Duct Tapes
DT8	Silver	Synthetic Rubber	Polyethylene Film Over Cloth Scrim	8.0(0.2)	100(109.4)	31(542)	21	200(93)	—	Provides easy tear and good conformability. Great for sticking to metal, glass, plastic and sealed concrete.
3903	Black, Blue, Gray, Green, Red, White, Yellow	Rubber Vinyl		6.5(0.16)	15.4(16.8)	12.6(220)	134	200(93)	—	General purpose tape for color coding and marking. Embossed vinyl backing.
2929	Silver Rubber		Polyethylene Over Cloth Scrim	5.5(0.14)	45(49)	19(333)	14	200(93)	—	Utility grade duct tape for temporary repairs, sealing, holding and marking.
1900	Silver	Synthetic Rubber	Polyethylene Over Cloth Scrim	5.8(0.15)	62(68)	19(333)	15	200(93)	—	Economical choice for sealing, holding and marking.
Specialized High Strength Duct Tapes
DT17	Black	Natural Rubber	Polyethylene Film Over Cloth Scrim	17.0(0.43)	69(75.5)	41(718)	13	150(65)	—	Provides easy tear and good conformability. Great for seaming applications, repairing bottom boards and protecting various surfaces.
390	Silver, Olive Rubber		Polyethylene Over Cloth Scrim	11.7(0.30)	114(125)	48(841)	12	200(93)	—	Highest tensile for most demanding jobs, olive for military duct tape requirements.
393	Silver Rubber		Polyethylene Over Cloth Scrim	12.0(0.30)	95(104)	36(632)	8	200(93)	—	High adhesion, easy tear, for moisture proofing and insulation sealing.
6910	Silver, Black Rubber		Vinyl Coated Cloth	12.0(0.30)	45(49)	45(788)	5	200(93)	—	Excellent grip/gaffer's tape. Matte finish tape for low light reflectance.
GT1/GT2/GT3	White, Grey, Black, Brown, Blue, Burgundy, Green, Purple, Tan, Red, Teal, Yellow, Electric Blue, Olive Drab, FL Blue, FL Green, FL Orange, FL Yellow, FL Pink	Synthetic Rubber	Cotton Cloth	11.0(0.27)	72(78.8)	56(980)	6	200(93)	—	High strength and conformable to irregular surfaces. Good for taping down cords and wires, bundling, holding, splicing and marking.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

Scotch® Flatback Tapes

With a core capability of coating technology, 3M offers a range of backings and adhesive strengths to hold up to your job.

• High strength backings with strong cross direction tensile properties used for tabbing and splicing
  • Highly visible backing to help you identify and remove splices

Abstract composition with a dark vertical gradient on the left and two horizontal orange bars on the right (no text or symbols)

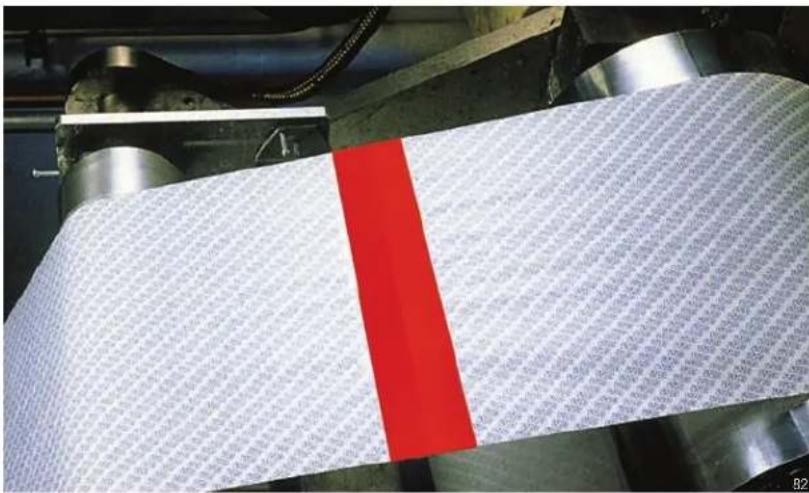

Scotch® Flatback Tape 2525 is great for applications requiring a unique color.

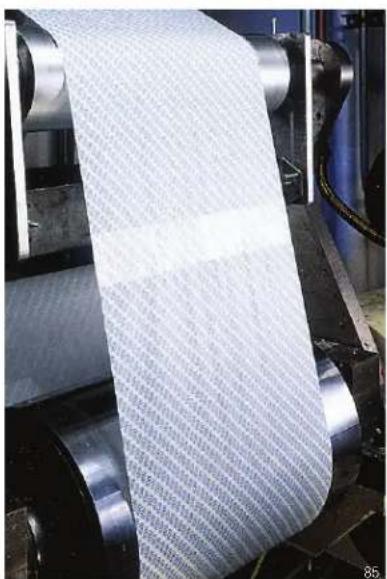

Close-up of a textured surface with a beige band and a patterned fabric (no text or symbols visible)

Scotch® Flatback Tape 2517 is great for low or high temperature splicing.

Product Number Color		Adhesive Type	Backing Material	Total Thickness mils (mm)	Adhesion to Steel oz/in (N/100 mm)	Tensile Strength lb/in (N/100 mm)	Elongation at Break %	Maximum Operating Temperature °F (°C)	Time at Maximum Temperature (mins.)	Can be Certified to Specification	Comments
Based on ASTM Test Method: D-3652 D-3330 D-3759 D-3759
250	Tan	Rubber	Flatback Paper	6.0(0.15)	87(95)	59(1033)	4	125(52)	30	ASTM D 6123;D 6123M-97	Used in paint adhesion testing.
256	White, Red, Green	Rubber	Flatback Paper	6.7(0.17)	25(27)	20(350)	5	200(93)	60	ASTM D 6123;D 6123M-97	Printable, accepts marking inks.
2515*	Tan	Rubber	Kraft Paper	6.9(0.18)	58(63)	40(700)	9	200(93)	30	—	General purpose splicing, holding and bundling applications.
2517	Medium Brown	Rubber	Kraft Paper	6.5(0.15)	78(85)	35(543)	2	300(149)	30	ASTM D 6123;D 6123M-97	Excellent splicing, holding and bundling applications.
2519**	Brown Rubber		Unblended Kraft Paper	7.1(0.18)	47(51)	47(823)	8	200(93)		ASTM D 6123;D 6123M-97	Excellent for splicing liner boards,bundling, holding, reinforcing,wrapping and protecting.
2525	Orange	Rubber	Flatback Paper	9.5(0.24)	69(75)	49(858)	2	300(149)	60	—	Premium splicing, bright color.
2526	White	Rubber	Flatback Paper	9.8(0.24)	69(75)	50(858)	4	300(149)	60	—	Excellent adhesion and strength for textile applications.

*3M brand.
**2519 Maximum Operating Temperature determined for holding a paper splice at 200°F (93°C) under a force of 2 pounds/linear inch (PL).

3M ^TM Masking Films

Product Number Color Adhesive Type		Backing Material	Total Thickness mils (mm)	Tensile Strength lb/in (N/100 mm)	Elongation at Break %	Maximum Operating Temperature °F (°C)	Time at Maximum Temperature (mins.)	Comments
Based on ASTM Test Method: D-3652 D-3759 D-3759
7260M	Translucent n/a Polypropylene		1.8(0.04)	5(88)	700	315(157)	60	Designed for masking cars and light trucks during OEM painting and for industrial paint masking applications such as truck, bus, RV heavy equipment and aircraft. Large area bags and sheets.
7300	Translucent n/a Polypropylene		3.4(0.09)	7.4(130)	680	310(155)	60	High performance, high temperature masking film that is soft flexing for good drape and conformability. Single wound slit rolls in a variety of widths.

Surface Protection

Protection where you need it.

Innovative 3M tapes and films can protect surfaces by resisting abrasion, UV, heat and punctures. Our surface protection products adhere and conform to numerous surfaces for maximum protection, and then remove easily. When your products need protection, you can trust 3M for practical solutions.

3M ^TM Clean-View Pads

Reliable Protection Against Paint Overspray

This clear multi-sheeted adhesive system protects paint booth windows and light fixtures from overspray. You reduce the labor expense, downtime, and amount of chemicals used for cleanup.

• Clear polyethylene keeps paint out and lets light through to help brighten the work area
• Individually tabbed sheets for easy removal from the pad
• Eliminates re-application of single layer protection films
  • Acrylic adhesive system for adhesion to glass surfaces

Close-up of hands installing a transparent panel on a white surface (no text or symbols visible)

Reliable protection is easy with 3M™ Clean-View Pads. Simply remove the clear protective liner to expose adhesive. Adhere the top adhesive edge to a dry, clean surface and squeegee over the bond area. When the sheet becomes contaminated, peel away to reveal a fresh, ready-to-use sheet.

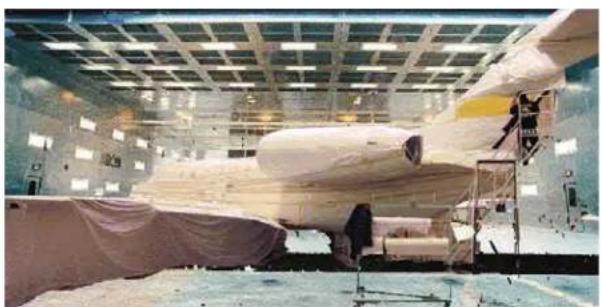

Interior view of a large industrial facility with a large cylindrical structure under construction, surrounded by scaffolding and no visible text or symbols.

For large and small painting operations, 3M ^™ Clean-View Pads protect windows and light fixtures from overspray.

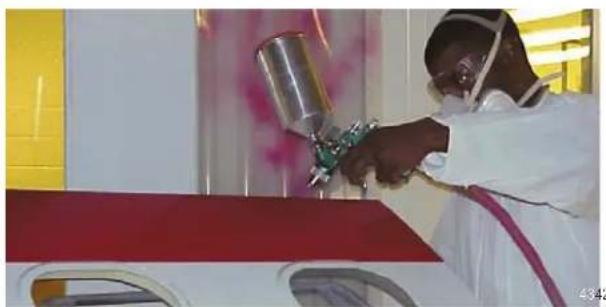

Person in protective gear spraying a spray gun on a red and white surface (no visible text or symbols)

3M ^™ Clean-View Pads help reduce the cost, downtime, and chemicals used in conventional cleanup.

Product Number Quantity		Sizes Inches (mm)	Pad/Adhesive Color		Total Layer Thickness mils (mm)	Backing Layer Thickness mils (mm)	Adhesive Layer Thickness mils (mm)	Adhesion to Steel oz./in. (N/100 mm)	Comments
5850	20 sheets/pad6 pads/case	13 x 51(330 x 1295)	Polyethylene/Acrylic	Clear 1.83 (0.05)	1.2 (0.03)	0.63 (0.02)	8.0 (9.0)		Ideal for paint booth operation. Protects from paint overspray.
	20 sheets/pad6 pads/case	18 x 46(457 x 1168)	Polyethylene/Acrylic	Clear 1.83 (0.05)	1.2 (0.03)	0.63 (0.02)	8.0 (9.0)
	20 sheets/pad6 pads/case	24 x 50(609 x 1270)	Polyethylene/Acrylic	Clear 1.83 (0.05)	1.2 (0.03)	0.63 (0.02)	8.0 (9.0)
	20 sheets/pad6 pads/case	24 x 36(609 x 914)	Polyethylene/Acrylic	Clear 1.83 (0.05)	1.2 (0.03)	0.63 (0.02)	8.0 (9.0)

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

3M™ Scotchgard™ Multi-Layer Protective Film

Easy, Cost-Effective Graffiti Removal

Transit authorities can spend millions annually to maintain and repair interior windows and glass. Specialized labor for replacing glass and material costs add up quickly.

On interior windows you can simply peel away graffiti with 3M™ Scotchgard™ Film.

Choices with multi-layer protection save you time and money while maintaining windows that are free from scratches, graffiti and acid-etched marks. When one layer is defaced, simply peel it away to refresh the window quickly and easily.

• Peels in minutes to return surfaces to service quickly
• Clean removal of each layer with no adhesive residue
  • Protection from acid, scratches, permanent marker and hard water stains
• Minimal training to install
• Optically transparent view for glass-like clarity

Easy-to-apply 3M™ Scotchgard™ Multi-Layer Protective Film adheres to any flat glass that is free of dirt, debris and oils. Four layers are as clear as glass to see through.

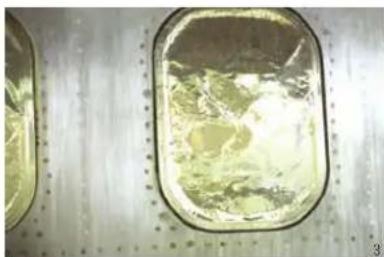

Close-up of a transparent glass panel with visible cracks and texture (no text or symbols)

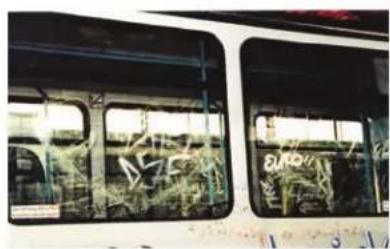

Exterior view of a train window with visible windows and parked cars (no signage or text)

Close-up of a dental tool with a curved hook and metallic handle (no text or symbols visible)

With 3M ^™ Scotchgard ^™ Multi-Layer Protective Film on the inside of public transportation windows, vandals deface one layer of four protective layers not the glass. The defaced layer is simply and cleanly removed to reveal a new layer of protection. 3M optimized adhesives provide long-term adhesion and clean, easy removal between each layer and the last layer from the glass.
Simply pick and lift the corner, then peel off the defaced sheet.

	3MTM ScotchgardTM Multi-Layer Protective Film 1004For clean removal on surfaces such as glass, mirrors, polishedstainless steel and other smooth surfaces.	3MTM ScotchgardTM Multi-Layer Protective Film 1004MS SeriesMore aggressive adhesive system for polycarbonates, acrylics,brushed stainless steel and other slightly porous surfaces.
Product # 1004 1004MS 1001MS
Layers/Sheet	4 4 1
Quantity	20 sheets/case 20 sheets/case and 200 sheets/case 1 roll/case
Size	60" x 72" or 60" x 60"(Custom cut sizes available based on volume)	60" x 72" or 60" x 60"(Custom cut sizes available based on volume)	58.5" x 100 ft. roll

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

3M™ Sandblast Stencil Products and Impact Stripping Tapes

Thick, Durable Rubber Backing for Demanding Surface Protection

Combining 34–82 mil thick rubber backing with aggressive pressure sensitive adhesive, these products meet the rigors of two tough masking applications:

3M™ Sandblast Stencil Products

• Rubber backing thickness ranging from 32–40 mils withstand the heavy blasting used to create crisper, deeper images in stone, wood, and other surfaces
  • Uniform backing thickness helps ensure efficient plotter cutting
• Clean, visible cut marks reduce picking and weeding time
• Adhesive adheres to numerous surfaces and removes cleanly
• Advanced rubber backing formulation prevents stretching and design distortion

3M™ Impact Stripping Tapes

- Choice of rubber backing for surface protection during media stripping processes

For cost-effective production and consistent professional results, 3M Sandblast Stencil products are available with single or double liners for friction, slot and tractor fed plotters as well as hand and die-cutting. Single liners maintain design integrity with either computer or stencil press equipment. Double liners provide support for "islands" eliminating the need for application tape.

Large paper printer with paper sheets being scanned, no visible text or symbols on the device itself.

Uniform stencil thickness and quality hole punch allow smooth and productive design cutting.

Decorative mosaic artwork with swirling patterns and floral motifs, displayed on a purple background (no text or symbols)

For clean, intricate designs, cut marks are clean and visible for easy and precise picking and weeding.

Roll of bright yellow adhesive tape or paper with a white inner hole, showing texture and stitching (no text or symbols visible)

Easy to see yellow liner, enhances the monument process by providing more precise picking power for greater productivity, blasting accuracy and liner residue cleanup. The advantage of yellow versus a clear liner is especially important when working with intricate details.

3M™ Performance Plus Duct Tape 8979 is ideal for field blasting to help protect surrounding granite surface from blasting impact and rebound damage. Aggressive adhesive stays in place yet removes cleanly without residue.

Close-up of a green aircraft wing structure with red and white markings (no visible text or symbols)

Abrasion-resistant rubber backing and acrylic adhesive of 3M™ Impact Stripping Tapes protect surfaces during plastic media blasting.

3M™ Sandblast Stencil Products and Impact Stripping Tapes

Product Number

Color

Total Thickness (mils)

Adhesive Type

Release Liner Thickness

Release Liner Type

Secondary Liner Thickness

Secondary Liner Type

Product Formats

Adhesion Level Comments

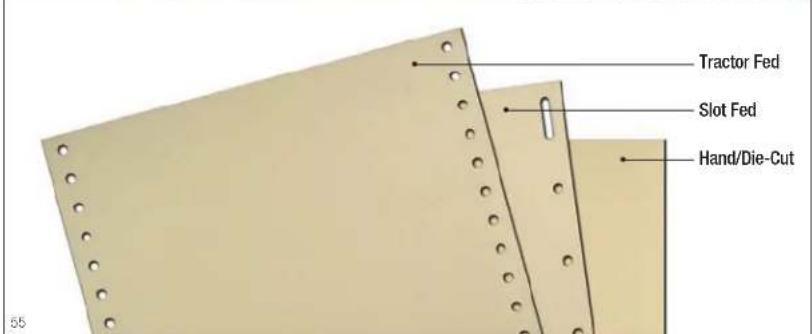

Gentber Compatible (Slot Fed)

IBM Compatible (Tractor Fed)

Friction Fed and/or Flabbed

Hand-Cut and/or Die-Cut

Double Liner

519Y

Tan 44 Rubber 2.0 Polypropylene 1.5 Polyester Medium

519YS

Tan 44 Rubber 2.0 Polypropylene 1.5 Polyester

Medium

Yellow, translucent polyester inner liner, white polypropylene outer liner.

519YT

Tan 44 Rubber 2.0 Polypropylene 1.5 Polyester Medium

519YP2

Tan 45 Rubber 2.0 Polyester 1.5 Polyester High

Yellow, translucent polyester inner liner. Extra thick, translucent polyester outer liner. Highest adhesion level for double linered products. Wide format available.

519YP2S

Tan 45 Rubber 2.0 Polyester 1.5 Polyester

High

519YP2T

Tan 45 Rubber 2.0 Polyester 1.5 Polyester High

519YP

Tan 45 Rubber 4.0 Polyester 1.5 Polyester

Medium

Translucent, polyester inner liner. Extra thick, translucent polyester outer liner. Wide format available.

519YPS

Tan 45 Rubber 4.0 Polyester 1.5 Polyester Medium

519YPT

Tan 45 Rubber 4.0 Polyester 1.5 Polyester

Medium

Single Liner

507

Green 43 Rubber 2.0 Polyethylene — —

Low

Green, high release liner. Butter cut. Ideal for letter press operations.

510

Green 43 Rubber 2.0 Polyester — —

Low/Med

Translucent, easy liner release. Use on wood and painted surfaces.

520

Tan 43 Rubber 2.0 Polyester — —

Med/High

Translucent, high liner release. Best blast resistance for single liner products.

520S

Tan 43 Rubber 2.0 Polyester — —

Med/High

520T

Tan 43 Rubber 2.0 Polyester — — Med/High

520ETL

Tan 43 Rubber 4.0 Polyester — —

Med/High Extra thick, translucent liner.

1532

Green 34 Rubber 4.0 Polyester — —

Extra thick, translucent, high liner release. Highest adhesion for single liner products. Excellent for intricate designs. Conformable for use on irregular surfaces.

1532S

Green 34 Rubber 4.0 Polyester — —

Medium

1532T

Green 34 Rubber 4.0 Polyester — —

Medium

Product Number

Backing Material Color

Adhesive Type

Total Thickness mils (mm)

Adhesion to Steel oz./in. (N/100 mm)

Elongation at Break %

Liner Type Comments

ASTM Test Method D-3652 D-3330 D-3759

Impact Stripping Tapes

500

Rubber

Green

Acrylic

36 (0.9)

29 (31)

85

Paper

Good for small lettering. Acrylic adhesive ideal for use during plastic media blasting.

528

Rubber

Tan

Acrylic

82 (2.1)

29 (31)

145

Paper

Thickest backed sandblast stencil product.

Product Number

Coating Base

Color

Consistency

Available Sizes

Comments

Fillers

2

Rubber

Light Beige

Syrupy

Quart, Gallon

Designed for smooth and polished surfaces. More aggressive than filler #3.

3

Rubber

Light Beige

5 times more viscous than filler #2

Gallon

Typically used on axed or frosted surfaces.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

High Strength Tapes

High strength. Super performance.

Bundling, reinforcing and securing solutions with reliable holding power.

When you need a tape as strong as your reputation, you can count on 3M's consistently reliable, market-leading high strength tapes that are engineered to meet virtually any strapping, bundling or reinforcing challenge.

Scotch® and Tartan™ High Strength Tapes

For Packaging and Non-Packaging Applications

Selection: Our range of high strength tape constructions can help balance your product performance and budget needs.

Save time and money: Let 3M's application and technical experts, backed by a robust lab testing capability, help match the right tape to your performance requirements.

Peace of mind: Scotch® and Tartan™ brands are among the most innovative and trusted in the world. Our world-class tape manufacturing facilities churn out consistent and reliable products, roll after roll.

Streamlined Selection for Application Success

125

*ASTM Test Method D-3759

Note: This technical information and data should be considered representative or typical only and should not be used for specification purposes.

Scotch® and Tartan™ High Strength Filament Tapes

The World's Go-To Source for Filament Tapes Since 1946

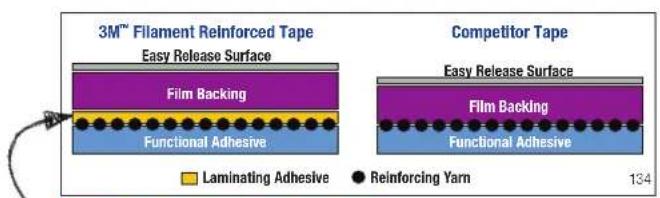

3M's laminating adhesive layer provides an extra measure of protection against tape delamination to help ensure tape strength and performance throughout the application. With 3M, you get more consistency, reliability and confidence.

Technologies Matched to the Applications

Choice of Adhesives

• SR (Synthetic Rubber): Versatile, good adhesion to many surfaces
- MSR (Modified Synthetic Rubber): Designed for adhesion to oily surfaces
- RCT: Designed for adhesion to recycled corrugate and other hard-to-stick-to-surfaces

Choice of Backings

• Polypropylene: Good abrasion, moisture and scuff resistance; excellent conformability
• Polyester: Tough, strong backing; handles and dispenses easily

Bi-Directional Filament

• Superior cut and puncture resistance
- Extra box or package security against pilferage
- Highest adhesion in our high strength tape offering

Choice of Filament Types

• Fiberglass: Higher tensile strength for security and stretch resistance for stability
  • Polyester: Higher elongation for better shock absorption and impact resistant

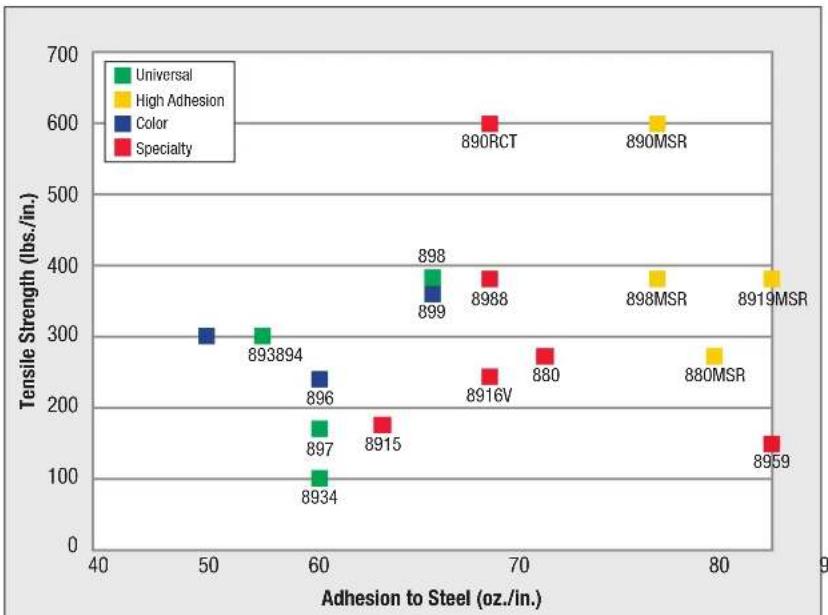

Performance Map — Filament Reinforced Tapes

140

Scotch® and Tartan™ High Strength Filament Tapes

Product	Tensile Strengthlb/in (N/100 mm)	BackingMaterial Reinforcement		TotalThicknessmils (mm)	Adhesive Type	AdhesionStrengthoz/in (N/100 mm)	Elongation(%)	BackingColor Typical Use and Comments
ASTM TestMethod	D-3759 D-3652 D-3330
Universal Filament
898	380 (6655) Polypropylene Fiberglass			6.6(0.168)	SyntheticRubber (SR)	70 (77) 5 Clear		L-Clip box closure, General bundling andreinforcing; Very high strength, Versatile,Good adhesion to many substrates
893	300 (5254) Polypropylene Fiberglass			6.0(0.152)	SyntheticRubber (SR)	55 (60) 4.5 Clear		Box closing, palletizing, strapping,bundling and reinforcing; High strength
897	170 (2977) Polypropylene Fiberglass			6.0(0.152)	SyntheticRubber (SR)	60 (65) 3 Clear		Box closing, palletizing, strapping,bundling and reinforcing; Medium strength
8934*	100 (1751) Polypropylene Fiberglass			4.0(0.102)	SyntheticRubber (SR)	60 (65) 3 Clear		Box closing, palletizing, strapping,bundling and reinforcing; Utility
Colored Filament
899	360 (6305) Polypropylene Fiberglass			6.6(0.168)	SyntheticRubber (SR)	70 (77) 5 Red		General bundling and reinforcing; Redcolor for increased visible and detection
894	300 (5254) Polypropylene Fiberglass			6.0(0.152)	SyntheticRubber (SR)	50 (55) 4.5 Black		Pipe bundling and other outdoorapplications; High UV resistance
896	240 (4203) Polypropylene Fiberglass			5.4(0.137)	SyntheticRubber (SR)	60 (66) 3 White		Heavy box closure, general bundling andreinforcing; White boxes, Color coding
High Adhesion Filament
890MSR	600 (10500) Polyester Fiberglass			8.0(0.203)	ModifiedSyntheticRubber (MSR)	80 (88) 3	Clear/Black	Metal coil closure; Good adhesion to oily surfaces
898MSR	380 (6655) Polyester Fiberglass			6.0(0.152)	ModifiedSyntheticRubber (MSR)	90 (99) 3 Clear		Metal coil closure; Good adhesion to oily surfaces
8919MSR	380 (6655) Polyester Fiberglass			7.0(0.180)	ModifiedSyntheticRubber (MSR)	100 (109) 3 Clear		Metal coil closure; Good adhesionto oily surfaces, Thicker backing forimproved handling
880MSR	270 (4728) Polyester Polyester			7.7(0.196)	ModifiedSyntheticRubber (MSR)	95 (100) 19	Clear	Metal coil closure; Good adhesion to oily surfaces, High cut resistance
Specialty Filament
890RCT	600 (10500) Polyester Fiberglass			8.0(0.203)	SyntheticRubber (RCT)	75 (82) 3 Clear		Basiloid, Heavy appliance lifting;Good adhesion to recycled corrugate
8988	380 (6655) Polypropylene Fiberglass			6.9(0.175)	SyntheticRubber (RCT)	75 (82) 3 Clear		L-Clip box closure; Good adhesion torecycled corrugale
880	270 (4728) Polypropylene Polyester			7.7(0.196)	SyntheticRubber (SR)	80 (88) 19	Clear/Red	Pipe and conduit, bundling and colorcoding; Excellent shock resistance
8916V	210 (3678) Polypropylene Fiberglass			6.8(0.172)	SyntheticRubber (SR)	75 (82) 3	Clear/Blue	Appliance, Secure and stabilize parts;Clean removal, Thicker backing
8915	170 (2977) Polypropylene Fiberglass			6.0(0.150)	SyntheticRubber (SR)	65 (71) 3 Clear		Appliance, Secure and stabilize parts;Clean removal
8959	150 (2627) Polypropylene	Bi-DirectionalFiberglass		5.7(0.145)	SyntheticRubber (SR)	100 (109) 6 Clear		Heavy box closure, Splicing, Metal partsbundling; Bi-directional filament forexcellent cut and puncture resistance;High adhesion

*Tartan™ branded.
Note: This technical information and data should be considered representative or typical only and should not be used for specification purposes.

Scotch® and Tartan™ Tensilized Polypropylene Tapes

Clean Removal

• MOPP (monoaxially-oriented polypropylene) tape construction
- High strength tapes that hold firm, remove cleanly with no adhesive residue
- Great adhesion to vinyl and other plastics, glass, painted and unpainted metals, or powder coated
- Holds shelving, racks, doors, panels, cords, other parts in place, from plant to install

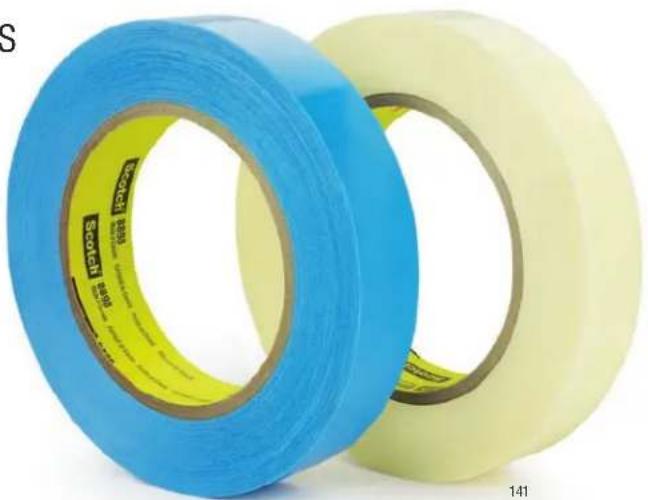

Two blue and yellow adhesive tape rolls, no visible text or symbols on the covers or background.

Bundle plastic, metal, stainless steel, glass, powdercoat or other coated electronic, appliance or automotive parts during assembly and transportation.

Close-up of a white electronic device panel with blue tape and black cables, no visible text or symbols

Hold packaging materials, spacers, corner boards, power cords and other hard-to-manage parts firmly in place.

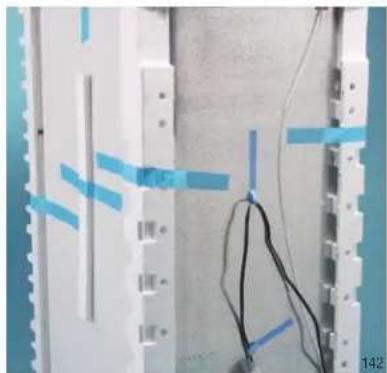

Close-up of a white industrial machine with blue plastic strips, no visible text or symbols

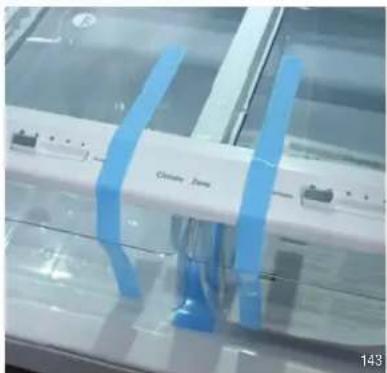

Appliance racks, shelves, drawers and doors can be secured, from plant to install, then removed cleanly with no adhesive residue.

Product	Tensile Strength lb/in (N/100 mm)	Backing Material Reinforcement	Total Thickness mills (mm)	Adhesive Type	Adhesion Strength oz/in (N/100 mm)	Elongation (%) Color Typical Use and Comments
ASTM Test Method	D-3759 D-3652 D-3330
8899HP	170 (2977) Polypropylene None 4.8 (0.12)			Synthetic Rubber	55 (60) 30	Blue/ Ivory/ White	Secure and stabilize parts, clean removal and high/low temperature performance
8898	160 (2802) Polypropylene None 4.6 (0.12)			Synthetic Rubber	75 (82) 32	Blue/ Ivory	Appliance, Secure and stabilize parts; Clean removal, High adhesion
860*	110 (1926) Polypropylene None 2.8 (.071)			Synthetic Rubber	45 (49) 33 Black		General bundling and strapping; Utility grade for pallet unitizing

*Tartan™ branded.

Note: This technical information and data should be considered representative or typical only and should not be used for specification purposes.

Scotch® Reinforced Strapping Tapes

The CLEAREST High-Strength Tape Available

Why 3M?

• Strong: Polypropylene backing extruded to create monofilament "ribs"
• Secure: Resists nicking, cutting, tearing or puncturing during handling
  • Clear: No filaments to obstruct graphics

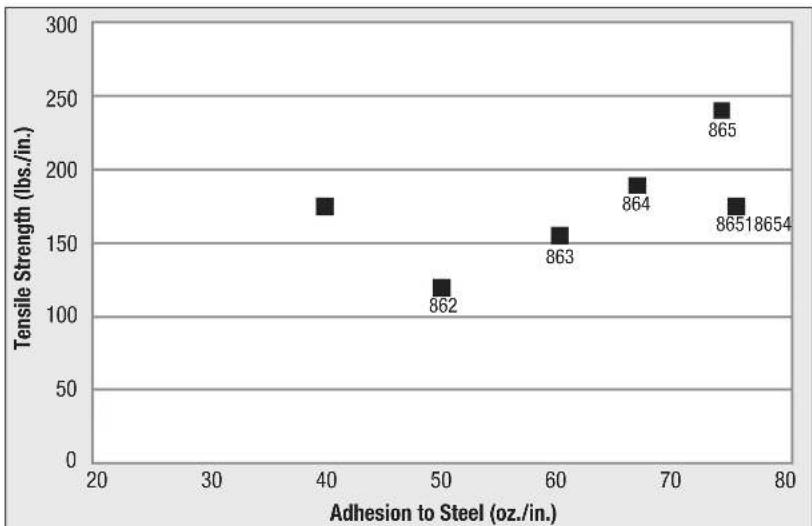

Performance Map — Reinforced Strapping Tapes
151

Product	Clarity to Showcase Marketing Content	Barcode Scan-able	Resists Nicks	Resists Abrasion	Does It Scratch?
Reinforced Strapping Tape	Yes	Yes	Yes	Yes	No
Reinforced Gummed Paper Tape	No	No	Yes	Somewhat	No
Staples	Somewhat	No	n/a	n/a	Yes
Filament Tape	Somewhat	No	Yes	Yes	No
Tensilized Polypropylene Tape	No	No	No	Yes	No

Product	Tensile Strength lb/in (N/100 mm)	Backing Material Reinforcement	Total Thickness mils (mm)	Adhesive Type	Adhesion Strength oz/in (N/100 mm)	Elongation (%) Color Typical Use and Comments
ASTM Test Method	D-3759 D-3652 D-3330
865	240 (4200) Polypropylene Polypropylene 6.4 (0.163)			Synthetic Rubber	74 (80) 30 Clear		Palletizing; L-Clip box closure;High clarity for use on highlygraphic boxes; Bar code readable
864	190 (3325) Polypropylene Polypropylene 5.6 (0.142)			Synthetic Rubber	67 (73) 30 Clear		Palletizing; L-Clip box closure;High clarity for use on highlygraphic boxes; Bar code readable
8651	175 (3064) Polypropylene Polypropylene 5.6 (0.142)			Synthetic Rubber	75 (82) 30 Clear		Palletizing; L-Clip box closure;High clarity for use on highlygraphic boxes; Bar code readable
863	155 (2713) Polypropylene Polypropylene 5.0 (0.127)			Synthetic Rubber	60 (65) 30 Clear		Palletizing; L-Clip box closure;High clarity for use on highlygraphic boxes; Bar code readable
862	120 (2100) Polypropylene Polypropylene 4.6 (0.117)			Synthetic Rubber	50 (54) 30	Clear/ Black	Pipe Bundling; Black for UV resistance

Note: This technical information and data should be considered representative or typical only and should not be used for specification purposes.

Scotch® Stretchable Tapes

Tape That Gets Stronger As It's S-T-R-E-T-C-H-E-D

• Adhesive "de-tackifies" when stretched: holds in place but won't damage carton graphics, shipping instructions or other pallet information when removed
• 650% stretch factor: 55-meter roll yields 357 meters of tape
• Creates ventilated load for shipment of time- and temperature-sensitive goods
• More stability — less waste

Two white adhesive tape sheets with visible labels, no readable text or symbols on the covers or background.

High yield! One 55-meter roll can unitize 60 or more A- or B-style pallets for intra-plant movement.

"X"-pattern can contain loads for shipment anywhere.

Two white laboratory scales: a round white object on a scale and a large white plastic bag wrapped in plastic film, both placed on a neutral surface.

Less waste! Compare the 3M™ Stretchable Tape waste "ball" on the left versus the size of typical stretch film waste on the right.

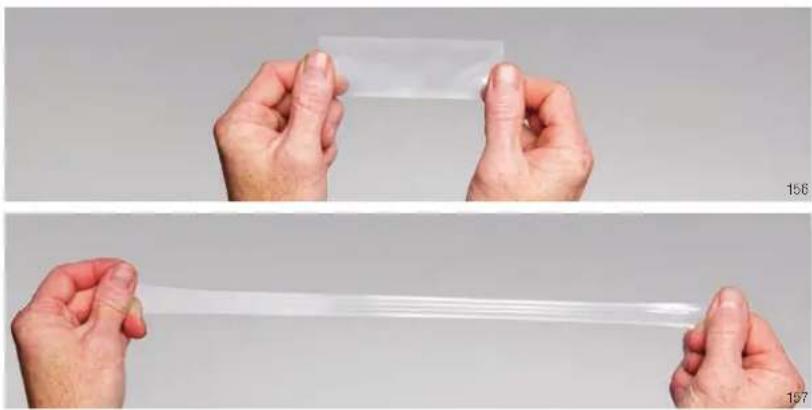

Two hands holding a transparent plastic film, showing different lengths (156 and 157) against a plain background.

Close-up of a Scotch Stretchable Tape Dispenser H38 tape dispenser (no text or symbols on the device itself)

Hand-held dispenser with tensioning/stretching brake for use with Scotch® Stretchable Tapes.

Product	Tensile Strength lb/in (N/100 mm)	Backing Material	Total Thickness mils (mm)	Adhesive Type	Adhesion Strength oz/in (N/100 mm)	Elongation (%)	Color Comments
ASTM Test Method	D-3759 D-3652 D-3330
8886	28 (490)	Polyethylene	6.6 (0.168)	Synthetic Rubber	65 (71)	720	Clear	Load containment
8884	20 (350)	Polyethylene	5.0 (0.127)	Synthetic Rubber	70 (77)	710	Clear	Paletizing for intra-plant movement; Load containment; For hand application using Scotch® Stretchable Tape Dispenser H38

Note: This technical information and data should be considered representative or typical only and should not be used for specification purposes.

Scotch® Tear Strip Tapes

Easy Access With a Simple Pull

For easy opening of packages ranging from overnight envelopes to corrugated fiberboard, the recipient simply grabs and pulls the exposed end of a Scotch® Tear Strip Tape.

• Tensilized polypropylene tears through paper board and light to heavy weight fiber board with high pull-rate success
• Eliminates knives or other sharp edges from opening envelopes and panels

Stack of papers with a quill pen resting on top (no visible text or symbols)

For overnight courier envelopes and mail order boxes, Scotch® Tear Strip Tape 8621 provides superior resistance to edge nicking and tearing compared to other film tear strip tapes without reinforcement.

Open blue and beige cardboard box with a green gift box inside, no visible text or symbols

Scotch® Tear Strip Tape 8626 with superior tensile strength tears through medium to heavy weight corrugated fiberboard as used in household detergent boxes.

Product	Backing Material Reinforcement		Adhesive Type	Tensile Strength lb/in (N/100 mm)	Total Thickness mils (mm)	Adhesion Strength oz/in (N/100 mm)	Elongation (%)	Color Comments
ASTM Test Method D-3759 D-3652 D-3330
8624	Polypropylene None		Synthetic Rubber	160 (2802) 4.5 (0.114) 65 (71) 30		Blue			Medium-strength tear strip for light- to medium-weight fiberboard packaging materials

Scotch® Bag Conveying Tapes

• A high performance tape designed to convey a food grade preservation bag through the bag manufacturer's forming and packaging process
• Product constructions with or without reinforcement can meet a range of price/performance needs
• The pressure sensitive adhesive is specifically formulated to provide consistent adhesion to polyethylene

Scotch® Bag Conveying Tape 8365

Product ASTM Test Method	Tensile Strength lb/in (N/100 mm) D-3759	Backing Material	Reinforcement	Adhesive Type	Adhesion Strength oz/in (N/100 mm) D-3330	Total Thickness mils (mm) D-3652	Elongation (%) Color	Width(s)	Core Size
8631	160 (2800)	Polypropylene	Polypropylene	Synthetic Rubber	67 (73)	6.0 (0.15)	30%	Clear	1/4" 6"
8635	140 (2452)	Polyethylene	None	Synthetic Rubber	62 (68)	4.0 (0.102)	60%	Black	6mm, 9mm 6"

Specialty Tapes

Selection simplicity.

Wide variety of applications.

With more than 120 product solutions, the portfolio of 3M ^™ Specialty Tapes presents customers with numerous characteristics to evaluate in making the optimum choice for an application.

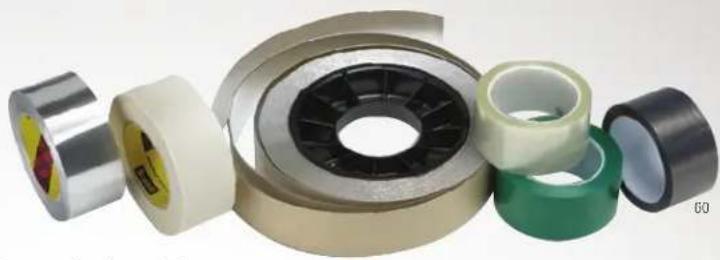

Assorted adhesive tape rollers and plastic sheets, no visible text or symbols

3M ^TM Specialty Tapes

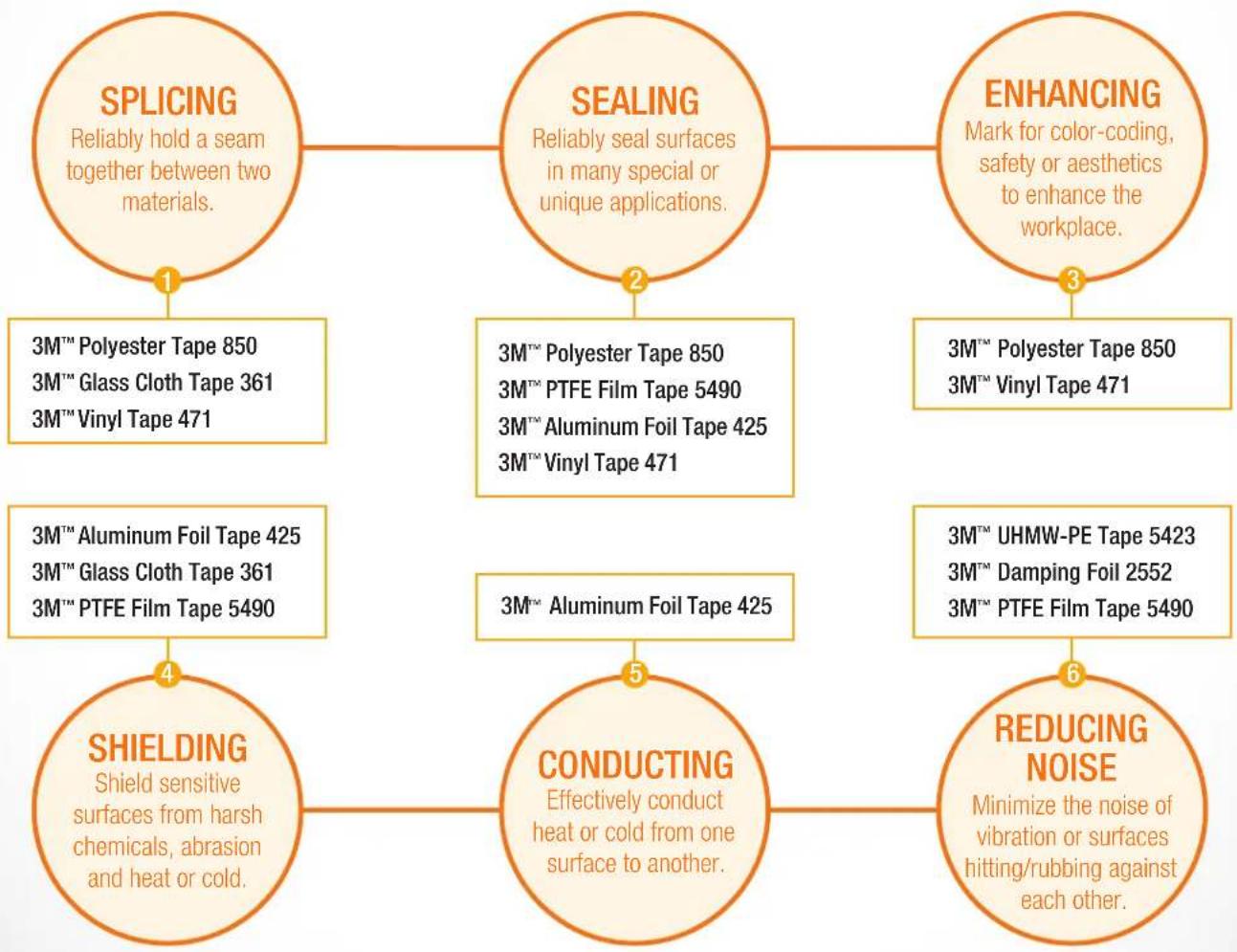

To help simplify and streamline the selection process, six products have been highlighted for their versatility. These Specialty Six solve 80% of customer application needs. The six represent the key backings that comprise much of the 3M ^™ Specialty Tapes line: glass cloth, metal foil, polyester, slick surface (PTFE), and vinyl.

For custom tape solutions, contact a 3M Sales Specialist at 1-800-362-3550.

3M™ Application Specific Tapes

Variety for Many Process and Design Solutions

With a choice of unique backing and adhesive combinations, this engineered line meets demanding applications for aerospace, graphic arts, electronics, metal finishing, automotive and more.

Close-up of hands applying yellow adhesive tape to a surface, no text or symbols visible

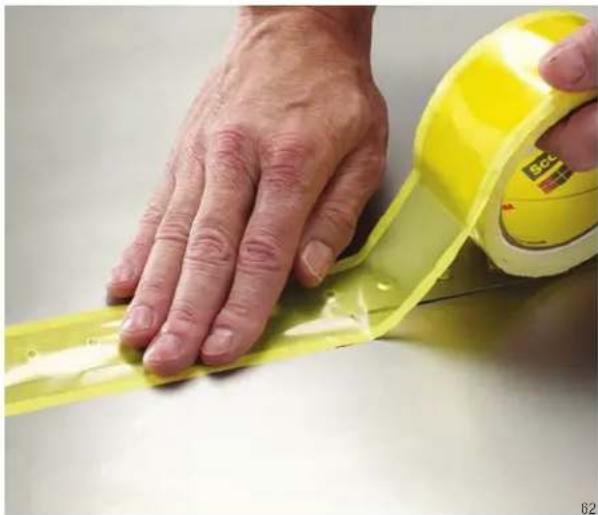

3M™ Riveters Tape is used during riveting to help ensure easy visibility of rivets and no adhesive transfer to rivet heads.

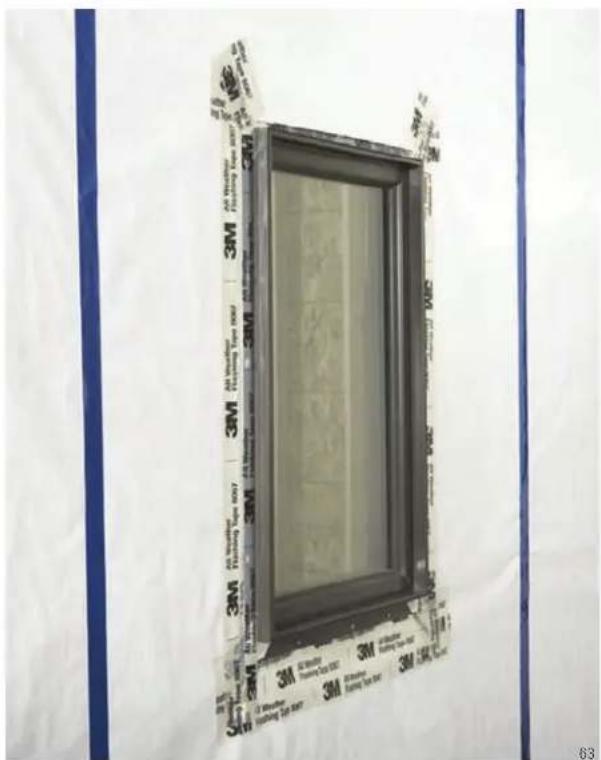

3M™ All Weather Flashing Tape 8067 is a self-adhered, waterproof flashing membrane designed for sealing around openings and penetrations in exterior walls.

Close-up of hands installing a red tape on a white surface (no text or symbols visible)

Use 3M™ Construction Seaming Tape 8087 for exterior and interior seam, seal, splice and repair applications.

Close-up of hands applying adhesive tape onto a rolled metal sheet (no text or symbols visible)

3M™ Traction Tape 5401 enhances friction on web rollers to help maintain constant traction and tension for the web material from start-up through wind-up.

3M™ Application Specific Tapes

Product Number Color	Adhesive Type		Backing Material	Backing Thickness mils (mm)	Liner Type	Total Thickness mils (mm)	Adhesion to Steel oz./in. (N/100 mm)	Tensile Strength lb./in. (N/100 mm)	Elongation at Break %	Temperature Range °F (°C)	Comments
ASTM Test Method D-3652 D-3652 D-3330 D-3759 D-3759
Graphic Arts Tapes
235	Black Rubber Crepe Paper			5.0(0.12)	—	7.0(0.17)	23(25)	22(386)	9	Up to 200(Up to 93)	Photographic masking.
616	Ruby Red	Rubber UPVC		1.6(0.04)	—	2.4(0.06)	36(39)	29(509)	50	Up to 120(Up to 49)	Lithographers tape.
3051	White Acrylic Flatback Paper			3.4(0.09)	—	3.8(0.10)	4(4)	39(680)	2	Up to 150(Up to 65)	Very low tack.
High Temperature Tapes
8997/8997L	Amber Silicone Polyimide			1.0(0.02)	Polyester	2.2(0.06)	22(24)	26(453)	37	Up to 500(Up to 260)	Transparent film. High temperature applications.8997L is linered version.
8998/8998L	Amber Silicone Polyimide			2.0(0.05)	Polyester	3.3(0.08)	19(20)	55(963)	49	Up to 500(Up to 260)	Transparent film. High temperature applications.8998L is linered version.
Riveters Tapes
685	Green	Rubber strip coated along edges of tape only	Polyester	1.0(0.02)	—	1.7(0.04)	30(33)	19(330)	28	-20 to 150(-29 to 66)	Transparent film.Green adhesive.
695	Yellow	Acrylic strip coated along edges of tape only	Polyethylene	2.0(0.05)	—	3.0(0.08)	15(16)	8(140)	120	-20 to 120(-29 to 49)	Yellow film. White adhesive.
Venting Tapes
394	White Acrylic	Non-Woven		4.5(0.11)	—	5.0(0.13)	12(13)	6(100)	18	Up to 120(Up to 49)	Air-permeable backing.
3294	Pink Acrylic	Non-Woven		4.5(0.11)	—	5.0(0.13)	9(10)	8(140)	15	Up to 120(Up to 49)	Most permeable venting tape. Strip coated.
Nylon Tapes
855	White Rubber Nylon			2.0(0.05)	—	3.2(0.08)	55(60)	31(540)	470	60 to 400(16 to 204)	Composite bonding tape.
8555	White Rubber Nylon			5.0(0.13)	—	6.0(0.15)	60(66)	69(1208)	540	60 to 400(16 to 204)	Thick version of 855 tape.
Construction Tapes
8067	Tan	Acrylic	Multi-Layer Elastomeric Film	5.0(0.13)	Polycoated Kraft Paper	10.0(0.25)	60(66)	20(350)	700	Up to 176(Up to 80)	Window and door flashing tape. Meets ICC AC 148, AAMA 711 specs.
8087	Red	Acrylic	Biaxially Oriented Polypropylene Film	1.5(0.04)	—	3.0(0.08)	45(49)	20(350)	130	Up to 220(Up to 104)	Construction seaming tape.
Long Term Protection
7070UV	Clear	Acrylic Polyurethane		6.5(0.17)	—	8.0(0.20)	47(51)	68(1162)	656	-20 to 170(-28 to 77)	Durable, abrasion resistant, UV resistant surface protection.
7071UV	Clear	Acrylic Polyurethane		12(0.31)	—	14(0.36)	52(52)	55(963)	754	-20 to 170(-28 to 77)	Durable, abrasion resistant, UV resistant surface protection.
Other Specialty Tapes
253	Tan	Silicone	Treated Flatstock Paper	3.5(0.09)	Modified Poly Liner	4.6(0.12)	49(54)	60(1052)	3	50 to 150(10 to 66)	Silicone butt splicing tape.
346	Tan	Rubber	Flat Paper Stock	15.0(0.38)	—	16.7(0.42)	22(24)	28(490)	4	60 to 100(16 to 38)	Heavy-duty abrasion, moisture, UV protection.
838	White Acrylic	PVF		2.1(0.05)	—	3.4(0.09)	47(51)	24(420)	170	100 to 225(38 to 107)	Weather resistant film tape.
5401	Tan	Silicone	Fiberglass Reinforced Silicone	8.0(0.20)	—	9.3(0.24)	12(13)	220(3853)	7	Up to 300(Up to 148)	High coefficient of friction for traction.
5461	White Rubber Silicone Rubber			7.8(0.19)	Silicone-Paper	9.1(0.23)	30(33)	85(1500)	165	Up to 200(Up to 93)	High friction roller tape.
8777	Tan	Acrylic	Multi-Layer Elastomeric Film	5.0(0.13)	Polycoated Kraft Paper	10.0(0.25)	60(66)	20(350)	700	Up to 176(Up to 80)	Air and water tight sealing tape.
9343	Black	Acrylic	Non-Woven	14.5(0.37)	Paper	19.5(0.50)	27(30)	5(88)	400	Up to 250(Up to 121)	Conformable for irregular parts.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

3M ^TM Glass Cloth Tapes

High Tensile Strength with Choice of Other Properties

With a choice of high tensile strength glass cloth and silicone, acrylic, or rubber adhesives, this line meets demanding applications for Aerospace, Automotive, Commercial Vehicle, Construction, Marine and more.

Depending on the specific tape, you have a choice of characteristics:

• Pass FAA flame resistance regulations
- Protect surfaces against abrasion
- Temperature resistance up to more than 450°F (232°C) for one hour — even higher for intermittent exposures

For seaming and sealing panels in aircraft cargo bays, 3M ^TM Glass Cloth Tape 398FR exceeds flame retardant standards F.A.R. 25.853 (a) and F.A.R. 25.855 (d). Pressure sensitive acrylic adhesive bonds on contact to many surfaces. High adhesion is secure for extended periods. Rugged cloth surface resists wear from heavy bags.

Person in camouflage uniform handling a white strip on a green surface (no visible text or symbols)

With high tensile strength and rubber adhesive, 3M™ Glass Cloth Tape 365 reliably splices fabrics and other textured surfaces.

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

For thermal spray and plasma spray masking, 3M™ Glass Cloth Tape 361 with silicone adhesive performs reliably at up to 450°F (232°C). Passes FAA flame resistance regulations.

Product Color		Adhesive Type	Backing Material	Backing Thickness mils (mm)	Liner Type	Total Thickness mils (mm)	Adhesion to Steel oz/in (N/100 mm)	Tensile Strength lb/in (N/100 mm)	Elongation at Break %	Temperature Range °F (°C)	Meets Specifications Comments
Based on ASTM Test Method: D-3652 D-3652 D-3330 D-3759 D-3759
361	White Silicone Glass Cloth			5.0(0.13)	—	6.4(0.16)	38(42)	146(2555)	10	-65 to 450(-54 to 232)	F.A.R. 25.853 General purpose glass cloth tape.
3615	White Silicone Glass Cloth			5.0(0.13)	—	7.0(0.18)	35(38)	180(3140)	7	-65 to 450(-54 to 232)	— General purpose glass cloth tape.
365	White	Thermoset Rubber	Glass Cloth	4.8(0.12)	—	8.3(0.20)	52(57)	139(2430)	7	40 to 450(4 to 232)	—	Splicing textured surfaces.Thermosetting adhesive.
3650	White	Thermoset Rubber	Glass Cloth	4.8(0.12)	Blue Film	8.3(0.20)	52(57)	139(2430)	7	40 to 450(4 to 232)	—	Linered version of 365.Thermosetting tape.
398FR	White	Acrylic	Glass Cloth	5.0(0.13)	Blue Film	7.0(0.18)	38(42)	130(2276)	7	-20 to 250(-29 to 121)	BMS 5-146;F.A.R. 25.853(a);F.A.R. 25.855(d)	Skip-slit liner for ease of application.
398FRP	White	Acrylic	Glass Cloth	5.0(0.13)	Blue Film	7.0(0.18)	38(42)	130(2276)	7	-20 to 250(-29 to 121)	BMS 5-146;F.A.R. 25.853(a);F.A.R. 25. 855(d)	Printed backing version of 398FR.
399FR	White	Acrylic	Glass Cloth	5.0(0.13)	Blue Film	9.5(0.24)	52(57)	130(2276)	7	-20 to 200(-29 to 93)	F.A.R. 25.853(a)	Thicker adhesive. Flame resistant.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

3M ^TM Metal Foil Tapes

Choice of High Performance Foil Tapes

With a choice of conformable backings and adhesives, this line of tapes meets demanding applications in Aerospace, Appliance, Transportation, Construction, Automotive, and MRO (Maintenance and Repair) segments.

3M™ Aluminum Foil Tapes

• Resist flame, moisture, weather, UV degradation and most chemicals
• Thermally conductive for heating and cooling efficiency
• Heat and light reflective

3M™ Aluminum Foil Reinforced Tapes

• Flexible flame-resistant wrap for wires and hoses
• Long wearing, tear and puncture resistant
• Flame and heat resistant

3M™ Lead Foil Tapes

• Electrically conductive
- Acid resistant for plating masking
• Radiopaque for X-ray markers

Close-up of a black electronic device with metallic film strips and a rolled metal tape, no visible text or symbols.

3M™ Aluminum Foil Tape bonds on contact as heat shielding inside an oven door. Helps keep the exterior cool to the touch behind the handle and around the window perimeter.

Close-up of hands installing a white tape on a metallic cylindrical pipe against a corrugated metal wall (no text or symbols visible)

With aggressive adhesive and dead soft aluminum, Scotch® Foil Tape 3311 seals and secures seams and joints for long-term durability. UL 723 classified for duct sealing and general repairs.

Close-up of a transparent oval-shaped container with internal yellowish liquid, placed on a metallic surface (no text or symbols visible)

With conformability and chemical resistance, 3M™ Aluminum Foil Tapes used to protect aircraft windows during paint stripping using harsh chemicals.

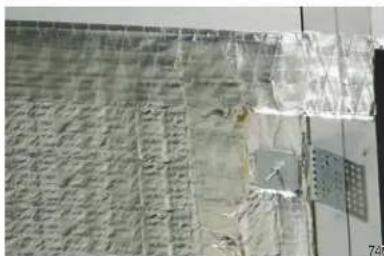

3M™ FSK Facing Tape 3320 is engineered specifically as a vapor retardant tape to seal mineral wool foil-faced insulation, bare sheet metal ducts and blanket style fiberglass duct insulation.

Close-up of a black plastic mechanical component with a white spherical object attached, placed on a wooden surface (no text or symbols visible)

With high heat reflectivity and thermal conductivity, 3M ^™ Aluminum Foil Tapes protect heat-sensitive components near lights in a garage door opener housing.

Close-up of a damaged cable with exposed wire and wires, no text or symbols visible

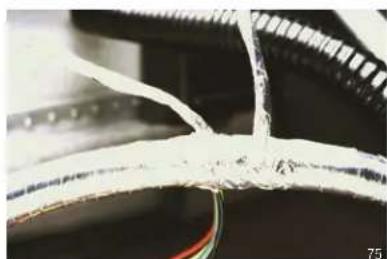

Tear-resistant 3M™ Reinforced Aluminum Foil Tape 363 bundles wire harnesses and helps protect wires, cables, and other flexible parts from heat.

Close-up of a hand using a copper tool to cut a blue object on a patterned surface (no text or symbols visible)

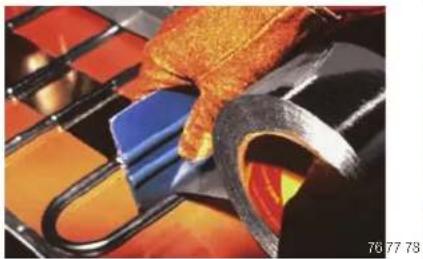

Conformable 3M ^™ Aluminum Foil Tape securely holds copper cooling tubes to refrigerator panels. Thermal conductivity helps maximize cooling efficiency.

Person in gloves handling a wrapped metal sheet with red markings, placed on a patterned surface (no visible text or symbols)

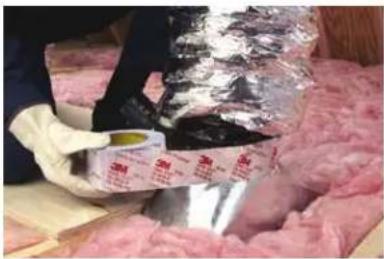

To seal fiberglass duct board and flexible duct systems, Scotch® Foil Tape 3340 meets the performance requirements for UL 181A-P and UL 181B-FX.

Close-up of a microscope objective with a glass lens and eyepiece (no visible text or symbols)

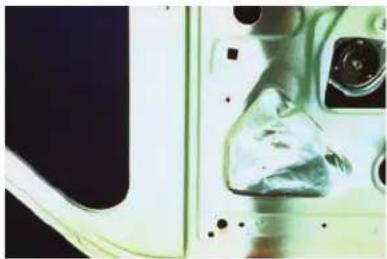

Applied over holes and cavities in the interior of a car or truck door panel, 3M™ Aluminum Foil Tape seals out moisture and dust.

3M™ Metal Foil Tapes

Product Number	Color	Adhesive Type	Backing Material	Backing Thickness mils (mm)	Liner Thickness mils (mm)	Liner Type	Total Thickness mils (mm)	Adhesion to Steel oz./in. (N/100 mm)	Tensile Strength lb./in. (N/100 mm)	Elongation at Break %	Meets Specifications	Temperature Range °C	Comments
ASTM Test Method D-3652 D-3652 D-3330 D-3759 D-3759
Premium Performance
425	Silver Acrylic	Aluminum Foil	2.8(0.07)	—	—	4.6(0.12)	47(51)	28(490)	6	F.A.R. 25.853(a); SAE AMS T-23397; UL 723; UL 746C; LT-80 C	-65 to 300(-54 to 149)	Most versatile aluminum tape.
427	Silver Acrylic	Aluminum Foil	2.8(0.07)	3.1(0.08)	Easy Release Film	4.6(0.12)	50(55)	28(490)	6	F.A.R. 25.853(a); UL 723; UL 746C; LT-80 C	-65 to 300(-54 to 149)	Linered version of 425.
431	Silver Acrylic	Aluminum Foil	1.9(0.05)	—	—	3.1(0.08)	34(37.3)	17(302)	3 F.A.R. 25.853(a)		-65 to 300(-54 to 149)	Conformable aluminum tape.
433	Silver Silicone	Aluminum Foil	2.0(0.05)	—	—	3.6(0.09)	40(43.8)	20(350)	3.5	F.A.R. 25.853(a); US Gov A-A-59258	-65 to 600(-54 to 316)	Silicone adhesive for high temperature resistance. Smooth, easy unwind, clean, straight edges with minimal wrinkling.
433L	Silver Silicone	Aluminum Foil	2.0(0.05)	3.2(0.08)	Easy Release Film	3.5(0.09)	38(42.0)	20(350)	3.5 F.A.R. 25.853(a)		-65 to 600(-40 to 316)	Linered version of 433.
437	Silver Acrylic	Aluminum Foil	2.8(0.07)	4.2(0.11)	Easy Release Film	8.0(0.20)	150(164)	30(525)	8	—	-40 to 212(-40 to 100)	Dead-soft aluminum foil tape.
438	Silver Acrylic	Aluminum Foil	5.0(0.13)	—	—	7.2(0.18)	43(47)	59(1033)	10 F.A.R. 25.853(a)		-65 to 300(-54 to 149)	Thickest non-reinforced aluminum tape for heat resistance. Smooth, easy unwind, clean, straight edges with minimal wrinkling.
438L	Silver Acrylic	Aluminum Foil	5.0(0.13)	2.5(0.06)	Easy Release Film	7.2(0.18)	43(47)	59(1033)	10 F.A.R. 25.853(a)		-65 to 300(-54 to 149)
439	Silver Acrylic	Aluminum Foil	1.9(0.05)	5.7(0.14)	Kraft Paper with Silicone Release	3.1(0.08)	34(37.3)	17(302)	3 F.A.R. 25.853(a)		-65 to 300(-54 to 149)	Linered version of 431.
3338	Silver Acrylic	Aluminum Foil	5.0(0.13)	5.0(0.13)	Polycoated Kraft Paper Release	7.0(0.18)	45(49)	50(876)	21	—	-65 to 300(-54 to 149)	66 lb. moisture stable liner.
33801	Silver Acrylic	Aluminum Foil	2.0(0.05)	5.0(0.13)	Polycoated Kraft Paper	4.0(0.10)	40(43.8)	20(350)	5 UL 723		-30 to 425(-34 to 218)	High temperature acrylic adhesive.
33806	Silver Acrylic	Aluminum Foil	3.0(0.076)	5.2(0.13)	Polycoated Kraft Paper	5.0(0.13)	95(105)	30(525)	6	—	-40 to 425(-40 to 218)	High temperature acrylic adhesive.
Product Number	Color	Adhesive Type	Backing Material	Backing Thickness mils (mm)	Liner Thickness mils (mm)	Liner Type	Total Thickness mils (mm)	Adhesion to Steel oz./in. (N/100 mm)	Tensile Strength lb./in. (N/100 mm)	Elongation at Break %	Meets Specifications	Temperature Range °F (°C)	Comments
ASTM Test Method D-3652 D-3652 D-3330 D-3759 D-3759
General Purpose
3311*	Silver Rubber		Aluminum Foil	2.0(0.05)	2.0(0.05)	Paper	3.6(0.09)	90(98)	17(298)	3 UL 723		-10 to 180(-23 to 82)	Designed for maximum adhesion over clean, dry surfaces.
3369	Silver Acrylic		Aluminum Foil	1.1(0.028)	3.2(0.08)	Polycoated Natural Kraft Paper	2.4(0.06)	58(64)	11(197)	2 UL 723		-40 to 250(-40 to 121)	Thinnest aluminum foil tape.
33803	Silver Rubber		Aluminum Foil	1.8(0.05)	3.6(0.09)	Polycoated Kraft Paper	3.6(0.09)	90(99)	15(263)	4 UL 723		0 to 175(-18 to 79)	Highest tack rubber adhesive.
97065	Silver Acrylic		Aluminum Foil	1.8(0.05)	5.2(0.13)	Polycoated Kraft Paper	3.4(0.09)	48(53)	18(315)	3 —		-40 to 250(-40 to 121)	Good for die-cut applications.
3380	Silver Acrylic		Aluminum Foil	2.0(0.05)	3.2(0.08)	Natural Kraft Paper	3.3(0.08)	40(43.8)	10(175)	4 UL 723		-30 to 260(-34 to 121)	Good for narrow slit rolls.
4380	Silver Acrylic		Aluminum Foil	2.0(0.05)	—	—	3.3(0.08)	40(43.8)	10(175)	4 —		-30 to 300(-34 to 149)	General purpose aluminum foil tape.
34383	Silver Acrylic		Aluminum Foil	2.8(0.07)	—	—	4.5(0.11)	55(61)	30(542)	11 —		-40 to 300(-40 to 149)	General purpose aluminum foil tape.
3363	Silver Acrylic		Aluminum Foil	3.0(0.08)	3.2(0.08)	Polycoated Natural Kraft Paper	5.0(0.13)	40(43.8)	28(490)	6 UL 723		-40 to 250(-40 to 121)	Good for narrow slit rolls.
3367	Silver Acrylic		Aluminum Foil	3.0(0.08)	5.2(0.13)	Polycoated Kraft Paper	4.4(0.11)	48(53)	30(525)	6 UL 723		-40 to 250(-40 to 121)	Good for die-cut applications.
Lead Foil
420	Dark Silver	Rubber	Lead Foil	4.7(0.12)	3.5(0.09)	Easy Release Film	6.8(0.17)	45(49)	20(350)	12 —		-60 to 225(-51 to 107)	Linered plating tape.
421	Dark Silver	Rubber	Lead Foil	4.0(0.10)	—	—	6.3(0.16)	31(34)	15(263)	14 —		-60 to 225(-51 to 107)	Self-wound plating tape.
34201	Dark Silver	Rubber	Lead Foil	5.0(0.13)	5.3(0.13)	Polycoated Natural Kraft Paper	6.3(0.16)	50(55)	20(350)	5 —		0 to 180(-18 to 82)	Removable rubber adhesive.
Copper Foil
3313	Copper	Conductive Acrylic	Copper Foil	1.4(0.04)	4.3(0.11)	Glassine Paper	3.0(0.08)	29(32)	25(444)	3 UL 510		-40 to 250(-40 to 121)	EMI/RFI shielding.
3325	Copper Acrylic		Copper Foil	1.5(0.04)	5.0(0.13)	Polycoated Natural Kraft Paper	3.0(0.08)	40(43.8)	28(491)	10 UL 510		0 to 225(-18 to 107)	EMI/RFI shielding.
33315	Copper Acrylic		Copper Foil	1.5(0.04)	5.0(0.13)	Natural Kraft Paper	3.3(0.08)	35(39)	28(491)	5 —		-30 to 300(-34 to 149)	"Tinned", corrosion resistant.
33316	Copper	Conductive Acrylic	Copper Foil	1.5(0.04)	4.0(0.10)	Glassine Paper	3.0(0.08)	30(33)	33(578)	6 UL 510		0 to 250(-18 to 121)	"Tinned", corrosion resistant.
Stainless Steel Foil
3361	Silver Acrylic		Stainless Steel	2.0(0.05)	4.6(0.12)	Polycoated Kraft Paper	3.8(0.10)	40(43.8)	100(1751)	40 —		-30 to 250(-34 to 121)	Corrosion resistant.

*Scotch® Tape brand.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

3M™ Metal Foil Tapes (cont.)

Product Number	Color	Adhesive Type	Backing Material	Backing Thickness mils (mm)	Liner Thickness mils (mm)	Liner Type	Total Thickness mils (mm)	Adhesion to Steel oz./in. (N/100 mm)	Tensile Strength lb./in. (N/100 mm)	Elongation at Break %	Meets Specifications	Temperature Range °C	Comments
ASTM Test Method D-3652 D-3652 D-3330 D-3759 D-3759
Specialty and Reinforced Foils
363	Silver Silicone		Aluminum Foil Laminated to Glass Cloth	3.4(0.086)	—	—	7.3(0.19)	52(57)	135(2364)	7 F.A.R. 25.853(a)		-65 to 600 F(-54 to 316 C)	Aluminum foil/glass cloth. Highest temperature metal foil tape.
363L	Silver Silicone		Aluminum Foil Laminated to Glass Cloth	3.4(0.086)	3.0(0.08)	Easy Release Film	7.3(0.19)	52(57)	135(2364)	7 F.A.R. 25.853(a)		-65 to 600 F(-54 to 316 C)	Linered version of 363.
1430	Silver Acrylic		Aluminum Foil Non-Woven Web	5.0(0.13)	—	—	5.5(0.14)	22(24)	19(333)	12 —		-65 to 300 F(-54 to 106 C)	Aluminum foil/non-woven laminate.Flexible wrapping tape.
3302	Silver Conductive Acrylic		Aluminum Foil	2.0(0.05)	4.3(0.11)	Glassine Paper	3.5(0.09)	30(33)	19(340)	3 UL 510		-40 to 250 F(-40 to 121 C)	Aluminum foil tape.EMI/RFI shielding.
3334	Silver Acrylic		Aluminum Foil/Scrim/Polypropylene	5.4(0.14)	3.5(0.09)	Bleached Glassine Paper	6.9(0.18)	31(33.9)	25(439)	7 —		-10 to 175 F(-23 to 79 C)	Works well in very coldand hot temperatures.
HVAC Construction
3320	Silver Acrylic Aluminum Foil			6.0(0.16)	4.0(0.10)	Poly Coated Kraft	6.7(0.17)	81(89)	40(712)	2 UL 723		-20 to 175(-29 to 79)	Aluminum foil/scrim/laminate.
3340	Silver Acrylic Aluminum Foil			2.0(0.05)	3.5(0.09)	Paper	4.0(0.10)	30(33)	20(350)	4 UL 181A-P;UL 181B-FX		-30 to 250(-34 to 121)	Aluminum foil tape for use with rigid and flexible ducts.
3350	Silver Acrylic		Silver Polypropylene Film	1.6(0.04)	—	—	3.1(0.08)	33(36)	36(631)	170 UL 181B-FX		-30 to 230(-34 to 110)	Polypropylene tape for use with flexible ducts.
3380	Silver Acrylic Aluminum Foil			2.0(0.05)	3.2(0.08)	Natural Kraft Paper	3.3(0.08)	40(43.8)	10(175)	4 UL 723		-30 to 260(-34 to 121)	General purpose aluminum foil tape.Go-to product for this market.
3381	Silver Acrylic Aluminum Foil			1.4(0.04)	3.2(0.08)	Natural Kraft Paper	2.7(0.07)	40(43.8)	10(180)	5 UL 723		-30 to 260(-34 to 121)	Value grade aluminum foil tape.
3382	Silver Acrylic Aluminum Foil			2.5(0.06)	5.2(0.13)	PE Coated Kraft	4.2(0.11)	50(55)	30(525)	25 —		-40 to 300(-40 to 149)	Foil/PET laminate, tear resistance. Roof and gutter repair tape.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

3M ^TM Sound Damping Foils

Reduce Noise and Vibration in Many Applications

With pressure sensitive viscoelastic acrylic polymer on dead soft aluminum foil, 3M ^™ Sound Damping Foils quiet noise and reduce vibration in many areas for Aerospace, Automotive, Appliances, Construction and MRO (Maintenance and Repair).

• Reduce structure-borne noise in metal and composite panels and support structures
• Optimized acrylic converts vibrational energy to negligible heat that readily dissipates
• Reduce vibrational fatigue to decrease wear and tear on parts and lower the risk of part loosening and displacement
  • Effective damping with as little as 10% surface coverage
• Pressure sensitive for easy self-fixturing application
• Long aging performance
  • Good performance over a wide temperature range
• Linered construction provides ability to die-cut product

Close-up of gloved hands applying adhesive to a car engine compartment (no visible text or symbols)

Applied with a 3M™ PA-1 Wiper to the inside of a car door, 3M™ Damping Foil 2552 effectively damps noise and vibration with as little as 10% surface coverage. Optimized acrylic on a dead soft aluminum constraining layer converts vibrational energy to negligible heat that readily dissipates.

Interior view of a large, arched tunnel or storage room with grid-patterned ceiling and structural panels (no visible text or symbols)

3M™ Damping Foil 435 between the ribs and stringers of an aircraft fuselage helps reduce vibrational fatigue and noise inside the passenger cabin.

Close-up of a metallic rectangular object with a diagonal stripe against a plain beige background (no text or symbols visible)

3M™ Damping Foil 2552 on the inside of a washing machine reduces structure-borne noise and reduces vibrational fatigue to decrease the risk of part loosening and displacement.

Product Number

Color

Adhesive Type

Backing Material

Backing Thickness mils (mm)

Liner Type

Total Thickness mils (mm)

Adhesion to Steel oz./in. (N/100 mm)

Tensile Strength lb./in. (N/100 mm)

Elongation at Break %

Temperature Range °F (°C)

Meets Specifications Comments

ASTM Test Method D-3652 D-3652 D-3330 D-3759 D-3759

434

Silver

Viscoelastic Polymer

Aluminum Foil

5.5(0.14)

Polyethylene

7.5(0.19)

65(71.2)

50(876)

12

-76 to 68(-60 to 20)

F.A.R. 25.853(a)

Low temperature vibration damping.

435

Silver

Viscoelastic Polymer

Aluminum Foil

8.0(0.2)

Polyethylene

13.5(0.34)

65(71.2)

50(876)

12

-76 to 68(-60 to 20)

F.A.R. 25.853(a)

Low temperature vibration damping.

436

Silver

Viscoelastic Polymer

Aluminum Foil

12.0(0.31)

Polyethylene

17.5(0.44)

65(71.2)

50(876)

12

-76 to 68(-60 to 20)

F.A.R. 25.853(a)

Low temperature vibration damping.

2542

Silver

Viscoelastic Polymer

Aluminum Foil

5.0(0.13)

Polyethylene

10.0(0.25)

65(72)

63(1102)

7

-25 to 175(-32 to 80)

—

Thinner general purpose vibration damping.

2552

Silver

Viscoelastic Polymer

Aluminum Foil

10.0(0.25)

Polycoated Paper

15.0(0.38)

65(72)

126(2205)

12

-25 to 175(-32 to 80)

ASTM E756-83

General purpose vibration damping.

4014

Silver

Viscoelastic Polymer

Aluminum-Urethane

3.0(0.09)

Easy Release Film

250.0(6.35)

n/a n/a 90

-94 to 86(-70 to 30)

F.A.R. 25.853(a) Foli/foam sheet laminate.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

3M ^TM Polyester Tapes

Thin Caliper with Long-Term High Dimensional Strength

With a choice of thin backing calipers and adhesives, this line of tapes meets demanding applications for Graphic Arts, Photography, Metal Finishing and Electronics. Applications range from splicing silicone-treated paper to low profile decorative trim.

• Backing calipers from as thin as 0.9 mil up to 5 mils, all with very high dimensional strength
• Tensile strengths ranging from 20 lbs./in. (0.9 mil) to 140 lbs./in. (5 mils) — some of the strongest backings available
• Pressure sensitive acrylic, rubber, silicone and S/R blend adhesives to meet specific requirements. For example, acrylic with transparent backing for clarity and long-term holding; silicone for high temperatures and clean removal; rubber for quick adhesion to low surface energy materials

Close-up of a mechanical assembly with a red vertical stripe and patterned fabric, no visible text or symbols.

Two elongated metallic strips on a wooden surface, one dark and one light, with no visible text or symbols.

Abstract image with a dark horizontal bar on a textured beige background, no visible text or symbols

For marking splice location, 3M ^™ Polyester Tape 850 is available in red, black, white and silver. Transparent is also available to blend with the web stock. Pressure sensitive acrylic adhesive grabs on contact and holds butt splices securely. High tensile strength backing resists web handling stresses.

Roll of white woven material being processed by industrial machinery (no visible text or symbols)

For butt splices on many low surface energy materials such as polyethylene. 3M ^™ Super Bond Film Tape 396 provides the thin caliper tensile strength of polyester, and high immediate holding strength of rubber adhesive.

Person in white lab coat handling a yellow tape near a surface (no visible text or symbols)

Person in lab coat spraying a spray bottle in a protective indoor setting (no visible text or symbols)

For powder coat paint masking, 3M™ Polyester Tape series 8900 provides popular choices with clean removing high temperature silicone adhesives and different backing thicknesses of tough non-silvering polyester.

Close-up of a wooden binder clip with metal rings, no visible text or symbols

With thin caliper and tear resistance, 3M ^™ Polyester Tape provides tough low-profile reinforcement for punch holes in card stock. Acrylic adhesive resists yellowing in long-term use.

Workers handling large paper rolls in a factory setting (no visible text or symbols)

With thin caliper, high tensile strength polyester backing and the excellent shear strength of silicone adhesive, 3M™ Polyester Tape 8402 works well for butt splicing silicone-treated papers.

3M™ Polyester Tapes

Product Color		Adhesive Type	Backing Material	Backing Thickness mils (mm)	Total Thickness mils (mm)	Adhesion to Steel oz/in (N/100 mm)	Tensile Strength lb/in (N/100 mm)	Elongation at Break %	Temperature Range °F (°C)	Comments
Based on ASTM Test Method: D-3652 D-3652 D-3330 D-3759 D-3759
General Industrial Tapes
396	Transparent Rubber Polyester			1.7(0.04)	4.1(0.10)	140(153)	43(753)	140	40 to 200(4 to 93)	Adhesion to low surface energy materials.
850	Various Acrylic Polyester			0.9(0.02)	1.9(0.05)	30(33)	28(491)	120	-60 to 300(-50 to 150)	Splicing, holding, sealing. Transparent, Red, Black, White.
853	Transparent Acrylic Polyester			1.1(0.03)	2.2(0.06)	46(50)	25(434)	83	-60 to 300(-50 to 150)	L-T-100F.A.R. 25.853(a)
856	Transparent Acrylic Polyester			1.0(0.03)	2.0(0.05)	20(22)	25(438)	90	-60 to 300(-50 to 150)	Label protection. Edge and hole reinforcing.
8411	Transparent Acrylic Polyester			1.0(0.03)	1.5(0.04)	21(23)	26(456)	120	-60 to 300(-50 to 150)	Edge and hole reinforcing.
8412	Transparent Acrylic Polyester			4.7(0.12)	6.3(0.16)	33(36)	140(2450)	180	-60 to 300(-50 to 150)	Heavy-duty edge and hole reinforcing.
Protective Tapes
335	Pink Rubber Polyester			0.9(0.02)	1.5(0.04)	13 g/in.(0.5)	26(455)	115	40 to 150(4 to 65)	Low tack protective tape. Pink in color.
336	Transparent Rubber Polyester			0.9(0.02)	1.5(0.04)	13 g/in.(0.5)	26(455)	115	40 to 150(4 to 65)	Low tack protective tape. Transparent.
High Temperature Masking and Liner Splicing Tapes
875	Seafoam Green	Rubber Polyester		1.0(0.03)	2.0(0.052)	36(37)	34(590)	105	60 to 400(140 to 204)	High temperature, non-silicone composite bonding.
876	Seafoam Green	Rubber Polyester		2.0(0.05)	3.1(0.078)	33(36)	66(1160)	128	60 to 400(140 to 204)	High temperature, non-silicone composite bonding.
8401	Translucent Cream	Silicone/Rubber Blend	Polyester	1.0(0.03)	1.9(0.05)	22(24)	34(595)	100	-60 to 300(-50 to 150)	Splicing many release coated paper.
8402	Translucent Green	Silicone Polyester		0.9(0.02)	1.9(0.05)	24(26)	25(438)	100	-60 to 425(-50 to 218)	Adheres well to silicone.
8403/8403L	Translucent Green	Silicone Polyester		1.4(0.04)	2.4(0.06)	27(29)	46(806)	150	-60 to 425(-50 to 218)	Adheres well to silicone.8403L is linered version.
8901	Blue Silicone Polyester			0.9(0.02)	2.4(0.06)	29(31)	26(455)	115	-60 to 400(-50 to 204)	High temperature coating.
8902	Blue Silicone Polyester			2.0(0.05)	3.5(0.08)	37(40)	46(805)	100	-60 to 400(-50 to 204)	High temperature coating.
8905	Blue Silicone Polyester			5.0(0.12)	6.5(0.17)	26(28)	110(1920)	115	-60 to 400(-50 to 204)	High temperature coating.
8911	Transparent Silicone Polyester			0.9(0.02)	2.3(0.05)	26(29)	26(440)	110	-60 to 400(-50 to 204)	High temperature label protection.
8991/8991L	Blue Silicone Polyester			1.0(0.03)	2.4(0.06)	31(34)	29(508)	100	-60 to 400(-50 to 204)	Thin tapes, powder coat masking, high temperature applications.8991L is linered version.
8992/8992L	Green	Silicone Polyester		2.0(0.05)	3.2(0.08)	44(48)	57(998)	148	-60 to 400(-50 to 204)	Powder coat and anodized masking, high temperature applications.8992L is linered version.
Photo Film Splicing Tapes
8421	White	Rubber Polyester		1.4(0.04)	2.5(0.06)	50(54)	43(754)	140	-60 to 300(-50 to 150)	Photo film splicing.
8422	Black	Rubber Polyester		1.4(0.04)	2.5(0.06)	50(54)	43(754)	140	-60 to 300(-50 to 150)	Photo film splicing.
8429	Yellow	Rubber Polyester		2.0(0.05)	3.2(0.08)	69(75)	54(948)	130	-60 to 300(-50 to 150)	Photo film splicing.
Reflective Tapes
850	Silver Acrylic Polyester			0.9(0.02)	1.9(0.05)	42(46)	28(491)	120	-60 to 300(-50 to 150)	Splicing, holding, sealing, decorating, silver color-coding.
8437	Silver Acrylic Polyester			0.9(0.02)	2.1(0.05)	40(44)	20(350)	70	40 to 200(4 to 93)	Low emissivity.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

3M™ PTFE and UHMW-PE Tapes

Low Coefficients of Friction With Choice of Other Characteristics

3M™ PTFE and UHMW-PE Tapes meet many application requirements for Printing, Aerospace, Automotive and MRO (Maintenance and Repair).

3M™ PTFE Tapes

• Low coefficient of friction to help improve web processing
• Resists up to 500°F (260°C) for long performance on heat sealing machines
  • Anti-stick for easy cleanup of hot plastic
  • Chemical-resistant barrier
  • Silicone-free adhesive available

3M™ UHMW-PE Tapes

• Abrasion resistant to protect chutes, guide rails, and containers from wear
• Low coefficient of friction for "slip plane" effect between surfaces to reduce noise
• Anti-stick for ready release of many inks and adhesives

Hand placing a white plastic strip into a black engine compartment (no text or symbols visible)

For automotive noise reduction, 3M™ UHMW-PE Tape 5425 provides a "slip plane" effect between incompatible surfaces to help reduce squeaks and rattles.

Industrial machinery with three cylindrical rollers mounted on metal rods (no visible text or symbols)

Conformable 3M™ PTFE Tape helps the movement of web materials in many types of roller wrapping applications.

Industrial conveyor belt system with yellow material and a block on a beige surface (no visible text or symbols)

Corrugated boxes slide more easily down a chute lined with abrasion-resistant 3M™ UHMW-PE Tapes.

Damaged metal panel with visible cracks and debris, no text or symbols present

In shrink wrapping operation, 3M™ PTFE Glass Cloth Tape 5451 helps protect the bar underneath where the hot wire seals the plastic film.

3M™ Slick Surface Tapes — Performance Comparison

Attribute Good Better Best
Heat Resistance	UHMW-PE Tape PTFE Film Tape PTFE Glass Cloth Tape
Wear Life	PTFE Film Tape PTFE Glass Cloth Tape UHMW-PE Tape
Conformability	PTFE Glass Cloth Tape UHMW-PE Tape PTFE Film Tape
Low Friction Coefficient	UHMW-PE Tape PTFE Glass Cloth Tape PTFE Film Tape
Anti-stick/Solvent Resistance	PTFE Glass Cloth Tape UHMW-PE Tape PTFE Film Tape

3M™ PTFE Tapes

Product Color		Adhesive Type	Backing Material	Backing Thickness mils (mm)	Total Thickness mils (mm)	Adhesion to Steel oz/in (N/100 mm)	Tensile Strength lb/in (N/100 mm)	Elongation at Break %	Temperature Range °F (°C)	Comments
Based on ASTM Test Method: D-3652 D-3652 D-3330 D-3759 D-3759
Glass Cloth
5151/5151L/5151PL	Light Brown	Silicone PTFE GC	3.0(0.08)	5.3(0.13)	33(36)	110(1925)	5	-100 to 500(-73 to 260)	General purpose PTFE glass cloth tape. 5151L is a linered version of 5151. 5151PL is a thicker, premium liner.
5153/5153L	Light Brown	Silicone PTFE GC	5.8(0.15)	8.0(0.20)	43(47)	290(5075)	5	-100 to 500(-73 to 260)	General purpose PTFE glass cloth tape. 5153L is a linered version of 5153.
5451	Brown Silicone PTFE GC		3.2(0.08)	5.6(0.14)	28(31)	100(1760)	5	-100 to 500(-73 to 260)	Heat seal tape.
5453	Brown Silicone PTFE GC		6.0(0.15)	8.2(0.21)	55(56)	175(3065)	5	-100 to 500(-73 to 260)	Heat seal tape.
Skived Film
5180	Gray Silicone PTFE		2.0(0.05)	3.5(0.09)	25(28)	30(525)	100	-65 to 500(-54 to 260)	General purpose PTFE skived film tape.
5181	Gray Silicone PTFE		5.0(0.13)	6.5(0.17)	35(39)	75(1300)	100	-65 to 500(-54 to 260)	General purpose PTFE skived film tape.
5185	Red Silicone PTFE		2.7(0.07)	4.2(0.11)	27(30)	41(716)	117	-65 to 500(-54 to 260)	Roller wrapping tape.
5480	Gray Silicone PTFE		2.0(0.05)	3.7(0.09)	20(22)	27(473)	140	-65 to 500(-54 to 260)	Roller wrapping tape.
5481	Gray Silicone PTFE		5.0(0.13)	6.8(0.17)	32(35)	49(858)	335	-65 to 500(-54 to 260)	Heavy-duty roller wrapping tape.
Extruded Film
5490	Gray Silicone PTFE		2.0(0.05)	3.7(0.09)	27(29)	22(385)	150	-65 to 500(-54 to 260)	Lay-flat backing.
5491	Gray Silicone PTFE		5.0(0.13)	6.7(0.17)	35(38)	40(700)	200	-65 to 500(-54 to 260)	Lay-flat backing.
5498	Brown Rubber PTFE		2.0(0.05)	4.0(0.10)	48(53)	19(332)	105	40 to 350(4 to 177)	Non-silicone adhesive.

3M™ UHMW-PE Tapes

Product Color		Adhesive Type	Backing Material	Backing Thickness mils (mm)	Liner Type	Total Thickness mils (mm)	Adhesion to Steel oz/in (N/100 mm)	Tensile Strength lb/in (N/100 mm)	Elongation at Break %	Temperature Range °F (°C)	Comments
Based on ASTM Test Method:				D-3652		D-3652	D-3330	D-3759	D-3759
5421	Transparent	Rubber	UHMW-PE	5.0(0.13)	60# Densified Kraft Paper	6.7(0.17)	26(28)	30(526)	275	-30 to 225(-34 to 107)	General purpose tape to protect plastic and metal chutes, guide rails and containers from wear.
5423	Transparent	Rubber	UHMW-PE	10.0(0.25)	60# Densified Kraft Paper	11.7(0.30)	26(28)	55(963)	300	-30 to 225(-34 to 107)	Excellent abrasion resistance and low coefficient of friction makes this an effective solution for noise and vibration problems.
5425	Transparent	Acrylic	UHMW-PE	3.0(0.08)	55# Densified Kraft Paper	5.0(0.13)	30(33)	45(788)	100	-30 to 225(-34 to 107)	Solvent resistant adhesive with low coefficient of friction and abrasion resistance.
5430	Transparent	Acrylic	UHMW-PE	5.0(0.13)	55# Densified Kraft Paper	7.0(0.18)	75(82)	40(696)	175	-30 to 225(-34 to 107)	High tack adhesive.
9324	Black	Acrylic	UHMW-PE	5.0(0.13)	55# Densified Kraft Paper	6.5(0.17)	75(82)	40(696)	175	-30 to 225(-34 to 107)	Black version of 5430 tape.
9325	Transparent	Acrylic	UHMW-PE	3.0(0.08)	55# Densified Kraft Paper	5.0(0.13)	50(55)	40(696)	175	-30 to 225(-34 to 107)	Thin version of 5430 tape.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

3M™ Vinyl and Polyethylene Tapes

Mark, Identify, Color-Code, Seal Seams and More

These rugged tapes adhere aggressively and remove cleanly from most surfaces for a wide variety of applications in Automotive, MRO (Maintenance and Repair), Construction, Marine, Commercial Vehicle, and other industries.

Applications include marking hazards and aisles, color coding of pipes, fine line paint masking, decorative trim, high visibility splicing and more.

• "Color throughout" construction resists scrapes, wear, weathering and chemicals
- Wide variety of colors plus transparent
- Flexible backing with aggressive adhesive bonds, conforms and seals even on irregular surfaces
- Removes cleanly without leaving adhesive behind to clean up
• Stretches to mold to contours

See our lane marking applicators on page 49.

Red fire extinguisher with attached hose and black tubing, displayed against a plain background (no text or symbols visible)

Red 3M ^™ Vinyl Tape immediately identifies fire protection equipment and apparatus, including fire extinguishers, alarm boxes and blanket boxes.

Interior view of a warehouse with red doors and yellow safety markings on the floor (no text or symbols visible)

3M ^™ Vinyl Tapes clearly mark lanes, corridors and hazardous or no-go areas in factories, warehouses and hospitals. Durable vinyl backing resists abrasion, scuffing, moisture, weathering, acids and alkaline chemicals for long service life.

Industrial piping system with yellow and green bands (no visible text or symbols)

For color-coding pipes with 3M™ Vinyl Tapes, select from either nine vivid colors or transparent to let underlying color show through. Backing is colored throughout to help maintain ready visibility.

Close-up of a hand holding a blue ribbon over a red and white plastic sheet (no text or symbols visible)

For fine line paint masking, 3M™ Vinyl Tape 471 provides sharp paint lines and the clean removal of a firm rubber adhesive.

Exterior view of a metal enclosure with yellow and black caution tape, no visible text or symbols

To highlight low hanging objects, protruding equipment, or steps, 3M™ Vinyl Tape 5702 combines yellow and black for a striped combination that calls for attention.

Industrial machine with orange and green striped panel, hand visible adjusting part (no text or symbols)

Orange 3M™ Vinyl Tape identifies dangerous machine parts that may cause injury when enclosure doors are open or guards removed.

3M™ Vinyl Tapes

Product Number Color	Adhesive Type	Backing Material	Backing Thickness mills (mm)	Total Thickness mills (mm)	Adhesion to Steel oz./in. (N/100 mm)	Tensile Strength lb./in. (N/100 mm)	Elongation at Break %	Temperature Range °F (°C)	Comments
Premium Performance Vinyl Tapes
471	Various Rubber Vinyl		4.1(0.10)	5.2(0.13)	26(28)	14(270)	150	40 to 170(4 to 77)	Conformable and clean removal. Black, Blue, Brown, Green, Orange, Purple, Red, Transparent, White, Yellow. MIL-STD 2041D (SH).
4712	Various Rubber Vinyl		4.1(0.10)	5.2(0.13)	23(25)	14(270)	150	40 to 170(4 to 77)	Linered version of 471 tape. MIL-STD 2041D (SH). Colors same as 471.
471+	Indigo Rubber Vinyl		4.1(0.10)	5.3(0.13)	35(38.3)	13.9(243)	191	Up to 250(Up to 121)	Superior conformability, sharp paint lines, clean removal.
472	Black Rubber Vinyl		9.0(0.23)	10.4(0.26)	23(25)	32(560)	270	Up to 225(Up to 107)	Abrasion and high temperature resistant.
477	Transparent Rubber Vinyl		6.0(0.15)	7.2(0.18)	24(26)	24(420)	230	40 to 170(4 to 77)	Abrasion resistant.
General Purpose Vinyl Tapes
764	Various Rubber Vinyl		4.1(0.10)	5.0(0.13)	18(21)	13(228)	180	60 to 85(15 to 27)	Non-critical applications. Black, Blue, Brown, Gray, Green, Orange, Purple, Red, Transparent, White, Yellow.
Safety Stripe Tapes
5700	Black/White Rubber Vinyl		4.2(0.11)	5.5(0.14)	19(21)	15(260)	170	40 to 170(4 to 77)	Critical applications. Adhesive side printing for long-life.
5702	Black/Yellow Rubber Vinyl		4.2(0.11)	5.5(0.14)	19(21)	15(260)	170	40 to 170(4 to 77)	Critical applications. Adhesive side printing for long-life.
766	Black/Yellow Rubber Vinyl		4.1(0.10)	5.0(0.13)	18(21)	13(228)	180	60 to 85(15 to 27)	Non-critical marking applications.
767	Red/White Rubber Vinyl		4.1(0.10)	5.0(0.13)	18(21)	13(228)	180	60 to 85(15 to 27)	Non-critical marking applications.
Electroplating and Anodizing Tapes
470	Tan Rubber Vinyl		6.3(0.16)	7.1(0.18)	37(40)	20(350)	180	Up to 170(Up to 77)	Conformable and abrasion resistant for masking various surfaces during electroplating and anodizing.
484	Tan Rubber Vinyl		5.6(0.14)	6.7(0.17)	22(24)	23(402)	220	Up to 170(Up to 77)	Lower adhesion than 470 tape.
4731	Various Rubber Vinyl		5.8(0.15)	7.0(0.18)	20(22)	17(300)	230	40 to 170(4 to 77)	Electroplating. Blue, Gray, Orange, Purple, White, Yellow.

3M™ Polyethylene Tapes

Product Number Color	Adhesive Type	Backing Material	Backing Thickness mils (mm)	Total Thickness mils (mm)	Adhesion to Steel oz./in. (N/100 mm)	Tensile Strength lb./in. (N/100 mm)	Elongation at Break %	Temperature Range °F (°C)	Comments
Polyethylene Tapes
480	Transparent Acrylic Polyethylene		4.0(0.10)	5.1(0.13)	22(24)	12(210)	520	20 to 170(-7 to 76)	Acrylic adhesive.
483	Various Rubber Polyethylene		3.9(0.10)	5.0(0.13)	18(21)	10(175)	300	Up to 170(Up to 77)	Available in Black, Blue, Green, Red, Transparent, White and Yellow. MIL-STD 2041D (SH).

3M™ Preservation Tapes

Product Number Color		Adhesive Type	Backing Material	Backing Thickness mills (mm)	Total Thickness mills	Adhesion to Steel oz./in. (N/100 mm)	Tensile Strength lb./in. (N/100 mm)	Elongation at Break %	Temperature Range °F (°C)	Comments
481	Black Rubber Polyethylene			7.7(0.20)	9.8	25(28)	15(260)	510	20 to 170(-7 to 76)	Preservation sealing tape. MIL-T-22085 Amend 3, Type IV. Clean removal up to 2 years.
4811	White Rubber Polyethylene			7.5(0.18)	9.5	30(36)	15(260)	490	Up to 170(Up to 77)	Preservation sealing tape. Clean removal up to 1 year.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

3M ^TM Gripping Materials

Increase Friction and Reduce Slippage in Dry, Wet and Oily Conditions

When getting a grip is a performance requirement, strengthen your competitive advantage with 3M™ Gripping Material products. This 3M innovation utilizes 3M patented micro-replication technology to add thousands of micro gripping fingers on one side of a flexible backing to enhance control and improve gripping performance. Customers will see a noticeable increase in holding power, while using less force. Ultimately this can lead to enhanced performance and decreased fatigue.

Adhesives-backed versions stick on contact to many metals, plastics and sealed woods for a fast, easy increase in traction for applications such as fishing rods, ATV handlebars and forklift steering wheels.

Plain-backed versions offer some stretch and are designed for sew-on applications such as sports gloves or work gloves, where improved grip is a performance advantage.

Molded grips can be custom designed and manufactured for different high volume applications.

Performance Features:

• Increases friction to reduce slippage even in wet or oily conditions
• Immediate release when the hand lets go
  • Abrasion and puncture resistant
  • Water and oil resistance for secure attachment
• Performs across a broad temperature range from -40 to 160°F (-40 to 71°C) indoors and out

Product photo of a black and white gloves with a yellow tape wrapped around it, no visible text or symbols.

Close-up of a hand gripping a black cylindrical object, wearing a black and white glove with textured patterns (no text or symbols visible)

The unique micro-replicated surface structure of 3M ^™ Gripping Materials is engineered to provide different levels of friction, and when mated, create unmatched holding power, even in wet and oily environments.

Product Color		Relative Durability 1-10: Low-High	Relative Friction 1-10: Low-High		Relative Tactility 1-10: Soft-Firm	Thickness mil (mm) without liner	Weight oz/yd ^2 (g/m ^2 ) without liner	Temperature Use Range °F (°C)	Relative Chemical Resistance 1-10	Relative UV Resistance 1-10 Size	Mated Unmated
Plain-backed: Washable nylon knit with moderate stretch for sew-on applications
GM110	Black 10 10 3 10					33(0.8)	10.7(366)	-40 to 160(-40 to 71)	10 9 24" x 72 yd
GM530	Black 8	8	7	8		33(0.8)	10.7(366)	-40 to 160(-40 to 71)	8	7 24" x 72 yd
GM630	Grey 2	6	9	4		33(0.8)	10.7(366)	-40 to 160(-40 to 71)	5	1 24" x 72 yd
GM640	Black 5	9	8	6		33(0.8)	10.7(366)	-40 to 160(-40 to 71)	5	5 24" x 72 yd
Adhesive-backed: 3M pressure sensitive acrylic for bonding to high and low surface energy materials
GM400	Black 10 10 3 10					33(0.8)	12.9(440)	-40 to 160(-40 to 71)	10 9 24" x 72 yd
GM531	Black 8	8	7	8		33(0.8)	12.9(440)	-40 to 160(-40 to 71)	8	7 24" x 72 yd
GM631	Grey 2	6	9	4		33(0.8)	12.9(440)	-40 to 160(-40 to 71)	5	1 24" x 72 yd
GM641	Black 5	9	8	6		33(0.8)	12.9(440)	-40 to 160(-40 to 71)	5	5 24" x 72 yd
GM731	Clear	10 10 3 10				33(0.8)	12.9(440)	-40 to 160(-40 to 71)	10	2*	24" x 72 yd

*Yellows
Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

Splicing and Repulpable Tapes

For when you need to splice it up.

We offer a wide range of repulpable and non-repulpable tapes for every kind of splice so you can continue your production pace at full speed. Our products are designed to provide dependable splices. From temporary to permanent adhesion needs, our tape experts can help you select the best tape for your demanding application.

3M™ Splicing and Repulpable Tapes

Tapes for Paper Mills, Printers, Converters and Newspapers

From core starting to roll closing/tabbing and all the splices in-between, this totally repulpable line offers choices for the dependability you need to keep production at full speed. Backings and adhesives are engineered for optimum strength on every type of splice: flying, overlap, butt and general purpose.

Temporary Tapes

Good shear strength, high tack and reliable heat resistance

Permanent Tapes

High shear strength to stay with paper through sheeting, printing, slitting and perforating

Industrial machine with mechanical components and a close-up inset showing a measurement scale (no readable text or symbols)

3M™ Repulpable Splittable Flying Splice Tape eliminates the time and work of "V" and "W" patterns with a straight across flying splice. Advanced coating provides a smooth and consistent opening force. A fiber-free break open means less blanket cleanup.

Man inspecting large cylindrical material in a warehouse or factory setting (no visible text or symbols)

High tack 3M™ Temporary Single Coated Repulpable Tapes are available in white, blue, and kraft for dependable core starting, roll closing and butt splicing.

Close-up of a hand applying adhesive tape to a person's arm, no visible text or symbols

3M provides a complete line of core starting tapes that are easy to use and stick reliably every time.

Close-up of hands using a tool to cut or spread blue and white material on a curved surface (no text or symbols visible)

One simple splice with 3M™ Splittable Flying Splice Tape replaces complex patterns.

Two people working in a kitchen, one adjusting the ceiling panel (no visible text or symbols)

For finished mill overlap splicing, 3M ^™ Repulpable Permanent Tape provides high shear strength without adhesive oozing or bleed through.

3D rendered abstract blue and white geometric shape with no visible text or symbols

For "V" and "W" pattern splices, the 3M" Splicing System provides all the splicing products you need.

3M™ Repulpable Splicing Tapes for the Paper Mills

Product Color Comments			Tape Thickness mils (mm)	Tape Structure Liner				Heat Resistance °F (°C)	FDA Compliant*
				Backing/Carrier Adhesive Type			Thickness mils (mm)
Permanent Double Coated
405	Lt. Green	Excellent for raw and starch-treated papers	3.0 (0.08)	Tissue Carrier	Repulpable	UPVC	1.7 (0.04)	400 (200)	—
900	Blue	Recommended for light weight coated papers	2.5 (0.06)	Tissue Carrier	Repulpable	Paper	3.2 (0.08)	400 (200)	Yes
900B	Blue	Recommended for supercalendered papers	2.5 (0.06)	Tissue Carrier	Repulpable	Paper	3.2 (0.08)	400 (200)	Yes
Permanent Single Coated
901	Lt. Green Excellent for raw and starch-treated papers 4.0 (0.10) Paper Repulpable UPVC 1.7 (0.04) 400 (200) —
910	Blue	Recommended for coated and uncoated papers and paperboard	4.0 (0.10)	Paper	Repulpable	—	none	400 (200)	Yes
914	Blue	Recommended for high speeds, digital business forms, perforated splicing tape	4.0 (0.10)	Paper	Repulpable	—	none	400 (200)	Yes
9103	Blue	Printable, coatable backing	4.5 (0.11)	Paper	Repulpable	Paper	2.9 (0.07)	400 (200)	Yes
9960	Blue	Thinnest butt splicing tape for light weight uncoated and coated and supercalendered papers	2.2 (0.06)	Paper Repulpable Paper 2.9 (0.07) 350 (180)			Yes
9969	Blue/White	Very thin butt splicing/cover tape for uncoated, newsprint and most coated papers	2.2 (0.06)	Paper Repulpable Paper 2.9 (0.07) 350 (180)			Yes
Temporary Double Coated
906	Blue/White	Flying splice at the Off-Machine Coater (OMC)	3.0 (0.08)	Tissue Carrier	Repulpable	Paper	3.2 (0.08)	400 (200)	Yes
9069	Blue	Excellent for newsprint or directory stock	3.5 (0.09)	Tissue Carrier	Repulpable	Paper	3.2 (0.08)	400 (200)	—
9977	Blue	High strength tissue for flying splices where extra strength is needed	4.0 (0.10)	Tissue Carrier Repulpable Paper 3.2 (0.08) 400 (200) —
R3227	Blue/White	General purpose temporary splicing	3.5 (0.09)	Tissue Carrier	Repulpable	Paper	3.2 (0.08)	400 (200)	Yes
R3257	White	Thin tissue, very high tack	4.1 (0.11)	Tissue Carrier	Repulpable	Paper	3.2 (0.08)	400 (200)	Yes
R3287	White	Heavy tissue, very high tack	5.5 (0.14)	Tissue Carrier	Repulpable	Paper	3.2 (0.08)	400 (200)	Yes
Temporary Single Coated
R3127	Blue/White/Kraft	General purpose, excellent holding power	4.5 (0.11)	Paper	Repulpable	—	none	400 (200)	Yes
R3177	Blue/White/Red	Heavy duty, extensible repulpable backing	7.0 (0.16)	Paper	Repulpable	—	none	400 (200)	Yes
R3187	Blue/White/Kraft	General purpose, strong repulpable backing	7.5 (0.19)	Paper	Repulpable	—	none	400 (200)	Yes
Splittable Flying Splice (SFS)
R3345	Blue	Thin SFS tape for flying splices through supercalendering operations, and permanent butt splices for light weight coated papers	4.8 (0.12)	Paper Repulpable Paper 2.9 (0.07)		400 (200) —
R3375	Blue	Strong SFS tape for flying splices on heavy papers and high tension web processing through supercalendering operations	6.5 (0.16)	Paper Repulpable Paper 2.9 (0.07)		400 (200) —
R3379	Blue	Repulpable Splittable Flying Splice Tape is used for high speed splicing conditions when high tack is required and to compensate for roll profile issues	7.5 (0.18)	Paper Repulpable Paper 2.9 (0.07)		400 (200) —
R3389B	Blue	Repulpable Splittable Flying Splice Tape for heavyweight papers in manual and automatic splicing equipment for high speed splicing conditions when high tack is required and to compensate for roll profile issues; Additional blue color on the backside	7.0 (0.18)	Paper Repulpable Paper 2.9 (0.07)		400 (200) —

*All components of the adhesive and backing meet the requirements of indirect food additive regulations as described under 21 CFR 176.170 (Components of paper and paperboard in contact with aqueous and fatty food) and 21 CFR 176.180 (Components of paper and paperboard in contact with dry foods).

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

3M™ Splicing Tapes for the Printing Industry

Product Color	Comments		Tape Thicknessmils (mm)without liner	Tape Structure		Liner		HeatResistance*°F (°C)	FDACompliant†
				Backing/Carrier	Adhesive	Type	Thicknessmils (mm)
Repulpable Single Coated
R3127	Blue/White/Kraft	General purpose, excellent holding power	4.5 (0.11)	Paper	Repulpable	—	none	400 (200)	Yes
R3187		General purpose, strong repulpable backing	7.5 (0.19)	Paper	Repulpable	—	none	400 (200)	Yes
R3177	Blue/White/Red	Heavy duty, extensible repulpable backing	7.0 (0.16)	Paper	Repulpable	—	none	400 (200)	Yes
Repulpable Double Coated
913	Blue	Paster tape for splices at newspaper printers	3.5 (0.09)	Tissue Carrier	Repulpable	Paper	3.2 (0.08)	400 (200)	—
9038	Blue/White	General purpose plus flying splice tape forcommercial printers and corrugators	3.5 (0.09)	Tissue Carrier	Repulpable	Paper	3.2 (0.08)	350 (180)	Yes
9069	Blue	Excellent for newsprint or directory stock	3.5 (0.09)	Tissue Carrier	Repulpable	Paper	3.2 (0.08)	400 (200)	—
R3227	Blue/White	For zero speed splicing	3.5 (0.09)	Tissue Carrier	Repulpable	Paper	3.2 (0.08)	400 (200)	Yes
Splittable Flying Splice (SFS)
R5348	Blue	Use with light- to medium-weight papers runningthrough medium-temperature ovens	5.0 (0.11)	Paper	Repulpable	Paper	2.9 (0.07)	350 (180)	—
6359	Black	Optically detectable tape that provides all-in-onesplicing solution engineered to be detected by sensorsto trigger roll-to-roll splicing	6.5 (0.17)	Paper	Repulpable	Paper	2.4 (0.06)	400 (200)	—
R7359	Blue	Use with light- to heavy-weight papers running at highspeeds and high temperatures	6.6 (0.17)	Paper	Repulpable	Paper	2.9 (0.07)	400 (200)	—
R7369	Blue	Use with light- to heavy-weight paper on wide web rolsto help compensate for roll profile variations running athigh speeds and high temperatures	7.4 (0.19)	Paper	Repulpable	Paper	2.9 (0.07)	400 (200)	—
8387	Pink/Black	Designed to stick to LSE substrates such as LDPE,BOPP and PP	7.0 (0.19)	PET/PE	Rubber	Paper	3.0 (0.9)	n/a	—
9990N	Blue	Splittable flying splice (SFS) system with metalizedlayer for auto-sensing splice detection applications	5.5 (0.14)	AluminizedPaper**	Repulpable	Paper	2.2 (.05)	350 (180) —

*As tested in laboratory. Results may vary depending on machine and web tensions, nature of paper surface, application pressure, etc. which are outside of 3M's control.
**Non-repulpable, screenable aluminized sensor strip.
†All components of the adhesive and backing meet the requirements of indirect food additive regulations as described under 21 CFR 176.170 (Components of paper and paperboard in contact with aqueous and fatty food) and 21 CFR 176.180 (Components of paper and paperboard in contact with dry foods).

3M™ Non-Repulpable Splicing Tapes (All tapes in this chart can be considered for zero speed or flying splices)

Product Product Description		Tape Thickness mils (mm) without liner	Carrier		Color	Adhesion oz/in (N/25 mm)	Heat Resistance* (Short-term) °F (°C)	Go-To Application
			Thickness mils (mm) Type					Zero Speed	Flying Splice
Based on ASTM Test Method D-3652 D-3652 D-3330
Adhesive Transfer Tape
465	High tack, excellent adhesion to most paper stocks, flexible to -60°F	2.0 (0.05) — none Clear 25 (6.8) 250 (121)
9498/9464	Low temperature splicing 2.0 (0.05) — none Clear/Red 20 (6.0) 250 (121)							■
9499/9497	High temperature splicing	2.0 (0.05)	—	none	Clear/Red	45 (12.5)	350 (177)	■
Double Coated Tapes
415/9420	High tack adhesion to paper and many other surfaces	4.0 (0.10)	0.5 (0.01)	Polyester	Clear/Red	25 (6.8)	180 (82)
469	High temperature, high tack	5.5 (0.14)	1.0 (0.02)	Tissue	Red	60 (16.7)	350 (177)		■
9086	Easy tearing, easy handling, thick high tack adhesive, very conformable	7.5 (0.19)	1.5 (0.03)	Non-Woven Tissue	Clear 146 (40.0)	250 (121)
9088	High temperature resistance, high tack and shear strength	8.3 (0.20)	0.5 (0.01)	Polyester	Clear	137 (37.5)	300 (150)
9576	Medium tack for general splicing and roll closing	4.0 (0.10)	1.0 (0.02)	Polypropylene	Red/Black/Yellow	30 (13.5)	165 (75)
9737/9737R	Thin PET carrier, aggressive and versatile tape for many surfaces	3.5 (0.09)	0.5 (0.01)	Polyester	Clear/Red	60 (16.7)	300 (150)	■	■
9738/9738R	Non-woven tissue carrier, aggressive and versatile tape for many surfaces	4.3 (0.11)	1.3 (0.03)	Non-Woven Tissue	Clear/Red	60 (16.7)	300 (150)	■	■
9740	High performance over a wide range of temperatures,high peel, tack, and shear properties, performance grade splicing for corrugators	3.5 (0.09)	0.5 (0.01)	Polyester	Clear	70 (21.2)	425 (218)		■
9741/9741R	Thick tape adheres to a wide variety of substrates, super aggressive for low surface energy substrates	6.5 (0.17)	0.5 (0.01)	Polyester	Clear/Red	120 (34.0)	200 (93)

*As tested in laboratory. Results may vary depending on machine and web tensions, nature of paper surface, application pressure, etc. which are outside of 3M's control.

Note: The technical information and data on these pages should be considered representative or typical only and should not be used for specification purposes.

3M™ Splicing Tapes Selection Guide

Temperature ratings are dependent on oven time, web tension, web speed and substrate thickness. See data page for exact temperature rating.

Equipment

Easy to use.

Fast and effective.

From hand-held to walk-behind, or custom-mounted to portable, our applicators and dispensers are specially designed for use with 3M Masking and Specialty Products.

3M ^TM Lane Marking Applicators

Red ladder with yellow and black tape against a plain gray background (no text or symbols)

3M™ Lane Marking Applicator M1

Two red manual pushlifter machines labeled M1 M77 and 110 111, shown from different angles (no text or symbols on the devices themselves)

Product Product Name Product Description Color
M1	3M ^TM Lane Marking Applicator M1	Lane Marking Applicator M1 is used to apply vinyl tape to floor surfaces in manufacturing and commercial plants. General use.	Red
M77	3M ^TM Lane Marking Applicator M77	Lane Marking Applicator M77 is used to apply vinyl tape to floor surfaces in manufacturing and commercial facilities. Heavy duty.	Red

3M ^TM Tape Dispensers

Two mechanical components labeled M73 and M75, shown with no visible text or symbols beyond labels

3M ^™ Utility Bracket Dispensers

Close-up of a person using a RTA500 scanner on a blue surface, no visible text or symbols on the device itself.

3M™ Repulpable Tape Applicator

Two industrial cutting machines labeled S170 and S171, showing different mechanical components (no text or symbols on the machines themselves)

3M™ Set Change Dispensing Systems

Product Product Name Product Description Color
H330	3M ^TM Dispenser for Flashing Tape H330	A hand-held dispenser that provides a quick and easy method to apply 3M ^TM All Weather Flashing Tape 8067 and 3M ^TM Sealing Tape 8777. Accommodates up to a 6 inch wide tape on a 3 inch core.	Red
H331	3M ^TM Dispenser for Flame Retardant Tape H331	A hand-held dispenser that provides a quick, easy and inexpensive method to apply 3M ^TM Glass Cloth Tape 398FR and 3M ^TM Flame Retardant Glass Cloth Tape 399FR. Accommodates up to a 6 inch wide tape on a 3 inch core.	Gray
M73	3M ^TM Utility Bracket Dispenser M73	Utility bracket dispensers can be custom-mounted on walls, equipment, tables, and to the sides of work stations. This model holds 1/4 inch to 1 inch wide.	Blue
M75	3M ^TM Utility Bracket Dispenser M75	Utility bracket dispensers can be custom-mounted on walls, equipment, tables, and to the sides of work stations. This model holds 1/4 inch to 2 inches wide.	Blue
RTA500	3M ^TM Repulpable Tape Applicator RTA500	A hand-held tape dispenser designed to dispense 3M linered repulpable tapes, while simultaneously removing the liner.	Tan
S170	3M ^TM Set Change Dispensing System S170	Use for dispensing repulpable core starting tape while removing liner. Accommodates up to 2 inch wide tape.	Silver
S171	3M ^TM Set Change Dispensing System S171	Table top version. Use for dispensing repulpable core starting tape while removing liner. Accommodates tape up to 2 inches wide.	Silver

See our vinyl tapes on page 40.

3M ^™ Dispensers for Large Area Masking

Product Product Name Product Description
06781	Scotch® Cart Masker 06781	Portable masker provides a convenient method to adhere masking tape to the edge of masking paper for paint masking. Features two paper dispensing stations. Up to 24" wide paper.
06780	3MTM Overspray Protective Sheet Masker 06780	Portable masker designed to dispense sheeting. Allows for easy hand cutting of plastic sheeting.
06864	Scotch® Silimline Apron Taper 06864	Dispenses three widths of masking paper up to 18" wide. Side hooks hold different tape widths for special needs.
06865	Scotch® Apron Taper 18" 06865	Provides a convenient method for adhering masking tape to the edge of masking paper for paint masking. Features top loading, and easy operation and adjustment.
06866	Scotch® Apron Taper 36" 06866

3M Tape Dispenser

Replacement Parts

Dispenser Parts

241 Venture Drive

Amery, WI 54001

Phone: [phone]

Fax: [phone]

Replacement Blades

Atscott Manufacturing

Company, Inc.

1150 Holstein Drive N.E.

Pine City, MN 55063

Phone: [phone], ext. 116

www.atscott.com

Glossary

This glossary is compiled by the Pressure Sensitive Tape Council (PSTC) and 3M (terms identified with an asterisk). PSTC is the North American trade association for tape manufacturers and affiliate suppliers, dedicated to helping the industry produce quality pressure sensitive adhesive tape products in the global marketplace. Visit www.pstc.org for more information.

Abrasion Resistance

The ability of a tape to withstand rubbing and still function satisfactorily.

Accelerated Aging

A means whereby the deterioration of a tape encountered in natural aging may be accelerated and reproduced in the laboratory.

Accelerated Weathering (Weathering)

Exposure in a chamber to ultraviolet light, heat, and water whereby the effect of outdoor exposure on a tape can be approximated.

Acrylic Adhesive\*

A pressure sensitive, viscoelastic blend of acrylic-based materials which may be modified by tackifying additives. Acrylic adhesives are a very broad class of materials and come in many types to achieve different properties.

Adhesion to Backing

The bond produced to the backing of the same tape or another tape backing.

Adhesive Deposit or Residue

Adhesive that is pulled away from the tape upon removal and remains on the surface to which it has been applied.

Adhesive Transfer

When the adhesive on a tape either splits or transfers completely from the backing on to the surface it has been applied to either during unwind or removal, resulting in tacky areas on the surface.

Anchorage

The specific adhesion of a pressure sensitive adhesive to a face material or an anchor coat.

AOG\*

Aircraft On Ground

Article Letters

Letters if a MSDS does not exist on a product.

Backing

A relatively thin flexible material to which the adhesive is applied. Theoretically, any material that is reasonably flat, thin and flexible can be used as a tape backing.

Backsize

An occlusive coating applied to the non-pressure sensitive side of a porous backing, such as paper, in order to provide a satisfactory surface that the pressure sensitive adhesive side can contact when the tape is wound into a roll.

Bleed-through (Bleeding)

Penetration through the tape of a coloring material (paint, etc.) onto the surface to which the tape is applied.

Blocking

Adhesion between the sheets of the plies of rolls of coated material, usually due to extreme conditions of pressure, temperature or humidity.

BSR\*

An acronym for Buzz, Squeak and Rattle.

Bursting Strength

The ability of a tape to resist damage when a force is applied evenly and perpendicularly to the surface of a tape.

Butt Splice (Butt Joint)\*

Splices made on certain converting equipment (especially in heavy basis weight paper, boards, etc.). The trimmed ends of the web do not overlap but are held together end-to-end with single-sided adhesive tape, or in some similar fashion. A strip of paper or tape may also be laminated on one or both sides to form a continuous web.

Caliper

The thickness (as of a sheet of paper) measured under specified conditions. See also THICKNESS.

Carrier

A webstock that holds a pressure sensitive adhesive, especially used to refer to double-faced or double coated tapes.

CID\*

In relation to military specs = Commercial Item Description.

Clean Removal\*

When a tape is expected to remove cleanly from the substrate after a period of time.

Coating Weight

The weight of a coating per unit area. In SI-units expressed as grams per square meter (g/m ^2 ).

Cohesion (Cohesive Strength, Internal Bond)

The ability of the adhesive to resist shear stress and splitting. Good cohesion is necessary for clean removal.

Cold Flow

The tendency of a pressure sensitive adhesive to act as a heavy viscous liquid over long periods of time. Such phenomena as oozing and increase in adhesion with time are the result of this characteristic.

Color Stability

The ability of a tape to retain its original color, particularly when exposed to light.

Conformability\*

The ability for a tape to make arcs, circles, go into depressions, go over protrusions and still stay in one piece without slivering, tape lifting, necking down.

Glossary (cont.)

Controlled Unwind\*

When a balance is achieved between too low of an unwind, allowing the tape to prematurely unwind from its own backing, or too high, causing premature slivering or breaking when unwinding from its roll.

Corona Resistance

The ability of an elastomeric adhesive, coating, or sealer acting as an insulator to withstand the effects of high voltage discharge. Indications of failure appear as surface cracks.

Cratering\*

A paint defect that when viewed under a microscope resembles a crater with a depression in the center and a raised rim around the perimeter. This usually is caused by a surface contaminant like a particle of dirt, gel particle or a surface tension change like from an oil drop or silicone contamination.

Creep

The slow movement of the adhesive or backing under shear stress.

Crepe Paper\*

Paper with a crinkled or puckered texture. This allows the paper to stretch or elongate making it useful to curve and conform to irregular surfaces better than flat paper.

Cross-linking

Developing a three-dimensional molecular structure in an adhesive normally activated by heat or irradiation. An improvement in shear resistance, high temperature resistance, and oil or solvent resistance will normally result.

Cure

To alter the properties of an adhesive by chemical reaction, which may be condensation, polymerization, or vulcanization. Usually accomplished by the action of heat and catalysts, alone or in combination, with or without pressure.

Curl

The tendency of paper by itself or in a laminate to bend or partly wrap around the axis of one of its dimensions.

Dead Soft Aluminum\*

Aluminum that has had no annealing or hardening.

Dead Stretch\*

The ability for a tape to be pressed into a depression and stay in place as if it were "dead" or without "memory/recovery."

Delamination

A separation or splitting of the tape such as separation of the backing into two distinct layers, separation between laminations of a tape consisting of more than one backing, separation between filaments and backing of a filament reinforced tape, or separation of the adhesive from the backing.

Dewetting\*

When a paint appears to bead up or not flow out on a surface, like water on a freshly waxed car.

Dielectric Strength

The measure of the maximum voltage stress that a single layer of tape can withstand before dielectric failure occurs, the test being carried out under prescribed conditions.

Dimensional Stability

That property of a material that relates to the constancy of its dimensions, particularly in relation to external influences such as moisture or temperature.

Double Coated

An adhesive applied to both sides of a carrier.

Double Process\*

A sandblasting procedure in which frosting is done first and sunk lines are done last. This requires frosted areas to be uncovered and recovered for the frosting process.

Edge Curl

The peeling back or lifting of the outer edge of an applied tape in a curved manner.

Edge Lift

The tendency for the edge of an adhesive label to lift from a surface to which it has been adhered.

Edge Seepage\*

When paint gets under the edge of a tape, often appearing as hairlines of paint perpendicular to the tape edge.

Elasticity

The extensible property of adhesive films or adhesive interfaces to contract and expand in such a manner as to overcome the differential contraction and expansion rates that the bonded adherents may exhibit.

Elastomer

An elastic, polymeric substance, such as natural or synthetic rubber.

Electrolytic Corrosion Factor

A measure of the tape's corrosive effect on an electrical conductor, particularly copper. This is particularly important in the selection of tapes for electrical insulation.

Elongation (Stretch, Ultimate Elongation)

The distance a tape will stretch in the machine or cross direction before breaking under controlled conditions, expressed as a percentage of original length. Elongation is not necessarily an indication of conformability.

Emissivity\*

All solid surfaces emit radiant energy. The emissivity of a material is a ratio of the actual energy emitted from that surface to the maximum possible, or "black body", radiant energy. The maximum possible emissivity is unity and it is a unit-less parameter.

Enamel Paint\*

A broad classification of free-flowing pigmented finishing materials which dry to a smooth, hard finish and usually possess a gloss.

ESD\*

ElectroStatic Discharge

Extruded\*

A manufacturing process where material is forced through a nozzle (like extruded film or backing). Better for lay-flat than skived.

Face Stock

Any paper, film, fabric, laminate, or foil material suitable for converting into pressure sensitive material stock. In the finished construction this web is bonded to the adhesive layer and becomes the functional part of the tape construction.

Fall-off

When a tape pulls completely from the surface to which it is applied and drops off.

Glossary (cont.)

F.A.R. 25.853(a)\*

Federal Aviation Regulation 12-second vertical burn test.

Fatigue

A weakness resulting from stress created by repeated flexing or impact force upon the adhesive-adherent interface.

Filaments

Thin, longitudinal yarns or threads of glass, polyester, nylon or other high strength materials.

Fine Line\*

Tapes that are used in the painting industry to give a very sharp paint line. Usually made with plastic type backings that are both smooth and conformable.

Flame Resistance

The ability of a tape to withstand exposure to flame. Fireproof materials will not burn even when exposed to flame. Flame-resistant (fire-retardant, self-extinguishing) materials will burn when exposed to flame, but will not sustain the burn after the flame is removed.

Flame Retardant\*

Serving or tending to retard 1) slows flame propagation 2) meets industry regulations 3) is not flameproof 4) is not necessarily high temp performance.

Flatback Paper\*

Paper with a flat (not crinkled) texture. This allows the paper to retain its original shape making it useful for maintaining a straight line and smooth backing feel.

Fluting

Distortion of a roll of tape such that the layers no longer form a circle.

Frosting\*

Lightly removing the polish from a monument by using abrasive to give texture and a white contrast to the engraving.

Gapping

Openings between layers of tape within a finished roll.

General Paint Masking\*

Where the paint line is important, but not critical to function or appearance on the finished part.

General Purpose Holding\*

Where a tape is expected to temporarily hold miscellaneous items, such as during an assembly process.

Gloss

A light reflection characteristic of tape backings, usually expressed by such terms as glossy, low gloss, matte, etc.

Gross Masking\*

Any material like paper or plastic that can be used to cover a large area, usually held in place with tape, that protects the area from paint overspray.

Hand-cut\*

Cutting/carving design by hand to achieve desired pattern in sandblast stencil rubber.

Heat Seal

An adhesive film intended to be reactivated by the application of physical or chemical changes caused by exposure to high temperatures.

High Holding Strength — Masking\*

Where a masking tape is expected to hold for long periods of time (several hours) to a surface to be painted or hold large areas of gross masking materials.

High Temperature Masking\*

Where a masking tape is expected to withstand bake oven temperatures up to 300^ F ( 149^ C) for 30 minutes.

High Unwind\*

When a tape is very difficult to unwind from its own roll. Can result in slivering off the roll.

High-Speed Unwind

A term referring to the process of unwinding or dispensing of tapes at a relatively high rate of speed, usually over 15 meters per minute.

Holding Power (Shear Adhesion, Shear Resistance)

The ability of a tape to resist static forces applied in the same plane as the backing. Usually expressed in a time required for a given weight and length of tape to shear free from a vertical panel.

Hot Melt (Pressure Sensitive Adhesive)

A pressure sensitive adhesive, applied to the backing in hot liquid form, which then cools to form a conventional pressure sensitive adhesive.

Humidity

The moisture content of the air. Actual humidity is the number of grams of moisture in the air at any given time. Relative humidity is the percent of moisture relative to the maximum that air at any given temperature can retain without precipitation.

Hygroscopic

A tendency of some materials to readily absorb moisture from the atmosphere.

Impact Resistance (Shock Resistance)

The ability of a tape to resist sudden impacts, pulls, or shocks as may sometimes be encountered by packages in transit.

Imprinting (Ghosting)\*

Can occur when a vapor barrier, such as plastic sheeting, is placed over a painted surface and exposed to heat and/or UV. Moisture trapped under the plastic can't evaporate so it is driven back into the paint, leaving an imprint.

Insulation Resistance

The ability of tape to prevent the flow of electrical current across its surface, usually measured on the backing.

Label Stock

Pressure sensitive insulation materials furnished in roll or sheet form with liner, which can be later printed, frequently die-cut, and intended for use as labels.

Lacquer\*

Various clear or colored synthetic organic coatings that typically dry to form a film by evaporation of a solvent, frequently a solution of cellulose derivative (as nitrocellulose).

Lap Joint

A joint made by lapping one material over another to provide a mated area that can be joined with an adhesive.

Latent Stain

A stain in a surface to which tape has been applied, which does not become noticeable until some time after the tape is removed, usually after the surface has been exposed to sunlight or heat.

Glossary (cont.)

Latex Paint\*

A water emulsion of plastic, obtained by polymerization, used especially in coatings that can recoalesce to form a thin film.

Leader Tape\*

Used to splice photographic film leaders together for film processing.

Lifting

A situation where a section of tape has pulled away from the surface to which it has been applied.

Low Adhesion Backsize (LAB)\*

Surface treatment on the back (non-adhesive coated side) of a tape that allows tape to unwind when in roll form. It also helps coatings like paint to stick to its surface to prevent paint flaking.

Low Tack Masking\*

Where a very low removal force is desired, often for use on delicate surfaces.

Low Temperature Masking\*

Where a masking tape is expected to withstand bake oven temperatures up to 200^ F ( 93^ C) for 30 minutes.

Medium Temperature Masking\*

Where a masking tape is expected to withstand bake oven temperatures up to 250^ F ( 121^ C) for 30 minutes.

Metal Foil

Thin, flexible sheets of metal, such as aluminum, copper and lead, used as tape backings because of their inherent properties such as weather resistance, electrical conductivity, reflectivity, etc.

Moisture Vapor Transmission Rate

A measure of the rate of water vapor transmission through a pressure sensitive product usually measured in grams per square meter per 24 hours.

Necking Down\*

When a tape's width is reduced (usually due to stretching or elongating the tape) resembling the neck of a beverage bottle.

Nomograph\*

A graphical means of representing properties of a material or system as a function of multiple parameters. A nomograph is used to describe the storage modulus and loss factor of viscoelastic damping materials as a function of temperature and frequency.

NPE\*

An NPE number is used to designate an experimental product. NPE products are often provided to customers for evaluation purposes only, and may or may not be commercialized.

Off-Core

A roll of tape in which the layers are in correct alignment, but the tape is displaced sideways on the core.

Off-Site Blasting\*

Process where names and dates are blasted onto monument surface after installation of monument.

Oozing

A "squeezing out" of the adhesive from under the backing. Occurrence when a tape is in a roll form causes the edges of the roll to become tacky.

Opacity

The ability of a tape to prevent the transmission of light.

Opaque\*

Cannot be seen through.

Out-Gassing

The release of volatile components under heat or vacuum.

Overspray\*

Light coating of paint, usually from excess airborne paint, that can drift onto adjacent surfaces that should not be coated.

Overlap Joint (Overlap Splice, Lap Splice, Lap Join or Lap Joint)\*

A type of adhesive joint, used normally on roll goods, in which the surface of one edge of the product extends over the edge of the product to be spliced normally at least one half inch, and is spliced with a single coated tape, adhesive or double coated tape.

Paint Flaking\*

The breaking of paint (that has been dried on the back of a tape) into small pieces such that when the tape is flexed, as during removal from a job, it falls off the back of the tape.

Pattern Coated

A term that refers to the width and spacing arrangement of strips of adhesive laid down parallel to machine direction and across the width of pressure sensitive stock during its production.

PCB\*

Printed Circuit Board

PE\*

The abbreviation for polyethylene. Usually extruded in a single (mono) layer.

Peel Adhesion

The force per unit width required to break the bond between a pressure sensitive adhesive tape and the surface to which it has been applied when the tape is peeled back at a controlled angle at a standard rate and condition.

Picking and Weeding\*

The process of removing the cut stencil pieces prior to sandblasting.

Plastic Sheeting\*

Large area plastic film used to cover or protect a surface or area from airborne particles.

Plasticization

The softening of an adhesive when exposed to migrating plasticizers or oils.

Plotters/Cutters\*

Computerized machines that cut lettering and designs into sandblast stencil are called plotters. There are IBM compatible plotters that require a "T" punch, Gerber plotters that require a "S" punch and friction plotters that require no punch.

PP\*

Abbreviation for polypropylene. Usually manufactured as a single (mono) layer via a casting process.

Glossary (cont.)

PPAP\*

Production Part Approval Process — an automotive market requirement that can increase a product's chances of meeting specifications.

Pressure Sensitive

A term commonly used to designate a distinct category of adhesive tapes and adhesives which in dry form (solvent/water free) are aggressively and permanently tacky at room temperature and that firmly adhere to a variety of dissimilar surfaces upon mere contact without the need of more than finger or hand pressure. These products require no activation by water, solvent, or heat in order to exert a strong adhesive holding force toward such materials as paper, plastic, glass, wood, cement, and metal. They have sufficient cohesive holding power and elastic nature so that, despite their aggressive tackiness, they can be handled with the fingers and removed from smooth surfaces without leaving a residue.

Priming

Application of a thin layer of adhesive-like material to a backing that serves as a bonding agent between the backing and the final adhesive coat.

PTFE\*

Abbreviation for polytetrafluoroethylene.

Quick Stick (Finger Tack, Initial Adhesion, Wet Grab)

See TACK.

Release Force

The measure of the force required to separate a unit width of pressure sensitive tape from a release coated surface at a controlled angle and speed.

Release Liner

A web of sheet material used as a protective liner, which covers the adhesive side of the tape. It is removed prior to application. Most frequently found on double-sided tapes and label stocks.

Repulpable\*

Paper tapes that can be recycled to the process without contamination of the broke pulp.

Resonant Vibration\*

A condition of oscillation caused when a small amplitude of periodic input has a frequency approaching one of the natural frequencies of the driven system. Resonant frequencies are determined by the physical parameters of the object or system. i.e. Marching troops "break step" when marching over a bridge such as to not to vibrate the bridge in resonance in the event the natural frequency of the bridge structure matches the frequency of the troops marching in step.

Rewinding

The operation of winding the webstock from the reel onto a core to produce rolls of the desired width, diameter and tension.

Rope Stock

A smooth paper made wholly or largely of hemp fiber for tensile strength.

Rubber Adhesive\*

A pressure sensitive, viscoelastic blend of polymeric rubber-based materials and tackifying resin. The rubber materials may be natural or synthetic. Rubber adhesives are a very broad class of materials and come in many types to achieve different properties.

Sandblast Filler\*

Adhesive that is brushed on monuments to assure firm adhesion of stencil.

Saturation (Impregnation)

Adding materials (saturant) to the backing for improvement of physical properties and resistance to various deleterious environments.

Self-Seal

An adhesive joint that is accomplished by coating both adherent surfaces, and bringing them under pressure; an elastomeric adhesive (cohesive) used on envelope flaps, box closures, etc, whereby the adhesive film will bond only to itself.

Shear Adhesion

The time required, under specified test conditions (surface area, weight load), to slide a standard area of pressure sensitive tape from a standard flat surface in a direction parallel to the surface.

Shear Strength After Solvent Immersion

The force required to separate a bond by shear force after immersion in a typical varnish solvent under designated conditions.

Sheet Resistivity\*

A measure of electrical resistivity obtained by measuring the voltage drop across two opposite sides of a square planer area at known current. The geometry of this measurement allow a square of any size to be used. Sheet resistivity is commonly used to measure the electrical characteristics of thin films. Units are ohms or more commonly ohms/square.

Silicone Adhesive\*

A pressure sensitive, viscoelastic blend of polymeric silicone-based materials and a silicone tackifying resin. Silicone adhesives are typically higher temperature performing pressure sensitive adhesive materials.

Single Faced (Coated)

A tape to which a pressure sensitive adhesive is applied to only one side of the backing.

Single Process\*

A sandblasting procedure in which sunk lines are sandblasted first and frosting is done last.

Sinking/Blasting\*

Blowing sandblast abrasive at areas where the rubber has been removed to create recessed lines one half inch deep.

Skived\*

A manufacturing process where material is shaved (like shaving off a layer of soap). Usually better for wrapping than extruded material.

Slip Sheet or Interliner

See RELEASE LINER.

Slivering

When the tape tears or breaks into small pieces, either on unwind or on removal from a surface.

Slot Feed\*

A punched "S" pattern using several round holes and a long, oblong slot hole.

Solvent/Chemical Resistant\*

Ability to resist common solvents or chemicals.

Glossary (cont.)

Solvent Trap\*

When a freshly painted surface is painted or taped over too quickly not allowing the solvent to evaporate. Can result in a haze, surface takes on the shape of what ever touches it, adhesive transfer due to solvents attacking the adhesive on the tape.

Splice\*

A joint made in a continuous sheet of paper with a glue or adhesive-type tape when there is a break in the web caused by winding or rewinding into a roll.

Static Charge\*

Static (or sometimes electro-static) charge is electrical charge that has typically been generated by the tribocharging that results from the separation of two dissimilar materials. It may also occur as the result of previous direct contact with a power source. Usually measured in volts.

Static Dissipative\*

A class of materials with sufficient electrical conductivity to dissipate or bleed static charge prior to an ESD "event" or rapid discharge of energy. Static dissipative materials have electrical resistivities in-between semiconductors and insulators, typically between 1E09 ohms/sq and 1E12 ohms/sq.

Stencil Press\*

A machine that presses and cuts plastic letters into rubber stencil.

Subsequent Adhesion

The force required to remove a unit width of pressure sensitive tape from a standard panel after it has been in contact with a release liner for a given period of time. This must be compared with the adhesion of the same tape that has not been in contact.

Sunk Lines\*

Individual lines about 1/16" wide or larger that create lettering and designs.

Sunlight Exposure — up to 7 days\*

When exposure to direct sunlight is expected, even on a transparent surface like glass.

Surface Energy (Surface Wetting Ability)

The measure of surface tension in dynes. The lower the surface energy of a substrate, the more difficult it becomes for an adhesive or coating to wet out that surface.

Surface Treating

Any method of treating a polyolefin so as to alter the surface and render it receptive to inks, paints, lacquers and adhesives such as chemical, flame and electronic oxidation.

Tack

The property of a pressure sensitive adhesive that allows it to adhere to a surface under very slight pressure. It is determined by the ability of the adhesive to wet quickly the surface it contacts.

Tape Lifting\*

When a tape prematurely releases from a surface after it has been firmly rubbed down to the surface.

Tear Resistance

The force required to propagate a tear in a tape in a given direction after the tear has been initiated.

Telescoping

A sideways sliding of the tape layers, one over another, such that the roll looks like a funnel or a telescope, usually occurring over a period of time.

Tensile Strength

The force required to break a unit width of tape by controlled pulling on opposite ends of the piece.

Thermal Conductivity\*

The rate of thermal energy transfer through a material by conduction.

Thickness (Caliper, Gauge)

The perpendicular distance from one surface of either a tape, backing or adhesive to the other, usually expressed in mils, thousandths of an inch or millimeters. This is usually measured under controlled slight pressure with a special gauge.

Tractor Feed\*

A punched "T" pattern using round holes.

Transfer Tape

A pressure sensitive adhesive unsupported applied to a two-side release coated liner.

TSCA\*

Toxic Substances Control Act

UHMW-PE Film\*

Ultra High Molecular Weight.

UL Listed\*

Underwriter Laboratory certification of products for product compliance for public safety (i.e. electronics, heating and ventilation, etc.) as well as businesses for compliance to industry standards (i.e. ISO).

UL 181\*

UL181A, UL181B, and UL181B-FX are different in that those must be UL Listed and that information must be printed on the tape surface. HVAC/R contractors often deal with UL 181A (maybe foils) and UL 181 F-FX.

UL 723\*

UL 723 deals mainly with flammability.

Unwind or Unwind Adhesion

The force required to remove tape from a roll under prescribed conditions.

Use on Masking Machines\*

When tape and a gross masking material are automatically dispensed on a piece of equipment and applied to each other for large area protection from paint overspray.

Varnish\*

A liquid preparation that when spread and allowed to dry on a surface forms a hard lustrous typically transparent coating.

Water Penetration Rate (WPR)

The weight of water transmitted through a controlled area of tape under a specified time and conditions.

Water Vapor Transmission (WVTR)

The weight of water vapor allowed through a controlled area of tape within a specified time period and under controlled conditions.

Numerical Index

Product	Page	Product	Page	Product	Page
06780	50	399FR	30	519YS	17 910
06781	50	401+	6,9	519YT	17 913
06864	50	405	44	520	17 914
06865	50	415/9420	46	520ETL	17 1001MS
06866	50	420	33	520S	17 1002MS
2	17	421	33	520T	17 1004
3	17	425	32	528	17 1004MS
101+	6,8	427	32	616	29 1430
200	9	431	32	685	29 1532
201+	6,8	433	32	695	29 1532S
202	9	433L	32	764	41 1532T
203	9	434	35	766	41 1900
213	9	435	35	767	41 2214
214	9	436	35	838	29 2307
215	7	437	32	850	37 2308
218	7	438	32	853	37 2364
225	9	438L	32	855	29 2380
226	9	439	32	860	19,22 2393
231/231A	9	465	46	862	19 2460
232	9	469	46	862	23 2510
234	9	470	41	863	23 2515
235	29	471	41	864	23 2517
250	12	471+	41	865	23 2519
253	29	472	41	875	37 2525
256	12	477	41	876	37 2526
265	7	480	41	880	19,21 2542
301+	6,9	481	41	880MSR	21 2552
335	37	483	41	890MSR	19,21 2693
336	37	484	41	890RCT	21 2929
346	29	500	17	893	19,21 2979
361	30	501+	6,9	894	21 3051
363	34	507	17	896	21 3294
363L	34	510	17	897	19,21 3302
365	30	519Y	17	898	19,21 3311
390	11	519YP	17	898MSR	21 3313
393	11	519YP2	17	899	21 3320
394	29	519YP2S	17	900	44 3325
396	37	519YP2T	17	900B	44 3334
398FR	30	519YPS	17	901	45 3338
398FRP	30	519YPT	17	906	45 3340

Numerical Index (cont.)

Product	Page	Product	Page	Product	Page	Product
3350	34	5498	39	8915	21	DT8
3361	33	5501A	9	8916V	21	DT11
3363	33	5700	41	8919MSR	21	DT17
3367	33	5702	41	8934	19, 21	GM110
3369	33	5850	14	8959	21	GM400
3380	33, 34	5903	11	8979	11	GM530
3381	34	5959	11	8979N	11	GM531
3382	34	6359	46	8988	21	GM630
3615	30	6910	11	8991/8991L	37	GM631
3650	30	6969	11	8992/8992L	37	GM640
3900	11	7070UV	29	8997/8997L	29	GM641
3903	11	7071UV	29	8998/8998L	29	GM731
3939	11	7260M	12	9038	46	GT1
3979	11	7300	12	9069	45	GT2
4014	35	8067	29	9069	46	GT3
4380	33	8087	29	9086	46	H330
4712	41	8387	46	9088	46	H331
4731	41	8401	37	9103	45	M1
4735	7	8402	37	9324	39	M73
4737S	7	8403/8403L	37	9325	39	M75
4737T	7	8411	37	9343	29	M77
4737TL	7	8412	37	9498/9464	46	R3127
4811	41	8421	37	9499/9497	46	R3177
5151/5151L/5151PL	39	8422	37	9576	46	R3187
5153/5153L	39	8429	37	9737/9737R	46	R3227
5180	39	8437	37	9738/9738R	46	R3257
5181	39	8555	29	9740	46	R3287
5185	39	8624	25	9741/9741R	46	R3345
5401	29	8631	25	9960	45	R3375
5421	39	8636	25	9969	45	R3379
5423	39	8651	23	9977	45	R3389B
5425	39	8777	29	9990N	46	R5348
5430	39	8884	24	33315	33	R7359
5451	39	8886	24	33316	33	R7369
5453	39	8898	22	33801	32	R9993
5461	29	8899HP	19, 22	33803	33	RTA500
5480	39	8901	37	33806	32	S170
5481	39	8902	37	34201	33	S171
5490	39	8905	37	34383	33
5491	39	8911	37	97065	33

Product Name Index

Application Specific Tapes

235....29

616....29

3051....29

8997/8997L....29

8998/8998L....29

685....29

695....29

394....29

3294....29

855....29

8555....29

8067....29

8087....29

7070UV....29

7071UV....29

253....29

346....29

838....29

5401....29

5461....29

8777....29

9343....29

Bag Conveying Tapes

8631....25

8636....25

Clean-View Pads

5850....14

Duct Tapes and Cloth Tapes

8979....11

8979N....11

5959....11

5903....11

DT11....11

2979....11

3900....11

3939....11

3979....11

6969....11

DT8 11

3903....11

2929....11

1900....11

DT17....11

390....11

393....11

6910....11

GT1 11

GT2 11

GT3 11

Fine Line Masking Tapes

215....7

218....7

265....7

2460....7

4735....7

4737T....7

4737S....7

4737TL....7

Flatback Tapes

250....12

256....12

2515....12

2517....12

2519....12

2525....12

2526....12

Glass Cloth Tapes

361....30

3615....30

365....30

3650....30

398FR....30

398FRP....30

399FR....30

Gripping Materials

GM110 42

GM530 42

GM630 42

GM640 42

GM400 42

GM531 42

GM631 42

GM641 42

GM731 42

High Strength Filament Tapes

898....19,21

893....19,21

897....19,21

8934....19,21

899....21

894....21

896....21

890MSR....19, 21

898MSR....21

8919MSR....21

880MSR....21

890RCT 21

8988....21

880....19,21

8916V....21

8915....21

8959....21

Industrial Masking Tapes

101+....6

201+....6

301+....6

401+....6

501+....6,9

Lane Marking Applicators

M1....49

M77....49

Large Area Masking Dispensers

06781....50

06780....50

06864....50

06865....50

06866....50

Masking Films

7260M....12

7300....12

Masking Tapes — Crepe Paper

101+....8

201+....8

301+....9

401+....9

501+....9

200....9

202....9

203....9

213....9

214....9

225....9

226....9

231/231A 9

232....9

234....9

2214....9

2307....9

2308....9

2364....9

2380....9

2393....9

2510....9

2693....9

5501A 9

Metal Foil Tapes

425....32

427....32

431....32

433....32

433L....32

437....32

438....32

438L....32

439....32

3338....32

33801....32

33806....32

3311....33

3369....33

33803....33

97065....33

3380....33

4380....33

34383....33

3363....33

3367....33

420....33

421....33

34201....33

3313....33

3325....33

33315....33

33316....33

3361....33

363....34

363L....34

1430....34

3302....34

3334....34

3320....34

3340....34

3350....34

3380....34

3381....34

3382....34

Multi-Layer Protective Film

1004....15

1004MS....15

1002MS....15

1001MS....15

Product Name Index (cont.)

Non-Repulpable Splicing Tapes

465....46

9498/9464 46

9499/9497 46

415/9420 46

469....46

9086....46

9088....46

9576....46

9737/9737R 46

9738/9738R 46

9740....46

9741/9741R 46

Polyester Tapes

396....37

850....37

853....37

8411....37

8412....37

335....37

336....37

875....37

876....37

8401....37

8402....37

8403/8403L....37

8901....37

8902....37

8905....37

8911....37

8991/8991L....37

8992/8992L....37

8421....37

8422....37

8429....37

850....37

8437....37

Polyethylene Tapes

480....41

483....41

Preservation Tapes

481....41

4811....41

PTFE Tapes

5151/5151L/5151PL....39

5153/5153L....39

5451....39

5453....39

5180....39

5181....39

5185....39

5480....39

5481....39

5490....39

5491....39

5498....39

Reinforced Strapping Tapes

865....23

864....23

8651....23

863....23

862....19,23

Repulpable Splicing Tapes for the Paper Mills

405....44

900....44

900B 44

901....45

910....45

914....45

9103....45

9960....45

9969....45

906....45

9069....45

9977....45

R3227 45

R3257 45

R3287 45

R3127 45

R3177 45

R3187 45

R3345 45

R3375 45

R3379 45

R3389B 45

Sandblast Stencil Products and Impact Stripping Tapes

519Y....17

519YS....17

519YT....17

519YP2....17

519YP2S....17

519YP2T....17

519YP....17

519YPS....17

519YPT....17

507....17

510....17

520....17

520S....17

520T....17

520ETL....17

1532....17

1532S....17

1532T....17

500....17

528....17

2....17

3....17

Sound Damping Foils

434....35

435....35

436....35

2542....35

2552....35

4014....35

Splicing Tapes for the Printing Industry

R3127 46

R3187 46

R3177 46

913....46

9038....46

9069....46

R3227 46

R5348 46

6359....46

R7359 46

R7369 46

8387....46

9990N 46

Stretchable Tapes

8886....24

8884....24

Tear Strip Tapes

8624....25

Tape Dispensers

H330 49

H331 49

M73....49

M75....49

RTA500....49

S170....49

S171....49

Tensilized Polypropylene Tapes

8899HP 19,22

8898....22

860....19,21

UHMW-PE Tapes

5421....39

5423....39

5425....39

5430....39

9324....39

9325....39

Vinyl Tapes

471....41

4712....41

471+....41

472....41

477....41

764....41

5700....41

5702....41

766....41

767....41

470....41

484....41

4731....41

Solid orange gradient background with no text, symbols, or discernible features

Product Use: Many factors beyond 3M's control and uniquely within user's knowledge and control can affect the use and performance of a 3M product in a particular application. Given the variety of factors that can affect the use and performance of a 3M product, user is solely responsible for evaluating the 3M product and determining whether it is fit for a particular purpose and suitable for user's method of application.

Warranty, Limited Remedy and Disclaimer: Unless an additional warranty is specifically stated on the applicable 3M product packaging or product literature, 3M warrants that each 3M product meets the applicable 3M product specification at the time 3M ships the product. 3M MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOM OR USAGE OF TRADE. If the 3M product does not conform to this warranty, then the sole and exclusive remedy is, at 3M's option, replacement of the 3M product or refund of the purchase price.

Limitation of Liability: Except where prohibited by law, 3M will not be liable for any loss or damage arising from the 3M product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.

3M, Scotchgard and Tartan are trademarks of 3M Company. Scotch is a registered trademark of 3M Company.

3M Industrial Adhesives and Tapes Division

3M Center, Building 225-3S-06

St. Paul, MN 55144-100

Phone [phone]

Fax [phone]

Web 3M.com/IATD

Please recycle. Printed in USA. © 3M 2016. All rights reserved.

70-0709-4473-4 Rev Nov2016
