FM 412 - Guitar amplifier FENDER - Free user manual and instructions

Product Type	Guitar Amplifier Combo
Model	FM 412
Brand	Fender
Speaker Configuration	1x12"
Power Output	40 Watts
Amplifier Type	Solid-State
Channels	2 (Clean and Drive)
Controls	Volume, Gain, Treble, Middle, Bass, Reverb
Inputs	1/4" Instrument Input
Outputs	Headphone Output, Line Out
Reverb	Built-in Spring Reverb
Dimensions (W x H x D)	19.5" x 18" x 10.5" (495 x 457 x 267 mm)
Weight	26 lbs (11.8 kg)
Power Supply	AC 120V 60Hz (US) / 230V 50Hz (EU)
Cabinet Material	Plywood with Black Tolex Covering
Grille Cloth	Silver Grille Cloth
Cleaning	Wipe with dry cloth; avoid solvents
Safety Features	Thermal protection, grounded plug
Spare Parts Availability	Authorized Fender service centers; user-replaceable fuse
Repairability	Serviceable by qualified technician; schematic available

Frequently Asked Questions - FM 412 FENDER

How do I clean my Fender FM 412 amplifier?

Use a dry, soft cloth to wipe the exterior. Avoid using any solvents or abrasive cleaners. For the grille cloth, gently vacuum with a brush attachment.

What is the power output of the FM 412?

The FM 412 delivers 40 watts of solid-state power, ideal for practice and small gigs.

Can I use headphones with the FM 412?

Yes, the FM 412 has a headphone output for silent practice. The internal speaker is muted when headphones are connected.

Does the FM 412 have an effects loop?

No, the FM 412 does not include an effects loop. Effects should be placed in front of the amplifier via the instrument input.

How do I change the fuse in the FM 412?

Unplug the amplifier. Locate the fuse holder on the back panel. Use a screwdriver to open it and replace with the same type and rating (e.g., 1A 250V). Do not use a higher-rated fuse.

What type of speaker is in the FM 412?

It features a 12-inch Fender special design speaker, voiced for clean and overdriven tones.

Does the FM 412 have reverb?

Yes, it has a built-in spring reverb with a dedicated control knob on the front panel.

Can I connect an external speaker cabinet?

The FM 412 does not have an external speaker output. It is a self-contained combo amplifier.

What are the dimensions of the FM 412?

Approximately 19.5 x 18 x 10.5 inches (495 x 457 x 267 mm).

Is the FM 412 suitable for bass guitar?

No, the FM 412 is designed specifically for electric guitar. Using a bass could damage the speaker.

USER MANUAL FM 412 FENDER

Your new FM 412 loudspeaker enclosure features four 12" (30.5cm) speakers and is capable of handling 100 Watts. The FM 412 speaker was designed to complement the Fender® FM 100H amplifier, but it can be used with any 4-ohm, 100-watt instrument amplifier with a standard 1/4" speaker output jack. Read these instructions and your amplifier manual before making connections.

Connecting the Fender® FM 412 Loudspeaker

Connect the FM 412 to the speaker output jack on your FM 100H amplifier with its included speaker cable or any unshielded, quality speaker cable.

When using the FM 412 with other amplifiers, check the amplifier output specifications for compatibility. Always make certain that the amplifier has a 4-ohm output impedance capability and the power output does not exceed 100 watts.

SPECIFICATIONS

PART NUMBER 2317800000

DRIVERS

Four, 12" (30.5 cm), Special Design

peakers

CABINET 18 mm plywood

SENSITIVITY 99 dB, 1 Watt - 1 Meter

POWER HANDLING 100 Watts

IMPEDANCE 4Ω

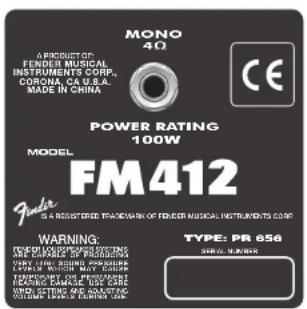

CONNECTIONS 1/4" Input Jack

DIMENSIONS

Height: 30.0 in (76.2 cm)

Width: 29.5 in (74.9 cm)

Depth: 14.3 in (36.3 cm)

WEIGHT 82.0 lb (36.9 kg)

Product specifications are subject to change without notice.

A PRODUCT OF:

FENDER MUSICAL INSTRUMENTS CORPORATION

CORONA, CALIFORNIA USA

Fender ^® is a registered trademark of FMIC.

Other trademarks are property of their respective owners.

© 2005 FMIC. All rights reserved.
