BKK 3065 KM - Coffee maker BEKO - Free user manual and instructions

Product Type	Filter Coffee Maker
Brand	Beko
Model	BKK 3065 KM
Colour	Black
Capacity	1.25 L (approx. 10 cups)
Power	1000 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	250 x 200 x 350 mm
Weight	1.5 kg
Water Tank	Removable, 1.25 L capacity
Filter Type	Permanent mesh filter or paper filter (size #4)
Programmable Timer	Yes, up to 24 hours
Keep Warm Function	Yes, automatic after brewing
Anti-Drip System	Yes, removable carafe stops drip
Auto Shut-Off	Yes, after 2 hours
Water Level Indicator	Yes, on water tank
Descaling Indicator	Yes, light alerts when needed
Maintenance	Descaling every 3 months recommended
Safety Features	Overheat protection, boil-dry protection
Spare Parts	Available (carafe, filter basket, etc.)

Frequently Asked Questions - BKK 3065 KM BEKO

How do I descale the Beko BKK 3065 KM coffee maker?

To descale, fill the water tank with a mixture of 1 part white vinegar and 2 parts water (or use a commercial descaling solution). Run a brewing cycle without coffee grounds. Repeat with fresh water until vinegar smell disappears. Descaling every 3 months prevents limescale buildup.

Why is my coffee weak or not hot enough?

Weak coffee may be due to using too coarse a grind or insufficient coffee grounds. Use a medium grind and 1-2 tablespoons per cup. If coffee is not hot, ensure the keep warm function is activated and the carafe is properly placed. Also, the heating element may need descaling.

How do I set the programmable timer?

Press the Timer button. Use the hour and minute buttons to set the desired brew time. Press the Timer button again to confirm. The indicator light will show the timer is set. The coffee maker will automatically start at the programmed time.

Can I use paper filters with this coffee maker?

Yes, the BKK 3065 KM is compatible with size #4 paper filters. It also includes a permanent mesh filter if you prefer to use that instead.

What does the descaling indicator mean?

The descaling indicator light turns on after a certain number of cycles to remind you to descale. When lit, descale the machine as soon as possible to maintain performance and avoid damage.

How do I clean the carafe and filter basket?

The carafe and filter basket are dishwasher safe (top rack recommended). Alternatively, wash with warm soapy water. Do not use abrasive cleaners. Rinse thoroughly before next use.

Why does the coffee maker stop brewing before finishing?

This may occur if the water tank is not properly seated or if the anti-drip valve is stuck. Ensure the carafe is placed correctly. Also, check for limescale blockage; descaling may resolve the issue.

What is the capacity of the water tank?

The water tank holds up to 1.25 liters, which brews approximately 10 cups of coffee (125 ml each). Do not exceed the MAX fill line.

How long does the keep warm function last?

The keep warm function automatically keeps the coffee hot for up to 2 hours, after which the machine shuts off. You can manually turn off the keep warm function earlier.

Where can I find spare parts for this model?

Spare parts such as carafe, filter basket, and water tank are available through Beko authorized service centers or online retailers. Check the Beko website or contact customer support for part numbers.

USER MANUAL BKK 3065 KM BEKO

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

This product has been produced in environmentally friendly, modern facilities

1 Important instructions for safety and environment 4-10

1.1 General safety 4 1.2 Compliance with WEEE regulation and disposal of the waste product ..... 10 1.3 Package information 10

2 Your coffee maker 11-12

2.1 Overview 11 2.1.1 Controls and parts ..... 12 2.1.2 Technical data 12

3 Preparation 13-14

3.1 Initial use 13 3.2 Operation 13

5 Cleaning and care 15-16

5.1 Cleaning 15 5.2 Descaling 15 5.3 Storage 16

01M-8934701200-2215-01

1

Important instructions for safety and environment

1.1 General safety

• Do not use the appliance outdoors or in the bathroom.
• Operate the appliance with its original base. Do not use the base for any other purpose.
• Do not use the appliance with damp or wet hands.

Before using the appliance for the first time, clean all parts which come into contact with water carefully. Please see details in the “Cleaning and Care” section.

Prevent damage to the power cord by not squeezing, bending or rubbing it on sharp edges. Keep the cord away from hot surfaces and open flames.

Never use the appliance in or near to combustible, inflammable places and materials.

Operate the appliance with delivered parts only.

Operate the appliance with its original base. Do not use the base for any other purpose.

Always use the appliance on a stable, flat, clean and dry surface.

1

Important instructions for safety and environment

• Hold the appliance by the handle only. There is a danger of burns. Avoid contact with hot surfaces as well as with the emitting steam.
• Position the lid so that the hot steam is directed away from you.
• Do not open the lid while the water is boiling. Be careful while you are opening the lid after the water has boiled. The steam which comes out of the kettle is very hot.
• Make sure that when using the kettle, the lid always remains closed properly.
• Never fill the kettle above the maximum level indicator. If it is overfilled, then boiling water may splash out.
• Do not fill the kettle below the minimum level indicator.
• Never operate the appliance without any water inside it.
• Do not fill the kettle when it is fitted on its base.

Important instructions for safety and environment

- Our BEKO Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by the dealer, a service centre or a similarly qualified and authorized service person to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.

• Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.
• Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.
• Do not use the appliance with damp or wet hands.
• For additional protection, this device should be connected to a household faulty current protection switch with no more than 30 mA.

Important instructions for safety and environment

• Do not immerse the appliance, base, power cord or power plug in water or in other liquids and do not clean parts in dishwasher.
• Disconnect the power plug after using the appliance, before cleaning the appliance, before leaving the room or if a fault occurs. Do not disconnect the plug by pulling on the cord.
• Use a grounded outlet.
• Prevent damage to the power cord by not squeezing, bending or rubbing it on sharp edges. Keep the cord away from hot surfaces and open flames.
• Do not use an extension cord with the appliance.
• Never use the appliance if the power cord or the appliance is damaged.
• Dry the appliance before connecting it to mains supply.
• Do not use the appliance for anything other than its intended use. The kettle is designed for boiling water. Do not use the kettle to heat any other liquids or tinned, jarred, bottled food.

Important instructions for safety and environment

- This appliance is intended to be used in household only. It is not designed for professional use in:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels, and other residential type environments

-bed and breakfast type environments.

- Do not leave the appliance unattended while it is in use. Extreme caution is advised when the appliance is being used near children and people with limited physical, sensory, or mental capabilities.

- Keep all packaging materials away from children.

• Always keep the appliance and its cord out of reach of children under 8 years of age.

1

Important instructions for safety and environment

- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

1

Important instructions for safety and environment

1.2 Compliance with WEEE regulation and disposal of the waste product

This product does not contain harmful and forbidden materials described in the “Directive on the Restriction of the Use of Certain Hazardous Substances in Waste Electrical and Electronic Equipment” (WEEE) issued by the T.R. Ministry of Environment and Urbanization. Complies with the WEEE Directive.

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose of the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point. Help protect the environment and natural resources by recycling used products. For children's safety, cut the power cable and break the locking mechanism of the loading door so that it will be non-functional before disposing of the product.

1.3 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with domestic or other wastes. Take them to the packaging collection points designated by the local authorities.

2 Your coffee maker

2.1 Overview

All declared values on the product and on the printed leaflets are picked up after laboratory measurements performed according to related standards. These values may differ upon usage and ambient conditions.

2 Your coffee maker

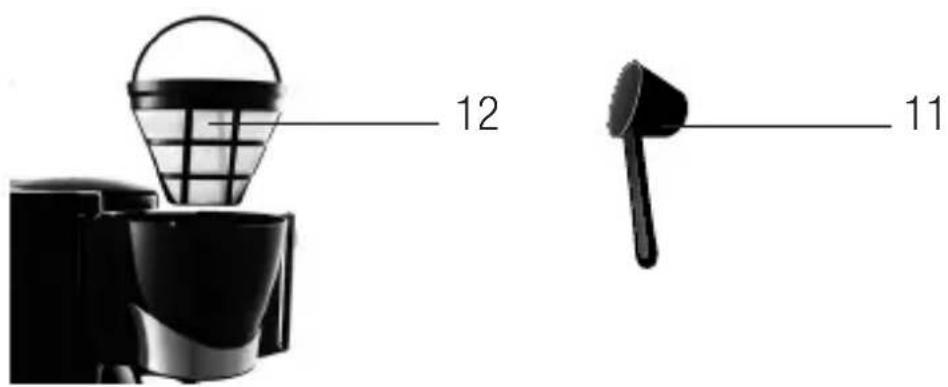

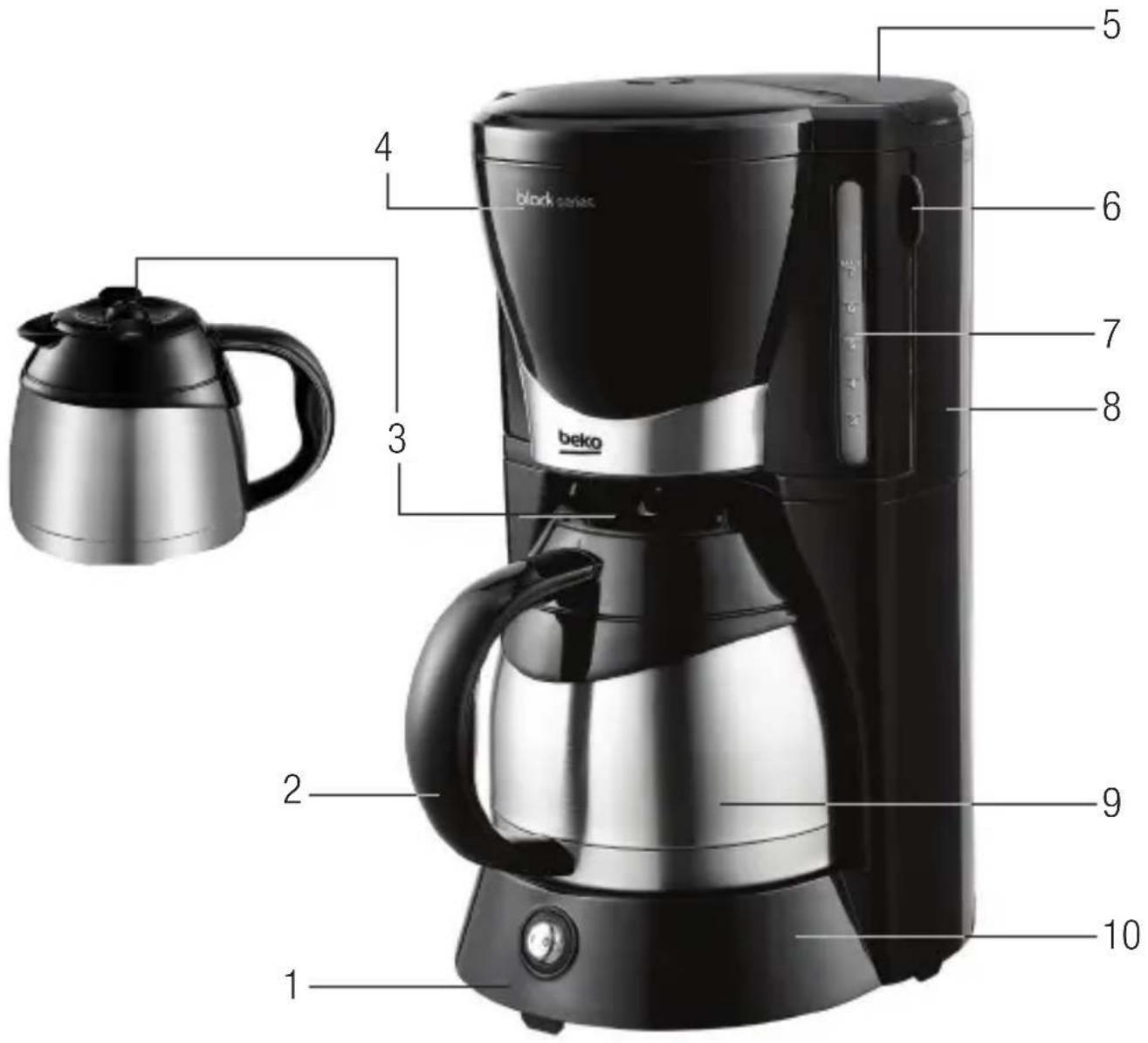

2.1.1 Controls and parts

1. On / Off switch
2. Thermal jug handle
3. Screw-on lid
4. Swivel filter holder
5. Water tank cover
6. Filter holder handle
7. Water level display with MAX marking
8. Water tank
9. Thermal jug
10. Support for thermal jug
11. Coffee measuring spoon
12. Filter

2.1.2 Technical data

Power supply: 220-240V~, 50Hz

Power: 840-1000W

Max. water volume: 0.9 L

This product conforms to the European directives 2004/108/EC, 2006/95/EC, 2009/125/EC and 2011/65/EU.

Technical and design modifications reserved.

3 Preparation

3.1 Initial use

Before using the appliance for the first time, clean all parts that come into contact with water carefully (see 4.1).

3.2 Operation

1. Open the water tank cover (5) and fill the water tank (8) with at least 3 cups of water, up to the MAX marking on the water level display (7).

Use only clean, cold, and fresh drinking water.

1. Close water tank cover (5).
2. Open swivel filter holder (4) by swinging the filter holder handle (6) out to the left.
3. Fill the desired amount of ground coffee up to the MAX marking of the permanent filter (7). To do this, you may use the supplied coffee measuring spoon (11).

As an alternative to the permanent filter, a suitable paper filter may also be used, which can be inserted right into the swivel filter holder (4).

1. Close the screw-on lid (3) of the thermal jug (9). The arrow of the screw-on lid (3) must be across from the arrow marking for “closed” on the thermal jug handle (2).
2. Place the thermal jug (9) on the support for thermal jug (10).
3. Connect the plug into the wall socket.
4. To turn the appliance on, press the On / Off switch (1) to the "I" position, in order to turn it on.
5. On / Off switch (1) indicator light illuminates and brewing process begins.

The brewing process can be stopped at any time by pressing On /Off switch (1) to position “0”.

3 Preparation

- The appliance is equipped with a drip-stop (13) located underneath the swivel filter holder (12) and enables you to briefly remove the thermal jug (9) to pour coffee before the water has finished running through the machine.

WARNING: However make sure to place the thermal jug (9) on the support for thermal jug (10) within a very short time (max. 30 seconds). Otherwise the coffee liquid from the filter could overflow.

1. Remove thermal jug (9) from the support for thermal jug (10), as soon as the brewing process has finished and thermal jug (9) is filled.
2. To pour coffee, turn the screw-on lid (3) counterclockwise until the arrow on the screw-on lid (3) is aligned with the arrow marking for "open".

You can keep coffee hot in the thermal jug (9) for up to approximately 1 hour.

1. To turn the appliance off, press the On/Off switch (1) to the "O" position.
2. The On/Off switch (1) indicator light turns off, and the appliance turns off.
3. Disconnect the appliance from the wall socket.

If you want to continue the brewing process, repeat the procedure from steps 1 to 12. Let the appliance cool down between each brewing process.

4 Cleaning and care

4.1 Cleaning

1. Turn the appliance off and disconnect it from the wall socket.
2. Let the appliance cool down completely.
3. Open the swivel filter holder (4), remove the permanent filter (12), and dispose of the used coffee grounds.
4. Use a damp soft cloth and a little mild cleanser to clean the exterior of the appliance.

WARNING: Never use petrol, solvents or abrasive cleaners, metal objects or hard brushes to clean the appliance.

WARNING: Never put the appliance or power cord in water or any other liquid.

1. The permanent filter (12) and thermal jug (9) can be cleaned in dishwasher or under running water.

Before using the appliance after cleaning, dry all parts carefully using a soft towel.

4.2 Descaling

Descaling extends the life of your appliance. Descale your coffee machine at least 4 times per year. Period depends on the water hardness of your area. The harder the water is, the more often the appliance has to be descaled.

1. Purchase a suitable descaling solution or citric acid from a specialty store. Please ask for device.
2. Prior to beginning the descaling process read the manufacturer's package insert for the descaling solution thoroughly. Should the manufacturer's instructions differ from the ones listed below, then follow the manufacturer's instructions.

4 Cleaning and care

You can also use white vinegar and lemon acid instead of a commercially available descaler.

1. Fill the water tank to the MAX marking and add the descaling solution. Mixing ratio: 4 parts water to 1 part descaling solution.
2. Turn on the appliance and let about one large coffee cup full run through the machine.
3. Turn the coffee machine off.
4. Let the mixture soak for about 15 minutes.
5. Repeat steps 4 - 6.
6. Now turn the appliance on and let the entire mixture run through.
7. Fill the water tank with cold, fresh drinking water and let all the water run through.
8. Repeat step 9 four times.
9. Now you may brew coffee again.

4.3 Storage

- If you do not plan to use the appliance for a long period of time, please store it carefully.

• Make sure the appliance is unplugged and completely dry.
• Store the appliance in a cool, dry place.
• Make sure the appliance is kept out of the reach of children.
