Product Type	Webcam
Brand	Prestigio
Model	PWC320S
Resolution	1920 x 1080 pixels (Full HD)
Frame Rate	30 fps
Built-in Microphone	Yes, single omnidirectional
Lens	Fixed focus, wide angle (approx. 70°)
Connectivity	USB 2.0
Cable Length	1.5 m (approx.)
Mounting	Clip-on for monitor or desktop stand
Power Source	USB-powered (5V DC)
Dimensions (W x H x D)	80 x 50 x 40 mm (approx.)
Weight	100 g (approx.)
Compatibility	Windows, macOS, Linux (UVC compliant)
Privacy Shutter	No
Field of View	70° (diagonal)
Special Features	Plug-and-play, auto light correction
Maintenance	Wipe lens with soft dry cloth; do not use harsh chemicals
Safety Precautions	Avoid excessive heat, moisture, and direct sunlight
Spare Parts & Reparability	No user-serviceable parts; contact support for repairs
Included Accessories	Webcam, user manual

Frequently Asked Questions - PWC320S PRESTIGIO

How do I set up the Prestigio PWC320S webcam?

Simply plug the webcam into a USB port on your computer. It is plug-and-play and will be automatically recognized. No additional drivers are needed for most operating systems.

Is the PWC320S compatible with Windows 10?

Yes, the PWC320S works with Windows 10, as well as older Windows versions, macOS, and Linux systems that support UVC (USB Video Class) devices.

What is the maximum video resolution?

The webcam supports Full HD (1920 x 1080) resolution at 30 frames per second.

Does the webcam have a built-in microphone?

Yes, it includes a built-in omnidirectional microphone for clear audio capture.

Can I use this webcam for video conferencing?

Absolutely. It is suitable for applications like Zoom, Skype, Microsoft Teams, and other video conferencing platforms.

How do I clean the lens?

Gently wipe the lens with a soft, lint-free cloth. Avoid using abrasive cleaners or liquids.

The webcam is not detected by my computer. What should I do?

First, try a different USB port. Ensure the cable is connected securely. If still not recognized, restart your computer. For advanced troubleshooting, check your system's device manager.

Can I mount the webcam on a tripod?

The built-in clip can be used to attach it to a monitor or laptop screen. The base does not have a standard tripod mount, but a universal clip adapter may be used.

What is the field of view?

The lens has a wide-angle view of approximately 70 degrees diagonal, suitable for capturing one or two people.

Is there a privacy shutter?

No, this model does not come with a built-in privacy shutter. You may consider a separate lens cover.

USER MANUAL PWC320S PRESTIGIO

1. Prestigio Webcam Main Unit

2. Utility CD

3. Quick Guide

4. Warranty Card

Getting Started

1. Turn on PC or notebook.
2. Insert USB connector to any of the USB slot on PC or notebook.
3. The device driver will be auto-installed by PC or notebook.

4. The device now is ready for use.

5. Click on My Computer → USB Video Device to start video streaming session.

6. Click on Take a new picture or press on Snap button on top of device to take a snapshot.

7. Click on Delete all pictures on camera to delete all snapshots.

NOTE:

To utilize all device functions, please follow instructions in next section to install included utility software.

Installing Utility Software

1. After connecting device to PC or notebook and inserting Utility CD, the installation window should pop up automatically.
2. Click on Next button to initiate installation process or Cancel button to exit.

NOTE:

Please click on Ok when prompted to install Unsigned Driver. This is a Windows system warning that indicates the specific driver program is not certified by Windows.

1. Utility software will be automatically installed. Click on Finish button to complete installation.

Using Utility Software

Three metallic cylindrical objects with conical ends, arranged vertically (no text or symbols visible)

Click on Start → All Programs → Prestigio Webcam → Amcap to start using utility software.

- File menu:

Click on Set Capture File to create file name and designate maximum video streaming size.

- Devices menu:

Click on device name to select video/audio input source.

- Options menu:

Click on Preview to display live streaming capture. Click on Audio Format to adjust sound quality.

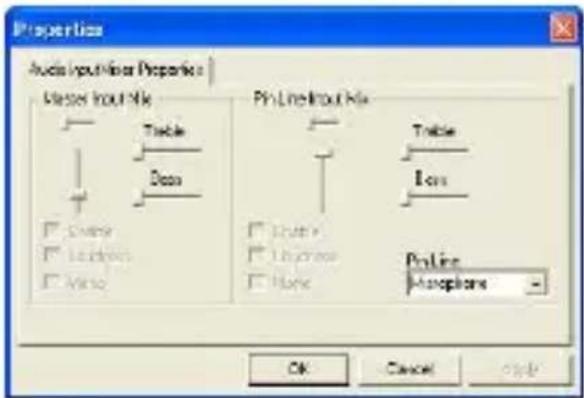

Click on Audio Capture Filter to master audio input properties and individual audio input properties.

Click on Video Capture Filter to adjust various advanced video features including Special Effect on images/photo frame, Face Tracking, Face Effect, Power Line Frequency Setting, Video Proc Amp and Camera Control.

Three identical metallic funnel-shaped objects arranged vertically (no text or symbols visible)

Click on Video Capture Pin to adjust video streaming parameters. Adjust Output Size to best resolution desired.

NOTE:

Best image resolution may not be the largest resolution.

- Capture menu:

Click on Start Capture/Stop

Capture to create a video clip.

Click on Set Frame Rate to set number of image frames per second. Click on Set Time Limit to designate video clip time limit.

Cautions

• Do not attempt to disassemble or alter any part of the device that is not described in this guide.
• Do not place the device in contact with water or any other liquids. The device is NOT designed to be liquid proof of any sort.
• In the event of liquid entry into interior of device, immediately disconnect the device from the computer. Continuing use of the device may result in fire or electrical shock. Please consult your product distributor or the closest support center.
• To avoid risk of electrical shock, do not connect or disconnect the device with wet hands.
• Do not place the device near a heat source or directly expose it to flame or heat.

Technical Specifications

Model Name PWC320X

Lens 5 Glass Lens

Interface USB 2.0 Interface

Input Voltage 5V

Focus Range 3.0cm \~ Infinity

Frame Rate 640 X 480: Up to 30 fps 1600 X 1200: Up to 15 fps

Color RGB24 (True Color 24bit)

Image Sensor 1/3" CMOS Sensor

Image Resolution 1280 X 1024, 1600 X 1200

Valid Pixels 100K / 350K / 480K / 1.3M / 2M Pixels

USB Cable Length 145cm (Including USB Jack)

OS Supported Windows 2000/ME/XP(32bit)/Vista/7

Weight 280g

Dimensions (mm) 80.0(L) X 72.0(W) X 300.0(H)

Technical Support and Warranty Information

Please refer to www.prestigio.com for technical support and included warranty card for warranty information.

Disclaimer

We make every effort to ensure that the information and procedures in this user manual are accurate and complete. No liability can and will be accepted for any errors or omissions. Prestigio reserves the right to make any changes without further notice to any products herein.
