Product Type	Kitchen Faucet
Model	ASH3511
Brand	Philips
Material	Stainless Steel
Finish	Chrome
Mounting Type	Deck Mount
Number of Handles	1
Handle Type	Lever
Spout Type	High Arc
Spray Function	Pull-Down Sprayer with Dual Function
Valve Type	Ceramic Disc Cartridge
Flow Rate	1.5 GPM (5.7 L/min)
Dimensions (Height)	15.75 inches (400 mm)
Dimensions (Spout Reach)	8.5 inches (216 mm)
Installation Hole Size	1.38 inches (35 mm)
Number of Installation Holes	1
Net Weight	2.5 kg (5.5 lbs)
Power Supply	Not applicable (manual operation)
Cleaning Instructions	Wipe with a damp cloth; avoid abrasive cleaners
Warranty	Limited Lifetime Warranty

Frequently Asked Questions - ASH3511 PHILIPS

How do I install the Philips ASH3511 faucet?

Installation is standard for a single-hole deck mount faucet. Secure the faucet through the sink hole and tighten the mounting nut from below. Connect the water supply hoses to the corresponding hot and cold water lines. Ensure all connections are tight and turn on the water supply to check for leaks.

What is the flow rate of the ASH3511?

The faucet has a flow rate of 1.5 gallons per minute (5.7 liters per minute) at standard water pressure.

How do I clean the Philips ASH3511 faucet?

Clean the faucet with a soft, damp cloth. Avoid using abrasive cleaners, scouring pads, or harsh chemicals that may damage the chrome finish. Dry with a soft cloth to prevent water spots.

Does the ASH3511 faucet have a pull-down sprayer?

Yes, it features a pull-down sprayer with two spray modes: a steady stream and a powerful spray for rinsing.

What is the warranty on the Philips ASH3511?

Philips offers a limited lifetime warranty on the ASH3511 faucet, covering defects in materials and workmanship. Proof of purchase is required.

Can the ASH3511 be installed on a 3-hole sink?

The ASH3511 is designed for a single-hole installation. If you have a 3-hole sink, you will need a deck plate (escutcheon) to cover the extra holes.

What type of valve does the ASH3511 use?

It uses a ceramic disc cartridge for smooth operation and long-lasting performance, reducing the chance of drips.

Is the spray head retractable?

Yes, the pull-down spray head has a retractable hose that allows you to pull it down for use and it automatically retracts back into the spout.

What tools are needed for installation?

Basic tools include an adjustable wrench, basin wrench, plumber's tape, and a screwdriver. Detailed instructions are included in the manual.

How do I replace the cartridge?

Turn off water supply, remove the handle by unscrewing the set screw, then unscrew the cartridge retaining nut. Lift out the old cartridge and replace with a new one. Reassemble and turn water on to test.

USER MANUAL ASH3511 PHILIPS

Line drawing of a standard kitchen faucet with handle and valve (no text or symbols)

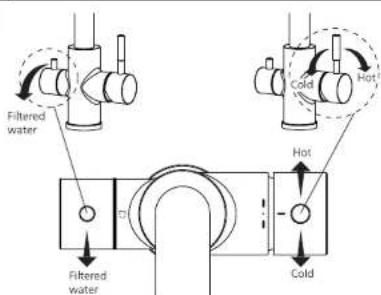

Faucet with water saving feature

Accessories

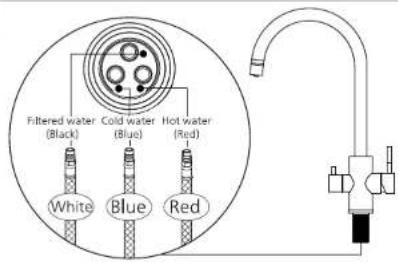

Illustration of kitchen fixtures including a faucet, a cylindrical component, and three labeled connectors (Blue, Red, White) without any text or symbols.

© 2024 AquaShield

All rights reserved.

Philips and the Philips Shield Emblem are registered trademarks of

Koninklijke Philips N.V. and are used under license.

This product has been manufactured by and is sold under the responsibility of

Hong Kong AquaShield Health Technology Company Limited

and Hong Kong AquaShield Health Technology Company Limited is the warrantor in relation to this product.

Rev B JUN 24

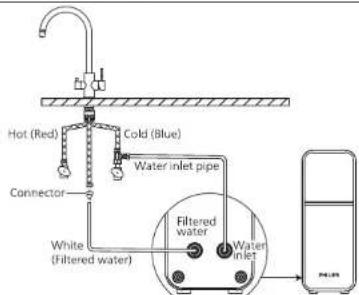

Installing the system
1

2

3

4

5

6

7

8

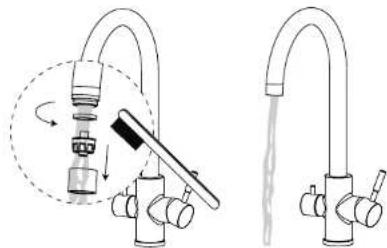

Maintenance

Diagram showing a kitchen faucet with a valve and handle, no text or symbols present
