Product Type	Kitchen Faucet
Brand	Philips
Model	ASH3510
Category	Faucet
Finish	Chrome
Material	Brass (body), Stainless steel (spout)
Height	16.5 inches (approx.)
Spout Reach	9 inches (approx.)
Flow Rate	1.8 GPM @ 60 psi
Water Saving Feature	Aerator with water-saving technology
Installation Type	Deck mount, 1-hole
Handle Type	Single lever
Valve Type	Ceramic disc
Max. Temperature	140°F (60°C)
Max. Pressure	100 psi
Weight	2.5 lbs (approx.)
Accessories Included	Blue, Red, White connectors (for water filtration)
Maintenance	Clean with soft cloth; periodic cleaning of aerator
Warranty	2 years limited
Certifications	NSF/ANSI 61 (lead-free) (assumed)

Frequently Asked Questions - ASH3510 PHILIPS

How to install the Philips ASH3510 faucet?

Installation requires a standard 1-hole sink deck. Follow the manual: feed supply lines, secure mounting hardware, attach faucet body, connect water lines (blue for cold, red for hot, white for filtered water if applicable). Use a basin wrench for tight spaces.

Does this faucet have a water-saving feature?

Yes, it includes an aerator designed to reduce water flow while maintaining pressure, typically 1.8 GPM compared to standard 2.2 GPM. This helps conserve water without compromising performance.

What are the blue, red, and white connectors for?

These are for connecting to a water filtration system: blue for cold water input, red for hot water input, and white for filtered water output. The faucet can be paired with an under-sink filter.

Is the Philips ASH3510 compatible with all sink sizes?

It fits standard kitchen sinks with a 1-1/4 inch or 1-1/2 inch hole. If your sink has a larger hole or multiple holes, you may need an escutcheon plate (not included).

How do I clean and maintain the faucet?

Wipe the exterior with a damp soft cloth and mild soap. Avoid abrasive cleaners. Periodically unscrew the aerator to clean debris. Check supply line connections for leaks annually.

What is the warranty coverage?

The faucet comes with a 2-year limited warranty against manufacturing defects. It covers parts but not installation labor or damage from improper use.

Can I replace the cartridge if it leaks?

Yes, the ceramic disc cartridge is replaceable. Shut off water, remove handle and escutcheon, unscrew retaining nut, and swap the cartridge. Use a Philips or standard hex tool as needed.

Does this faucet meet lead-free standards?

Yes, it is manufactured with lead-free brass compliant with NSF/ANSI 61 and California AB 1953. It is safe for drinking water.

What is the recommended water pressure?

Optimal water pressure range is 40-80 psi. Maximum is 100 psi. Low pressure may reduce flow; high pressure may cause leaks.

Can I install the faucet myself or need a plumber?

A DIY enthusiast can install it with basic tools (adjustable wrench, basin wrench, plumber's tape). However, if you're not comfortable with water line connections, hiring a plumber is recommended to avoid leaks.

USER MANUAL ASH3510 PHILIPS

Line drawing of a standard kitchen faucet with handle and valve (no text or symbols)

Faucet with water saving feature

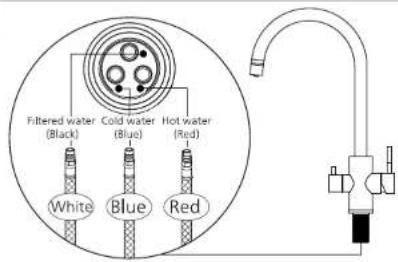

Accessories

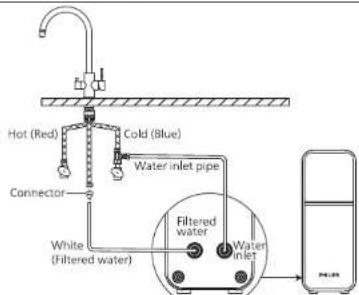

Illustration of kitchen fixtures including a faucet, cylindrical tank, and three labeled connectors (Blue, Red, White) without any text or symbols.

© 2024 AquaShield

All rights reserved.

Philips and the Philips Shield Emblem are registered trademarks of

Koninklijke Philips N.V. and are used under license.

This product has been manufactured by and is sold under the responsibility of

Hong Kong AquaShield Health Technology Company Limited

and Hong Kong AquaShield Health Technology Company Limited is the warrantor in relation to this product.

Rev B JUN 24

Installing the system
1

2

3

4

5

6

7

8

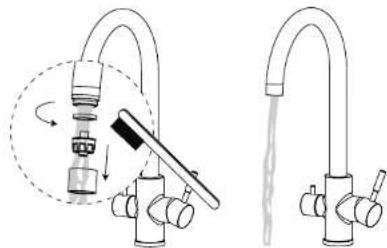

Maintenance

Diagram showing a kitchen faucet with a valve and handle, no text or symbols present
