HC6247BX - Range hood SAMSUNG - Free user manual and instructions

Product Type	Range Hood
Brand	Samsung
Model	HC6247BX
Color	Stainless Steel / Black
Width	60 cm / 23.6 inches
Depth	50 cm / 19.7 inches
Height	13 cm / 5.1 inches (flush) or adjustable chimney
Weight	Approx. 12 kg
Power Supply	220-240 V ~ 50/60 Hz
Motor Power	150 W
Lighting	2 x 3 W LED
Number of Speeds	3 speeds + intensive
Noise Level	45 - 65 dB (depending on speed)
Filter Type	Aluminum grease filter (washable) + Charcoal filter (optional, for recirculation)
Ducting	150 mm diameter, exhaust or recirculation
Control Type	Electronic push buttons
Installation Type	Built-in / Under cabinet
Exhaust Outlet	Top or back, 150 mm
Energy Class	A+ (estimated)
Safety Features	Thermal cut-off, auto shut-off
Maintenance	Clean grease filter monthly; replace charcoal filter every 3-6 months
Warranty	2 years (check local regulations)

Frequently Asked Questions - HC6247BX SAMSUNG

How do I clean the grease filters?

Remove the aluminum filters and wash them with warm soapy water or in the dishwasher at low temperature. Dry thoroughly before reinstalling. For best performance, clean every month.

How often should I replace the charcoal filter?

If using recirculation mode, replace the charcoal filter every 3 to 6 months, depending on cooking frequency. Check the filter indicator if available.

Can the hood be used in recirculation mode?

Yes, the Samsung HC6247BX can be used with a charcoal filter for recirculation. Ensure the charcoal filter is installed and the duct is not connected to outside.

What is the noise level of this hood?

The noise level ranges from 45 dB on the lowest speed to 65 dB on maximum speed. The intensive mode may be slightly louder.

Does the hood come with a remote control?

No, this model is controlled via electronic push buttons on the front panel. No remote control is included.

How do I install the hood?

Installation should be done by a qualified professional. The hood must be mounted securely under a cabinet or on the wall, at least 65 cm above electric cooktops or 75 cm above gas cooktops. Follow the installation manual exactly.

What is the warranty period?

Samsung typically offers a 2-year warranty on range hoods. Check your country's warranty terms and register your product online to extend coverage if available.

Why is my hood not extracting properly?

Check if the grease filters are clogged, if the duct is blocked or crushed, or if the charcoal filter needs replacement. Also ensure the hood is installed at the correct height.

How do I turn on the lights or fan?

Use the buttons on the front panel. Press the light button to toggle the LED lights. Press the fan speed buttons (1, 2, 3) to select speed. Press the intensive button for maximum power.

Is this hood suitable for an induction cooktop?

Yes, it is suitable for induction cooktops. Make sure the installation height is at least 65 cm from the cooking surface. Also ensure adequate ventilation as induction produces heat.

USER MANUAL HC6247BX SAMSUNG

Fig.2

Fig.4

Illustration of a hand inserting a device into a flatboard case, showing internal components and a curved component (no text or symbols)

Fig.5

Technical line drawing of a mechanical assembly with an inset showing a hand holding a component (no text or symbols present)

Fig.6

Illustration of a hand inserting a barcode into a rectangular box (no text or symbols)

Fig.7

Fig.8

Fig.9

RANGE HOOD

HC6247BX

HC9247BX

HC6247BX - HC9247BX

Extracting power (m3/h): 470

voltage: 220-240V \~ 50Hz

motor power consumption: 1x230W

air outlet diameter (mm): 150

bulbs: 2x20W

GENERAL

Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed for use in the ducting version (air exhaust to the outside – Fig.1B), fi Itering version (air circulation on the inside – Fig.1A) or with external motor (Fig.1C).

SAFETY PRECAUTION

1. Take care when the cooker hood is operating simultaneously with an open fi replace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fi replace need for combustion. The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the cooker hood. Follow the local laws applicable for external air evacuation.

Before connecting the model to the electricity network:

• control the data plate (positioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician.
• If the power supply cable is damaged, it must be replaced with another cable or a special assembly, which may be obtained direct from the manufacturer or from the Technical Assistance Centre.

2. WARNING!

In certain circumstances electrical appliances may be a danger hazard.

A) Do not check the status of the fi Iters while the cooker hood is operating
B) Do not touch bulbs or adjacent areas, during or straight after prolonged use of the lighting installation.
C) Flambè cooking is prohibited underneath the cooker hood
D) Avoid free fl ame, as it is damaging for the fl iters and a fi re hazard
E) Constantly check food frying to avoid that the overheated oil may become a fire hazard
F) Disconnect the electrical plug prior to any maintenance.
G) This appliance is not intended for use by young children or infi rm persons without supervision
H) Young children should be supervised to ensure they do not play with the appliance
I) There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels
L) There is a risk of fire if cleaning is not carried out in accordance with the instructions

M) Please use a private plug receptacle for power plug.

: It might set a fi re.

N) Please don't operate the hood when taking fire on the dishes or frying pan.

: It might set a fi re.

O) Please don't touch the product or operate the switch with wet hands.

: You might get a shock of electricity.

P) Please don't wipe off the hood with the chemicals when cleaning.

This appliance conforms to the European Directive EC/2002/96, Waste Electrical and Electronic Equipment (WEEE). By making sure that this appliance is disposed of in a suitable manner, the user is helping to prevent potential damage to the environment or to public health.

The symbol on the product or on the accompanying paperwork indicates that the appliance should not be treated as domestic waste, but should be delivered to a suitable electric and electronic appliance recycling collection point. Follow local guidelines when disposing of waste. For more information on the treatment, re-use and recycling of this product, please contact your local authority, domestic waste collection service or the shop where the appliance was purchased.

INSTALLATION INSTRUCTIONS

Assembly and electrical connections must be carried out by specialised personnel.

• Electric Connection

The appliance has been manufactured as a class II, therefore no earth cable is necessary.

The connection to the mains is carried out as follows:

BROWN = L line

BLUE = N neutral

If not provided, connect a plug for the electrical load indicated on the description label. Where a plug is provided, the cooker hood must be installed in order that the plug is easily accessible.

An omnipolar switch with a minimum opening of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network.

- The minimum distance between the support surfaces of the cooking pots on the cooker top and the lowest part of the cooker hood must be at least 65 cm. If a connection tube composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source. Before proceeding with the assembly operations, remove the anti-grease filter(s) (Fig.5) so that the unit is easier

to handle.

In the case of assembly of the appliance in the suction version prepare the hole for evacuation of the air.

- We recommend the use of an air exhaust pipe with a diameter of 150. If a pipe with a smaller diameter is used, the efficiency of the product may be reduced and its operation may become noisier

• FIXING TO THE WALL

Drill the holes A respecting the distances indicated (Fig.2). Fix the appliance to the wall and align it in horizontal position to the wall units. When the appliance has been adjusted, definitely fix the hood using the screws A (Fig.4). For the various installations use screws and screw anchors suited to the type of wall (e.g. reinforced concrete, plasterboard, etc.). If the screws and screw anchors are provided with the product, check that they are suitable for the type of wall on which the hood is to be fixed.

• FIXING THE DECORATIVE TELESCOPIC FLUE

Take care not to scratch the duct; wear gloves when removing the protective film. (Fig. 7)

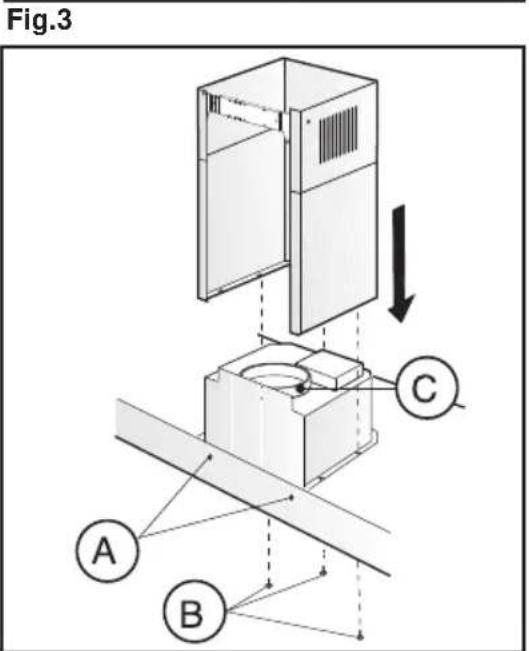

Arrange the electrical power supply within the dimensions of the decorative fl ue. If your appliance is to be installed in the ducting version or in the version with external motor, prepare the air exhaust opening. Adjust the width of the support bracket of the upper fl ue (Fig.3). Then fi x it to the ceiling using the screws A (Fig.3) in such a way that it is in line with your hood and respecting the distance from the ceiling indicated in Fig.2. Connect the fl ange C to the air exhaust hole using a connection pipe (Fig.4).

Insert the upper fl ue into the lower fl ue. Fix the lower fl ue to the hood using the screws B provided (Fig.4), extract the upper fl ue up to the bracket and fi x it with the screws B (Fig.3).

To transform the hood from a ducting version into a fi ltering version, ask your dealer for the charcoal fi Iters and follow the installation instructions.

• FILTERING VERSION

Install the hood and the two fl ues as described in the paragraph for installation of the hood in ducting version. To assemble the fi ltering fl ue refer to the instructions contained in the kit. If the kit is not provided, order it from your dealer as accessory. The charcoal fil ters must be fi tted in the ducting unit located inside the hood (Fig.6).

USE AND MAINTENANCE

- It is recommended to operate the appliance prior to cooking.

It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapours and odours.

The proper function of the cooker hood is conditioned by the regularity of the maintenance operations, in particular, the active carbon filter.

- The anti-grease fi Iters capture the grease particles suspended in the air, and are therefore subject to clogging according to the frequency of the use of the appliance. In order to prevent fi re hazard, it is recommendable to

clean the filter at a maximum of 2 months by carrying out the following instructions:

- Remove the fi Iters from the cooker hood and wash them in a solution of water and neutral liquid detergent, leaving to soak.

- Rinse thoroughly with warm water and leave to dry.

- The fil ters may also be washed in the dishwasher. The aluminium panels may alter in colour after several washes. This is not cause for customer complaint nor replacement of panels.

- The active carbon fi liters purify the air that is replaced in the environment. The fi liters are not washable nor re-useable and must be replaced at maximum every four months. The saturation of the active carbon fi liter depends on the frequency of use of the appliance, by the type of cooking and the regularity of cleaning the anti-grease fi liters.

- Clean the fan and other surfaces of the cooker hood regularly using a cloth moistened with denatured alcohol or non abrasive liquid detergent.

- The illumination installation is designed for use during cooking and not for prolonged general illumination of the environment. Prolonged use of the illumination installation notably reduces the duration of the bulb.

- Replacing halogen light bulbs (Fig. 8).

To replace the halogen light bulbs B, remove the glasspane C using a lever action on the relevant cracks. Replace the bulbs with new ones of the same type.

Caution: do not touch the light bulb with bare hands.

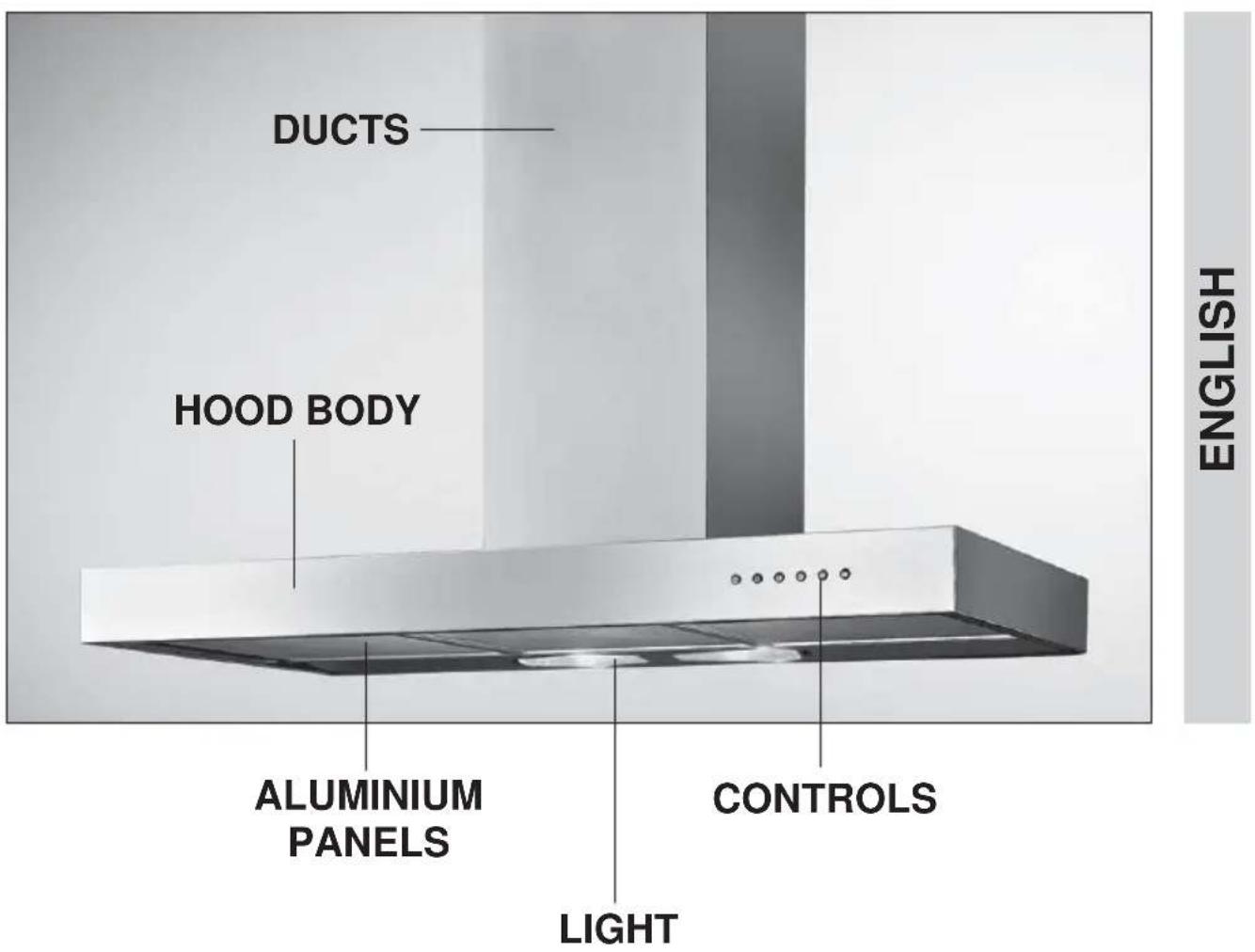

- COMMANDS: (Fig.9) MECHANICAL_the key symbols are explained below:

A = LIGHT

B = OFF

C = SPEED I

D = SPEED II

E = SPEED III

G = MOTOR WORKING indicator

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.
