PW18SUBA - Subwoofer Pyle - Free user manual and instructions

Product Type	Subwoofer
Brand	Pyle
Model	PW18SUBA
Driver Size	18 inches
Power (RMS)	400 Watts
Power (Peak)	800 Watts
Frequency Response	20 Hz - 200 Hz
Sensitivity	95 dB
Impedance	4 Ohms
Enclosure Type	Bass Reflex (Ported)
Inputs	Line Level (RCA) and Speaker Level
Outputs	Line Level (RCA) Pass-Through
Phase Control	0/180 degrees
Low Pass Filter	Variable (50 Hz - 150 Hz)
Dimensions (H x W x D)	21.5 x 17.7 x 19.3 inches
Weight	55 lbs
Power Supply	120V / 60Hz
Protection	Overload and Short Circuit
Cabinet Material	MDF with Black Carpet Finish
Grille	Included
Warranty	1 Year Limited
Cleaning	Wipe with dry cloth; avoid liquids
Safety	Place on stable surface, keep away from moisture
Spare Parts & Repairability	Contact Pyle for genuine parts; professional repair recommended

Frequently Asked Questions - PW18SUBA Pyle

How do I connect the Pyle PW18SUBA subwoofer to my receiver?

Use an RCA cable from the subwoofer output on your receiver to the Line Level input on the subwoofer. Alternatively, connect speaker wires from the receiver's speaker terminals to the Speaker Level inputs.

What is the power rating of the PW18SUBA?

The PW18SUBA has a 400 watt RMS and 800 watt peak power handling, providing deep, powerful bass.

Can I use this subwoofer outdoors?

No, the PW18SUBA is designed for indoor use only. Exposure to moisture or extreme temperatures can damage the electronics and cabinet.

What is the best placement for optimal bass performance?

Place the subwoofer in a corner or along a wall to reinforce bass. Avoid placing it too close to walls or in a sealed enclosure. Experiment with phase control (0° or 180°) for best integration.

How do I adjust the crossover frequency?

Use the Low Pass Filter knob on the back panel, adjustable from 50 Hz to 150 Hz. Set it to match your main speakers' capabilities (typically 80 Hz for home theater).

Does the subwoofer have a built-in amplifier?

Yes, the PW18SUBA is an active/powered subwoofer with a built-in amplifier. It requires a standard power outlet (120V).

What are the dimensions and weight of the PW18SUBA?

Dimensions are 21.5 x 17.7 x 19.3 inches (HxWxD) and it weighs approximately 55 lbs. Ensure your setup can support its size and weight.

How do I clean and maintain the subwoofer?

Unplug the subwoofer and wipe the exterior with a soft, dry cloth. Do not use any liquids or cleaners. Check connections periodically for tightness.

What should I do if the subwoofer produces no sound?

Check that the power cord is securely connected, the subwoofer is powered on, and the volume is turned up. Verify that the receiver's subwoofer output is active and the cable is properly connected.

Is the PW18SUBA covered by a warranty?

Yes, Pyle offers a 1-year limited warranty against defects in materials and workmanship. Retain your proof of purchase for service.

USER MANUAL PW18SUBA Pyle

Questions or Comments?

We are here to help!

Phone: [phone]

PyleUSA.com/ContactUs

PYLE®

PyleUSA.com

Three black audio/video equipment units labeled PW12SUBA and PW15SUBA, shown against a white background (no additional text or symbols visible)

PW18SUBA
PW12SUBA - PW15SUBA - PW18SUBA
Active Powered Subwoofer Box System

USER GUIDE

READ ALL INSTRUCTIONS BEFORE USING THE SUBWOOFER.

PW12SUBA

12" 1800W Active Powered Subwoofer Box System with Professional Design

Features:

• DSP Digital Signal Processor
• Power-On and Signal Input LED Indicators
• Signal Input LED Indicator
- Clip Limiter Circuitry with LED Indicator
• Balanced XLR + TRS Input Jacks
• Balanced XLR Thru Output Jacks for Parallel Connections
• Passive Heat Sink with Fan for Cooling
- Subwoofer Crossover 80Hz/100Hz/120Hz/150Hz/200Hz Low Pass
- Subwoofer Level Adjustment
- Subwoofer Phase Control
• Built-in Pole Mount Socket
• Built-in Carrying Handles
- Custom Metal Grill

What's in the Box:

• Wooden Subwoofer
• Power Cable

Back view of a black audio amplifier with speaker, control panel, and speaker grille (no visible text or labels)

Technical Specs:

• Construction Materials: Wooden Painted Enclosure with MDF Board
  • Power Supply: 450 Watts RMS / 900 Watts Program / 1800 Watts Peak Power
• Woofer: 12"
• Magnet: 70oz
• Voice Coil: 3"
  • Frequency Response: (+/-3dB) 48Hz - 200Hz
  • Maximum SPL: 127dB Peak / 124dB Continuous
• Product Dimensions: 13.78" x 20.87" x 20.47" -inches

PW15SUBA

15" 2400W Active Powered Subwoofer Box System with Professional Design

Features:

• DSP Digital Signal Processor
  • Power-On and Signal Input LED Indicators
  • Signal Input LED Indicator
• Clip Limiter Circuitry with LED Indicator
  • Balanced XLR + TRS Input Jacks
  • Balanced XLR Thru Output Jacks for Parallel Connections
  • Passive Heat Sink with Fan for Cooling
• Subwoofer Crossover 80Hz/100Hz/120Hz/150Hz/200Hz Low Pass
• Subwoofer Level Adjustment
• Subwoofer Phase Control
  • Built-in Pole Mount Socket
  • Built-in Carrying Handles
• Custom Metal Grill

What's in the Box:

• Wooden Subwoofer
• Power Cable

Technical Specs:

• Construction Materials: Wooden Painted Enclosure with MDF Board
  • Power Supply: 600 Watts RMS / 1200 Watts Program / 2400 Watts Peak Power
• Woofer: 15"
• Magnet: 126oz
• Voice Coil: 4"
  • Frequency Response: (+/-3dB) 45Hz - 200Hz
  • Maximum SPL: 128dB Peak / 125dB Continuous
• Product Dimensions: 23.23" x 19.69" x 21.65" -inches

Back view of a black audio amplifier with speaker and control panel (no visible text or symbols)

PW18SUBA

18" 3200W Active Powered Subwoofer Box System with Professional Design

Features:

• DSP Digital Signal Processor
• Power-On and Signal Input LED Indicators
• Signal Input LED Indicator
- Clip Limiter Circuitry with LED Indicator
• Balanced XLR + TRS Input Jacks
• Balanced XLR Thru Output Jacks for Parallel Connections
• Passive Heat Sink with Fan for Cooling
- Subwoofer Crossover 80Hz/100Hz/120Hz/150Hz/200Hz Low Pass
- Subwoofer Level Adjustment
- Subwoofer Phase Control
• Built-in Pole Mount Socket
• Built-in Carrying Handles
- Custom Metal Grill

What's in the Box:

• Wooden Subwoofer
• Power Cable

Back view of a black audio amplifier or speaker unit with control panel and drive buttons (no visible text or labels)

Technical Specs:

• Construction Materials: Wooden Painted Enclosure with MDF Board
  • Power Supply: 800 Watts RMS / 1600 Watts Program / 3200 Watts Peak Power
• Woofer: 18"
• Magnet: 126oz
• Voice Coil: 4"
  • Frequency Response: (+/-3dB) 40Hz - 200Hz
  • Maximum SPL: 131dB Peak / 128dB Continuous
• Product Dimensions: 20.87" x 25.98" x 24.21" -inches

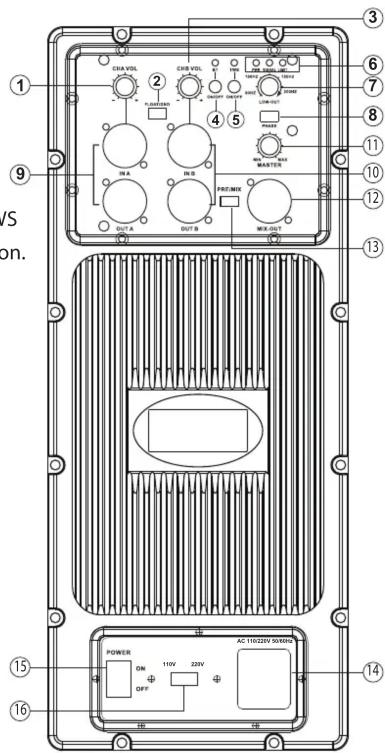

Control Panel Layout

PW12SUBA - PW15SUBA - PW18SUBA

1. Channel A Volume Control
2. Ground and Float Switches
3. Channel B Volume Control
4. Bluetooth Indicator:

Flashes when Bluetooth is on and stays lit after connection.

1. TWS Indicator: Flashes when TWS is on and stays lit after connection.

2. LED Indicators:

3. Power LED

4. Signal LED

5. Limit LED

6. Low Out for 80Hz/100Hz/150Hz/200Hz

7. Phase Switch

8. Channel A:

Balanced Input

Balanced Output

1. Channel B:

Balanced Input

Balanced Output

1. Master Volume Control
2. XLR Balanced Output
3. PRE-Output and Mixed Output:

PRE-Output: Main frequency

Mixed Output: Low frequency 120Hz excision

1. Fused IEC Mains Inlet
2. Power Switch (ON/OFF)
3. Voltage Selector Switch (110V/220V)

Safety Instructions

Important Safety Guidelines

- Read all instructions before using the subwoofer.

- Keep the subwoofer away from water, moisture, and extreme temperatures.

- Ensure that the subwoofer is placed on a stable surface to prevent it from falling.

- Do not attempt to open or repair the subwoofer yourself. Refer servicing to qualified personnel.

Electrical Safety Precautions

- Use only the power cable provided with the subwoofer.

- Ensure the power source matches the voltage requirement specified on the subwoofer.

- Unplug the subwoofer during lightning storms or when not in use for extended periods.

Installation

Unboxing and Inspection

- Carefully remove the subwoofer from its packaging.

- Inspect the subwoofer for any signs of damage during transit.

- Ensure all components listed in the package contents are included.

Placement Recommendations

- For optimal sound, place the subwoofer near a wall or in a corner of the room.

- Avoid placing the subwoofer near heat sources or in direct sunlight.

- Ensure there is adequate ventilation around the subwoofer to prevent overheating.

California Prop 65 Warning

WARNING:

This product may expose you to chemicals, which is known to the state of California to cause cancer, birth defects and other reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov

Connecting to an Audio Source

• Use the RCA input cables to connect the subwoofer to your receiver or audio source.
• If using speaker-level inputs, connect the subwoofer to the amplifier or receiver's speaker outputs.
• Ensure all connections are secure before powering on the subwoofer.

Cleaning, Maintenance, and Storage

Cleaning the Subwoofer

• Unplug the subwoofer before cleaning.
• Use a soft, dry cloth to wipe down the exterior.
• Avoid using harsh chemicals or abrasive materials that could damage the finish.

Regular Maintenance Tips

• Periodically check all connections to ensure they remain secure.
• Avoid placing heavy objects on top of the subwoofer to prevent damage.
• Ensure the subwoofer's ventilation openings are clear of dust and debris.

Proper Storage Instructions

• If storing the subwoofer for an extended period, place it in a dry, cool environment.
• Cover the subwoofer with a cloth to protect it from dust.
• Disconnect all cables and store them separately to prevent tangling or damage.

Register Product

Thank you for choosing PyleUSA. By registering your product, you ensure that you receive the full benefits of our exclusive warranty and personalized customer support. Complete the form to access expert support and to keep your PyleUSA purchase in perfect condition.

PyleUSA.com/register
