USER MANUAL BT8390-ADP B-Tech

PLEASE KEEP THIS FOR FUTURE REFERENCE

Black square with six white circular holes on each side (no text or symbols)

FEATURES

• Mount a range of B-Tech wall mounts and desk arms to a BT8390 mounting rail to create a wide variety of different installations
• Can be positioned anywhere along the rail for perfect screen positioning
• Simple installation with all fixings included

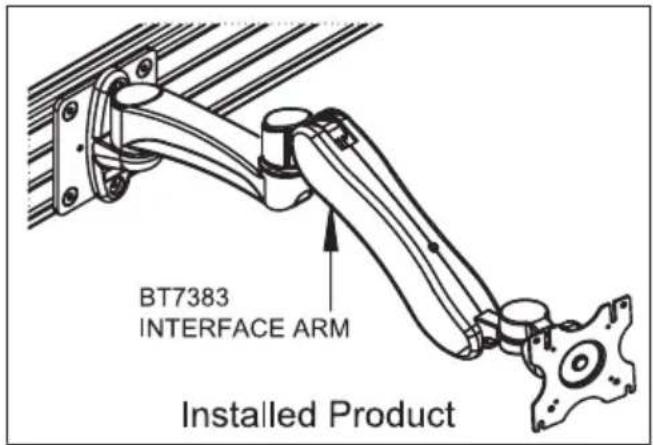

Attach a BT8390-ADP to a System X BT8390 mounting rail and mount one of the following brackets:

BTV112, BTV113, BTV114, BTV502, BTV503, BTV504 or with a BT7399 adaptor:

BT7372, BT7373, BT7382, BT7383

CONTENTS

Installation Safety Notes....2

Parts List....4

Installation Instructions....5

Product Dimensions....7

B-Tech Contact Details....8

INSTALLATION TOOLS REQUIRED

Hex Keys

(supplied)

B-TECH AV MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This mount is intended for use only with the maximum weights indicated. Use vier equipment than the maximum indicated may instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

Please check carefully to make sure there are no missing or defective parts - defective parts must never be used. B-Tech International Design and Manufacturing Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech International Design and Manufacturing Limited recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Designed for indoor use, this mount is suitable for public or home installation. If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling.

Fixing hardware

It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

CS

Technical line drawing of a mechanical component with circular holes and a numbered circle (no text or symbols)

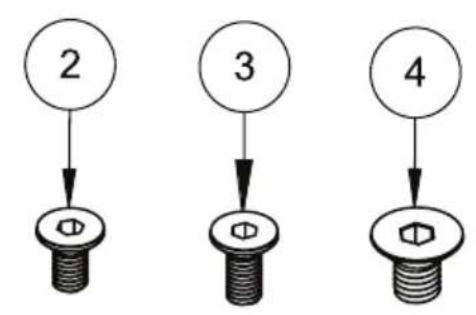

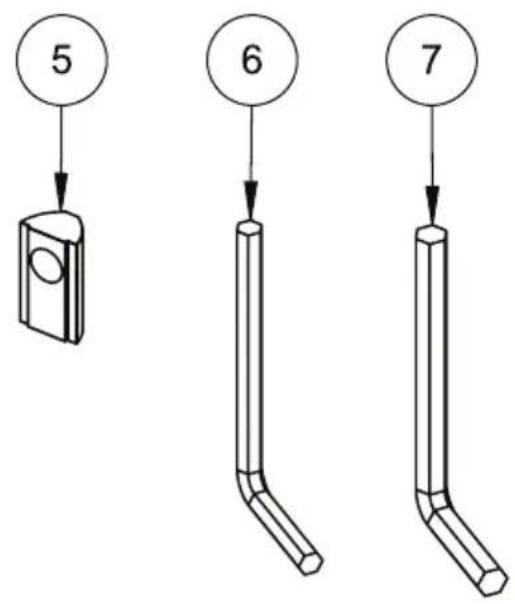

ITEM	PART NAME	QTY
1	ADAPTOR PLATE	1
2	M6 x 12mm CSK SCREW	2
3	M6 x 14mm CSK SCREW	2
4	M8 x 12mm CSK SCREW	6
5	M8 SLIDING NUT	4
6	4AF HEX KEY	1
7	5AF HEX KEY	1

PLEASE KEEP THIS FOR FUTURE REFERENCE

INSTALLATION INSTRUCTIONS

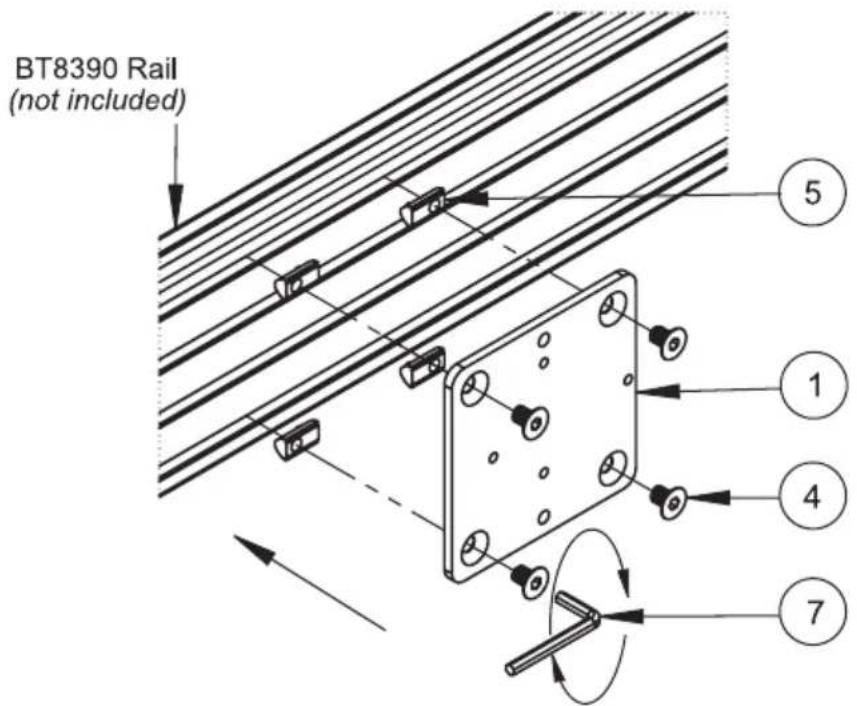

Insert items 5 into a BT8390 rail and then attach item 1 using items 4 & item 7.

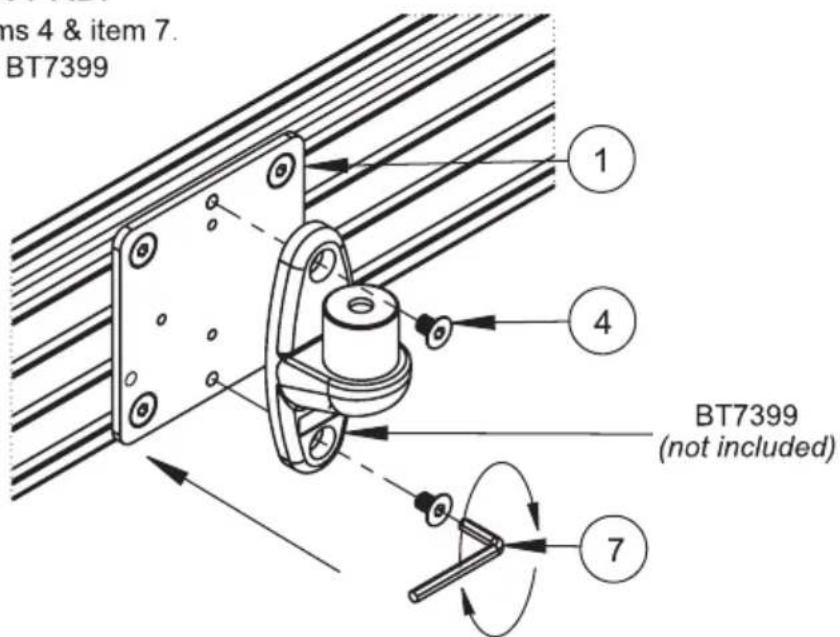

Attaching the BT7399 to the BT8390-ADP

i. Secure the BT7399 to item 1 using items 4 & item 7.
ii. Hook a suitable interface arm onto the BT7399 and secure in place.

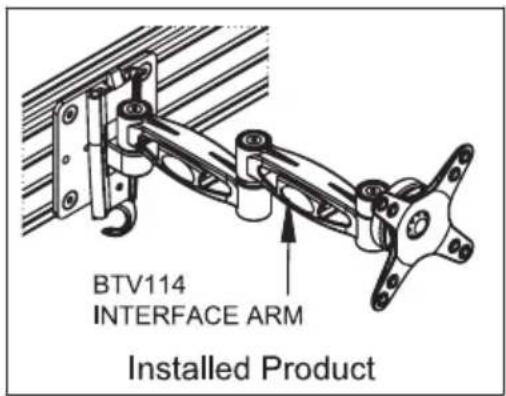

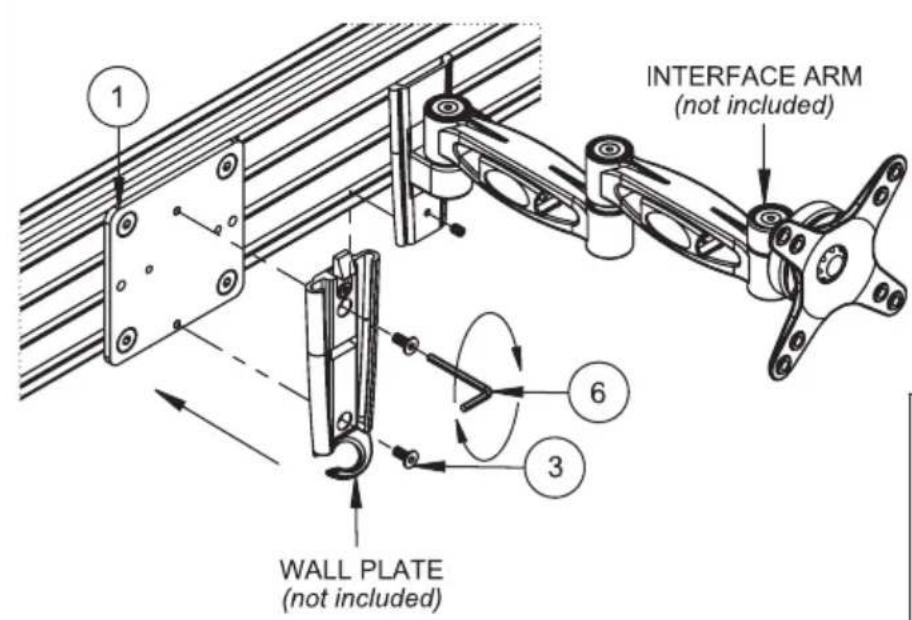

Attaching the BTV112, BTV113 or BTV114 to the BT8390-ADP

i. Secure the wall plate to item 1 using items 3 & item 6.
ii. Hook the interface arm onto the wall plate and secure in place.

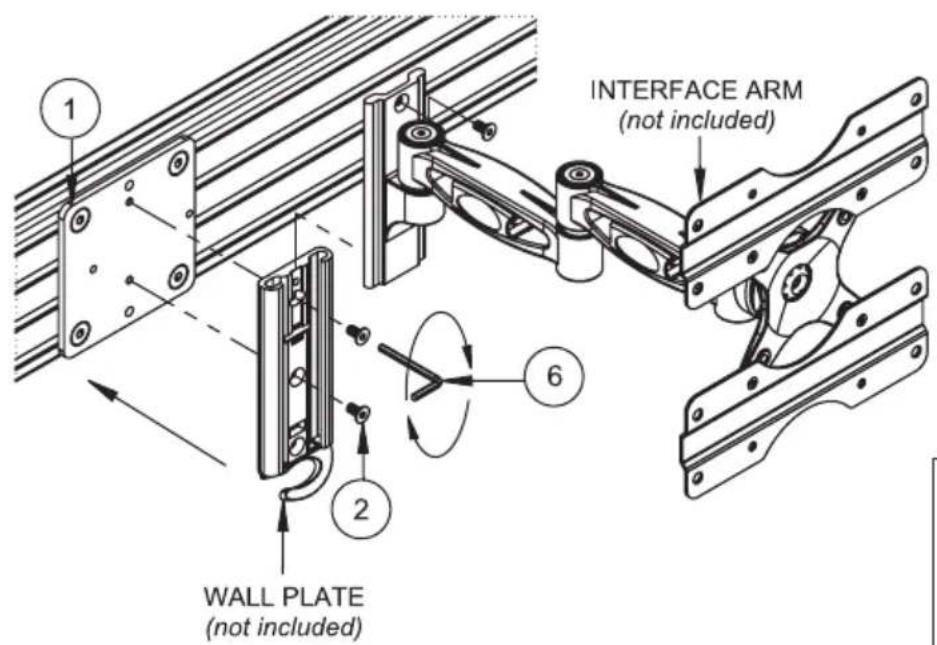

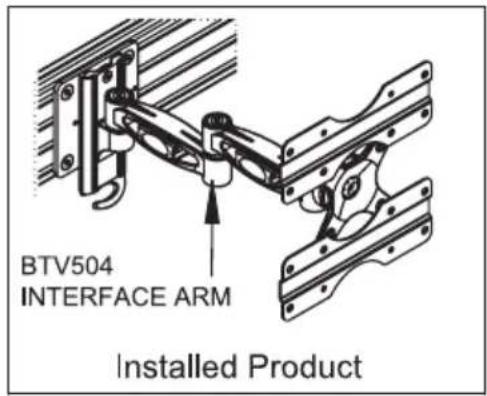

Attaching the BTV502, BTV503 or BTV504 to the BT8390-ADP

i. Secure the wall plate to item 1 using items 2 & item 6.
ii. Hook the interface arm onto the wall plate and secure in place.

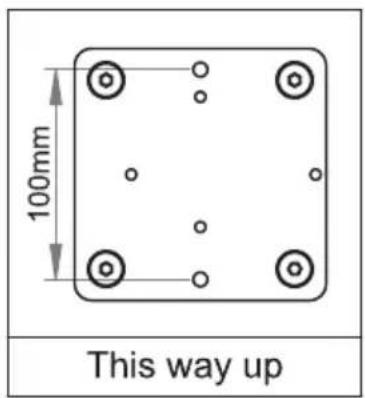

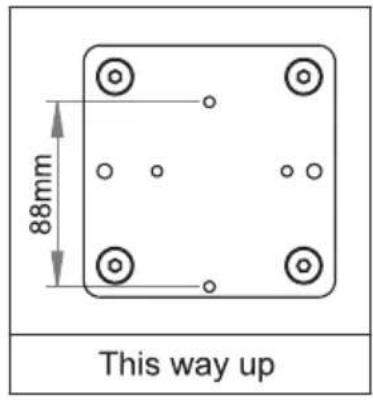

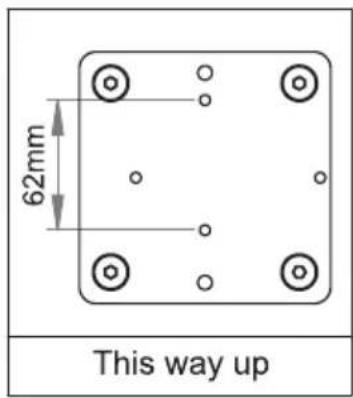

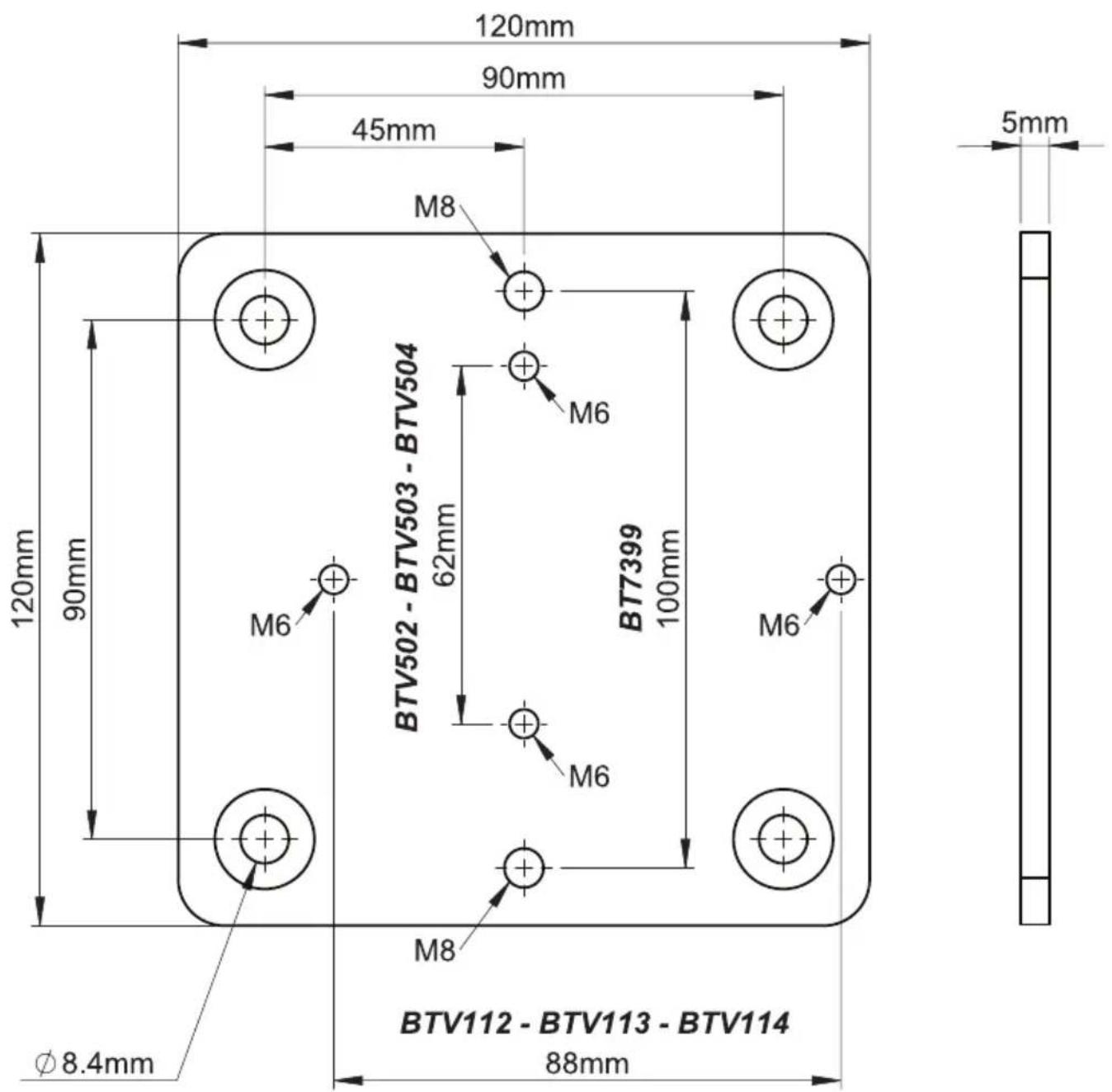

BT8390-ADP PRODUCT DIMENSIONS

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

www.btechavmounts.com

B-TECH AV MOUNTS

HEAD OFFICE

B-Tech International Limited

Bennett House, Long March, Daventry, Northants., NN11 4NR, UK

Email: [e-mail]

©2018 B-Tech International Design and Manufacturing Limited. All rights reserved.

B-Tech AV Mounts is a division of B-Tech International Design & Manufacturing Ltd.

B-Tech, Better By Design, System X are registered trademarks of B-Tech International Design & Manufacturing Ltd.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.
