ADBE-10238 - Fitness Equipment ADIDAS - Free user manual and instructions

Brand	Adidas
Model	ADBE-10238
Product Type	Multi-functional fitness equipment (home gym)
Main Functions	Leg developer, arm curl, adjustable backrest, seat incline adjustment
Adjustable Components	Backrest incline, seat position, leg developer, arm curl stand
Resistance Type	Weight plate compatible (Olympic sleeve with spring clip)
Construction Material	Steel main frame, foam rollers and pads
Assembly Required	Yes, with included Allen wrenches and hardware
Spare Parts Availability	Contact regional service centers (details in manual)
Maintenance	Wipe with dry cloth, periodically check and tighten bolts
Safety Features	Stable base with stabilizers; ensure proper assembly and weight limits
User Manual Format	PDF, 15 pages, available for free download
Warranty	Refer to regional service centers for warranty information

Frequently Asked Questions - ADBE-10238 ADIDAS

What is the Adidas ADBE-10238?

It is a multi-functional fitness equipment designed for home use, featuring leg developer, arm curl, and adjustable backrest and seat.

How do I assemble the ADBE-10238?

Assembly is required. The manual includes step-by-step instructions with diagrams. Two Allen wrenches and all necessary hardware are provided.

What type of weight plates does it use?

It uses standard Olympic weight plates (2-inch diameter hole) with a spring clip for securing.

How do I adjust the backrest and seat?

The backrest and seat can be adjusted by using the pop pins and pull pins to select different incline and position settings.

Is maintenance required?

Yes, regularly wipe the equipment with a dry cloth and periodically check all bolts and nuts for tightness.

What is the maximum weight capacity?

The maximum weight capacity is not specified in the manual, but typically home gyms of this type support up to 150 kg (330 lbs) including user and weights.

Where can I find spare parts?

Spare parts can be ordered by contacting the regional service center listed in the manual (UK, Europe, Spain, APAC, Australia, USA).

What tools are included?

Two Allen wrenches are included. No other tools are required for assembly.

How do I clean the equipment?

Wipe the frame and pads with a damp cloth and mild detergent if needed. Avoid abrasive cleaners.

Can I download the manual?

Yes, the manual is available for free download in PDF format from the product page.

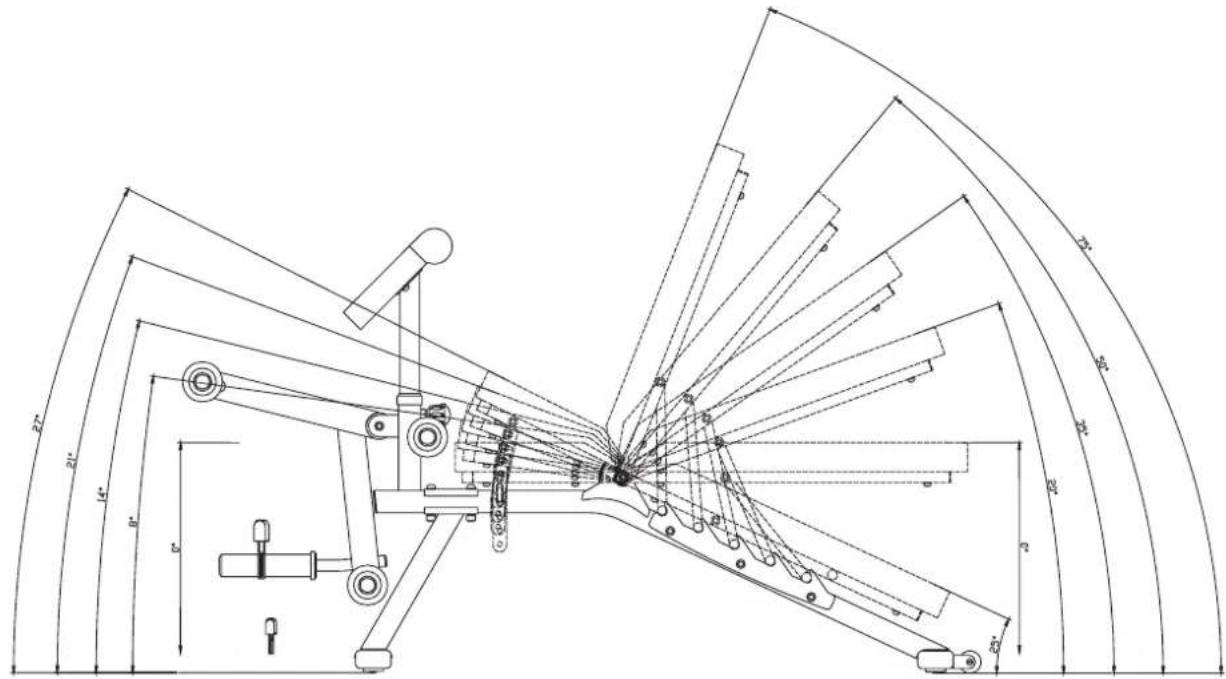

USER MANUAL ADBE-10238 ADIDAS

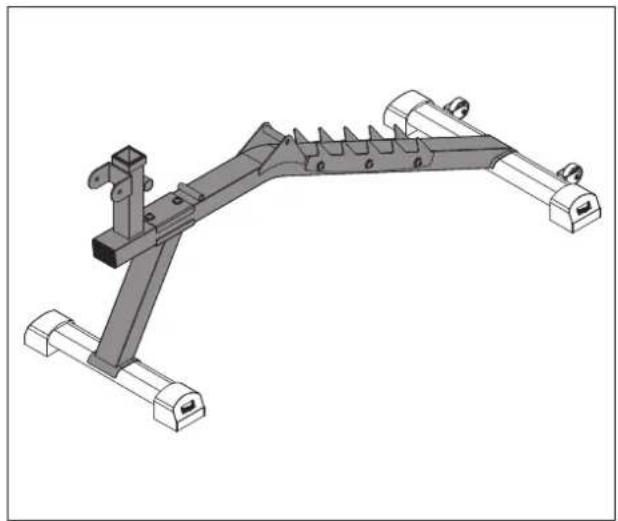

Technical line drawing of a balance exercise machine with adjustable arms and legs (no text or symbols)

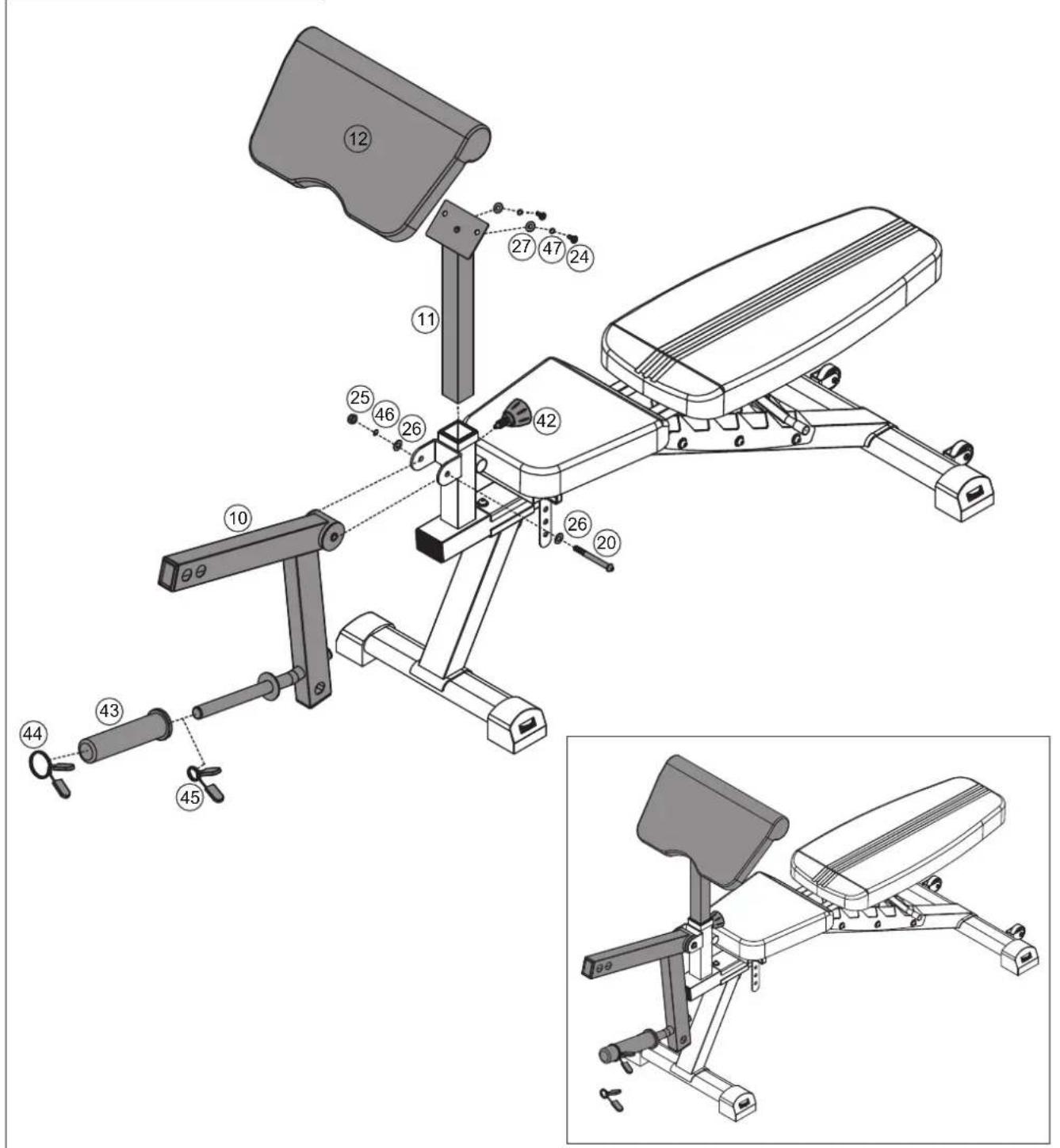

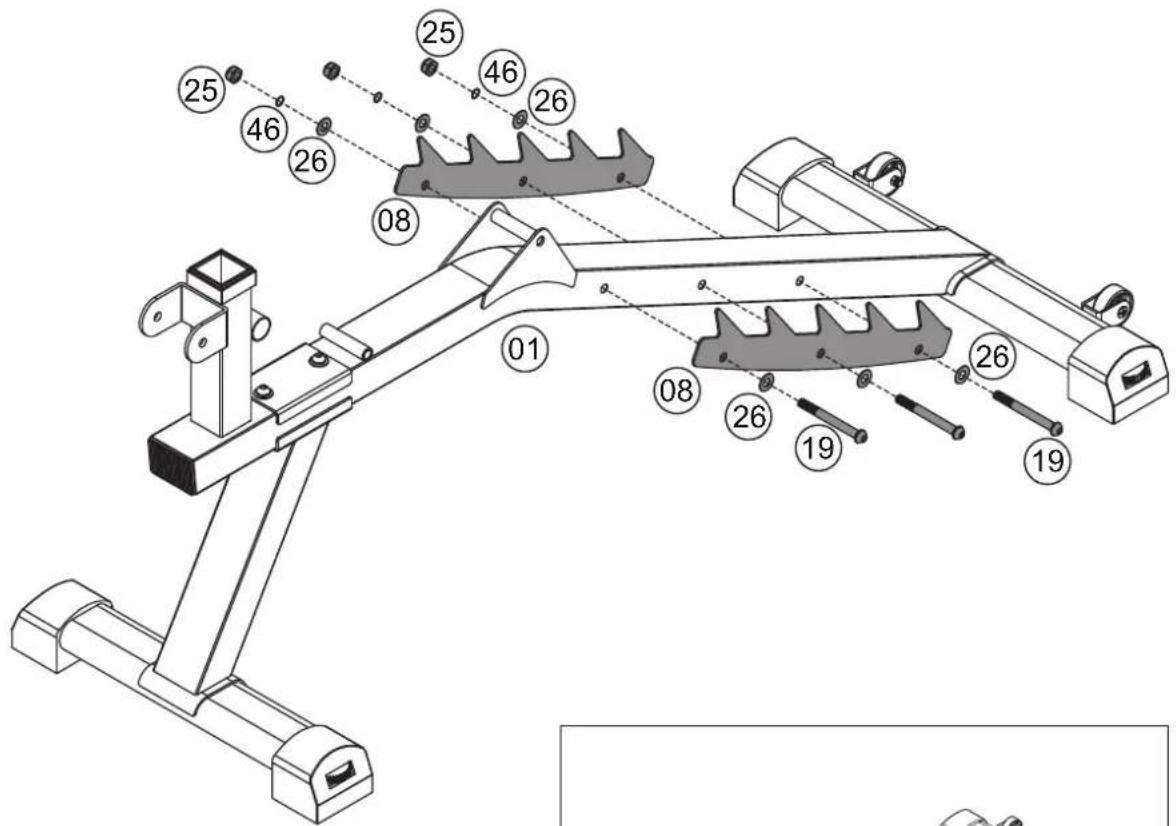

3D mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

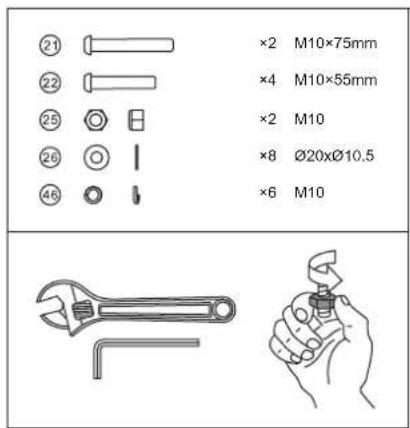

Simple line drawing of a hand holding a tool, next to a left-angle bracket symbol (no text or labels)

Technical line drawing of a sit-up exercise machine (no text or symbols)

Line drawing of a hand holding a screwdriver, next to a left-angle bracket symbol (no text or labels)

Line drawing of a hand holding a screwdriver, next to a left-angle bracket symbol (no text or labels)

Line drawing of a hand holding a screwdriver, next to a left-angle bracket symbol (no text or labels)

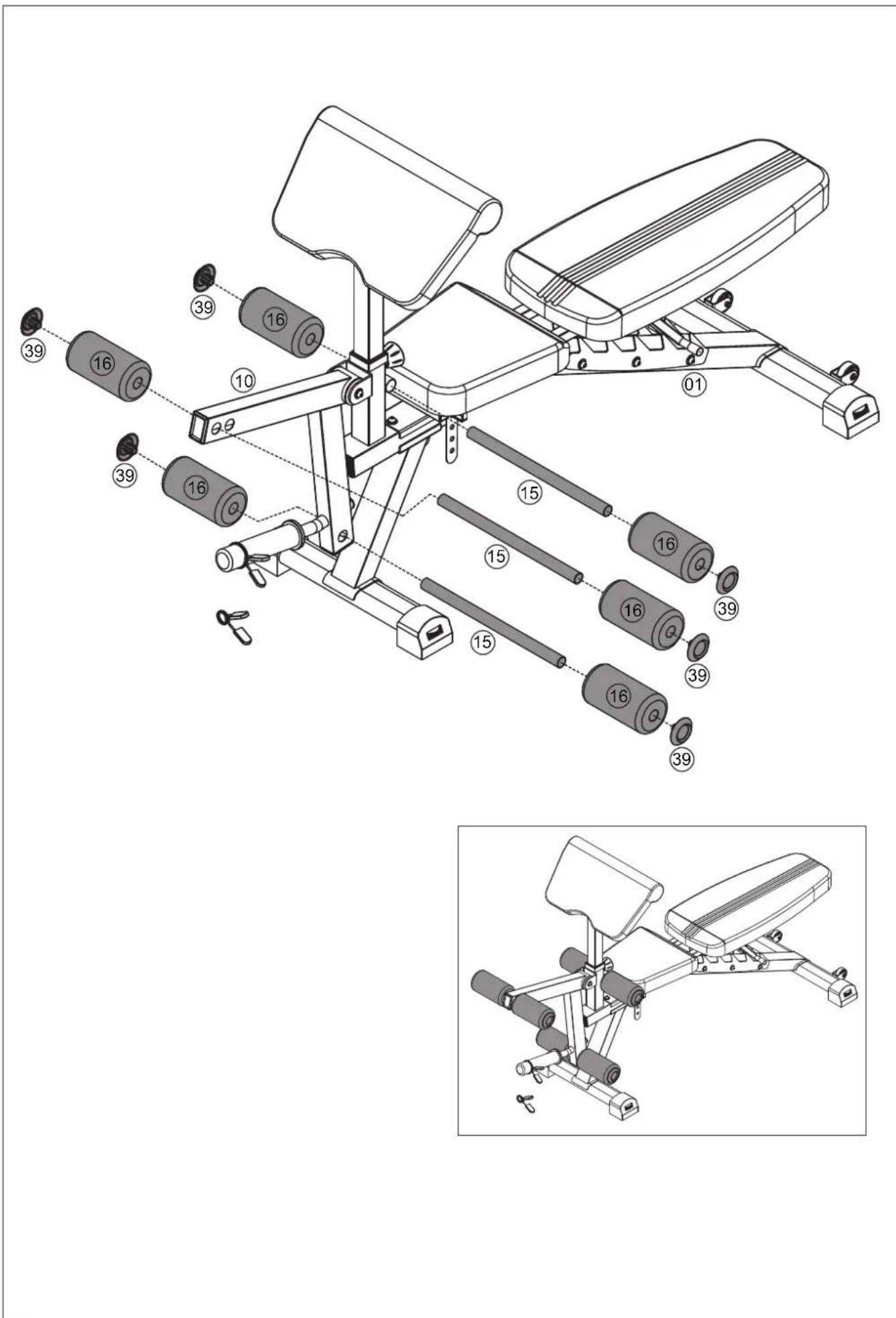

Technical line drawing of a balance exercise machine with adjustable arms and wheels (no text or symbols)

Technical line drawing of a mechanical assembly with a numbered component (40) and no visible text or symbols

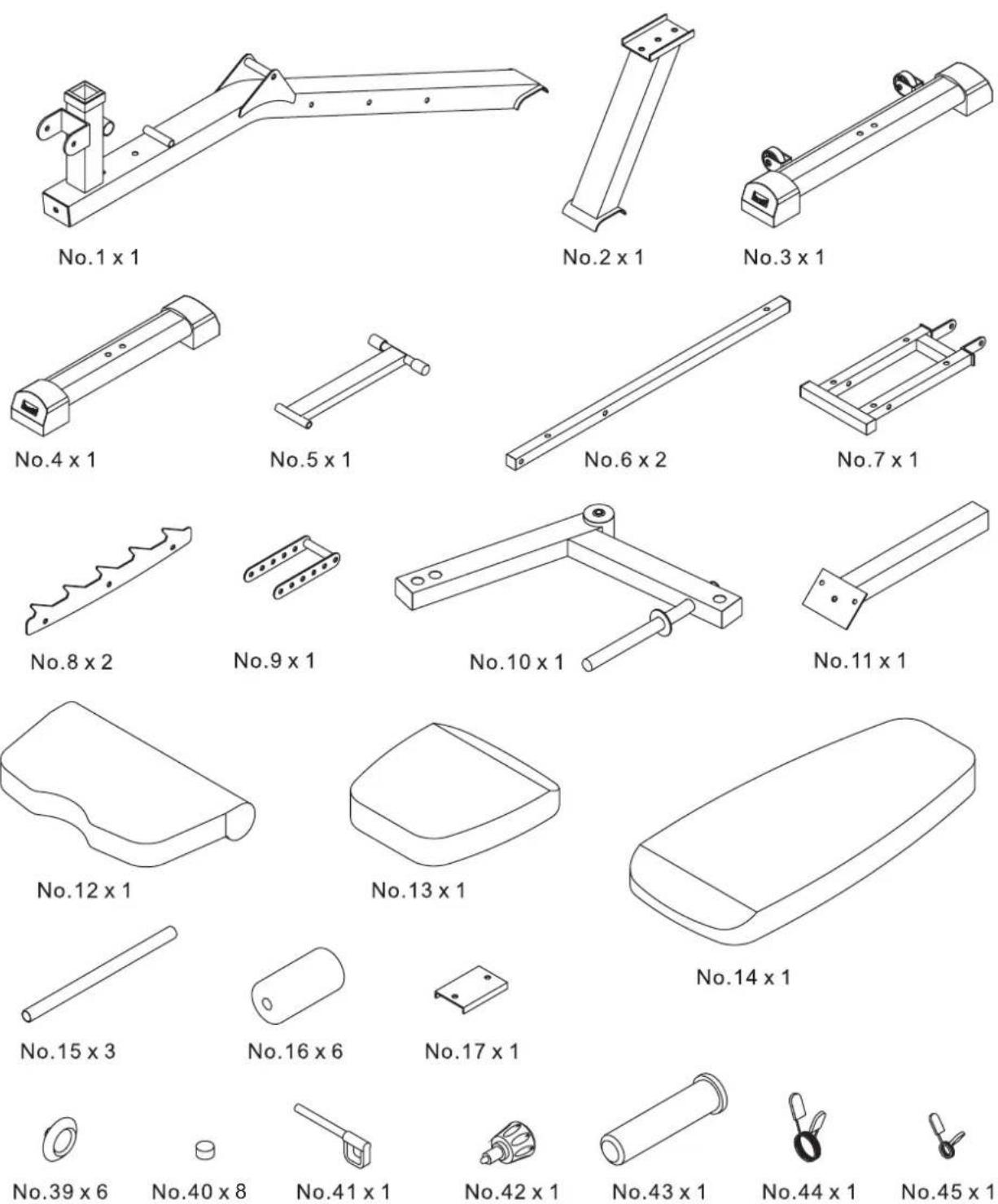

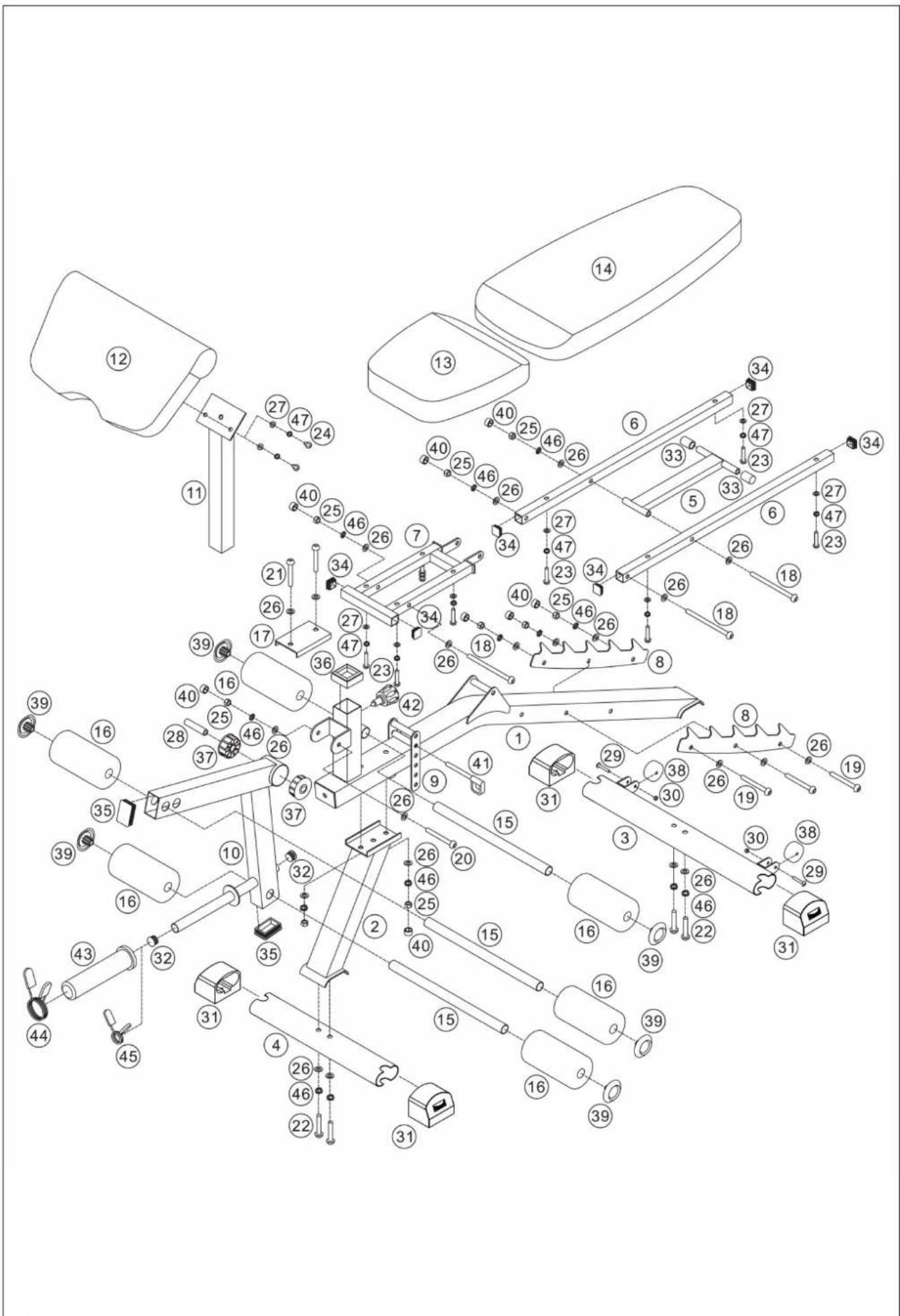

No.	Part No. Description Qty.
1	FMAD614AB-01 Main Frame	1
2	FMAD614AB-02 Front Leg 1
3	FMAD614AB-03 Rear Stabilizer 1
4	FMAD614AB-04 Front Stabilizer 1
5	FMAD614AB-05 Backrest Incline Support 1
6	FMAD614AB-06 Backrest Support 2
7	FMAD614AB-07 Seat Bracket 1
8	FMAD614AB-08 Incline Support Frame 2
9	FMAD614AB-09 Seat Incline Adjustment Frame	1
10	FMAD614AB-10 Leg Developer	1
11	FMAD614AB-11 Arm Curl Stand	1
12	FMAD614AB-12 Arm Curl Pad	1
13	FMAD614AB-13 Seat Pad	1
14	FMAD614AB-14	Backrest Board	1
15	FMAD614AB-15 Foam Tube	3
16	FMAD614AB-16 Foam Roll	6
17	FMAD614AB-17 Support Plate	1
18	FMAD614AB-18	M10 x 150mm Bolt	3
19	PFM3008-17	M10 x 95mm Bolt	3
20	FMAD614AB-19	M10 x 95mm Bolt	1
21	PFM2101-23	M10 x 75mm Bolt	2
22	PFMCS704MF-13	M10 x 55mm Bolt	4
23	PFMS80-32	M8 x 45mm Bolt	8
24	PFM2006-23	M8 x 20mm Bolt	2
25	PRK1-05	M10 Nylon Locknut	9
26	PRK1-06	M10 Washer	22
27	PFM2006-27	M8 Washer	10
28	FMAD614AB-20 Axle Sleeve	1
29	PFMCS704MF-18	M6 x 40mm Bolt	2
30	PHHBXROK002-26 M6 Nylon Locknut 2
31	PFMH1001-21 40x80mm Ellipse End Cap 4
32	PRK1-03 25mm Round Inner Cap 2
33	FMAD614AB-21 16mm Round Angled Cap 2
34	PFM2240-32 25mm Square Inner Cap 6
35	PFM4004-24 40x60mm Square Inner Cap 2
36	PFM2007-11 50x44mm Square Plastic Bushing 1
37	PFM4004-17 60x16mm Round Plastic Bushing 2
38	PFMCB804DX-10 Wheel		2
39	FMAD614AB-22	25mm Large Round Inner Cap	6
40	FMAD614AB-23	Bolt Cover Cap	8
41	FMAD614AB-24	P P ull Pin	1
42	FMAD614AB-25	Pop Pin	1
43	FMAD614AB-26	Olympic Sleeve	1
44	FMAD614AB-27	2" Spring Clip	1
45	PFMS80WA-29	1" Spring Clip	1
46	FMAD613-06	M10 Spring Washer	13
47	FMAD613-07	M8 Spring Washer	10
48	PFMALLEN	Allen Wrench	2

For product information or service please contact:

UK:

RFE Europa Ltd. 8 Clarendon Drive, Wymbush, Milton Keynes, MK8 8ED.

Customer Service: Tel: [phone]

Email: [e-mail]

Europe:

Email: [e-mail]

Spain:

Email: [e-mail]

APAC (excluding Australia):

RFE Asia Pacific, 2608-1609, 1 Hung To Road, Kwun Tong, Kowloon, Hong Kong.

Customer Service: Tel: [phone]

Email: [e-mail]

Australia:

Email: [e-mail]

USA:

RFE Sporting Goods Inc., 1300 Smith Road, STE 104, Austin, Texas, 78721, USA.

Customer Service: Tel: [phone]

Email: [e-mail]
