ZH550T-B - Projector OPTOMA - Free user manual and instructions

Product type	DLP laser projector
Model	ZH550T-B
Brand	OPTOMA
Brightness	5500 ANSI lumens
Native resolution	WUXGA (1920 x 1200)
Contrast ratio	300,000:1
Light source	Laser (lifespan up to 20,000 hours)
Dimensions (W x D x H)	33.7 x 28.7 x 12.6 cm
Weight	5.3 kg
Power supply	100-240 V AC, 50/60 Hz
Power consumption	480 W (normal mode), < 0.5 W (standby)

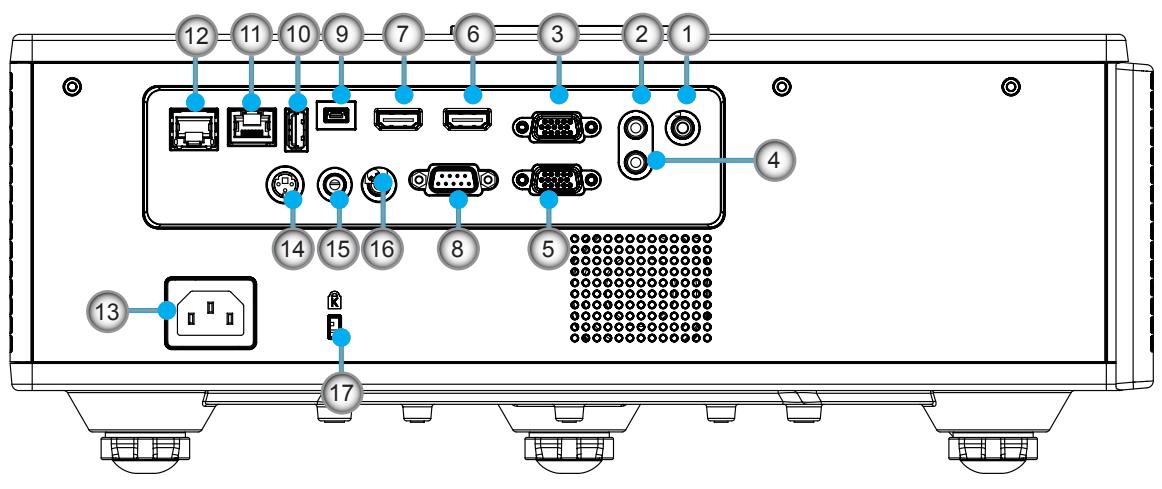

Video inputs	HDMI (x2), VGA, Composite, S-Video
Audio inputs	Line input (3.5 mm)
Outputs	Audio output 3.5 mm, RS-232, USB (service)
Key features	Vertical and horizontal keystone correction, 1.6x zoom, manual focus, 3D Ready
Maintenance and cleaning	Clean the air filter every 500 hours approximately; dust the lens with a soft cloth.
Security	Kensington lock, auto power off, password
Spare parts and repairability	Laser not user-replaceable; air filter and lamp (compatible with replacement lamp model)
General information	Professional projector for meeting rooms, education, or home cinema

Frequently Asked Questions - ZH550T-B OPTOMA

What is the lifespan of the laser light source?

The laser light source of the OPTOMA ZH550T-B has a typical lifespan of 20,000 hours in normal mode, reducing maintenance costs.

How do I clean the air filter?

Turn off the projector and unplug it. Remove the filter cover, take out the filter and clean it with a vacuum or warm water. Let it dry completely before reinstalling. Replace the filter every 500 hours approximately.

What is the maximum supported resolution?

The projector has a native resolution of WUXGA (1920x1200) and can accept signals up to 4K UHD (3840x2160) via HDMI.

Can I use this projector for a home cinema?

Yes, with its brightness of 5500 lumens and high contrast, it is suitable for dark rooms or controlled ambient light. It also supports 3D (requires active glasses).

How do I correct keystone distortion?

Use the keystone correction buttons on the control panel or in the OSD menu. The ZH550T-B offers vertical and horizontal correction up to 30°.

Does the projector have a built-in speaker?

Yes, it is equipped with a 10-watt mono speaker for basic sound. For a better experience, use the audio output to connect external speakers.

What cables are included in the box?

The box usually contains: a power cable, a VGA cable, an HDMI cable, a 3.5 mm audio cable, and the remote control with batteries. Check the list in the manual.

How do I replace the lamp?

The ZH550T-B uses a laser source, but has a replacement lamp (model BL-FU240A). To replace, turn off and unplug, open the side compartment, remove the old lamp and insert the new one without touching the glass.

Is it compatible with a wall or ceiling mount?

Yes, the projector has mounting points for a ceiling mount (VESA 200x100 standard). Use a suitable mounting kit and ensure the mount supports the weight of 5.3 kg.

What should I do if the projector does not turn on?

First check the power cable and socket. If the power light is flashing, wait a few minutes for the laser to cool down. Refer to the troubleshooting section of the manual for error codes.

USER MANUAL ZH550T-B OPTOMA

Line drawing of a rectangular electronic device with ventilation slots and a coiled cable (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ ....3

COMPLIES WITH 21 CFR 1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE No. 50, DATED JUNE 24, 2007. IEC/EN 60825-1:2007

LASER RADIATION DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT WAVE LENGTH: 450-460 nm / MAX OUTPUT: 15.9 mW / PULSE DURATION: 1.25 ms IEC 60825-1:2014 CLASS 1 LASER PRODUCT / RISK GROUP 2 Possibly hazardous optical radiation emitted from this product. Do not stare into the beam, May be harmful to the eyes.

IEC 60825-1:2007 2类激光产品

激光辐射 不要凝视激光束2类激光產品。

Diagram of a cable VGA connector with coiled cable and connectors (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with circular components and mounting base (no text or symbols)

Non	Item
5.	Câble Microphone
6.	Câble RJ-45 (Câble Cat5)
7.	Jack 12 V DC

Remarque :
