Product Type	Laser projector
Brand	OPTOMA
Model	ZH550T
Display technology	DLP
Native resolution	WUXGA (1920 x 1200)
Brightness	5,500 ANSI lumens
Contrast	300,000:1
Light source life	Up to 30,000 hours
Power supply	100-240 V AC, 50/60 Hz
Power consumption	360 W (max)
Weight	Approximately 7.5 kg
Dimensions (L x D x H)	424 x 343 x 165 mm
Main features	Laser projection, keystone correction, motorized zoom, networking, HDBaseT compatible
Maintenance and cleaning	Clean the air filter every 500 hours, use a soft dry cloth for optics
Security	Kensington lock, password start
Spare parts and repairability	Bulb not applicable (laser), replaceable filters, fans
General information	3-year warranty on parts and labor

Frequently Asked Questions - ZH550T OPTOMA

How to turn on the ZH550T projector?

Plug in the power cord, then press the Power button on the control panel or remote control. The LED indicator turns green.

How to clean the air filter?

Turn off and unplug the projector. Remove the filter cover, take out the filter and clean it with a vacuum cleaner or water (let it dry completely before putting it back). Replace it every 500 hours of use.

The LED lamp does not turn on, what to do?

Check that the power cord is properly plugged in and that the outlet works. If the power indicator flashes red, consult the error code in the manual. A reset may be necessary via the menu.

How to connect an HDMI device?

Use a standard HDMI cable. Connect one end to the projector (port HDMI 1 or HDMI 2) and the other to your source (PC, set-top box, etc.). Then select the corresponding input in the Source menu.

How to adjust focus and zoom?

Use the focus ring and the zoom ring on the lens. For motorized zoom, use the Zoom buttons on the remote control or control panel.

The image is distorted, how to correct it?

Enable automatic keystone correction via the Display menu or use manual sliders to adjust horizontal and vertical. You can also move the projector so that it is perpendicular to the screen.

How to use the network function (HDBaseT)?

Connect a Cat6 cable between the projector and a compatible HDBaseT transmitter. Select the HDBaseT input in the source menu. Make sure the distance does not exceed 100 meters.

The menu is in English, how to change it to French?

Press the Menu button on the remote control, go to Language, select French and confirm with Enter.

How to replace the air filter?

Obtain a replacement filter specific to the ZH550T. Turn off the projector, unplug it, open the filter compartment, remove the old filter and insert the new one. Close the cover and reset the filter counter in the Maintenance menu.

The projector overheats and shuts down, what to do?

Check that the air intakes and filter are not blocked. Clean the filter if necessary. Make sure there is sufficient ventilation around the projector (at least 30 cm of free space). If the problem persists, contact customer service.

USER MANUAL ZH550T OPTOMA

Line drawing of a rectangular electronic device with ventilation slots and a coiled cable (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ ....3

COMPLIES WITH 21 CFR 1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE No. 50, DATED JUNE 24, 2007. IEC/EN 60825-1:2007

LASER RADIATION DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT WAVE LENGTH: 450-460 nm / MAX OUTPUT: 15.9 mW / PULSE DURATION: 1.25 ms IEC 60825-1:2014 CLASS 1 LASER PRODUCT / RISK GROUP 2 Possibly hazardous optical radiation emitted from this product. Do not stare into the beam, May be harmful to the eyes.

IEC 60825-1:2007 2类激光产品

激光辐射 不要凝视激光束2类激光產品。

Diagram of a cable VGA connector with coiled cable and connectors (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with circular components and mounting base (no text or symbols)

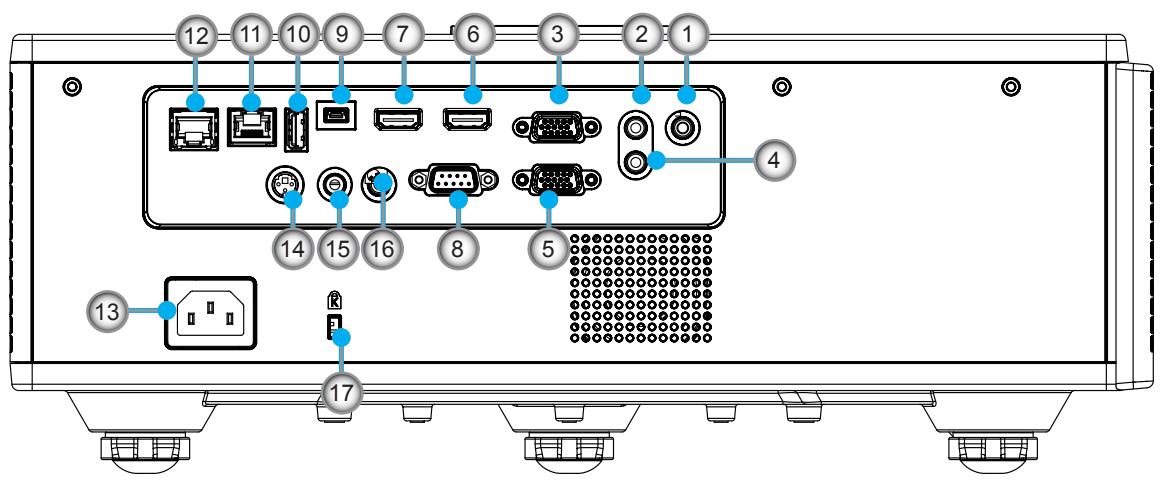

Non	Item
5.	Câble Microphone
6.	Câble RJ-45 (Câble Cat5)
7.	Jack 12 V DC

Remarque :

ANNEXES
