Product Type	Centrifugal Juicer
Brand	WestBend
Model	JC2009SV13
Dimensions (H x W x D)	16.5 x 9.1 x 12.6 inches
Weight	7.5 lbs
Power Rating	800 Watts
Voltage / Frequency	120V, 60Hz
Pulp Container Capacity	34 oz
Juice Jug Capacity	48 oz
Speed Settings	2 speeds (Low / High)
Feed Chute Width	3 inches (accommodates whole apples)
Safety Features	Safety locking arm, non-slip feet
Cleaning	Detachable parts are dishwasher safe (top rack)
Maintenance	Clean after each use; strainer brush included
Warranty	1 year limited

Frequently Asked Questions - JC2009SV13 WestBend

How do I assemble the WestBend JC2009SV13 juicer?

First, lock the pulp container into place. Insert the strainer basket, then attach the lid and secure it with the locking arm. Finally, place the juice jug under the spout.

What fruits and vegetables can I juice?

You can juice most fruits and vegetables, including apples, carrots, celery, oranges, and leafy greens. For leafy greens, roll them into a ball before feeding.

How do I clean the juicer?

Unplug the unit and disassemble all removable parts. Rinse them under running water immediately after use. The parts are dishwasher safe on the top rack. Use the included brush to clean the strainer basket.

Why is my juicer leaking?

Ensure the lid is properly locked and the pulp container is correctly seated. Also check that the juice jug is positioned under the spout and that the spout is open.

Can I juice frozen fruits?

Do not juice frozen fruits directly. Thaw them first. The juicer is designed for fresh produce only.

How do I use the variable speed settings?

Use Low speed for soft fruits like berries and tomatoes, and High speed for harder produce like apples and carrots.

How much pulp can the container hold?

The pulp container holds up to 34 oz. For continuous juicing, empty the pulp container when it reaches the max fill line.

Is the juicer BPA-free?

Yes, all plastic parts that come into contact with food are BPA-free.

Why is the motor overheating?

The motor may overheat if the juicer is used for extended periods without a break. Let it cool down for 15 minutes. Also, ensure the pulp container is not full, as back pressure can strain the motor.

Where can I find replacement parts?

Replacement parts, such as the strainer basket and pulp container, can be ordered from the WestBend website or authorized retailers. Use model number JC2009SV13.

USER MANUAL JC2009SV13 WestBend

Exterior view of a WestBend East Asian juice brush maker with control panel and beaker (no text or symbols on device)

Register this and other West Bend products through our website:

http://registerproducts.online

Product registration is not required to activate warranty.

Important Safeguards & Precautions for Use 2

Parts....3

Using your Cold Press Juicer 4

Maintenance for your Cold Press Juicer....6

Safety/Product Information 7

Troubleshooting 7

Warranty 8

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

• Read all instructions.
• To protect against risk of electrical shock do not put the plug, power supply cord and the driving body in water or other liquid.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities; or a lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Do not let children use machine without adult supervision to ensure that they do not play with the appliance.
• Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
• Avoid contacting moving parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Contact the manufacturer at their customer service telephone number for information on examination, repair, or adjustment.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
• Do not use outdoors.
• Do not let cord hang over table edge or counter.
• For household use only.
• Save these instructions.

PRECAUTIONS FOR SAFETY USE

• Input voltage of this product is AC120V 60Hz.
• Be sure to disconnect power supply before taking apart or packing this product.
• This product has a Y connection. If power supply cords are damaged, please contact Customer Service. Be sure not to take apart or repair by yourself.
• Before switching on the power, please make sure that the removable parts are fully installed, such as the juicing body, auger, fine strainer, juicing body cover, etc.
• Before use, please check the power cord, plug, fine strainer, auger, juicer body and other parts for any damage. Do not use the product if any damage is found. Contact our customer service department.
• During operation, do not put fingers or sharp objects directly in contact with rotating parts such as the auger, etc.; do not use any object to replace the pusher. Keep eyes away from close contact with the juicer.
• The ingredients should be cut into small pieces so that they can be put into the inlet of the juicing body. Remove any seeds, thick skin or hard shells before processing.
• Do not force ingredients through the juicer. If they do not go easily through the chute, cut them into smaller pieces and try again.

• It is normal for the fine strainer, juicing body cover, auger and other parts to be stained after juicing certain fruits and vegetables. It does not affect the quality of the food or be harmful.

• The product is equipped with an intelligent protection chip, for automatic shutoff after 20 minutes of continuous work. After automatic shutoff wait 20-30 minutes to cool the unit before using again. This method is conducive to extending the service life of the product.

• The product has a current limiting design. When processing harder ingredients, the motor go into locked-rotor mode and the current will increase. Should the current exceed 2A, the machine will make a "tick" sound and the motor will shut down. This protects the motor from over-heating and extends the service life of the motor.
• If the motor stops automatically due to current limiting protection or locked-rotor during operation the motor should be allowed to cool. After cooling set the power switch to "REV" state, and the ingredients should be withdrawn. It is recommended to use "REV" to clean up the ingredients in the auger before continuing use. This method is to protect the motor. After cleaning shut the machine and let it cool prior to using again.
• After use, please wait until the motor and auger stop rotating and make sure that the power is disconnected before removing the removable parts of the machine.
• Do not use hot water over 176°F/80°C or a microwave oven to clean any part of your juicer. Parts and materials in contact with food ingredients are in line with food hygiene certification, clean, hygienic and reliable.
• Do not use steel wool, abrasive cleaner or corrosive liquid (e.g. petrol or acetone) to wash this product.
• This product is only applicable to individual or home application.
• This product is a Class I appliance. The grounding wire of the socket must be well grounded.
• If this product needs to be repaired in the course of use, please contact our Customer Service Department. Be sure not to take apart or repair the product by yourself to avoid risks and void the warranty.

SAVE THESE INSTRUCTIONS

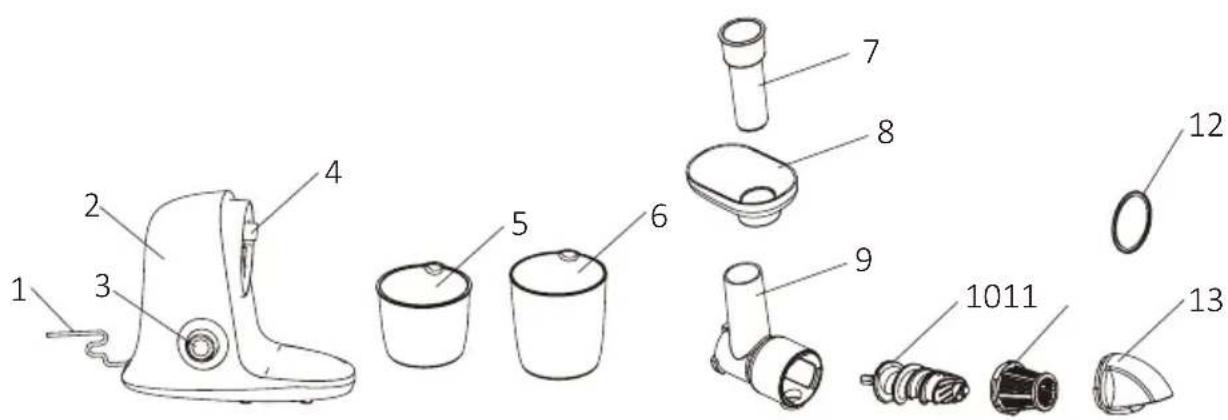

PARTS

Reference	Part	Function
1	Power Line	Used to power on and provide power.
2	Juicer Body	The main parts of the machine, including the motor and other parts.
3	Power Switch	Controls the machine's operation.
4	Button	Used to lock the juicing body and prevent loosening from the machine during operation. To remove the juicing body from the machine body, press and hold the button.
5	Juice Cup	Catch and collect juice.
6	Pulp Cup	Catch and collect pulp.
7	Pusher	Gently pushes the ingredients so that they are in full contact with the auger for juicing efficiency.
8	Hopper	Area where juice ingredients are placed.
9	Drum & chute	Main parts of the juicer components.
10	Auger	Grinds and squeezes the ingredients together through the strainer to make juice.
11	Fine Strainer	Filters the juice.
12	Joint	Joint between the juicing body and the cover.
13	Cover	Connects juicing components.

USING YOUR COLD PRESS JUICER

Please check all packaging material carefully before discarding. Many accessory parts are contained within the packaging material.

Wash the juicer components thoroughly before using.

Refer to the maintenance section in this manual.

1		Connect the juicing body to the machine body:1. Align the central position of the drum/chute with the juicer body.2. Then rotate counterclockwise, and when you hear a "click" sound, the drum/chute is fully connected.
2		Align the auger with the hole in the machine body and push it gently to attach.
3		Align the larger end of the fine strainer in from the end of the auger, and line up the three fasteners of the fine strainer to the three fastening slots in the drum/chute.
4		Line up the three fastening slots on the drum/chute with the three fastening slots on the juicing body, push into place, and then rotate counterclockwise to tighten.
5		Place the juice cup next to the machine body so that it aligns with the juice mouth to catch juice as it is extracted.
6		Put the pulp cup under the pulp outlet of the juicing body, close to the juice cup to catch pulp as it is extracted.
7		Place the hopper on onto the chute.The hopper makes feeding ingredients more convenient such as small items like grapes, strawberries, etc.
8		Plug the machine into the outlet. (Make sure the switch is off before plugging in.)
9		Wash the fruits and vegetables, cut them into pieces that can be put into the feed chute Remove seeds and thick or hard peels.Note: Fruits such as sugar cane, guava, and mango cannot be juiced with this machine.
10		Turn the switch to “ON” to begin juicing.Do not touch the power switch or plug with wet hands to avoid electric shock.
11		Using the Pusher feed the ingredients through the chute. Only use gentle pressure when pushing ingredients through chute. Do not force. (Don't put your fingers or other objects into the feed chute!) If the pulp cup or juice cup is full stop the machine and empty and then begin again.
12		When the ingredients are processed and there is no more juice flowing out of the juicing nozzle of the juicer, turn the power switch to “OFF” and disconnect the power.

1. Before washing this product, be sure to turn off the switch and disconnect the power supply.
2. Wash this product after right after use to prevent buildup on parts.
3. The juicer body must not be washed with water. Wipe with a damp cotton cloth.
4. Please make sure the product is clean and dry before storage.

Please refer to the following steps to disassemble the juicer and then clean:

1		Take the pusher and the hopper first.
2		Hold the button near the juicing body down, and at the same time rotate the juicing body clockwise to take the drum/chute off. If the button is not pressed, the drum/chute cannot be taken off.
3		Next remove the fine strainer and the auger off in proper order as shown.Removable parts can be cleaned with clear water.

This appliance has no user serviceable parts.

SAFETY/PRODUCT INFORMATION

Rated voltage	120V
Rated power	150W
Rated frequency	60Hz
Continuous Working Time	≤10 minutes
Interval Working Time	≥20 minutes

TROUBLESHOOTING

Issue	Possible Causes	Suggested Resolution
The power does not turn on	1. The power plug is not plugged in properly.2. The outlet is not working.3. The internal cable of the main unit is off or the circuit board is damaged.	1. Try unplugging and re-plugging the plug back in. Also try plugging it into a different outlet.
There is a smell during first use	There is no problem.	It is common for the machine to possibly have an odor when first plugged in during first use. If this occurs with subsequent uses be sure that the parts are well cleaned and there is no residue.
The machine stops working during use	1. The voltage is too low2. Excessive or hard ingredients being forced through the chute.3. The continuous working time is too long.	1. Check the voltage.2. Disconnect the power and remove the excess ingredients.3 The motor will resume operation after a break to cool down.
The machine is making noise	1. The auger and fine strainer are not fully installed, resulting in unsteady operation.2. Too many ingredients being fed through chute at one time straining the motor.	1. Fully install the auger and fine strainer.2. Remove excess ingredients.3. Shut machine and let it cool down.
The drum/chute are difficult to remove.	1.There is residue on the surface of the juicer body or drum/chute.2. The ingredients are not fully juiced.	1. Clean the surface of the juicing body and drum/chute.2. Continue to juice all ingredients or turn the power switch to REV for a few seconds to rotate the ingredients out of the juice strainer.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

West Bend ^® (“the Company”) warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided that the appliance is operated and maintained in conformity with the Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at the Company’s discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by the Company, if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Customer Care Department through our website at www.westbend.com "Support" – > "Contact Us". A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered online at www.westbend.com.

This manual contains important and helpful information regarding the safe use and care of your product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift: ____

Where purchased and price, if known: ____

Item number and Date Code (shown bottom/back of product):

English - 8
