| Product Type | Tower Heater with Oscillation |
| Brand | Lasko |
| Model | AW310 |
| Dimensions (approx.) | 9.5 x 9.5 x 22 inches |
| Weight (approx.) | 8.5 lbs |
| Power Source | 120V AC, 60Hz |
| Wattage (estimated) | 1500W (High) / 750W (Low) |
| Heat Settings | 2 (HI/LO) |
| Thermostat | Yes, automatic with adjustable temperature |
| Timer | 1 to 8 hours (1 hour increments) |
| Oscillation | Yes, with on/off button |
| Remote Control | Yes (requires 2 AAA batteries, not included) |
| Filter Type | Permanent, washable (EZclick system) |
| Cleaning | Vacuum filter every two weeks; clean body with soft cloth |
| Safety Features | Overheat protection, polarized plug |
| Auto-Dimming Display | Yes, dims 40% after 10 seconds of inactivity |
| Warranty | 3 years limited |
| Customer Service | 1-800-233-0268 (Mon-Fri, 8AM-5PM EST) |
| Intended Use | Residential supplemental heating only |
| Not For | Bathrooms, outdoors, agricultural or hazardous locations |
Frequently Asked Questions - AW310 Lasko
User questions about AW310 Lasko
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heating in PDF format for free! Find your manual AW310 - Lasko and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AW310 by Lasko.
USER MANUAL AW310 Lasko
This Heater is intended for use as supplemental heat.
This Heater is for residential use only.
It is not intended to be used in commercial, industrial or agricultural settings.
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE,
INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
Have a Question? Need a Part?
Please Do Not Return Product to Store!
Contact Lasko Customer Service:
1-800-233-0268 Monday-Friday 8AM - 5PM EST.
(VALID IN THE USA, ITS TERRITORIES, AND CANADA ONLY)
WARNING
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, these instructions and warnings should always be followed to reduce the risk of fire, electrical shock and injury to persons:
Read all instructions before using this Heater.
WARNING
- PLUG HEATERS DIRECTLY INTO A 120V WALL OUTLET/RECEPTACLE ONLY. NEVER USE WITH AN EXTENSION CORD. DO NOT PLUG HEATER INTO ANY OTHER CORD CONNECTED DEVICE, SUCH AS A POWER STRIP, SURGE PROTECTOR, MULTIPLE OUTLET ADAPTER, CORD REEL OR OUTLET-TYPE AIR FRESHENER, THE USE OF SUCH DEVICES MAY CREATE A FIRE HAZARD. DO NOT PLUG MULTIPLE DEVICES IN THE SAME OUTLET OR ON SAME CIRCUIT AS HEATER.
- FAULTY WALL OUTLET CONNECTIONS MAY CAUSE THE WALL OUTLET TO OVERHEAT. BE SURE THAT HEATER PLUG FITS TIGHTLY INTO OUTLET BEFORE EACH USE. DURING USE. CHECK TO MAKE CERTAIN THE HEATER PLUG IS NOT OVERHEATING. IF NECESSARY HAVE A QUALIFIED ELECTRICIAN CHECK AND/OR REPLACE THE WALL OUTLET. DO NOT USE THIS HEATER WITH ANY SOLID STATE SPEED CONTROL DEVICES.
- Make certain that the power source conforms to the electrical requirements of the Heater.
- Extreme caution is necessary when any heater is used by or near children or invalids. The heater should not be left operating unattended. Never leave children unattended when the heater is on or plugged in.
- This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit contact a qualified electrician. Do not attempt to defeat this safety feature.
- DO NOT use the Heater in areas where gasoline, paint, or flammable liquids are used or stored. DO NOT use Heater in locations where flammable or explosive chemicals are stored, or in wet atmospheres.
- Do not operate any Heater with a damaged cord or plug or after the Heater malfunctions, or has been dropped or damaged in any manner. To disconnect Heater, turn the Heater OFF then remove the plug from the outlet.
• Always unplug Heater when not in use. Unplug power cord before servicing or moving the Heater. - Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock, fire, or damage the Heater. Do not block or tamper with the Heater in any manner while it is in operation.
- Do not block air intakes or exhaust in any manner. Do not place on soft surfaces, like a bed, where openings may become blocked. Do not depend on the on/off switch as the sole means of disconnecting power when servicing or moving the heater. Always unplug the power cord.
CAUTION
- Always place the Heater on a stable, flat, level surface when operating, to avoid the chance of the Heater overturning. Locate the Power Cord so the Heater or other objects are not resting on it. DO NOT run Power Cord under carpeting. DO NOT cover Power Cord with throw rugs, runners, or similar coverings as this may cause cord to overheat. Arrange Power Cord away from room traffic and where it will not be bounded rear.
- This Heater is HOT when in use. To avoid burns, do not let bare skin touch hot surfaces. Always use handle when moving this Heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9 m) from the front of the Heater and keep them at least 1 foot (0.3 ml from the sides and rear).
- This Heater is not intended for use in wet or damp locations. This Heater is not intended for use in bathrooms, laundry areas and similar indoor locations. NEVER locate a Heater where it may fall into a bathtub or other water container.
• DO NOT use Heater outdoors. - This Heater is not suitable for use. In agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric Code (NEC) Article 547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for Agricultural Buildings. THIS HEATER DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008).
- This Heater is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for Hazardous locations. THIS HEATER DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008).
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These equipment is not suitable for any use of the equipment or any other electronic device. The equipment is designed to be rated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio communication, it is necessary to ensure that the equipment is being turned out. On, the equipment is only available by one or more of the following measures: • Reorient or relevant to the equipment in an antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio equipment is also known as the devices that changes and modifications made to the equipment without the approval of manufacturer(s) could be used as a user's authority to operate this equipment.
Please contact Customer Service at 800-233-0288 Monday through Friday from 8am to 5pm EST for assistance.
SAVE THESE INSTRUCTIONS
NEW 6/18 2 AW310ES
MODELO AW310
FUNCIONAMIENTO
-
Carefully remove the Heater from the bag and the carton.
Place the Heater on a firm, level surface. Plastic or rubber tabs, like the feet on this unit, may stick to furniture surfaces and/or hardwood floors. The unit may leave a residue that could darken, stain or leave permanent blemishes on the finish of certain furniture surfaces, including wood surfaces, and/or hardwood floors. -
Plug the cord set into a 120 volt outlet.
⚠ WARNING Be sure that the plug fits tightly into outlet.
When plugs fit loosely into receptacles, they may slip partially or completely out of the receptacle with only the slight movement of the attached cord. Receptacles in this condition may overheat and pose a serious fire hazard; if covered by a curtain or drape, the fire hazard is even greater.

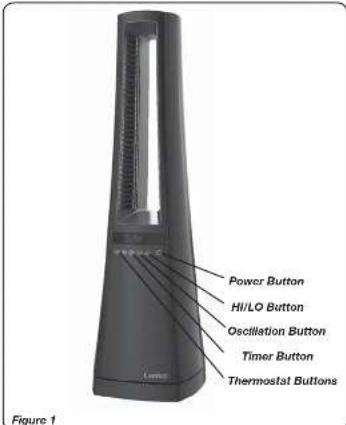

- Press the Power Button (①) to turn the Heater ON. The unit will turn on in HI Heat mode by default. Press the Power Button again to turn the Heater OFF.
- The HI/LO Button (↓↓) controls the current Heat Mode. Press the button once for LO Heat Mode. Press the button again to switch to HI Heat Mode.
- Press the Oscillation Mode Button (☐) to begin Oscillation. Press the Oscillation Mode Button again to stop Oscillation.
- Timer Mode allows you to set the length of time the Heater will run before turning itself off. Pressing the Timer Button (9/1) will increase the length of time from 1 to 8 hours, in 1 hour increments. Pressing the button again will turn off Timer Mode. After a few seconds, the unit will display the current temperature, as well as the Timer symbol.
- The Automatic Thermostat Control allows the Unit to Shut off once the room reaches the desired temperature. Press the Thermostat Control Buttons (☑/☑) to Increase or Decrease the preferred room temperature. After a few seconds, the unit will display the current temperature, as well as the Automatic Thermostat symbol.
AUTO-DIMMING FEATURE
The illuminated controls will go into Auto-Dimming Mode 10 seconds from the time the last button is pushed. The reduction in brightness will keep the room darker during heater use. Once the controls are touched, the display will return to the original brightness. The Auto-Dimming Feature reduces the display brightness by 40% .
REMOTE CONTROL (Figure 2)
All the functions performed with the Remote Control work identically to the EZtouch ^™ Controls. Remove screw on battery cover before you install the two "AAA" batteries (not included). Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), rechargeable (nickel-cadmium) or lithium ion batteries. Replace screw on battery cover.
If you lose your remote control, please call Customer Service to order a replacement at 1-800-233-0268, Monday through Friday, between the hours of 8:00 a.m. and 5:00 p.m. EST.
EZclick™ FILTER SYSTEM (Figure 2)
Press the EZclick™ Filter button to release the cover for the permanent filter. Clean the filter with a vacuum equipped with a brush attachment every two weeks; this will help to maintain the optimum filter performance. Remember to clean the filter before storing at the end of the season.
NEW 6/18 3 AW310ES
MODEL AW310
SAFETY FEATURE
- A thermal overload protector is built in to prevent overheating.
- If an overheat temperature is reached, the Heater will automatically shut off. It can only resume operation when the user resets the unit.
To Reset Heater: - Unplug the Heater and wait 10 minutes for the Heater to cool down.
- After the Heater has cooled down, plug the unit into a 120V-electrical outlet and follow the operation instructions described in this manual.
TROUBLE SHOOTING TIPS
If your heater shuts off unexpectedly or fails to operate, the previously mentioned safety feature may have been activated to prevent overheating.
1. Be sure the power cord is plugged into a working electrical outlet.
2. Check your Temperature setting. The Heater may be off because it has reached the desired temperature setting.
3. If your Heater runs for several minutes and shuts off repeatedly, your Heater may require cleaning. See Maintenance section below.
If you have a problem that can not be resolved by the steps listed above, contact Technical Assistance at 1-800-233-0268, Monday through Friday, between the hours of 8 a.m. and 5 p.m. EST.
MAINTENANCE
⚠ WARNING
To reduce the risk of electrical shock and fire please observe the following instructions. Cleaning the Heater regularly will help to maintain its efficiency.
- Always unplug the cord before moving, servicing or cleaning.
- NEVER place the Heater in or near water. DO NOT IMMERSE HEATER IN WATER.
- Clean the Heater only with a vacuum equipped with a brush attachment; the vacuum will remove the lint and dirt from the surface of the Heater.
- Vacuum intake grills every two weeks; this will help to maintain the optimum Heater performance.
- Use a toothbrush or other soft bristle brush to gently loosen any dirt not removed by the vacuum.
- NEVER attempt to take apart the Heater.
- Clean the body of the Heater with a soft cloth only.
- NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.
SERVICING: For servicing, other than general user maintenance, please contact Customer Service at 800-233-0268, Monday through Friday, from 8am-5pm Eastern.
STORAGE: Store the Heater with these instructions in the original carton in a cool, dry place.
DISPOSITION: Corrugated packaging materials are recyclable. For environmentally responsible disposal of this product, contact your local waste service provider or visit www.1800recycling.com ^4 .
LASKO PRODUCTS, LLC LIMITED WARRANTY (VALID IN THE USA, ITS TERRITORIES, AND CANADA ONLY)
WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials.
HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for three (3) years from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.
WHAT LASKO WILL DO: Lasko will, at its sole option, repair or replace any part or parts that proves to be defective or replace the whole product with the same or comparable model. For all warranty claims, the product must be returned to Lasko Products, LLC at customer expense with proof of purchase within the warranty period. Contact the Lasko customer service department to obtain a Return Authorization ("RA"). DO NOT return products without an RA or the warranty claim will not be processed.
WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted, of the use of the product for commercial or nonresidential service. This warranty does not cover shipping costs for the return of products to Lasko for repair or replacement. Lasko will pay return shipping charges from Lasko following warranty repairs or replacement.
ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST THREE YEARS FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT Sells OR TRANSFERS THE PRODUCT, WHICHEVER FIRST OCCURDS AND IN NO EVENT SHALL LASKO'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACEMENT OR REPAIR OF ANY HOUSE FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL BE PRACTISED, OR USED IN ANY INFORMATION TO THE SALE OF THIS WARRANTY SHALL EXPIRELY WITHOUT THE PURCHASE PRICE OF THE PRODUCT AND ANY SUSY LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD.
Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province.
Proof of purchase is required before a warranty claim will be accepted.
CUSTOMER SERVICE:
Toll-Free (800) 233-0268. Email: producthelp@laskoproducts.com
Our Customer Service team is available to assist you with product and service questions, and replacement parts. They can be reached Monday through Friday, 8am-5pm Eastern. Please have your model number available, as well as the type and style
(located on the underside of your product).
Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380
(Please do not send product to this location) www.laskoproducts.com
PARTS FOR DISCONTINUED, OBSOLETE AND CERTAIN OTHER PRODUCTS MAY NOT BE AVAILABLE. DUE TO SAFETY REASONS, MANY ELECTRONIC COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO CONSUMERS FOR INSTALLATION OR REPLACEMENT. Manual printed in China
