SU2025B - Car kit Scosche - Free user manual and instructions

Product Type	In-dash Stereo Installation Kit
Brand	Scosche
Model	SU2025B
Compatibility	2005-up Subaru Legacy/Outback (non-sport model)
Installation Type	DIN ISO Mount and Double DIN ISO Mount
Included Components	6552 Pocket, 6563 Stereo Mounting Panel, SU03B Wiring Harness, Mounting Screws
Material	High-grade ABS Plastic
Color	Black
Mounting Method	Reuses factory side brackets with provided panel
Vehicle Features Retained	Factory A/C controls, emergency switch, shifter surround panel
Safety	Requires disconnecting negative battery terminal; avoid airbag wiring
Tools Required	Panel removal tool, Phillips head screwdriver
Wiring Recommendation	Use volt/ohm meter instead of test light to prevent electrical damage
Additional Notes	Rear support available separately for structural integrity
Included Hardware	Screws for mounting panel and pocket (see manual for quantities)
Adapter/Harness	SU03B wiring harness for 1993-up Subaru vehicles
Weight	Approx. 0.5 lbs (packaged)
Dimensions	Pocket: approx. 7.0 x 2.0 x 3.5 inches; Panel: approx. 7.0 x 4.5 x 0.5 inches
Installation Difficulty	Moderate (requires disassembly of dashboard panels)
Warranty	Not specified in manual; contact Scosche

Frequently Asked Questions - SU2025B Scosche

What vehicles is the Scosche SU2025B compatible with?

The SU2025B is designed for 2005-up Subaru Legacy and Outback models (non-sport). It fits both sedan and wagon versions. Not compatible with sport model or other Subaru models without modification.

Does the kit include a wiring harness?

Yes, it includes the SU03B wiring harness for easy connection to the factory wiring. The harness is compatible with 1993-up Subaru models. Always check the factory wiring codes at www.scosche-cars.com.

Is the SU2025B compatible with double DIN stereos?

Yes, the kit supports both single DIN (DIN ISO mount) and double DIN ISO mount installations. Refer to the manual for specific steps for each type.

Do I need special tools for installation?

Basic tools are required: a panel removal tool (or trim tool) and a Phillips head screwdriver. A volt/ohm meter is recommended over a test light for wiring. No specialized tools are needed.

How do I remove the factory stereo?

Follow the step-by-step instructions in the manual: pry off the shifter surround panel, remove side panels (1 screw each), unclip the A/C control cable, remove 6 Phillips screws securing the stereo, unplug connectors, and remove the factory stereo. Always disconnect the negative battery terminal first.

Does the installation require cutting or modifying the dashboard?

No, the kit is designed as a direct replacement using existing factory brackets and screws. No cutting or drilling is required. However, you must reuse factory side brackets from the original radio and A/C controls.

Is rear support necessary for the stereo?

The manual notes that rear support is available separately and adds structural integrity. It is optional but recommended for heavier aftermarket stereos to prevent vibration.

What safety precautions should I take during installation?

Always disconnect the vehicle's negative battery terminal before starting. Avoid all factory airbag wiring to prevent accidental deployment. Use a volt/ohm meter instead of a test light to check wiring to avoid damaging the vehicle's computer.

Can I paint the kit components to match my interior?

The kit is made of black ABS plastic. It can be painted with plastic-compatible paint if desired. Lightly sand the surface and use a primer designed for plastics. However, Scosche does not provide painting instructions.

Where can I find the factory wiring codes and additional support?

Factory wiring codes are available at www.scosche-cars.com. For technical support, call Scosche's toll-free help line: 1-800-621-3695 x3. The manual also includes a liability disclaimer.

USER MANUAL SU2025B Scosche

IN-DASH STEREO INSTALLATION KIT FOR 2005-UP SUBARU LEGACY/OUTBACK (NON-SPORT MODEL)

INTRODUCTION / PRELIMINARY

This premium installation kit is for 2005-Up Subaru Legacy/Outback vehicles. Included are all the parts you need to mount your car stereo or CD player into your vehicle's dash. Refer to the individual instruction in this manual to remove your vehicle's factory radio and assemble the kit.

CAUTION

DISCONNECT YOUR VEHICLE'S NEGATIVE BATTERY TERMINAL BEFORE THE INSTALLATION TO HELP PREVENT ELECTRICAL DAMAGE. WE RECOMMEND THE USE OF A VOLT/OHM METER OVER A TEST LIGHT TO CHECK WIRING. A TEST LIGHT OR GROUNDED WIRE PROBE CAN CAUSE DAMAGE TO THE VEHICLE'S COMPUTER AND/OR DIAGNOSTIC SYSTEMS. AVOID ALL FACTORY AIRBAG WIRING - AIRBAGS CAN ACCIDENTALLY DEPLOY CAUSING SERIOUS INJURY OR DEATH.

NOTES

• See your vehicle's instructions for any special tools your installation might require.
• Read all instructions accompanying your car stereo for proper wiring and mounting instructions.

FACTORY WIRING CODES

For Factory Wiring Codes go to: www.scosche-cars.com

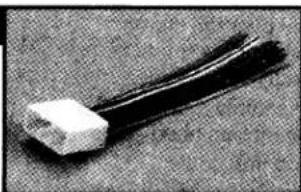

CAR STEREO CONNECTORS

PROVIDE EASY CONNECTION OF YOUR CAR STEREO TO FACTORY WIRING HARNESS.

SU03B

1993-Up Subaru

Close-up of a small white object with a rectangular base and elongated shaft, resting on a textured surface (no text or symbols visible)

LIABILITY DISCLAIMER

This instruction booklet is based on carefully documented data and research of automobile dash disassembly, wire harness/codes and information pertaining to installation of this kit (SU2025B) in 2005-Up Subaru Legacy/Outback vehicles. Scosche Industries, Inc. can not be held responsible for discrepancies/inconsistencies that may occur due to the automobile manufacturing changes or options, or damage that may occur in the automobile during the installation of components while using this booklet.

If you have any further questions, call our toll free technical help line at: 1-800-621-3695x3

FACTORY STEREO REMOVAL

2005-UP SUBARU LEGACY/OUTBACK

1. Using a panel removal tool, pry off the entire panel that surrounds the shifter.
2. Remove the (1) Phillips head screw from each side panel, and remove the side panels.
3. Unclip the A/C control cable from behind the pocket above the stereo. This can be accessed from under the dash, to the right of the steering column.
4. Remove the (6) Phillips head screws securing the stereo to the dash. Save these screws, they will be used to install the new kit panel.
5. Unplug connectors and remove the factory stereo.
6. Unplug the emergency switch and remove the (2) screws securing it to the stereo. Save these screws, they will be used to install the new kit panel.
7. Remove the (4) screws securing the A/C controls to the factory side brackets, and remove the A/C controls. Save these brackets and screws, they will be used to install the new kit panel.
8. Unscrew and remove the factory side brackets from the factory radio. Save these brackets and screws, they will be used to install the new kit panel.

MOUNTING THE STEREO

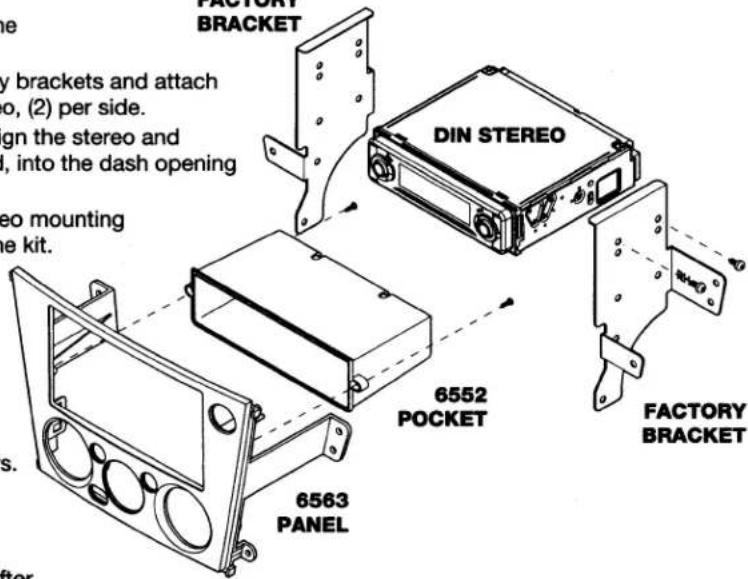

DIN ISO MOUNT

1. Re-attach the factory side brackets to the A/C controls using the original screws.
2. Slide the new stereo between the factory brackets and attach using the screws supplied with the stereo, (2) per side.
3. Plug in connectors, then position and align the stereo and A/C controls, with the brackets attached, into the dash opening (Do not attach with screws yet).

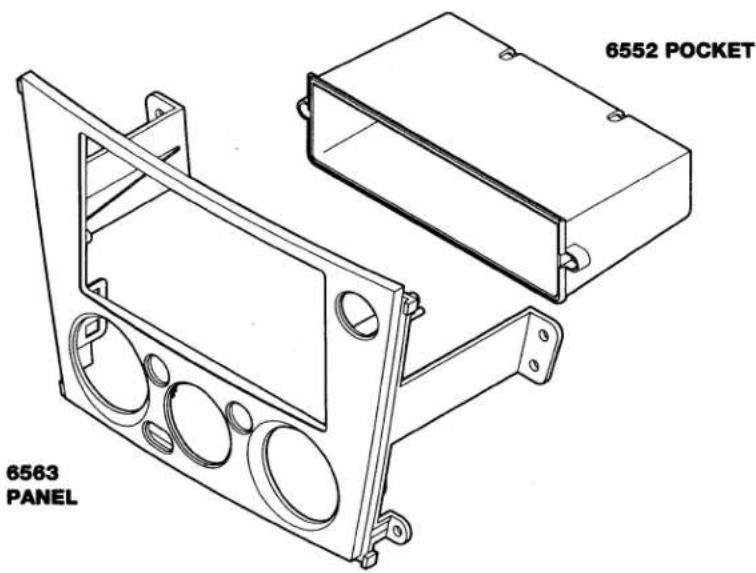

4. Attach the 6552 pocket to the 6563 stereo mounting panel, using the screws provided with the kit.
5. Attach the emergency switch to the 6563 panel using the original screws.
6. Snap the 6563 panel with 6552 pocket attached, over the stereo and A/C controls. Make sure the AC controls snap correctly to the panel.
7. Secure the panel assembly to the dash using the (6) original Phillips head screws.
8. Re-attach the A/C control cable.
9. Snap on the side panels and re-attach with the original screws.
10. Snap in the panel that surrounds the shifter.

FACTORY BRACKET

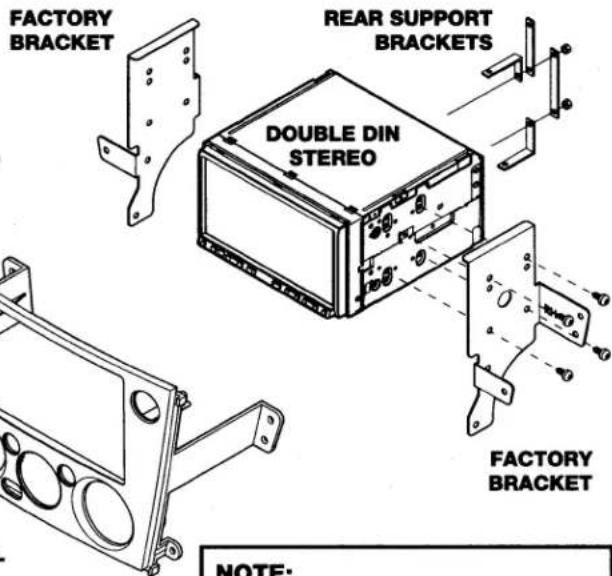

DOUBLE DIN ISO MOUNT

1. Re-attach the factory side brackets to the A/C controls using the original screws.
2. Slide the new stereo between the factory brackets and attach using the original screws, (4) per side.
3. Plug in connectors, then position and align the stereo and A/C controls, with the brackets attached, into the dash opening (do not attach with screws yet).
4. Attach the emergency switch to the 6563 panel using the original screws.
5. Snap the 6563 panel over the stereo and A/C controls. Make sure the AC controls snap correctly to the panel.
6. Secure the panel assembly to the dash using the (6) original Phillips head screws.
7. Re-attach the A/C control cable.
8. Snap on the side panels and re-attach with the original screws.
9. Snap in the panel that surrounds the shifter.

NOTE: REAR SUPPORTING THE STEREO ADDS TO THE INSTALLATION'S STRUCTURAL INTEGRITY. REAR SUPPORT AVAILABLE SEPARATELY.
