H600 - Microphone AKG - Free user manual and instructions

Product Type	Shock Mount for Gooseneck Microphones
Brand	AKG
Model	H600
Compatibility	E and ES version gooseneck modules from the Discreet Acoustics Modular series
Application	Permanent installation
Mounting Hole Diameter	2.1 inches (53 mm)
Material	Durable plastic shell with flexible inner rubber boot
Structure-borne Noise Attenuation	20 dB
Height Adjustment	Custom via included A 608 insert
Locking Mechanism	Locking clutch for added security
Included Accessories	A 608 insert
Dimensions (Approx.)	Low profile design; exact dimensions not specified
Weight	Not specified; lightweight plastic construction
Warranty	2 years limited (valid only in US)
Certifications	Not specified

Frequently Asked Questions - H600 AKG

What is the AKG H600 shock mount used for?

The AKG H600 is designed for permanent installation of E and ES version gooseneck modules from the Discreet Acoustics Modular series, providing maximum isolation from structure-borne noise.

What size mounting hole does the H600 require?

The H600 requires a mounting hole of 2.1 inches (53 mm) in diameter.

Does the H600 include any accessories?

Yes, the H600 includes the A 608 insert, which grips the narrow section of the gooseneck and allows for custom height adjustments.

How effective is the noise isolation?

The H600 provides up to 20 dB of attenuation from structure-borne noise, making it ideal for reducing vibrations transmitted through the mounting surface.

Is the H600 suitable for temporary setups?

No, the H600 is designed for permanent installation, featuring a locking clutch that prevents easy removal of the gooseneck module.

What materials are used in the H600?

The H600 consists of a durable low-profile plastic shell with a flexible inner rubber boot for vibration isolation.

Can the H600 be used with other microphone brands?

The H600 is specifically designed for AKG Discreet Acoustics Modular gooseneck modules (E and ES versions). Compatibility with other brands is not guaranteed.

What is the warranty on the AKG H600?

AKG offers a 2-year limited warranty against defects in material or workmanship, valid only in the United States.

How do I clean the H600 shock mount?

Use a soft, dry cloth to wipe the plastic shell. Avoid solvents or abrasive cleaners that could damage the rubber boot.

Where can I find the user manual for the H600?

The user manual is available for free download in PDF format on notice-facile.com or the official AKG website.

USER MANUAL H600 AKG

The AKG H 500 shock mount is designed for permanent installation of E and ES version goosenck modules from the Discreet Acoustics Modular series. This mount provides attenuation of structure-borne noise by 12 dB.

The H 500 shock mount consists of a durable plastic shell and flexible inner rubber boot. It allows for quick and easy set up and break down of a sound system. The H 500 requires a mounting hole of 2.0 inches (50 mm).

Features

• Isolation from physical vibration
- Rugged design
- Fast set up
- Economical

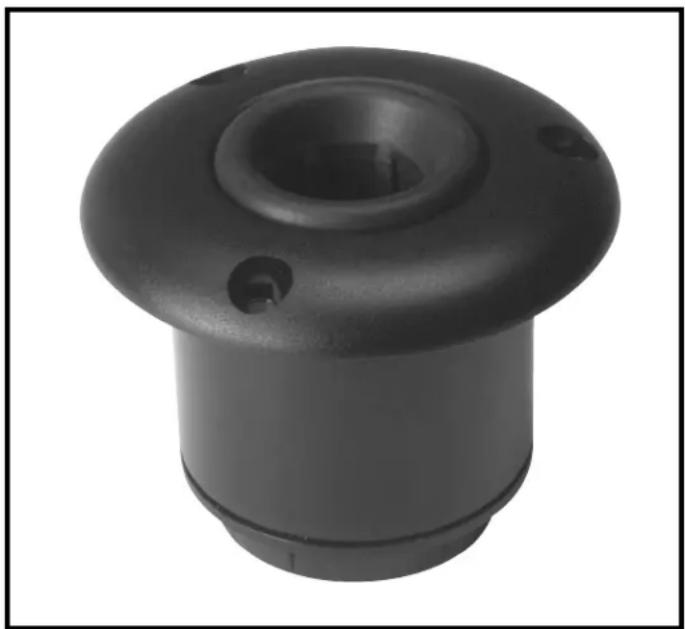

Black plastic mechanical component with a flanged top and circular opening, no visible text or symbols.

H 600 Description

The AKG H 600 shock mount is designed for permanent installation of E and ES version gooseneck modules from the Discreet Acoustics Modular series. This mount provides maximum attenuation of structure-borne noise (20 dB).

Each mount consists of a durable low profile plastic shell with a flexible inner rubber boot, and, for added security, features a locking clutch that prevents easy removal of the gooseneck module. Included with the H 600 is the A 608 insert. The A 608 grips the narrow section of the gooseneck and allows for custom height adjustments. The H 600 requires a 2.1 inch (53 mm) mounting hole.

Features

• Isolation from physical vibration
- Custom height adjustment
- Security
- Rugged design

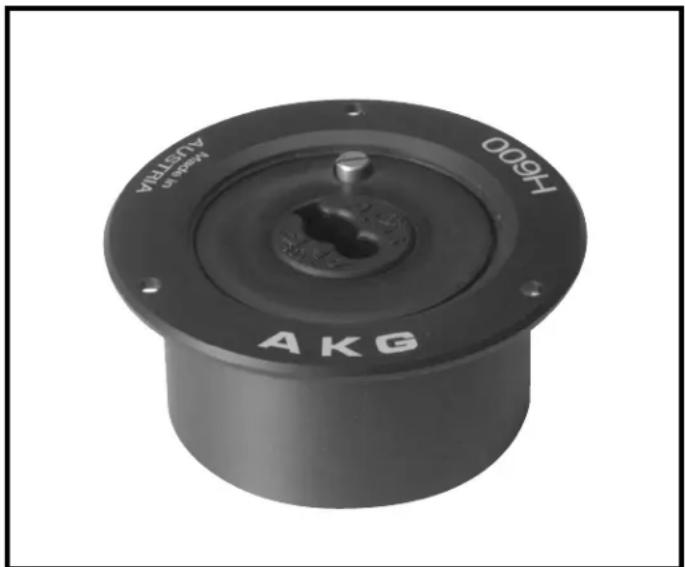

Close-up of a black industrial knob with '009H' and 'AKG' markings, no readable text or symbols beyond labels

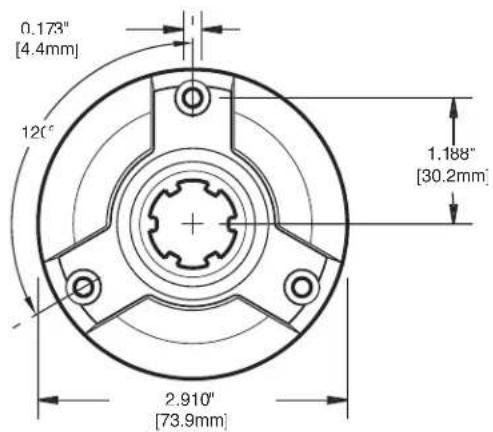

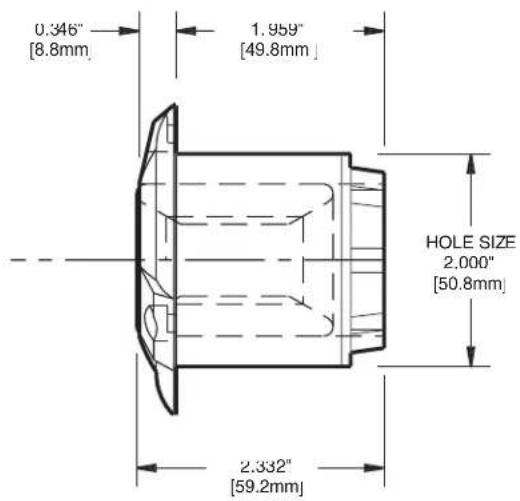

Graphical Data H 500

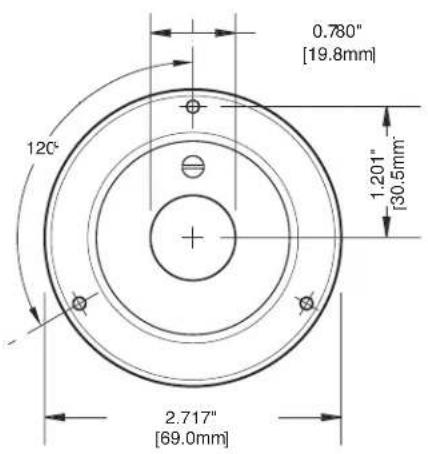

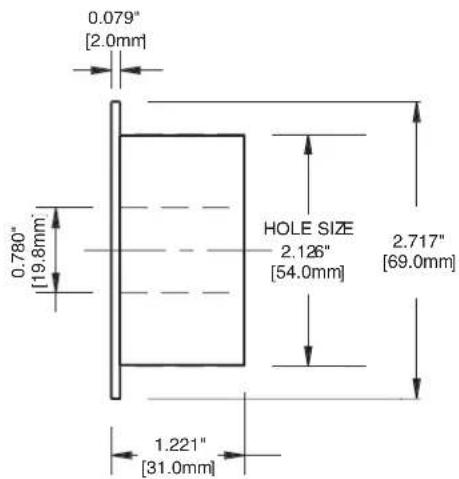

Graphical Data H 600

Limited Warranty

Valid only in the United States. AKG Acoustics warrants AKG products against defects in material or workmanship for a period of two years from the date of original purchase for use, and agrees to repair or, at our option, replace any defective unit without charge for either parts or labor. Important: This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, the affixing of any attachment not provided with the product, loss of parts or connecting the product to any but the specified receptacles. This warranty is void unless service or repairs are performed by an authorized service center. No responsibility is assumed for any special, incidental or consequential damages. However, the limitation of any right or remedy shall not be effective where such is prohibited or restricted by law. Simply take or ship your AKG product prepaid to our service department. Be sure to include your sales slip as proof of purchase date. (We will not repair transit damage under the no-charge terms of this warranty.) Note: No other warranty, written or oral is authorized by AKG Acoustics, Inc. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages or limitation on how long an implied warranty lasts, so the above exclusions and limitation may not apply to you.
