USER MANUAL PHK15BM Philco
Philco is a registered Trademark used under license from Electrolux Home Products Inc
内容
簡介 2
重要安全指示 2
安裝新雪櫃 4
雪櫃詳介 6
控制板面 7
使用雪櫃 8
有用提示和贴士 9
清潔和保養 10
排解疑難 11
棄置雪櫃 12
簡介
| Model\Constant/mm | W | W_1 | D | D_1 |
| PHK15BM | 481 | 256 | 522 | 1004 |
注意：
電力接駁
警告！
雪櫃内的層架
- 雪櫃裡的層架，可以取出來清洗。
保鮮抽屜
保鮮盒適合儲存蔬菜和水果。
製造冰塊
雪櫃設有一個或多個托盤用於生產冰粒。
冰箱抽屉
用於儲存冷凍食品。
Before operating the unit, please read this manual thoroughly, and retain for future reference.
Brief introduction....2
Important safety instructions......2
Installing your new appliance......4
Description of the appliance......6
Temperature controls 7
Using your appliance....8
Helpful hints and tips....9
Cleaning and care....10
Troubleshooting....11
Disposal of the appliance....12
Brief introduction
Thank you for your choosing our products. We are sure you will find your new appliance a pleasure to use. Before you use the appliance, we recommend that you read through these instructions carefully, which provides details about its usage and functions.
- Please ensure that all people using this appliance are familiar with its operations and safety features. It is important that you install the appliance correctly and pay attention to the safety instructions carefully.
- We recommend that you keep this user's manual with the appliance for future reference and retain it to any future users
● This appliance is intended to be used in household and similar applications such as:
-Staff kitchen- areas in shops, offices and other working environments;
-Farmhouses by clients in hotels, motels and other residential types of environment;
-Bed and breakfast type of environments.
-Catering and similar non-retail applications.
- If you feel that the appliance is not operating correctly, please check the Troubleshooting page for assistance. If still in doubt contact the customer service help line for assistance or to arrange a call out by an authorized service engineer.
Important safety instructions
General safety and daily use
It is important to use your appliance safely. We
recommend that you follow the guidelines below.
- Store any food in accordance with the storage instructions from manufacturer.
- Don't try to repair the appliance yourself. It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may
cause short circuit, fire or electric shock.
- Don't place too much food directly against the air outlet on the rear wall of both the refrigerator and freezer compartment, as it affects sufficient air circulation.
t hDon't place hot items near the plastic components of this appliance.
Frozen food must not be refrozen once it has been thawed out.
- Don't store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may explode.
- Don't consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips.
- To avoid items falling and causing injury or damage to the appliance, don't overload the door racks or put too much food in the crisper drawers.
Warning
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Don't use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Don't damage the refrigerant circuit.
- Don't use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a harzard.
- When disposing of the appliance, do so only at an authorized waste disposal centre. Don't expose to flame.
Safety for children and infirm persons
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Keep all packaging away from children to avoid risk of suffocation.
- Protect children from being scalded by touching the very hot compressor at the rear bottom of appliance
- Don't place items on top of the appliance as this could cause injury should they fall off.
●Never allow children to play with the appliance by hanging or standing over or on the doors, racks, shelves and drawers etc.
Safety about electricity
To avoid the risks that are always present when using an electric appliance, we recommend that you pay more attention to the instructions about electricity below.
●Unpack the appliance and check through the appliance. Should any damage be evident, don't plug in the appliance but contact the shop immediately from which you purchased it. Keep all packing materials in this case.
- We recommend that you wait for 4 hours before connecting the appliance to allow the refrigerant to flow back into the compressor.
-
The appliance must be applied with single phase alternating current of 220\~240V/50Hz. If the voltage fluctuates exceeding the upper limit, A.C. automatic voltage regulator of more than 350W should be applied to the refrigerator for safety use.
-
The mains plug must be accessible when the appliance is installed.
● This appliance must be earthed.
- This appliance is fitted with a fused plug in accordance with local standard. The fused plug should be suitable for use in all houses fitted with sockets in accordance with current specifications.
-If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully disposed of. To avoid a possible shock hazard, do not insert the discarded plug into a socket. If in
doubt contact a qualified, registered electrician.
- Don't use extension cords or multiple sockets which could cause overloading of wiring circuits and could cause a fire.
Always plug your appliance into its own individual electrical socket which has a voltage rating that matched the rating plate.
● Make sure that the plug is not squashed or damaged. Otherwise, it may cause short circuit, electric shock or overheat and even cause a fire.
- Don't insert the mains plug if the socket is loose, there is a risk of electric shock or fire.
●Switch off the appliance and disconnect it from the mains power before you clean or move it.
●Never unplug the appliance by pulling on the electrical cord. Always grip the plug firmly and pull straight out from the socket to prevent damaging the power cord.
- Don't operate the appliance without the light cover of interior lighting.
● Any electrical component must be replaced or repaired by a qualified electrician or authorized service engineer. Only genuine spares should be used.
- Don't use electrical appliances such as ice cream makers inside the food storage compartments of the appliance, unless they are approved by the manufacturer.
- Don't look direct into the LED light located in the refrigerator compartment with optical instruments to avoid eye injuries. If it is not functioning correctly, consult a
qualified, registered electrician or replace it in accordance with the "cleaning and care" chapter.
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
Caution: risk of fire
- Don't store products which contain flammable propellants(e.g. spray cans) or explosive substances in the appliance.
Should the refrigerant circuit be damaged:
● Avoid opening flames(candles, lamps etc.) and sources of ignition.
● Thoroughly ventilate the room in which the appliance is situated.
Installing your new appliance
Before using the appliance for the first time, you should be informed of the following tips.
Ventilation of appliance

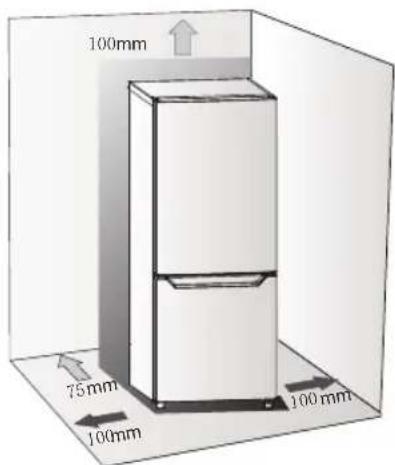

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator. Suggest :It is advisable for there to be at least 75mm of space from the back to the wall, at least 100mm from its
top, at last 100mm from its side to the wall and a clear space in front to allow the doors to open 122°. As shown in following diagrams.
Relevant information
| Model\Constant/mm | W D D_1W_1 | ||
| PHK15BM | 481 256 522 1004 |
Note:
This appliance performs well within the climate class 15^ C/30°C.
●Stand your appliance in a dry place to avoid high moisture.
- Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heat sources such as stoves, fires or heaters.
Leveling of appliance
The appliance should be level in order to eliminate vibration. we recommend that you level the appliance by the following steps.
- Put the refrigerator into the right place.
- Turn the adjustable feet (with your fingers or a suitable screw driver) until they touch the floor.
- Tilt back the top backwards for about 10-15mm or 5° by turn the adjustable feet. This will allow the doors to self-close providing a consistent closed seal.
Electrical connection
Caution! Any electrical work required to install this appliance should be carried out by a qualified or authorizedpersonnel.
Warning! This appliance must be grounded. The manufacturer declines any liability should these safety measures not be observed.
Description of the appliance

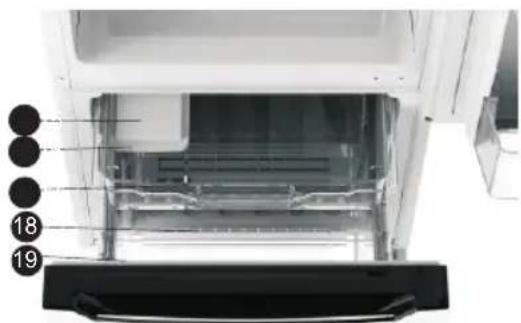

View of the appliance
- Cabinet
2.LED light (inside) - Wind channel in refrigerator chamber
- Tempered Glass shelf
- Crisper coverdrawer
- Crisper drawer
7.Middle hinge
8.Freezer door
9.Adjustable foot
10.Top cover - Door switch
12.Fridge door gasket
13.Fridge door - Door rack
- Ice tray cover
- Ice tray
- Freezer tray
- Freezer drawer
- Freezer door gasket
Temperature Controls
Regulator the temperature of the Freezer Chamber
- Using the refrigerator in normal, set the temperature controller at "Normal" position.
- Higher ambient temperature or need a higher temperature in freezer, set the temperature control slider at the “Summer” position.
●Lower ambient temperature or need a lower temperature in freezer, set the temperature control slider at the "Winter" position. (Note:we installed the temperature control slider in the Refrigerator Chamber.)
Principle
The temperature control slider is used to adjust the refrigerator and free temperature. The principle is that adjusting the position of the slide on the thermostat can balance the distribution of air flow volume of each compartment.
The temperature control slider allows you to regulate the temperature among position around "winter", "Normal" and "Summer".
- Higher ambient temperature(e.g. on hot summer days), move the slider to the "Summer" position; and more air flow in refrigerator and less in freezer, So the temperature in freezer will be higher than before.
- If you want a lower temperature in freezer(in case of too much frozen food or ice making in chamber), move the slider to the "winter" position; and more air flow in freezer and less in refrigerator, So the temperature in freezer will be lower than before and the power consumption will be increase.
Temperature control slider
Warning!
If the LED light is broken, DO NOT CHANG IT BY THE USER! Changing the light carried out by inexperienced persons may cause injury or serious malfunctioning. It must be replaced by the qualified persons in order to avoid a hazard. Contact your local Service Force Center for help. Before changing the LED light, switch off the appliance and unplug it, or pull the fuse or the circuit breaker.
Door alarm
Door alarm will sound once the fridge floor is open over 2 minutes. In case of door alarm, buzzer will sound about 3 times per minute and will be stopped automatically 10 minutes later.
To save energy, don't keep the door open for a long time when using refrigerator. In addition, closing the door can clear the door alarm.
Using your appliance
You appliance has the accessories as the "Description of the appliance" showed in general, with this part instruction you can have the right way to use them.
Door rack
It is suitable for the storage of eggs, canned liquid, bottled drinks and packed food, etc. Do not place too many heavy things in the racks.
- The door rack can be token when it need to be cleaned.
- When you move the rack out, first pull upward then pull out. when you reposit it, first push in then downward.
Shelf in Refrigerator chamber
●There are shelves in refrigerator chamber, and they can be taken out to be cleaned.
Tips: The wall of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.
when you move the shelves out, first pull downward then move leftward. when you reposit them, just the reverse.
Tips: Please remember to take things out of the shelves before reposition.
Crisper drawer
The crisper is suitable for storing vegetables and fruits.
Ice-cube production
This appliance is equipped with one or more trays for the production of ice-cubes.
Ice tray
Freezer Drawer

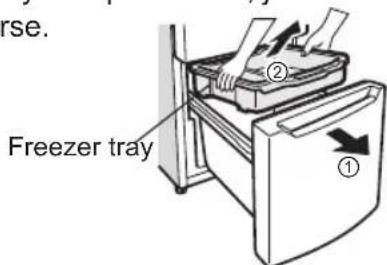

- For storing frozen food. when you need to move the freezer tray out, first pull the freezer door forward then tilt the tray upward. when you reposit them, just the reverse.
Make sure the freezer tray has been taken out before you move the freezer drawer. Then you should first pull out and tilt the freezer door downward then tilt the drawer upward. when you reposit them, just the reverse.
Tips: Please remember to take things out of the tray or drawer before reposition.
Helpful hints and tips
Energy saving tips
We recommend that you follow the tips below to save energy.
- Try to avoid keeping the door open for long periods in order to conserve energy.
- Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc)
- Don't set the temperature colder than necessary.
- Don't store warm food or evaporating liquid in the appliance.
- Place the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance chapter.
- If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration.
Hints for fresh food refrigeration
- Do not place hot food directly into the refrigerator or freezer, the internal temperature will increase resulting in the compressor having to work harder and will consume more energy.
- Do cover or wrap the food, particularly if it has a strong flavor.
- Place food properly so that air can circulate freely around it.
Hints for refrigeration
- Meat (All Types) Wrap in polythene food: wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers.
- Cooked food, cold dishes, etc.: They should be covered and may be placed on any shelf.
- Fruit and vegetables:
They should be stored in the crisper drawer.
- Butter and cheese:
Should be wrapped in airtight foil or plastic film wrap.
film wrap.
- Milk bottles:
Should have a lid and be stored in the door racks.
Hints for freezing
- When first starting-up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting food in the compartment.
-
Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.
-
Wrap up the food in aluminum foil or polyethylene food wraps which are airtight,
- Do not allow fresh unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter.
● Iced products, if consumed immediately after removal from the freezer compartment, will probably cause frost burns to the skin. - It is recommended to label and date each frozen package in order to keep track of the storage time.
Hints for the storage of frozen food
- Ensure that frozen food has been stored correctly by the food retailer
- Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer.
Switching off your appliance
If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the appliance.
- Remove all food.
- Remove the power plug from the mains socket.
- Clean and dry the interior thoroughly.
- Ensure that all the doors are wedged open slightly to allow air to circulate.
Cleaning and care
For hygienic reasons the appliance should be cleaned regularly at least every two months.
Caution! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.
Exterior cleaning
To maintain good appearance of your appliance, you should clean it regularly.
-Wipe the digital panel and display panel with a clean, soft cloth.
-Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface.
-Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth.
Caution! Don't use sharp objects as they are likely to scratch the surface. Don't use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire.
Interior cleaning
You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets.
Thoroughly dry all surfaces and removable parts.
Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, choose a time when the supply of food stocks are low and proceed as follows:1.Remove existing food and
accessories baskets, unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the thawing process.2. When defrosting is completed, clean your freezer as described above.
Caution! Don't use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket.
Door seals cleaning
Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.
Caution! Only after the door seals are completely dry should the appliance be powered on.
Troubleshooting
If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below.
Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.
| Possible cause &Solution | |
| Appliance is not working correctly | Check whether the power cord is plugged into the power outlet properly. |
| Check the fuse or circuit of your power supply, replace if necessary. | |
| The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem. | |
| It is normal that the freezer is not operating during the automatic defrost cycle, or for a short time after the appliance is switched on to protect the compressor. | |
| Odours from the compartments | The interior may need to be cleaned |
| Some food, containers or wrapping cause odours. | |
| Noise from the appliance | The sounds below are quite normal:Compressor running noises.Air movement noise from the small fan motor in the freezer compartment or other compartments.Gurgling sound similar to water boiling.Popping noise during automatic defrosting.Clicking noise before the compressor starts. |
| Other unusual noises are due to the reasons below and may need you to check and take action:The cabinet is not level.The back of appliance touches the wall.Bottles or containers fallen or rolling.The external drip tray on compressor is not placed properly. | |
| The motor runs continuously | It is normal to frequently hear the sound of the motor, it will need to run more when in following circumstances:Temperature setting is set colder than necessaryLarge quantity of warm food has recently been stored within the appliance.The temperature outside the appliance is too high.Doors are kept open too long or too often.After your installing the appliance or it has been switched off for a long time. |
| A layer of frost occurs in the compartment | Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation. Ensure that door is fully closed. To remove the frost, please refer to cleaning and care chapter. |
| Temperature inside is too warm | You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top |
| Temperature inside is too cold | Increase the temperature by following the "Controls" chapter. |
| Water drips on the floor | The external drip tray (located at the rear bottom of the cabinet) may not be properly leveled, or the draining spout (located on the top of the compressor depot may not be properly positioned to direct water into this tray, or the water spout is blocked. You may need to pull the refrigerator away from the wall to check the tray and spout. |
| The light is not working | ●The LED light may be damaged. Contact your local Service Center for help .●The control system has disabled the lights due to the door being kept open too long, close and reopens the door to reactivate the lights. |
Disposal of the appliance
It is prohibited to dispose of this appliance as household waste.
Packaging materials
Packaging materials with the recycle symbol is recyclable. Dispose of the packaging into a suitable waste collection container to recycle it.
Before disposal of the appliance
- Pull out the mains plug from the mains socket.
- Cut off the power cord and discard with the mains plug
Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.
| Correct Disposal of this product | |
 | This symbol on the product or in its packing indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product, please contact your locauncil your household waste disposal service, or the shop where you purchased the product. |
Please record the following product information
- Model
- Serial No.
- Name of the franchiser
- Date of Purchase
The above mentioned specifications may be changed in order to provide you the model with latest technology, please collect the details if necessary.
ToolBox Customer Service Centre :
4/F, DCH Building, 20 Kai Cheung Road, Kolwoon Bay, Hong Kong
Customer Service Hotline : (852) 8210 8210
Service E-mail : 8210service@gilman-group.com
Please register now at : www.toolbox.hk
Website : www.gilman-group.com
Gilman
since 1841
a Gilman Group Company
請記錄下列產品資料
Customer Service Hotline 留
Service E-mail 電郵地址：8210service@gilman-group.com
Please register now at 請即上網登記：www Equilbox.hk
Website 網址：www.gilman-group.com
Gilman
since 1841
a Gilman Group Company
- 内容
- 簡介
- 警告！
- Brief introduction
- Important safety instructions
- General safety and daily use
- Warning
- Safety for children and infirm persons
- Safety about electricity
- Refrigerant
- Caution: risk of fire
- Should the refrigerant circuit be damaged:
- Installing your new appliance
- Ventilation of appliance
- Note:
- Leveling of appliance
- Electrical connection
- Description of the appliance
- View of the appliance
- Temperature Controls
- Regulator the temperature of the Freezer Chamber
- Principle
- Warning!
- Door alarm
- Using your appliance
- Door rack
- Shelf in Refrigerator chamber
- Crisper drawer
- Ice-cube production
- Freezer Drawer
- Helpful hints and tips
- Energy saving tips
- Hints for fresh food refrigeration
- Hints for refrigeration
- Hints for freezing
- Hints for the storage of frozen food
- Switching off your appliance
- Cleaning and care
- Exterior cleaning
- Interior cleaning
- Door seals cleaning
- Troubleshooting
- Disposal of the appliance
- Packaging materials
- Before disposal of the appliance
- Please record the following product information
- ToolBox Customer Service Centre :
- 請記錄下列產品資料
Brand : Philco
Model : PHK15BM
Category : Refrigerator
