Brand	Westinghouse
Model	6107335
Product Type	Ceiling Light Fixture
Dimensions	12 inches (diameter) x 8 inches (height)
Weight	2.5 lbs
Power Source	Hardwired, 120V AC
Bulb Type	Medium base (E26), max 60W incandescent or equivalent LED
Number of Bulbs	1
Material	Metal with glass shade
Finish	Brushed Nickel
Mounting Type	Ceiling mount, flush or semi-flush
Dimmable	Yes (when used with dimmable bulbs and compatible dimmer switch)
Indoor/Outdoor	Indoor use only
Safety Rating	UL listed for dry locations
Warranty	1 year limited warranty
Installation	Requires basic electrical wiring; included mounting hardware
Cleaning	Wipe with soft, dry cloth; do not use harsh chemicals
Replacement Parts	Glass shade and mounting bracket available separately
Energy Efficiency	Compatible with LED bulbs for reduced energy consumption

Frequently Asked Questions - 6107335 WESTINGHOUSE

How do I install the Westinghouse 6107335 ceiling light?

Installation requires connecting the fixture to a junction box using the included mounting bracket. Follow the manual for wiring: connect black to live, white to neutral, and green/bare to ground. Ensure power is off before starting.

What type of bulb does this fixture use?

It uses a standard medium base (E26) bulb, max 60W incandescent or equivalent LED bulb. Recommended: LED bulbs for energy savings and longer life.

Can I use a dimmer switch with this light?

Yes, the fixture is dimmable when used with dimmable bulbs (e.g., dimmable LED) and a compatible dimmer switch. Ensure the dimmer is rated for LED loads if using LED bulbs.

Is the Westinghouse 6107335 suitable for outdoor use?

No, it is rated for indoor use only and is UL listed for dry locations. Do not install in bathrooms, covered patios, or other damp areas.

How do I clean the glass shade?

Clean with a soft, dry cloth. For stubborn dust, use a slightly damp cloth and dry immediately. Avoid abrasive cleaners that may scratch the glass or damage the finish.

What are the dimensions of this light fixture?

The fixture has a diameter of 12 inches and a height of 8 inches. It is designed for standard ceiling heights.

Does the fixture include a bulb?

No, the bulb is not included. You need to purchase a bulb separately that fits the E26 medium base.

What should I do if the light flickers?

Flickering may be due to loose bulbs, incompatible dimmer, or faulty wiring. Check bulb tightness, replace with a dimmable LED if using a dimmer, or consult an electrician.

Can I replace the glass shade if it breaks?

Yes, replacement glass shades are available. Contact Westinghouse customer service or check online retailers for part 6107335 shade.

Is this fixture compatible with sloped ceilings?

The fixture is designed for flat ceilings. For sloped ceilings, an optional adapter or flush-mount kit may be required. Check with an electrician for installation.

USER MANUAL 6107335 WESTINGHOUSE

Installation and Safety Instructions

Warning: Electrical shock can result in serious injury.

Read and follow instructions exactly as shown. If instructions are unclear, do not proceed. Contact a qualified electrician. Read all instructions before beginning. Proper wiring is essential for safe operation of this fixture. When cutting or drilling into walls or ceilings, do not damage electrical wiring, gas lines, or water lines. If any of the fixture or wiring components are damaged, do not install fixture. Return to place of purchase.

If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person. For indoor use only.

ASSEMBLY INSTRUCTIONS FOR INDOOR LIGHTING FIXTURE

Congratulations on your Westinghouse purchase. This fixture has been designed to give you many years of beauty and service. For questions and comments, please visit www.westinghouselighting.eu/contact-us and www.westinghouselighting.de/contact-us

NOTE: Carefully unpack fixture and parts. Make sure all parts are included before discarding any packing materials (see figure 1).

MOUNTING AND WIRING INSTRUCTIONS

NOTE: Line art shown may not exactly match the fixture enclosed. However, the installation instructions do apply to this fixture.

1. Thread mounting screws (A) into mounting bar (B) (see fig. 1) approximately 1/4 inch.
2. Place mounting bar (B) flush against ceiling at desired mounting location. Using outside mounting bar holes as a guide, mark where pilot holes are to be drilled.
3. Inset two plastic anchors (D) into the pilot holes (for drywall ceiling).
4. Align outside mounting bar holes with plastic anchors (D) (If applicable). Secure mounting bar (B) into place using wood screws (E).
5. Make an electrical connection by loosening the terminal screws on the terminal block (F) and inserting the live, neutral and ground terminals.
6. Tighten terminal screws. Make sure there are no stray wires.
7. Raise canopy (H) to ceiling allowing mounting screws (A) to protrude through key slots (G) in canopy (H) (see fig. 1).
8. Rotate canopy (H) clockwise until mounting screws (A) lock into narrow portion of key slots (G). Secure into place with mounting screws (A).
9. Raise the shade (C) up allowing the protrusions to engage the slot of the canopy (H). And twist the shade (C) to lock into place.
10. Turn power back on at circuit box.

CLEANING AND CARE

To clean, wipe fixture with soft cloth. Clean glass with mild soap. Spray from chemical cleaners can discolor the finish of fixture. Do not use scouring pads, powders, steel wool or abrasive paper to clean this fixture.

NOTE FOR FIXTURES THAT ARE SOLID BRASS:

Your hand-crafted, solid brass lighting fixture has been coated with a durable, baked-on acrylic lacquer which gives maximum protection against the weather. However, in time the brightness of the brass will tarnish, giving way to an authentic old-world brass finish. To keep your solid brass fixture looking new for years to come, regularly apply a good quality, non-abrasive car wax to all metal surfaces, giving the fixture an extra protective covering.

Meaning of crossed-out wheeled dustbin:

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal at least free of charge.

Appliance specifications - TECHNICAL CHARACTERISTICS

Rated voltage 220-240V~
Rated frequency 50Hz
Rated wattage Integrated LED Max. 20W

Protection class CLASS I
IP number IP20
Ambient temperature 40	ircC

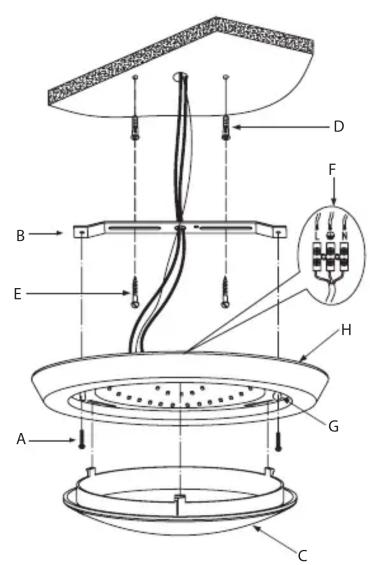

FIGURE 1.

*NOT SUPPLIED
