USER MANUAL AT-025 TOA

TOA's volume control attenuators provide precise level adjustment to single or multiple speaker lines. They are available in 25W or 100W models with a Decora-style wall plate. AT-100EMG is equipped with a 24VDC@15mA relay for applications that require emergency and paging signals to bypass/override the attenuator. AT-10K is a 10k ohm linear taper control for single-point remote level adjustment of voltage controlled amplifiers such as TOA's M-900MK2, A-900MK2, M-9000M2, A-9000M2, A-700, ΩG-2000, ΩA-200, AV-20D series mixers/amplifiers.

2. WIRING DIAGRAMS

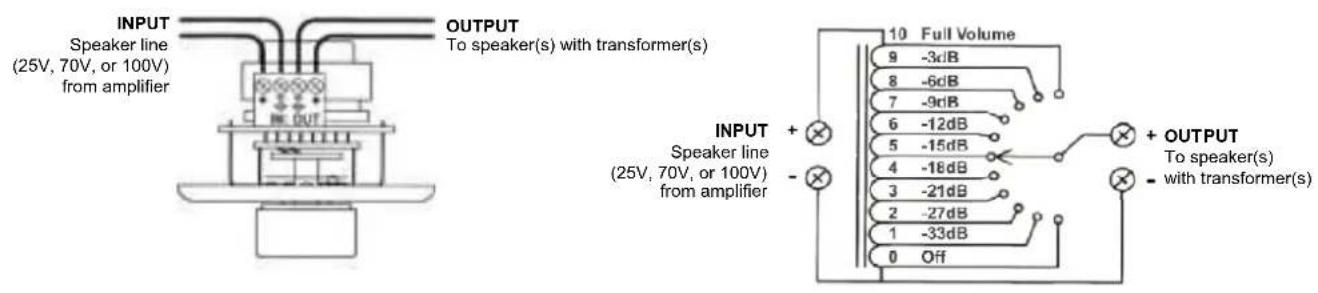

AT-025 / AT-100

To speaker(s) with transformer(s)
Speaker line
(25V, 70V, or 100V)
from amplifier

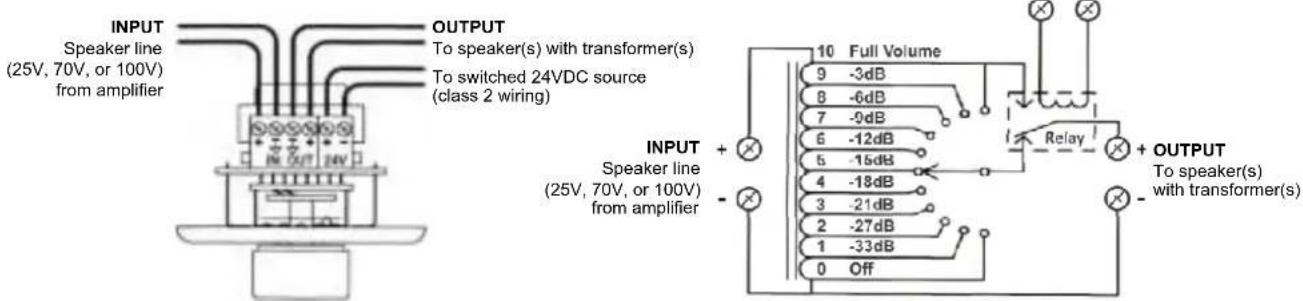

AT-100EMG

To speaker(s) with transformer(s)
To switched 24VDC source
(class 2 wiring)
Speaker line
(25V, 70V, or 100V)
from amplifier

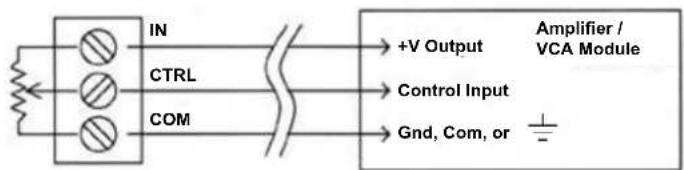

AT-10K

Typical Hook-up

3. SPECIFICATIONS

Model AT-025		AT-100 AT-	100EMG AT-10K
Input Capacity 25W		100W 100W		-
Attenuation	13 steps (0dB, -3dB, -6dB, -9dB, -12dB, -15dB, -18dB, -21dB, -24dB, -27dB, -30dB, -33dB, OFF)			Continuous 10kΩ
Wire Capacity	14-gauge
Priority Relay -		-	24VDC@15mA	-
Finish	White plate & sub-plate / Decora-style
Dimensions Plate	Width 2.75"Plate Height 4.5"A: 1.75"B: 2.5"C: 1.875"	Plate Width 2.75"Plate Height 4.5"A: 1.812"B: 2.5"C: 1.875"	Plate Width 2.75"Plate Height 4.5"A: 2.125"B: 2.5"C: 1.875"	Plate Width 2.75"Plate Height 4.5"(see below drawing)

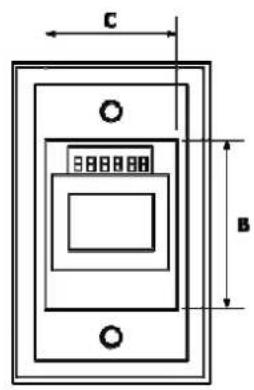

AT-025 / AT-100 / AT-100EMG

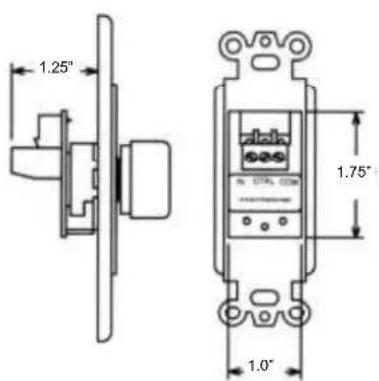

AT-10K
