ZH520 - Projector OPTOMA - Free user manual and instructions

Product type	Laser projector
Brand	OPTOMA
Model	ZH520
Native resolution	1920 x 1080 (Full HD)
Brightness	3500 ANSI lumens
Contrast ratio	300,000:1
Light source	Phosphor laser
Light source lifespan	Up to 30,000 hours
Dimensions (W x D x H)	337 x 265 x 119 mm
Weight	4.5 kg
Power consumption	250 W (normal mode)
Power supply	100-240 V AC, 50/60 Hz
Video inputs	2 x HDMI, 1 x VGA, 1 x USB-A
Audio outputs	1 x 3.5 mm headphone jack
Built-in speaker	1 x 10 W
Connectivity	RJ45 (LAN), RS232
Keystone correction	Vertical ±30°, horizontal ±30°
Main features	Laser projection, Full HD, 3D Ready, HDR compatible
Maintenance and cleaning	Clean the air filter every 500 hours, dust the casing with a soft cloth
Security	Kensington lock, automatic shutdown in case of overheating
Spare parts and repairability	Laser not user-replaceable, air filter and fans available from after-sales service
General information	2-year warranty, noise level 30 dB (eco mode)

Frequently Asked Questions - ZH520 OPTOMA

How to turn the OPTOMA ZH520 projector on and off?

Press the Power button on the top of the projector or on the remote control. To turn off, press Power twice (or hold down depending on setting). Wait for the fan to stop before unplugging.

What is the maximum supported resolution?

The projector has a native Full HD (1920x1080) resolution and can accept up to 4K signals via HDMI (compressed).

How to connect my computer to the projector?

Use an HDMI or VGA cable (depending on your computer). Connect one end to the PC, the other to the projector. Select the corresponding source using the Source button.

Can I use a USB flash drive to project images?

Yes, insert a USB flash drive into the USB-A port and use the Media menu to play compatible photos, videos or audio files.

How to clean the air filter?

Turn off the projector and unplug it. Remove the filter cover (located on the side). Use a vacuum cleaner on low power to clean the filter. Do not wash the filter with water. Put it back in place.

What to do if the image is distorted?

Use the keystone correction in the Settings menu or press the Keystone buttons on the remote. You can also move the projector so that it is perpendicular to the screen.

Can the projector play 3D videos?

Yes, the ZH520 is 3D Ready. You must use compatible active 3D glasses and a 3D source (Blu-ray player, etc.). Activate 3D mode in the Display menu.

How to adjust focus and zoom?

Turn the focus ring located around the lens for sharpness. Use the zoom ring to adjust the image size without moving the projector.

What is the lifespan of the laser light source?

The laser module has an estimated lifespan of 30,000 hours in normal mode, which corresponds to about 10 years of daily use of 8 hours.

Where can I find the serial number?

The serial number is on a label located under the projector. It can also be displayed in the projector's Information menu.

USER MANUAL ZH520 OPTOMA

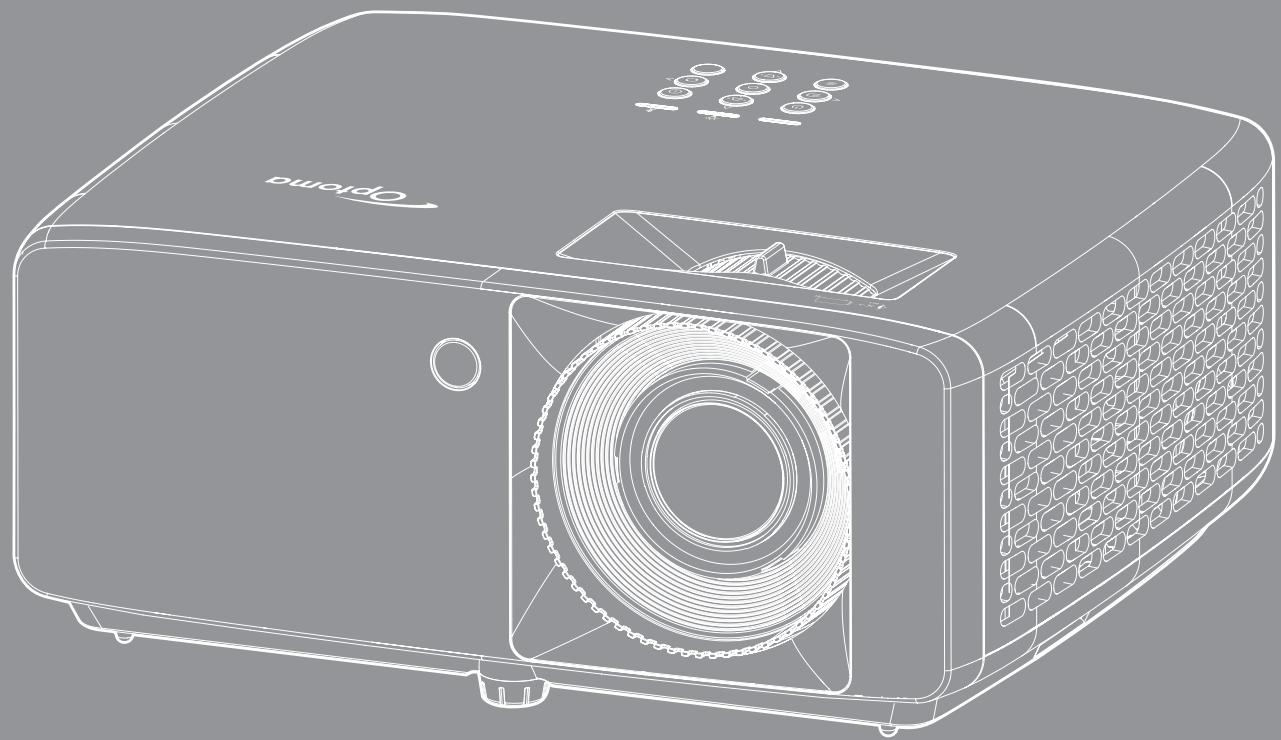

Line drawing of a projector with front panel and internal components (no text or symbols)

Line drawing of a projector with visible internal components and ventilation grille (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ .... 4

IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021 CLASS 1 CONSUMER LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed.1.0. For more information see Laser Notice No. 57, dated May 8, 2019.

IEC 60825-1:2014 等級1雷射產品RG2危險等級

IEC 60825-1:2014 1类激光产品RG2危险等级

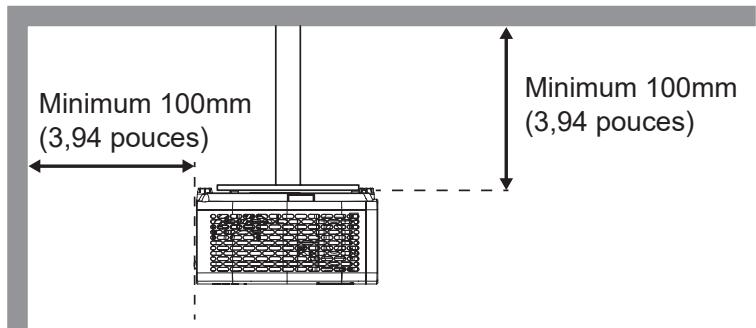

"WARNING: MOUNT ABOVE THE HEADS OF CHILDREN."

Additional warning against eye exposure for close exposures less than 1 m.

"AVERTISSEMENT : INSTALLER AU-DESSUS DE LA TÊTE DES ENFANTS."

This Class B digital apparatus complies with Canadian ICES-003.

https://www.optoma.com/support/download

INTRODUCTION

Line drawing of a person sitting in a chair watching a small screen on a desk (no text or symbols present)

Line drawing of a person sitting in a chair facing a wall-mounted device, no text or symbols present

Line drawing of a person sitting in a chair watching a projector screen, with no text or symbols present.

Line drawing of a person sitting in a chair watching a wall-mounted screen (no text or symbols)

Pure diagram of a multi-tiered device with red X marks, no text or symbols present

CONFIGURATION ET INSTALLATION

Illustration of a hand using a tool to adjust eyeglasses with red arrows indicating motion (no text or symbols)

Marche

CONFIGURATION ET INSTALLATION

CONFIGURATION ET INSTALLATION

CONFIGURATION ET INSTALLATION

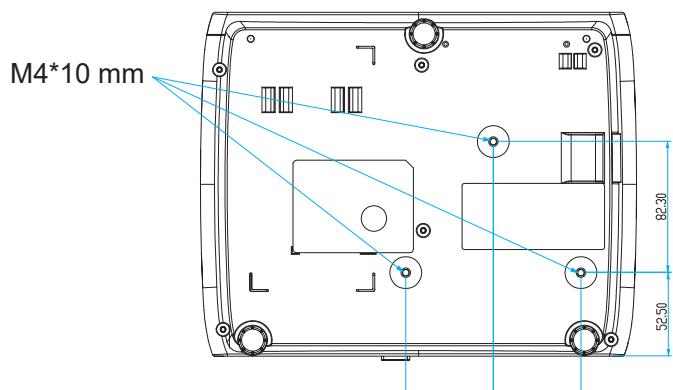

Technical line drawing of a mechanical component with symmetrical slots and mounting brackets (no text or symbols)

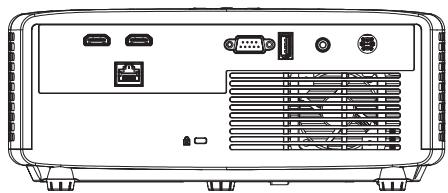

Front view of a projector rear panel with ports and indicator lights (no text or symbols visible)

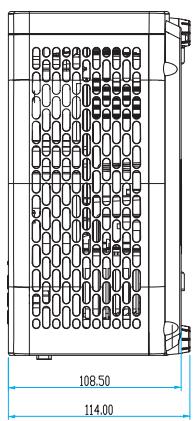

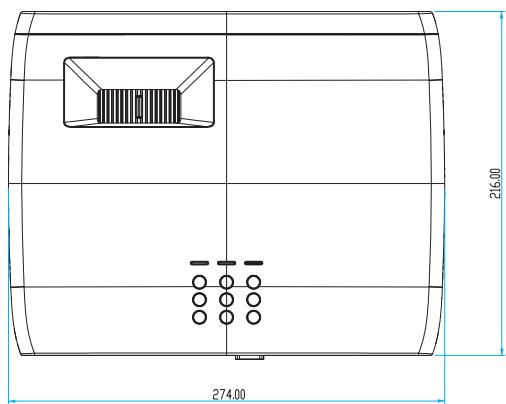

Unité : mm
