USER MANUAL SL906L Excel 1200 SIRIUS

Congratulations on your purchase!

Thank you for choosing a Sirius product.

SL906 series & SL907 700

UNDERMOUNT RANGEHOOD INSTALLATION INSTRUCTIONS

SL906 L 520 EAN #9351116000677

SL906 L 850 EAN #9351116000745

SL906L EXCEL 850 EAN #9351116000806

SL906L EXCEL1000 EAN #9351116000899

SL906L EXCEL 1200 EAN #9351116002015

SL907 700 EAN #9351116000714

BEFORE YOU INSTALL - DUCTING INFORMATION

Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory such as flexible ducting, Sirius will only warrant the rangehood and motor. If installation is found to be the cause of failure or issue then charges will apply for service and parts.

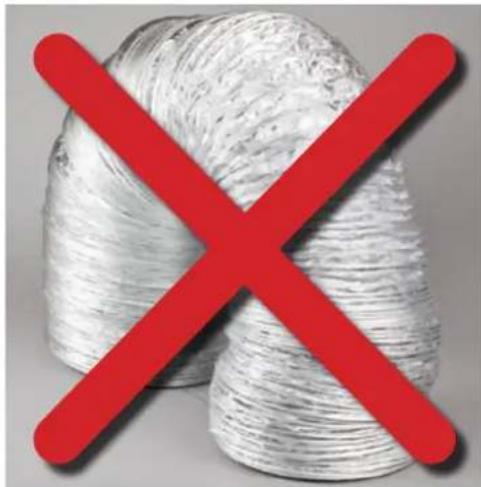

Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to increase noise levels, increase vibration and reduce airflow. Sirius Semi-rigid or solid ducting can be used in lieu. There is a range available to suit any application.

WARNING

The appliance must be installed and connected to the power supply only by a qualified technician.

• There should be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room)
• The details concerning the method and frequency of cleaning
• There is a fire risk if cleaning is not carried out in accordance with the instructions;
• Do not flambé under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.

Ducting available at www.siriusbrand.com

6 Year Warranty when Sirius Ducting is used. Full replacement warranty on parts and labour.

See website for terms & conditions.

A reduction in the duct diameter from stated ducting size will void warranty.

If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to installation

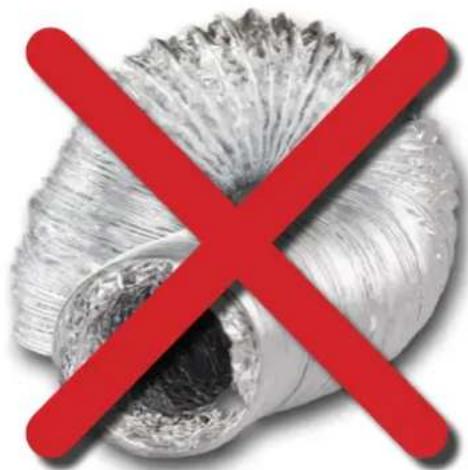

Cross-shaped red prohibition symbol over a textured metallic shell (no text or symbols)

Stack of white yarn spools with a red X symbol overlay (no text or symbols on spools)

Symbol of a trash bin crossed with a horizontal line, no text or numbers present

The symbol on the product or on its packaging indicates that this product may not be treated as house-hold waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. This appliance is marked according to the European directive 2002/96/EC on waste electrical and electronic equipment (WEEE).

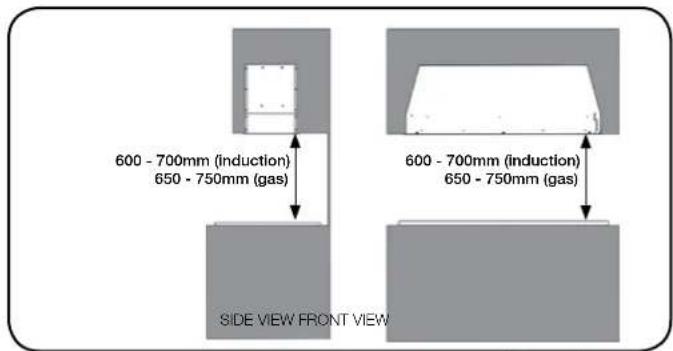

Min. 600mm - Max. 700mm for induction cooktops. Min. 650mm - Max. 750mm gas cooktops.

If the rangehood is positioned above the max height recommended, warranty may be compromised as performance of the rangehood will be affected. Measurement is taken from the top of the trivets to the underside of the hood. (Fig.1)

(Fig. 1)

• The air being drawn can't be conveyed through or into a duct used to let out fumes from appliances fed by energy other than electric power (eg. centralized heating, radiators, water heaters, etc.).
• Attention: remove any possible PVC film from the stainless steel, including the filters.
• To externally vent, please comply with the pertaining rules given by competent authorities.
• Provide the room with an adequate ventilation when a rangehood and appliances fed by energy other than electric power (gas, oil, or coal stoves, etc.) are used simultaneously. The rangehood, when evacuating the air, could generate a negative pressure in the room which can't exceed the limit of 0.04 mbar, in order to avoid the suck of exhausts deriving from the heat source. Therefore the room should be provided with air intakes to allow a constant flow of fresh air.

If the rating label in the rangehood shows the symbol ☐, the appliance is built in class II° and it does not need any earth connection.

If the rating label in the rangehood does not show the symbol □, the appliance is built in class I° and it needs the earth connection.

When performing the electrical connections on the appliance, please make sure that the current-tap is provided with earth connection and that voltage values correspond to those indicated on the label placed inside the appliance itself.

Before carrying out any cleaning or maintaining operations, the appliance needs to be switched off. If the appliance is not provided with a non-separable flexible cable and plug, or with another device ensuring omnipolar disconnections from the grid, with an opening distance between the contacts of at least 3mm, then such disconnecting devices must be supplied within the fixed installation.

If the fixed appliance is endowed with a supply cord and a plug, the appliance has to be put in a place where the plug can be reached easily.

The use of materials which can burst into flames should be avoided in close proximity of the appliance. When frying, please pay particular attention to fire risk due to oil grease. Being highly flammable, fried oil is especially dangerous. Do not use uncovered electric grills. In order to avoid possible fire risk, all instructions for grease-filter cleaning and for removing eventual grease deposits should be strictly followed.

When ducting rangehood, options are as follows:

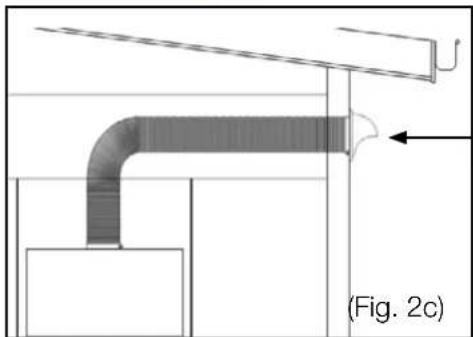

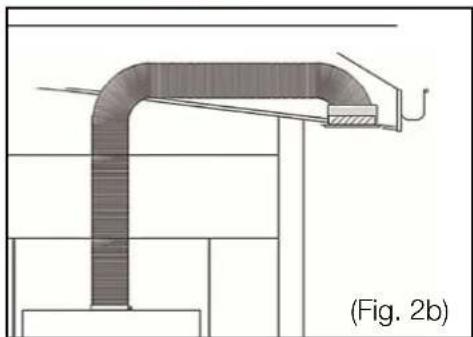

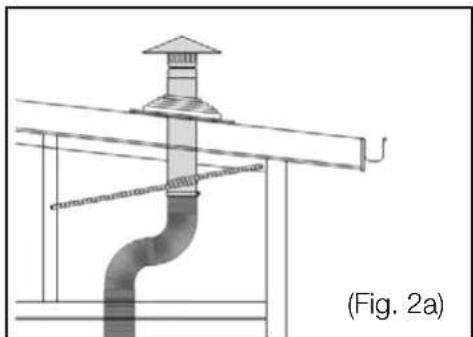

Roof vent - EASYROOF 150T/M EASYROOF 200T/M

*Kit includes roof flashing

Download installation guide

Technical line drawing of a pipe system with a conical outlet and support structure (no text or symbols)

Eave vent - EASYEAVE 150/200

Download installation guide

Technical line drawing of a pipe assembly with a handle and support structure, labeled (Fig. 2b), showing no text or symbols.

Wall vent - EASYWALL 150/200

Download installation guide

Technical diagram of a pipe or duct system with labeled section (Fig. 2c), showing no readable text or symbols.

Dome featured on 200mm kit only

SL906-L series INSTALLATION - ONBOARD

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

NOTE

Before installing the appliance, make sure that none of the parts are damaged in any way. In case of damaged parts, contact your retailer and do not proceed with installation. Read all of the following instructions with care before installing the appliance.

• Use ducting within the min/max specifications
• Limit the number of ducting bends.
• Do not make any changes in ducting diameter (recommended constant diameter: ∅ 150 mm / ∅ 200 mm or equal surface area).

Before installing the appliance - in order not to damage the appliance itself - the metal grease filter should be removed. These filters could be removed by pushing the handles towards the back side of the rangehood and pulling it downwards to unfasten it from its slot. (Fig.3).

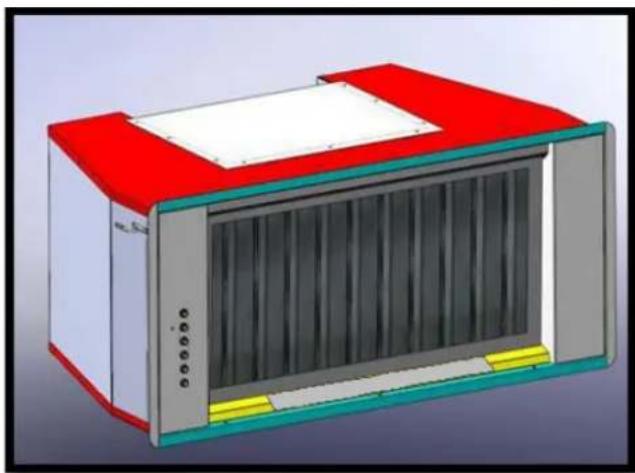

3D rendering of a red and white industrial machine with internal vertical slats and mounting brackets (no text or symbols visible)

(Fig.3a)

3D rendering of a red and white industrial machine with internal cooling fins and ventilation slots (no text or symbols visible)

(Fig.3b)

To install the appliance please respect the follow instructions:

- The appliance must be installed by qualified technicians, or where possible use a Sirius recommended installer. See siriusbrand.com. In order to avoid damage to the electronic parts of the appliance, please do not use additional screws.

- Essential precautions to respect before installing the appliance are the following: To have made a cutout on the bottom of the cabinet which is suitable to hold the appliance in position (fig. 4):

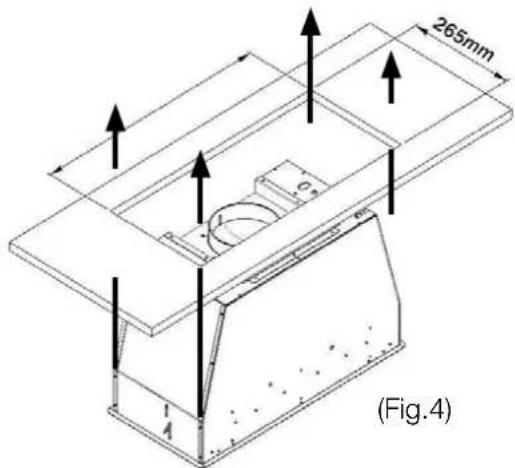

SL906 L520 - 501 x 265mm

SL906 L850 - 835 x 265mm

SL906 L EXCEL 850 - 835 x 265mm

SL906 L EXCEL 1000 - 985 x 265mm

SL906 L EXCEL 1200 - 1100 x 265mm

1. Prepare the power supply - 240 volts.
2. Prepare a hole for the exhaust - 160mm diameter for single motor & 210mm for for twin motor versions.
3. Do not use screws to fix the ducting to the rangehoods as they will prevent the movement of non-return valves.
4. Limit the number of elbows in the ducting, since each elbow reduces the duct efficiency by 1 metre. (i.e. if you use two 90^ elbows, the length of ducting must not exceed 5 metres.)
5. Avoid abrupt direction changes.
6. Use 150mm constant diameter ducting for the whole length for the single motor, 200mm ducting for the twin motor model.
7. The use of Sirius ducting will increase the warranty of the unit to 6 years.

WARNING

The rangehood is quite heavy, so two people will be needed for installation.

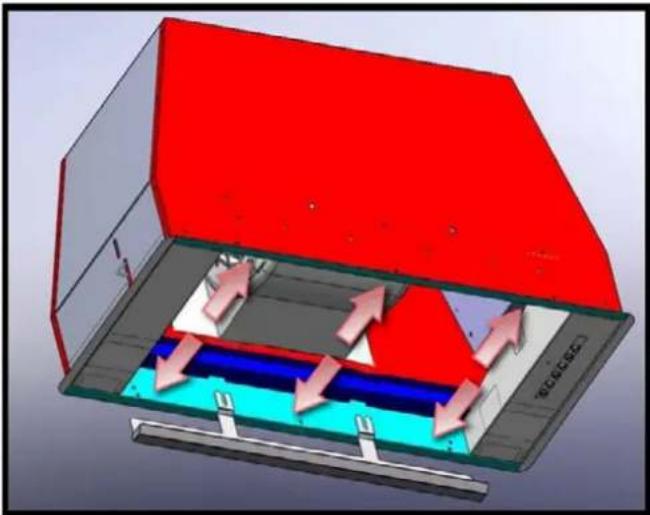

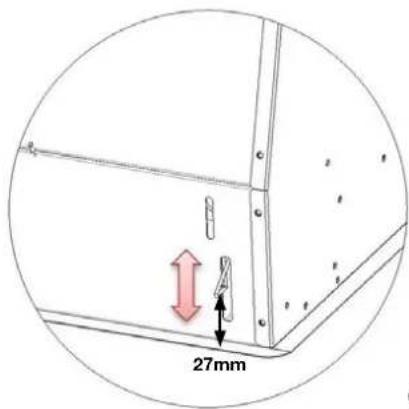

1. To install the appliance, adjust the position of the adjustable side-springs using the supplied screws (fig.5), according to the thickness of the board, in which the appliance will be fixed.

(Fig.5)

1. Insert the rangehood into the cutout in the cabinet until the stop click of the side-springs is heard and the rangehood is supported.

2. Insert the 25mm screws provided into the holes inside the rangehood (Fig.6) to fix it to cabinetry.

3D diagram of a red-lit device with internal components and directional arrows, no visible text or symbols

1. Insert the grease channel.

(Fig.6)

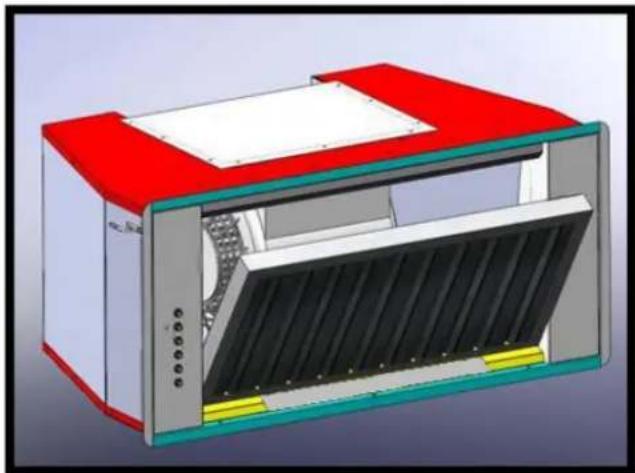

1. Insert the grease filter (Fig.3b)

CAUTION

Before connecting any ducting to the motor, make sure the non-return valves - which are on the air outlet of the motor - can swing open.

External venting

- Connect the flange to the exhaust hole with the appropriate ducting. Connect the rangehood with the electrical mains through the supply cord.

Rear vented version

- All the models with one motor can be rear vented; if the customer wants to use this option, it is necessary to remove the 18 10mm screws from the motor group support. Then take the metal support with motor included out (fig.7a).

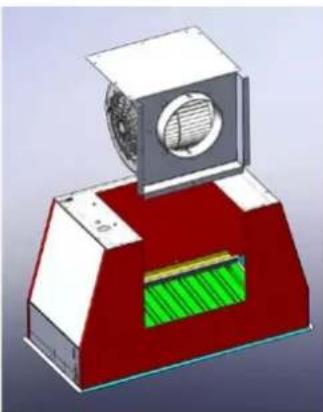

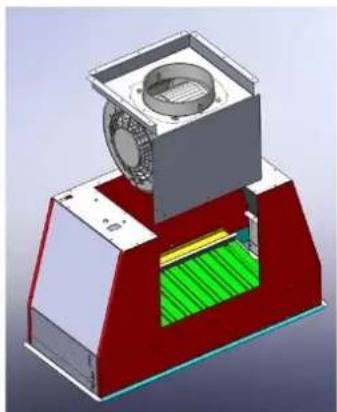

Turn the motor to have the air outlet on the rear side (fig.7b) and fix the 10mm screws previously removed.

3D rendering of a red and white mechanical device with a circular component and green internal structure (no text or symbols visible)

3D rendering of a mechanical device with red base, green interior, and gray housing (no text or symbols visible)

(Fig.7a) (Fig.7b)

SL907 700 INSTALLATION

NOTE

Before installing the appliance, make sure that none of the parts is damaged in any way. In case of damaged parts, contact your retailer and do not proceed with installation. Read all of the following instructions with care before installing the appliance.

• Use an air outlet ducting within min/max specifications.
• Limit the number of pipe bends. Use a material approved by standards and regulations.

• Avoid any sudden changes in pipe section (recommended constant diameter: ∅ 150 mm.

• Before carrying out installation, please remove the grease filter in order to avoid possible damages to the appliance. Please follow the following steps to remove the metal grease filter: open the light panel first, by turning it downwards (fig.8), then remove the grease filter.

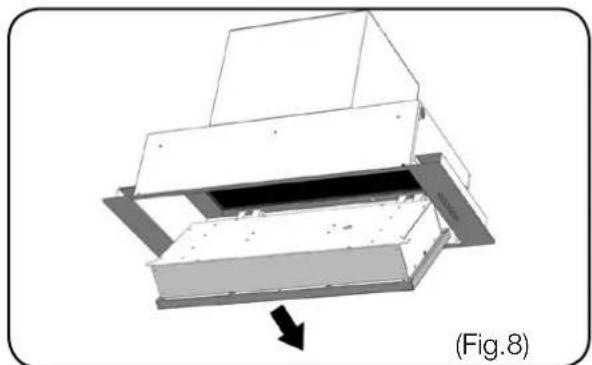

3D mechanical assembly diagram showing a component with a black arrow indicating direction, labeled (Fig.8) at bottom right (no text or symbols on the diagram itself)

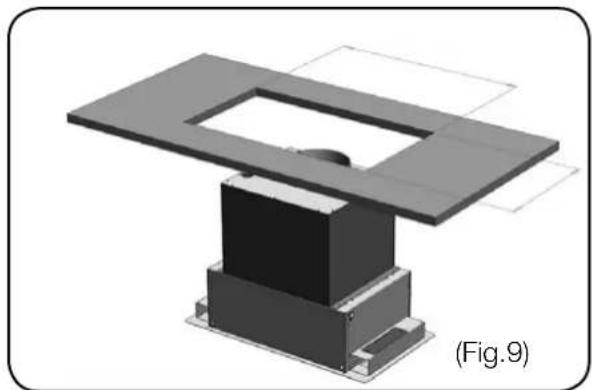

1. Make a hole on the surface of the following dimensions (fig.9): SL907 700 - 270 x 680mm

3D mechanical assembly diagram showing a rectangular component mounted on a base with mounting flanges, labeled (Fig.9) at bottom (no text or symbols on the diagram itself)

1. Insert the SL907 unit, making sure the control panel is on the right, looking at the product from the front of the cabinetry.

2. Connect the electrical lead and connect the air outlet flange from the unit to a suitable exhausting duct.

3. Fix the unit by using the four 25mm screws provided and tighten them as shown in (fig.10).

Mechanical assembly diagram showing a bracket with mounting holes and a black arrow indicating a component (no text or symbols present)

Insert the grease filter again and close the perimeter panel.

- The use of Sirius ducting will increase the warranty of the unit to 6 years.

OPERATION

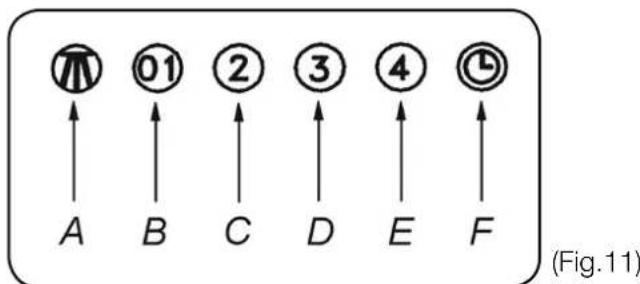

SL906-L series - S907 700 (fig. 11)

A: Light switch on/off
B: Motor switch on speed 1/off - (low/simmer)
C: Motor switch on speed 2 - (general cooking)
D: Motor switch on speed 3 - (high power)
E: Motor switch on speed 4 - (booster)

F: 10 minute shut-off timer
    note right of A
        (Fig.11)
    end

MAINTENANCE

• Accurate maintenance guarantees good functioning and long-lasting performance.
• Particular care is due to the grease filter panel. It can be removed by pushing its handle toward the back side of the rangehood and pulling the filter downwards so to unfasten it from its slot (Fig.3). To insert the filter just perform the opposite operation.
• After 30 hours of operation, the button control panel will flash, signaling the filters are due for cleaning. Press the timer button ⏻ to reset. The grease filter needs cleaning by regular handwashing or in dishwashers every two months at least, depending on its use.
• To clean the appliance itself, water and detergent are recommended, while abrasive products should be avoided. For steel appliances specialized detergents are recommended (please follow the instructions indicated on the product itself to obtain the desired results).

Filters may require cleaning sooner if frequent heavy frying is done.

NOTE

To remove the rangehood from the cabinet, remove the fixing screws (fig. 6) using a screwdriver, and remove the grease filters (fig.3).

- Push down on the small handle of the springs, which are inside the rangehood, with the necessary strength to unhook the hood from the cabinet.

WARNING

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

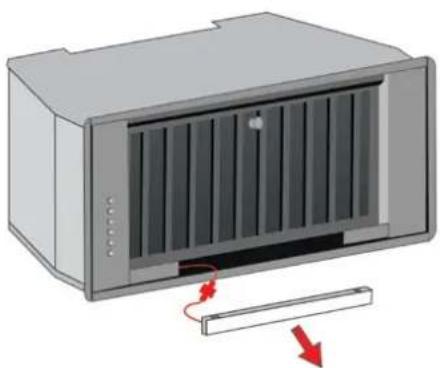

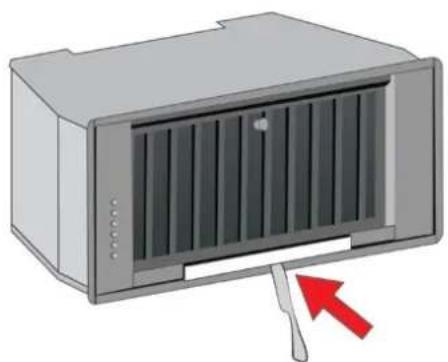

REPLACING THE LED STRIP ON THE SL 906-L

1. Before replacing the LED light, switch off the rangehood, then - by using appropriate tools - remove the LED light from its slot. (Fig 12a - b)

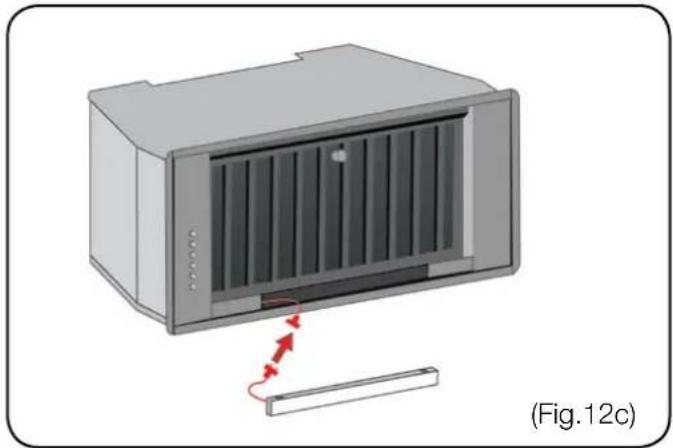

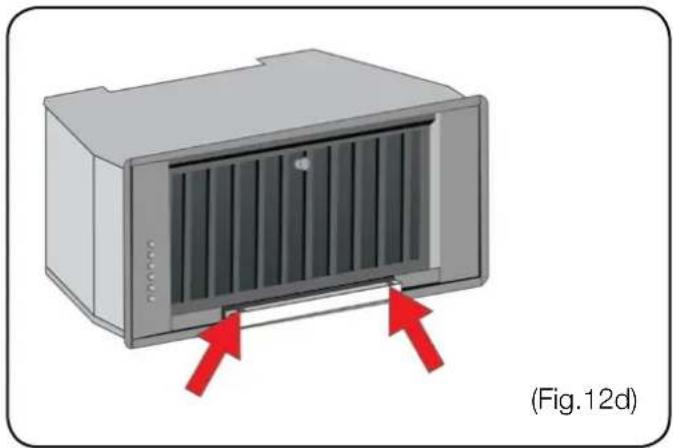

2. Take out the LED light from its connector and replace. (Fig 12c - d)
3. To find the correct LED light, please contact Sirius directly on our toll-free number: 1300 762 216.
4. NB: light is easier to remove from the centre of LED strip. Use a small, flathead screwdriver, pallette knife or blunt butter knife.

Illustration of a computer tower with ventilation slots and a red arrow pointing to the base (no text or symbols)

(Fig.12a)

Diagram of a server rack with ventilation slots and a load mechanism (no text or symbols)

(Fig.12b)

Diagram of a server rack with ventilation slots and a cable attachment, labeled (Fig.12c) (no text or symbols on the diagram itself)

Diagram of a server rack unit with red arrows pointing to its side panel (no text or symbols present)

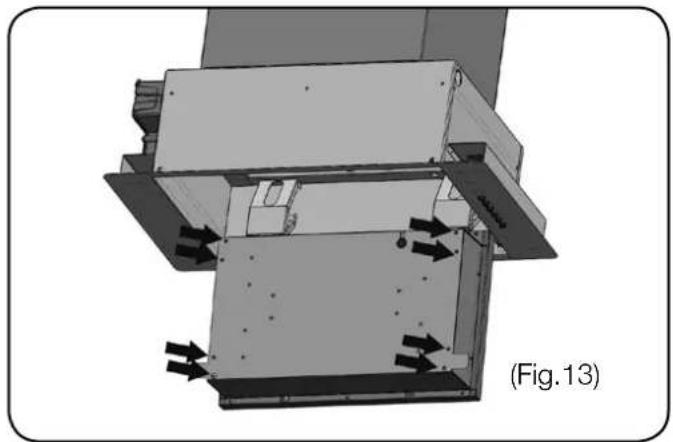

REPLACING THE SL 907 700 FLUORESCENT LAMP

1. To replace the fluorescent lamps of SL907 model, you need to open the perimeter panel, by rotating it as shown in (fig.7).

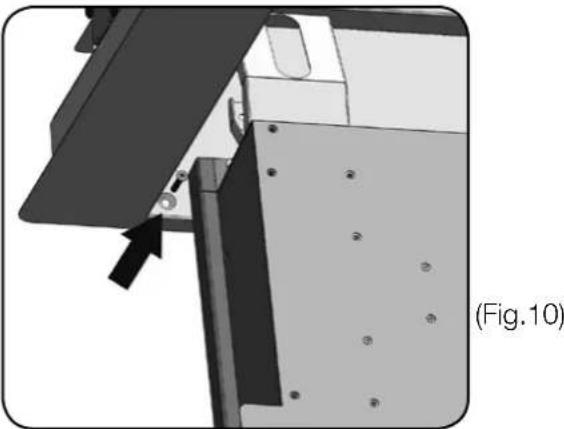

2. Remove the 10mm panel fixing screws (fig.10), paying special care in holding it during this step, then remove the lamps and replace the damaged one (fig. 13).

3D mechanical assembly diagram showing internal components with arrows indicating flow or movement (no text or symbols)

1. Insert the panel again.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

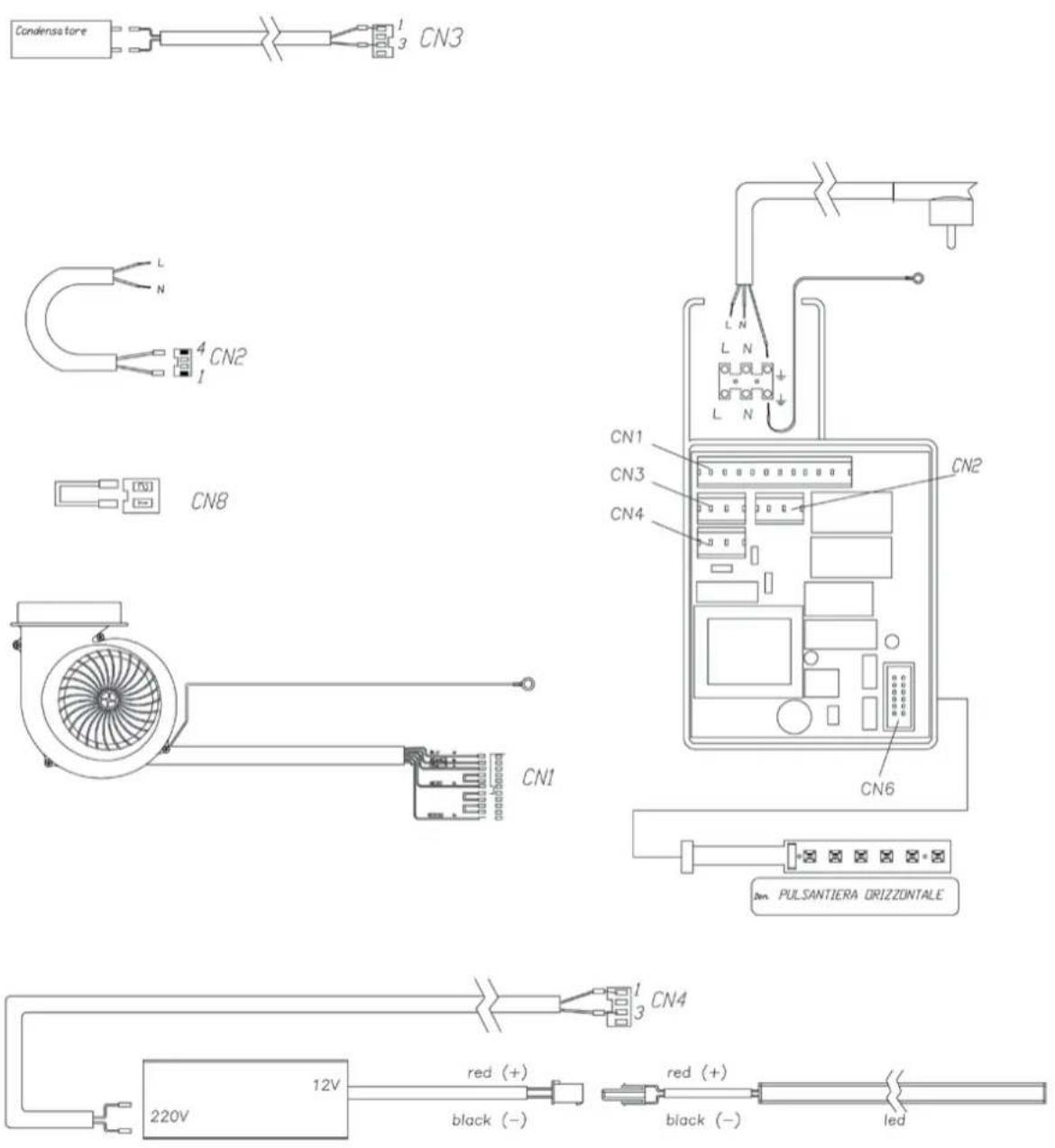

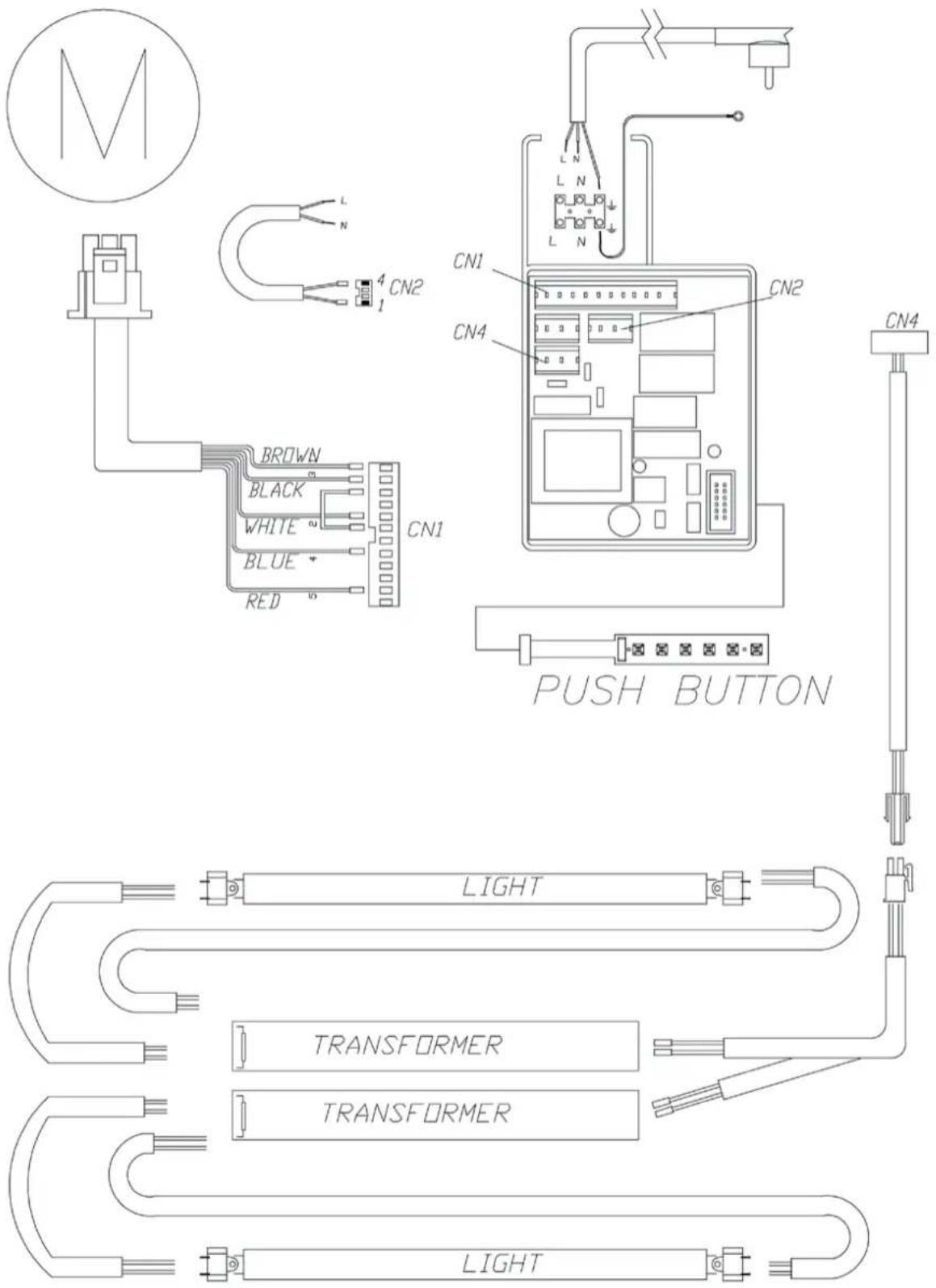

WIRING DIAGRAM SL906-L (1 motor)

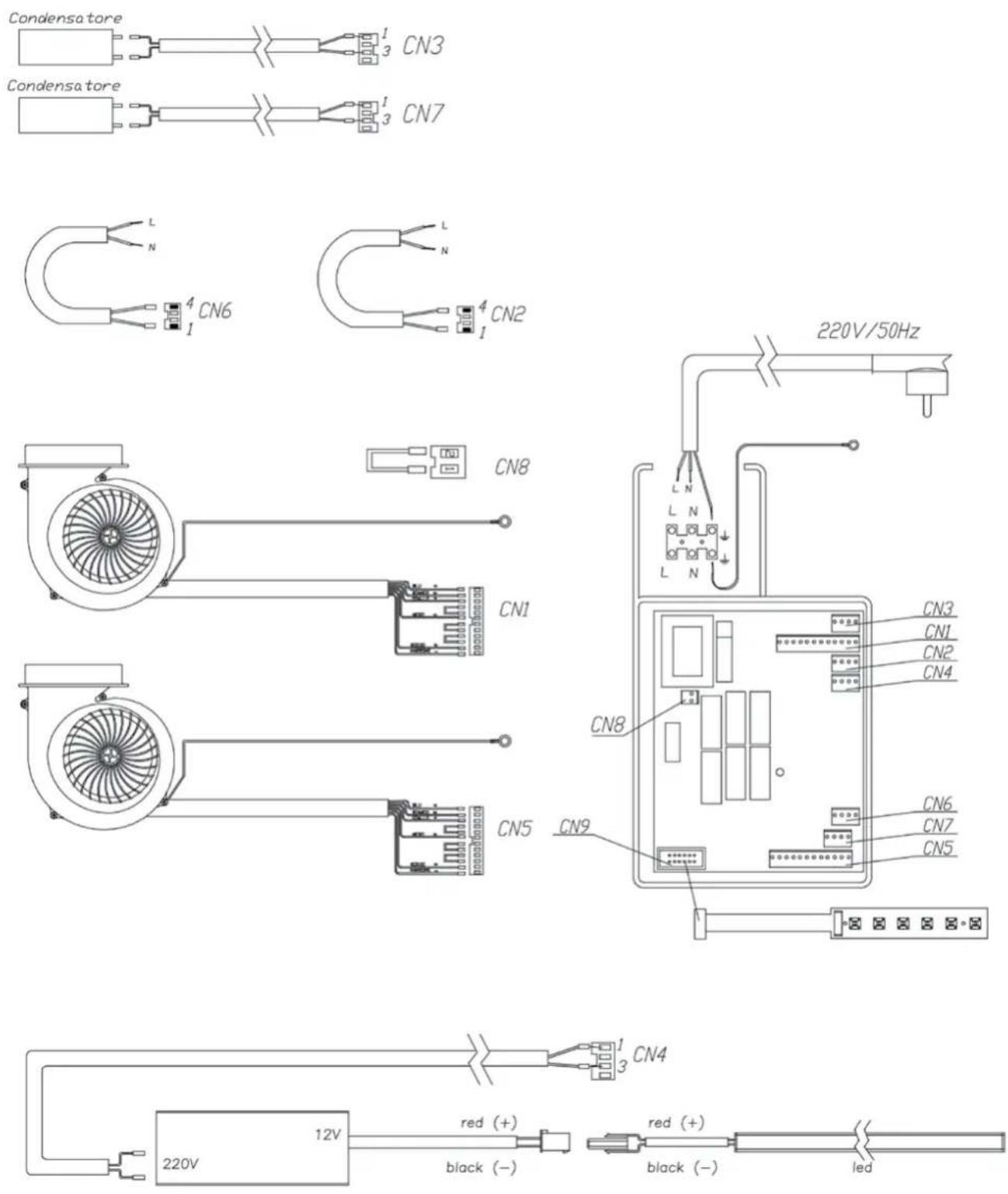

WIRING DIAGRAM SL906-L (2 motor)

Dear Customer,

Thank you for choosing this Sirius Rangehood.

We are sure that it will provide you with many years of excellent service. At Arisit Pty Limited we are dedicated to ensuring that our customers receive the best possible after-sales care.

The Sirius ‘Protection Plan’ has been devised to give you added peace of mind. Should you encounter any problems with your appliance, our nationwide team of specially trained technicians will deal with your call swiftly and efficiently.

PRIORITY SERVICE, ACCESSORIES & SPARE PARTS

AUSTRALIA

ARISIT PTY LIMITED

40-50 Mark Anthony Drive, Dandenong South,

VIC 3175, Australia

Phone: [phone]

Email: [e-mail]

NEW ZEALAND

ARISIT PTY LIMITED

1A Howe Street, Newton,

Auckland 1145, New Zealand

Phone: [phone]

Email: [e-mail]

Warranty

By registering your ownership NOW, you qualify for Sirius's Total Peace of Mind Protection Plan.

Australian & New Zealand 3 / 6 Year Protection Plan*

This guarantees your appliance for a full 3 years parts and labour & 10 years for the off-board motors (covering manufacturing defects only) from the date of purchase, subject to the Terms and Conditions overleaf.

*3 Year warranty is extended to a 6 year period only when Sirius ducting is installed.

Your Warranty

Register now to qualify.

Terms & Conditions

These Terms and Conditions apply only to Sirius products distributed in Australia and New Zealand by Arisit Pty Limited.

1. This warranty applies for a period of 3 years on all products.
   a) Warranty is extended to a 6 year period when Sirius ducting is installed.
   b) All off-board motors are covered under warranty for a 10 year period for manufacturing defects only.
2. Warranty applies for parts and labour in Australia and New Zealand, commencing from date of purchase.
3. This warranty applies only to the original purchaser/hire purchaser of this appliance and cannot be assigned or transferred. Failure to produce documentary proof of the date of original acquisition by the original purchaser will result in a charge being levied for work done, labour and parts supplied.
4. This warranty does not apply to:
   a) Consumable items such as filters, fuses, and light bulbs.
   b) Damage to body work, paint work, glass, and plastic items (such as, but not limited to windows, covers, baskets, trays, worktops, door handles, control and kick panels.)
   c) Corrosion & rust damage.

A fee may be charged following warranty claims where no fault is found with the appliance.

1. This warranty will not apply where:
   a) The fault is caused by accident, misuse, an infestation of insect and or vermin, fire, flood or the use of products not approved by Arisit Pty Limited.
   b) There has been a failure to comply with the manufacturer's operating and installation instructions.
   c) Service, modification or repair has been carried out by anybody other than an approved Arisit Service Technician.
   d) The appliance has been used/installed anywhere other than a private dwelling, or where it has been used other than for domestic use.
   e) The appliance is subject to a rental agreement.

2. Any defective part that has been replaced becomes the property of Arisit Pty. Limited.

3. This warranty applies only to Sirius appliances purchased and installed in Australia and New Zealand.

4. Loss of use of the appliance or consequential loss of any nature is not covered.

5. A charge may be levied at the discretion of Arisit Pty Limited if the call is deemed unnecessary or if the cause of failure is traced to external sourced such as, but not limited to: blown fused, power failure, faulty installation, customer misuse or negligence, etc

6. Where the appliance, the subject of a warranty claim or repair, is used or installed more than TWENTY (20) kilometres from the nearest Arisit Service Division or Authorised Service Agent, the cost of delivery to the nearest Service

Division or travel costs for a technician or Authorised Service Agent shall be for the account of the Purchaser. Where a built-in appliance is located or installed outside the Arisit Authorised Service Agent's normal service area, additional travel and labour costs shall be the account of the Purchaser.

1. Service is offered during normal business hours only, also appliances to have a clear access in a serviceable area

2. Arisit Pty Limited shall not under any circumstances be responsible in terms of this warranty for the replacement or repair of any part of the equipment which may have been damaged in transit, during and after installation or imperfections after installation.

3. Losses caused by act of God, failure to obtain spare parts, strikes or lockouts are not covered.

4. External off board motors must be installed a minimum of 2 metres and maximum of 7 metres away from the rangehood. This is for optimum sound and performance.

5. All motors must be accessible for servicing purposes and if installed above 2 metres from ground height additional cost will be incurred due to OH&S standards for service agents. Prior to install please check minimum & maximum installation details on the Sirius website, FAQ under support tab.

We reserve the right to amend any of the above without prior notice.

1. This warranty does not affect your statutory rights.

To register for your warranty, please visit:

www.arisitwarranties.com.au/Customer-Registration.aspx or scan the QR code.

ARISIT PTY LIMITED (Australia)

ABN 23 081 615 294

40-50 Mark Anthony Drive

Dandenong South VIC 3175

P: Sales & Service: 1300 762 219

F: Sales & Service: [phone]

E: [e-mail]

ARISIT PTY LIMITED (New Zealand)

1A Howe Street Newton, Auckland 1145

PO Box 68-140 Newton, Auckland 1145

P: [phone] - Fax: [phone]

E: [e-mail]

www.arisit.com

www.siriusbrand.com

Year

Warranty

when Sirius ducting is used.

Full replacement warranty on parts and labour. Check website for T&Cs.

Sirius Hocos and ducting products are only available from our select group of Sirius Professional Stock's nationwide. For the latest list of Sirius Stockists near you, please refer to www.siriusbrand.com

All efforts have been made to ensure that the information provided in this brochure is correct at the time of printing. Due to continuous product improvement and ongoing development, Sirius

reserves the right to make changes to the products and technical data without prior notice. Some products appearing in this brochure may be for illustrative purposes only. Diagrams are indicative measures only. Prior to commencing

cabinery outputs the operating/installation instructions accompanying the product must be referred to at www.sirusprand.com

10 year warranty on SEM motors.
