Product Type	Under-cabinet Range Hood
Brand	Sirius
Model	SM924 780
EAN	9351116002527
Overall Dimensions (W x D x H)	780 x 520 x 265 mm (approx.)
Cutout Dimensions (W x D)	765 x 265 mm
Power Supply	240 V, 50 Hz
Motor Speed Settings	4 (low, medium, high, booster)
Lighting	LED (replaceable)
Duct Diameter	150 mm (constant recommended)
Grease Filter Type	Aluminum mesh (removable, washable)
Filter Cleaning Frequency	Every 2 months or 30 hours of use
Filter Part Number	KF9 (SPS-6007999) – quantity 2
Warranty – Standard	3 years parts and labour
Warranty – Extended	6 years (with Sirius ducting)
Warranty – Off-board Motor	10 years (manufacturing defects)
Installation Clearance (Gas Cooktop)	Min 650 mm – Max 750 mm
Installation Clearance (Induction Cooktop)	Min 600 mm – Max 700 mm
Weight	Approx. 15 kg
Material	Stainless Steel

Frequently Asked Questions - SM924 780 SIRIUS

How do I clean the grease filters?

Remove the filters by pushing the handle toward the back and pulling downwards. Wash by hand with detergent or in a dishwasher every 2 months or 30 hours of use. Allow to dry fully before reinstalling.

How do I reset the filter cleaning indicator?

When the button lights flash, turn the motor off, then press and hold the light button for 2 seconds to reset the indicator.

How do I replace the LED light?

Switch off the rangehood, then carefully remove the LED unit from its slot using a small flathead screwdriver. Disconnect the connector and replace with a compatible LED light. Contact Sirius at 1300 762 216 for the correct replacement part.

What is the minimum installation height above a gas cooktop?

The minimum distance from the top of the trivets to the underside of the rangehood is 650 mm. The maximum is 750 mm. For induction cooktops, the range is 600 mm to 700 mm.

Can I use flexible ducting?

No, flexible ducting is not permitted. It increases noise, vibration, and reduces airflow. Use rigid or semi-rigid ducting of constant 150 mm diameter. Sirius ducting extends the warranty to 6 years.

What does the warranty cover?

Sirius offers 3 years parts and labour warranty. This extends to 6 years if Sirius ducting is used. Off-board motors are covered for 10 years for manufacturing defects. Consumables like filters, fuses, and bulbs are not covered.

How do I remove the rangehood for servicing?

Remove the fixing screws (fig. 6) and the grease filters. Push down on the spring handles inside the unit to unhook it from the cabinet. Always disconnect power first.

What should I do if the supply cord is damaged?

The supply cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid a hazard. Contact Sirius service.

Can I install the rangehood myself?

The appliance must be installed and connected to the power supply only by a qualified technician. The unit is heavy; two people are needed for installation.

What is the correct duct diameter?

Use ducting with a constant diameter of 150 mm. Reducing the diameter will void the warranty. Ensure all bends and elbows are minimized.

USER MANUAL SM924 780 SIRIUS

Congratulations on your purchase! Thank you for choosing a Sirius product.

SM923 - SM924

RANGEHOOD INSTALLATION INSTRUCTIONS

SM923 520 EAN #9351116002473

SM923 700 EAN #9351116002480

SM923 850 EAN #9351116002497

SM924 520 EAN #9351116002510

SM924 780 EAN #9351116002527

SM924 850 EAN #9351116002541

SM924 850 BK EAN #9351116002640

Interior view of a modern kitchen cabinet with white cabinetry and black door knobs (no text or symbols visible)

BEFORE YOU INSTALL 3

LINE DRAWINGS 4

DUCTING AND CLEARANCES 5

INSTALLING THE RANGEHOODS 6

ALTERNATIVE METHOD OF INSTALLATION 8

USING THE RANGEHOOD / MAINTENANCE 9

REPLACING THE LED LIGHT 9

WIRING DIAGRAM 10

WARRANTY INFORMATION 11

BEFORE YOU INSTALL - DUCTING INFORMATION

Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory such as flexible ducting, Sirius will only warrant the rangehood and motor. If installation is found to be the cause of failure or issue then charges will apply for service and parts.

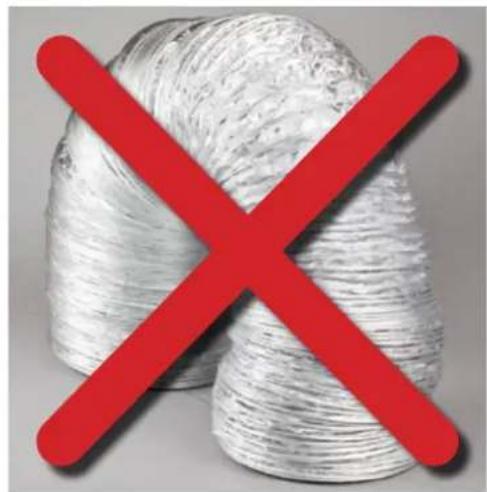

Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to increase noise levels, increase vibration and reduce airflow. Sirius Semi-rigid or solid ducting can be used in lieu. There is a range available to suit any application.

WARNING

The appliance must be installed and connected to the power supply only by a qualified technician.

• There should be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room)
• The details concerning the method and frequency of cleaning
• There is a fire risk if cleaning is not carried out in accordance with the instructions;
• Do not flambé under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.

Ducting available at www.siriusbrand.com

6 Year Warranty when Sirius Ducting is used. Full replacement warranty on parts and labour.

See website for terms & conditions.

A reduction in the duct diameter from stated ducting size will void warranty.

If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to installation

Cross-shaped red prohibition symbol over a partially covered metallic pipe (no text or symbols)

Red X symbol crossed over a bundle of white yarn spools, no text or symbols present

Symbol of a trash bin crossed with no text or numbers, enclosed in a rounded square (no text or numbers present)

The symbol on the product or on its packaging indicates that this product may not be treated as house-hold waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. This appliance is marked according to the European directive 2002/96/EC on waste electrical and electronic equipment (WEEE).

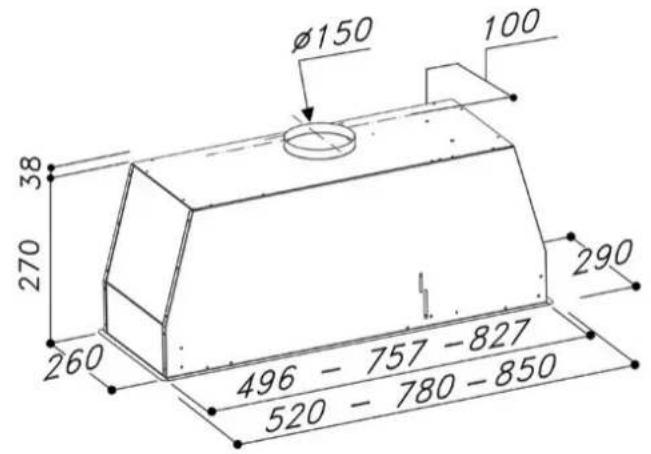

LINE DRAWINGS

SM923

Line drawing of a two-door cabinet with two doors and a handle (no text or symbols)

Underside shown

SM924

Line drawing of a microwave oven unit with front panel and side buttons (no text or symbols)

Underside shown

DUCTING AND CLEARANCES

WARNING

Min. 600mm - Max. 700mm for induction cooktops. Min. 650mm - Max. 750mm gas cooktops.

If the rangehood is positioned above the max height recommended, warranty may be compromised as performance of the rangehood will be affected. Measurement is taken from the top of the trivets to the underside of the hood. (Fig.1)

(Fig. 1)

• The air being drawn can't be conveyed through or into a duct used to let out fumes from appliances fed by energy other than electric power (eg. centralized heating, radiators, water heaters, etc.).
• Attention: remove any possible PVC film from the stainless steel, including the filters.
• To externally vent, please comply with the pertaining rules given by competent authorities.
• Provide the room with an adequate ventilation when a rangehood and appliances fed by energy other than electric power (gas, oil, or coal stoves, etc.) are used simultaneously. The rangehood, when evacuating the air, could generate a negative pressure in the room which can't exceed the limit of 0.04 mbar, in order to avoid the suck of exhausts deriving from the heat source. Therefore the room should be provided with air intakes to allow a constant flow of fresh air.

If the rating label in the rangehood shows the symbol ☐, the appliance is built in class II° and it does not need any earth connection.

If the rating label in the rangehood does not show the symbol □, the appliance is built in class I° and it needs the earth connection.

When performing the electrical connections on the appliance, please make sure that the current-tap is provided with earth connection and that voltage values correspond to those indicated on the label placed inside the appliance itself.

Before carrying out any cleaning or maintaining

operations, the appliance needs to be switched off. If the appliance is not provided with a non-separable flexible cable and plug, or with another device ensuring omnipolar disconnections from the grid, with an opening distance between the contacts of at least 3mm, then such disconnecting devices must be supplied within the fixed installation.

If the fixed appliance is endowed with a supply cord and a plug, the appliance has to be put in a place where the plug can be reached easily.

The use of materials which can burst into flames should be avoided in close proximity of the appliance. When frying, please pay particular attention to fire risk due to oil grease. Being highly flammable, fried oil is especially dangerous. Do not use uncovered electric grills. In order to avoid possible fire risk, all instructions for grease-filter cleaning and for removing eventual grease deposits should be strictly followed.

When ducting rangehood, options are as follows:

Roof vent - EASYROOF 150T/M

*Kit includes roof flashing

Download installation guide

Technical line drawing of a pipe system with support structure, labeled (Fig. 2a), showing no text or symbols on the diagram itself.

Eave vent - EASYEAVE 150

Download installation guide

Technical line drawing of a pipe or duct assembly with a base, showing structural components and a labeled section (Fig. 2b)

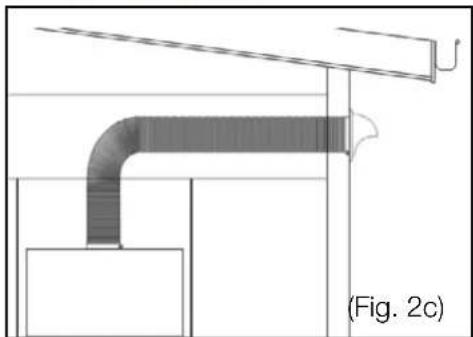

Wall vent - EASYWALL 150

Download installation guide

Technical diagram of a pipe system with a labeled section (Fig. 2c), showing ductwork and support structures without any text or symbols.

SM923 and SM924 INSTALLATION

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

NOTE

Before installing the appliance, make sure that none of the parts are damaged in any way. In case of damaged parts, contact your retailer and do not proceed with installation. Read all of the following instructions with care before installing the appliance.

• Use ducting within the min/max specifications
• Limit the number of ducting bends.
• Do not make any changes in ducting diameter (recommended constant diameter: ∅ 150 mm or equal surface area).

Before installing the appliance - in order not to damage the appliance itself - the metal grease filter should be removed. These filters could be removed by pushing the handles towards the back side of the rangehood and pulling it downwards to unfasten it from its slot. (Fig.1).

Diagram of a device interior with labeled components and directional arrows indicating movement (no text or symbols present)

(Fig.1)

To install the appliance please respect the follow instructions:

• The appliance must be installed by qualified technicians, or where possible use a Sirius recommended installer. See siriusbrand.com. In order to avoid damage to the electronic parts of the appliance, please do not use additional screws.
• Essential precautions to respect before installing the appliance are the following: To have made a cutout on the bottom of the cabinet which is suitable to hold the appliance in position (fig. 4):

SM923 52 - 505 x 270mm

SM923 70 - 685 x 270mm

SM923 85 - 835 x 270mm

SM924 52 - 510 x 270mm

SM924 78 - 765 x 265mm

SM924 85 - 835 x 265mm

3D diagram of a computer monitor with an open lid and a side panel, showing no text or symbols.

1. Prepare the power supply - 240 volts.
2. Prepare a hole for the exhaust - 160mm diameter.
3. Do not use screws to fix the ducting to the rangehoods as they will prevent the movement of non-return valves.
4. Limit the number of elbows in the ducting, since each elbow reduces the duct efficiency by 1 metre. (i.e. if you use two 90^ elbows, the length of ducting must not exceed 5 metres.)
5. Avoid abrupt direction changes.
6. Use 150mm constant diameter ducting for the whole length.
7. The use of Sirius ducting will increase the warranty of the unit to 6 years.

WARNING

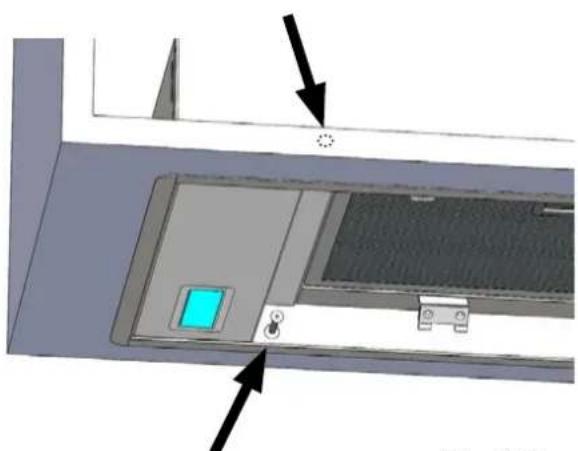

The rangehood is quite heavy, so two people will be needed for installation.

1. To install the appliance, adjust the position of the adjustable side-springs using the supplied screws (fig.5), according to the thickness of the board, in which the appliance will be fixed.

(Fig.5)

1. Insert the rangehood into the cutout in the cabinet until the stop click of the side-springs is heard and the rangehood is supported.

2. Insert the 25mm screws provided into the front and rear holes inside the rangehood (Fig.6) to fix it to cabinetry.

3D diagram of a device interior with highlighted components and arrows indicating direction (no text or symbols)

(Fig.6)25mm screw

1. Insert the grease channel.

2. Insert the grease filter (Fig.3b)

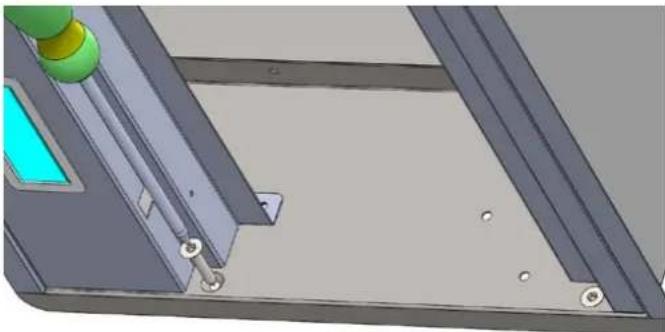

ALTERNATIVE METHOD OF INSTALLATION

1. Drill 4 additional holes to the inside sides of the rangehood body.

3D CAD model of a mechanical assembly with two arrows pointing to features (no text or symbols visible)

1. Secure the rangehood body with appropriately-sized screws.

3D CAD model of a mechanical assembly with mounting holes and a yellow tool (no text or symbols visible)

1. After the four screw are installed and the filters replaced, the installation is now complete.

3D rendering of a mechanical component with a highlighted rectangular area and a cyan indicator light (no text or symbols)

Before connecting the ducting to the motor, make sure the stop valve, which is on the air outlet of the motor, can swing.

Ducted version

Connect the flange to the ducting outlet with appropriate ducting. Connect the appliance with the electrical mains through the supply cord.

Recirculating version (SM923 models only)

Connect the flange with ducting suitable to convey the air to the top of the cabinet.

Connect the appliance with the electrical mains through the supply cord.

Rangehood model	Filters needed and quantity	Part number
SM 923 52 1 x K	KF52 SPS-6007092	3001
SM 923 70 2 x K	KF9 SPS-60079999	999
SM 923 85 2 x K	KF29 SPS-6007175	6019

USING THE RANGEHOOD

SM923 and SM924 (fig. 11)

A: Motor switch on speed 1/off - (low/simmer)
B: Motor switch on speed 2 - (general cooking)
C: Motor switch on speed 3 - (high power)
D: Motor switch on speed 4 - (booster)
E: Light on/off switch

(Fig.11)

MAINTENANCE

• Accurate maintenance guarantees good functioning and long-lasting performance.
• Particular care is due to the grease filter panel. It can be removed by pushing its handle toward the back side of the rangehood and pulling the filter downwards so to unfasten it from its slot (Fig.3). To insert the filter just perform the opposite operation.
• The grease filter needs cleaning by regular handwashing or in dishwashers every two months or 30 continuous hours, depending on its use. Button lights will flash when filter needs to be cleaned. To reset, press and hold the the button for 2 seconds when the motor is off. Filters may require cleaning sooner if frequent heavy frying is done.
• To clean the appliance itself, water and detergent are recommended, while abrasive products should be avoided. For steel appliances specialized detergents are recommended (please follow the instructions indicated on the product itself to obtain the desired results).

NOTE

To remove the rangehood from the cabinet, remove the fixing screws (fig. 6) using a screwdriver, and remove the grease filters (fig.3).

- Push down on the small handle of the springs, which are inside the rangehood, with the necessary strength to unhook the hood from the cabinet.

WARNING

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

REPLACING THE LED LIGHT ON THE SM923 or SM924

1. Before replacing the LED light, switch off the rangehood, then - by using appropriate tools - remove the LED light from its slot (fig.12).
2. Take out the LED light from its connector and replace.

- To find the correct LED light, please contact Sirius directly on our toll-free number: 1300 762 216.

3D rendering of a screwdriver inserted into a component with a highlighted blue square (no text or symbols visible)

(Fig.12)

- NB: light is easier to remove from centre of LED globe. Use a small, flathead screwdriver (pictured), pallette knife or blunt butter knife.

Dear Customer,

Thank you for choosing this Sirius Rangehood.

We are sure that it will provide you with many years of excellent service. At Arisit Pty Limited we are dedicated to ensuring that our customers receive the best possible after-sales care.

The Sirius ‘Protection Plan’ has been devised to give you added peace of mind. Should you encounter any problems with your appliance, our nationwide team of specially trained technicians will deal with your call swiftly and efficiently.

PRIORITY SERVICE, ACCESSORIES & SPARE PARTS

AUSTRALIA

ARISIT PTY LIMITED

40-50 Mark Anthony Drive, Dandenong South,

VIC 3175, Australia

Phone: [phone]

Email: [e-mail]

NEW ZEALAND

ARISIT PTY LIMITED

1A Howe Street, Newton,

Auckland 1145, New Zealand

Phone: [phone]

Email: [e-mail]

Warranty

By registering your ownership NOW, you qualify for Sirius's Total Peace of Mind Protection Plan.

Australian & New Zealand 3 / 6 Year Protection Plan*

This guarantees your appliance for a full 3 years parts and labour & 10 years for the off-board motors (covering manufacturing defects only) from the date of purchase, subject to the Terms and Conditions overleaf.

*3 Year warranty is extended to a 6 year period only when Sirius ducting is installed.

Your Warranty

Register now to qualify.

Terms & Conditions

These Terms and Conditions apply only to Sirius products distributed in Australia and New Zealand by Arisit Pty Limited.

1. This warranty applies for a period of 3 years on all products.
   a) Warranty is extended to a 6 year period when Sirius ducting is installed.
   b) All off-board motors are covered under warranty for a 10 year period for manufacturing defects only.
2. Warranty applies for parts and labour in Australia and New Zealand, commencing from date of purchase.
3. This warranty applies only to the original purchaser/hire purchaser of this appliance and cannot be assigned or transferred. Failure to produce documentary proof of the date of original acquisition by the original purchaser will result in a charge being levied for work done, labour and parts supplied.
4. This warranty does not apply to:
   a) Consumable items such as filters, fuses, and light bulbs.
   b) Damage to body work, paint work, glass, and plastic items (such as, but not limited to windows, covers, baskets, trays, worktops, door handles, control and kick panels.)
   c) Corrosion & rust damage.

A fee may be charged following warranty claims where no fault is found with the appliance.

1. This warranty will not apply where:
   a) The fault is caused by accident, misuse, an infestation of insect and or vermin, fire, flood or the use of products not approved by Arisit Pty Limited.
   b) There has been a failure to comply with the manufacturer's operating and installation instructions.
   c) Service, modification or repair has been carried out by anybody other than an approved Arisit Service Technician.
   d) The appliance has been used/installed anywhere other than a private dwelling, or where it has been used other than for domestic use.
   e) The appliance is subject to a rental agreement.

2. Any defective part that has been replaced becomes the property of Arisit Pty. Limited.

3. This warranty applies only to Sirius appliances purchased and installed in Australia and New Zealand.

4. Loss of use of the appliance or consequential loss of any nature is not covered.

5. A charge may be levied at the discretion of Arisit Pty Limited if the call is deemed unnecessary or if the cause of failure is traced to external sourced such as, but not limited to: blown fused, power failure, faulty installation, customer misuse or negligence, etc

6. Where the appliance, the subject of a warranty claim or repair, is used or installed more than TWENTY (20) kilometres from the nearest Arisit Service Division or Authorised Service Agent, the cost of delivery to the nearest Service

Division or travel costs for a technician or Authorised Service Agent shall be for the account of the Purchaser. Where a built-in appliance is located or installed outside the Arisit Authorised Service Agent's normal service area, additional travel and labour costs shall be the account of the Purchaser.

1. Service is offered during normal business hours only, also appliances to have a clear access in a serviceable area

2. Arisit Pty Limited shall not under any circumstances be responsible in terms of this warranty for the replacement or repair of any part of the equipment which may have been damaged in transit, during and after installation or imperfections after installation.

3. Losses caused by act of God, failure to obtain spare parts, strikes or lockouts are not covered.

4. External off board motors must be installed a minimum of 2 metres and maximum of 7 metres away from the rangehood. This is for optimum sound and performance.

5. All motors must be accessible for servicing purposes and if installed above 2 metres from ground height additional cost will be incurred due to OH&S standards for service agents. Prior to install please check minimum & maximum installation details on the Sirius website, FAQ under support tab.

We reserve the right to amend any of the above without prior notice.

1. This warranty does not affect your statutory rights.

To register for your warranty, please visit:

www.arisitwarranties.com.au/Customer-Registration.aspx or scan the QR code.

ARISIT PTY LIMITED (Australia) ABN 23 091 515 294

40-50 Mark Anthony Drive

Dandenong South VIC 3175

P: Sales & Service: 1300 762 219

F: Sales & Service: [phone]

E: [e-mail]

ARISIT PTY LIMITED (New Zealand)

1A Howe Street Newton, Auckland 1145

PO Box 68-140 Newton, Auckland 1145

P: [phone] - Fax: [phone]

E: [e-mail]

www.arisit.com

www.siriusbrand.com

Year Warranty

when Sirius ducting is used.

Full replacement warranty on parts and labour. Check website for T&Cs.

Sirius Hocos and ducting products are only available from our select group of Sirius Professional Stock's nationwide. For the latest: list of Sirius Stockists near you, please refer to www.siriusbrand.com

All efforts have been made to ensure that the information provided in this brochure is correct at the time of printing. Due to continuous product improvement and ongoing development, Sirius

reserves the right to make changes to the products and technical data without prior notice. Some products appearing in this brochure may be for illustrative purposes only. Diagrams are indicative measures only. Prior to commencing

cabinary outputs the operating/installation instructions accompanying the product must

be referred to at www.siriusbrand.com

10 year warranty on SEM motors.
