Product Type	Built-in Dishwasher
Brand	Frigidaire
Model	FGID2476S
Electrical Requirements	120 V, 60 Hz, 15 A (20 A if connected with food disposer)
Water Pressure	20 – 120 psi
Water Temperature (Minimum)	120 °F (49 °C)
Wash Cycles	Heavy, Normal, 30 Min Wash, China Crystal, Energy Saver, Rinse Only
Options	Hi-Temp Wash, Sanitize, Heat Dry, Air Dry, Delay Start (1–24 hrs), My Favorite Cycle, Child Lock
Capacity (Place Settings)	8, 10, or 12 depending on loading pattern
Upper Rack Features	Adjustable height, fold-down tines, cup shelf with stemware holder
Lower Rack Features	Fold-down tines, soft grip rack
Silverware Basket	Removable, covered section for small items

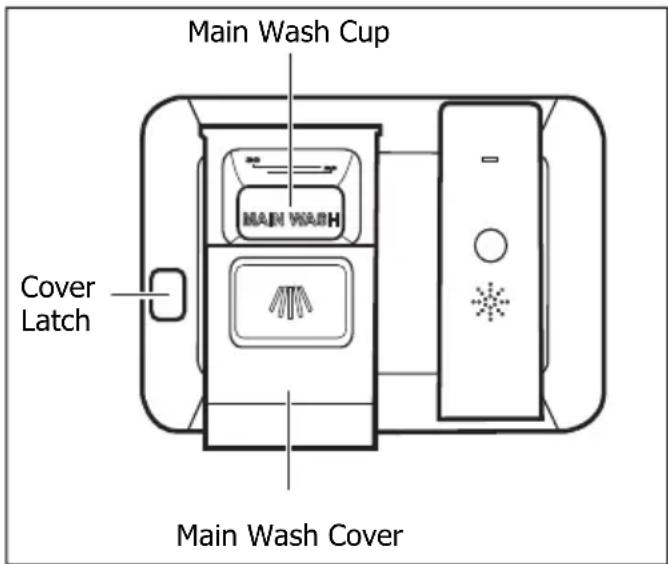

Detergent Dispenser	Main wash cup, accepts tablets

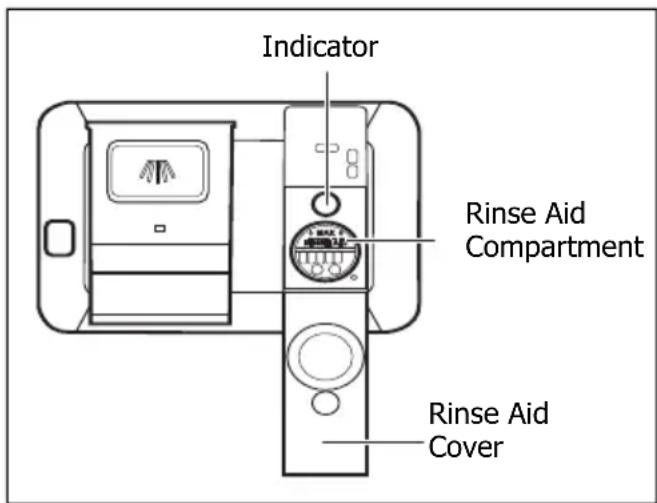

Rinse Aid Dispenser	Adjustable dosage (L0–L6), holds 11–66 washes
Technology	DishSense (soil sensor), Direct Feed Wash System
Sanitize Option	Raises final rinse to 155 °F (68 °C) for 9 minutes, NSF certified
Drying Options	Heat Dry or Air Dry
Display	LED status window, Clean and Sanitized indicators, floor green light
Noise Level	Quieter than previous models (exact dB not specified)
Warranty	1 year limited

Frequently Asked Questions - FGID2476S FRIGIDAIRE

How do I start a wash cycle?

Load dishes, add detergent and rinse aid if needed. Select a cycle and options, then press the START/CANCEL pad and close the door immediately. A tone will sound when the cycle starts.

What cycles are available on the FGID2476S?

The cycles are: Heavy, Normal, 30 Min Wash, China Crystal, Energy Saver, and Rinse Only. Choose based on soil level and dish type.

How do I use the Sanitize option?

Select the Heavy or Normal cycle, then press the WASH TEMP pad until the Sanitize light comes on. The final rinse will reach 155°F (68°C) for 9 minutes. The indicator stays on if criteria are met.

What does error code i10 mean?

Code i10 indicates a low water fill. Check that the water supply line is not pinched and the water shutoff valve is fully open. If the problem persists, contact service.

How do I clean the filters?

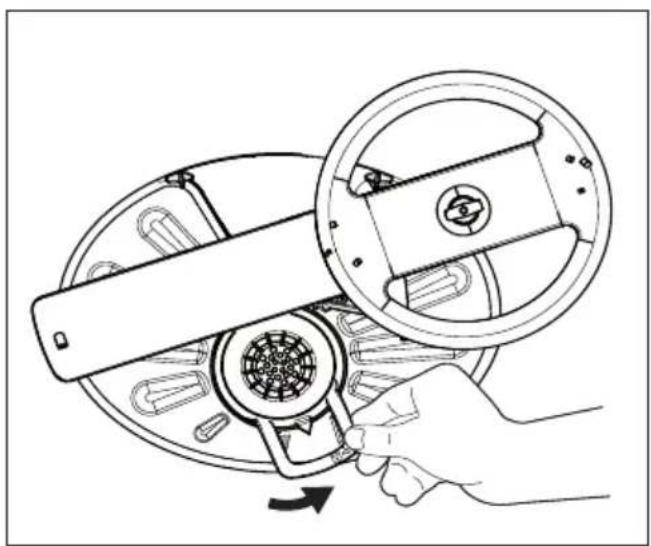

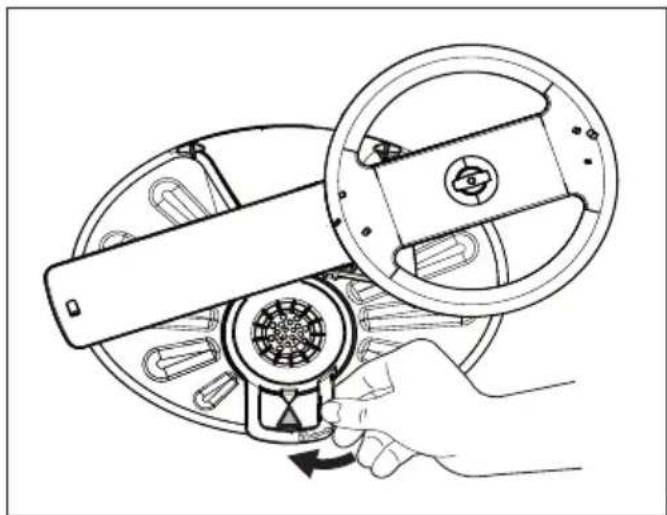

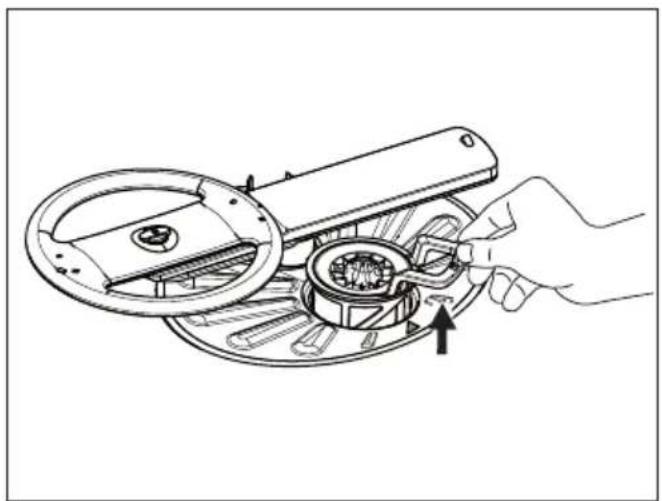

Remove the Cylinder Fine Filter by turning it counterclockwise and lifting out. Rinse under running water. Then remove the Coarse Filter from the tub bottom and flush it. Replace both filters.

Why are my dishes not drying completely?

Ensure the Heat Dry option is selected and the rinse aid dispenser is full. Increase the rinse aid dosage (L0–L6) by pressing RINSE ONLY and DELAY START for 5 seconds. Also check water temperature (at least 120°F).

How do I adjust the rinse aid dosage?

Press and hold RINSE ONLY and DELAY START for 5 seconds. The status window shows current level (L0–L6). Press DELAY START to increase. Press START or pause to confirm.

Can I use detergent tablets?

Yes, place one tablet in the main wash cup. For quick cycles like 30 Min Wash, place the tablet directly on the bottom of the tub to ensure full dissolution.

How do I lock the controls to prevent child use?

Press and hold the DELAY START pad until the status window displays 'loc'. To unlock, press and hold DELAY START again until 'loc' disappears.

What should I do if the dishwasher won't start?

Check that the door is properly closed and latched. Ensure the circuit breaker is not tripped and the water supply is on. Also verify that no Delay Start is set. Press START/CANCEL and close the door.

USER MANUAL FGID2476S FRIGIDAIRE

Line drawing of various household appliances including washing machines, refrigerators, and a refrigerator (no text or symbols)

TABLE OF CONTENTS

Important Safety Instructions ......2

Product Registration ....3

Features at a Glance 4

Operating Instructions ......4-8

Preparing and Loading Dishes .....9-12

Dishwasher Dispenser and Detergents .. 13-14

Factors Affecting Performance ....15

Care and Cleaning 16-17

Before you Call 17-19

Major Appliance Warranty ....20

WARNING

When using your dishwasher, follow basic precautions, including the following:

For your Safety

• Use your dishwasher only as instructed in this Use and Care Manual.
• This Manual does not cover every possible condition and situation that may occur. Use common sense and caution when installing, operating and maintaining any appliance.
• NSF certified residential dishwashers are not intended for licensed food establishments.
• DISHWASHER MUST BE ELECTRICALLY GROUNDED. This appliance must be connected to a ground metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on this appliance. Read the Installation Instructions for details.
• This dishwasher is designed to operate on regular house current (120V, 60Hz). Use a circuit equipped with a 15 ampere fuse or circuit breaker. Use a 20 ampere fuse if dishwasher is connected with a food disposer.
• Do not operate dishwasher unless all enclosure panels are in their proper place.
• Keep young children and infants away from dishwasher when it is operating.
• Do not let children abuse, sit, stand or play on door or racks of a dishwasher.
• To reduce the risk of injury, do not allow children to play in or on the dishwasher.
• Use only detergents and rinse agents recommended for use in a dishwasher.
• Store dishwasher detergent and rinse agents out of the reach of children.
• If the dishwasher drains into a food disposer, make sure disposer is completely empty before running dishwasher.

• Do not wash plastic items unless marked: "Dishwasher Safe" or equivalent. Check with manufacturer for recommendations, if not marked. Items that are not marked dishwasher safe may melt and create a potential fi re hazard.

• When loading items to be washed:
  -Locate sharp items and knives so that they are not likely to damage the door seal or tub.
  -Load sharp items and knives with the handles up to reduce the risk of cut-type injuries.

• Do not tamper with controls.

• Use care unloading the dishware when the SANITIZE option has been selected. Contents may be hot to the touch immediately after the end of cycle.
• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If hot water system has not been used for such a period, before using dishwasher, turn on all hot water faucets and let water flow from each for several minutes. This will release any accumulated hydrogen gas. HYDROGEN GAS IS FLAMMABLE. Do not smoke or use an open flame during this time.
• Do not store or use combustible materials, gasoline or other fl ammable vapors and liquids in the vicinity of this or any other appliance.
• Disconnect electrical power to dishwasher before servicing.
• Repairs should be done by a qualified technician.
• To avoid entrapment and/or suffocation, remove door or door latch mechanism from any dishwasher that is discarded or not in use.

WARNING

To reduce the risk of fire, electrical shock or injury when using your dishwasher, follow the above basic precautions.

WARNING

This symbols will help alert you to such dangers as personal injury, burns, fire and electrical shock.

SAVE THESE INSTRUCTIONS

Thank you for choosing Frigidaire

This Use & Care Guide is part of our commitment to customer satisfaction and product quality throughout the service life of your new appliance.

We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you, please use this page to record important product information.

Purchase Date

Model Number

Serial Number

Registering your product with Frigidaire enhances our ability to serve you. You can register online at www.frigidaire.com or by dropping your Product Registration Card in the mail.

NOTE

Very Important Information - Read Before Operating Your Dishwasher! Normal Operating Sounds

This dishwasher does not sound like most dishwashers - IT'S QUIETER.

Your Direct Feed Wash System dishwasher uses energy efficiient motors for the wash and drain portions of the cycle you select. Each cycle has a series of water fi lls and drains for washing and rinsing dishes. As each cycle begins, you may-or may not- hear the drain motor. The next sound you will hear is the splashing water as it enters the tub.

PLEASE BE ADVISED: If you compare this dishwasher to previous models, you may be surprised at what you DON'T hear.

NOTE

The dishwasher is programmed to remember your last cycle so you do not have to reset each time. To start the dishwasher using the same cycle and options selected on the previous wash, just press the START/CANCEL pad.

NOTE

Not all cycles and options available on all models.

NOTE

Why Energy Efficiient Units run long cycles: Several factors are important to washing dishware. The energy use of the dishwasher was reduced by applying more of the factors that don't use so much energy and less of the ones that use more. As a result, you will see that the wash cycles take longer.

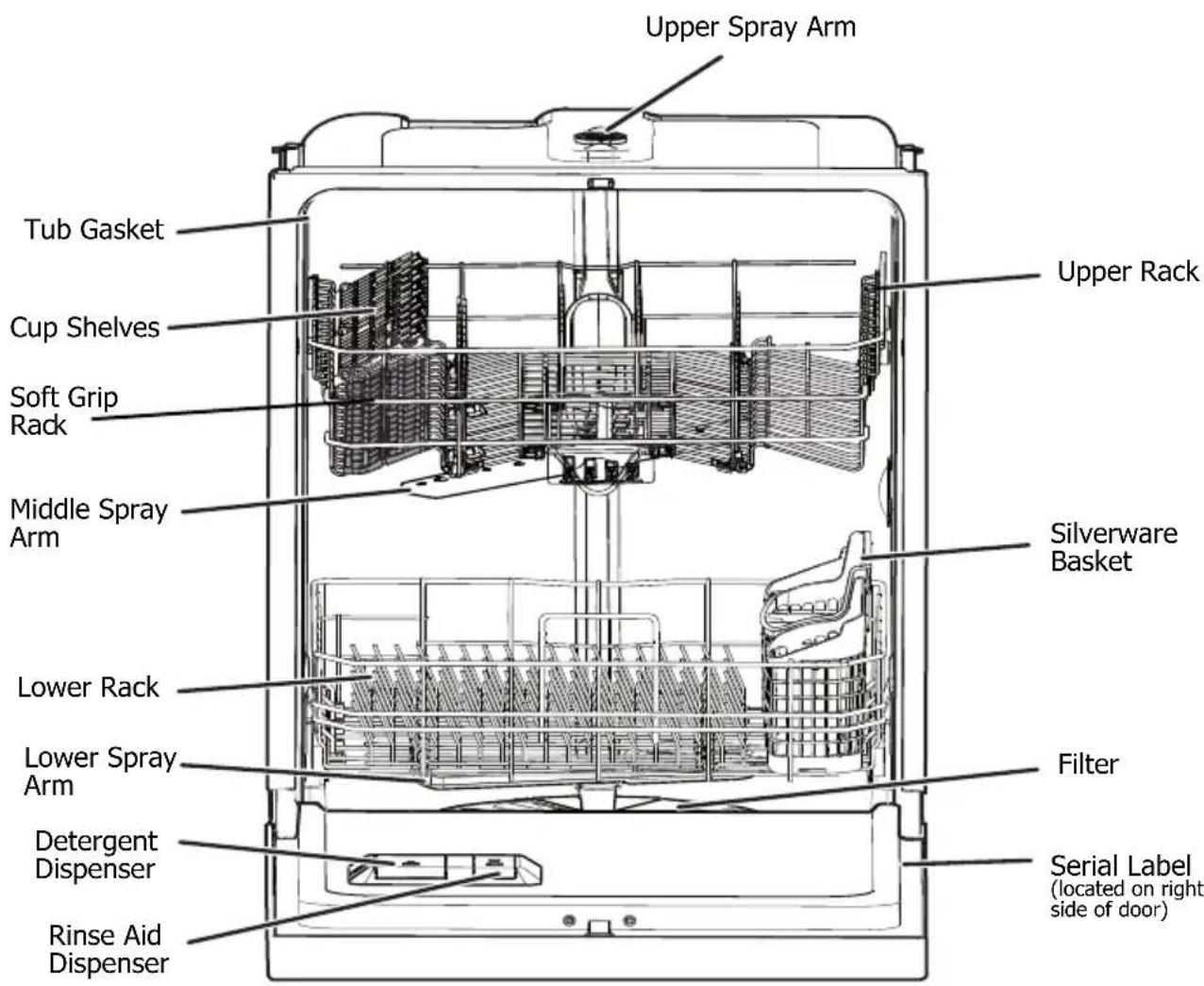

FEATURES AT A GLANCE

Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. First, the dishwasher drains for a few seconds to remove soils dropped while loading, then fi lls with water covering the fi Iter area. Water is then pumped through the spray arms. Soil particles go through and across the fi Iter and down the drain as the water is pumped out. This series of steps are repeated as needed. The number of water fi lls varies with the cycle being used.

Features may vary according to model

Operating Instructions

Getting Started

1. Load Dishwasher (See Preparing and Loading Dishes).
2. Add detergent (See Dishwasher Dispenser & Detergents).
3. Add Rinse Aid, if needed (See Rinse Aid).
4. Run hot water faucet nearest dishwasher until water is hot. Turn water off.
5. Select desired CYCLE (See Cycle Chart).
6. Select desired OPTION (See Option Selections).
7. To start, press START/CANCEL pad and close door immediately.

To Start a Cycle

When cycle and options are selected, LEDs of selected cycle and options are illuminated. The status window displays the cycle time and then displays 'Press Start'.

To start the cycle, press START/CANCEL pad and close the dishwasher door immediately.

The status window displays 'Close door' after the START/CANCEL pad is pressed.

A tone will sound indicating the cycle is successfully started after door is closed.

NOTE

Your dishwasher uses a DishSense™ Technology to understand how much food is on the dishes and then adjusts the cycle accordingly.

CAUTION

Property Damage Hazard

Before starting dishwasher be sure that the water is connected and turned on. Failure to do s may cause damage to the pump seal and result in water leakage.

Wash Cycle Selections

Cycle times are approximate and will vary with options selected. Hot water is necessary to activate dishwasher detergent and melt fatty food soils. An automatic sensor will check the incoming water temperature and, if it is not hot enough, the cycle will be lengthened for automatic water heating in the main wash and final rinse of all cycles. This happens even when HI-TEMP WASH option has not be selected. When HI-TEMP WASH is selected, an even higher temperature will be reached to handle heavier soil loads.

Recommended Cycle for typical use:

The Normal cycle with its factory default options of normal temperature and heated dry together provide the best all around performance. This cycle selection is recommended for everyday use and is suitable for a large range of both dish load sizes and food quantities remaining on those dishes.

Option Selections Wash Pressure

The programmed cycles default to the "surge" pressure option which varies the pressure optimally for the cycle's intended normal use. If, for some special circumstance, either a very low "spray" or very high "scour" pressure is desired that may be selected by pressing the WASH PRESSURE pad. Due to wash cycle optimization, some pressure options are not selectable in all wash cycle.

Wash Temp

The programmed cycles default to the "normal" temperature option, to choose HI-TEMP or SANITIZE press WASH TEMP pad again.

so Hi-Temp Wash Option

HI-TEMP WASH option is selected, by pressing the WASH TEMP pad. The dishwasher heats water in the main wash to approximately 140F (60°C) and increases the temperature higher in the final rinse to help with the drying stage.

This helps dishwasher detergent remove food grease and soil from dishes more effectively and aids in drying performance by adding additional rinse aid and increasing the water temperature.

Sanitize Option

To sanitize your dishes and glassware, select SANITIZE option, by pressing WASH TEMP pad. When selected, the light will come on and remain on until end of cycle. The water temperature in the fi nal rinse will be raised to 15°F (68°C) and will maintain that temperature for 9 minutes. This option is available in Heavy and Normal Cycles. Only these sanitization cycles have been designed to meet NSF requirements.

The cycle time will be extended until the proper water temperature is reached. Washing action will continue during the water heating delay. For best results, the incoming water temperature should be at least 120°F (49°C).

The sanitize criteria may not be satisfied if there is an interruption of the cycle, power failure or if the incoming water temperature is below 120F (49°C).

To turn off the SANITIZE option, press the Wash Temp pad. The SANITIZE light will turn off.

OPERATING INSTRUCTIONS

Heat Dry

The HEAT DRY option in combination with rinse aid will enhance drying performance. HEAT DRY option is available on all cycles.

Air Dry

The AIR DRY option will reduce temperature in the hot rinse of the selected wash cycle. This option will slightly decrease energy usage but will increase the likelihood that dishware will not be dry.

My Favorite Cycle

The MY FAVORITE CYCLE option allows you to program your preferred cycle and options into one button. Once Programmed, simply press the MY FAVORITE CYCLE button will select the programmed cycle and options. Pressing the START/CANCEL pad and close the dishwasher door immediately will start the cycle.

To Program the MY FAVORITE CYCLE button:

1. Select your preferred cycle and options
2. Hold the MY FAVORITE CYCLE button for 3 seconds.

The LED over the MY FAVORITE pad turns on indicating the MY FAVORITE CYCLE option has been programmed. To change the MY FAVORITE CYCLE option simply repeat steps one and two above.

Child Lock Controls

To prevent children from accidentally changing the dishwasher cycle or starting the dishwasher, lock the dishwasher controls by pressing the DELAY START pad until the status window displays "loc". To unlock the controls, press the DELAY START pad until "loc" is no longer displayed in the status window.

To Cancel a Cycle and Delay Start

Both running cycle and delay countdown can be cancelled at any time.

Open the dishwasher door and press the START/CANCEL pad until you hear a tone. The running cycle or delay countdown is cancelled.

If desired, a new cycle can now be selected, by pressing START/CANCEL pad and closing the door immediately, the new cycle will begin.

Green Light

When the GREEN LIGHT illuminates on the floor this indicates that the wash cycle is complete.

Delay Start

The DELAY START option allows you to automatically delay starting your dishwasher from 1-24 hours.

Select your desired cycle and options, then press the DELAY START pad until the desired delay time displays in the status window. The LEDs of selected cycle and options are illuminated. The status window displays the delay time and then displays 'Press Start'.

To start the delay countdown, press START/CANCEL pad and close door immediately.

The status window displays 'Close door' after the START/CANCEL pad is pressed.

A tone will sound indicating that the countdown has started after the door is closed. The selected cycle starts when the countdown is completed.

Opening the door during cycle

If you open the door while a cycle is running or delay is counting down, the dishwasher will stop running.

The LEDs of selected cycle and options are illuminated, the status window displays the remaining cycle time or delay time and displays 'Press Start'.

To resume, press START/CANCEL pad and close the dishwasher door immediately.

The status window displays 'Close door' after the START/CANCEL pad is pressed.

A tone will sound indicating that the dishwasher will begin running from the point of interruption after the door is closed.

If the dishwasher door is kept open for too long, or the door is closed without pressing START/CANCEL pad, the running cycle or delay countdown will be cancelled.

Status Indicator Lights

The CLEAN light will remain on after the door is opened.

When the SANITIZE option is selected and the criteria is met, the Sanitized indicator will display and remain on after the door is opened. If the sanitization criteria is not achieved, the indicator will not display. This can happen if the cycle is interrupted or if the sanitization temperature could not be reached due to incoming water temperature signifi cantly below 120F.

Status Window

The STATUS window, available on some models, indicates the following activity:

1-24..... Number of delay start hours. The last hour will count down in minutes.

MINUTES...... Number of minutes left in cycle (1-199).

L0----L6.... Level of Rinse Aid dosage.

CLOSE DOOR...... Close door will scroll across the status window indicating the door needs to be closed.

PRESS START...... Press start will scroll across the status window indicating the START/CANCEL pad needs to be pressed.

User Instruction Code

Instruction Code Displayed	Problem	Solution
Close door	This indicates the door has been left open or not properly latched.	Ensuring the door is properly latched will clear the display. This does not indicate a problem with your dishwasher and service will not need to be contacted.

Error Code

Displayed Error Code*	Problem	Solution
i10	A low fi ll has been detected.	Look for a pinched water supply line, or water shutoff is not completely opened.
i20;i40;iF0	Clogged fi lters or a restricted drain line has been detected.	Check and clean both fi lters and sump area and check for a pinched or blocked drain hose. If the drain line is attached to a disposer, check that the knockout plug has been removed.
i30	A leak or overflow of water has been detected in the bottom pan.	Look for loose connections at the water inlet valve and ensure the unit is properly leveled.
i50 A problem has been detected with the drain or wash motor.		Pressing the cancel button or turning power off at the breaker for 5 min. should clear this error code and the unit can be restarted.If this does not resolve the problem, service will need to be called.
i60	A problem has been detected with the water heating system.
iC0	A problem has been detected with the electronic control system.

*In all Error Code instances, if Pressing the cancel button or turning power off at the breaker for 5 min. does not resolve the problem, contact the Frigidaire Customer Care Center at 1-800-944-9044.

Cycle Chart

Cycle	Settings	Water (approx.)	Time * (Hours)	Washes/ Rinse
HeavyFor pots, pans casseroles and dinnerware with dried-on or baked-on soils, and silverware	DefaultSurge, Hi-Temp and Heat OptionsScour, Sanitize and Air	7.0 - 7.9 gal.26.6 - 29.9 liters	2^1/_4 - 3^1/_4	4 Washes3 Rinse
NormalFor regularly soiled dishes and silverware.	DefaultSurge, Normal and Heat OptionsScour-spray, Hi-Temp Sanitize and Air	2.9 - 7.3 gal.11.0 - 27.7 liters	2 - 3^1/_4	5 Washes2 Rinse
30 Min WashA fast wash for lightly soiled dishes and silverware	DefaultScour, Normal and Heat OptionsAir	4.5 gal.17.1 liters	^1/_2	3 Washes1 Rinse
China CrystalFor lightly soiled China and Crystal	DefaultSpray, Normal and Heat OptionsNone Available	5.7 gal.21.5 liters	1^1/_4	3 Washes2 Rinse
Energy SaverFor lightly soiled pre-rinsed dishes and silverware	DefaultSurge, Normal and Air OptionsScour-Spray	4.4 - 7.9 gal.16.5 - 29.7 liters	1^1/_4 - 1^3/_4	5 Washes3 Rinse
Rinse OnlyFor rinsing dishes that will be washed later.	DefaultSurgeOptionsNone Available	2.0 gal.7.6 liters	^1/_4	2 Rinse

NOTE\*

The time remaining may suddenly increase or drop several minutes. This means that the dishwasher received input from the Smart Sensor concerning the soil load and has automatically adjusted the cycle length.

PREPARING AND LOADING DISHES

Dish Preparation

Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuously fi Itered wash fl uid will remove remaining food particles. Burned-on foods should be loosened before loading. Empty liquids from glasses and cups.

Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time. Unless the dishwasher is to be operated at once, it is best to pre-rinse or use the rinse only cycle to rinse off these food soils.

• Load racks so that large items do not prevent the detergent dispenser from opening.
• Check manufacturer's recommendations before washing items in question.
• If the dishwasher drains into a Food Disposer, be sure disposer is completely empty before starting dishwasher.

Line drawing of hands using a tool to clean or store items around a circular plate (no text or symbols)

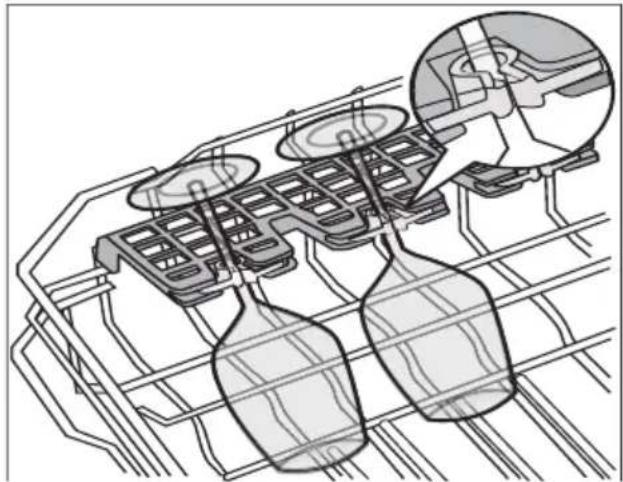

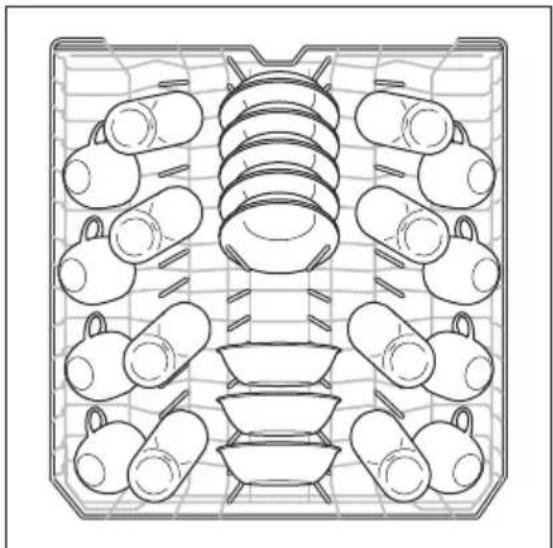

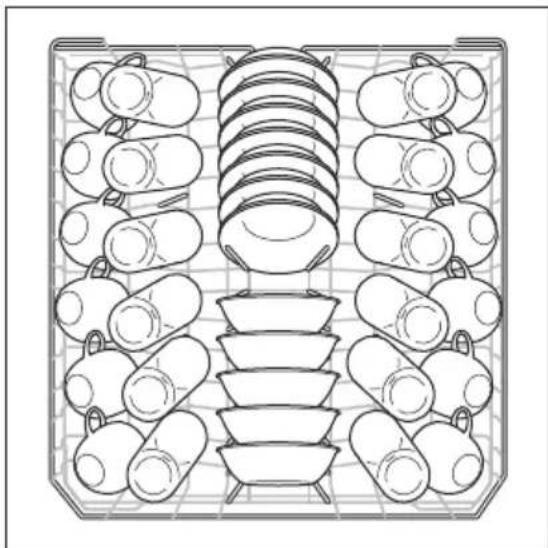

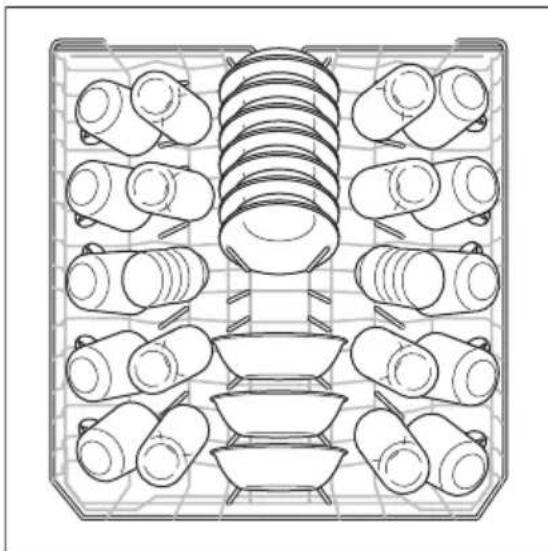

Loading the Upper Rack

Features and appearance of racks and silverware basket may vary from your model.

The upper rack is designed for fl exibility in loading a wide variety of items including cups, glasses, stemware, small plates, bowls, etc.

Load glasses and plastic items in upper rack only.

Load items with open end facing down for better cleaning and draining.

Damage may occur if delicate items touch each other during dishwasher operation.

Long-handled knives and utensils can be placed in upper rack.

Be sure nothing protrudes through the bottom of the rack to block rotation of middle spray arm.

Top-down line drawing of a dining table setup with multiple round tables and bowls (no text or symbols)

8 place settings standard loading pattern

Top-down line drawing of a multi-tiered table with cylindrical and oval objects arranged in rows (no text or symbols)

10 place settings standard loading pattern

Top-down line drawing of a dining table with various round tables and bowls (no text or symbols)

12 place settings standard loading pattern

PREPARING AND LOADING DISHES

Adjustable Upper Rack

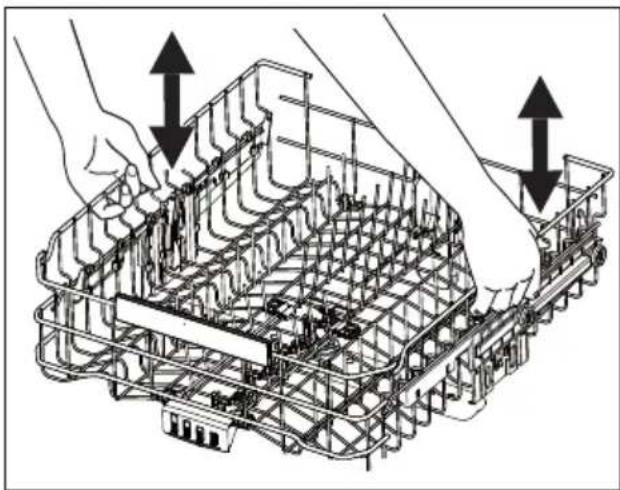

The top rack height can be easily adjusted to accommodate loading taller dishes in either rack. To raise the rack to the upper position, lift rack until both sides are at the same height and the rack will secure in place. Ensure that the rack remains level from front to back with both sides at the same height. To lower rack lift the rack slightly then push down and release.

Technical line drawing of a mechanical assembly with two hands operating a grid-like component (no text or symbols)

Fold-down Tines Upper Rack

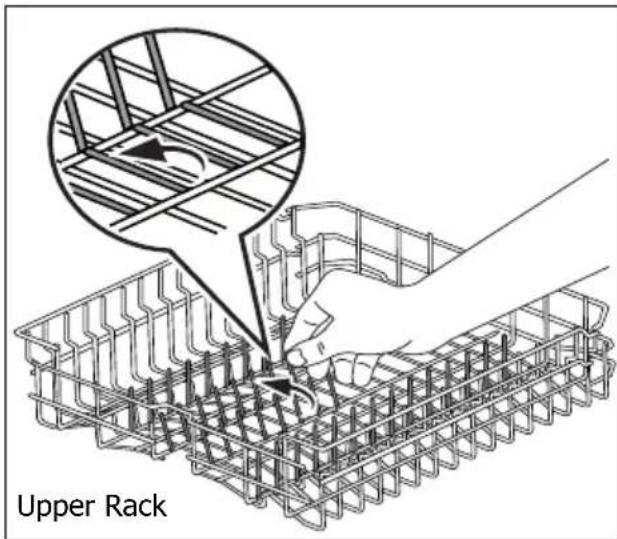

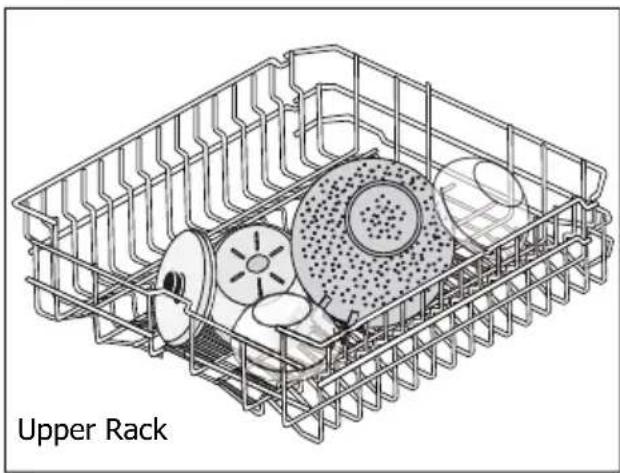

The fold-down tines in the upper rack makes it easy to load those extra large and hard-to-fi t items. The tines may be left up for normal use or folded down for more fl exible loading.

Line drawing of an Upper Rack with various kitchen utensils inside a metal cage (no text or symbols on the diagram itself)

Loading the Bottom Rack

Features and appearance of racks and silverware basket may vary from your model.

The bottom rack is best for plates, saucers, bowls, and cookware. Large items should be placed along the edge so they do not block the spray arm rotation. For best results, place bowls, casseroles, and sauce pans with soiled surface facing down or toward the center. Tilt slightly for better drainage.

Make sure tall items do not block spray arm rotation.

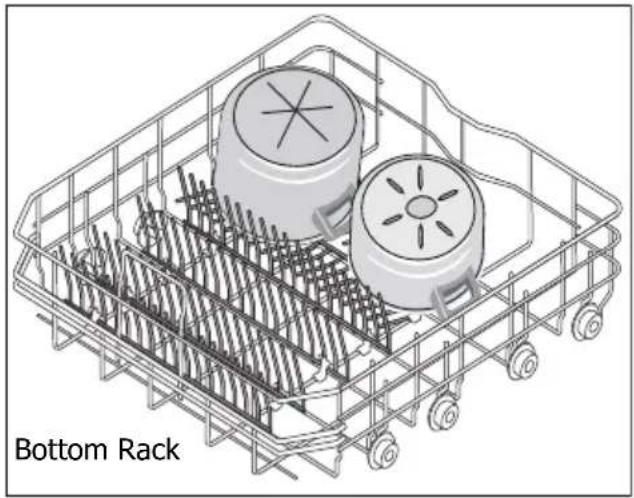

Be sure pan handles do not protrude through the bottom of the rack and block the spray arm rotation.

Line drawing of a kitchen drawer with plates, bowls, and forkshells (no text or symbols)

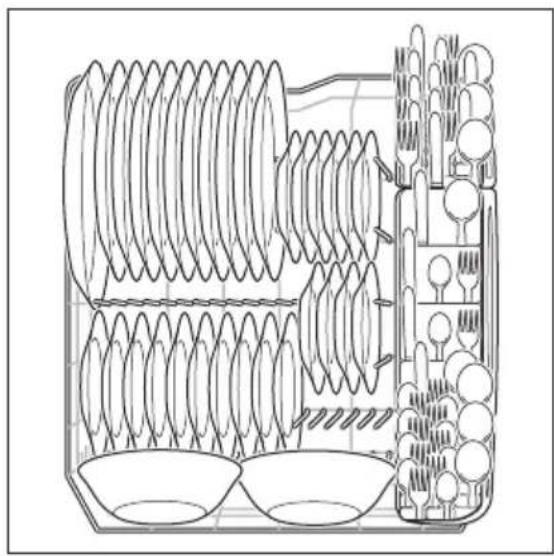

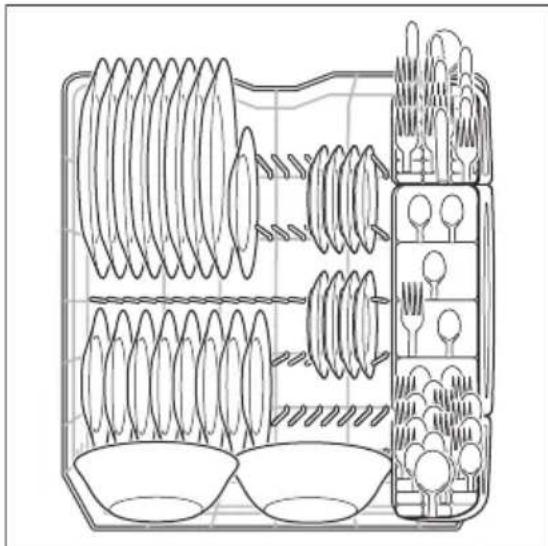

8 place settings standard loading pattern.

Cross-sectional diagram of a multi-tiered storage or processing unit with circular and rectangular components (no text or labels)

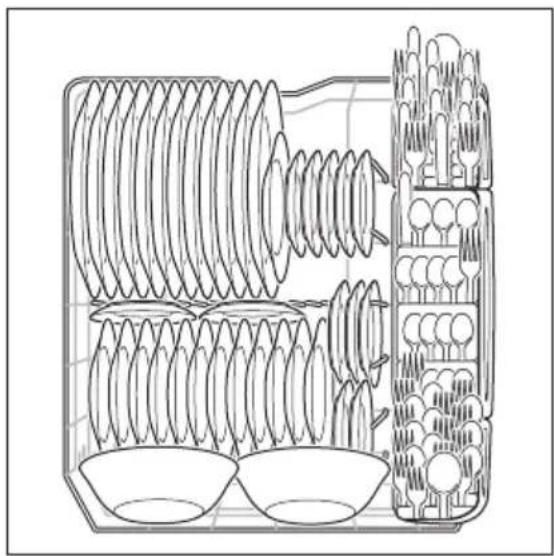

10 place settings standard loading pattern.

Isometric line drawing of a shopping cart with two circular components and vertical rods, labeled 'Bottom Rack' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with coiled components and housing (no text or symbols)

12 place settings standard loading pattern

Cup Shelf/Stemware Holders

The Cupshelf holder can be folded down to be used to load two levels of cups, juice glasses, and other short items or fold down both and use for long items such as utensils and spatulas. Fold up to load tall glasses.

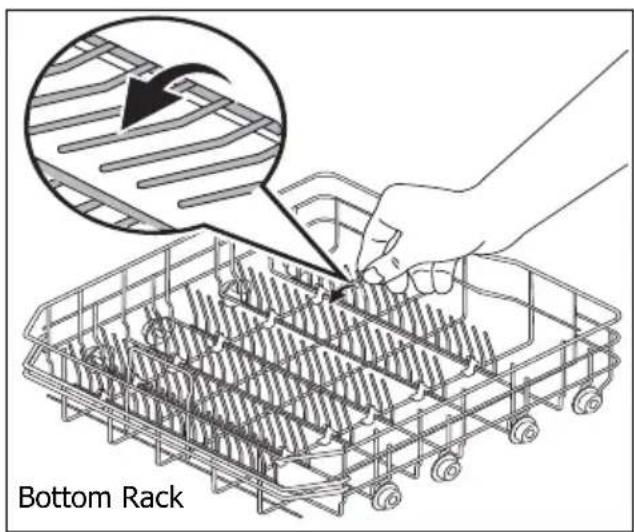

Fold-down Tines Bottom Rack

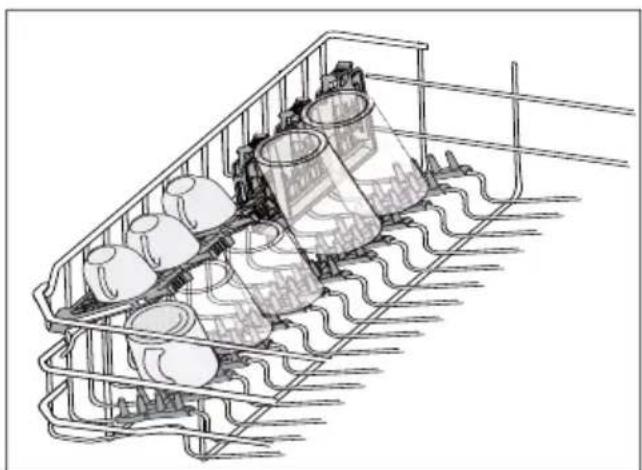

The fold-down tines in the lower and upper rack make it easy to load those extra large and hard-to-fi t items. The tines may be left up for normal use or folded down for more fl exible loading.

Line drawing of a shopping cart filled with plastic bottles and containers (no text or symbols)

PREPARING AND LOADING DISHES

The Stemware holder is used to securely hold your wine glasses in place for the best wash. To properly secure you glass simply press the stem of the glass into the center of the Cupshelf the rubber pieces will secure around the stem to hold the glass in place.

Cross-sectional diagram of a vehicle engine cylinder assembly with piston and housing components (no text or labels)

Soft Grip Rack

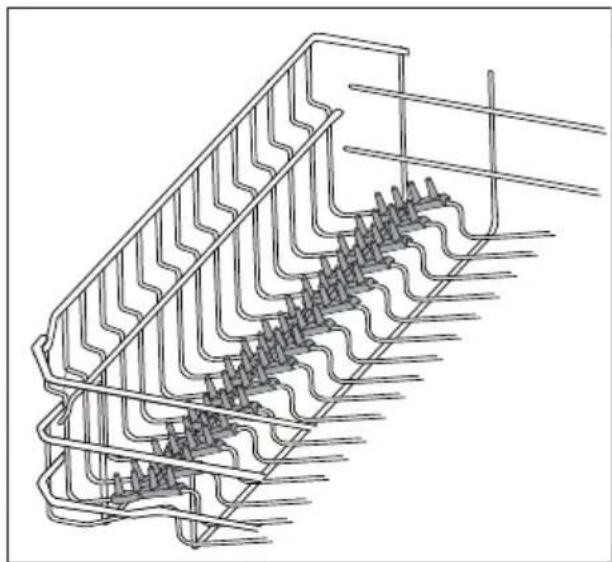

The Soft Grip Rack is used to secure in place glassware and those plastic items that may move around with the water from the spray arm.

Technical line drawing of a staircase with wavy metalwork and grid-like structural elements (no text or symbols)

Loading the Silverware Basket

CAUTION

Load sharp items (knives, skewers, etc.) pointing down.

Failure to do so may result in injury.

Features and appearance of racks and silverware basket may vary from your model.

Load the silverware basket while it is in the bottom rack or take the basket out for loading on a counter or table.

In some models small items like baby bottle caps, jar lids, corn cob holders, etc., can be placed in a covered section. Close the cover to hold small items in place.

Use suggested loading patterns, as shown, to increase washability of the silverware.

Be sure nothing protrudes through bottom of basket or rack to block the spray arm.

Do not mix silver and stainless to avoid damaging the silver fi nish.

Line drawing of a food storage tray with cutlery and utensils (no text or symbols)

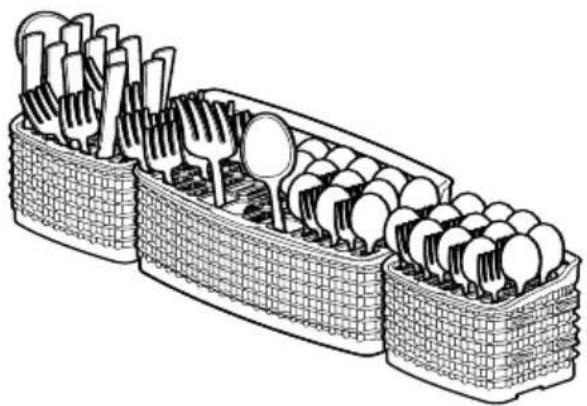

When covers are up, mix items in each section of the basket with some pointing up and some down to avoid nesting. Water spray cannot reach nested items.

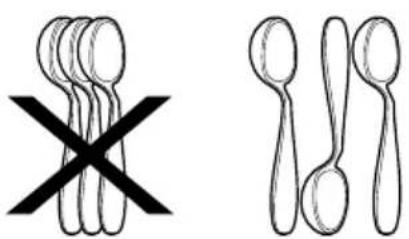

Two simple line drawings of spoon illustrations, one crossed with a black X symbol and the other with two spoons (no text or labels)

To add or remove items after wash cycle starts:

• Unlatch door and wait a few seconds until wash action stops before opening.
• Add the item and wait a few seconds to allow cold air to slowly expand inside dishwasher.
• To resume cycle press the START/CANCEL pad and close the door immediately.

DISHWASHER DISPENSER & DETERGENTS

Filling the Detergent Dispenser

The detergent dispenser has a main wash cup where you will add your detergent or detergent tab.

• Use only fresh automatic dishwashing detergent. Other detergents may cause oversudsing.
• When using automatic dishwashing detergent tablet, place one tablet in main wash cup and close.
• Add detergent just before starting cycle.
• Store detergent in a cool, dry location. Moist or caked detergent may not dissolve properly.

CAUTION

The use of industrial grade detergent can damage parts of the dishwasher leading to damage to the unit and surrounding property. Use only household grade automatic dishwasher detergents.

NOTE

Hard water may cause lime deposit buildup on the interior of the dishwasher. For cleaning instructions see "Removing Spots and fi Im" section.

How much Detergent to use

The amount of detergent to use depends on the water hardness. Water hardness is measured in grains per gallon. Using too little detergent can result in poor cleaning and hard water fi Iming or spotting. Using too much detergent in soft water can cause etching to some glassware which is surface damage that appears like a fi Im but cannot be wiped off. Your local water company, water softener company or county extension agent can tell you the water hardness in your area.

NOTE

Detergent tablets and All-In-One packs may not dissolve completely if used with the QUICK WASH cycles. If one of these products are used, place the tab or pack directly on the bottom of the tub in a corner before starting the dishwasher, rather than placing these products in the dispenser.

DISHWASHER DISPENSER & DETERGENTS

Dosage of detergent

Place a single detergent tablet or packet into the detergent dispenser compartment.

Detergent Usage Chart

Water Hardness Soft Water(0-3 grains)	Medium Hard Water(4-8 grains)	Hard Water(9-12 grains)
Amount(teaspoons)	4 teaspoons 6 teaspoons	8 teaspoons
Dispenser cup level:	First Line Second Line Full

NOTE

For very hard water, detergent alone may not be enough. A water softener is recommended to improve water quality and dishwashing performance. Try adding more detergent at the beginning of the main wash portion of the cycle. As a rule, use 1 teaspoon for each grain above 12. Unlatch the door, open slowly and add detergent to the bottom of the tub. Close the door to latch and the dishwasher will continue through the cycle.

Rinse Aid

Rinse aid greatly improves drying, reduces water spots, fi lming. With it water "sheets" off dishes rather than forming water droplets that cling and leave spots.

A dispenser, located next to the detergent cup, automatically releases a measured amount of rinse aid during the last rinse. If spotting and poor drying are problems, increase the amount of rinse aid dispensed. The indicator will be dark when full and will show clear when it is time to refi ll.

To add liquid rinse aid, open the cover. Pour in rinse aid until liquid touches the indicated fill level. Close the cover.

Do not overfi ll since this can cause oversudsing. Wipe up any spills with a damp cloth.

The dispenser holds enough for 11 to 66 washes, depending on setting.

IMPORTANT

Before starting a cycle, run hot water to clear cool water from pipe.

The HEAT DRY option in combination with rinse aid will enhance drying performance. The energy required to use the HEAT DRY option costs pennies per cycle. You may choose not to select the HEAT DRY option; however you will have items in your dish load that will not be completely dry at the end of the cycle.

How to adjust the rinse aid dosage

Press and hold the RINSE ONLY and DELAY START pad for 5 seconds until the status window shows rinse aid level. Pressing the DELAY START pad increases the increment level (L0-L6).

Once the rinse-aid level reaches L6, the status window will start back at level L0.

Pressing the START button or just pausing for a few seconds confi rms the rinse aid level setting: the status window shows the duration of the cycle.

Water Pressure

The hot water line to dishwasher must provide water pressure between 20 and 120 psi.

Low water pressure may occur when laundry or showers are in operation. If you experience poor wash performance you may need to wait until water use is reduced before starting the dishwasher.

Water Temperature

Hot water is needed for best dishwashing and drying results. Water entering dishwasher should be at least 120^ F ( 49^ C) to give satisfactory results.

To check water temperature entering dishwasher:

• Turn on hot water faucet nearest dishwasher for several minutes to clear cool water from pipes.
• Hold a candy or meat thermometer in the water stream to check the temperature.
• If temperature is below 120 °F (49°C), have a qualified person raise the hot water heater thermostat setting.

CARE AND CLEANING

Outside - Occasionally wipe with a mild nonabrasive detergent and water. Rinse and dry.

Care of Drain Air Gap

If a drain air gap was installed for your built-in dishwasher, check to make sure it is clean so the dishwasher will drain properly. A drain air gap is usually mounted on the counter top and can be inspected by removing the cover. This is not part of your dishwasher and is not covered by warranty.

Clean the Cylinder Fine Filter

The Cylinder Fine Filter is designed to collect some big items such as broken glass, bones and pits. The Cylinder Fine Filter needs to be cleaned to maximize wash performance.

Remove the Cylinder Fine Filter as shown, rotate it counterclockwise, lift it out, empty and clean it by rinsing under running water and replace. Use of a sponge or bottle brush may be necessary to remove all food residue.

Line drawing of a hand holding a steering wheel with a circular component, showing mechanical assembly (no text or symbols)

Technical line drawing of a hand operating a mechanical device with a circular component and gear mechanism (no text or symbols)

Line drawing of a hand operating a car steering wheel with a magnified inset showing the wheel assembly (no text or symbols)

Clean the Coarse Filter

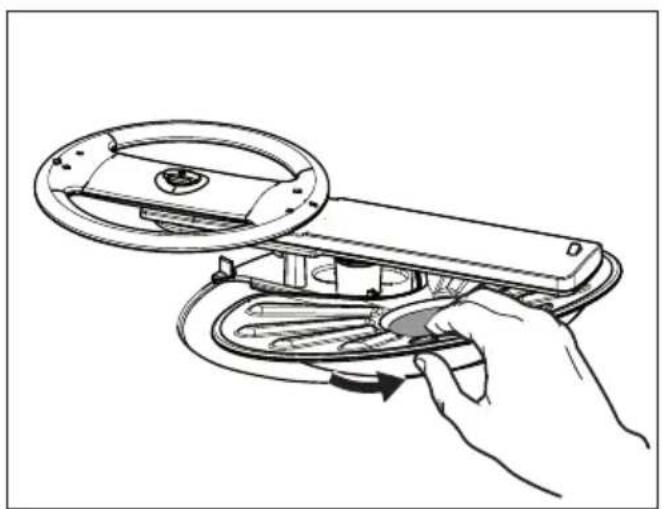

Take out the Cylinder Fine Filter and remove the Coarse Filter from the dishwasher tub bottom. Flush the Coarse Filter by holding it under running water and replace.

Line drawing of a hand holding a mechanical device with a circular component and tool handle (no text or symbols)

Winterizing

A dishwasher left in an unheated place should be protected from freezing. Have a qualified person do the following:

To Disconnect Service:

1. Turn off electrical power to the dishwasher at the supply source by removing fuses or tripping circuit breaker.
2. Shut off water supply.
3. Place a pan under the inlet valve. Disconnect water line from the inlet valve and drain into pan.
4. Disconnect drain line from pump and drain water into pan.

To Restore Service:

1. Reconnect the water, drain, and electrical power supply.
2. Turn on water and electrical power supply
3. Fill detergent cup and run the dishwasher through a HEAVY cycle.
4. Check connections to make sure they do not leak.

CAUTION

Property Damage Hazard

Freezing temperatures may cause water lines to rupture. Be sure all supply lines to and circulating lines within dishwasher are protected.

Failure to do so could result in property damage.

NOTE

See Installation Instructions for more details on disconnecting and restoring service to your dishwasher.

Before calling for service, review this list. It may save you both time and expense. This list includes common experiences that are not the result of defective workmanship or material in your dishwasher.

Food Soils Left on Dishes

• Choose another cycle for longer washing time.
• Choose the Hi-Temp Wash option.
• Check rack loading section for proper loading-avoid nesting items.
• Home water pressure may be too low - should be 20 to 120 pounds per square inch (psi).
• Check incoming water temperature. It should be at least 120°F (49°C). (See Factors Affecting Performance.)
• Check water hardness. For extremely hard water, it may be necessary to install a water softener. (See Detergent Chart).
• Use Fresh Detergent.
• Make sure items are not blocking the spray arms, preventing them from rotating.

Dishes not Dry

• Select heat dry option.
• Make sure the rinse aid dispenser is filled.
• Increase the discharge setting of rinse aid. (See Rinse Aid).
• Check the incoming water temperature. Be sure it is at least 120°F (49°C).
• Check for proper loading-avoid nesting items.
• Plastic items may need to be towel dried.
• Cups with a concave bottom will collect water. Load them at the far left of the upper rack so they will be held in a tilted position.

Glassware/Flatware Spotted or Cloudy

• Check water hardness. For extremely hard water, it may be necessary to install a water softener. (See Detergent Chart).
• Water temperature may be low. Avoid extremely low or high temperatures. (See Factors Affecting Performance.
• Avoid overloading and improper loading. (See Preparing and Loading Dishes).
• Use fresh detergent. Old detergent is ineffective.
• Make sure rinse aid dispenser is filled.
• Check to see that proper amount of detergent is being used for cycle selected. Also, check phosphate level. (See Detergent Dispenser.)
• Home water pressure may be too low - it should be 20 to 120 pounds per square inch (psi).

Dishware Chipped

• Load with care and do not overload. (See Preparing and Loading Dishes).
• Place delicate items in top rack.
• Place glasses securely against pins and not over pins.
• Load items so they are secure and don't jar loose when moving racks in and out. Move racks in and out slowly.
• Make sure tall glasses and stemware will clear top of tub when rack is pushed in.
• Fine antique china and crystal should be hand-washed.

Water in Bottom of Tub

- Water left in the tub bottom after the cycle is complete is not normal. If water remains in the bottom of the tub, the dishwasher may not be draining properly. (See Dishwasher Does not Drain Properly).

Dishware Stained or Discolored

- Tea and coffee can stain cups. Remove the stains by hand washing in a solution of 1/2 cup (120 ml) bleach and one quart (1L) of warm water. Rinse thoroughly.

• Iron deposits in water can cause a yellow or brown fi lm. A special fi lter installed in the water supply line will correct this problem. (See Removing Spots and Film).
• Aluminum utensils can leave gray/black marks when they rub against other items. Load Properly.
• Certain high acid foods can cause discoloration of stainless steel and plastics if allowed to sit for a long period. Use the Rinse Only cycle or rinse by hand if not operating dishwasher at once.
• Mixing stainless steel and silver utensils in silverware basket can cause pitting of the stainless steel blades. Avoid mixing stainless steel and silver.

Cycle Takes a Long Time

• Is cycle in a water heating delay?
- Has the delay start option been selected?
- Has the sanitize option been selected?

Normal Sounds You Will Hear

- Normal sounds include water fi II, water circulation and motor sounds.

Dishwasher Leaks

- Use only fresh detergent designed for automatic dishwashers. Measure detergent carefully. Try a different brand.

Etching

• Using too much detergent especially in soft or softened water causes damage that looks like a fi lm but cannot be removed.
• Adjust the amount of detergent based on the water hardness. (Check Detergent Chart).
• Lower the water temperature.

Detergent Left in Dispenser Cup

• Detergent may be old. Discard and use fresh detergent.
• Be sure the dish load doesn't block spray from entering the detergent cup.
• Check to see if cycle has been completed.
• Make sure items do not prevent the detergent dispenser from opening.

Vapor at Vent

• Spilled rinse aid can cause foam and lead to overflowing. Wipe up any spills with a damp cloth.
• Water vapor escapes from the vent during the drying part of the cycle. This is normal.
• Check to see that dishwasher is level. (See Installation Instructions).

Dishwasher Won't Run

• Check to see if circuit breaker is tripped or if a fuse is blown.
• Make sure water supply is turned on.
• Check to see if cycle is set correctly. (See Operating Instructions).
• Is dishwasher set for Delay Start Option?
  • Make sure door is closed and latched.

Dishwasher Won't Fill

• Is water supply turned on?

Dishwasher Does Not Drain Properly

• If unit is hooked up to a food waste disposer, make sure the disposer is empty.
• Check to see if the knockout plug has been removed from inside the food waste disposer inlet.
• Check to see if drain hose is kinked.
• Make sure cycle is complete, not in a pause.

Dishwasher has an Odor

• Soiled dishes left in dishwasher too long can create an odor. Use Rinse Only cycle.
• There will be a "new" smell when first installed. This is normal.
• Check to see if unit is draining properly. (See Dishwasher Does Not Drain Properly).

Stains on Tub Interior

- Washing large amounts of dishware with tomato based soil can cause a pink/orange appearance. This will not affect performance and will gradually fade over time. Pre-rinsing or using the Rinse Only cycle will reduce the chance of staining. Using air dry option will lessen staining.

Opening the door during cycle

- If the dishwasher door is opened while the unit is running, the START/CANCEL pad must be pressed and the door shut immediately to return the unit to the selected cycle and option.

Removing Spots and Film

Hard water can cause lime deposit buildup on the interior of the dishwasher. Dishes and glasses may also get spots and fi lm for a number of reasons. (See Glassware/Flatware Spotted or Cloudy section). To remove buildup, and fi lm, clean using the following instructions:

1. Load clean dishes and glasses in normal manner. Do not load any metal utensils or silverware.
2. Do not add detergent.
3. Select the NORMAL cycle. Press START/CANCEL pad. Close and latch the door.
4. Allow dishwasher to run until it starts the second water fi ll (approximately 10 minutes).
5. Unlatch an and open door and pour 2 cups of white vinegar into the bottom of dishwasher.
6. Close and latch door and allow cycle to finish.

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fi res, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.

USA

1.800.944.9044

Frigidaire

10200 David Taylor Drive

Charlotte, NC 28262

Canada

1.800.265.8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4
